Harlingen City Zoning Code

ARTICLE XXI

ILLUSTRATIONS

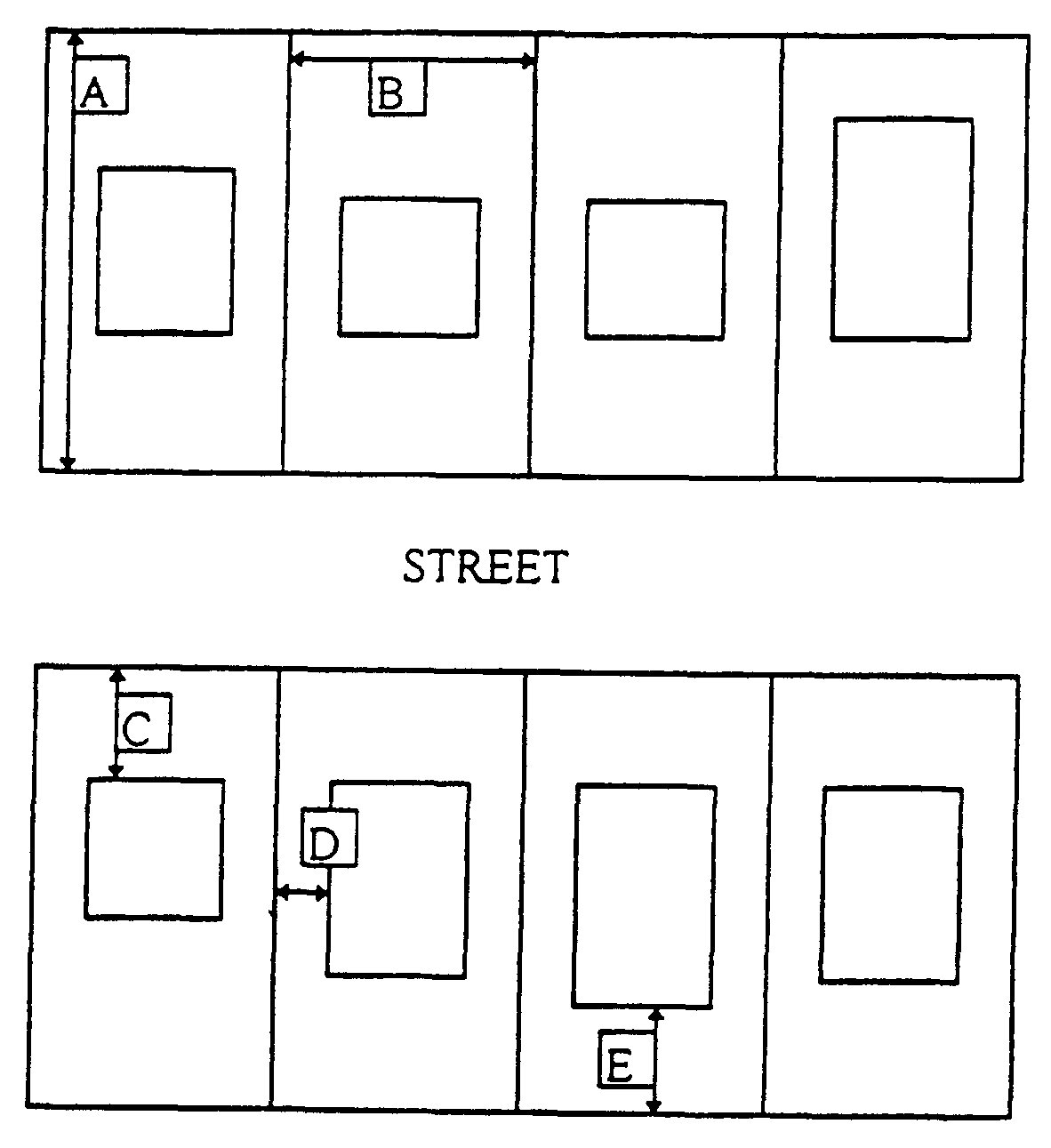

§ 111-580 Appendix A: yard and lot illustrations.

(a)
A: lot depth.
(b)
B: lot width.
(c)
C: front yard.
(d)
D: side yard.
(e)
E: rear yard.
109o Appendix A - yard and lot illustrations.png
(Code 1997, ch. 159, app. A; Ordinance 01-16, adopted 2/21/2001)

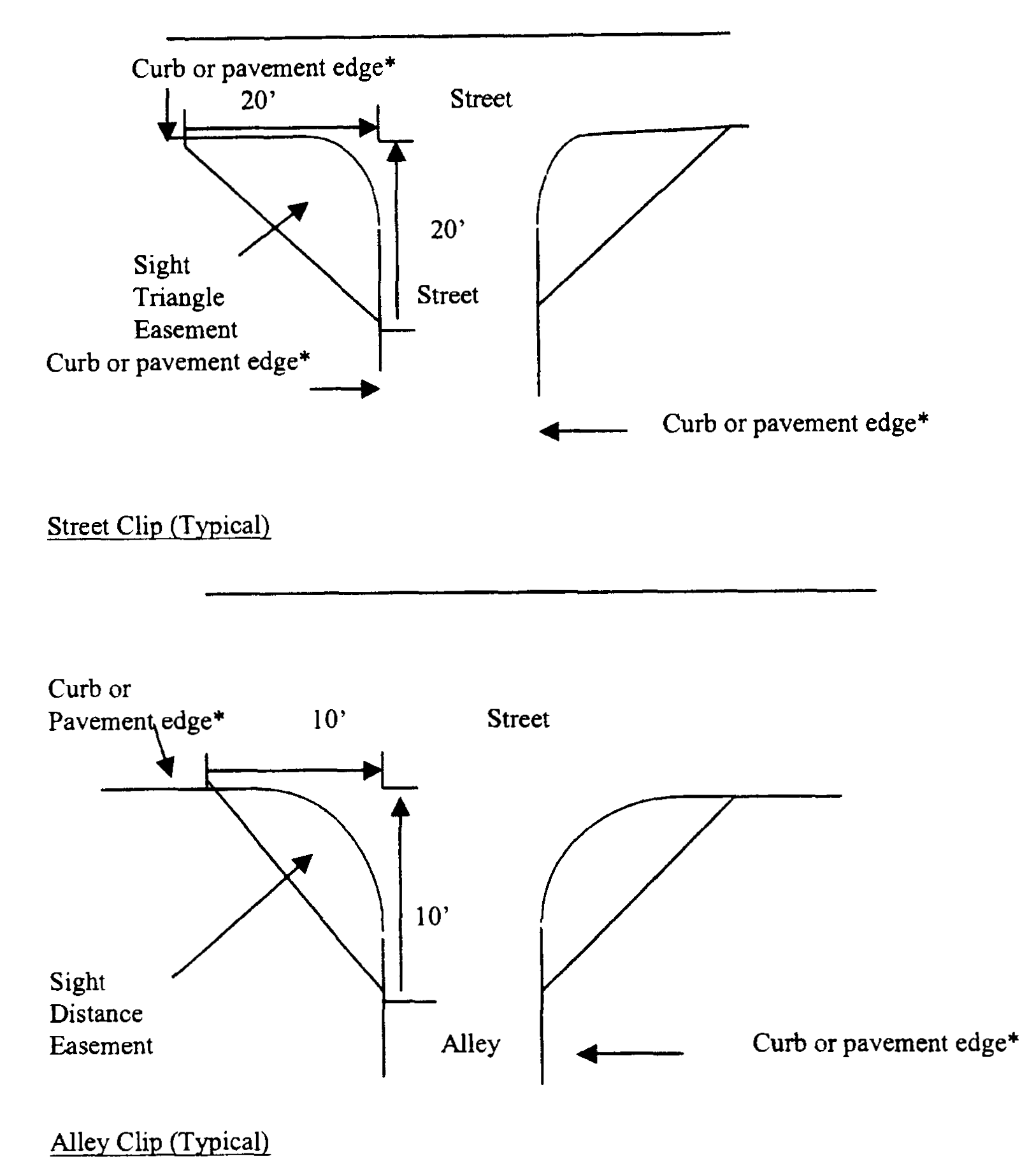

§ 111-581 Appendix A: sight triangle.

A triangular-shaped portion of land established at street intersections in which nothing is erected, placed, planted or allowed to grow in such a manner as to limit or obstruct the sight distance of motorists entering or leaving the intersection.
109p Appendix A - sight triangle.png
If a street is substandard when building permit is sought, the measurement will begin from what is to be the width of the road according to the Major Thoroughfare Plan of the Vision 2020 Comprehensive Plan.
(Code 1997, ch. 159, app. A; Ordinance 01-16, adopted 2/21/2001)

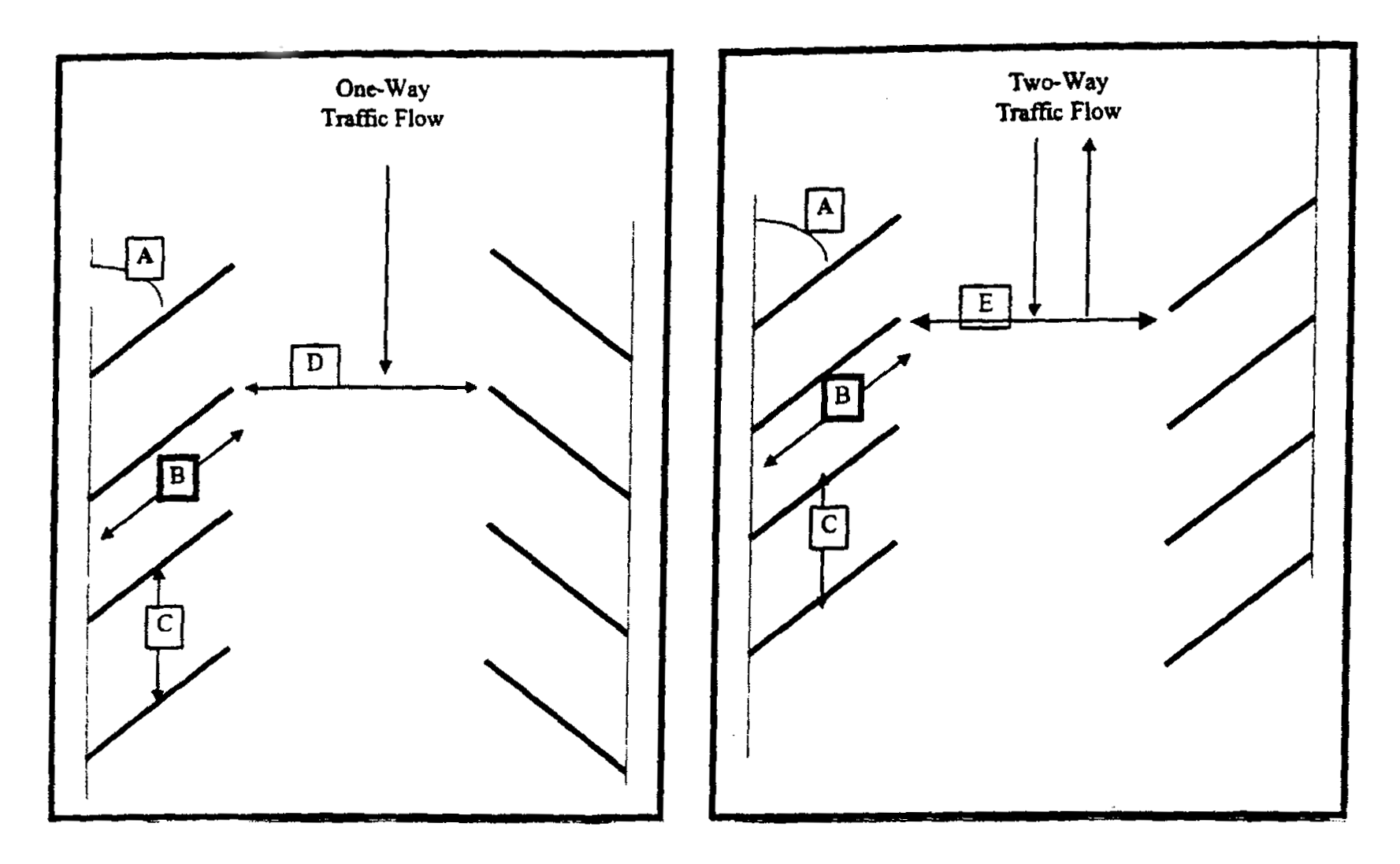

§ 111-582 Appendix B: parking aisle width chart.

(a)
A: Angle of parking in degrees.
(b)
B: Length of parking space in feet.
(c)
C: Width of parking space in feet.
(d)
D: Width of parking aisle (one-way traffic).
(e)
E: Width of parking aisle (two-way traffic).
109p Appendix B - parking aisle width chart.png
Angle of Parking in Degrees
A
90
85
80
75
70
65
60
55
50
45
B
18'
20.9'
21.2'
21.6'
22'
22'
21.9'
21.8'
21.1'
18.6'
C
9'
9'
9'
9'
9'
9'
9'
9'
9'
9'
D
24'
21'
20'
19'
18'
17'
16'
15'
14'
13'
E
24'
22'
22'
22'
22'
22'
22'
22'
22'
22'
(Code 1997, ch. 159, app. B; Ordinance 01-16, adopted 2/21/2001; Ordinance 2024-30 adopted 7/3/2024)

§ 111-583 Appendix B: calculation of handicapped spaces required.

Total Parking Spaces Required or Provided in Lot
Minimum # of Handicap Spaces Required
1 to 25
1
26 to 50
2
51 to 75
3
76 to 100
4
101 to 150
5
151 to 200
6
201 to 300
7
301 to 400
8
401 to 500
9
501 to 1,000
2% of Total
1,001 and over
20 + 1 for each 100 > 1,000

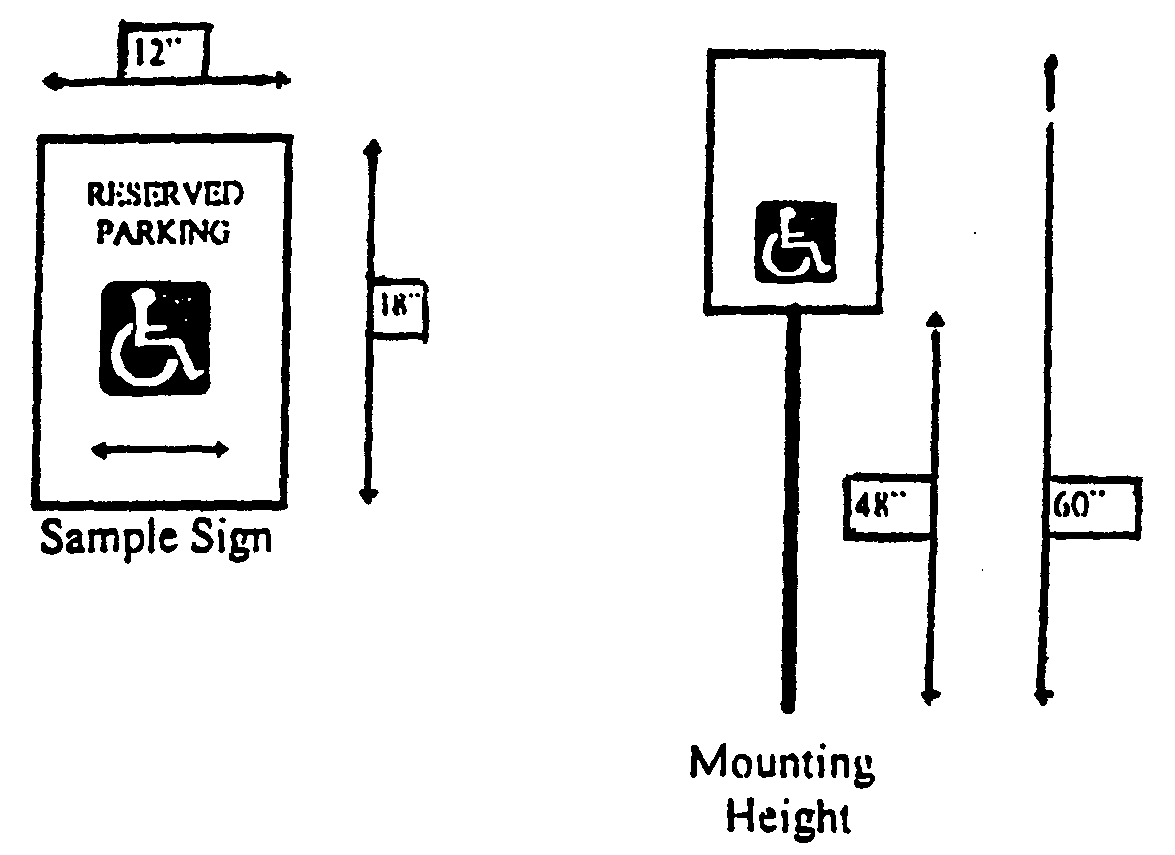

The parking space or area must be identified with signage designated by the State of Texas Department of Licensing and Regulation as follows:
109q Appendix B - handicap parking signage requirements.png
(Code 1997, ch. 159, app. B; Ordinance 01-16, adopted 2/21/2001)
