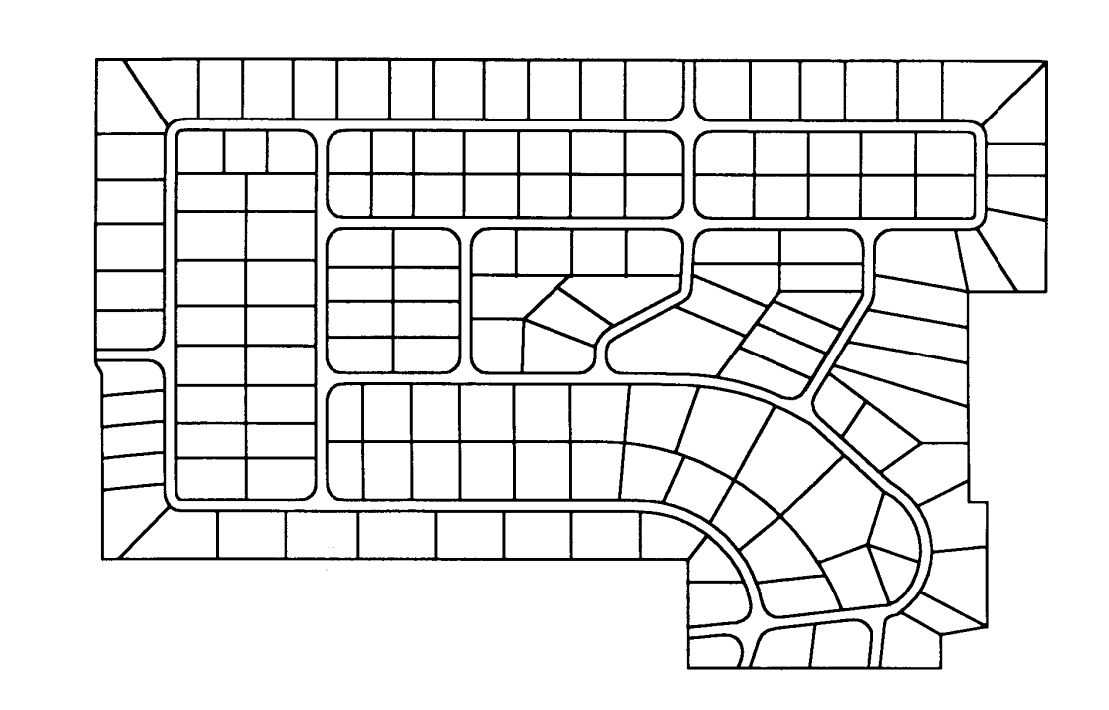

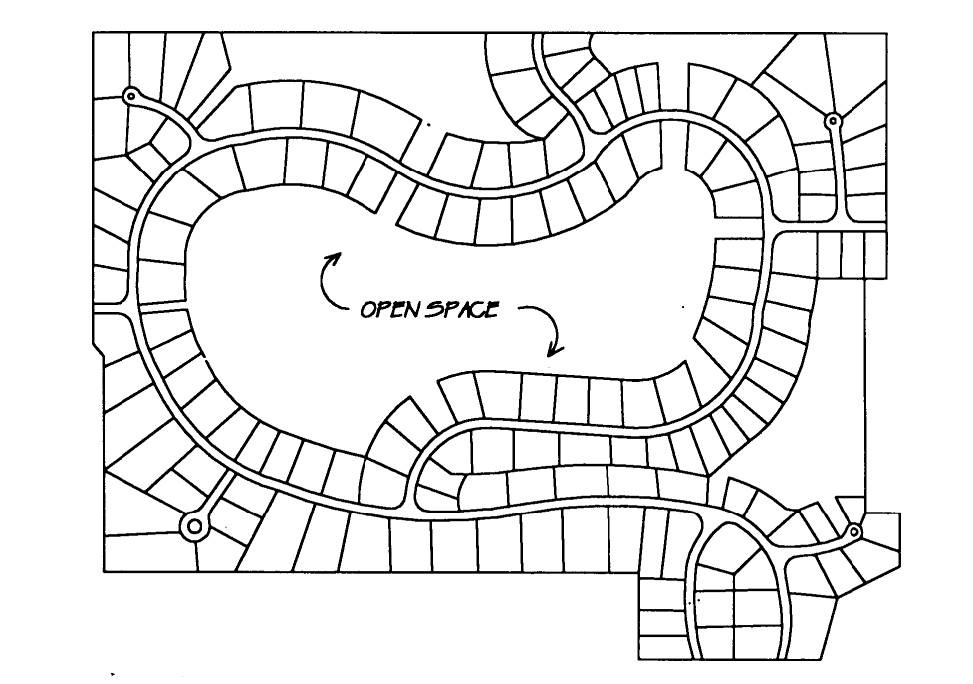

FIGIRE I-1

Cluster Subdivision

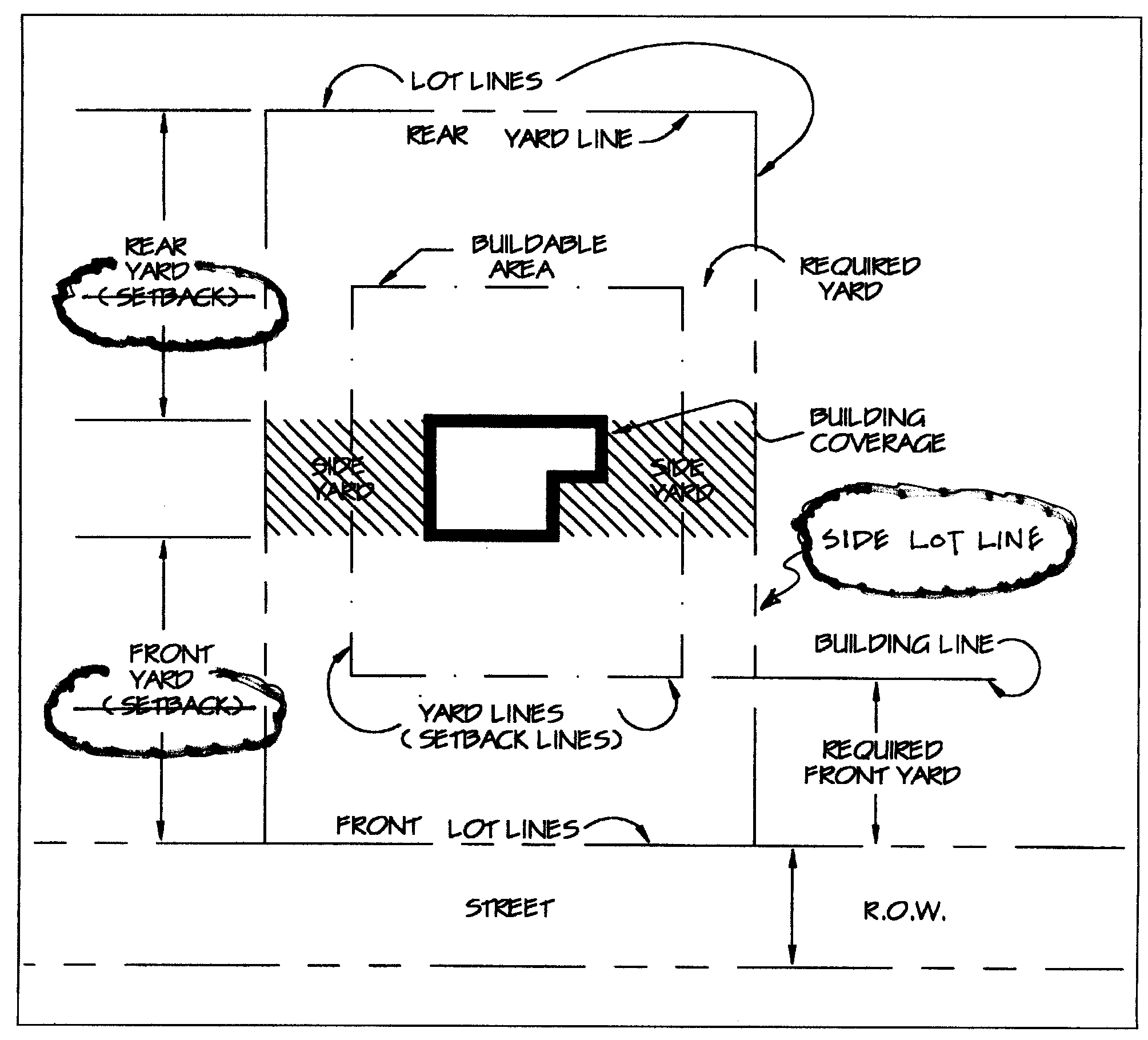

FIGURE I-2

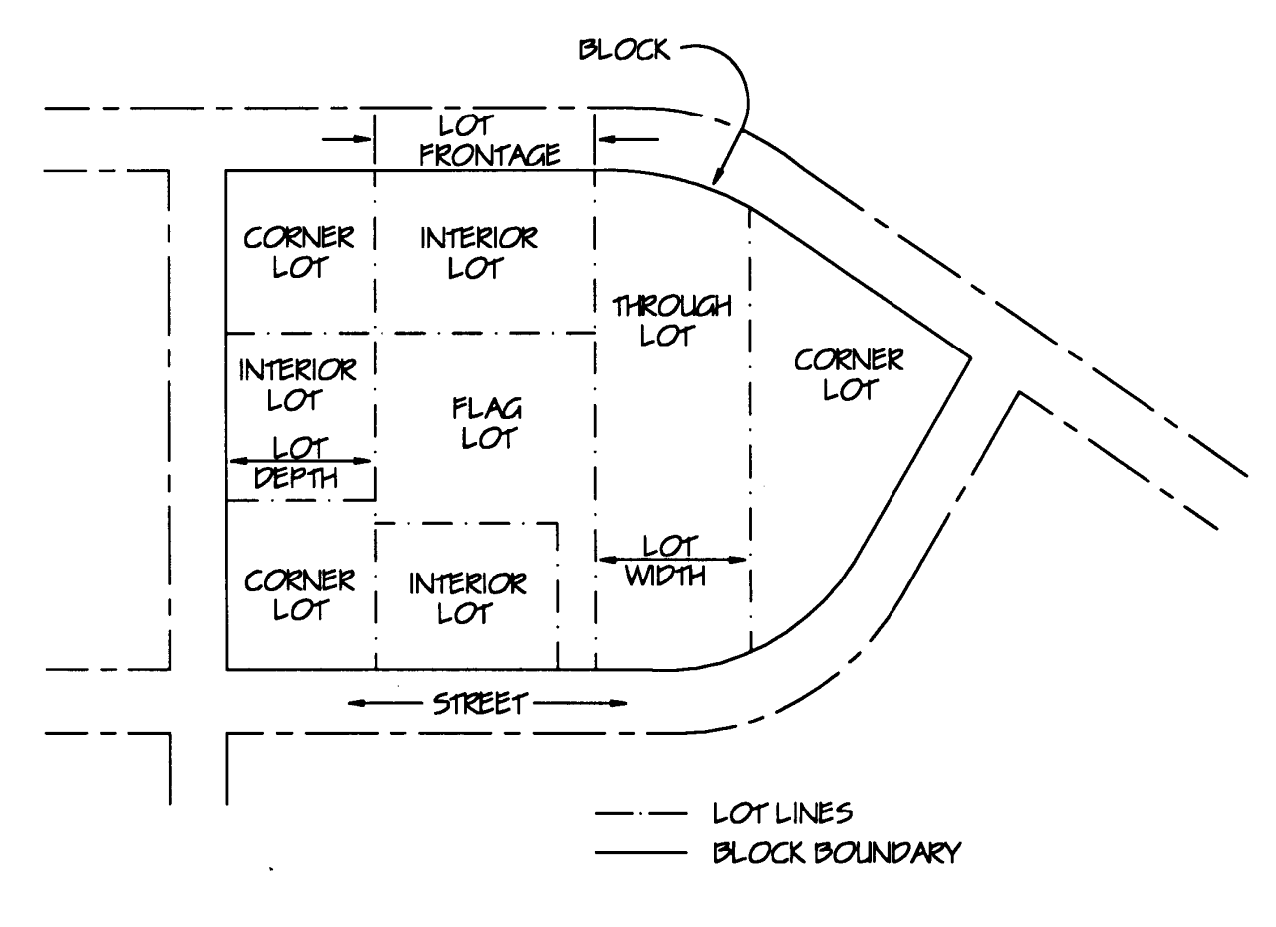

FIGURE I-3
LOT TYPES

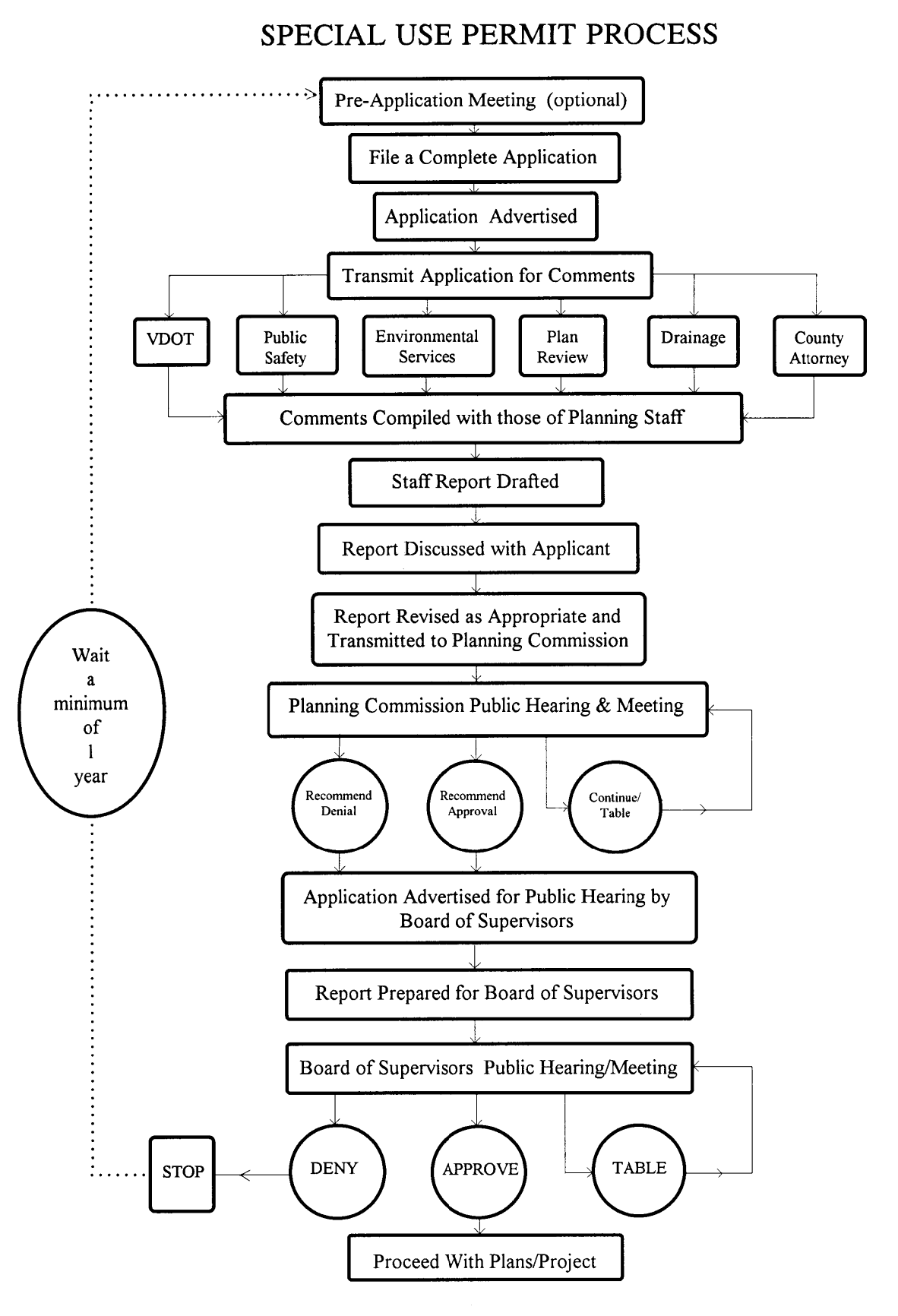

FIGURE I-4

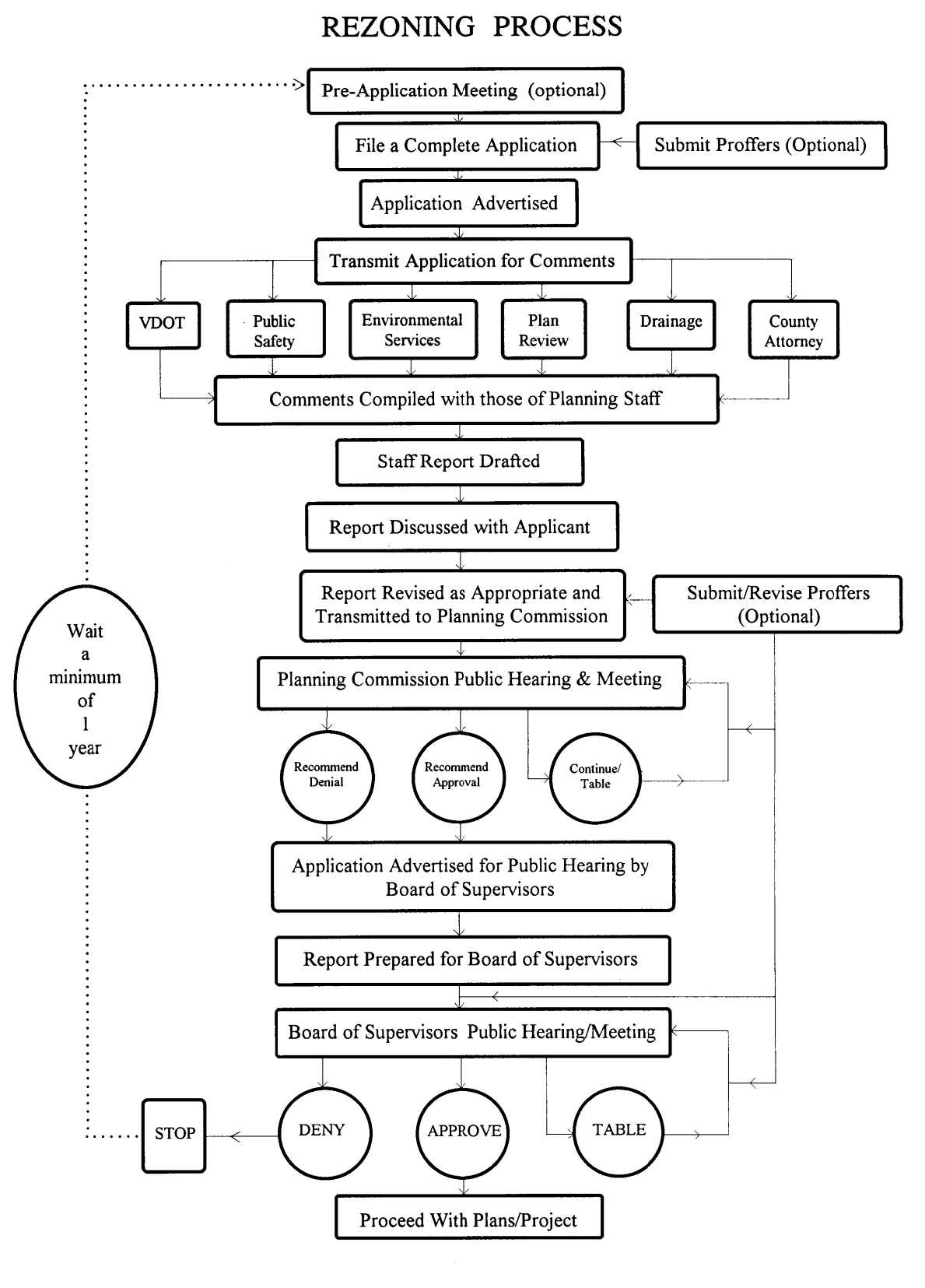

FIGURE I-5

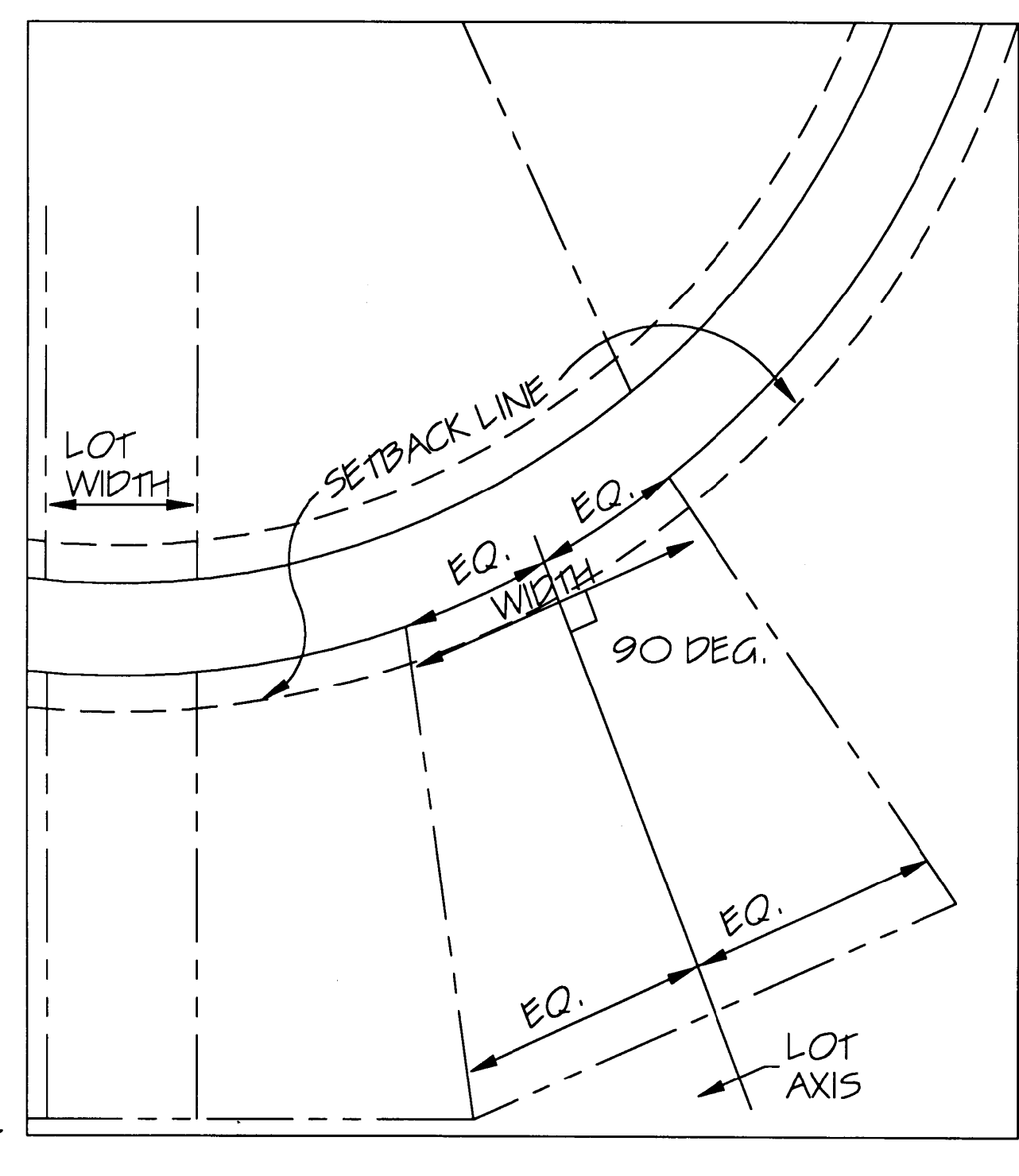

FIGURE II-1
CURVED STREET FRONTAGE

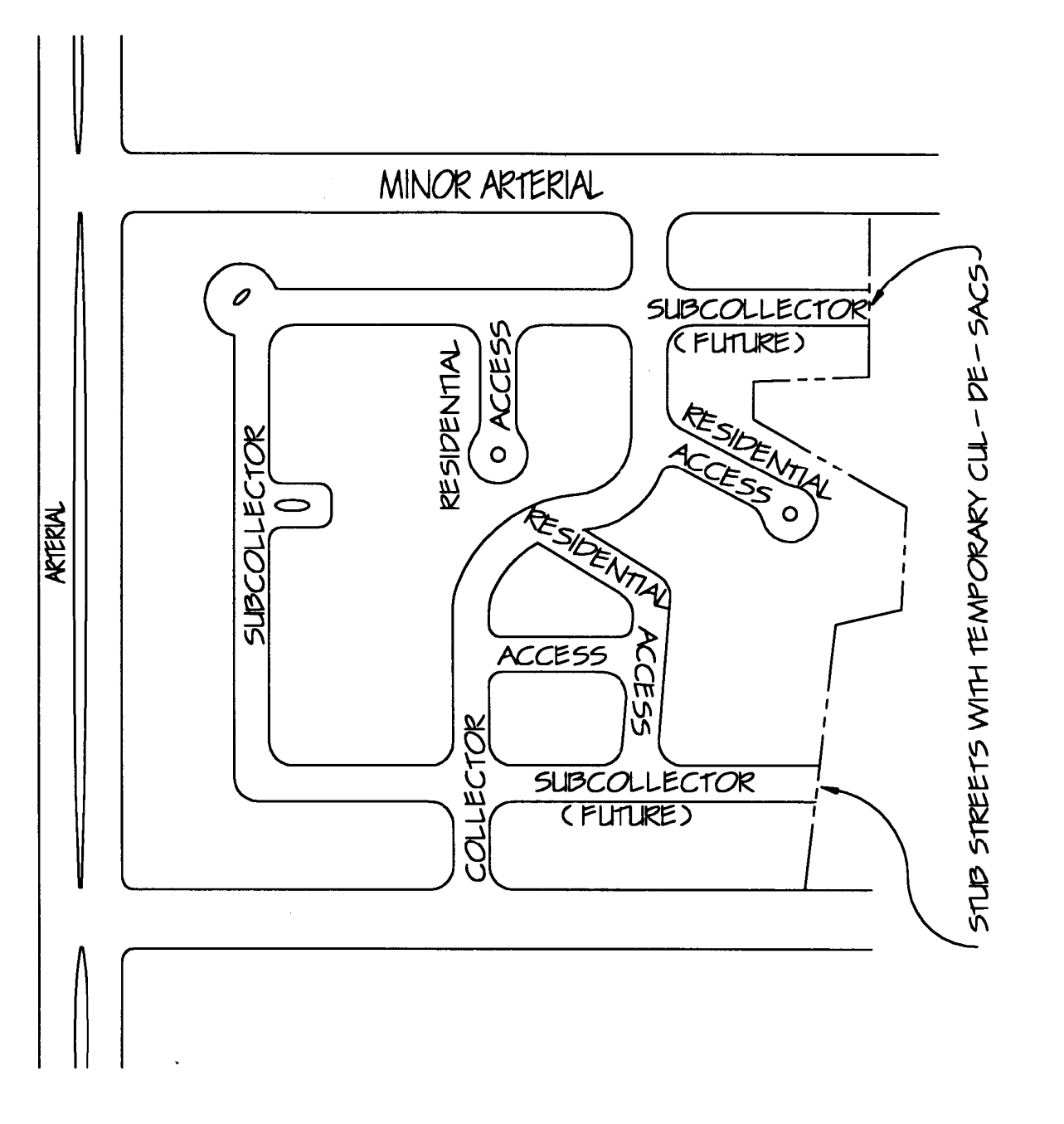

FIGURE II-2
STREET ACCESS

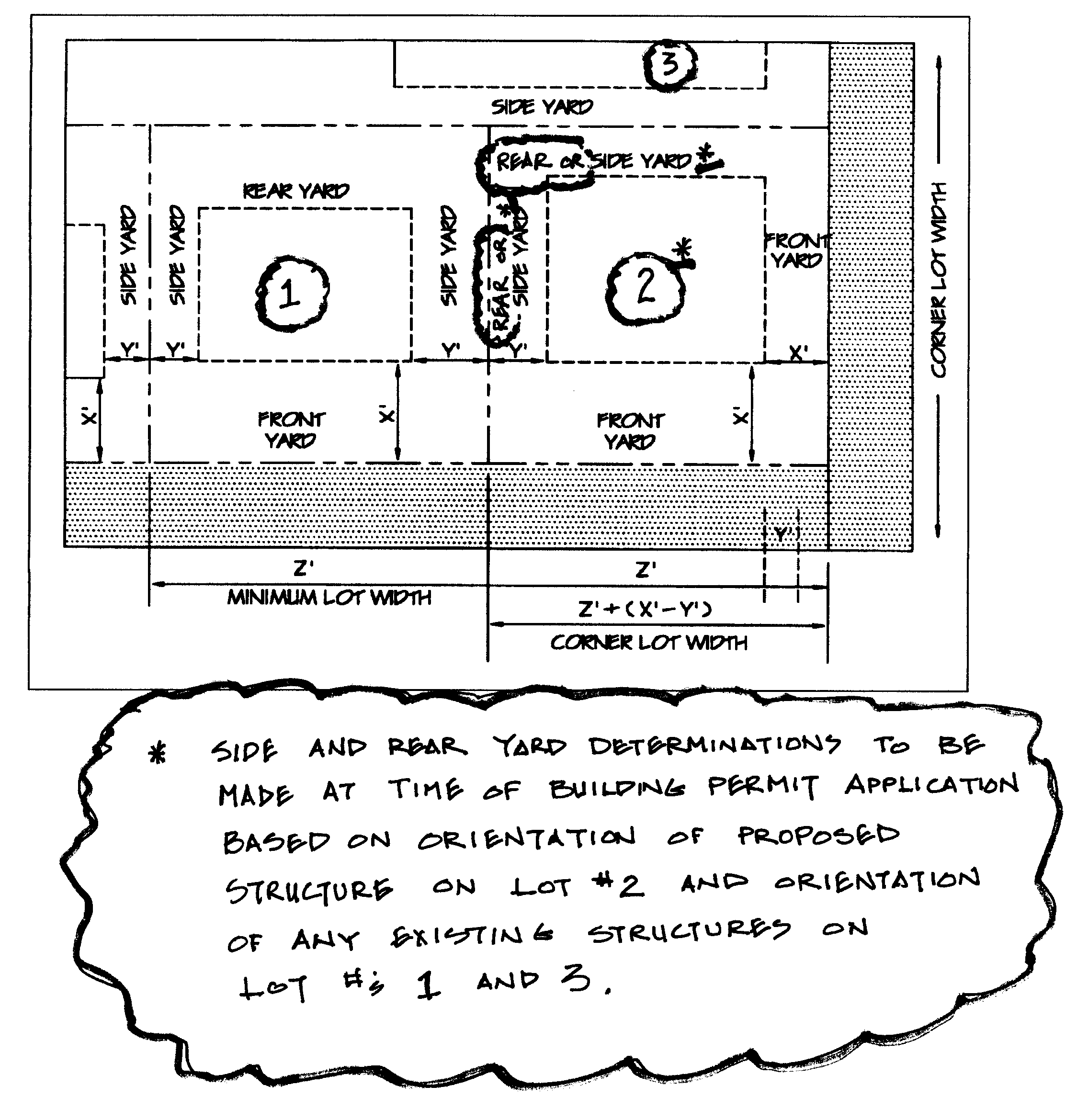

FIGURE II-3
CORNER LOTS VERSUS INTERIOR LOTS

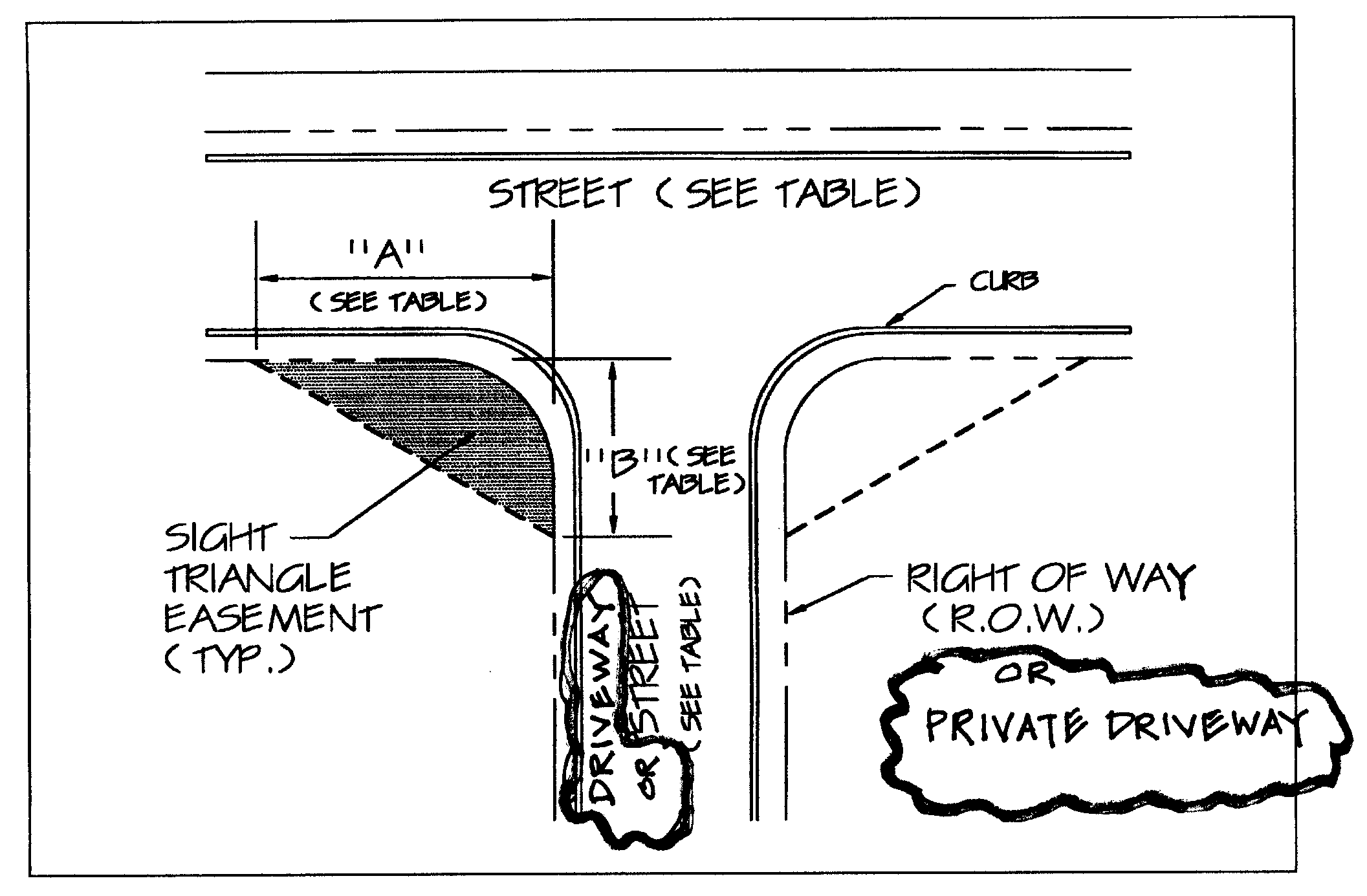

FIGURE II-4

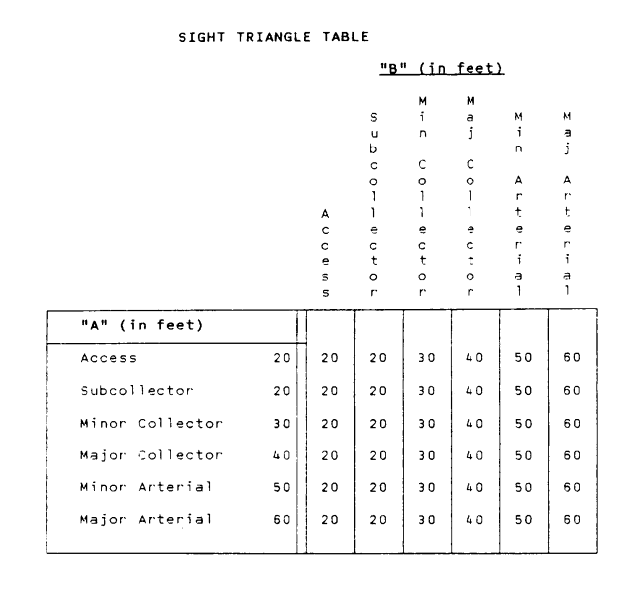

SIGN TRIANGLES

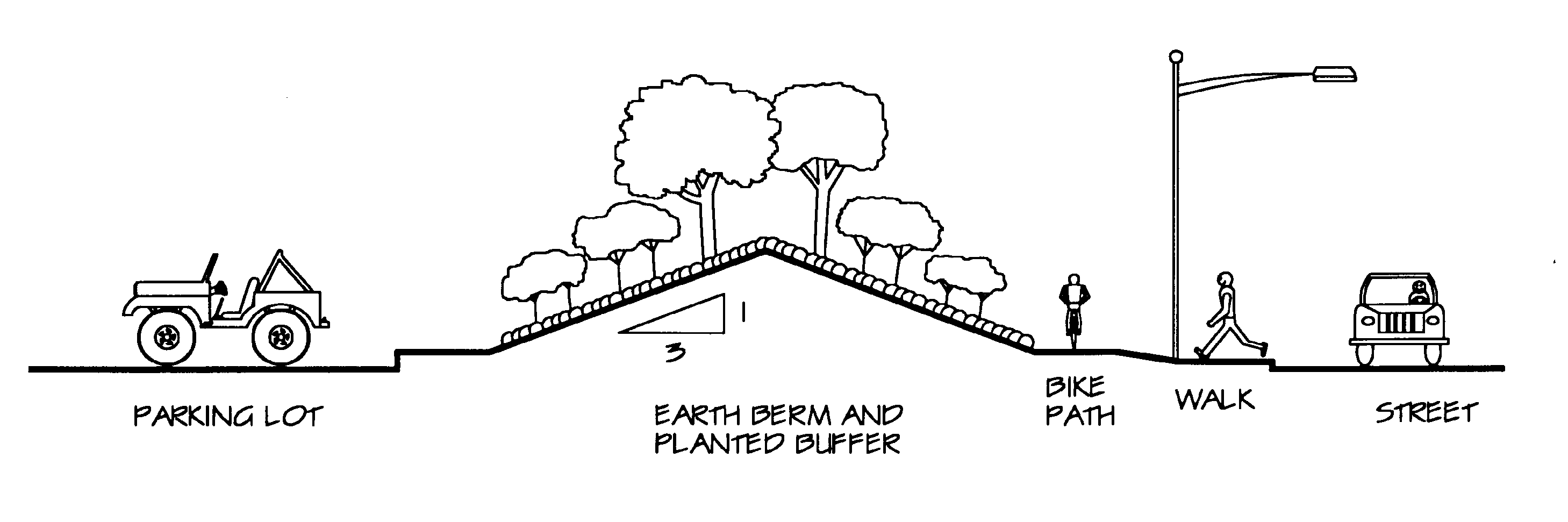

FIGURE II-5
EARTH BERM

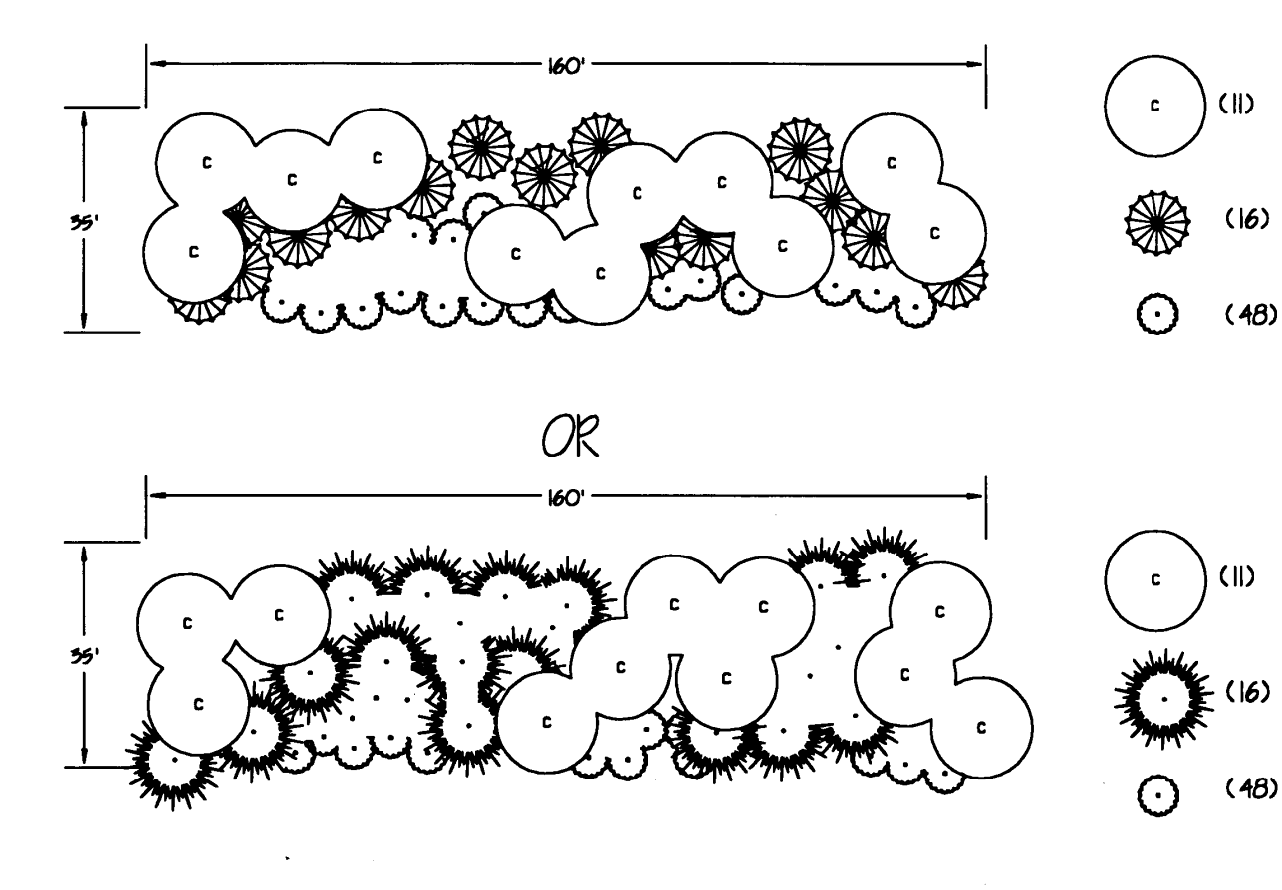

FIGURE II-6
STAGGERED PLANTING

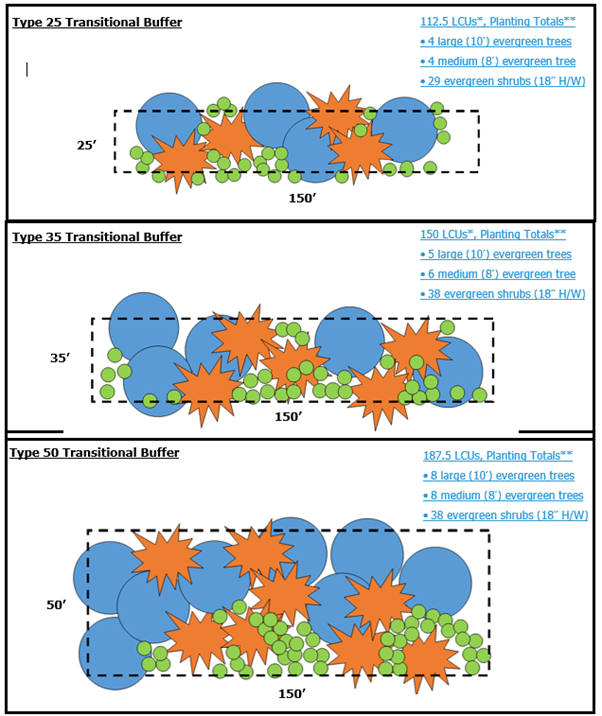

FIGURE II-7
TRANSITIONAL BUFFER ZONES

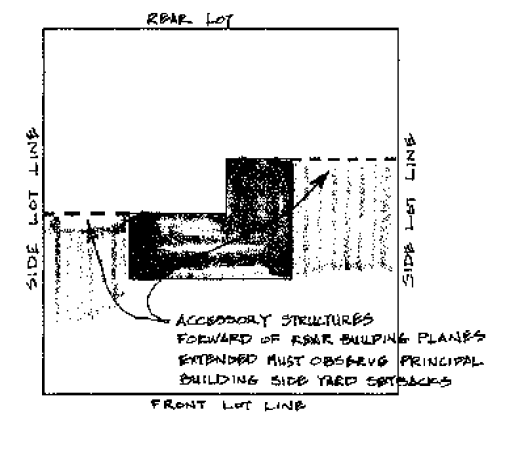

FIGURE II-7.1
ACCESSORY BUILDING SETBACK

FIGURE II-7.2
ACCESSORY BUILDING SETBACK

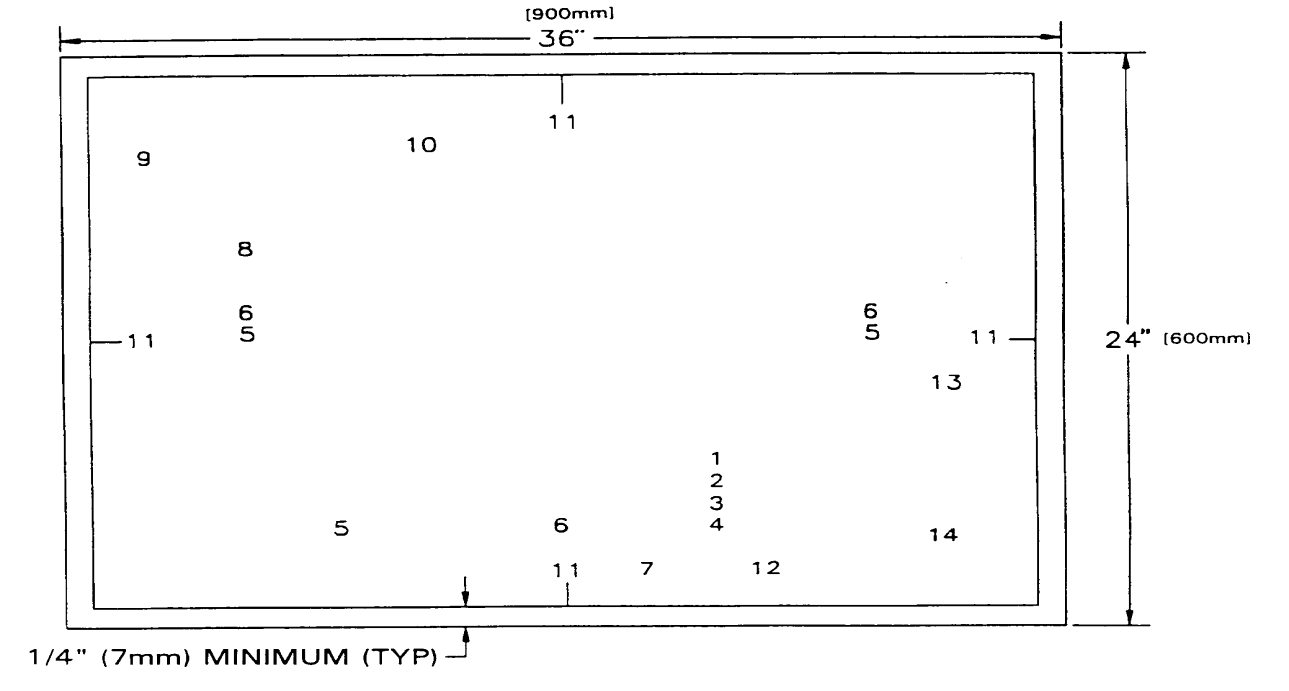

NOTES

1.

THE PLAT SHALL CONTAIN ONE OF THE FOLLOWING TITLES AS APPLICABLE:

a.)

PLAT OF EASEMENT DEDICATION

b.)

PLAT OF RIGHT-OF-WAY DEDICATION

c.)

PLAT OF EASEMENT/RIGHT-OF-WAY DEDICATION

2.

ALL EASEMENTS TO BE DEDICATED TO THE COUNTY SHALL BE SPECIFIED AS DRAINAGE AND UTILITY EASEMENTS UNLESS OTHERWISE SPECIFIED BY THE AGENT.

3.

ALL EASEMENTS WHICH DO NOT FOLLOW PROPERTY LINES SHALL BE LOCATED BY A METES AND BOUNDS DESCRIPTION AND OTHER INFORMATION AS NECESSARY TO ACCURATELY LOCATE SUCH EASEMENTS.

4.

ALL EASEMENTS WHICH FOLLOW DITCHES, SWALES, STREAMS, ETC., MAY BE DESIGNATED AS FOLLOWING THE CENTERLINE OF SUCH DITCH, SWALE, OR STREAM. THE OUTER BOUNDARIES OF THE EASEMENT SHALL BE SHOWN.

5.

THE FULL NAME OF THE PROPERTY OWNER AS SHOWN ON THE OWNER'S DEED MUST BE PROVIDED. ALSO PROVIDE THE APPROPRIATE DEED REFERENCE ON THE PLAT.

Expand

Evergreen Trees Botanical/Common Name VA Coastal Plain Native Species =	Projected 10-Year Cover Area (square feet) Height at Planting			Minimum Planting Area (square feet)	Uses/Placement					Environmental Tolerances						Problems
	6'	8'	10'		Parking Lot	Screening	Small Areas	Overhead Utilities	Rights-of-Way	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Disease	Insects	Weak Wood	Objectionable Fruit	Objectionable Roots
Cedrus deodora/Deodar Cedar	75	100	125	50		X
Chamaecyparis obtuse/Hinoki Cypress	75	100	125	50			X	X		X		X
Cunninghamia lanceolata/China Fir	75	100	125	50		X
Cupressocyparis Leyland/Leyland Cypress	75	100	125	50		X						X
Ilex 'Nellie Stevens'/Nellie Stevens Holly	75	100	125	50		X						X
Ilex opaca/American Holly	75	100	125	50		X			X			X
Ilex X attenuata/Foster's Holly	75	100	125	50		X			X			X
Juniperus virginiana/Eastern Red Cedar						X		X		X	X	X			X		X
Juniperus chinensis 'Kaizuka'/Hollywood Juniper						X	X	X		X					X		X
Magnolia grandiflora/Southern Magnolia	125	150	175	90		X						X								X
Magnolia grandiflora 'Little Gem'/Little Gem Magnolia	75	100	125	50	X		X	X	X	X		X
Myrica cerifera/Bayberry or Wax Myrtle (multi- trunk)					X	X	X	X		X		X		X				X
Pinus thunbergiana/Japanese Black Pine	60	80	100	50		X	X	X	X	X	X				X
Quercus virginiana/Live Oak									X			X
Thuja occidentalis/Arborvitae	75	100	125	50		X	X	X		X	X
Thuja orientalis/Oriental Arbovitae	75	100	125	50		X	X	X		X	X



This chart may be revised from time to time by the Zoning Administrator to add or delete species or to update other information based on consultation with the Cooperative Extension Agent and/or landscape professionals.

Expand

Small Deciduous Trees Botanical/Common Name VA Coastal Plain Native Species =	Projected 10-Year Cover Area (square feet) Height at Planting			Minimum Planting Area (square feet)	Uses/Placement					Environmental Tolerances						Problems
	6'	8'	10'		Parking Lot	Screening	Small Areas	Overhead Utilities	Rights-of-Way	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Disease	Insects	Weak Wood	Objectionable Fruit	Objectionable Roots
Acer ginnala/Amur Maple	60	80	100	60	X	X	X	X		X	X	X		X
Acer palmatum/Japanese Maple	60	80	100	60		X	X	X		X		X
Amelanchier arborea/Serviceberry	100	125	150	60		X	X	X		X		X	X			X	X
Cercis canadensis/Eastern Redbud	150	175	200	50		X	X	X		X	X	X	X			X
Chionanthus virginicus/White Fringe Tree	80	100	120	60		X	X	X		X		X
Crataegus viridis 'Winter King'/Green Hawthorn	150	175	200	100	X	X	X	X	X	X					X	X	X
Koelreturia paniculata/Goldenraintree	150	175	200	100	X	X	X	X	X	X					X
Lagerstroemia indica/Crape Myrtle	150	175	200	100	X	X	X	X	X	X	X			X	X
Magnolia stellata/Star Magnolia	100	120	150	60		X	X	X		X
Magnolia x soulangeana/Saucer Magnolia	150	175	200	60		X	X	X		X
Magnolia virginiana/Sweetbay Magnolia	100	125	150	60		X	X	X		X		X		X
Malus sp./Crabapple	150	175	200	100		X	X	X	X	X					X	X	X	X
Prunus cerasifera/Flowering Plum	100	125	150	100	X	X	X	X	X	X						X	X	X
Prunus serrulata/Kwanzan Cherry	150	175	200	100	X	X	X	X	X	X					X	X	X
Prunus subhirtella/Higan Cherry	150	175	200	100		X		X	X						X	X	X
Prunus x yedoensis/Yoshino Cherry	150	175	200	100	X	X	X	X	X	X					X	X	X



This chart may be revised from time to time by the Zoning Administrator to add or delete species or to update other information based on consultation with the Cooperative Extension Agent and/or landscape professionals.

Expand

Medium Deciduous Trees Botanical/Common Name VA Coastal Plain Native Species =	Projected 10-Year Cover Area (square feet) Height at Planting			Minimum Planting Area (square feet)	Uses/Placement					Environmental Tolerances						Problems
	6'	8'	10'		Parking Lot	Screening	Small Areas	Overhead Utilities	Rights-of-Way	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Disease	Insects	Weak Wood	Objectionable Fruit	Objectionable Roots
Betula nigra/River Birch		150	175	100	X	X								X
Ginkgo biloba/Ginkgo (male variety)		150	175	100		X			X		X				X		X
Pyrus calleryana/Callery Pear		150	175	100	X	X			X		X				X			X



This chart may be revised from time to time by the Zoning Administrator to add or delete species or to update other information based on consultation with the Cooperative Extension Agent and/or landscape professionals.

Expand

Large Deciduous Trees Botanical/Common Name VA Coastal Plain Native Species =	Projected 10-Year Cover Area (square feet) Height at Planting			Minimum Planting Area (square feet)	Uses/Placement					Environmental Tolerances						Problems
	6'	8'	10'		Parking Lot	Screening	Small Areas	Overhead Utilities	Rights-of-Way	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Disease	Insects	Weak Wood	Objectionable Fruit	Objectionable Roots
Acer platanoides/Norway Maple		275	300	180		X			X		X	X					X			X
Acer rubrum/Red Maple		275	300	180	X	X			X		X	X		X			X			X
Acer saccharum/Sugar Maple		275	300	180		X			X		X	X					X			X
Fraxinus pennsylvanica/Green Ash (Marshall's Seedless)		275	300	180	X	X			X		X				X
Liquidambar styraciflua 'Rotundiloba'/Fruitless Sweetgum		275	300	180	X	X			X		X			X			X
Metasequoia glyptostroboides/Dawn Redwood		275	300	180		X			X		X			X						X
Nyssa sylvatica/Black Gum		275	300	180		X			X			X		X			X
Platanus x acerifolia/London Planetree		275	300	180		X									X	X	X
Quercus acutissima/Sawtooth Oak		275	300	180		X			X
Quercus coccinea/Scarlet Oak		275	300	180	X	X			X			X
Quercus phellos/Willow Oak		275	300	180	X	X			X		X				X
Taxodium distichum/Baldcypress		275	300	180		X			X		X			X						X
Tilia cordata/Littleleaf Linden		275	300	180	X	X			X			X					X
Ulmus parvifolia/Chinese Elm		275	300	180		X			X		X	X
Zelkova serrato/Zelkova		275	300	180	X	X			X		X				X



This chart may be revised from time to time by the Zoning Administrator to add or delete species or to update other information based on consultation with the Cooperative Extension Agent and/or landscape professionals.

Expand

Evergreen Shrubs Botanical/Common Name VA Coastal Plain Native Species =	Projected 10-Year Cover Area (square feet) Height at Planting			Minimum Planting Area (square feet)	Uses/Placement					Environmental Tolerances							Problems
	18"				Parking Lot Screen	General Uses	Small Areas	End Island	Screening/Buffering	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Full Sun	Disease	Insects
Abelia grandiflora/Glossy Abelia	25			9	X	X					X	X			X	X	X
Aucuba japonica/Japanese Aucuba	20			9	X	X						X	X					X
Berberis julianae/Wintergreen Barberry	20			9	X	X					X				X	X	X
Buxus sempervirens/American Boxwood	6			4			X			X		X	X
Buxus microphylla/Wintergreen Boxwood	6			4			X			X		X	X
Camellia japonica/Spring Blooming Camellia	25			9								X	X
Camellia sasanqua/Fall Blooming Camellia	25			9								X	X
Chamaecyparis pisifera/Cypress	16			6		X		X			X				X	X
Cleyera japonica/Japanese Cleyera	25			9	X	X			X		X	X			X	X	X
Cotoneaster salicifolius/Willowleaf Cotoneaster	9			6		X	X			X	X	X			X	X	X
Cytisus scoparius/Scotchbroom	16			6		X					X	X			X	X	X
Elaeagnus angustifolia/Russian Olive	36			12	X	X			X		X				X	X	X
Euonymus fortunei/Wintercreeper Euonymous	6			3		X	X	X		X	X	X	X		X	X	X	X
Euonymus radicans/Radicans Euonymus	6			3		X	X	X		X	X	X	X		X	X	X	X
Ilex cornuta 'Burfordii'/Burford Holly	36			12	X	X			X		X	X	X		X	X	X
Ilex cornuta 'Burfordii Nana'/Dwarf Burford Holly	25			9	X	X			X		X	X	X		X	X	X
Ilex cornuta 'Carissa'/Carissa Holly	16			6		X	X	X		X	X	X	X		X	X	X
Ilex crenata 'Compacta'/Compacta Holly	9			6		X	X	X		X		X			X	X
Ilex crenata 'Helleri'/Helleri Holly	9			6		X	X	X		X		X			X	X
Ilex crenata 'Nigra'/Nigra Holly	9			6	X	X				X		X			X	X
Ilex glabra/Inkberry	16			6	X	X				X		X	X		X	X
Abelia grandiflora/Glossy Abelia	25			9	X	X					X	X			X	X	X
Aucuba japonica/Japanese Aucuba	20			9	X	X						X	X					X
Berberis julianae/Wintergreen Barberry	20			9	X	X					X				X	X	X
Buxus sempervirens/American Boxwood	6			4			X			X		X	X
Buxus microphylla/Wintergreen Boxwood	6			4			X			X		X	X
Camellia japonica/Spring Blooming Camellia	25			9								X	X
Camellia sasanqua/Fall Blooming Camellia	25			9								X	X
Chamaecyparis pisifera/Cypress	16			6		X		X			X				X	X
Cleyera japonica/Japanese Cleyera	25			9	X	X			X		X	X			X	X	X
Cotoneaster salicifolius/Willowleaf Cotoneaster	9			6		X	X			X	X	X			X	X	X
Cytisus scoparius/Scotchbroom	16			6		X					X	X			X	X	X
Elaeagnus angustifolia/Russian Olive	36			12	X	X			X		X				X	X	X
Euonymus fortunei/Wintercreeper Euonymous	6			3		X	X	X		X	X	X	X		X	X	X	X
Euonymus radicans/Radicans Euonymus	6			3		X	X	X		X	X	X	X		X	X	X	X
Ilex cornuta 'Burfordii'/Burford Holly	36			12	X	X			X		X	X	X		X	X	X
Ilex cornuta 'Burfordii Nana'/Dwarf Burford Holly	25			9	X	X			X		X	X	X		X	X	X
Ilex cornuta 'Carissa'/Carissa Holly	16			6		X	X	X		X	X	X	X		X	X	X
Ilex crenata 'Compacta'/Compacta Holly	9			6		X	X	X		X		X			X	X
Ilex crenata 'Helleri'/Helleri Holly	9			6		X	X	X		X		X			X	X
Ilex crenata 'Nigra'/Nigra Holly	9			6	X	X				X		X			X	X
Ilex glabra/Inkberry	16			6	X	X				X		X	X		X	X



This chart may be revised from time to time by the Zoning Administrator to add or delete species or to update other information based on consultation with the Cooperative Extension Agent and/or landscape professionals.

Expand

Deciduous Shrubs Botanical/Common Name VA Coastal Plain Native Species =	Projected 10-Year Cover Area (square feet) Height at Planting	Minimum Planting Area (square feet)	Uses/Placement					Environmental Tolerances							Problems
	18"		Parking Lot Screen	General Uses	Small Areas	End Island	Screening/Buffering	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Full Sun	Disease	Insects
Azalea calendulaceae/Flame Azalea	16	9		X						X	X				X	X
Azalea nudiflorum/Pinxter Bloom	16	9		X						X	X				X	X
Berberis thunbergi/Japanese Barberry	25	12	X	X	X	X			X				X	X
Buddleia davidii/Butterfly-Bush	25	12		X			X		X				X	X
Chaenomeles lagenaria/Japanese Flowering Quince	25	12		X										X	X
Clethra alnifolia/Sweet Pepperbush	25	12	X	X						X		X		X
Cornus sericea/Redosier Dogwood	25	12	X	X			X		X	X				X
Cotoneaster/Cotoneaster	16	9		X	X	X		X	X	X				X
Deutzia gracilis/Slender Deutzia	9	4		X	X	X		X	X	X				X
Euonymous alatus 'Compacta'/Burning Bush	25	12	X	X			X		X	X				X
Forsyhia intermedia/Forsythia	25	12	X	X			X		X					X
Hamamelis mollis/Chinese Witch-Hazel	36	15	X				X		X	X				X
Hamamelis vernalis/Vernal Witch-Hazel	36	15	X				X		X	X				X
Hibiscus syriacus hybrids/Rose of Sharon	25	12	X				X		X					X
Hydrangea macrophylla/Bigleaf Hydrangea	16	9		X						X	X
Hydrangea querifolia/Oakleaf Hydrangea	16	9		X						X	X
Hypericum/St. Johnswort	9	4		X	X	X		X	X					X
Ilex verticillata/Winter Berry	25	12		X			X		X					X
Itea virginica/Virginia Sweetspire	25	12	X	X			X		X	X		X		X
Spiraea japonica/Japanese Spirea	16	9		X	X	X		X	X					X
Spiraea prunifolia/Double Bridal Wreath	25	12	X	X			X		X	X				X
Spiraea x bumalda/Bumald Spirea	16	9		X	X	X		X	X					X
Viburnum carlesii/Koreanspice Viburnum	25	12	X	X			X			X	X
Viburnum plicatum/Doublelife Viburnum	36	12	X	X			X			X	X
Viburnum tinus/Tinus Viburnum	25	12	X	X			X			X	X
Weigelia florida/Weigelia	25	12		X			X		X	X				X



This chart may be revised from time to time by the Zoning Administrator to add or delete species or to update other information based on consultation with the Cooperative Extension Agent and/or landscape professionals.

Expand

Perennials and Ornamental Grasses Botanical/Common Name VA Coastal Plain Native Species =	Projected 3-Year Cover Area (square feet)			Minimum Planting Area		Uses/Placement					Environmental Tolerances							Problems
	1 gal.			S.F.	Height (feet)	Parking Lot Screen	General Uses	Small Areas	End Island	Screening/Buffering	Restricted Root Z.	Poor Soil	Partial Shade	Full Shade	Wet Soil	Drought Tolerant	Full Sun	Disease	Insects
Perennials:
Achillea/Yarrow	4			4	2		X	X	X		X					X	X
Astilbe arendsii/False Spirea	2			3	2		X	X			X		X	X
Caryopteris x clandonensis/Blue Mist Spirea	4			6	2		X	X	X		X					X	X
Coreopsis grandiflora/Coreopsis	2			4	1.5		X	X	X		X	X				X	X
Coreopsis verticillata/Coreopsis	2			4	1.5		X	X	X		X					X	X
Dianthus gratianopolitanus 'Baths Pink'/Bath's Cheddar Pink	3			4	1		X	X	X		X					X	X
Dryopteris erythrosora/Autumn Fern	2			3	2		X	X			X		X	X	X
Echinacea purpurea/Purple Coneflower	2			3	2		X	X	X		X		X				X
Eupatorium/Joe Pye Weed	4			6	5	X	X				X	X	X		X		X
Gaillardia grandiflora/Blanket Flower	3			4	1		X	X	X		X	X				X	X
Heliopsis helianthoides/False Sunflower	4			6	3		X				X	X					X
Hemerocallis/Daylily	2			4			X	X	X		X	X	X		X	X	X
Hosta/Hosta	3			4	3		X	X			X		X	X	X
Iberis sempervirens/Candytuft	2			3	1		X	X			X						X
Iris ensata/Japanese Iris	3			4	3		X	X			X		X		X		X
Lavandula angustifolia/Lavender	3			4	1.5		X	X	X		X					X	X
Perovskia atriplicifolia/Russian Sage	4			6	3		X	X	X		X					X	X
Rudbeckia fulgida/Black-eyed Susan	4			6	2.5		X	X	X		X	X	X		X	X	X
Salvia x superba/Perennial Salvia	3			4	2		X	X	X		X					X	X
Scabiosa columbaria/Pincushion Flower	2			4	1		X	X	X		X					X	X
Sedum spectable 'Autumn Joy'/Autumn Joy Sedum	4			6	3		X	X	X		X	X	X		X	X	X
Stachys byzantina/Lambs Ear	4			6	1		X	X	X		X	X				X	X
Verbena canadensis/Verbena	6			6	1		X	X	X		X	X				X	X
Veronica spicata/Speedwell	2			3	1		X	X	X		X					X	X
Veronica x 'Sunny Border Blue'/Veronica 'Sunny Border Blue'	2			3	2		X	X	X		X						X
Ornamental Grasses:
Calamagrostis acutiflora/Feather Reed Grass	6			9	5	X	X				X	X			X		X
Chasmanthium latifolium/Northern Sea Oats	6			9	4	X	X				X		X
Cortaderia selloana/Pampas Grass	9			12	6	X	X				X	X				X	X
Liriope muscari/Liriope	3			4	1		X	X	X		X	X	X	X	X	X	X
Miscanthus sinensis/Maiden Grass	9			12	5	X	X				X	X				X	X
Miscanthus purpurascens/Miscanthus	9			12	5	X	X				X	X				X	X
Muhlenbergia capillaris/Pink Hair Grass	6			9	3		X		X		X						X
Ophiopogon japonicus	2			3	.5		X	X	X		X	X	X	X			X
Panicum virgatum/Switch Grass	6			9	5	X	X				X	X					X
Pennisetum alopecuroides/Fountain Grass	6			9	3		X	X	X		X	X	X			X	X
Phalaris arundinacea/Ribbon Grass	4			6	3		X	X	X		X				X		X



(Ord. No. 25-4, 2-18-25)

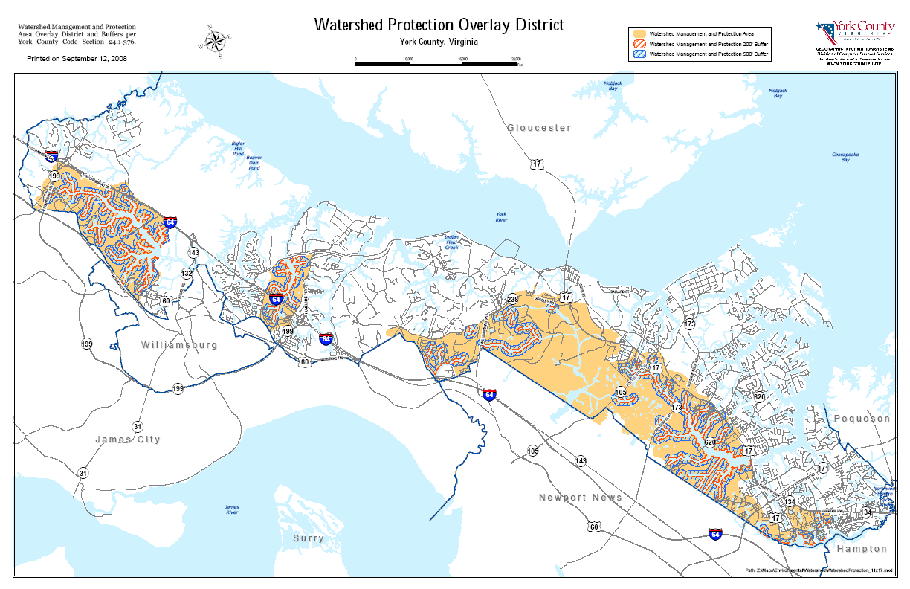

MAP III-2
WATERSHED MANAGEMENT AND PROTECTION AREA

FIGURE V-1
SITE PLAN

NOTES

1.

ITEMS 1—4, 8, 9, 11, 12 AND 14 MAY NOT BE RELOCATED ON THE DRAWING.

2.

ITEMS 5, 6, 7, 10, AND 13 MAY BE REARRANGED, IF NECESSARY, TO ACCOMMODATE THE BOYD OF THE SITE PLAN.

3.

ARTICLE V OF THE ZONING ORDINANCE APPLIES TO THE PREPARATION AND SUBMISSION OF THE SITE PLANS.

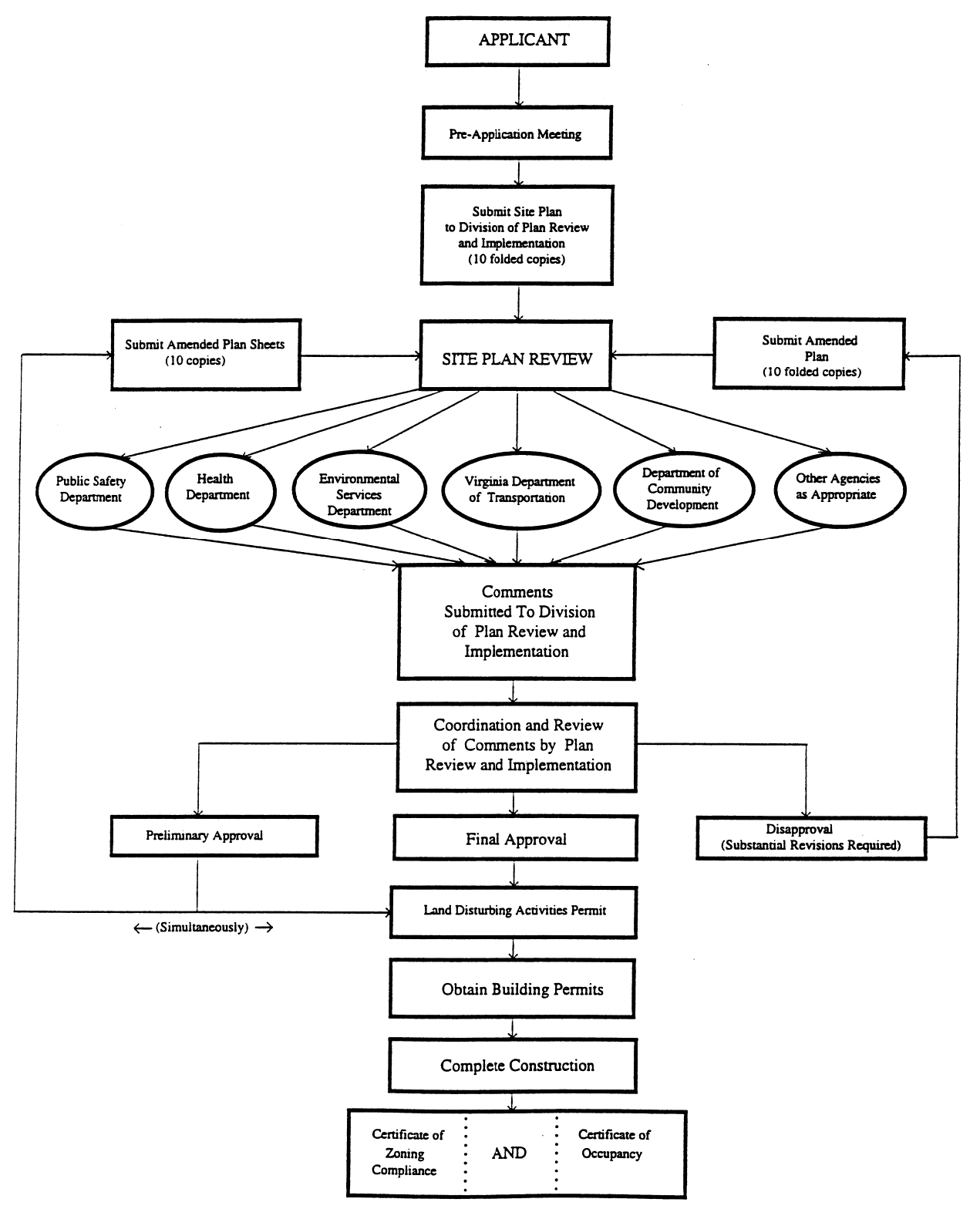

SITE PLAN REVIEW/APPROVAL PROCESS

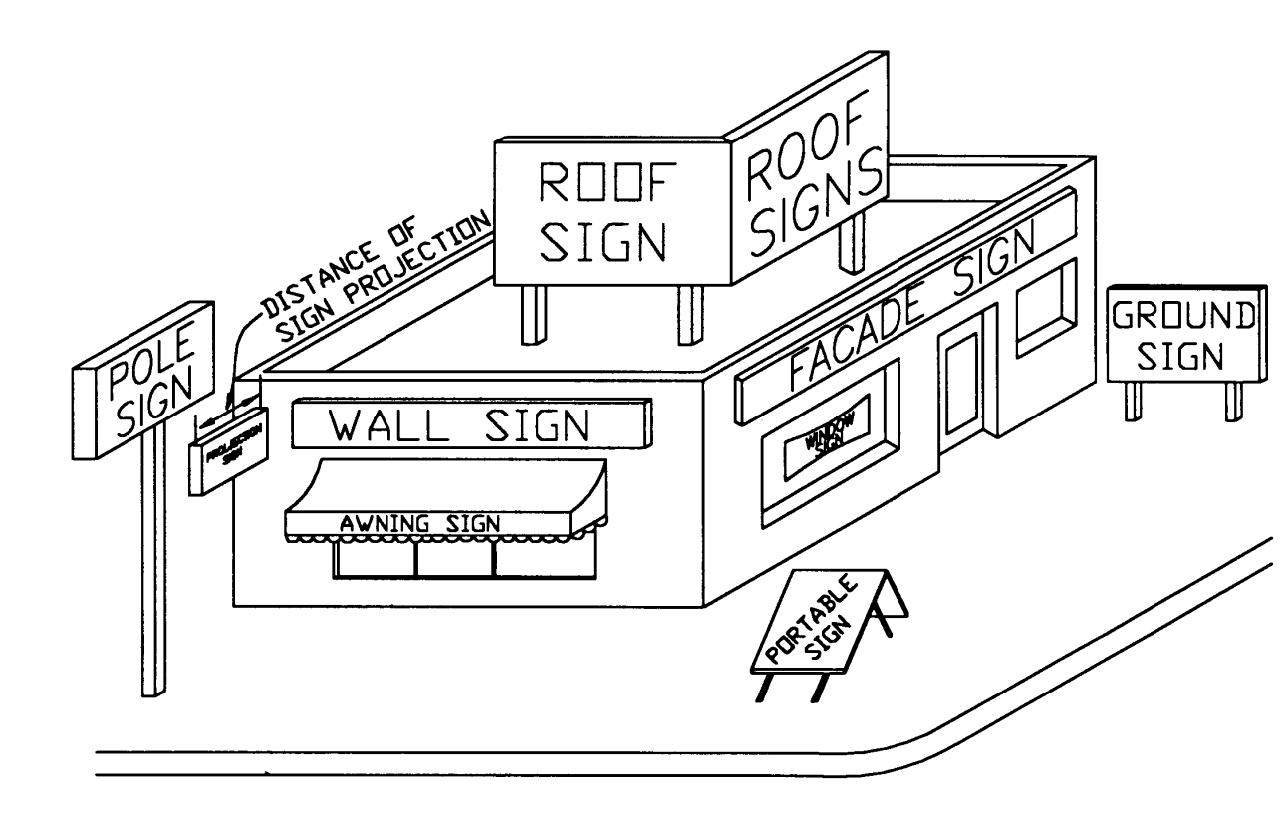

FIGURE VII-1
SIGN TYPES

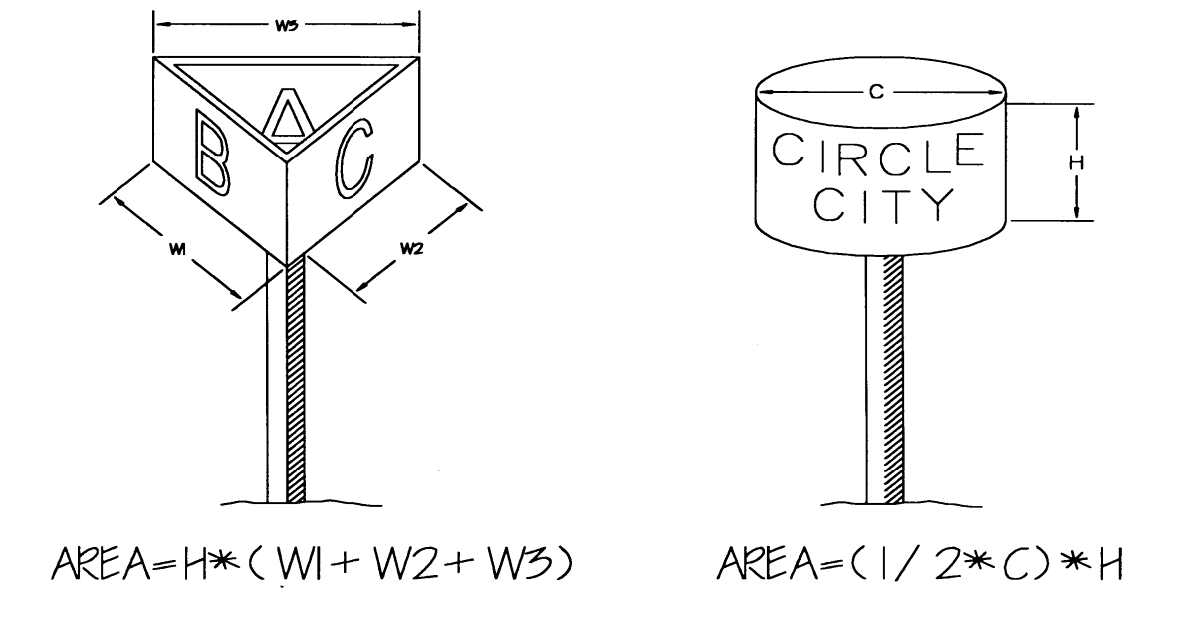

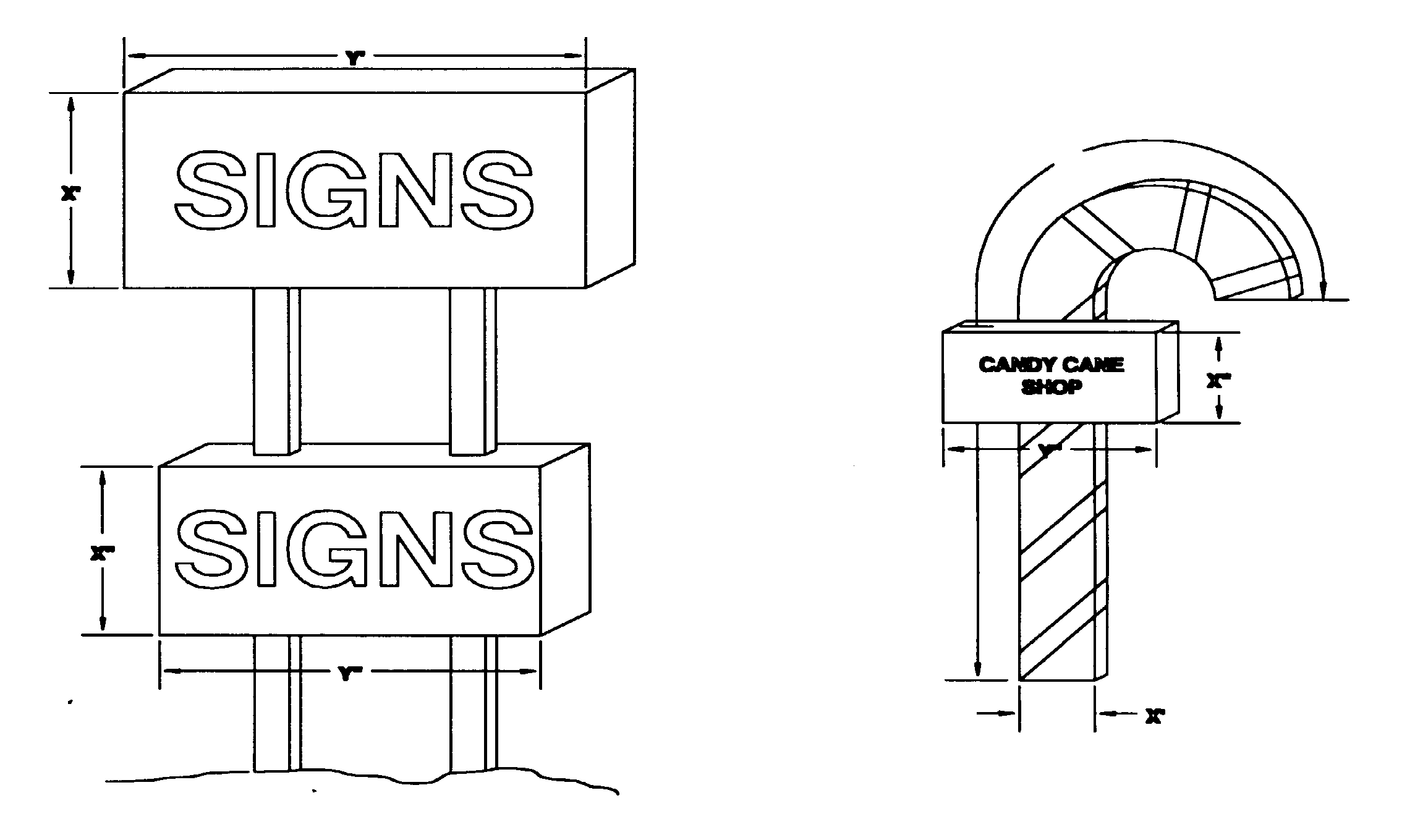

FIGURE VII-2
SIGN AREA - GROUND

FIGURE VII-2
SIGN AREA - GROUND

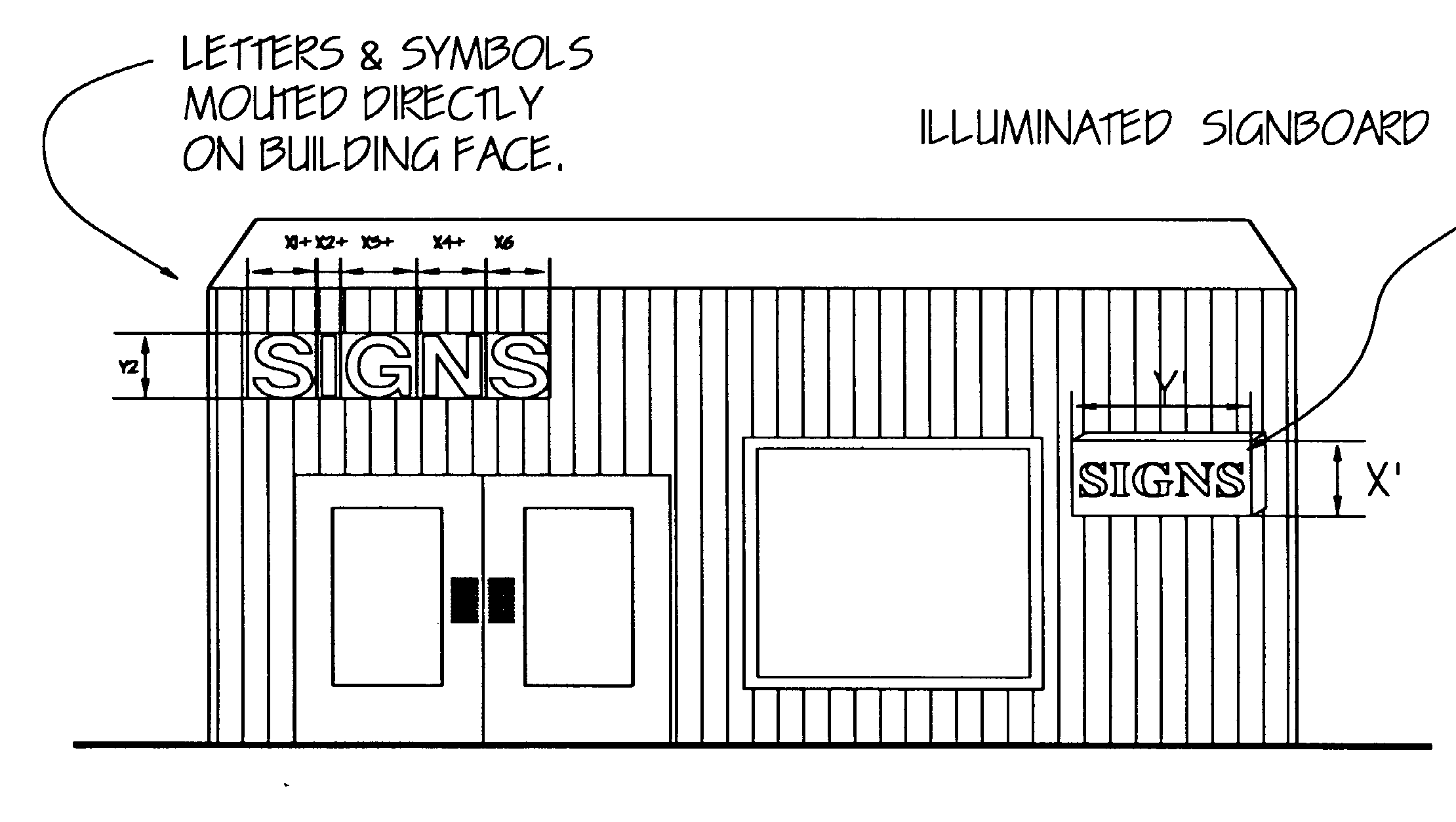

FIGURE VII-3
SIGN AREA - WALL

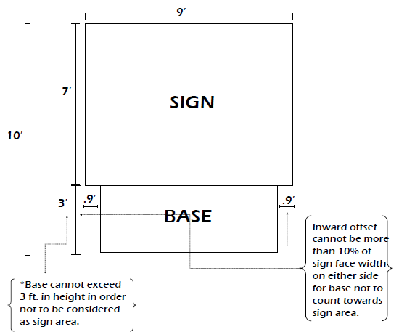

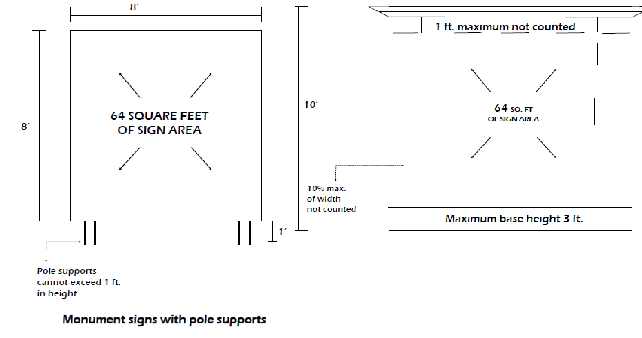

FIGURE VII-4
SIGN AREA - MONUMENT

FIGURE VII-4
SIGN AREA - MONUMENT

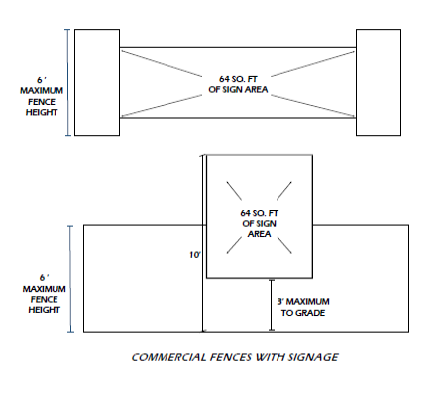

FIGURE VII-5
SIGN AREA - FENCE

FIGURE VII-6

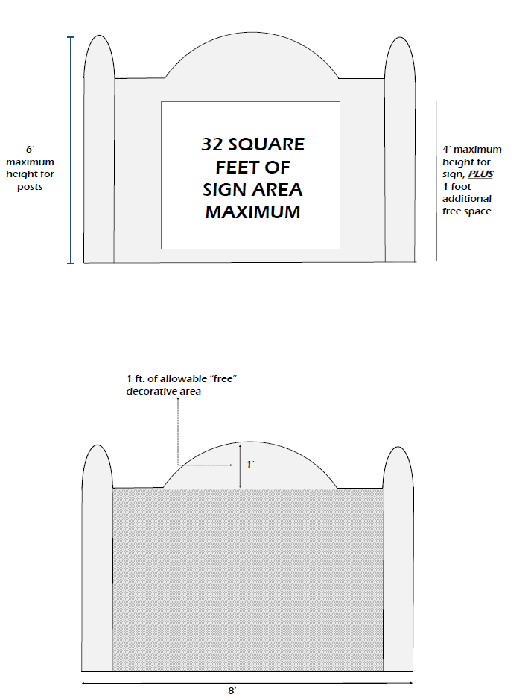

FIGURE VII-7
SIGN AREA - RESIDENTIAL COMMUNITY IDENTIFICATION

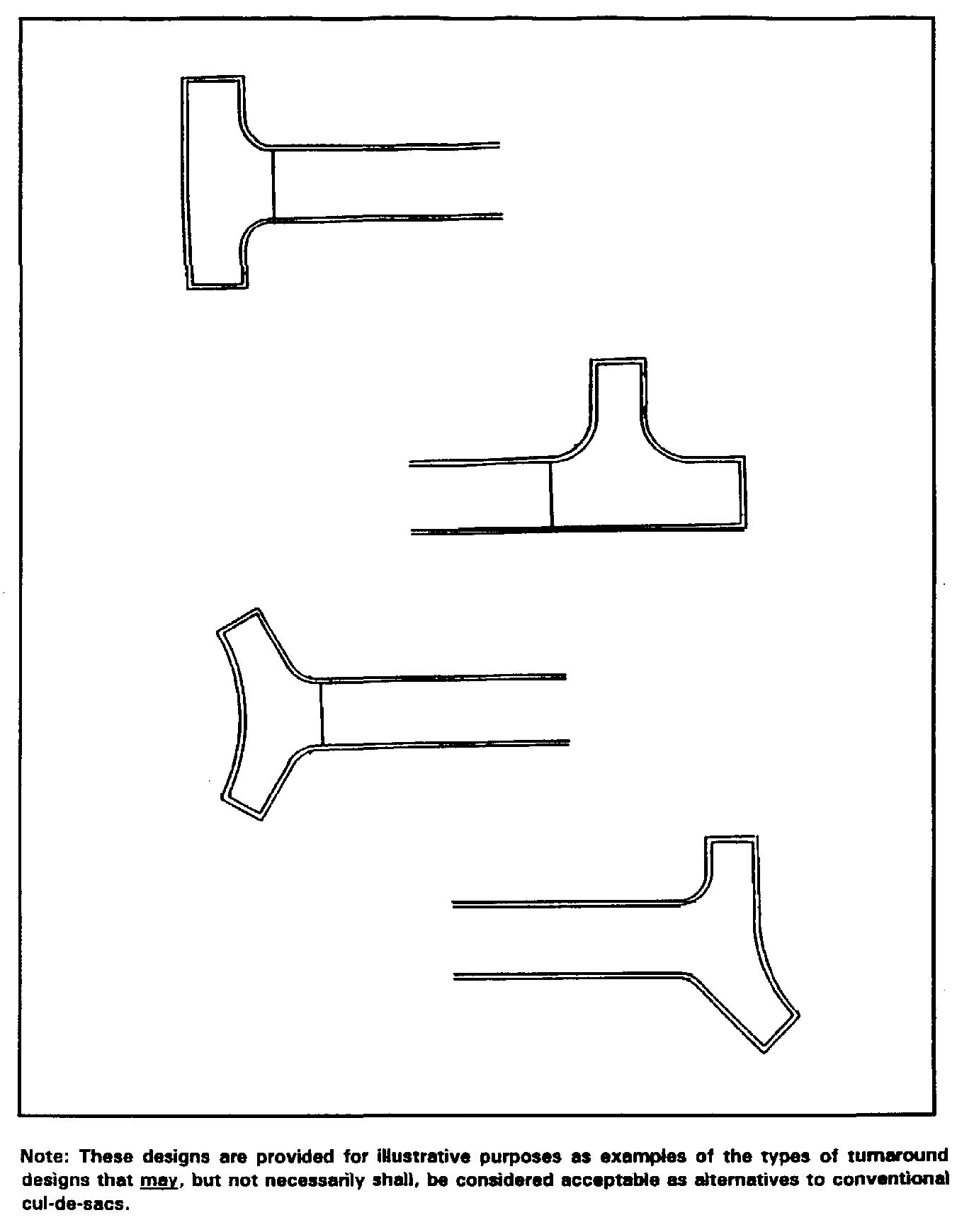

FIGURE VIII-1
ALTERNATIVE TURNAROUND DESIGNS
