Brooklyn Green County
City Zoning Code

ARTICLE VI

GRAPHICS AND ILLUSTRATIONS

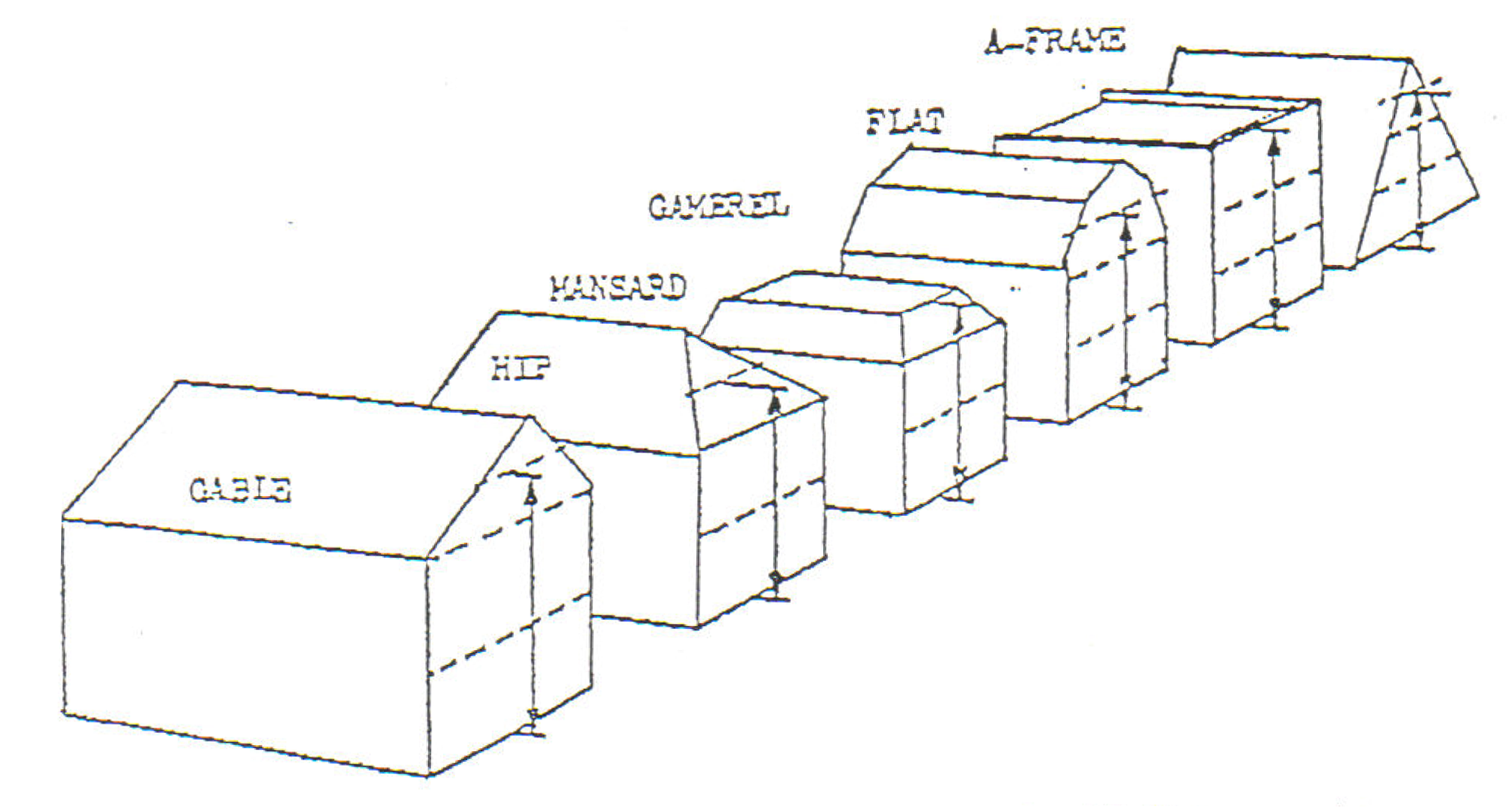

Sec. 117-1141.- Figure 1: Roof types; height determination.

(Ord. of 12-17-2012, fig. 1)

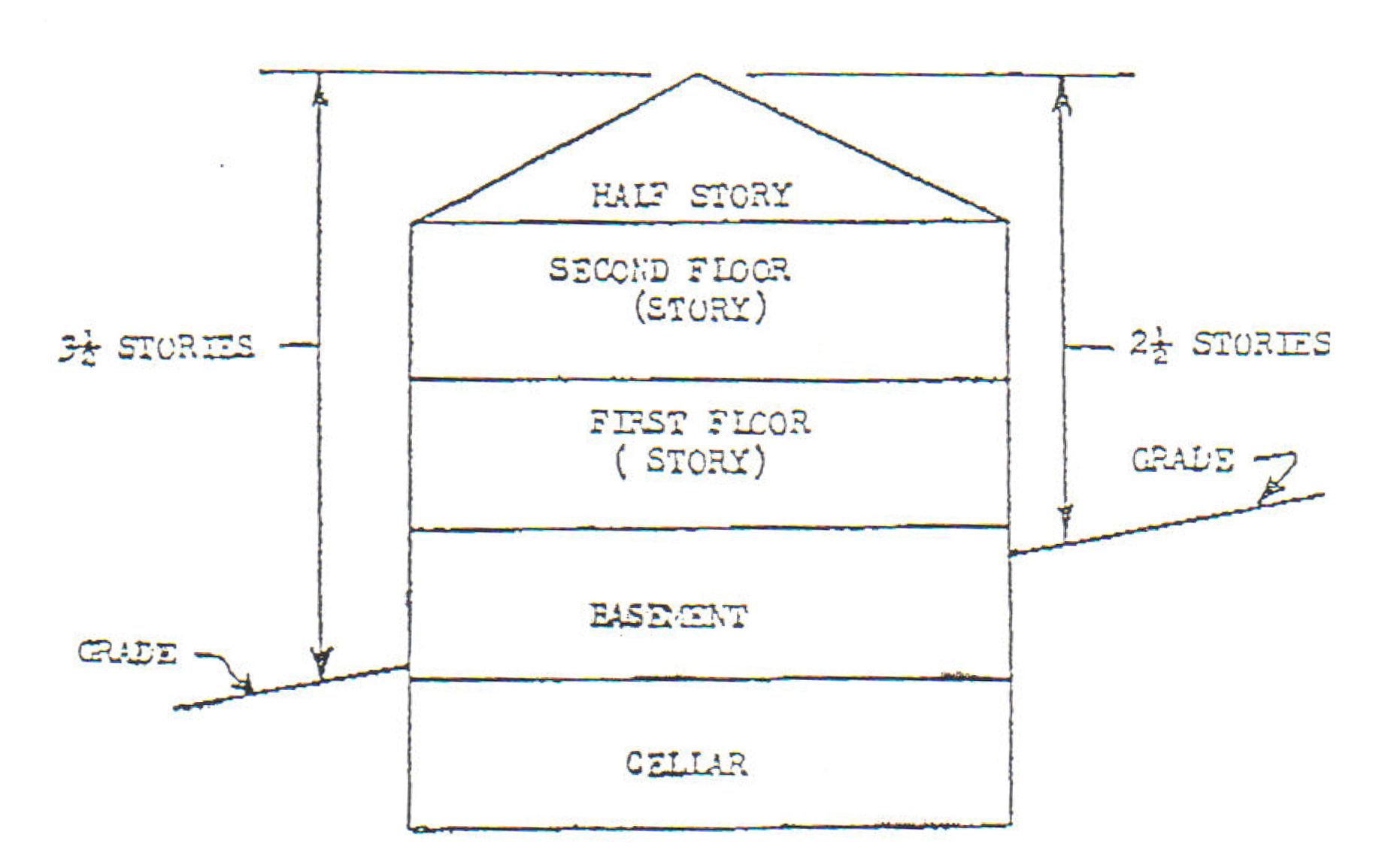

Sec. 117-1142. - Figure 2: Floor levels; height determination.

(Ord. of 12-17-2012, fig. 2)

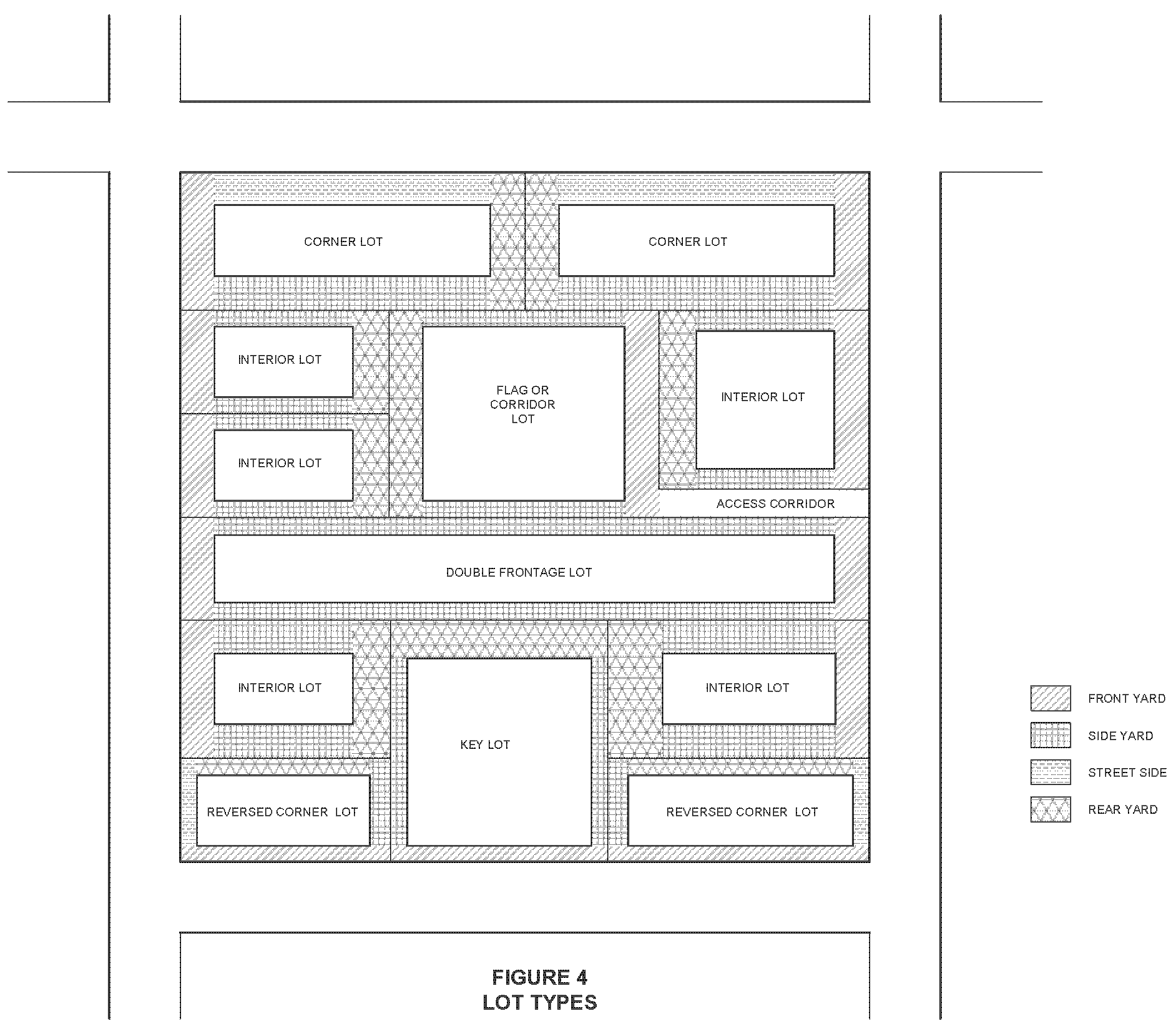

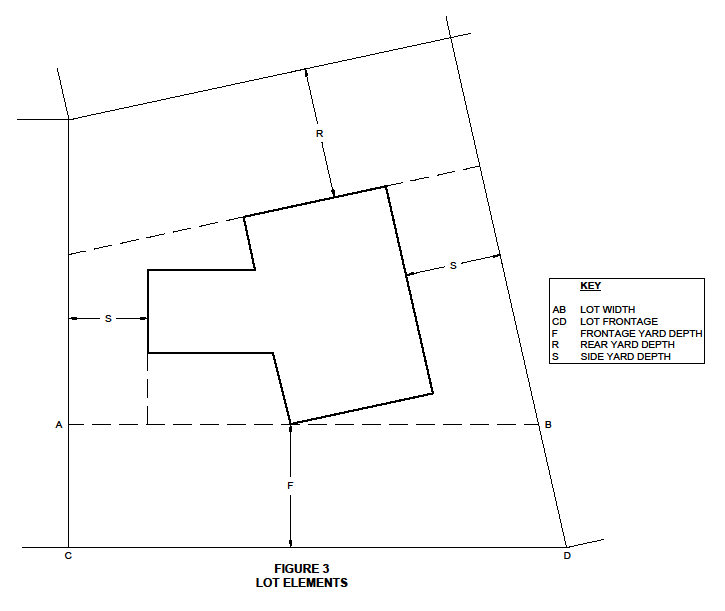

Sec. 117-1143. - Figure 3: Lot elements; and Figure 4: Lot types.

(Ord. of 12-17-2012, figs. 3, 4; Ord. of 4-12-2021(2); Ord. of 2-24-2025(3), Att.)

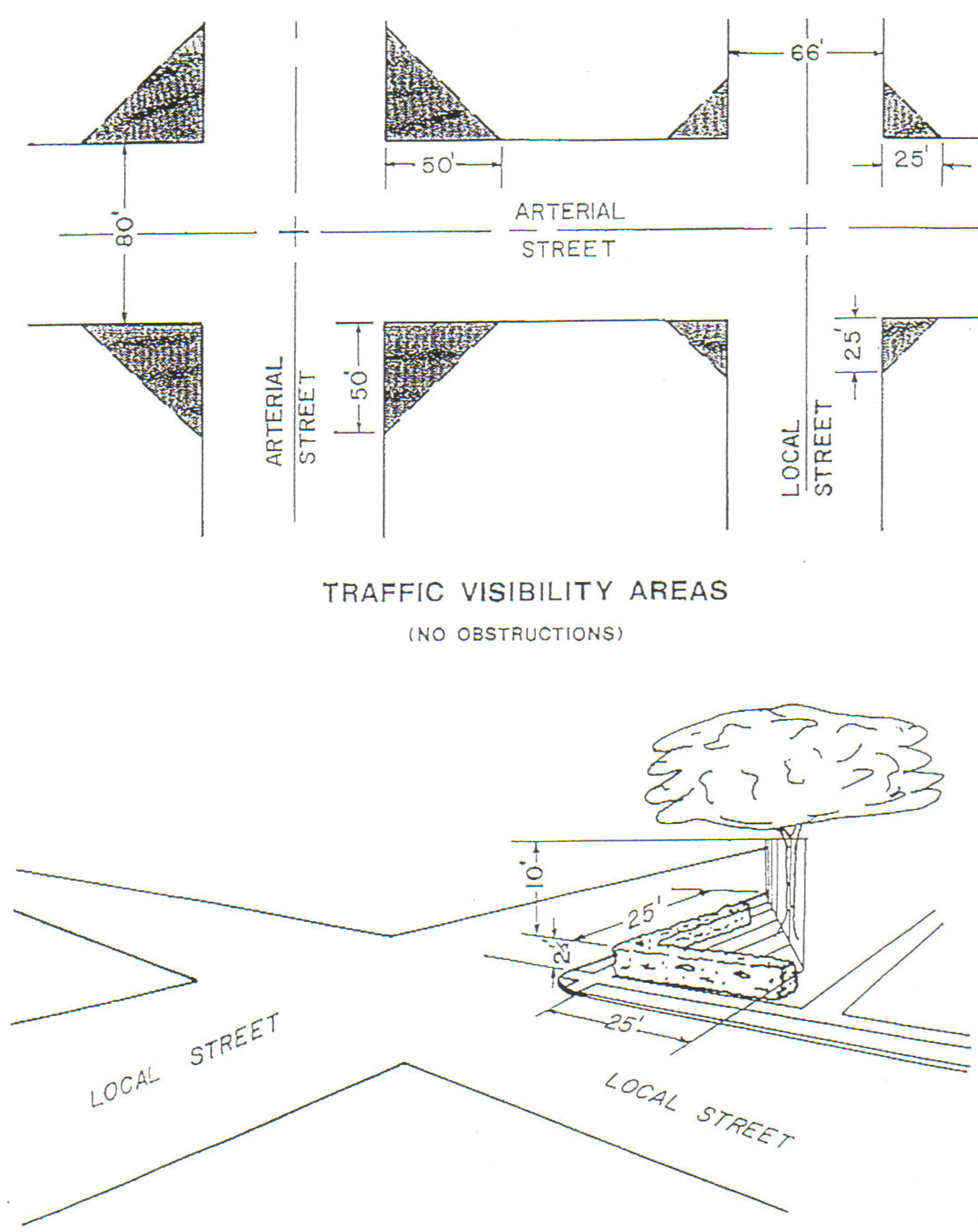

Sec. 117-1144. - Figure 5: Traffic visibility areas (no obstructions).

(Ord. of 12-17-2012, fig. 5)
