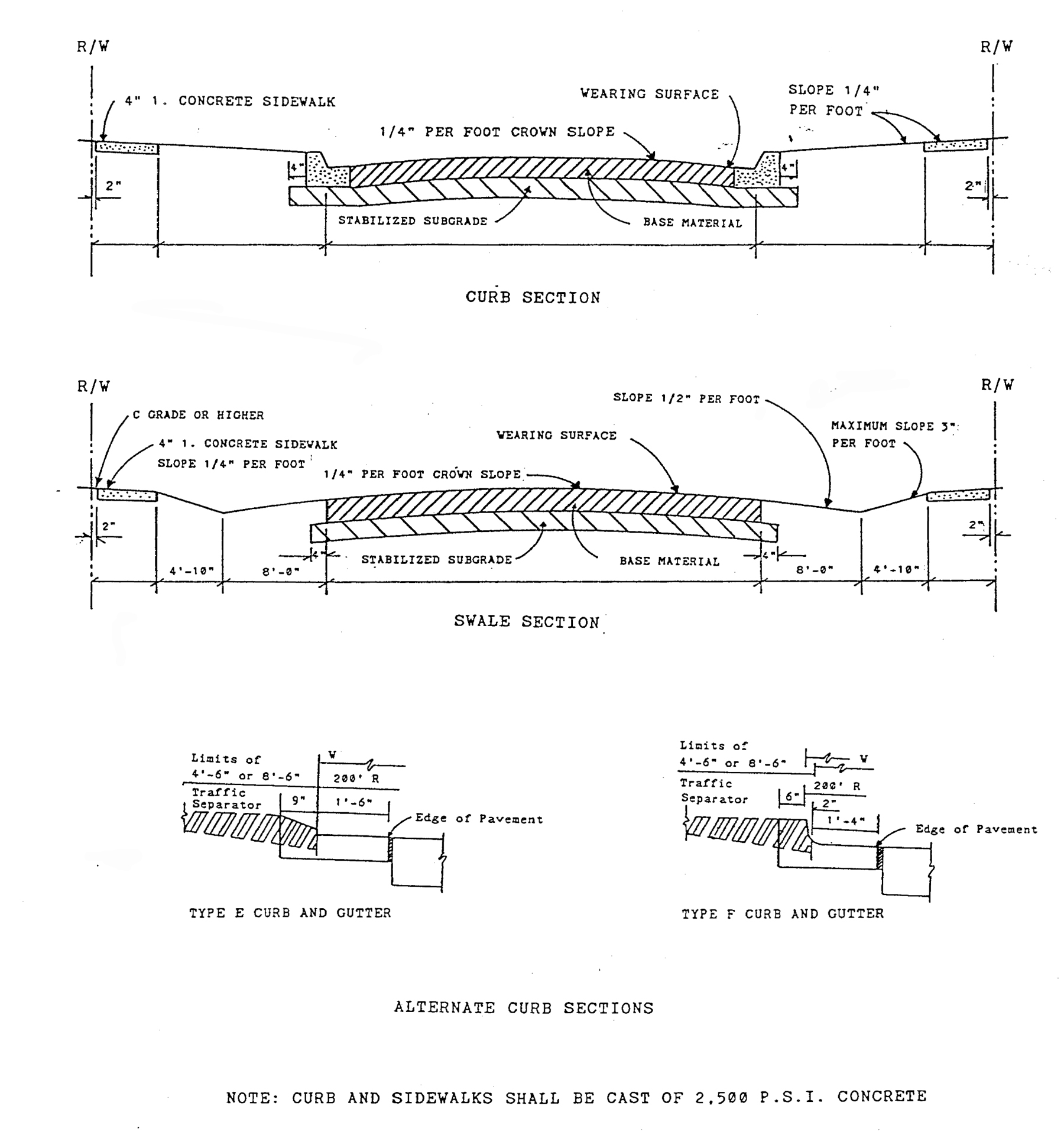

STREET CROSS SECTION AND CURB STANDARDS

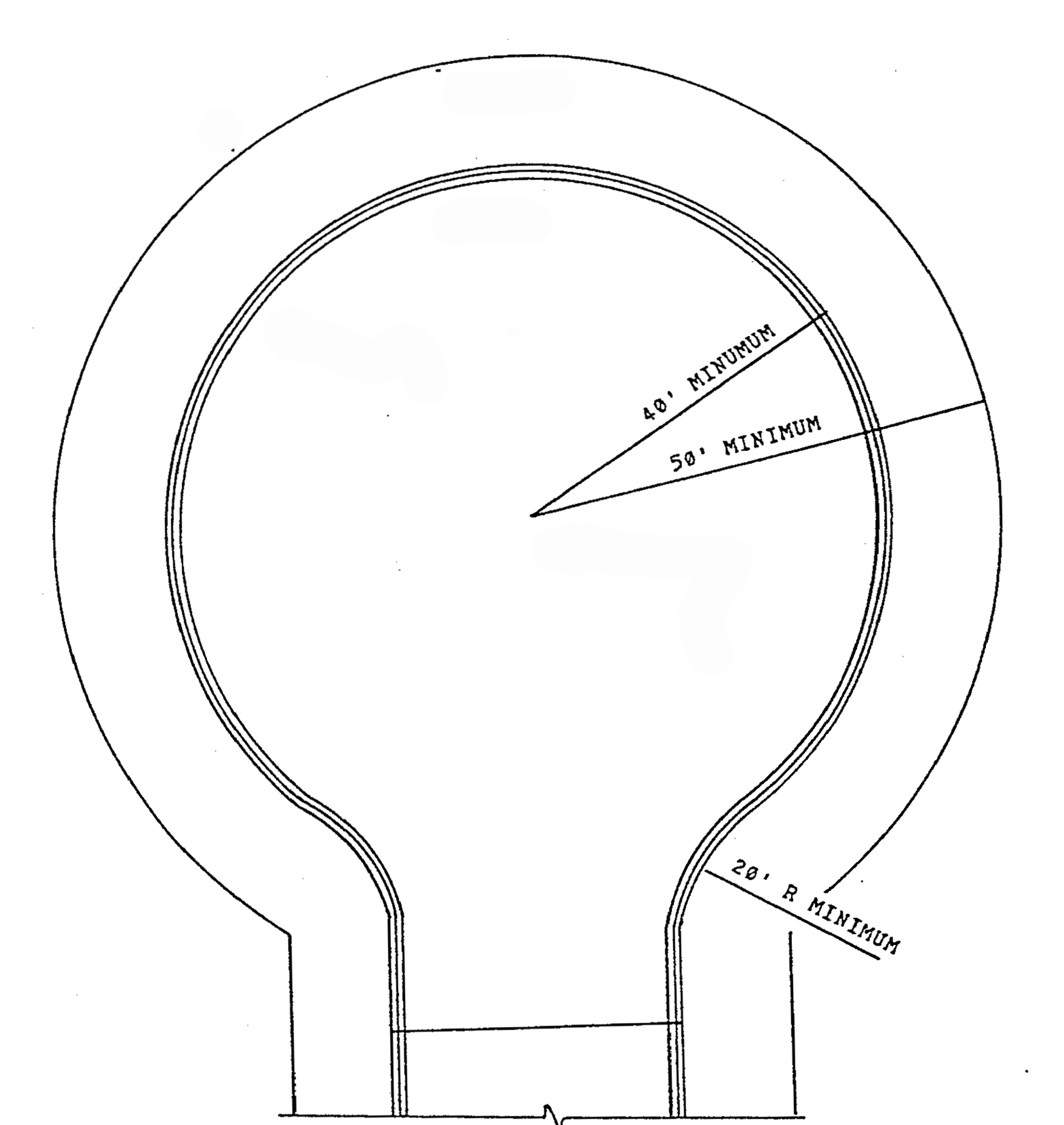

CUL-DE-SAC DETAIL

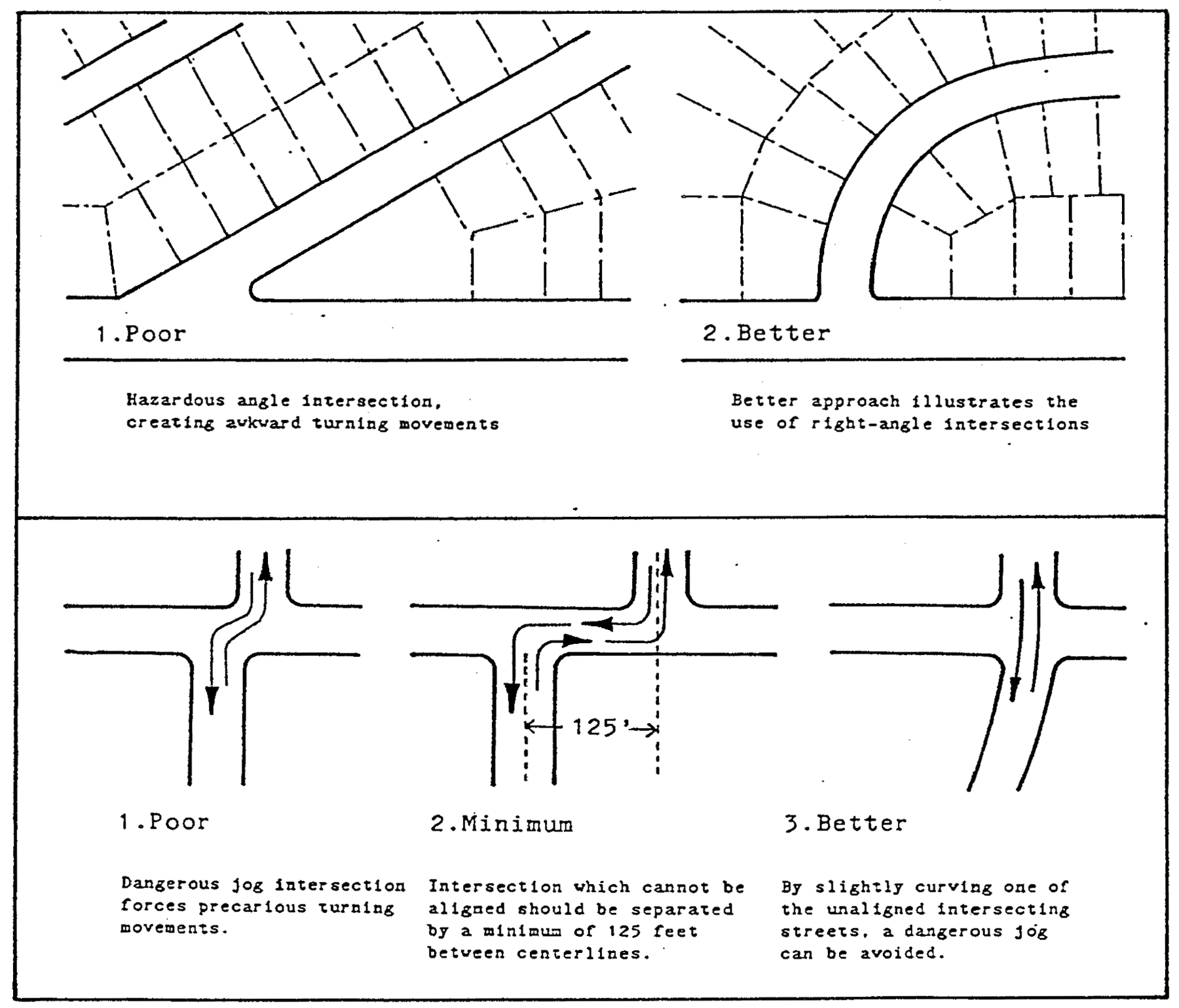

INTERSECTION DESIGN STANDARDS

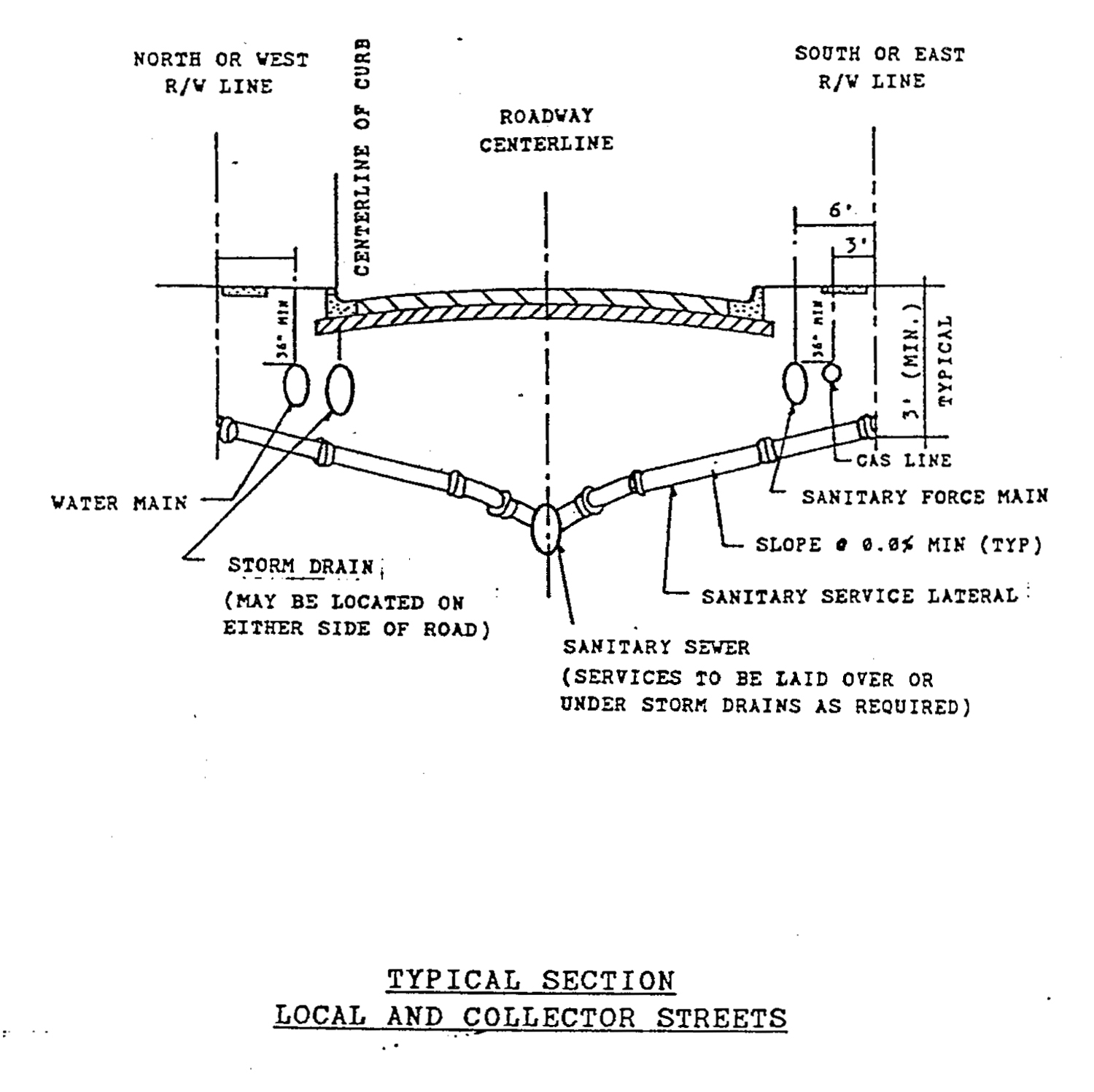

UTILITY LOCATION

CERTIFICATE OF SURVEYOR

KNOW ALL MEN BY THESE PRESENTS, that the undersigned, being a licensed and registered land surveyor, as provided under F.S. ch. 472, and is in good standing with the Board of Land Surveyors, does hereby certify that on ___________ he completed the survey of the lands as shown in the foregoing plat or plan; that said plat is a correct representation of the lands therein described and platted or subdivided; that permanent reference monuments have been placed as shown thereon as required by F.S. ch. 177, as amended; and that said is located in Section _____, Township and Range _____, City of Newberry, Florida.

CERTIFICATE OF THE SUBDIVIDER'S ENGINEER

THIS IS TO CERTIFY, that on the ___________, ___________ Registered Florida Engineer, as specified within F.S. ch. 471, License No. _____, does hereby certify that all required improvements have been installed in compliance with the approved construction plans and if applicable, any submitted "as built" blue prints in accordance with the requirements of the City Commission of the City of Newberry, Florida.

CERTIFICATE OF APPROVAL BY COUNTY HEALTH DEPARTMENT

Examined on ___________

AND

Approved by ___________
County Health Department

CERTIFICATE OF APPROVAL BY THE ATTORNEY FOR THE CITY OF NEWBERRY, FLORIDA

Examined on ___________

AND

Approved as to Legal Form and Sufficiency by ___________
City Attorney

CERTIFICATE OF APPROVAL BY CITY COMMISSION OF THE CITY OF NEWBERRY, FLORIDA

THIS IS TO CERTIFY, that on ___________ the foregoing plat was approved by the City of Newberry, Florida.

CERTIFICATE OF ESTIMATED COST

I, ___________ Registered Florida Engineer, as specified within F.S. ch. 471, License No. _____, do hereby estimate that the total estimated cost of installing all required improvements for the proposed subdivision to be titled ___________ is $_____.

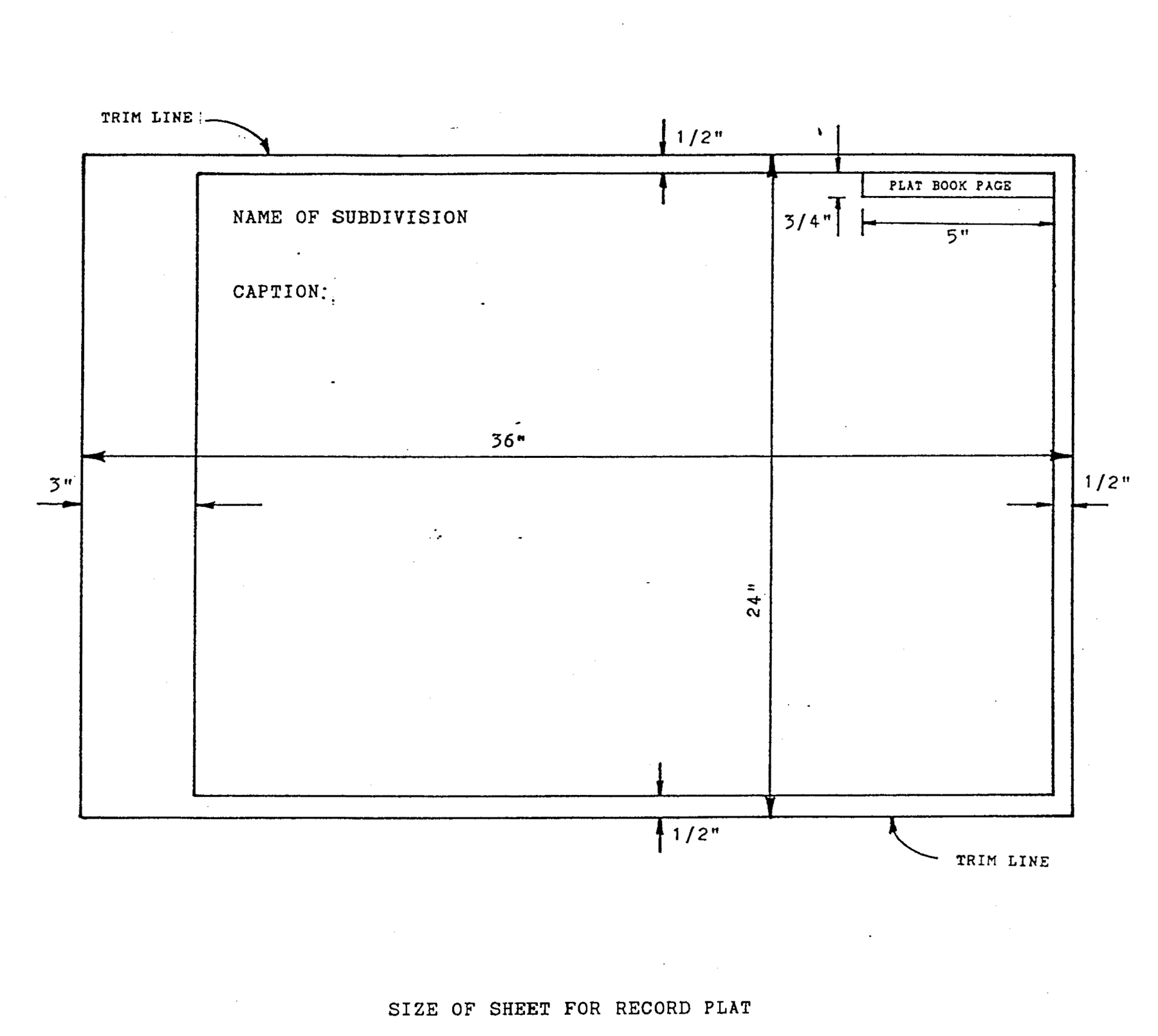

PRELIMINARY AND FINAL PLAT SIZE SPECIFICATIONS
