09 GIRDWOOD
![]() |

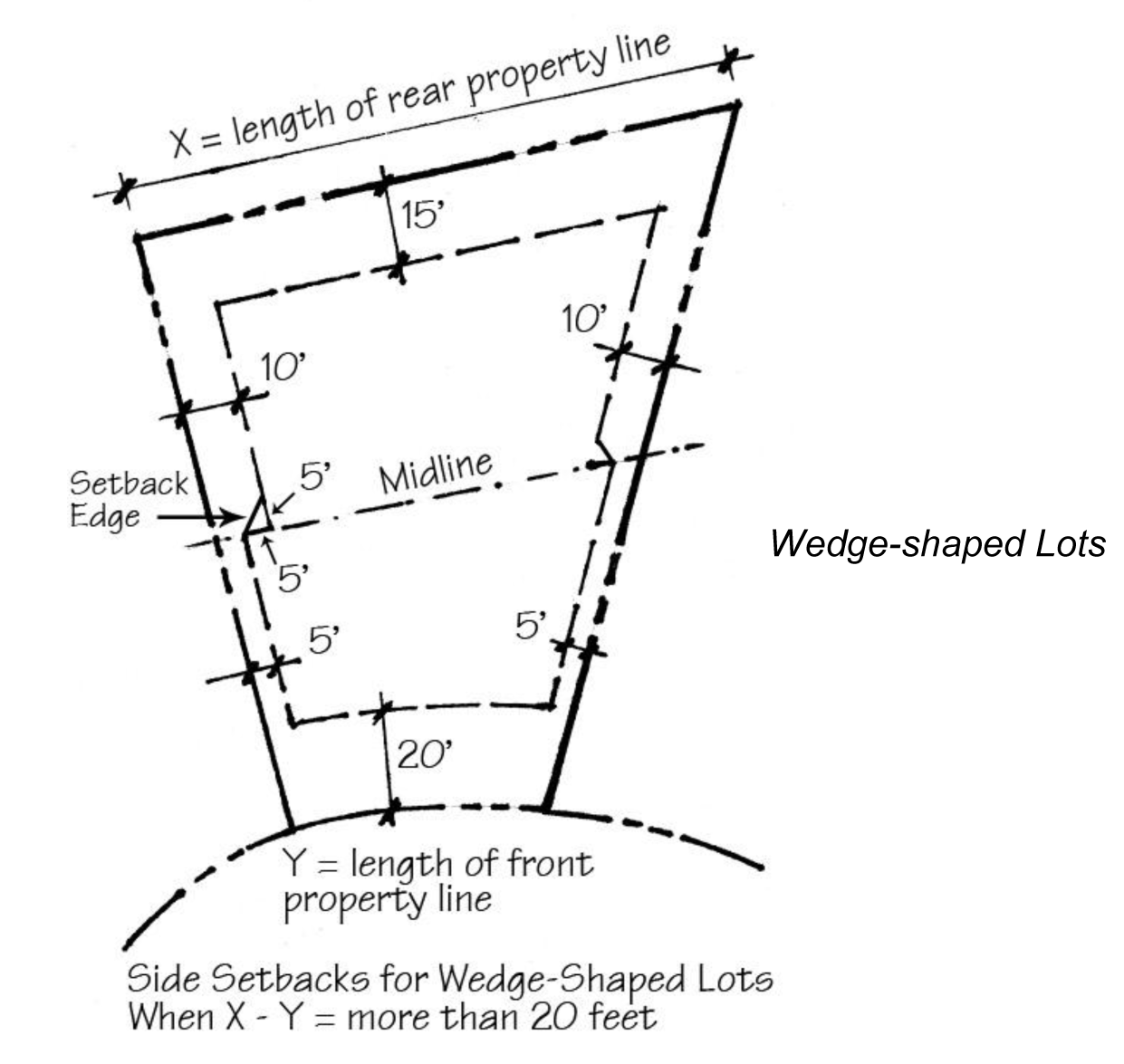

![]() Wedge-shaped Lots |
TABLE 21.09-1: GIRDWOOD ZONING DISTRICTS ESTABLISHED | ||
|---|---|---|
District Type | District Name | District Description |
Residential Districts | gR-1 | Alyeska Highway Mixed Residential |
gR-2 | Single-Family/Two-Family Residential | |
gR-2A | Single-Family/Two-Family Residential (Crow Creek Road) | |
gR-3 | Single-Family/Two-Family Residential | |
gR-4 | Multiple-Family Residential | |
gR-5 | Multiple-Family Residential | |
Commercial Districts | gC-1 | Seward Highway/Alyeska Highway Commercial |
gC-2 | Girdwood Station/Seward Highway Commercial | |
gC-3 | Old Townsite Commercial/Residential | |
gC-4 | Lower Alyeska Highway Commercial | |
gC-5 | New Townsite South Commercial | |
gC-6 | Crow Creek Road Commercial/Residential | |
gC-7 | Townsite Square Commercial | |
gC-8 | New Townsite North Commercial | |
gC-9 | East Hightower Commercial/Residential | |
gC-10 | Upper Alyeska Highway Commercial | |
Industrial Districts | gI-1 | Ruane Road Industrial |
gI-2 | Upper Crow Creek Industrial | |
Resort Use Districts | GRST-1 | Original Mountain Base Resort |
GRST-2 | New Base Resort | |
Other Districts | GA | Girdwood Airport |
GOS | Girdwood Open Space | |
GIP | Girdwood Institutions and Parks | |
GCR-1 | Commercial Recreation (Golf Course/Nordic Ski Course) | |
GCR-2 | Commercial Recreation (Glacier - Winner Creek) | |
GCR-3 | Commercial Recreation (Crow Creek Historic Mine) | |
GDR | Development Reserve | |
GRR | Recreation Reserve | |
GW | Girdwood Watershed | |
Floor Area Ratio (FAR) Example ![]() |
Lot size: 10,400 square feet FAR: 0.5 Maximum gross building area: 5,200 square feet. Illustration assumes no useable space under the eaves (in the attic). |
Table 21.09-4 | |
|---|---|
Design Speed | Sight Distance |
60 mph | 650 ft. |
50 mph | 515 ft. |
40 mph | 415 ft. |
30 mph | 310 ft. |
20 mph | 210 ft. |

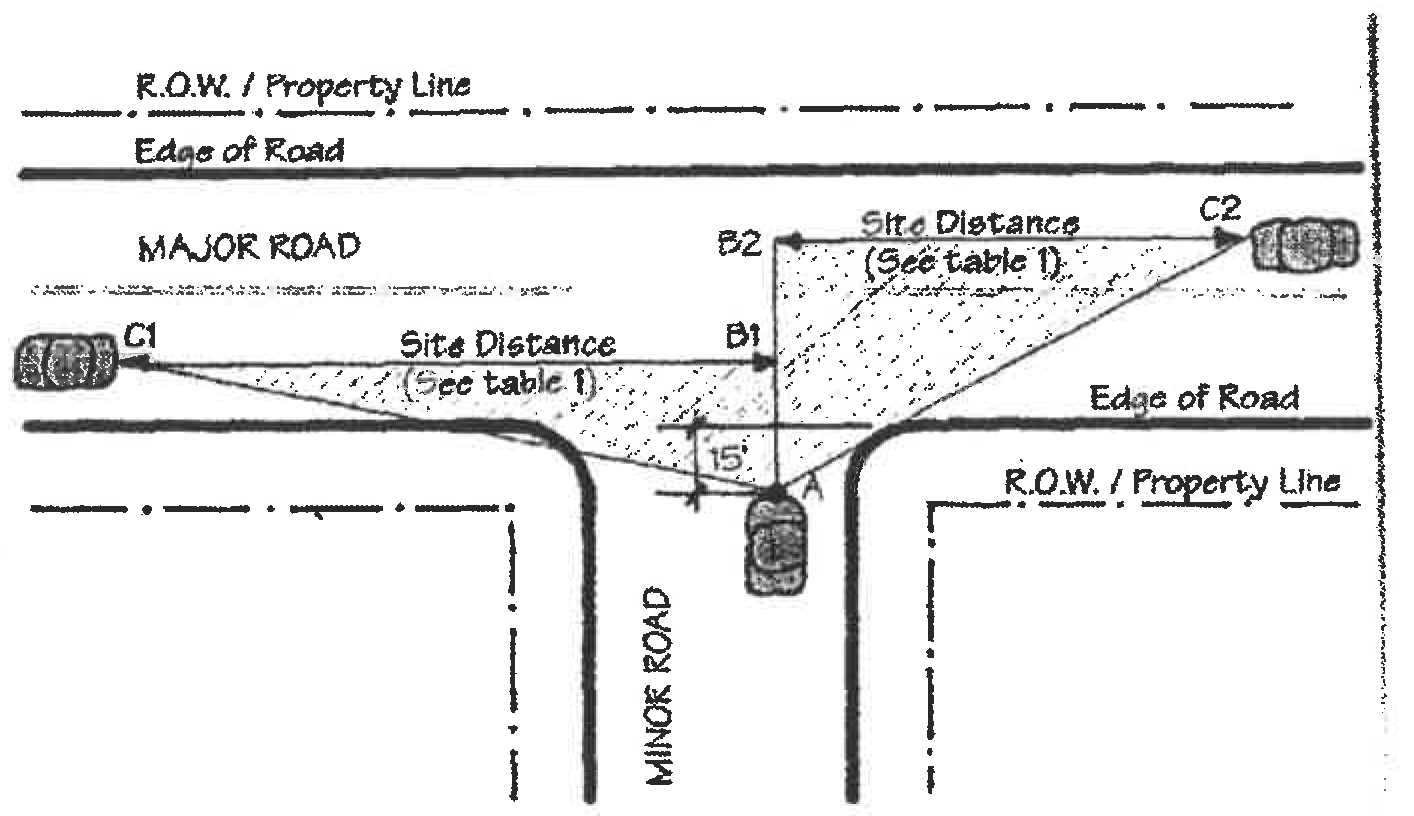

![]() Figure 21.09-4: Sight Distance Triangle | |
TABLE 21.09-5: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD RESIDENTIAL DISTRICTS | ||||||||
|---|---|---|---|---|---|---|---|---|

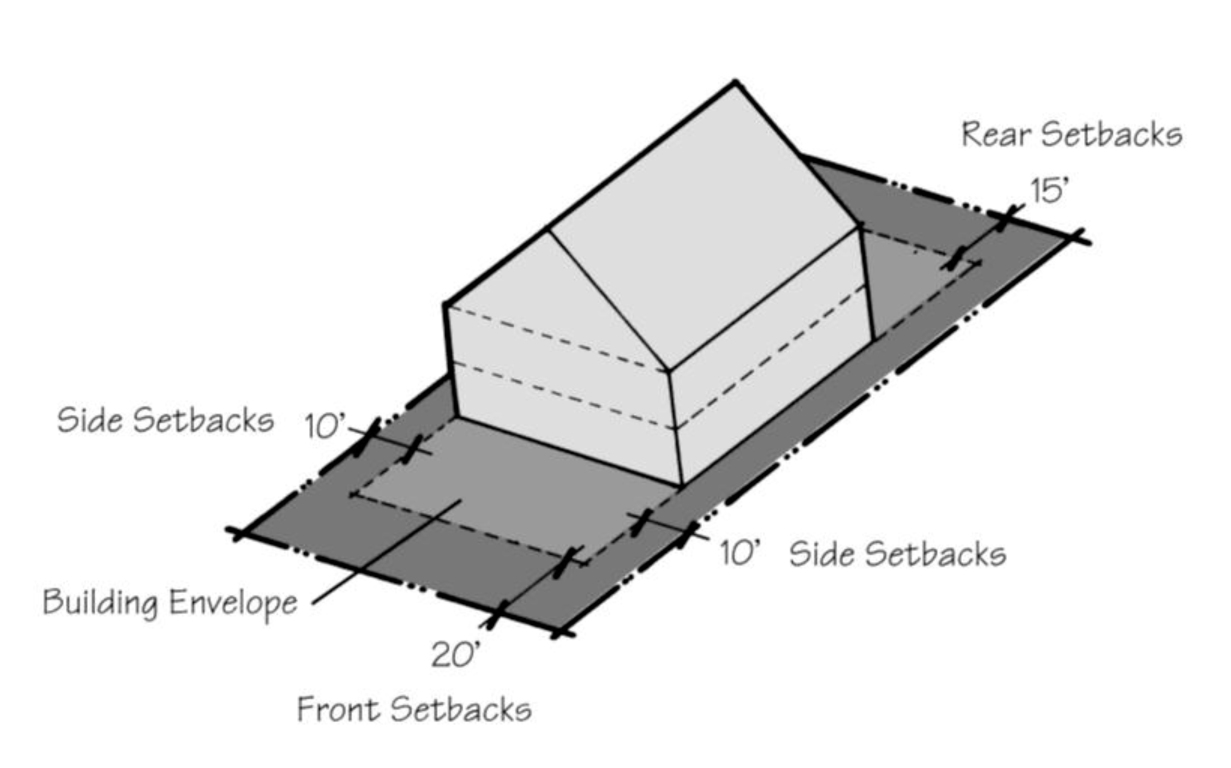

Uses | Lot Dimensions | Minimum Setbacks | Building Bulk and Height | |||||
Min Area (sq ft) | Min. Width | Front | Side | Rear | Max Height | Max Lot Coverage (%) | Max Floor Area Ratio | |
R-1: Alyeska Highway mixed residential district | ||||||||
Dwelling, multi-family | 19,800 for 3 units, add 4,000 for each additional unit | 70 feet | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre2 | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots < 12,500 sq ft |
Dwelling, single-family attached | See § 21.09.050B.2.c | |||||||
Dwelling, single-family detached | 10,400 | 70 feet | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre [2] | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Dwelling, townhouse | See § 21.09.050B.2.c | |||||||
Dwelling, two-family | 16,800 | 70 feet | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre [2] | 35 feet | 25% for lots larger than 15,500 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Roominghouse | 19,800 | 70 feet | 20 feet1 | 10 feet | 15 feet; or 20 feet for lots > 1 acre | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Community buildings and uses | 10,400 | |||||||
Religious assembly | 20,800 | |||||||
Hostel or inn | 1.5 acres | |||||||
All other allowed uses | 10,400 | |||||||
R-2: Single-family/two-family residential district R-2A: Single-family/two-family residential district (Crow Creek Road) | ||||||||
Dwelling, single-family detached | 10,400; or 50,000 without sewer | 70 feet; 100 feet without sewer | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre [2] | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Dwelling, two-family | 16,800; or 50,000 without sewer | |||||||
Community buildings and uses | 10,400 | 70 feet; 100 feet without sewer | 20 feet1 | 10 feet | 15 feet; or 20 feet for lots > 1 acre | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Religious assembly | 20,800 | |||||||
All other allowed uses | 10,400 | |||||||
R-3: Single-family/two-family residential district | ||||||||
Dwelling, single-family attached | See § 21.09.050B.2.c | |||||||
Dwelling, single-family detached | 8,400; or 50,000 without sewer | 70 feet; 100 feet without sewer | (same as "Dwelling, two-family" below) | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft | ||
Dwelling, townhouse | See § 21.09.050B.2.c | |||||||
Dwelling, two-family | 16,800; or 50,000 without sewer | 70 feet; 100 feet without sewer | For lots <e; 21,780 sq ft: front: 20 feet side: 10 feet rear: 15 feet | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft | ||
Community buildings and uses, except educational facilities | 8,400; or 50,000 without sewer | |||||||
Religious assembly | 20,800 | For lots 21,781— 43,560 sq ft: front: 25 feet side: 15 feet rear: 20 feet | ||||||
Private schools | 16,800 | |||||||
Inn | 1.5 acres; or 5 acres without sewer | For lots > 43,560 sq ft: front: 30 feet side: 20 feet | ||||||
All other allowed uses | 8,400; or 50,000 without sewer | |||||||
R-4: Multi-family residential district | ||||||||
Dwelling, multi-family | 12,500 | 70 feet | 20 feet1 | 10 feet2 | 10 feet2 | 35 feet | 40% | n/a |
Roominghouse | 10,400 | 70 feet | 20 feet1 | 10 feet | 10 feet | 35 feet | 40% | n/a |
Community buildings and uses | 10,400 | |||||||
Religious assembly | 20,800 | |||||||
All other allowed uses | 10,400 | |||||||
R-5: Multi-family residential district | ||||||||
Dwelling, multi-family | 20,000 | 100 feet | 25 feet | 15 feet | 20 feet | 35 feet | 40% | n/a |
Dwelling, single-family attached | See § 21.09.050B.2.c | |||||||
Dwelling, single-family detached3 | 50,000 | 100 feet | 25 feet | 15 feet | 20 feet | 35 feet | 40% | n/a |
Dwelling, townhouse | See § 21.09.050B.2.c | |||||||
Religious assembly | 20,800 | 80 feet | 25 feet | 15 feet | 20 feet | 35 feet | 40% | n/a |
All other allowed uses | 10,400 | |||||||
ADDITIONAL SPECIFIC STANDARDS: |
|---|
1 Alyeska Highway Setbacks: Minimum setback of 25 feet is required from any property line abutting the Alyeska Highway, but if the property extends into the road, the 25 foot setback shall be measure from the edge of the road easement. |
2 Side and rear setback flexibility: Side setbacks may be reduced by five feet on one side of the lot, but the amount of setback reduction shall be added to the opposite side setback. Rear setbacks may be reduced by five feet, but the amount of reduction shall be added to the front setback. |
3 Single-family dwellings in gR-5: Single-family detached dwellings in the gR-5 are subject to the provisions of § 21.09.040B.f.iii(B). |
TABLE 21.09-6: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD COMMERCIAL DISTRICTS | ||||||||
|---|---|---|---|---|---|---|---|---|
Uses | Lot Dimensions | Minimum Setbacks (ft) | Bulk, Height and Density | |||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Max. Height | Max. Lot Coverage | Max Dwelling Units/Acre | |
gC-1: Seward Highway/West Alyeska Highway Commercial District | ||||||||
All uses | 6,000 | 50 ft | 205 | 206 | 20 | 2 stories not to exceed 35 ft | 70% | n/a |
gC-2: Girdwood Station/Seward Highway Commercial District | ||||||||
All uses | 6,000 | 50 ft | 135 | 106 | 207 | 2 stories not to exceed 35 ft | 70% | n/a |
gC-3: Old Townsite Commercial/Residential District | ||||||||
All uses | 6,000 | 50 ft | 135 | 106 | 107 | 4 | 2,500 square feet or 50%, whichever is greater | n/a |
gC-4: Lower Alyeska Highway Commercial District | ||||||||
All uses, ≤ 21,780 Sq Ft | 10,400 | 80 ft | 255 | 106 | 15 if lot size < 1 acre; 20 if lot size is ≥ 1 acre | 35 ft | 40% | 20 |
All uses, ;lt; 21,781 Sq Ft | 106 | |||||||
gC-5: New Townsite South Commercial District | ||||||||
All uses, ≤ 21,780 Sq Ft | 8,400 | 80 ft | 165 | 106 | 20 | 35 ft | 50% | 20 |
All uses, 21,781 Sq Ft - 5 acres | 165 | 206 | 25 | |||||
All uses, > 5 acres | 16 | 306 | 30 | |||||
gC-6: Crow Creek Road Commercial/Residential District | ||||||||
All uses | 8,400; or 50,000 without sewer | 70 ft | 18 | 10; or 15 if lot size > 21,781 sq ft6 | 15 | 35 ft | 40% | 20 |
gC-7: Townsite Square Commercial District | ||||||||
All uses | 6,000 | 50 ft | 16 min; 20 max8 | Zero setback permitted on one side [3] and in accordance with § 21.09.040 C.2.g.iii(D) if applicable; otherwise 10 | 15 | 4 | 70% | 20 |
gC-8: New Townsite North Commercial District | ||||||||
All uses | 6,000 | 50 ft | 16 min; 20 max8 | 106 | 10 | 35 ft | 60% | 20 |
gC-9: East Hightower Commercial/Residential District | ||||||||
All uses | 6,000 | 50 ft | 16 min; 20 max8 | 106 | 10 | 35 ft | 60% | 20 |
gC-10: Upper Alyeska Highway Commercial District | ||||||||
All uses, ≤ 21,780 Sq Ft | 8,400 | 60 ft | 205 | 156 | 20 | 35 ft | 70% | 20 |
All uses, 21,781 Sq Ft - 5 acres | 205 | 206 | 20 | |||||
All uses, > 5 acres | 305 | 306 | 30 | |||||
ADDITIONAL SPECIFIC STANDARDS: |
|---|
4 For structures with only commercial uses: Two stories not to exceed 35 feet. |
For structures with only residential uses: 35 feet. |
For structures with commercial uses on the ground level and residential uses above: second story may include loft space not a separate dwelling unit and maximum height is 35 feet. |
5 Alyeska Highway Setbacks - Minimum setback of 25 feet is required from any property line abutting the Alyeska Highway, but if the property extends into the road, the 25 foot setback shall be measured from the edge of the road easement. |
6 Zero Lot Line Setbacks - Where adjoining property owners agree to connect buildings or cooperate in the design of a public passageway or courtyard between them, a zero lot line side set-back is allowed on one side. |
7 Alley Exemption - Where a platted alley right-of-way abuts a parcel, there shall be no required setback along the property line. |
8 Maximum Front Setback Exception - Limited portions of building frontage may, subject to administrative site plan review, be allowed to step back further than the maximum allowed front setback to create small usable public spaces in the front of a building. |
TABLE 21.09-7: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD INDUSTRIAL DISTRICTS | |||||||
|---|---|---|---|---|---|---|---|
Use | Lot Dimensions | Minimum Setbacks (ft) | Building Bulk and Height | ||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Maximum Lot Coverage | Maximum Height | |
gI-1: Ruane Road Industrial District9 | |||||||
All uses, ≤ 1 acre | 10,400 | 80 ft | 20 | 10 | 10 | Unrestricted | 25 feet |
All uses, > 1 acre | 25 | 15 | 15 | ||||
gI-2: Upper Crow Creek Industrial District9 | |||||||
All uses | 50,000 | 150 ft | 25 | 15 | 15 | Unrestricted | 35 feet |
ADDITIONAL SPECIFIC STANDARDS: |
|---|
9 Minimum setback along any property line contiguous with the GOS district is 20 feet for lots less than or equal to one acre in gI-1 and 30 feet for all other lots in gI-1 and gI-2 districts. |
TABLE 21.09-8: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD RESORT DISTRICTS | ||||||||
|---|---|---|---|---|---|---|---|---|
Use | Lot Dimensions | Minimum Setbacks | Building Bulk and Height | |||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Max. Height | Max. Lot Coverage | Maximum Floor Area Ratio | |
gRST-1: Original Mountain Base Resort District | ||||||||
All uses | 8,400 | 60 feet | 13 feet10 | 10 feet; or 20 feet if lot size > 0.5 acre11 | 20 feet | 40 feet | 50% | 0.712 |
gRST-2: New Base Resort District | ||||||||
All uses | 8,400 | 80 feet | 13 feet10 | 10 feet; or 20 feet if lot size > 0.5 acre11 | 20 feet | 75 feet | 50% | 0.712 |
ADDITIONAL SPECIFIC STANDARDS: |
|---|
10 Arlberg Road Setbacks - The minimum setback along any property line abutting Arlberg Road is 30 feet. |
11 Zero Lot Line Setbacks - Where adjoining property owners agree to connect buildings or cooperate in the design of a public passageway or courtyard between them, a zero lot line setback is allowed on one side. Buildings connecting on the property line shall appear on the exterior to be two different buildings. |
12 FAR Incentives for Structured Parking - Maximum FAR may be increased from 0.7 to 1.35 for uses in where structured or underground parking is provided. |
TABLE 21.09-9: TABLE OF DIMENSIONAL STANDARDS OTHER GIRDWOOD DISTRICTS | |||||||
|---|---|---|---|---|---|---|---|
Use | Lot Dimensions | Minimum Setbacks (ft) | Building Bulk and Height | ||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Max. Height | Max. Lot Coverage | |
GA: Girdwood Airport District | |||||||
All uses, ≤ 1 acre | 10,400 | 80 ft | 20 | 1013 | 1013 | 25 feet | Unrestricted |
All uses, > 1 acre | 25 | 1513 | 1513 | ||||
GOS: Girdwood Open Space District | |||||||
All uses | 10,400 | 70 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GIP: Girdwood Institutions and Parks District | |||||||
All uses | 8,400 | 70 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 30% |
GCR-1: Commercial Recreation (Lower Valley Development Reserve) District | |||||||
All uses | All dimensions same as gR-2. | ||||||
GCR-2: Commercial Recreation (Glacier-Winner Creek) District | |||||||
All uses | 50,000 | 100 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GCR-3: Commercial Recreation (Crow Creek Historic Mine) District | |||||||
All uses | 50,000 | 100 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GDR: Development Reserve District | |||||||
All uses | 10,400 | 70 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GRR: Recreation Reserve District | |||||||
All uses | 10,400 | 70 | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GW: Girdwood Watershed District | |||||||
All uses | 50,000 | 100 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
ADDITIONAL SPECIFIC STANDARDS: |
|---|
13 In the Girdwood Airport district, the minimum setback along any property line contiguous with the GOS district shall be 20 feet, if the lot is less than or equal to one acre, and shall be 30 feet, if the lot area is greater than one acre. |
TABLE 21.09-10: Minimum Vegetation Coverage, by Use | ||||
|---|---|---|---|---|
Single-family or Two-family Residential | Multifamily Residential | Commercial or Public/Institutional | Industrial | |
Natural Vegetation | 30% | 20% | 10% | 5% |
Total Permeable Surface, including Natural Vegetation | 50% | 40% | 20% | 10% |

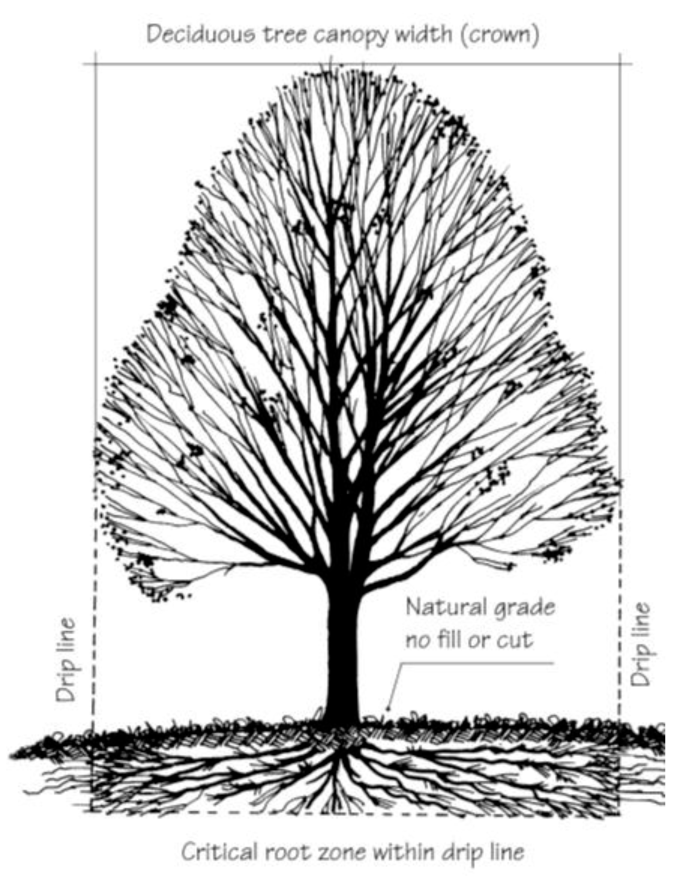

![]() Critical Root Zone |

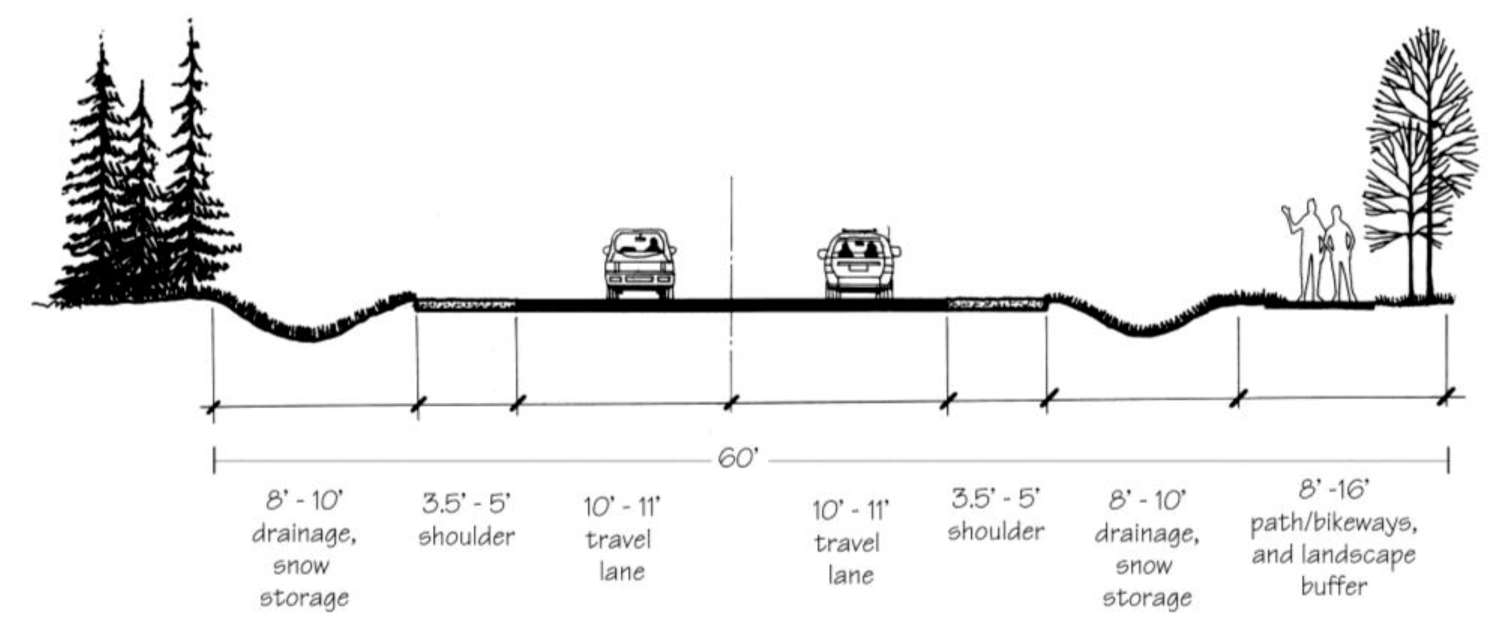

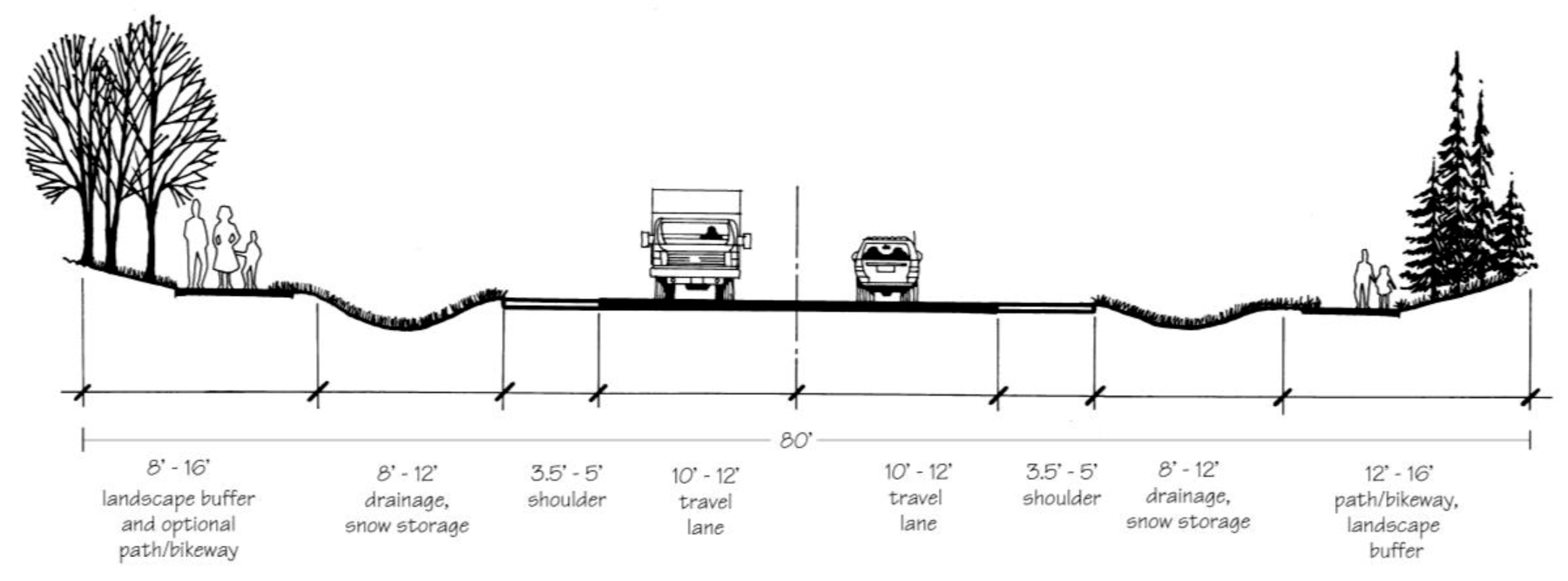

![]() Collector Street Dimensions |
![]() Local Residential Street Dimensions |

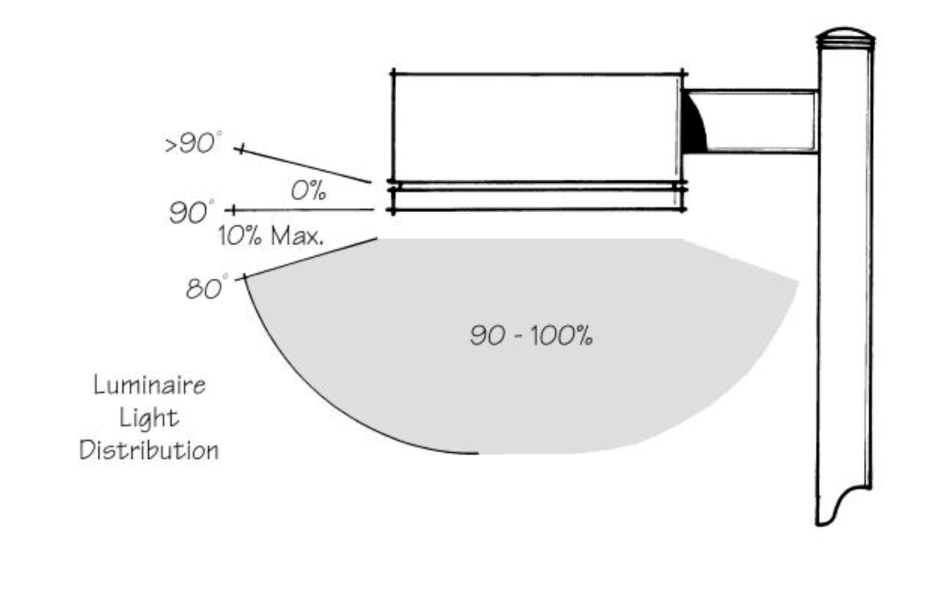

![]() Full Cut-off Luminaire |

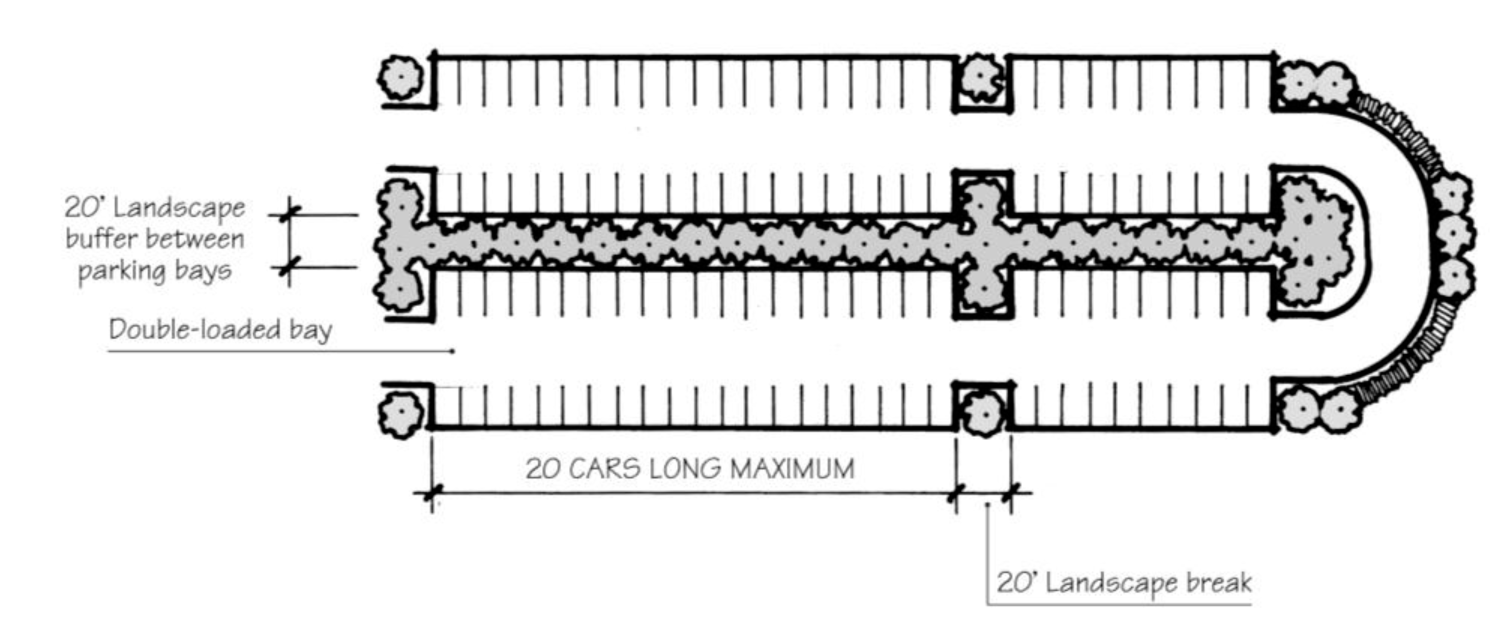

![]() Parking Lot Landscaping |

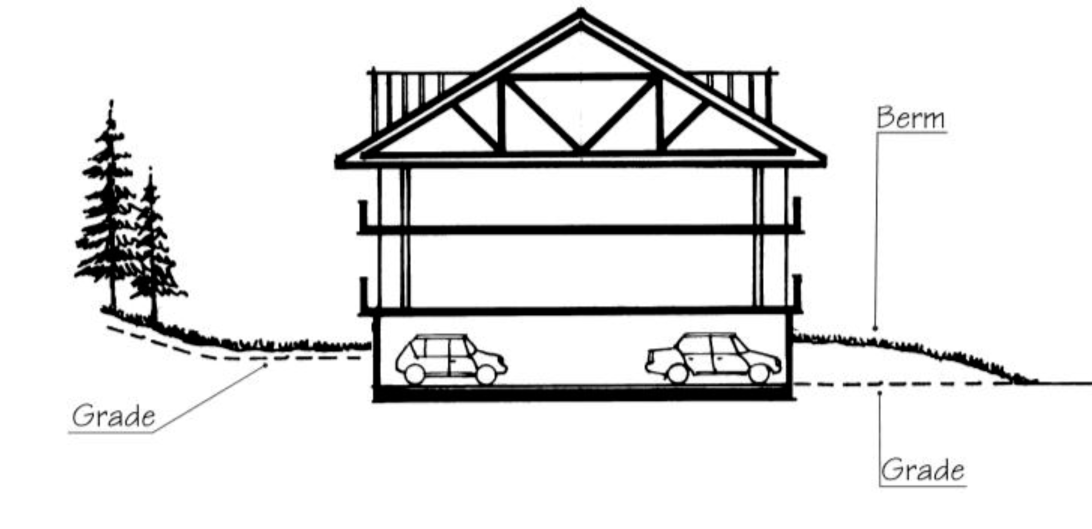

![]() Parking within Multifamily and Non-Residential Structures |

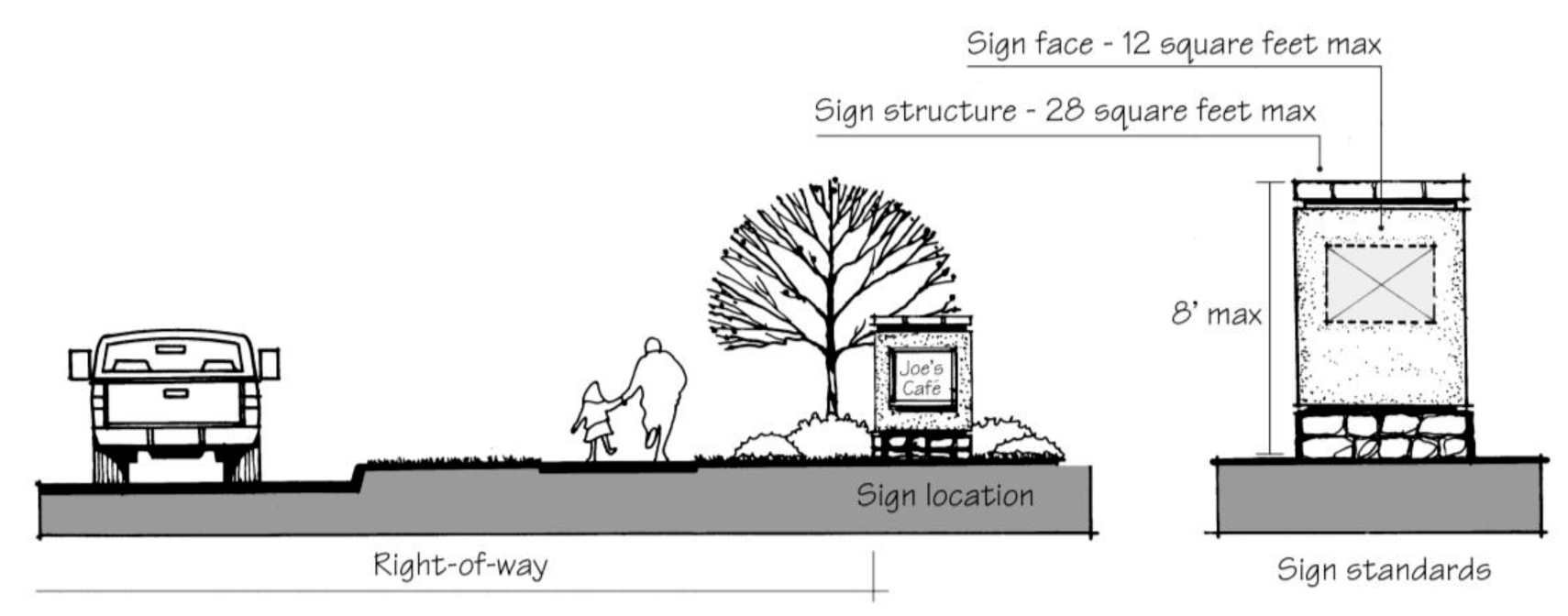

![]() Freestanding Commercial Sign |
Building Frontage Width (ft.) | Square Feet Allowed |
|---|---|
< 20 | 10 |
20—30 | 15 |
31—40 | 20 |
41—50 | 30 |
> 50 | 40 |

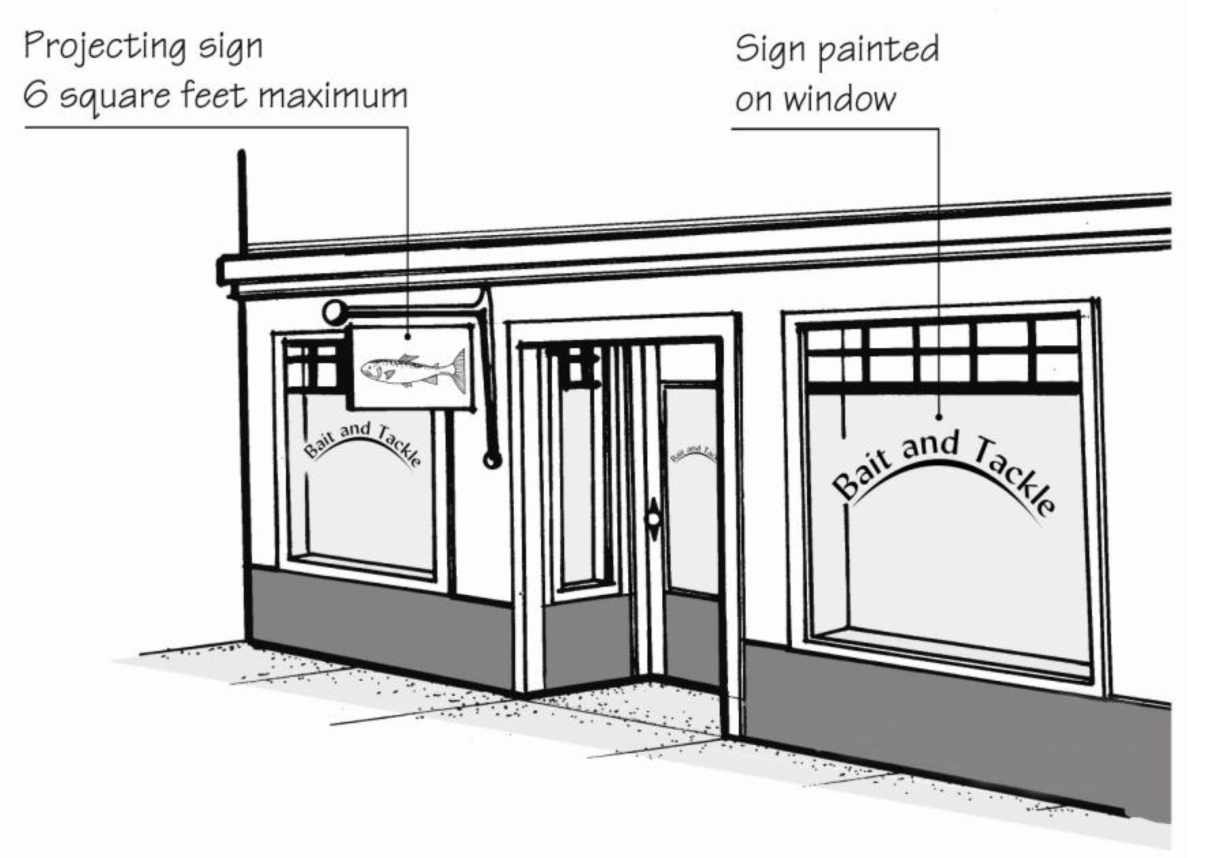

![]() Commercial Building Signage |

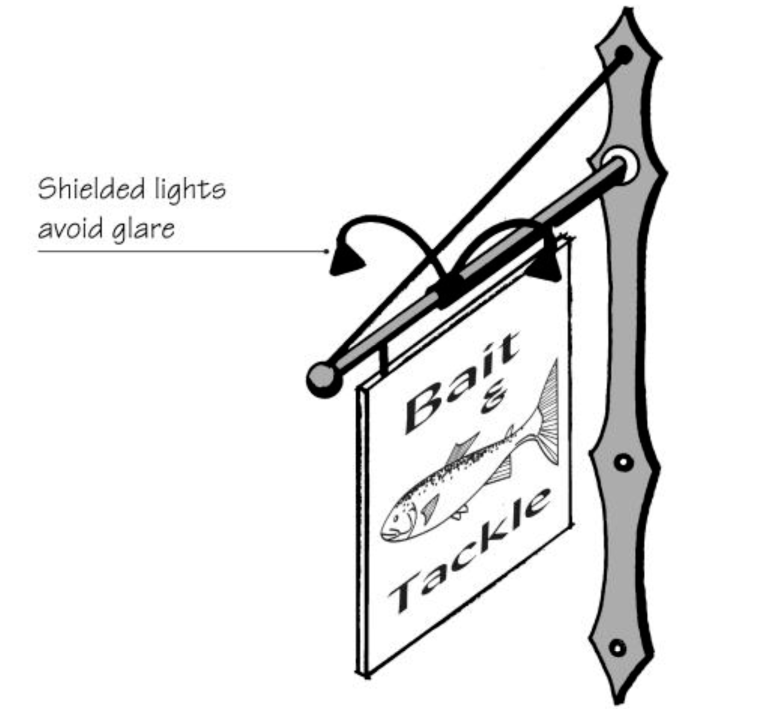

![]() Light Projecting Sign |

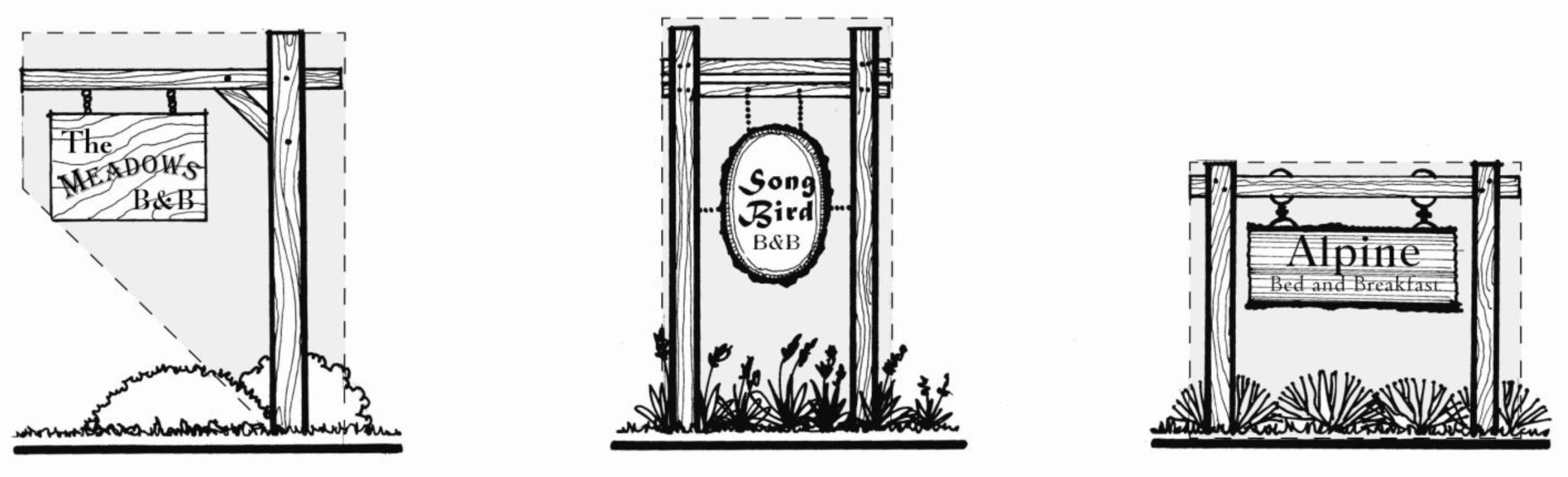

![]() Framing area, defined by the combined outer limits of the sign and all frames and supports. Bed and Breakfast Signs |
TABLE 21.09-11: DRIVEWAY STANDARDS FOR RESIDENTIAL USES | ||
|---|---|---|
Single-family/Two-family Uses | Multiple-family Residential | |
Minimum width | 10 feet | 12 feet |
Maximum width per driveway This applies to the length of the driveway within a setback and public right-of-way. | 20′ wide maximum | one-way driveway - 14′ max. width two-way driveway - 24′ max. width |
Two driveways | If two driveways are used for either a single family or a two family lot, they each shall be no more than 10 feet wide. | The total width of both driveways measured within a setback and public right-of-way shall not exceed 40 percent of the frontage of that lot on the street. |
More than two driveways | Not allowed. | Allowed if it is shown that they will substantially improve circulation safety both on and off site. All other standards of this subsection apply. |
Separation between driveways on a single lot | A minimum 10′ wide vegetated separation required where there is more than one driveway to the same street. | |
Slope | Slopes of up to 10 percent are allowed on all residential driveways. Driveways with slopes greater than 10 percent require prior approval by the municipal traffic engineer. | |
Materials | Compactible material suitable for intended use. Surface course or pavement of any type is optional. | Concrete or asphalt compound to the standards prescribed by the traffic engineer. |
TABLE 21.09-12: DRIVEWAY STANDARDS FOR COMMERCIAL DISTRICTS | |||||||
|---|---|---|---|---|---|---|---|
(sf = square feet) | |||||||
gC-1, gC-2 | gC-3, gC-4 | gC-5 through gC-10 | |||||
≤5,000 sf lot | >5,000 sf lot | ≤5,000 sf lot | >5,000 sf lot | ≤5,000 sf lot | 5,000— 43,560 sf lot | >43,560 sf lot | |
Minimum width | 12 feet | 12 feet | 12 feet | 12 feet | 12 feet | 12 feet | 12 feet |
Maximum width per driveway14 | 24 feet | 28 feet | 24 feet | 24 feet | 24 feet | 24 feet | 24 feet |
Maximum width of each driveway for two driveways14 | Not allowed | 28 feet | Not allowed | 14 feet | Not allowed | 14 feet | 24 feet |
More than two driveways | Lots are allowed a maximum of two driveways per frontage. | Lots are allowed a maximum of two driveways per lot. | Allowed if it is shown to improve circulation safety, on and off site | ||||
Separation between driveways | Where separate driveways are provided on a lot in a GC district, there shall be a naturally vegetated or landscaped area at least 20 feet wide between the driveways. The separation area may not be used for the parking of vehicles. | ||||||
Slope | Slopes of up to 10% are allowed on all commercial driveways. Driveways with slopes of 10-15 percent require prior approval of the municipal traffic engineer. | ||||||
Orientation | Within the required front setback on any lot, driveways shall run perpendicular to the street. | ||||||
Materials | Concrete or asphalt compound to the standards prescribed by the traffic engineer. Permeable materials are allowed if approved by the municipal traffic engineer. | ||||||
14 Maximum width may be exceeded when approved by the municipal traffic engineer. | |||||||
TABLE 21.09-13: DRIVEWAY STANDARDS FOR INDUSTRIAL DISTRICTS | ||
|---|---|---|
gI-1 | gI-2 | |
Maximum width One driveway | 30 feet | 30 feet |
Maximum width Two Driveways | 30 feet each | 30 feet each |
More than two driveways | Not allowed | |
Separation between driveways | Where separate driveways are provided on a lot, there shall be a naturally vegetated or landscaped area at least 20 feet wide between the driveways. The separation area may not be used for parking vehicles. | |
Slope | Driveways shall not exceed a slope of 10 percent. | |
Orientation | Within the required front setback on any lot, driveways shall run perpendicular to the street. | |
Materials | Concrete or asphalt compound to the standards prescribed by the municipal traffic engineer. | |

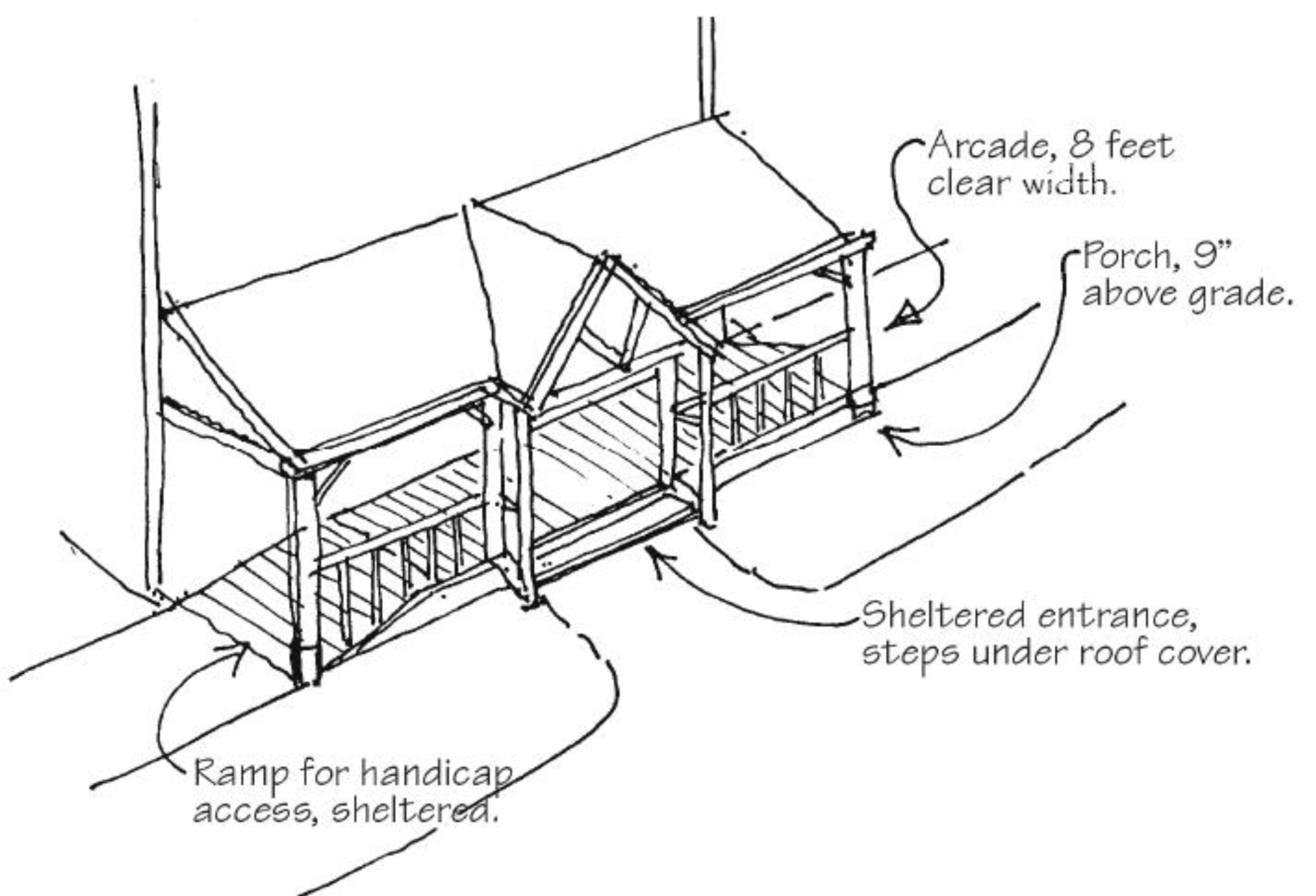

![]() Arcades and Roofed Walkways |

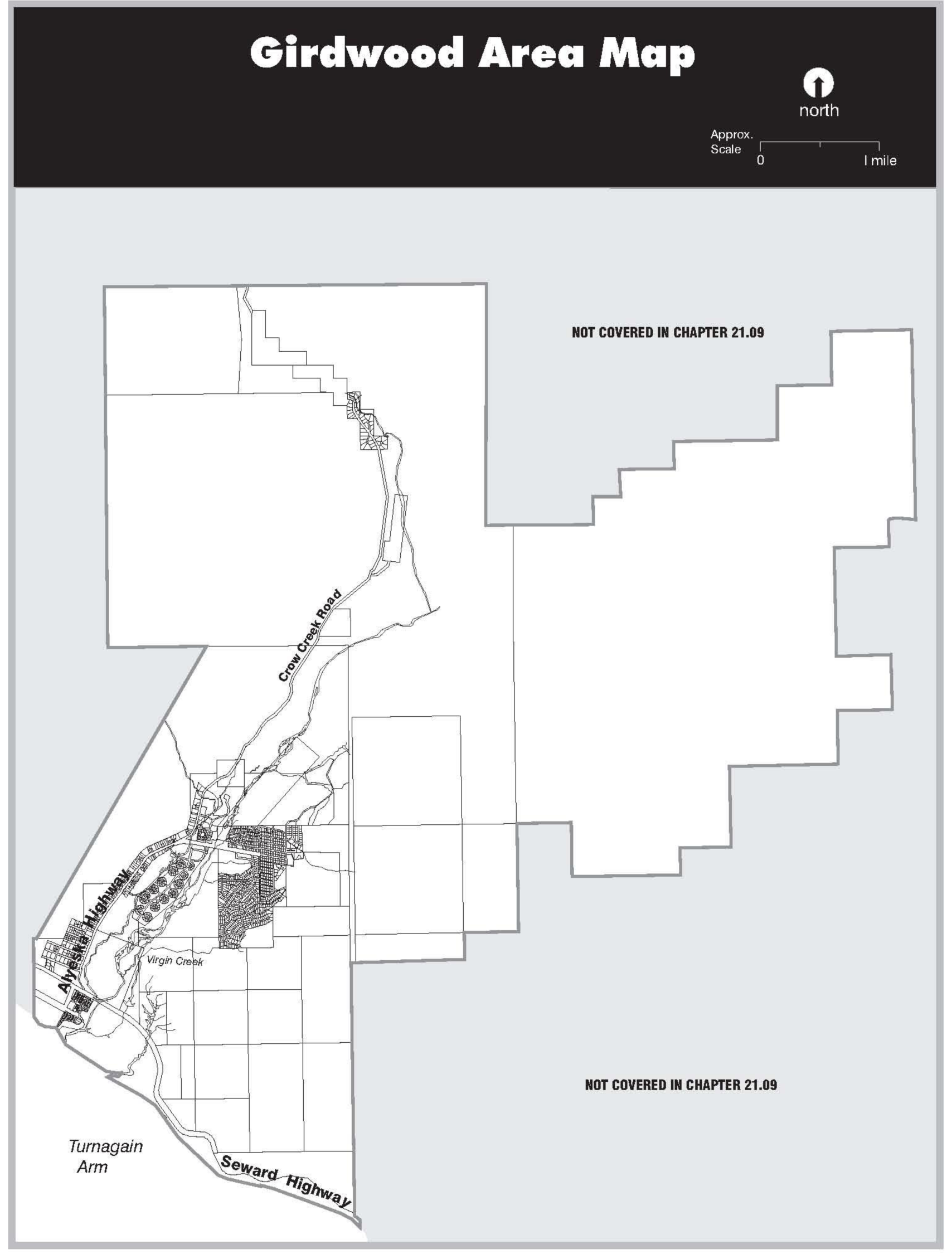

09 GIRDWOOD
![]() |
![]() Wedge-shaped Lots |
TABLE 21.09-1: GIRDWOOD ZONING DISTRICTS ESTABLISHED | ||
|---|---|---|
District Type | District Name | District Description |
Residential Districts | gR-1 | Alyeska Highway Mixed Residential |
gR-2 | Single-Family/Two-Family Residential | |
gR-2A | Single-Family/Two-Family Residential (Crow Creek Road) | |
gR-3 | Single-Family/Two-Family Residential | |
gR-4 | Multiple-Family Residential | |
gR-5 | Multiple-Family Residential | |
Commercial Districts | gC-1 | Seward Highway/Alyeska Highway Commercial |
gC-2 | Girdwood Station/Seward Highway Commercial | |
gC-3 | Old Townsite Commercial/Residential | |
gC-4 | Lower Alyeska Highway Commercial | |
gC-5 | New Townsite South Commercial | |
gC-6 | Crow Creek Road Commercial/Residential | |
gC-7 | Townsite Square Commercial | |
gC-8 | New Townsite North Commercial | |
gC-9 | East Hightower Commercial/Residential | |
gC-10 | Upper Alyeska Highway Commercial | |
Industrial Districts | gI-1 | Ruane Road Industrial |
gI-2 | Upper Crow Creek Industrial | |
Resort Use Districts | GRST-1 | Original Mountain Base Resort |
GRST-2 | New Base Resort | |
Other Districts | GA | Girdwood Airport |
GOS | Girdwood Open Space | |
GIP | Girdwood Institutions and Parks | |
GCR-1 | Commercial Recreation (Golf Course/Nordic Ski Course) | |
GCR-2 | Commercial Recreation (Glacier - Winner Creek) | |
GCR-3 | Commercial Recreation (Crow Creek Historic Mine) | |
GDR | Development Reserve | |
GRR | Recreation Reserve | |
GW | Girdwood Watershed | |
Floor Area Ratio (FAR) Example ![]() |
Lot size: 10,400 square feet FAR: 0.5 Maximum gross building area: 5,200 square feet. Illustration assumes no useable space under the eaves (in the attic). |
Table 21.09-4 | |
|---|---|
Design Speed | Sight Distance |
60 mph | 650 ft. |
50 mph | 515 ft. |
40 mph | 415 ft. |
30 mph | 310 ft. |
20 mph | 210 ft. |
![]() Figure 21.09-4: Sight Distance Triangle | |
TABLE 21.09-5: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD RESIDENTIAL DISTRICTS | ||||||||
|---|---|---|---|---|---|---|---|---|
Uses | Lot Dimensions | Minimum Setbacks | Building Bulk and Height | |||||
Min Area (sq ft) | Min. Width | Front | Side | Rear | Max Height | Max Lot Coverage (%) | Max Floor Area Ratio | |
R-1: Alyeska Highway mixed residential district | ||||||||
Dwelling, multi-family | 19,800 for 3 units, add 4,000 for each additional unit | 70 feet | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre2 | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots < 12,500 sq ft |
Dwelling, single-family attached | See § 21.09.050B.2.c | |||||||
Dwelling, single-family detached | 10,400 | 70 feet | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre [2] | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Dwelling, townhouse | See § 21.09.050B.2.c | |||||||
Dwelling, two-family | 16,800 | 70 feet | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre [2] | 35 feet | 25% for lots larger than 15,500 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Roominghouse | 19,800 | 70 feet | 20 feet1 | 10 feet | 15 feet; or 20 feet for lots > 1 acre | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Community buildings and uses | 10,400 | |||||||
Religious assembly | 20,800 | |||||||
Hostel or inn | 1.5 acres | |||||||
All other allowed uses | 10,400 | |||||||
R-2: Single-family/two-family residential district R-2A: Single-family/two-family residential district (Crow Creek Road) | ||||||||
Dwelling, single-family detached | 10,400; or 50,000 without sewer | 70 feet; 100 feet without sewer | 20 feet1 | 10 feet2 | 15 feet; or 20 feet for lots > 1 acre [2] | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Dwelling, two-family | 16,800; or 50,000 without sewer | |||||||
Community buildings and uses | 10,400 | 70 feet; 100 feet without sewer | 20 feet1 | 10 feet | 15 feet; or 20 feet for lots > 1 acre | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft |
Religious assembly | 20,800 | |||||||
All other allowed uses | 10,400 | |||||||
R-3: Single-family/two-family residential district | ||||||||
Dwelling, single-family attached | See § 21.09.050B.2.c | |||||||
Dwelling, single-family detached | 8,400; or 50,000 without sewer | 70 feet; 100 feet without sewer | (same as "Dwelling, two-family" below) | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft | ||
Dwelling, townhouse | See § 21.09.050B.2.c | |||||||
Dwelling, two-family | 16,800; or 50,000 without sewer | 70 feet; 100 feet without sewer | For lots <e; 21,780 sq ft: front: 20 feet side: 10 feet rear: 15 feet | 35 feet | 25% for lots larger than 15,000 sq ft; 30% otherwise | 0.45 for lots > 12,500 sq. ft., or 6,250 sq. ft., whichever is greater 0.50 for lots ≤ 12,500 sq ft | ||
Community buildings and uses, except educational facilities | 8,400; or 50,000 without sewer | |||||||
Religious assembly | 20,800 | For lots 21,781— 43,560 sq ft: front: 25 feet side: 15 feet rear: 20 feet | ||||||
Private schools | 16,800 | |||||||
Inn | 1.5 acres; or 5 acres without sewer | For lots > 43,560 sq ft: front: 30 feet side: 20 feet | ||||||
All other allowed uses | 8,400; or 50,000 without sewer | |||||||
R-4: Multi-family residential district | ||||||||
Dwelling, multi-family | 12,500 | 70 feet | 20 feet1 | 10 feet2 | 10 feet2 | 35 feet | 40% | n/a |
Roominghouse | 10,400 | 70 feet | 20 feet1 | 10 feet | 10 feet | 35 feet | 40% | n/a |
Community buildings and uses | 10,400 | |||||||
Religious assembly | 20,800 | |||||||
All other allowed uses | 10,400 | |||||||
R-5: Multi-family residential district | ||||||||
Dwelling, multi-family | 20,000 | 100 feet | 25 feet | 15 feet | 20 feet | 35 feet | 40% | n/a |
Dwelling, single-family attached | See § 21.09.050B.2.c | |||||||
Dwelling, single-family detached3 | 50,000 | 100 feet | 25 feet | 15 feet | 20 feet | 35 feet | 40% | n/a |
Dwelling, townhouse | See § 21.09.050B.2.c | |||||||
Religious assembly | 20,800 | 80 feet | 25 feet | 15 feet | 20 feet | 35 feet | 40% | n/a |
All other allowed uses | 10,400 | |||||||
ADDITIONAL SPECIFIC STANDARDS: |
|---|
1 Alyeska Highway Setbacks: Minimum setback of 25 feet is required from any property line abutting the Alyeska Highway, but if the property extends into the road, the 25 foot setback shall be measure from the edge of the road easement. |
2 Side and rear setback flexibility: Side setbacks may be reduced by five feet on one side of the lot, but the amount of setback reduction shall be added to the opposite side setback. Rear setbacks may be reduced by five feet, but the amount of reduction shall be added to the front setback. |
3 Single-family dwellings in gR-5: Single-family detached dwellings in the gR-5 are subject to the provisions of § 21.09.040B.f.iii(B). |
TABLE 21.09-6: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD COMMERCIAL DISTRICTS | ||||||||
|---|---|---|---|---|---|---|---|---|
Uses | Lot Dimensions | Minimum Setbacks (ft) | Bulk, Height and Density | |||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Max. Height | Max. Lot Coverage | Max Dwelling Units/Acre | |
gC-1: Seward Highway/West Alyeska Highway Commercial District | ||||||||
All uses | 6,000 | 50 ft | 205 | 206 | 20 | 2 stories not to exceed 35 ft | 70% | n/a |
gC-2: Girdwood Station/Seward Highway Commercial District | ||||||||
All uses | 6,000 | 50 ft | 135 | 106 | 207 | 2 stories not to exceed 35 ft | 70% | n/a |
gC-3: Old Townsite Commercial/Residential District | ||||||||
All uses | 6,000 | 50 ft | 135 | 106 | 107 | 4 | 2,500 square feet or 50%, whichever is greater | n/a |
gC-4: Lower Alyeska Highway Commercial District | ||||||||
All uses, ≤ 21,780 Sq Ft | 10,400 | 80 ft | 255 | 106 | 15 if lot size < 1 acre; 20 if lot size is ≥ 1 acre | 35 ft | 40% | 20 |
All uses, ;lt; 21,781 Sq Ft | 106 | |||||||
gC-5: New Townsite South Commercial District | ||||||||
All uses, ≤ 21,780 Sq Ft | 8,400 | 80 ft | 165 | 106 | 20 | 35 ft | 50% | 20 |
All uses, 21,781 Sq Ft - 5 acres | 165 | 206 | 25 | |||||
All uses, > 5 acres | 16 | 306 | 30 | |||||
gC-6: Crow Creek Road Commercial/Residential District | ||||||||
All uses | 8,400; or 50,000 without sewer | 70 ft | 18 | 10; or 15 if lot size > 21,781 sq ft6 | 15 | 35 ft | 40% | 20 |
gC-7: Townsite Square Commercial District | ||||||||
All uses | 6,000 | 50 ft | 16 min; 20 max8 | Zero setback permitted on one side [3] and in accordance with § 21.09.040 C.2.g.iii(D) if applicable; otherwise 10 | 15 | 4 | 70% | 20 |
gC-8: New Townsite North Commercial District | ||||||||
All uses | 6,000 | 50 ft | 16 min; 20 max8 | 106 | 10 | 35 ft | 60% | 20 |
gC-9: East Hightower Commercial/Residential District | ||||||||
All uses | 6,000 | 50 ft | 16 min; 20 max8 | 106 | 10 | 35 ft | 60% | 20 |
gC-10: Upper Alyeska Highway Commercial District | ||||||||
All uses, ≤ 21,780 Sq Ft | 8,400 | 60 ft | 205 | 156 | 20 | 35 ft | 70% | 20 |
All uses, 21,781 Sq Ft - 5 acres | 205 | 206 | 20 | |||||
All uses, > 5 acres | 305 | 306 | 30 | |||||
ADDITIONAL SPECIFIC STANDARDS: |
|---|
4 For structures with only commercial uses: Two stories not to exceed 35 feet. |
For structures with only residential uses: 35 feet. |
For structures with commercial uses on the ground level and residential uses above: second story may include loft space not a separate dwelling unit and maximum height is 35 feet. |
5 Alyeska Highway Setbacks - Minimum setback of 25 feet is required from any property line abutting the Alyeska Highway, but if the property extends into the road, the 25 foot setback shall be measured from the edge of the road easement. |
6 Zero Lot Line Setbacks - Where adjoining property owners agree to connect buildings or cooperate in the design of a public passageway or courtyard between them, a zero lot line side set-back is allowed on one side. |
7 Alley Exemption - Where a platted alley right-of-way abuts a parcel, there shall be no required setback along the property line. |
8 Maximum Front Setback Exception - Limited portions of building frontage may, subject to administrative site plan review, be allowed to step back further than the maximum allowed front setback to create small usable public spaces in the front of a building. |
TABLE 21.09-7: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD INDUSTRIAL DISTRICTS | |||||||
|---|---|---|---|---|---|---|---|
Use | Lot Dimensions | Minimum Setbacks (ft) | Building Bulk and Height | ||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Maximum Lot Coverage | Maximum Height | |
gI-1: Ruane Road Industrial District9 | |||||||
All uses, ≤ 1 acre | 10,400 | 80 ft | 20 | 10 | 10 | Unrestricted | 25 feet |
All uses, > 1 acre | 25 | 15 | 15 | ||||
gI-2: Upper Crow Creek Industrial District9 | |||||||
All uses | 50,000 | 150 ft | 25 | 15 | 15 | Unrestricted | 35 feet |
ADDITIONAL SPECIFIC STANDARDS: |
|---|
9 Minimum setback along any property line contiguous with the GOS district is 20 feet for lots less than or equal to one acre in gI-1 and 30 feet for all other lots in gI-1 and gI-2 districts. |
TABLE 21.09-8: TABLE OF DIMENSIONAL STANDARDS GIRDWOOD RESORT DISTRICTS | ||||||||
|---|---|---|---|---|---|---|---|---|
Use | Lot Dimensions | Minimum Setbacks | Building Bulk and Height | |||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Max. Height | Max. Lot Coverage | Maximum Floor Area Ratio | |
gRST-1: Original Mountain Base Resort District | ||||||||
All uses | 8,400 | 60 feet | 13 feet10 | 10 feet; or 20 feet if lot size > 0.5 acre11 | 20 feet | 40 feet | 50% | 0.712 |
gRST-2: New Base Resort District | ||||||||
All uses | 8,400 | 80 feet | 13 feet10 | 10 feet; or 20 feet if lot size > 0.5 acre11 | 20 feet | 75 feet | 50% | 0.712 |
ADDITIONAL SPECIFIC STANDARDS: |
|---|
10 Arlberg Road Setbacks - The minimum setback along any property line abutting Arlberg Road is 30 feet. |
11 Zero Lot Line Setbacks - Where adjoining property owners agree to connect buildings or cooperate in the design of a public passageway or courtyard between them, a zero lot line setback is allowed on one side. Buildings connecting on the property line shall appear on the exterior to be two different buildings. |
12 FAR Incentives for Structured Parking - Maximum FAR may be increased from 0.7 to 1.35 for uses in where structured or underground parking is provided. |
TABLE 21.09-9: TABLE OF DIMENSIONAL STANDARDS OTHER GIRDWOOD DISTRICTS | |||||||
|---|---|---|---|---|---|---|---|
Use | Lot Dimensions | Minimum Setbacks (ft) | Building Bulk and Height | ||||
Min Area (Sq Ft) | Min. Width | Front | Side | Rear | Max. Height | Max. Lot Coverage | |
GA: Girdwood Airport District | |||||||
All uses, ≤ 1 acre | 10,400 | 80 ft | 20 | 1013 | 1013 | 25 feet | Unrestricted |
All uses, > 1 acre | 25 | 1513 | 1513 | ||||
GOS: Girdwood Open Space District | |||||||
All uses | 10,400 | 70 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GIP: Girdwood Institutions and Parks District | |||||||
All uses | 8,400 | 70 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 30% |
GCR-1: Commercial Recreation (Lower Valley Development Reserve) District | |||||||
All uses | All dimensions same as gR-2. | ||||||
GCR-2: Commercial Recreation (Glacier-Winner Creek) District | |||||||
All uses | 50,000 | 100 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GCR-3: Commercial Recreation (Crow Creek Historic Mine) District | |||||||
All uses | 50,000 | 100 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GDR: Development Reserve District | |||||||
All uses | 10,400 | 70 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GRR: Recreation Reserve District | |||||||
All uses | 10,400 | 70 | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
GW: Girdwood Watershed District | |||||||
All uses | 50,000 | 100 ft | 25 | 25 | 25 | 2 stories, not to exceed 35 ft | 10% |
ADDITIONAL SPECIFIC STANDARDS: |
|---|
13 In the Girdwood Airport district, the minimum setback along any property line contiguous with the GOS district shall be 20 feet, if the lot is less than or equal to one acre, and shall be 30 feet, if the lot area is greater than one acre. |
TABLE 21.09-10: Minimum Vegetation Coverage, by Use | ||||
|---|---|---|---|---|
Single-family or Two-family Residential | Multifamily Residential | Commercial or Public/Institutional | Industrial | |
Natural Vegetation | 30% | 20% | 10% | 5% |
Total Permeable Surface, including Natural Vegetation | 50% | 40% | 20% | 10% |
![]() Critical Root Zone |
![]() Collector Street Dimensions |
![]() Local Residential Street Dimensions |
![]() Full Cut-off Luminaire |
![]() Parking Lot Landscaping |
![]() Parking within Multifamily and Non-Residential Structures |
![]() Freestanding Commercial Sign |
Building Frontage Width (ft.) | Square Feet Allowed |
|---|---|
< 20 | 10 |
20—30 | 15 |
31—40 | 20 |
41—50 | 30 |
> 50 | 40 |
![]() Commercial Building Signage |
![]() Light Projecting Sign |
![]() Framing area, defined by the combined outer limits of the sign and all frames and supports. Bed and Breakfast Signs |
TABLE 21.09-11: DRIVEWAY STANDARDS FOR RESIDENTIAL USES | ||
|---|---|---|
Single-family/Two-family Uses | Multiple-family Residential | |
Minimum width | 10 feet | 12 feet |
Maximum width per driveway This applies to the length of the driveway within a setback and public right-of-way. | 20′ wide maximum | one-way driveway - 14′ max. width two-way driveway - 24′ max. width |
Two driveways | If two driveways are used for either a single family or a two family lot, they each shall be no more than 10 feet wide. | The total width of both driveways measured within a setback and public right-of-way shall not exceed 40 percent of the frontage of that lot on the street. |
More than two driveways | Not allowed. | Allowed if it is shown that they will substantially improve circulation safety both on and off site. All other standards of this subsection apply. |
Separation between driveways on a single lot | A minimum 10′ wide vegetated separation required where there is more than one driveway to the same street. | |
Slope | Slopes of up to 10 percent are allowed on all residential driveways. Driveways with slopes greater than 10 percent require prior approval by the municipal traffic engineer. | |
Materials | Compactible material suitable for intended use. Surface course or pavement of any type is optional. | Concrete or asphalt compound to the standards prescribed by the traffic engineer. |
TABLE 21.09-12: DRIVEWAY STANDARDS FOR COMMERCIAL DISTRICTS | |||||||
|---|---|---|---|---|---|---|---|
(sf = square feet) | |||||||
gC-1, gC-2 | gC-3, gC-4 | gC-5 through gC-10 | |||||
≤5,000 sf lot | >5,000 sf lot | ≤5,000 sf lot | >5,000 sf lot | ≤5,000 sf lot | 5,000— 43,560 sf lot | >43,560 sf lot | |
Minimum width | 12 feet | 12 feet | 12 feet | 12 feet | 12 feet | 12 feet | 12 feet |
Maximum width per driveway14 | 24 feet | 28 feet | 24 feet | 24 feet | 24 feet | 24 feet | 24 feet |
Maximum width of each driveway for two driveways14 | Not allowed | 28 feet | Not allowed | 14 feet | Not allowed | 14 feet | 24 feet |
More than two driveways | Lots are allowed a maximum of two driveways per frontage. | Lots are allowed a maximum of two driveways per lot. | Allowed if it is shown to improve circulation safety, on and off site | ||||
Separation between driveways | Where separate driveways are provided on a lot in a GC district, there shall be a naturally vegetated or landscaped area at least 20 feet wide between the driveways. The separation area may not be used for the parking of vehicles. | ||||||
Slope | Slopes of up to 10% are allowed on all commercial driveways. Driveways with slopes of 10-15 percent require prior approval of the municipal traffic engineer. | ||||||
Orientation | Within the required front setback on any lot, driveways shall run perpendicular to the street. | ||||||
Materials | Concrete or asphalt compound to the standards prescribed by the traffic engineer. Permeable materials are allowed if approved by the municipal traffic engineer. | ||||||
14 Maximum width may be exceeded when approved by the municipal traffic engineer. | |||||||
TABLE 21.09-13: DRIVEWAY STANDARDS FOR INDUSTRIAL DISTRICTS | ||
|---|---|---|
gI-1 | gI-2 | |
Maximum width One driveway | 30 feet | 30 feet |
Maximum width Two Driveways | 30 feet each | 30 feet each |
More than two driveways | Not allowed | |
Separation between driveways | Where separate driveways are provided on a lot, there shall be a naturally vegetated or landscaped area at least 20 feet wide between the driveways. The separation area may not be used for parking vehicles. | |
Slope | Driveways shall not exceed a slope of 10 percent. | |
Orientation | Within the required front setback on any lot, driveways shall run perpendicular to the street. | |
Materials | Concrete or asphalt compound to the standards prescribed by the municipal traffic engineer. | |
![]() Arcades and Roofed Walkways |
