ENGINEERING TECHNICAL
STANDARDS MANUAL1
STANDARD DETAILS
| Name | Number |
|---|---|

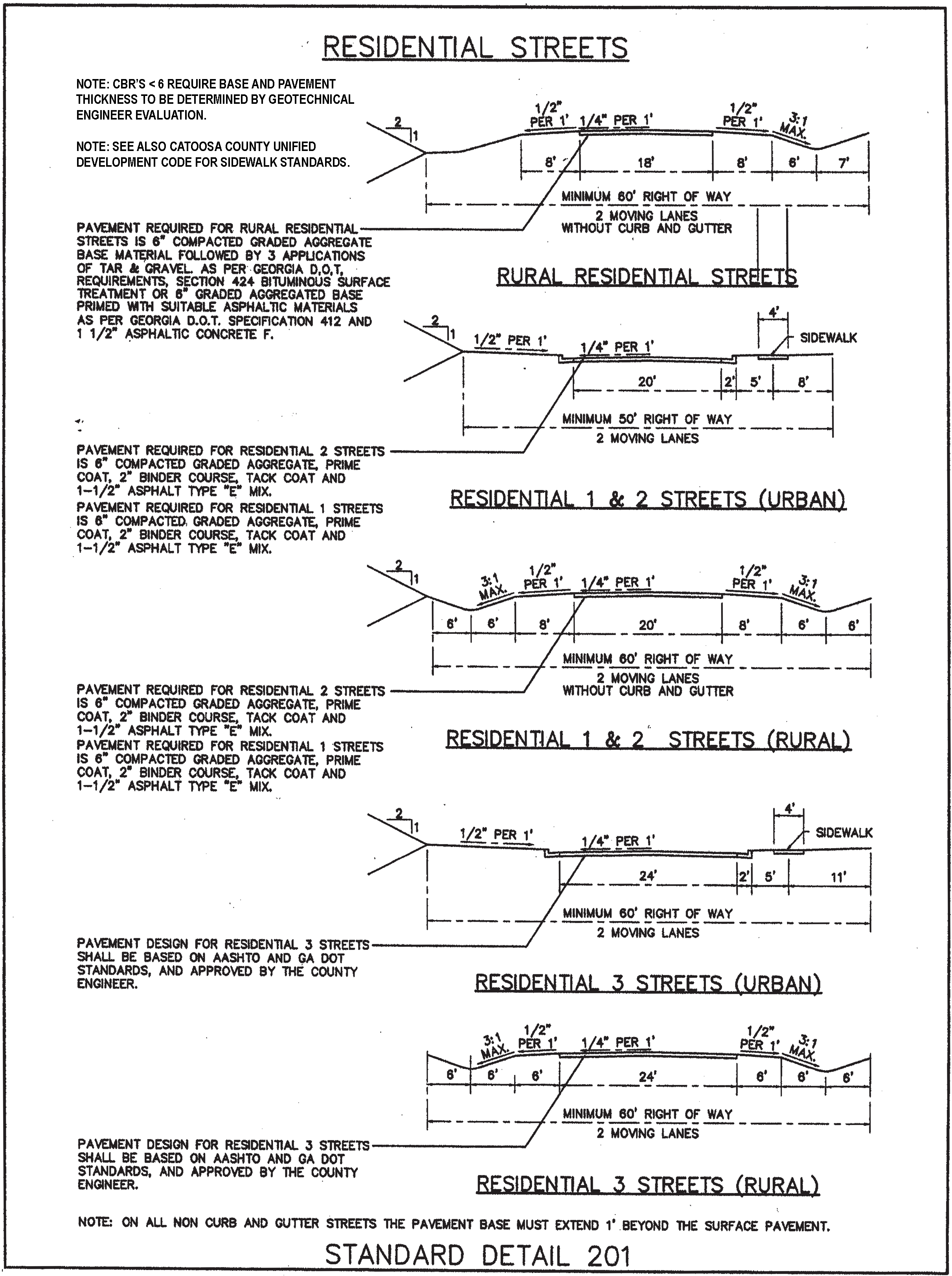

| Residential Streets | 201 |

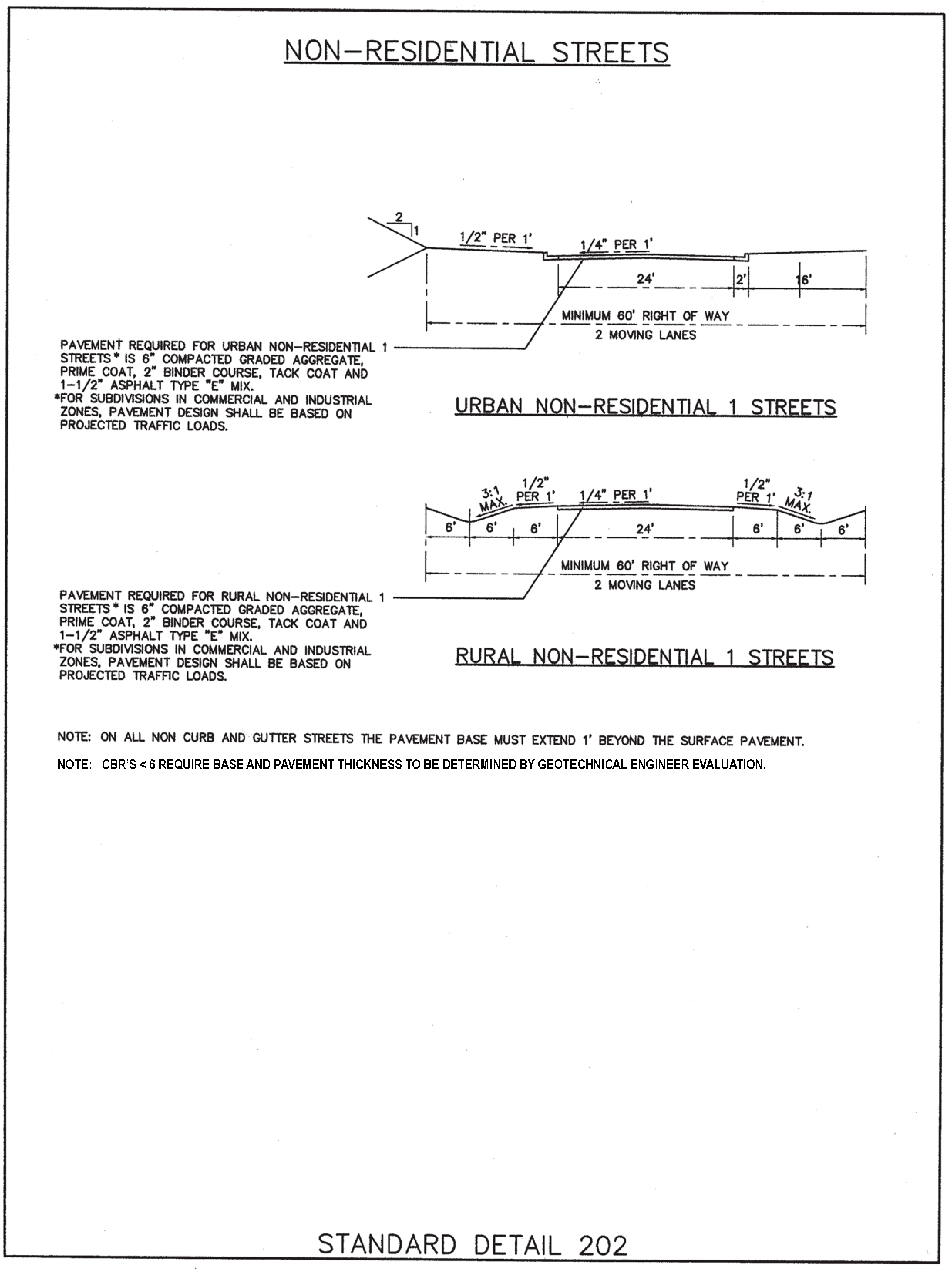

| Nonresidential Streets | 202 |

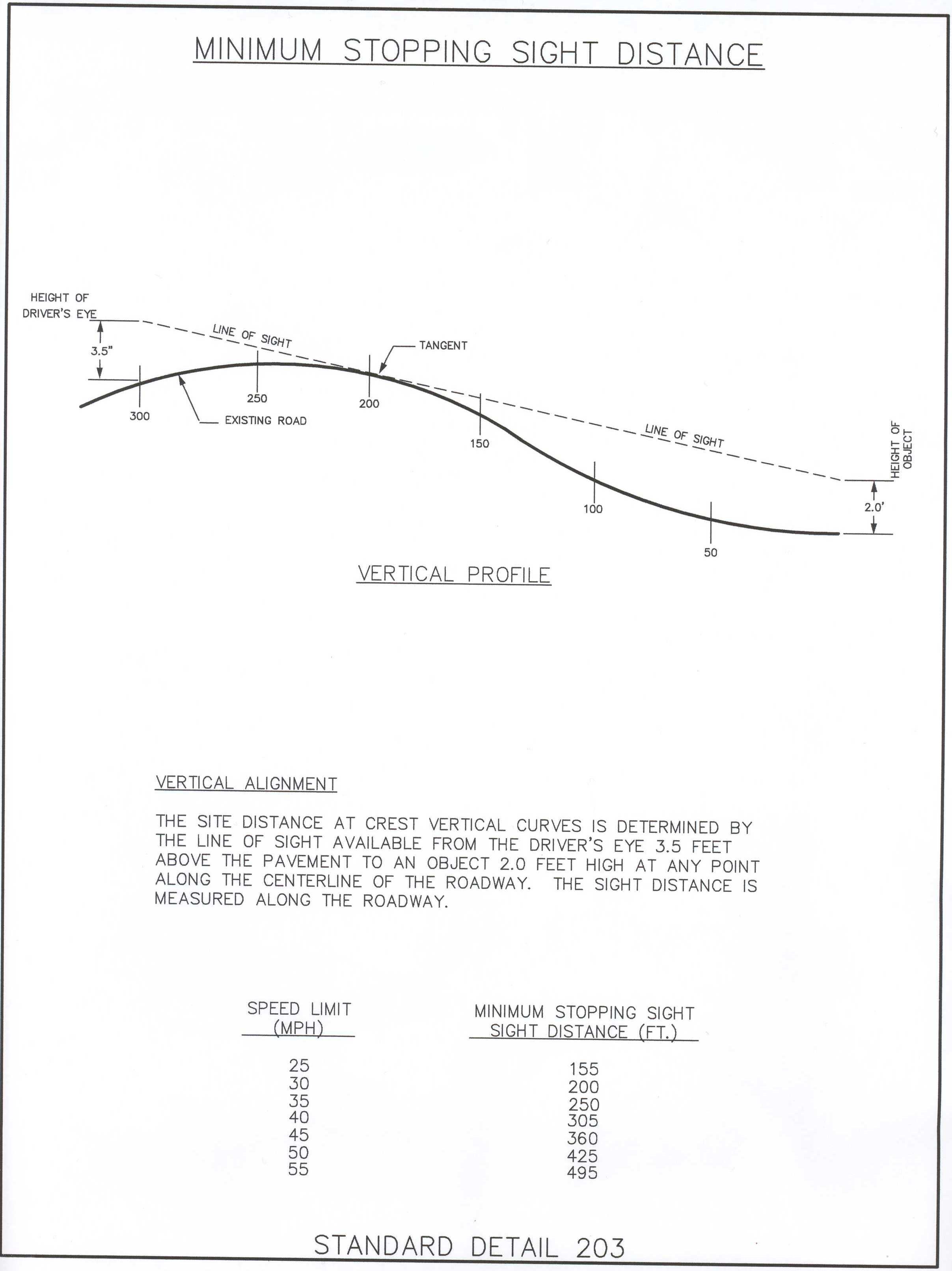

| Minimum Stopping Distance | 203 |

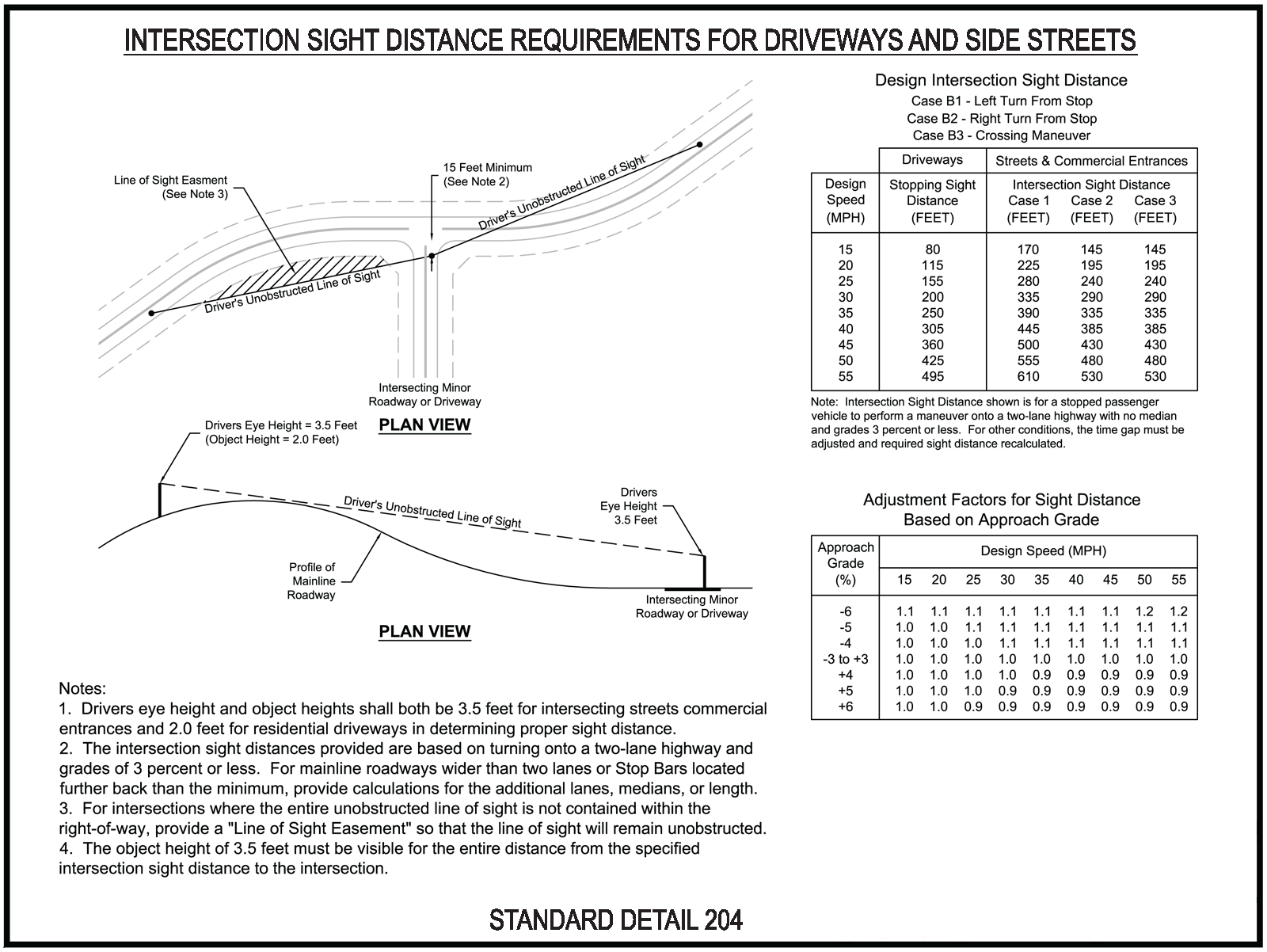

| Intersection Sight Distance Requirements for Driveways and Side Streets | 204 |

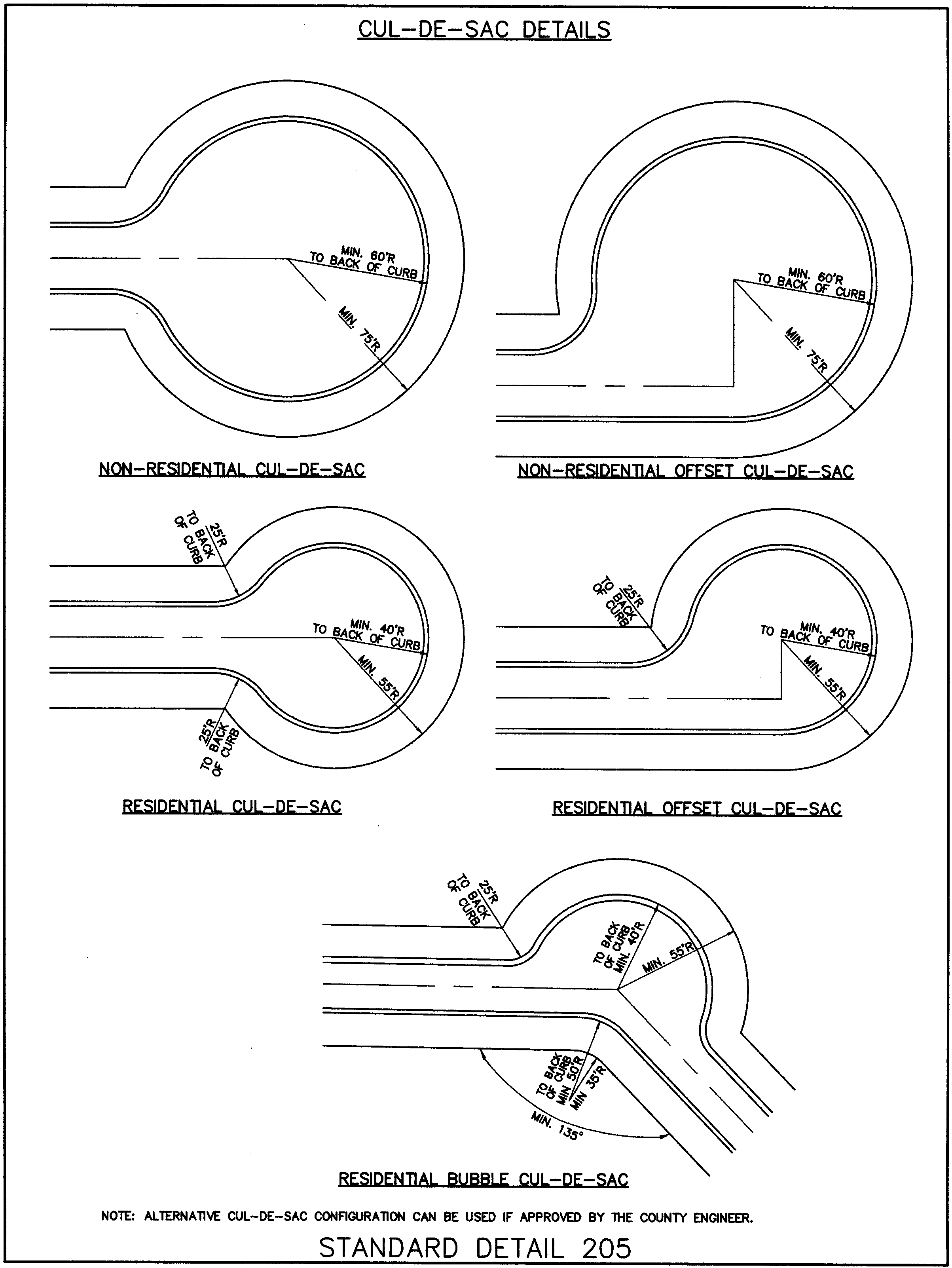

| Cul-de-Sac Details | 205 |

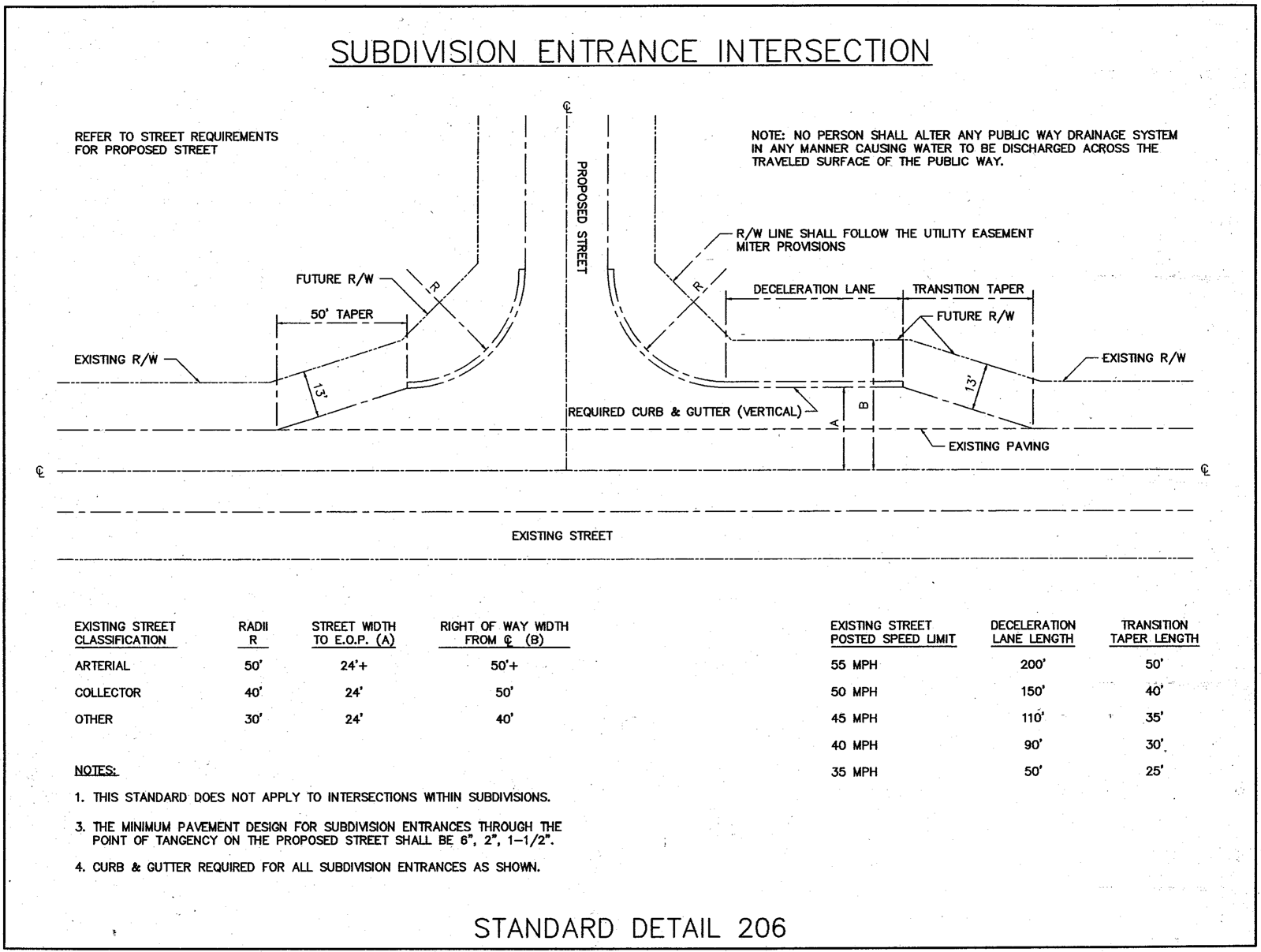

| Subdivision Entrance Intersection | 206 |

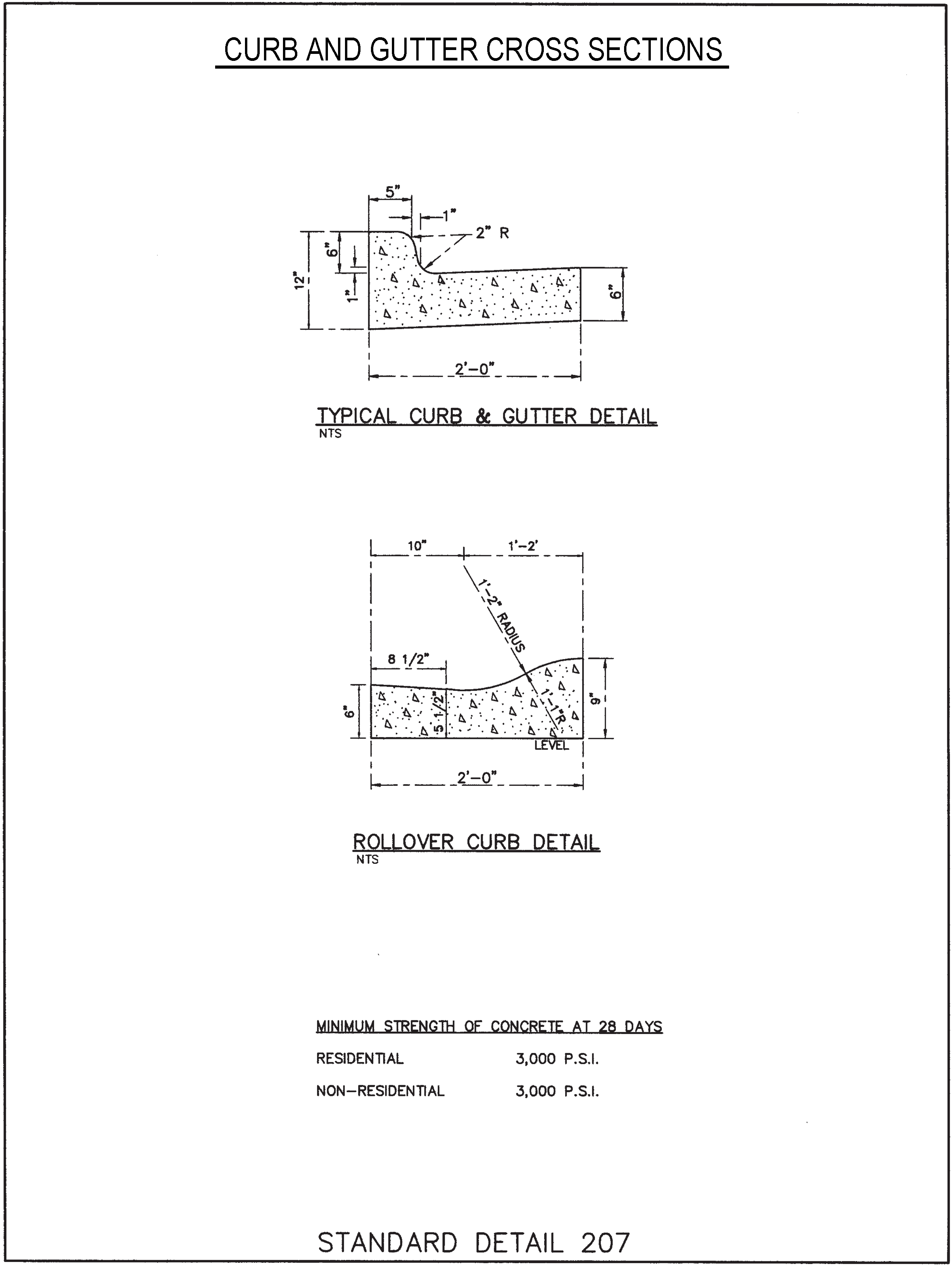

| Curb and Gutter Cross Sections | 207 |

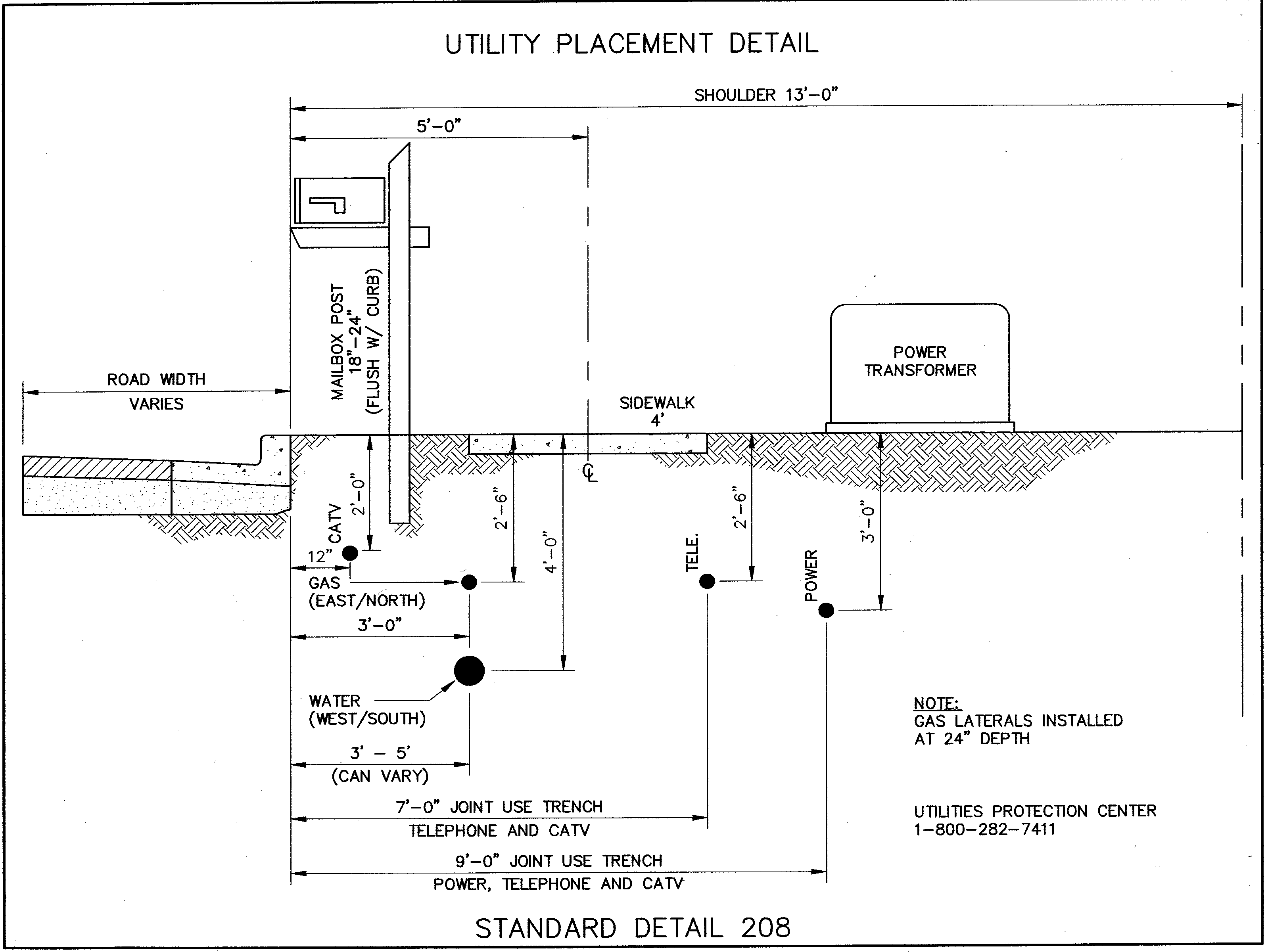

| Utility Placement Detail | 208 |

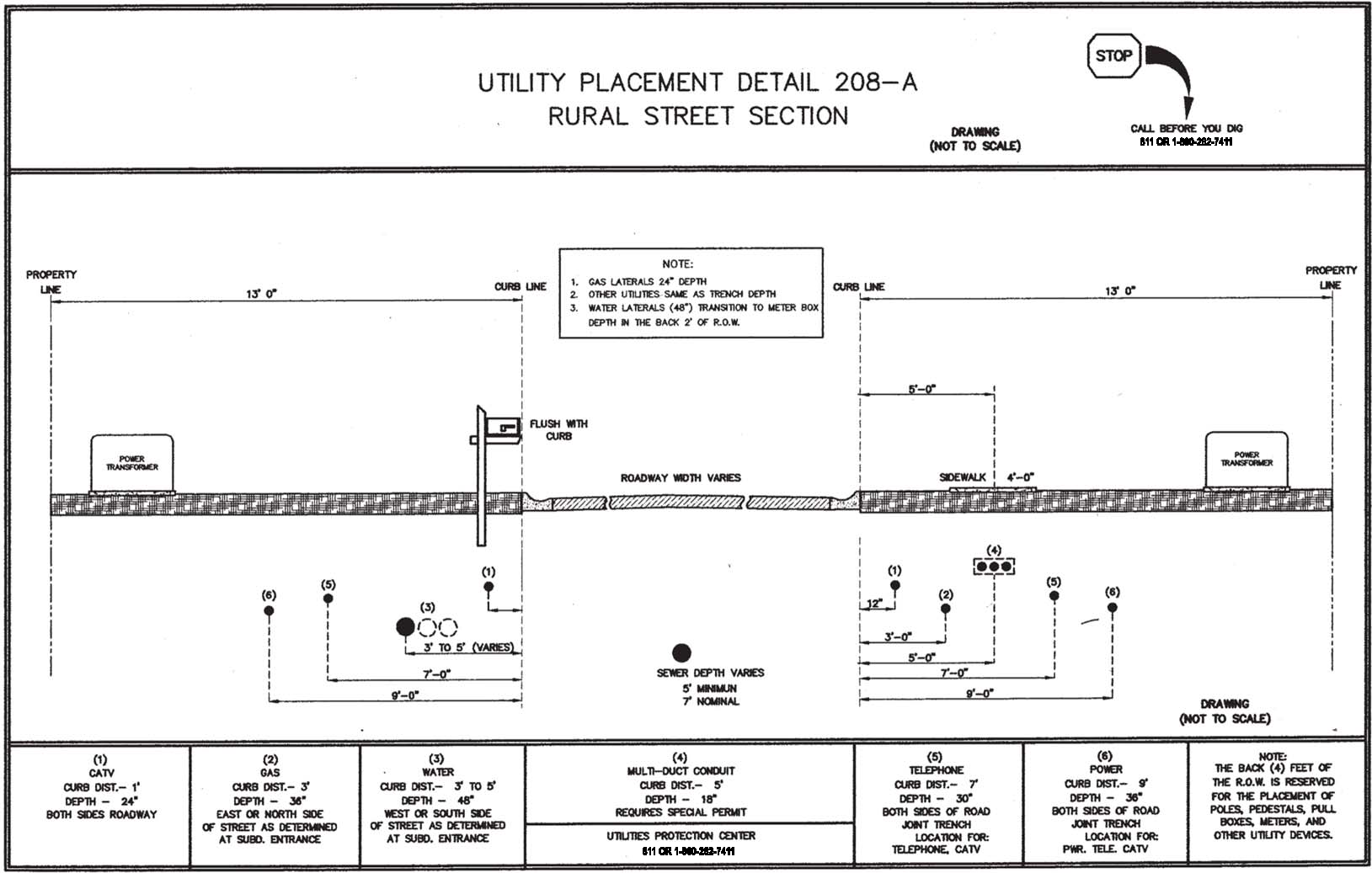

| Utility Placement Detail | 208-A |

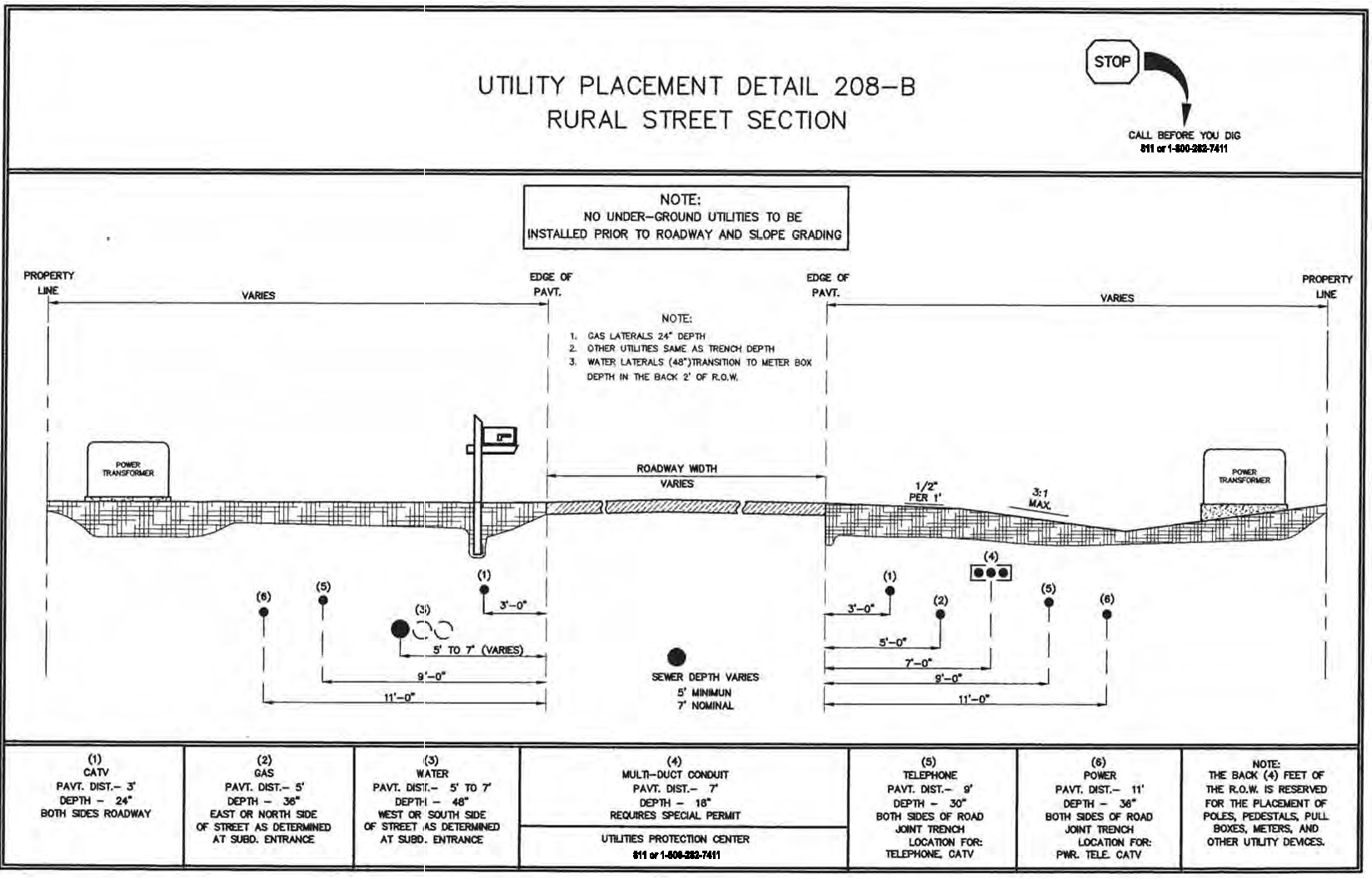

| Utility Placement Detail | 208-B |

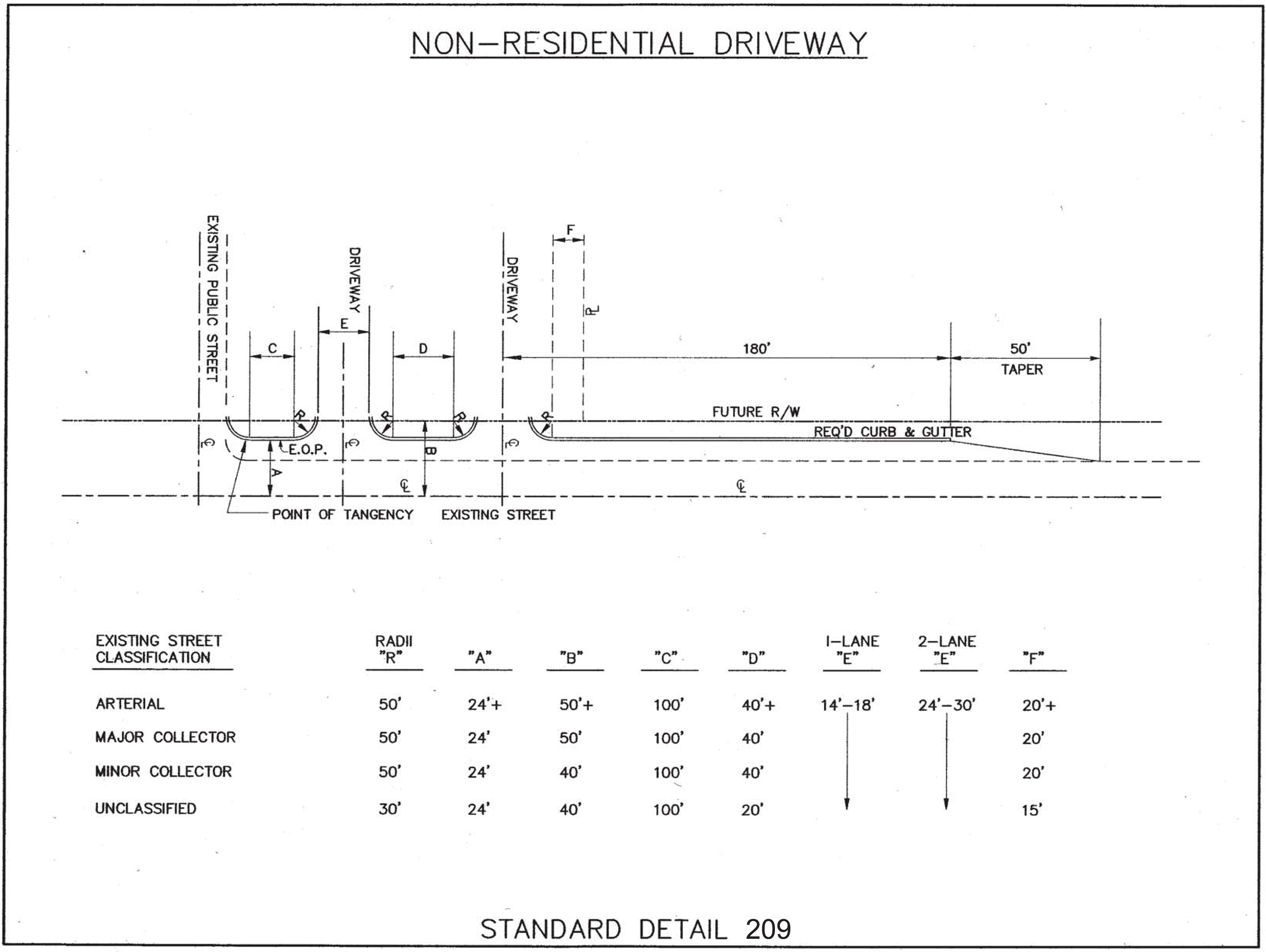

| Nonresidential Driveway | 209 |

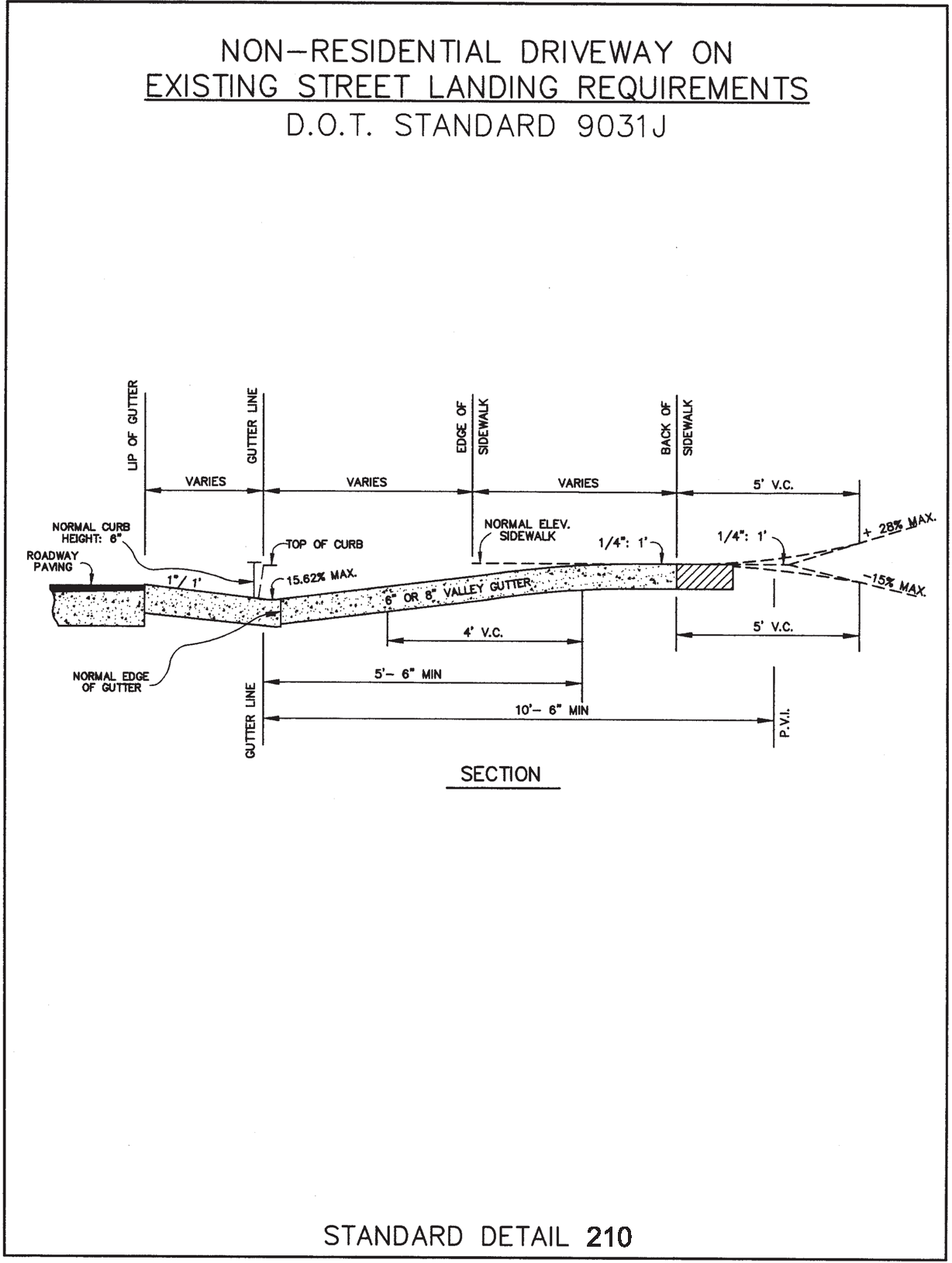

| Nonresidential Driveway on Existing Street Landing Requirements | 210 |

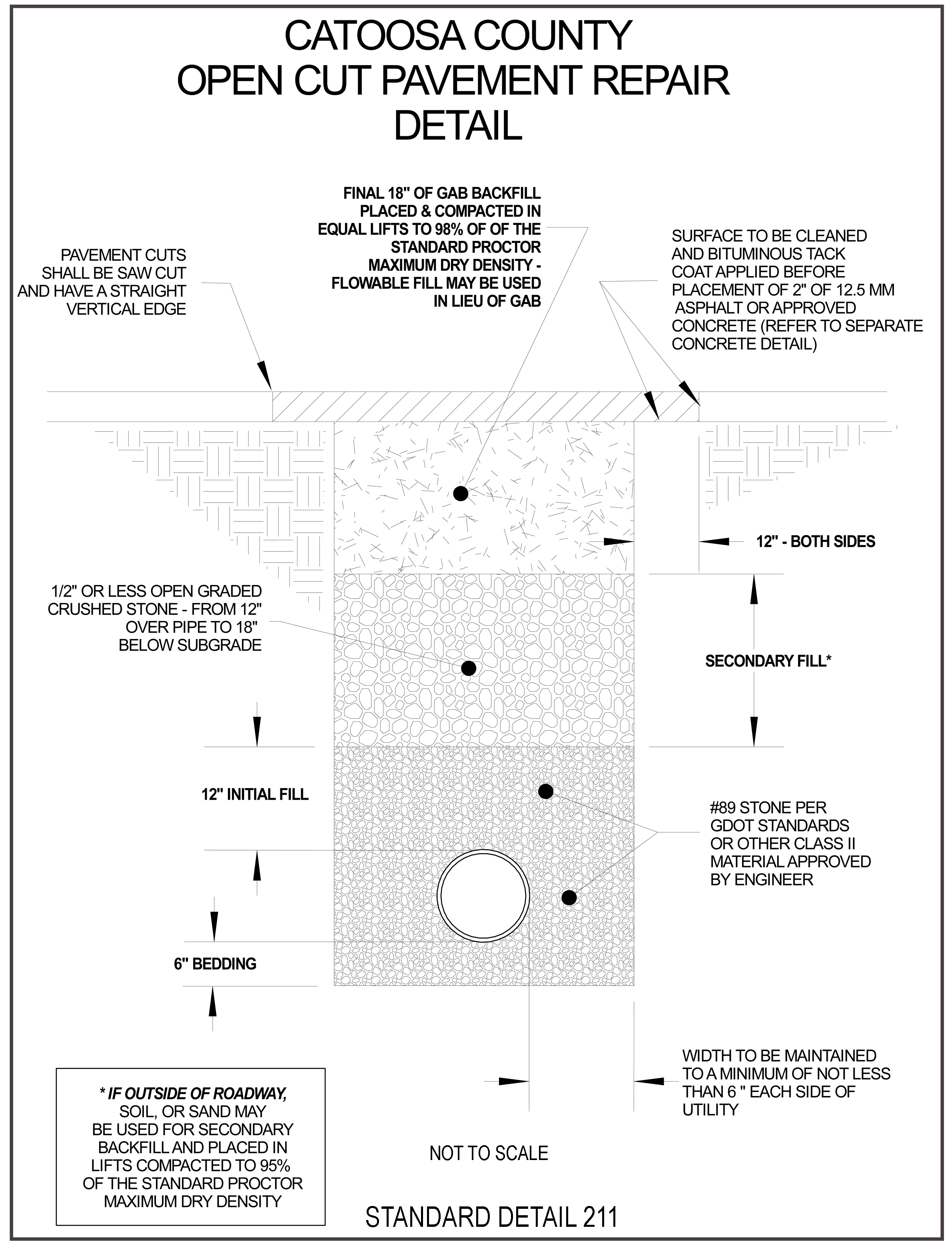

| Open Cut Pavement Repair Detail | 211 |

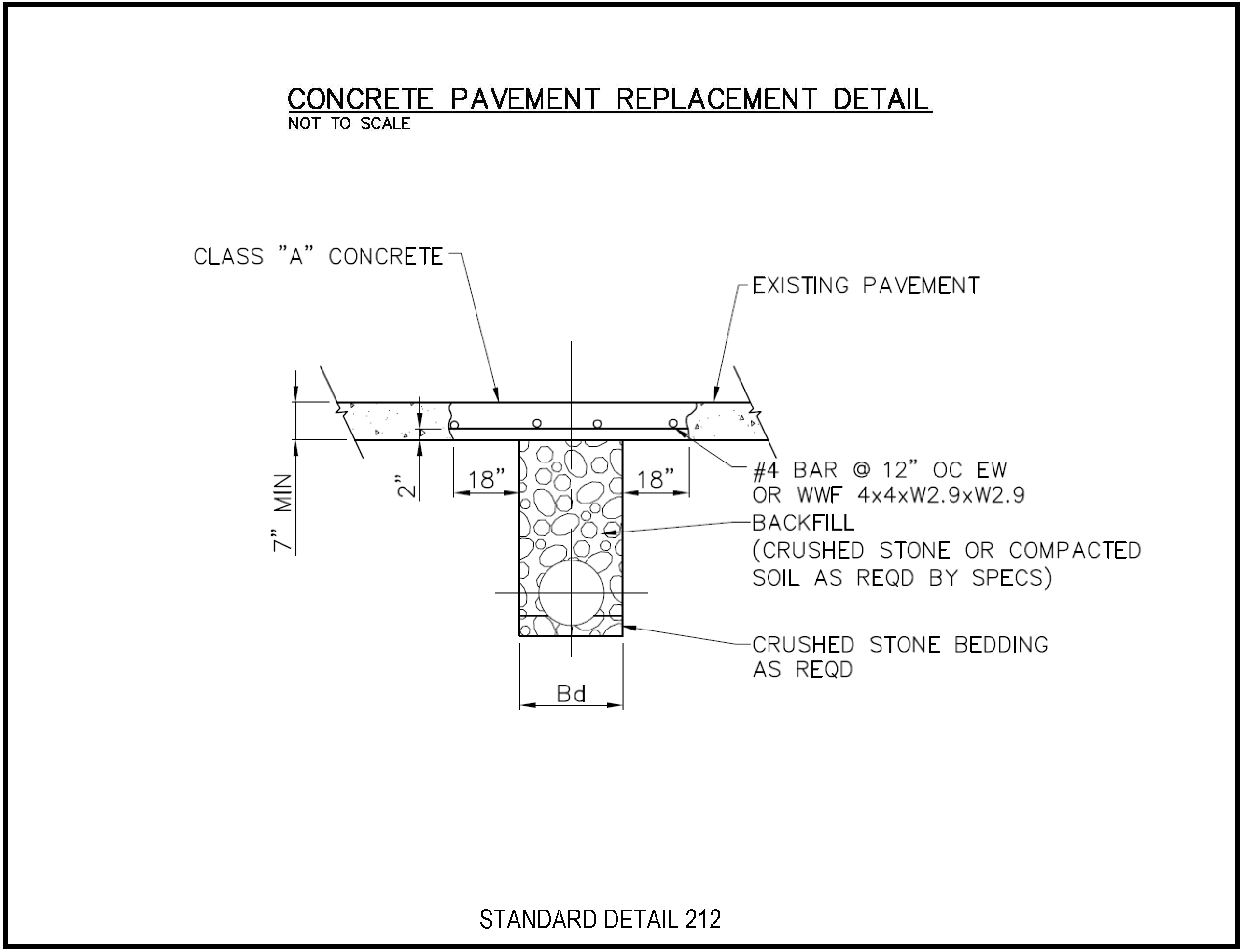

| Concrete Pavement Replacement Detail | 212 |
Footnotes:
--- (1) ---
(See also Article VI Infrastructure Improvements of the Catoosa County Unified Development Code.)
