FIGURES

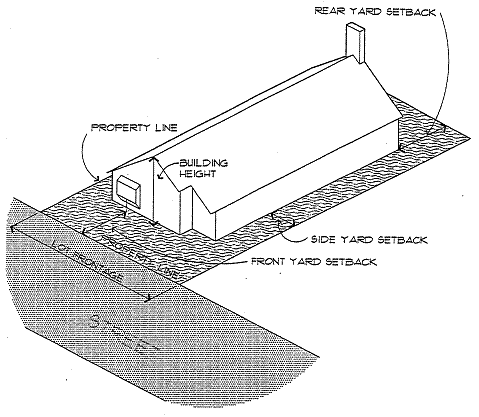

FIGURE 1:

DEVELOPMENT STANDARDS

Notes:

Roof eaves may project 2′ into the required setback.

Setback will be calculated from the furthest protruding architectural element (in this example, a bay window) other than the above mentioned roof eaves.

Chimneys are not included in building height.

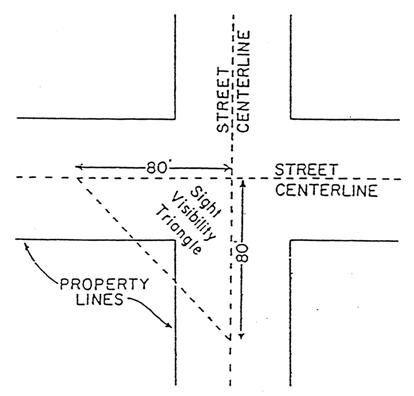

FIGURE 2:

CLEAR VIEW TRIANGLE

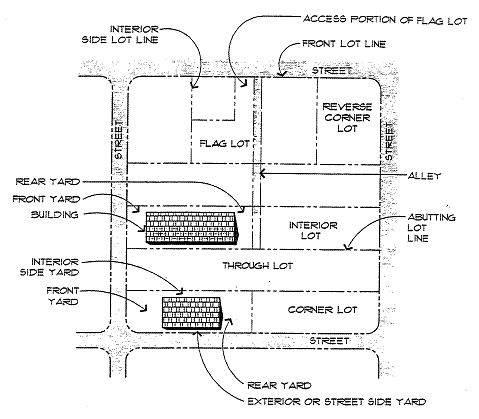

FIGURE 3:

LOT TYPES AND LOT LINES

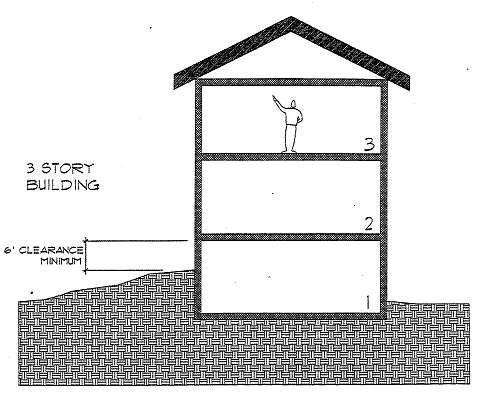

FIGURE 4:

3 STORY BUILDING
