Freeburg City Zoning Code

ARTICLE XV

OFF-STREET PARKING AND LOADING

40-15-1.- APPLICABILITY.

Off-street parking and loading shall be provided in accordance with this subchapter for all structures and uses erected or established after the effective date of this Chapter.

(Ord. No. 1712, § 2, 2-16-21)

40-15-2. - EXISTING PARKING/LOADING FACILITIES.

(A)

Existing off-street parking or loading facilities located on the same lot as the use served shall not be reduced, or if already less than, shall not be further reduced below the requirements and standards for similar new structures or uses.

(B)

When an existing structure or use is damaged or destroyed and subsequently repaired or rebuilt, parking/loading facilities equivalent to any maintained at the time of such damage or destruction shall be restored, but additional parking/loading spaces need not be provided.

(C)

Whenever the use of any structure or premises is intensified through addition of dwelling units, increased floor area, greater seating capacity, and the like, additional off-street parking and loading spaces commensurate with such intensification shall be provided.

(D)

Whenever the existing use of a structure is changed to a different use, off-street parking or loading facilities shall be provided as required herein for such new use.

(Ord. No. 1712, § 2, 2-16-21)

40-15-3. - PARKING LOT DESIGN STANDARDS.

All off-street parking lots shall conform to the standards indicated in the Section 40-15-4 through 40-15-9. NOTE: Standards applicable to all parking areas are indicated by one asterisk, standards applicable to all parking areas except those accessory to single- or two-family dwellings are indicated by two asterisks.

(Ord. No. 1712, § 2, 2-16-21)

40-15-4. - SPACES.

(A)

Every off-street parking space shall be at least ten feet wide and 20 feet long and shall have at least seven feet of vertical clearance. Every space shall be situated so that no part of any parked vehicle overhangs the public right-of-way.*

(B)

Markings shall be laid and restored as often as necessary to clearly delineate each parking space.**

(C)

All Handicapped Parking shall comply with the requirements of the most current Illinois Accessibility Code.

Table: Handicap Accessible Spaces Required (From Illinois Accessibility Code)
Spaces Required for UseMinimum Number of Handicapped Spaces
1 to 25 1
26 to 50 2
51 to 75 3
76 to 100 4
101 to 150 5
151 to 200 6
201 to 300 7
301 to 400 8
401 to 500 9
501 to 1,000 2% of total
1,001 and over 20, plus 1 for each 100 over 1,000



(Ord. No. 1712, § 2, 2-16-21)

40-15-5. - INTERIOR AISLES.

Aisles within parking lots shall be sufficiently wide to permit safe and efficient vehicular movement in the aisles and into and out of parking spaces. Aisles designed for two-way traffic shall be at least 22 feet wide. One-way aisles designed for 60 degree parking shall be at least 18 feet wide.**

(Ord. No. 1712, § 2, 2-16-21)

40-15-6. - ACCESS WAYS.

(A)

Parking lots shall be designed so that ingress to or egress from a parking space is from an aisle or driveway, not directly from the public right-of-way.*

(B)

No access way to any parking lot shall be located within 30 feet of any corner formed by the intersection of the rights-of-way of two or more streets. At intersections where traffic control devices are installed, the Zoning Administrator may increase this requirement as necessary to prevent hazards.*

(C)

Parking lot access ways (as well as residential driveways) and public streets shall be aligned to form, as closely as feasible, right angles.*

(D)

The access way to every parking lot located in any business district or in the Industrial District shall be at least 24 feet wide unless two one-way drives, each 12 feet wide are provided.**

(E)

The access way to every parking lot located in any residential district or in the Agriculture District shall be at least ten feet wide; but if the parking area is longer than 100 feet, access shall be provided either by one two-way drive at least 20 feet wide or by two one-way drives, each at least ten feet wide.*

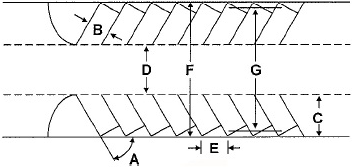

Table: Parking Table
Parking Angle (A)Stall Width
(B)
Stall to Curb (C)Aisle Width* (D)Curb Length (E)Curb to Curb (F)Center to Center (G)
60 degrees 10.0' 20.8' 16.0' 11.2' 57.6' 53.3'
75 degrees 10.0' 21.0' 20.0' 10.4' 62.0' 59.2'
90 degrees 10.0' 19.0' 24.0' 10.0' 62.0' ——-



(Ord. No. 1712, § 2, 2-16-21)

40-15-7. - SURFACING/MAINTENANCE.

(A)

Parking lots shall be graded and improved with a compacted stone base at least seven inches thick, surfaced with at least two inches of asphalt or surfaced with at least six inches of Portland cement concrete over a compacted base.

(B)

All signs, markers or any other methods used to indicate direction of traffic movement and location of parking spaces shall be maintained in a neat and legible condition. Likewise, any walls, landscaping including trees and shrubbery, as well as surfacing and curbing of the parking facility, shall be maintained in good condition throughout its use for parking purposes.

(Ord. No. 1712, § 2, 2-16-21)

40-15-8. - LIGHTING.

Any light(s) used to illuminate any parking lot shall be arranged or shielded so as to confine direct light rays within the lot lines of the parking lot to the greatest extent possible, and in no case shall the light(s) shine on or into nearby residences.

(Ord. No. 1712, § 2, 2-16-21)

40-15-9. - LANDSCAPING.

In order to reduce heat and glare, to minimize blowing of dust and trash, and to reduce the oppressive visual effects of large open parking areas, landscaping shall be provided and maintained within every parking lot that contains 20 or more parking spaces.

(Am. Ord. 923, passed 9-21-98; Ord. No. 1712, § 2, 2-16-21)

40-15-10. - LOCATION OF PARKING.

All off-street parking shall be located in conformity with the following requirements:

(A)

For Dwellings.

(1)

Parking spaces accessory to any dwelling shall be located on the same lot as the dwelling. Such parking spaces shall not be located in any required front yard or required side yard adjacent to a street except in the driveway, but may be located in the side or rear yards.

(2)

Each parking space accessory to a multi-family dwelling shall be unobstructed so that no vehicle need be moved in order to allow another vehicle to enter/exit the parking area; provided that this requirement shall not be applicable to two-family dwellings.

(B)

For Business/Industrial Uses.

(1)

Every off-street parking space accessory to any business or industrial use shall be located within 500 feet of the use served; provided that no portion of any parking lot for nonresidential uses shall extend into any residential district or into the Agriculture District, except by written permission of the Zoning Administrator.

(2)

In any business district or in the Industrial District, off-street parking facilities for different buildings or uses may be provided collectively; but only if the total number of spaces so located together is not less than the sum of the separate requirements for each use, and if all other pertinent regulations are observed.

(Ord. No. 1712, § 2, 2-16-21)

40-15-11. - DESIGN AND LOCATION OF OFF-STREET LOADING FACILITIES.

All off-street loading facilities shall conform to the minimum standards indicated below.

(A)

Size of Space. Every off-street loading space shall be at least 12 feet wide and 45 feet long exclusive of aisle and maneuver space and shall have vertical clearance of at least 14 feet. In no case shall a vehicle being loaded or unloaded overhang into the public right-of-way.

(B)

Access Way. Every off-street loading space shall have a safe means of vehicular access to a street or alley. Such access way shall be at least 12 feet wide.

(C)

Surfacing. Every off-street loading area shall be improved with a compacted stone base at least seven inches thick, surfaced with at least two inches of asphaltic concrete or approved comparable material. (No "oil and chip.")

(D)

Buffer Strips. No loading space or area for vehicles over two ton cargo capacity shall be developed closer than 50 feet to the lot line of any lot located in any residential district or in the Agricultural District unless such space/area is completely enclosed by walls, a solid fence, or closely planted shrubbery at least six feet in height and of sufficient density to block the view from residential property.

(E)

Location. Every off-street loading space shall be located on the same parcel of land as the use served and not closer than 50 feet to the intersection of the rights-of-way of two or more streets and not on any required front yard.

(Ord. No. 1712, § 2, 2-16-21)

40-15-12. - COMPUTATION OF REQUIRED PARKING/LOADING SPACES.

In computing the number of parking spaces required by this Chapter, the Zoning Administrator shall apply the following rules:

(A)

In computing parking space requirements based on the number of employees, the maximum number of employees on the premises at any period of the day shall be used. "Employee parking" means one parking space shall be required per one and one-half employees, unless otherwise stated.

(B)

In computing parking or loading space requirements on the basis of building floor area, the gross floor area shall be used.

(C)

Whenever it is necessary to translate gross parking lot area into number of parking spaces, 350 square feet of gross area shall be deemed one parking space.

(D)

If computation of the number of parking or loading spaces required by this Chapter results in a fractional space, any fraction of one-half or more shall be counted as one space.

(E)

No space or portion thereof needed to satisfy the minimum applicable requirement for number of off-street parking or loading spaces shall be counted as part of the off-street parking or loading spaces required for another structure or use.

(Ord. No. 1712, § 2, 2-16-21)

40-15-13. - NUMBER OF PARKING AND LOADING SPACES REQUIRED.

Off-street parking and loading spaces shall be provided as indicated in tabular form below. For any use that is not listed in the table, the same amount of parking and loading space shall be provided as is required for the most similar listed use. The Zoning Administrator shall make the determination of similarity:

UseParking Spaces RequiredLoading Spaces Required
(if any)
(A) Dwellings, lodgings:
 Motels, boarding hotels, and Bed and Breakfast Establishments 1 space per lodging unit, plus employee parking 1 space if the use has 20,000 sq. ft. or more of floor area
 Manufactured homes & Immobilized homes 2 spaces per unit Not applicable
 Multi-family dwellings 2 spaces per dwelling unit Not applicable
 Single-family & two-family dwellings 2 spaces per dwelling unit Not applicable
 Community Residence 2 spaces per dwelling unit Not applicable
(Ord. No. 1187; 09-19-05)
(B) Educational, institutional, recreational:
 Churches, assembly halls 1 space per 4 seats in the largest seating area Not applicable
 Libraries, museums 1 space per 500 sq. ft. of floor area On review by the Zoning Administrator
 Nursing homes 1 space per 5 beds plus 1.5 spaces per employee on the major shift To 50,000 sq. ft. of floor area...1 space; 50,001-100,000 sq. ft...2 spaces
Schools
 Elementary and Junior High 1 space for every 20 students that the building is designed to accommodate, plus employee parking. On review by the Zoning Administrator
 Senior High 1 space for every 4 students that the building is designed to accommodate, plus employee parking. On review by the Zoning Administrator
(C) Commercial, office service:
 Note: All commercial and service uses, unless specifically indicated otherwise below. 1 space per 300 sq. ft. of floor area. To 10,000 sq. ft. of floor area...1 space; more than 10,000 sq. ft....1 space, plus 1 additional space per 50,000 sq. ft. of floor area in excess of 10,000 sq. ft.
Financial institutions
 Walk-in 1 space per 300 sq. ft. of floor area, plus employee parking. (Both walk-in and drive-in):To 30,000 sq. ft. of floor area... none required; 30,001 to 100,000 sq. ft....1 space
 Drive in 5 spaces per teller window
 Beauty and barber shops 2 spaces per chair, plus employee parking Not applicable
 Bowling alleys 4 spaces per bowling lane plus additional spaces as required herein for affiliated uses such as restaurants and taverns. Not applicable, except as required for affiliated uses.
 Car wash 3 spaces per wash lane Not applicable
 Furniture and appliance Stores 1 space per 600 sq. ft. of floor area. To 25,000 sq. ft. of floor area...2 spaces; more than 25,000 sq. ft. of floor area...2 spaces, plus 1 additional space per 25,000 sq. ft. of floor area in excess of 25,000 sq. ft.
 Home occupations 1 space per 150 sq. ft. of Not applicable floor area devoted to the home occupation in addition to the parking requirements for the dwelling.
 Video Gaming Parlor 1 space per 2 seats or 1 space per 200 sq. ft. of floor area, whichever is greater 1 space per structure having 10,000 sq. ft. or more of floor area
 Offices generally, but not medical/dental offices 1 space per 300 sq. ft. of floor area. To 30,000 sq. ft. of floor area...none required; 30,001- 100,000 sq. ft. ...1 space.
 Offices, medical/dental 1 space per 200 sq. ft. of floor. Not applicable area or 3 spaces per professional, whichever is greater.
 Mortuaries 1 space per 5 seats plus 1 space per funeral vehicle, but not less than 20 spaces per chapel or state room. 1 space per 10,000 sq. ft. or more of floor area.
Restaurants; refreshment stands
 Sit-down 1 space per 4 seats or 1 space per 50 sq. ft. of floor area, whichever is greater. (Both sit-down and drive-in): 1 space per structure
 Drive-in 1 space per 25 sq. ft. of floor area. having 10,000 sq. ft. or more of floor area.
 Service stations 2 spaces per service stall, plus employee parking. Not applicable
 Taverns 1 space per 2 seats or 1 space per 50 sq. ft. of floor area, whichever is greater. 1 space per structure having 10,000 sq. ft. or more of floor area.
Theaters
 Indoor 1 space per 4 seats Not applicable
 Drive-in On review by the Zoning Administrator
 Vehicle sales 1 space per 600 sq. ft. of enclosed floor area plus: Up to 10,000 sq. ft. of open lot area devoted to sale/display of vehicles…1 spcae per 2,500 sq. ft. of open lot area; above 10,000 sq. ft…4 spaces plus 1 additional space per 5,000 sq. ft. of open lot area in excess of 10,000 sq. ft. To 25,000 sq. ft. of area and open lot area…2 spaces More than 25,000 sq. of floor area and open lot area…2 spaces, plus 1 additional space per 25,000 sq. ft. in excess of 25,000 sq. ft.
(D) Industrial
 Any manufacturing, warehousing, or other industrial use Employee parking (1 space per 1.5 employees) plus 1 space per company vehicle, plus 1 visitor space per 25 employees on the major shift. To 20,000 sq. ft. of floor area... 1 space; 20,001-50,000 sq. ft.. 2 spaces; 50,001-90,000 sq. ft…3 spaces; above 90,000 sq. ft...3 spaces plus 1 additional space per 50,000 sq. ft. of floor area in excess of 90,000 sq. ft.
(E) Mixed Use Building/Storefront Building
Mixed Use Building/Storefront Building Residential Parking
Regulations referenced in
40-15-13(A) Dwelling shall
apply. Employee Parking
Regulations referenced in this
chart (40-15-13) all apply.
For commercial customers,
on street parking shall be
allowed.



(Ord. No. 1712, § 2, 2-16-21; Ord. No. 1722, 10-18-21)
