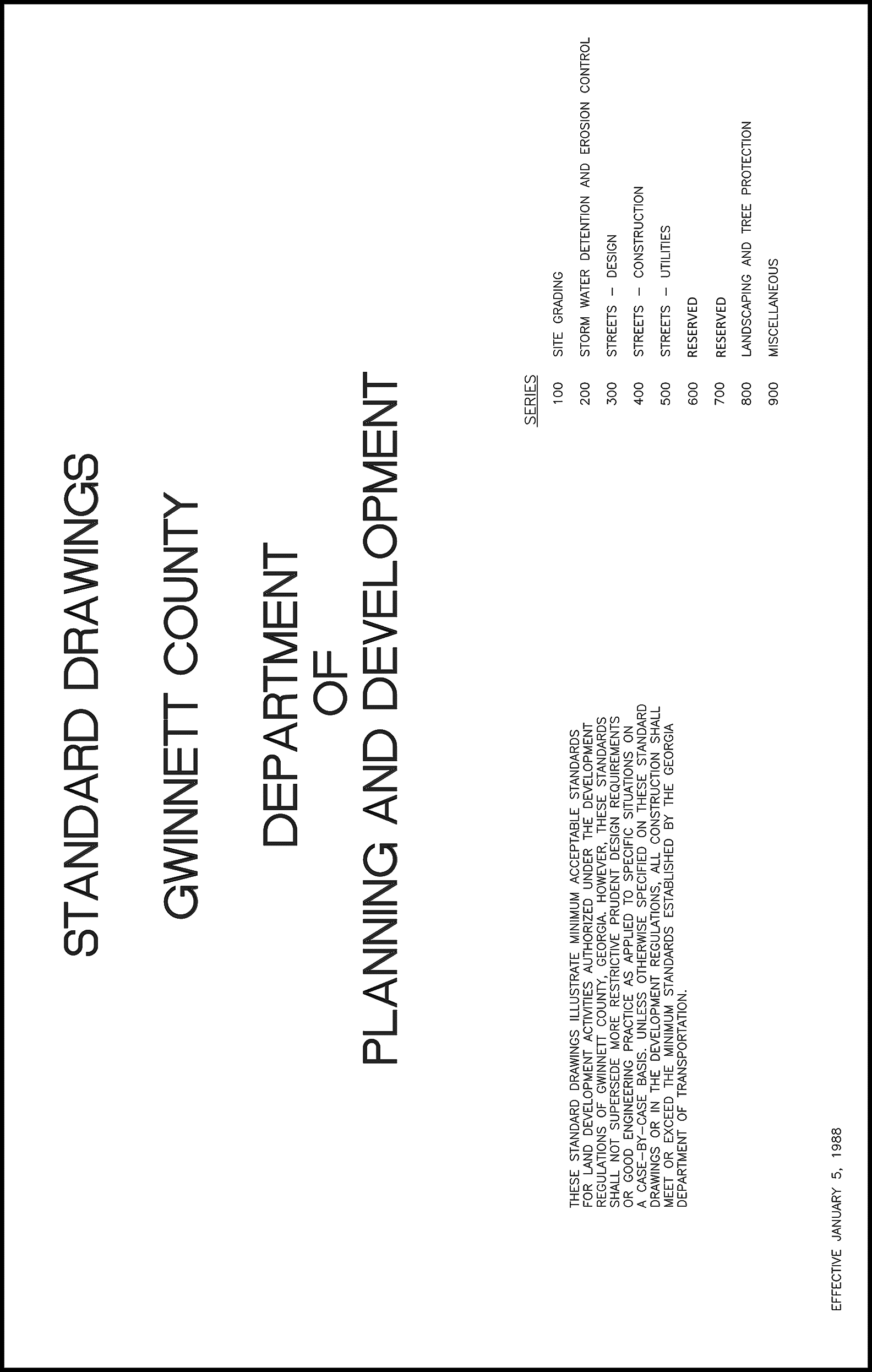

Appendix Section 1.0
Standard Drawings29
NOTE: Many of the drawings in this section cover two pages. Each drawing's end is marked by the Gwinnett County Board of Commissioner's seal as shown below.
These standard drawings illustrate minimum acceptable standards for land development activities authorized under the development regulations of Gwinnett County, Georgia, however, these standards shall not supersede more restrictive prudent design requirements or good engineering practice as applied to specific situations on a case-by-case basis. Unless otherwise specified on these standard drawings or in the development regulations, all construction must meet or exceed the minimum standards established by the Georgia Department of Transportation.
Series

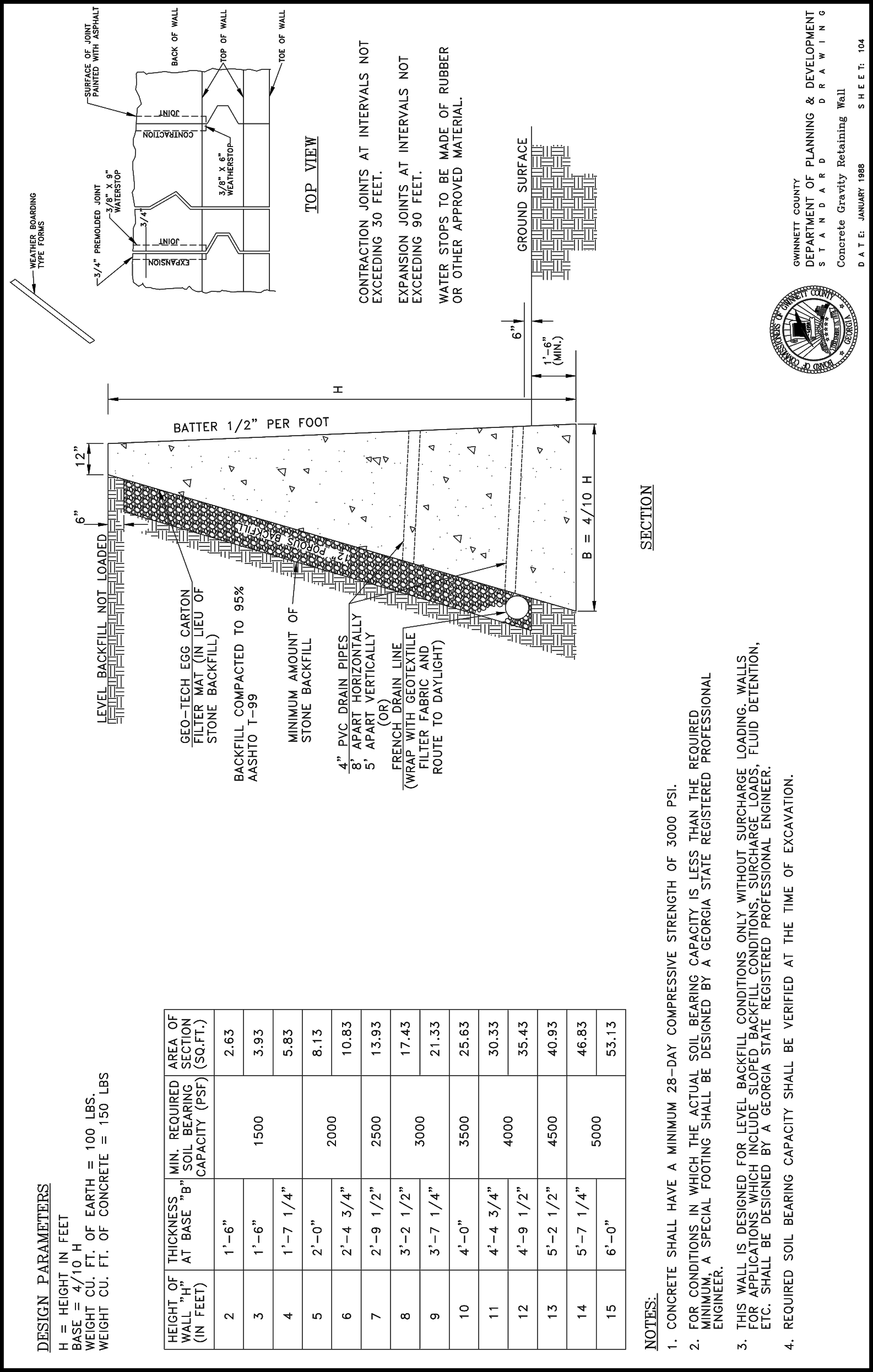

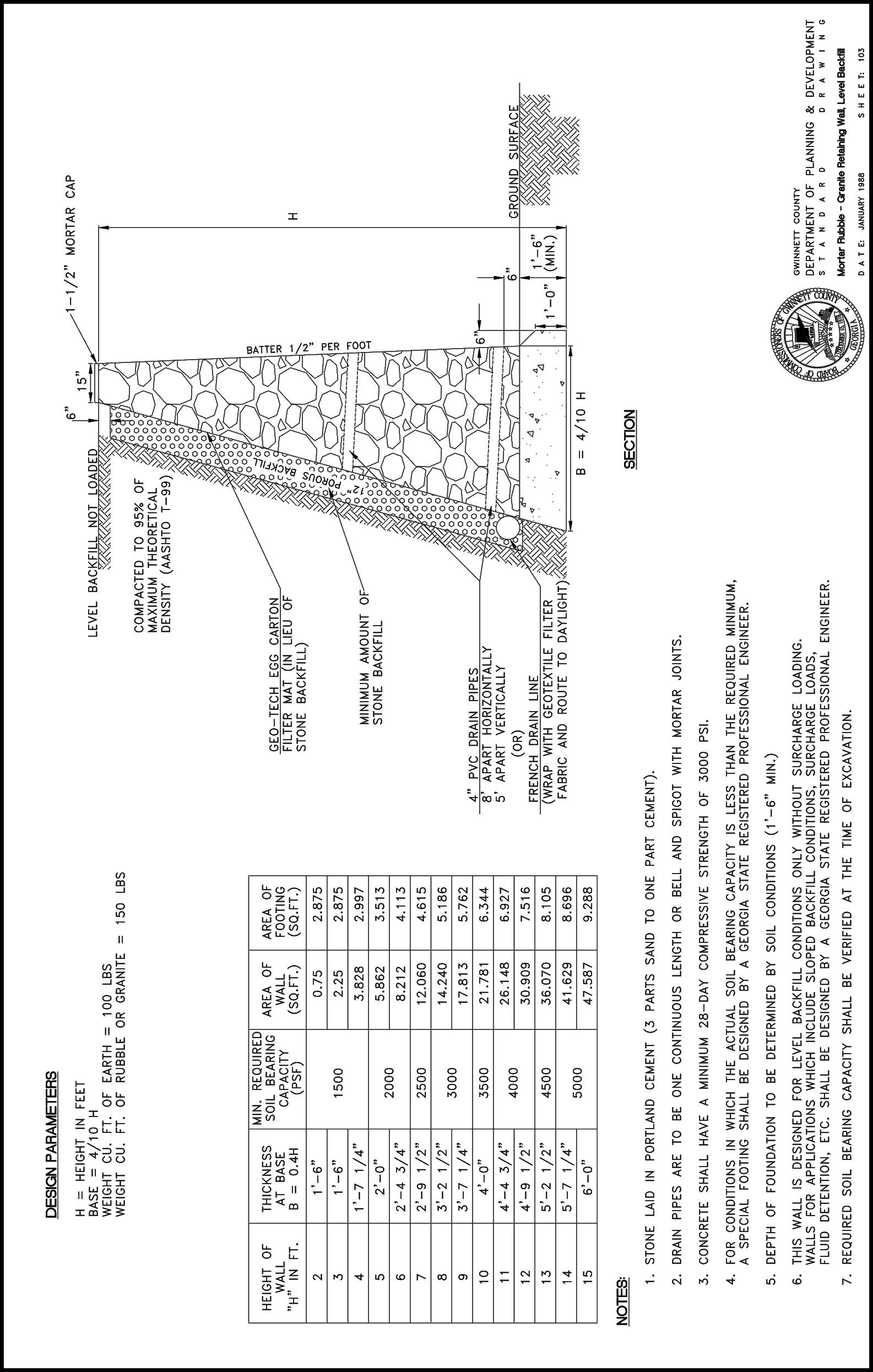

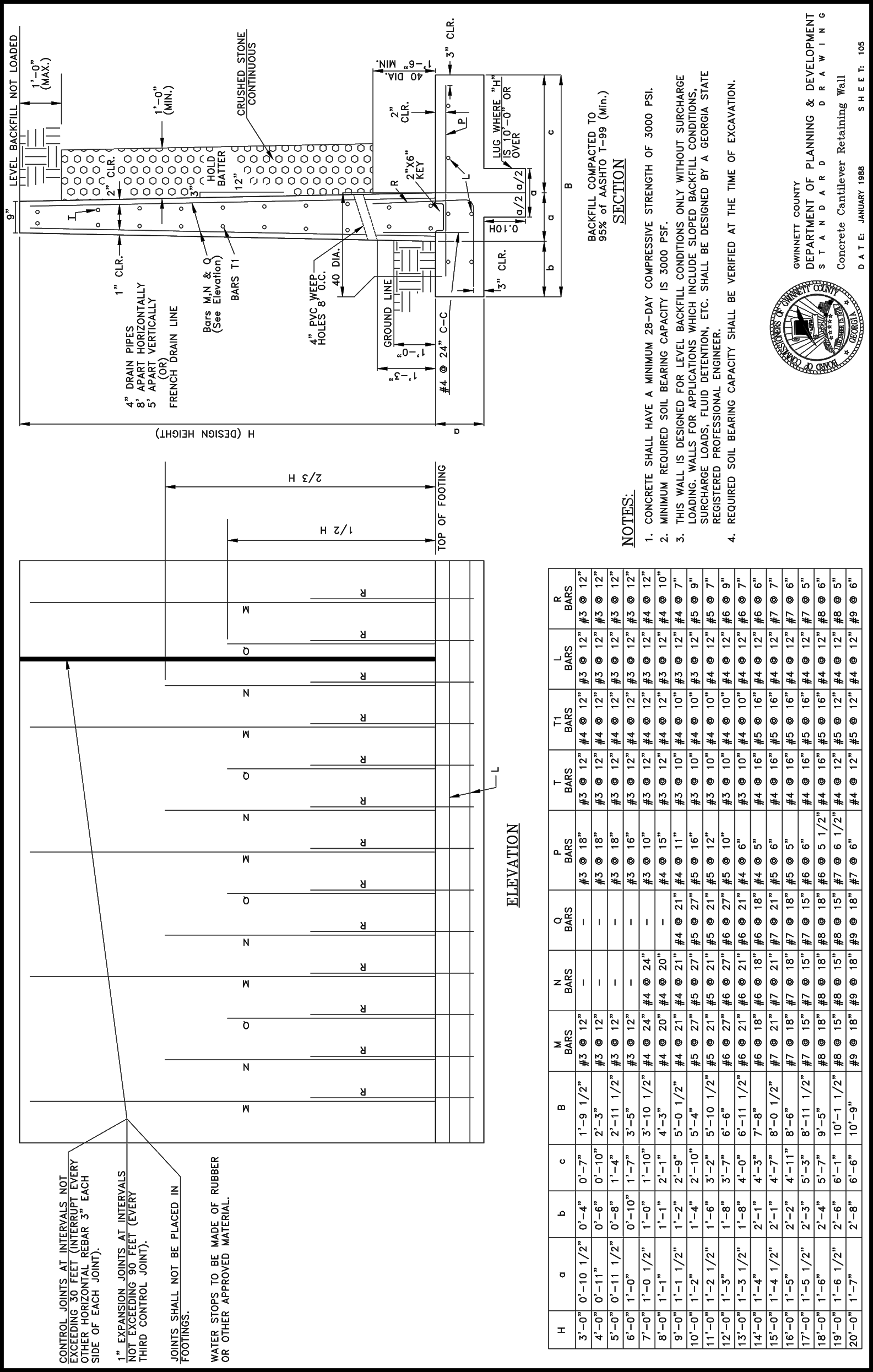

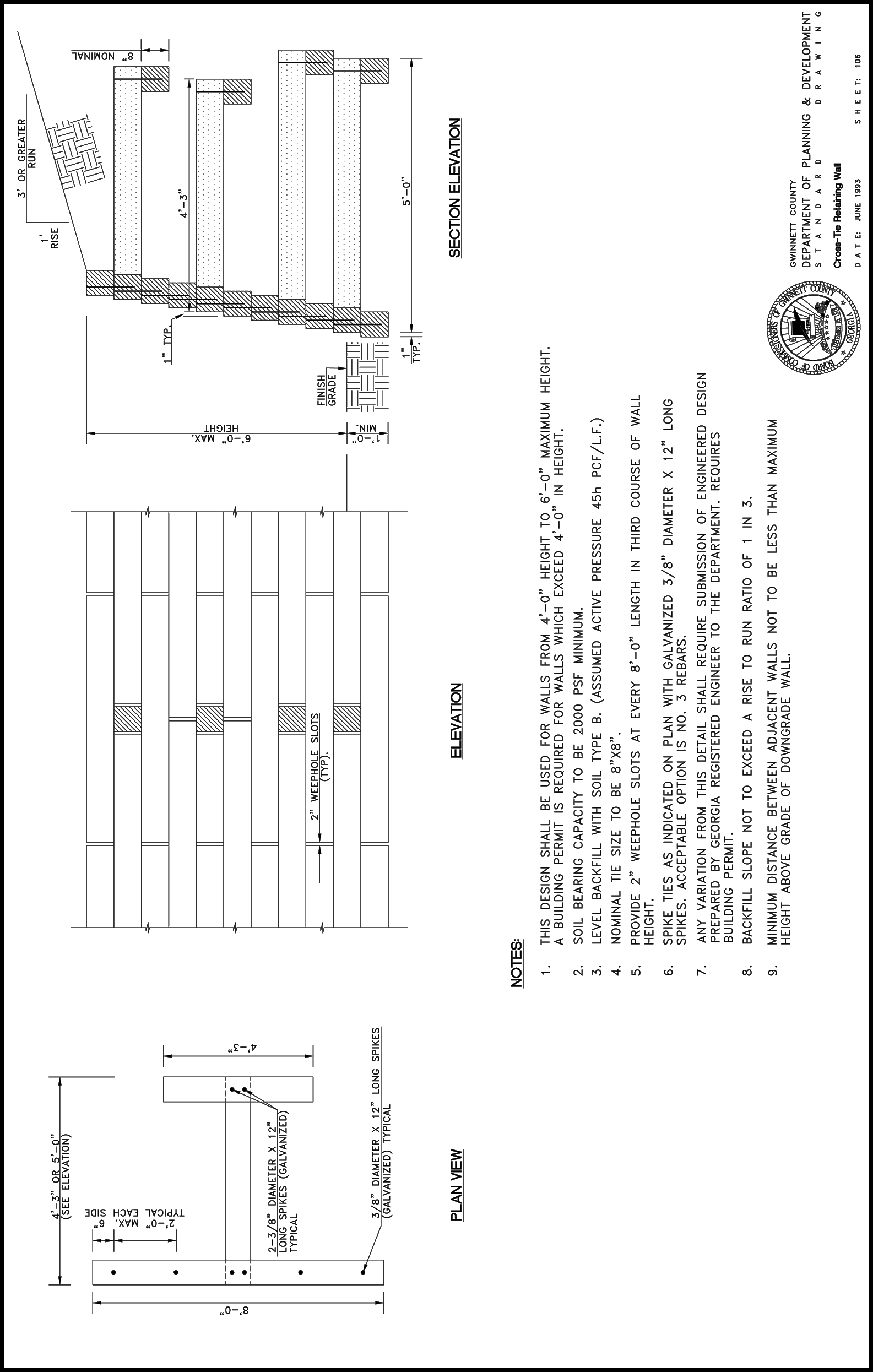

100: Site Grading

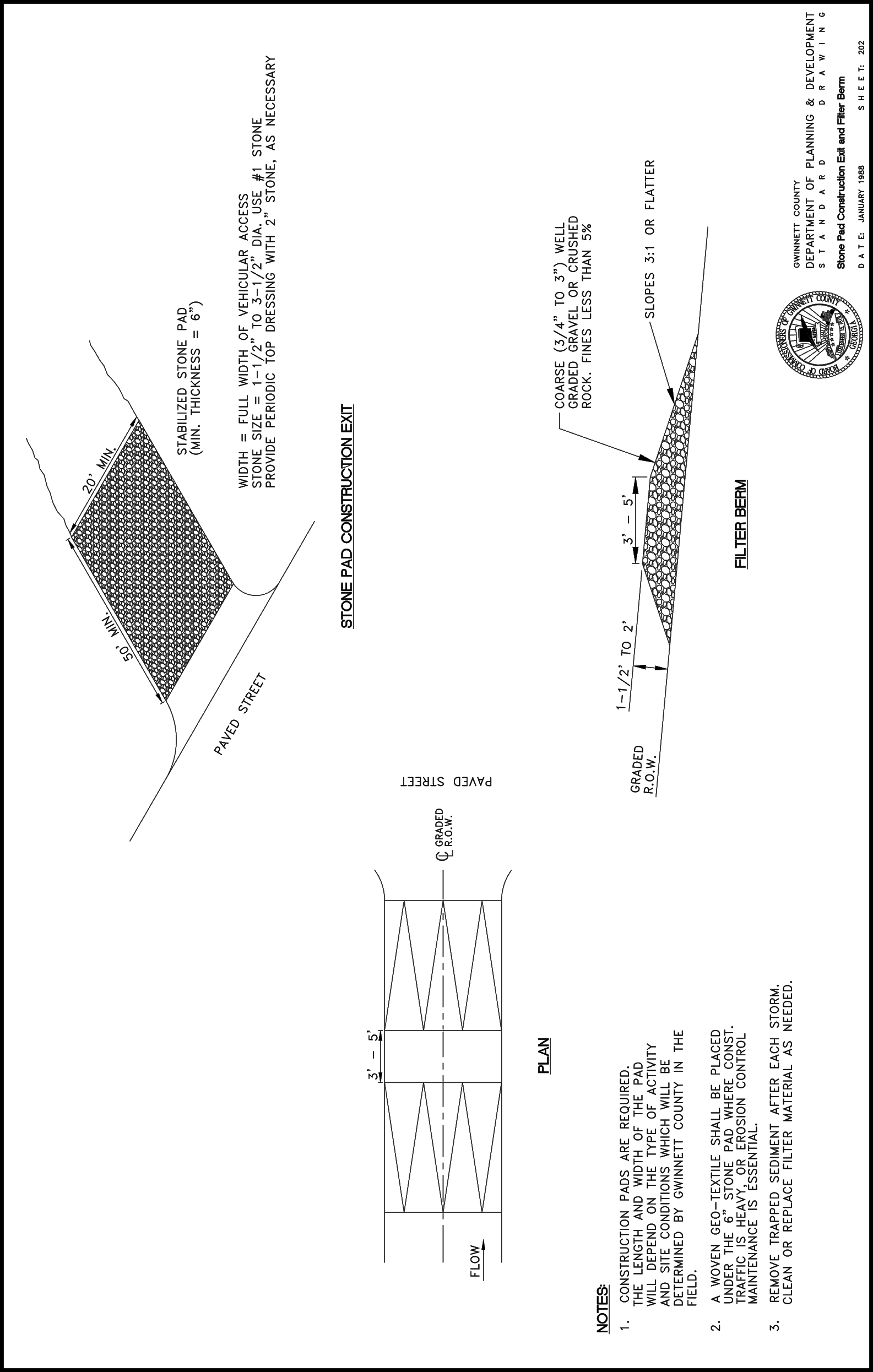

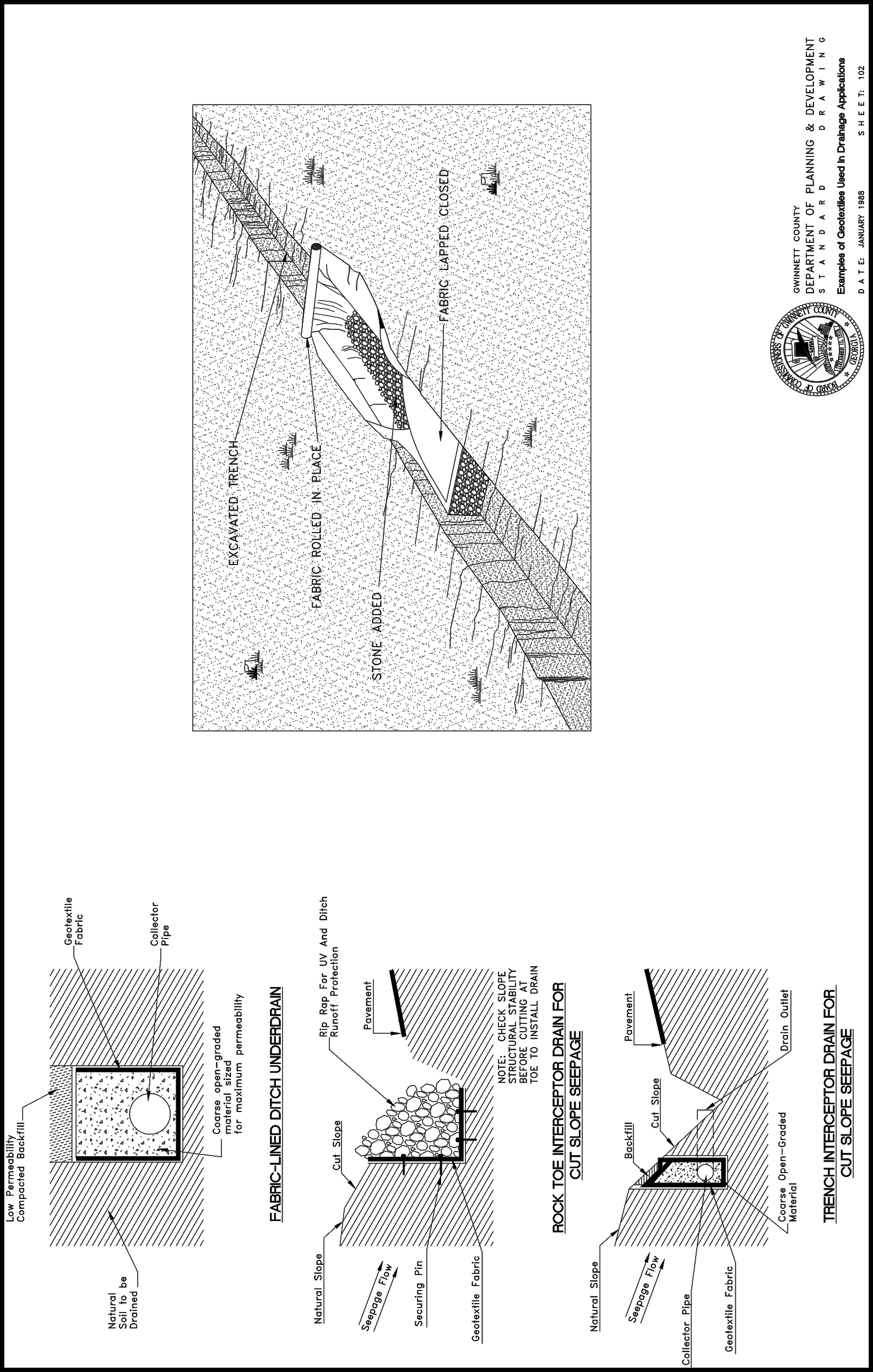

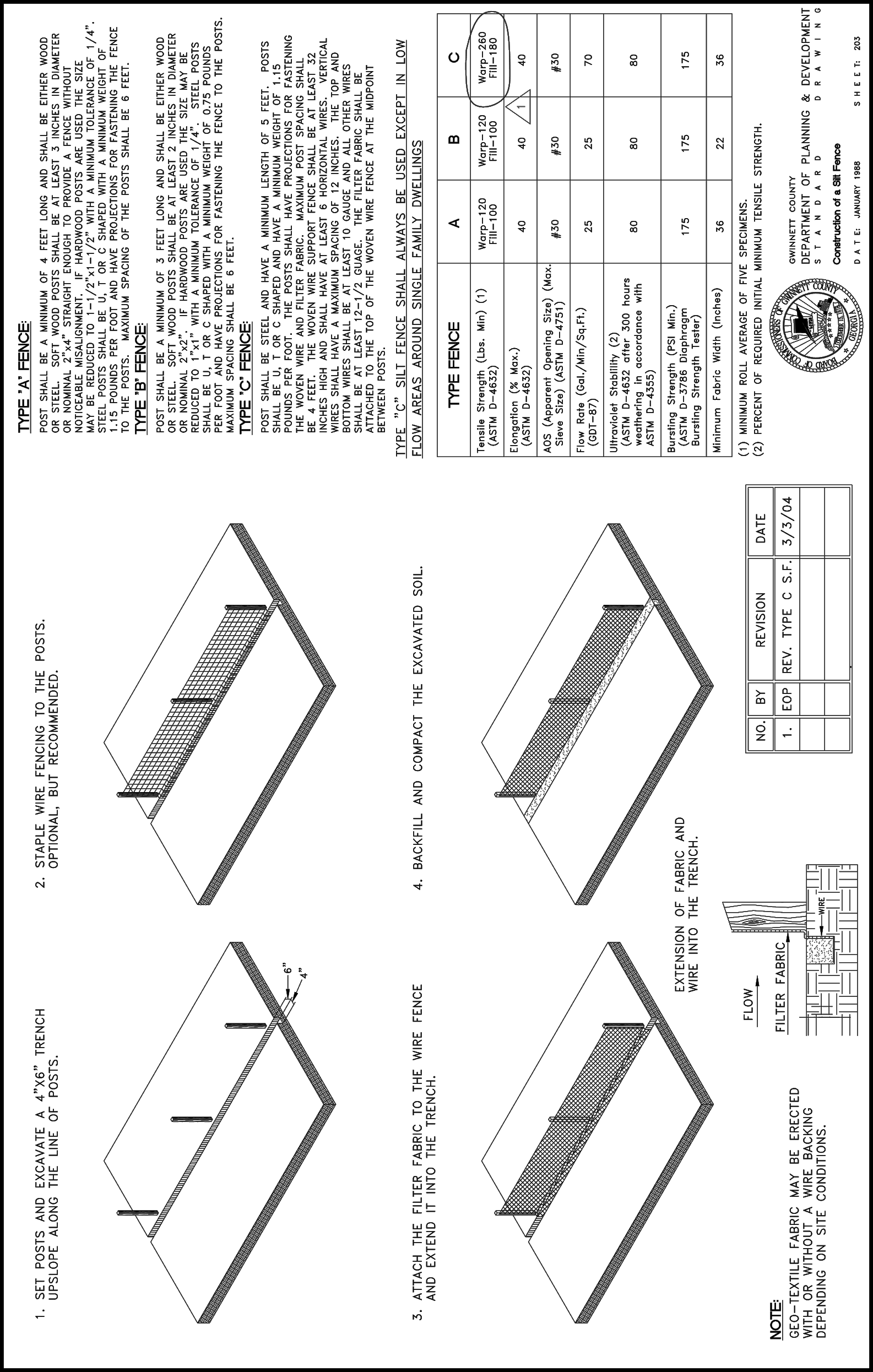

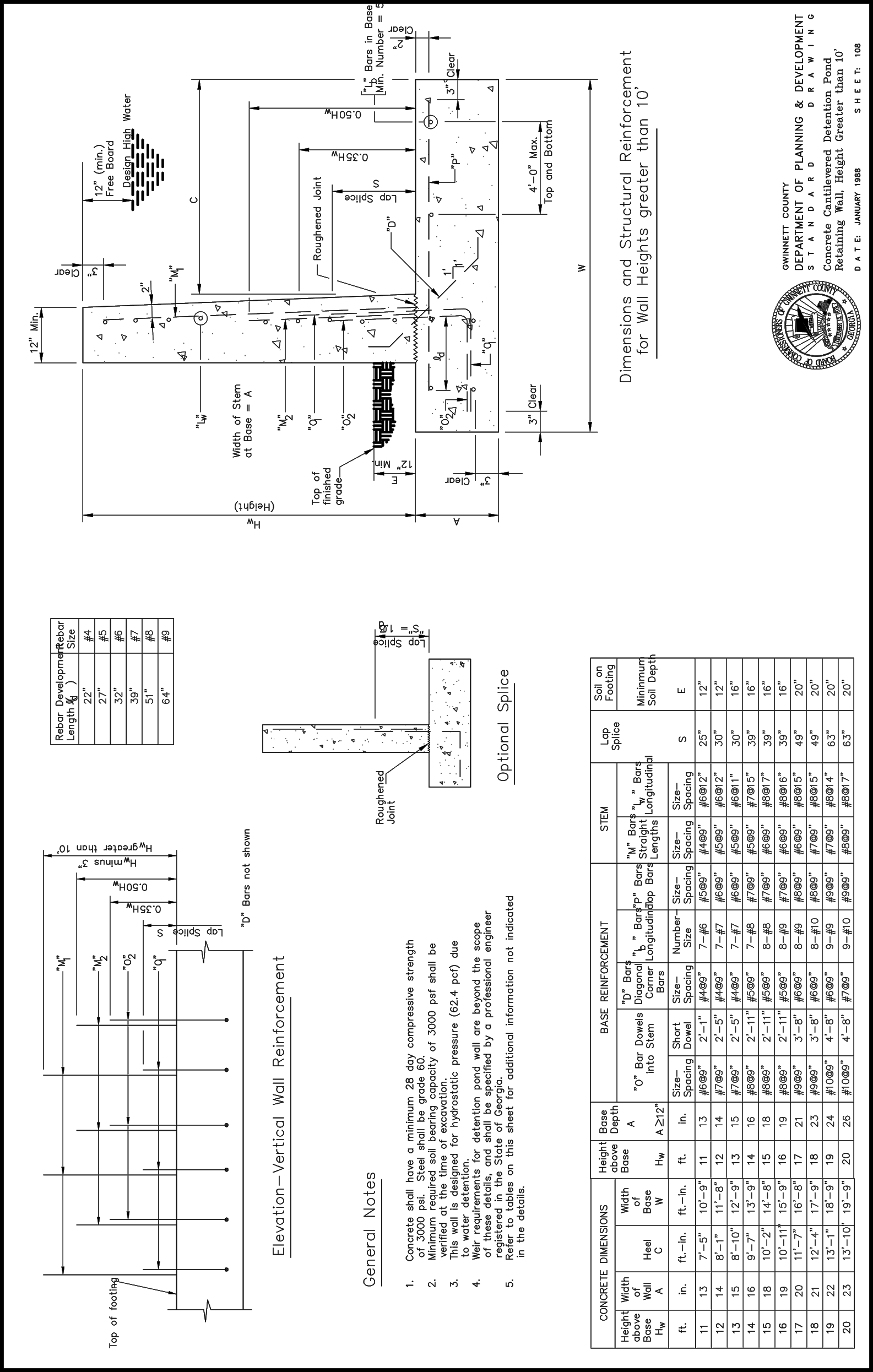

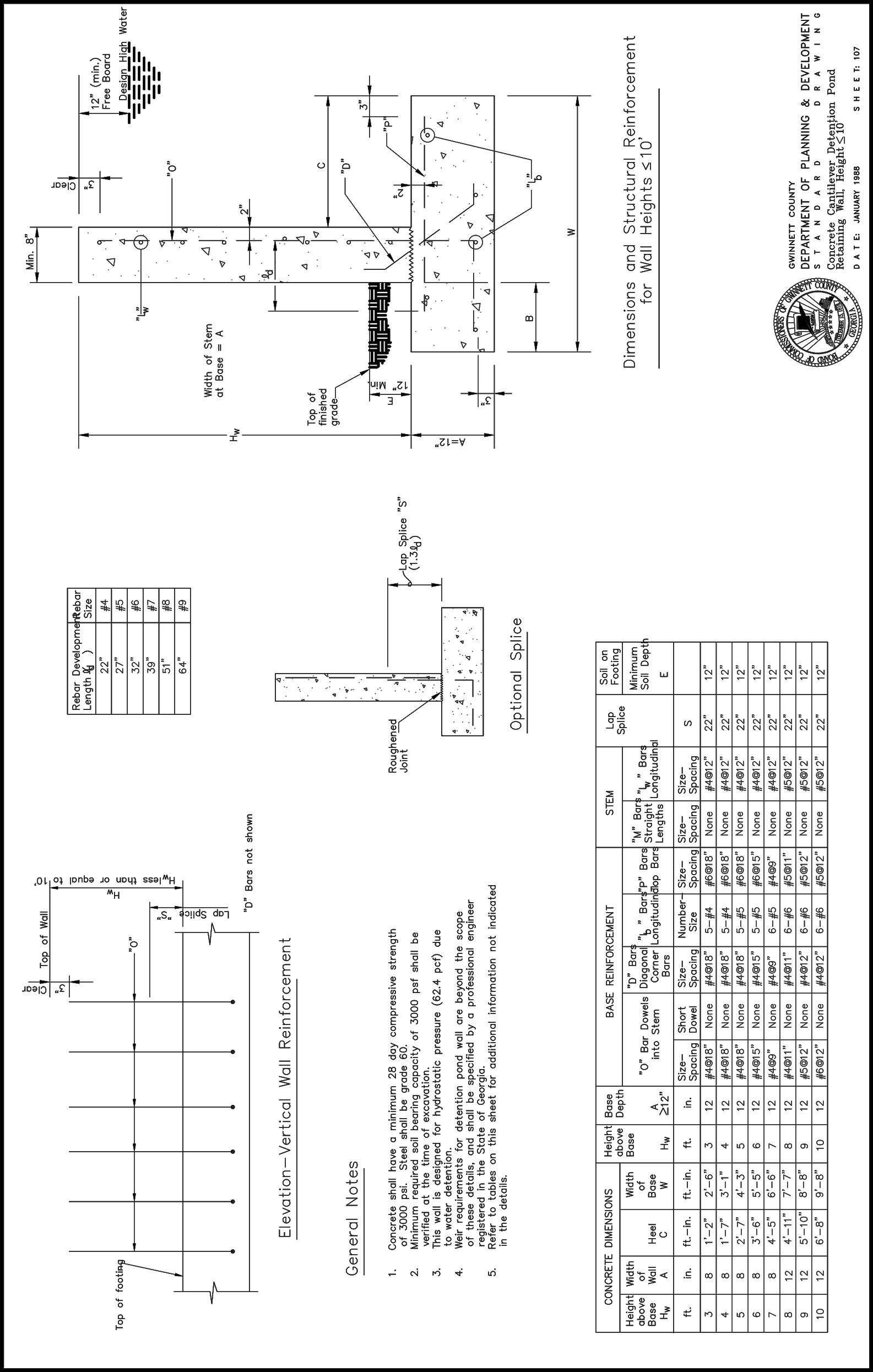

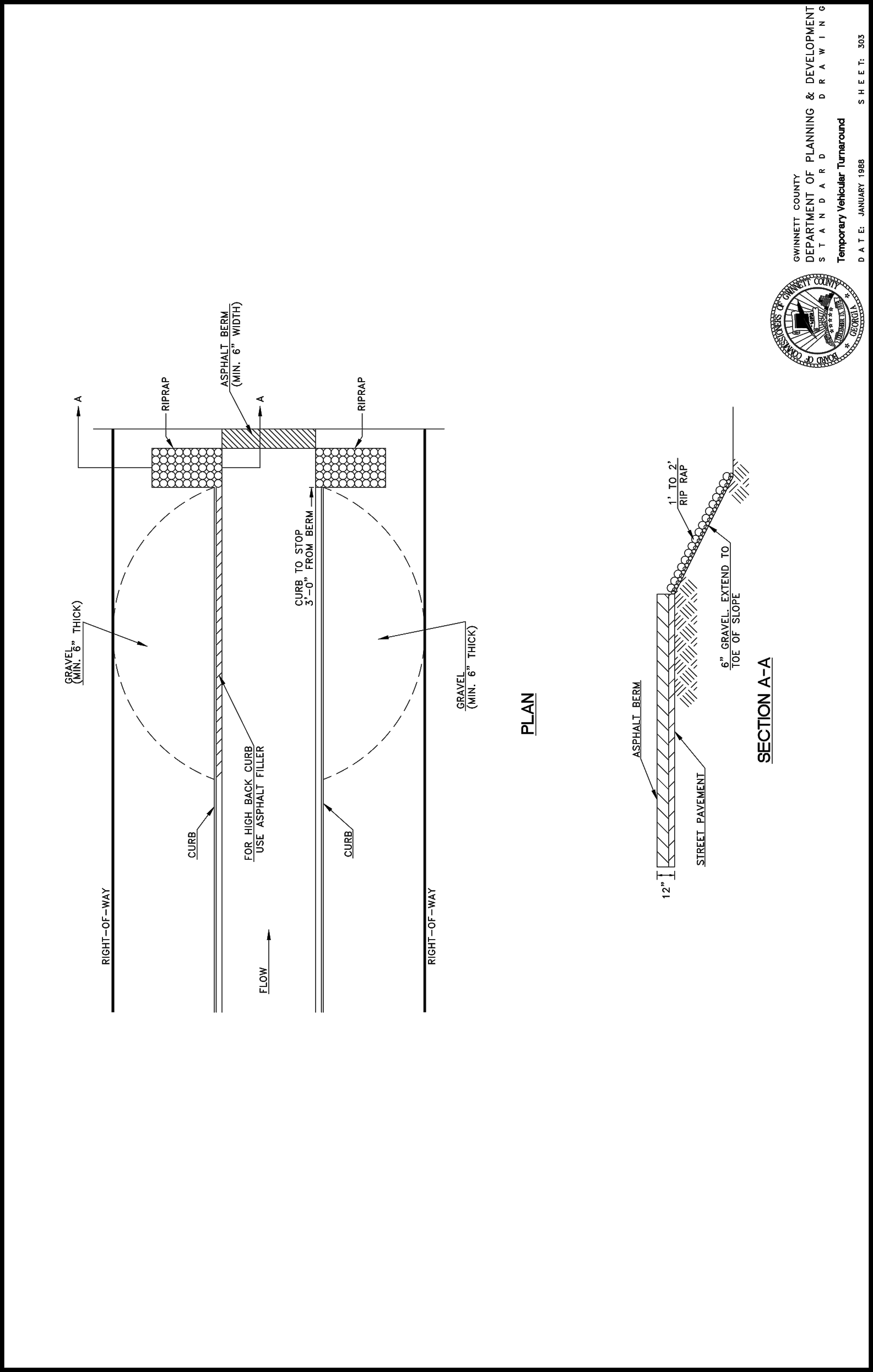

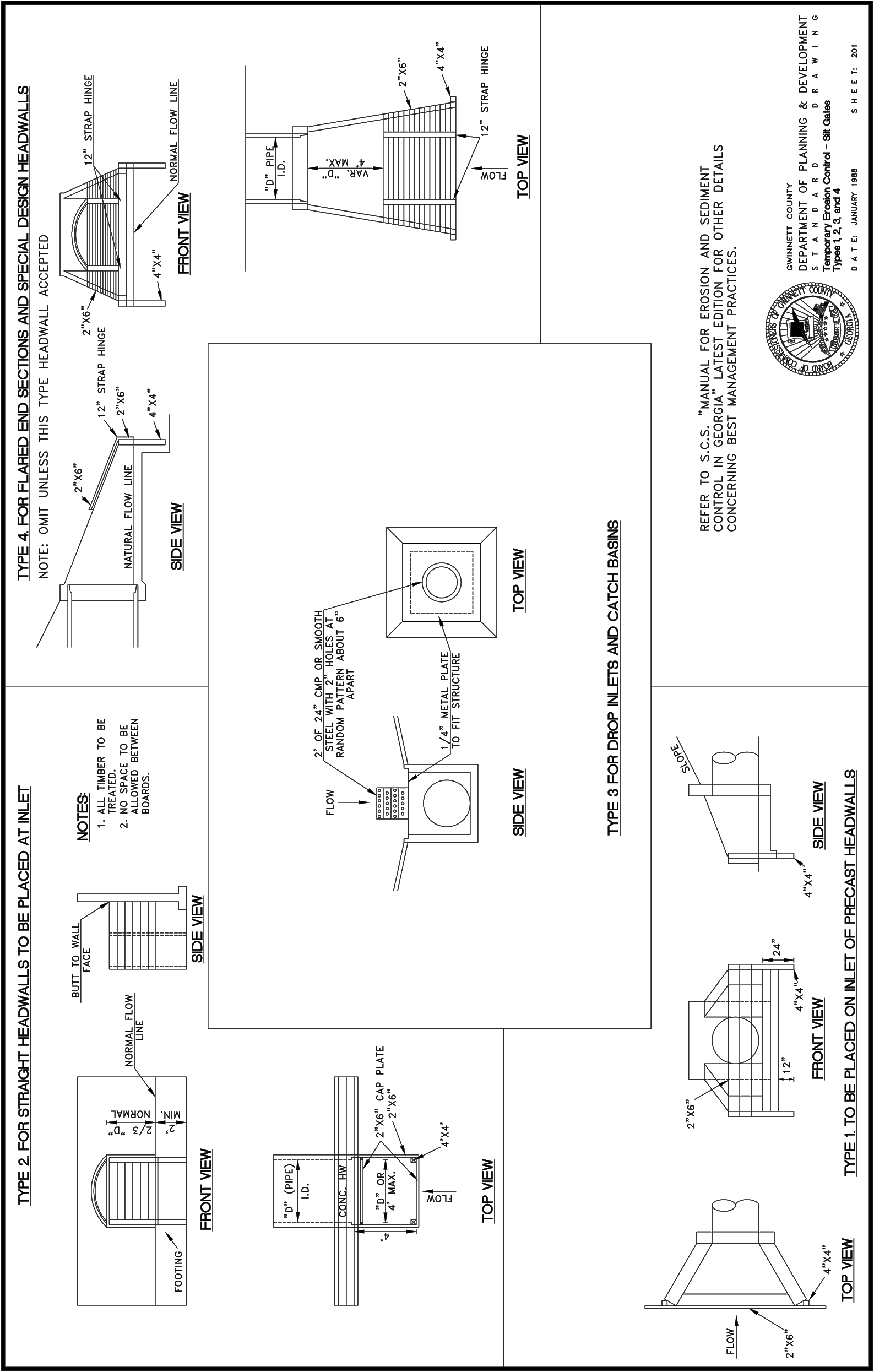

200: Storm Water Detention and Erosion Control

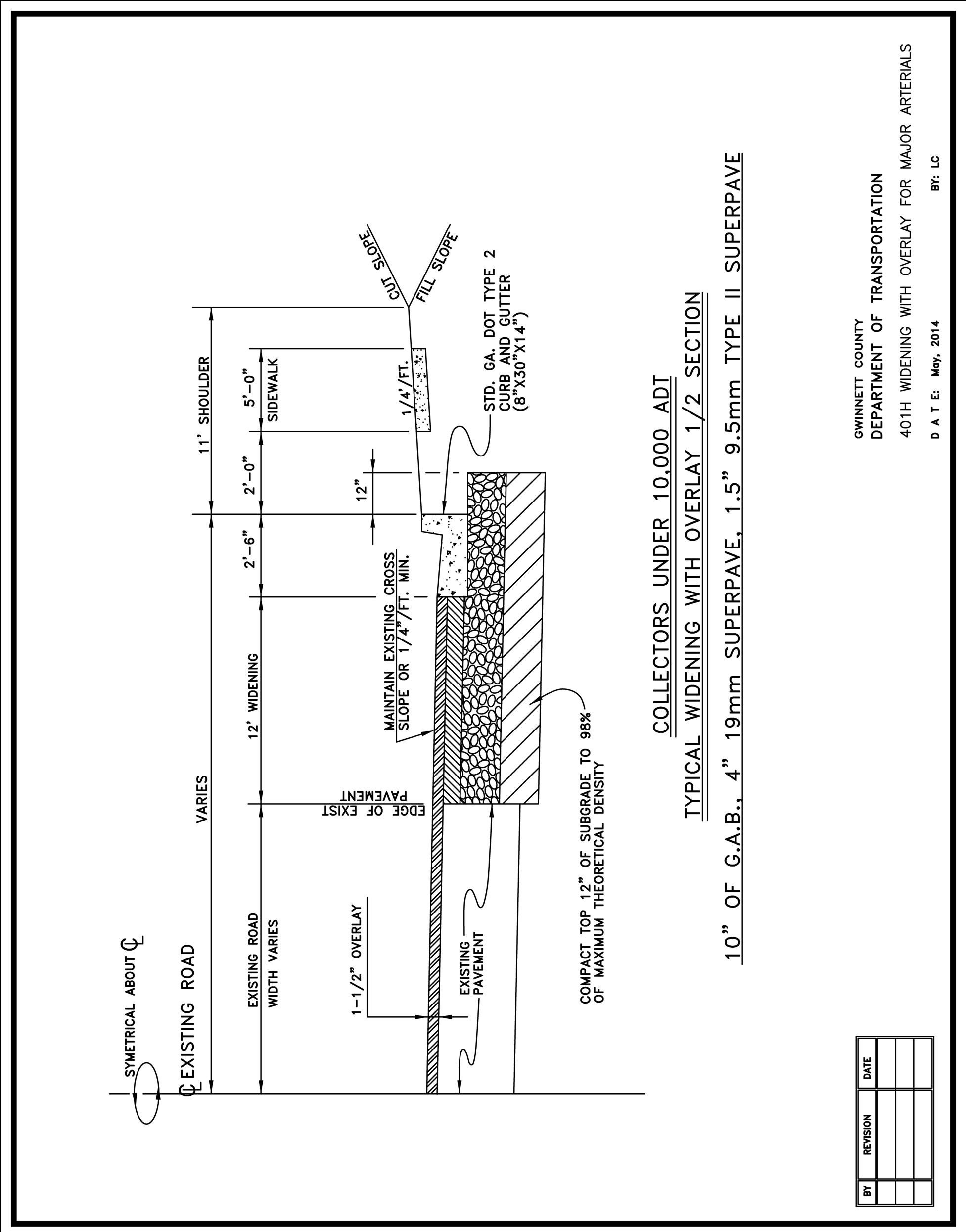

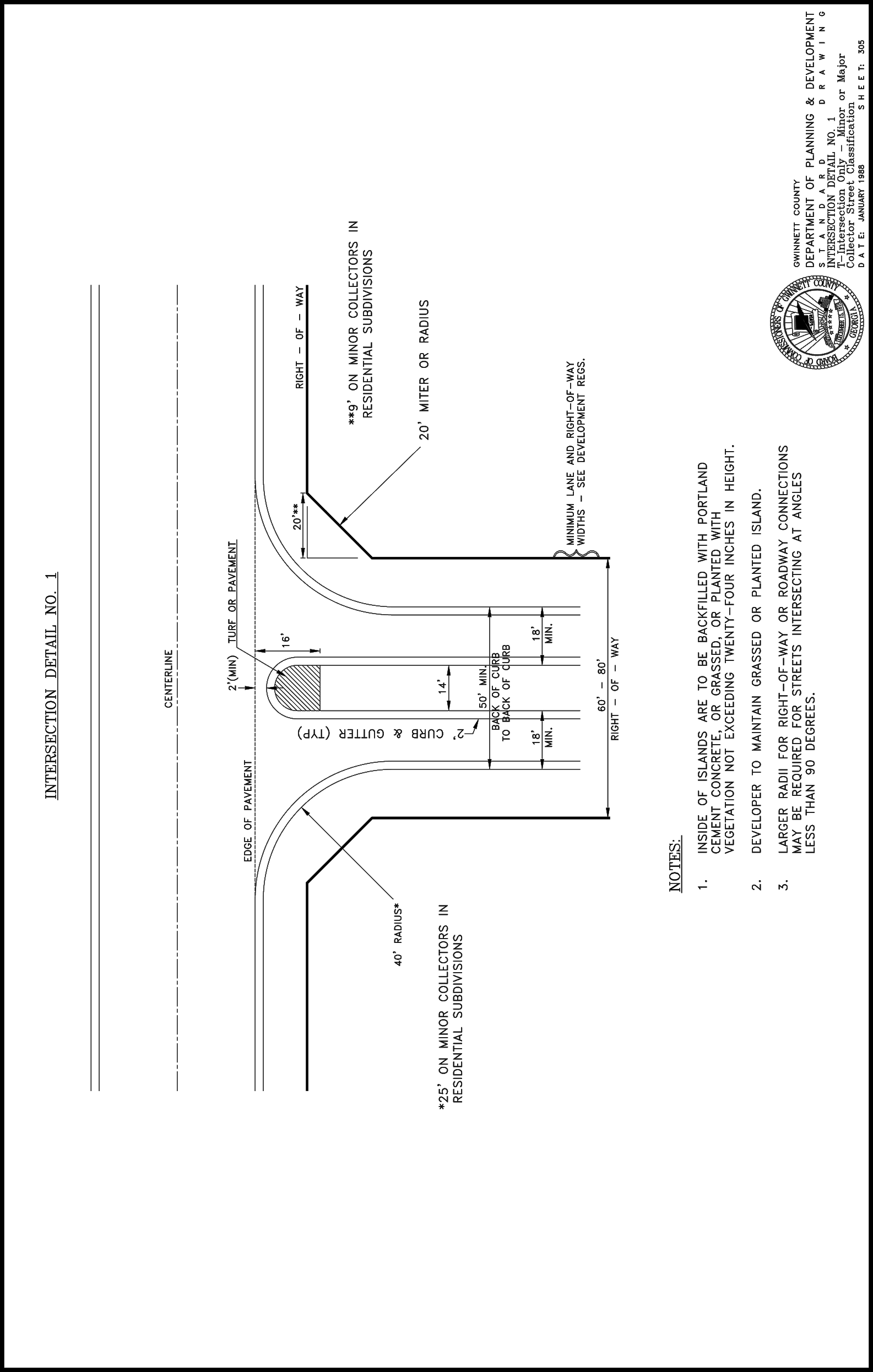

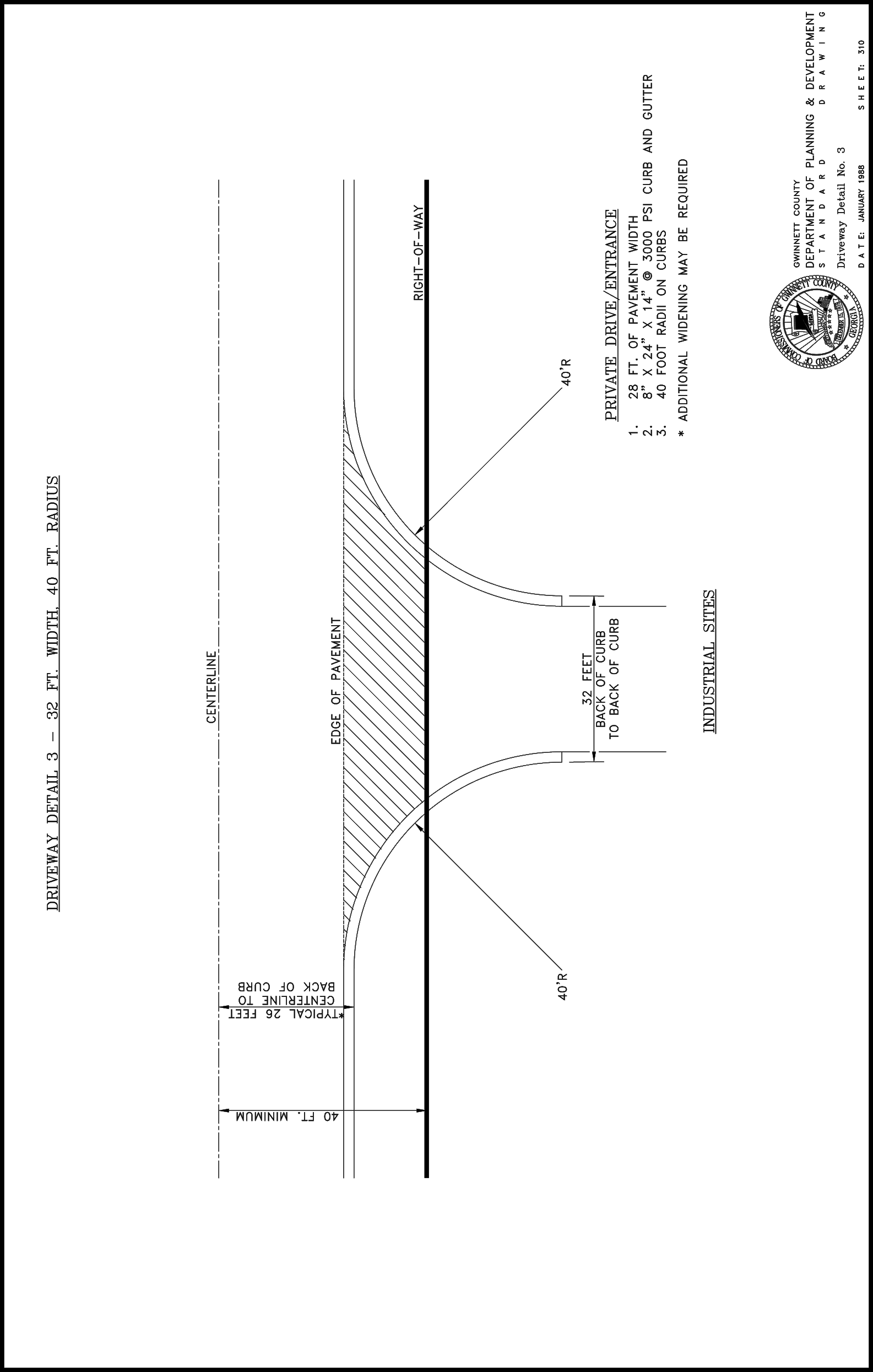

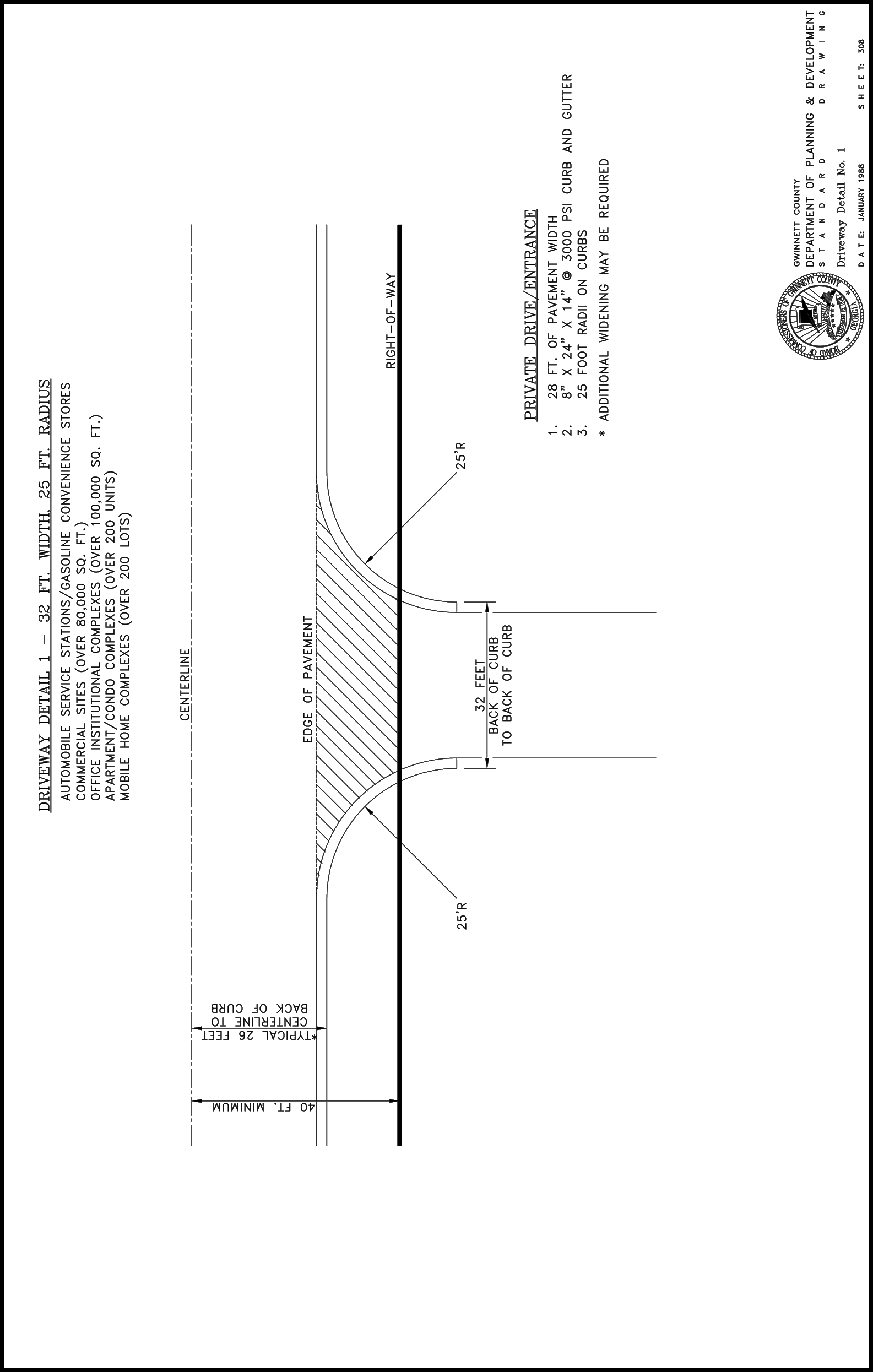

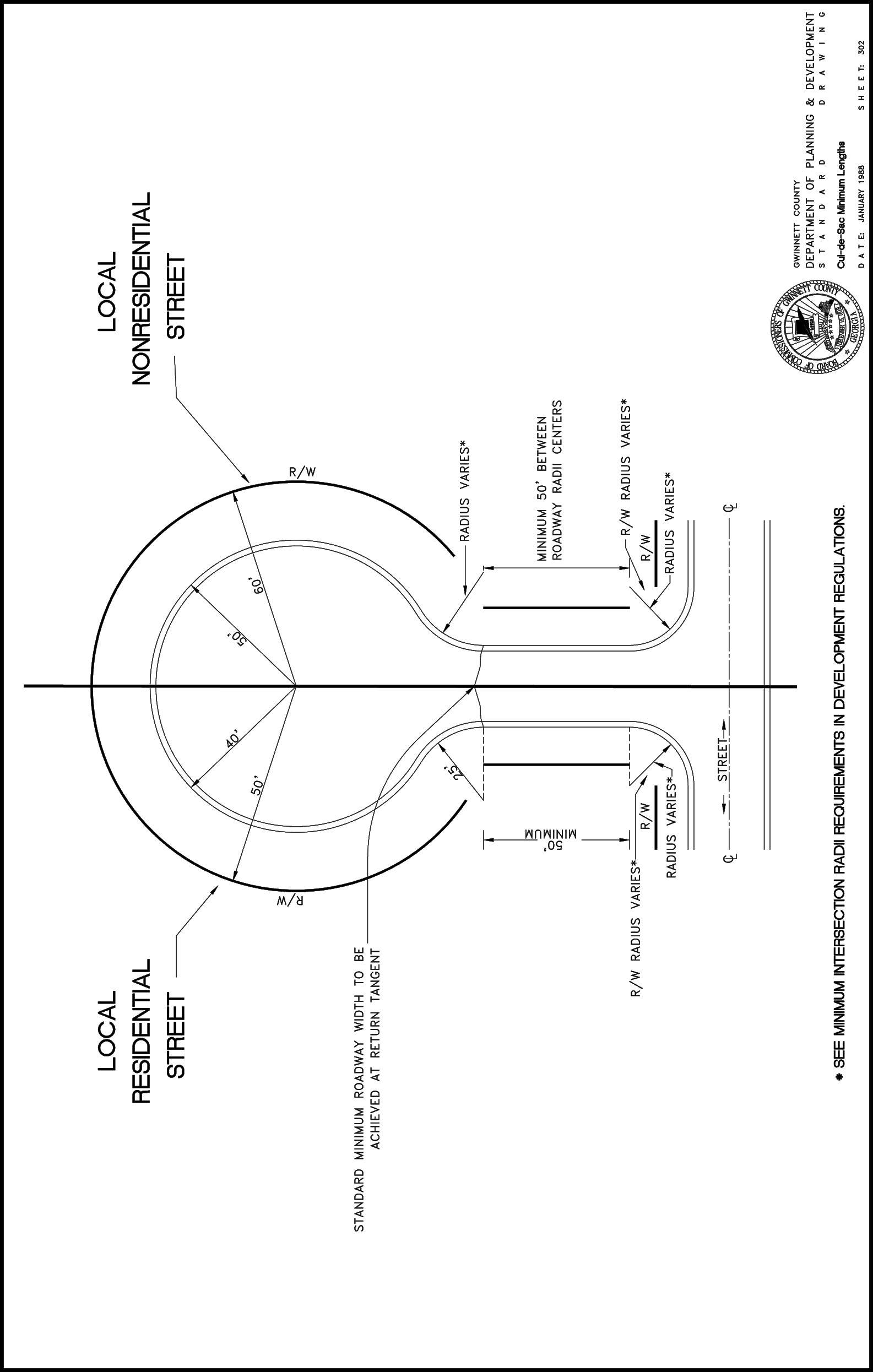

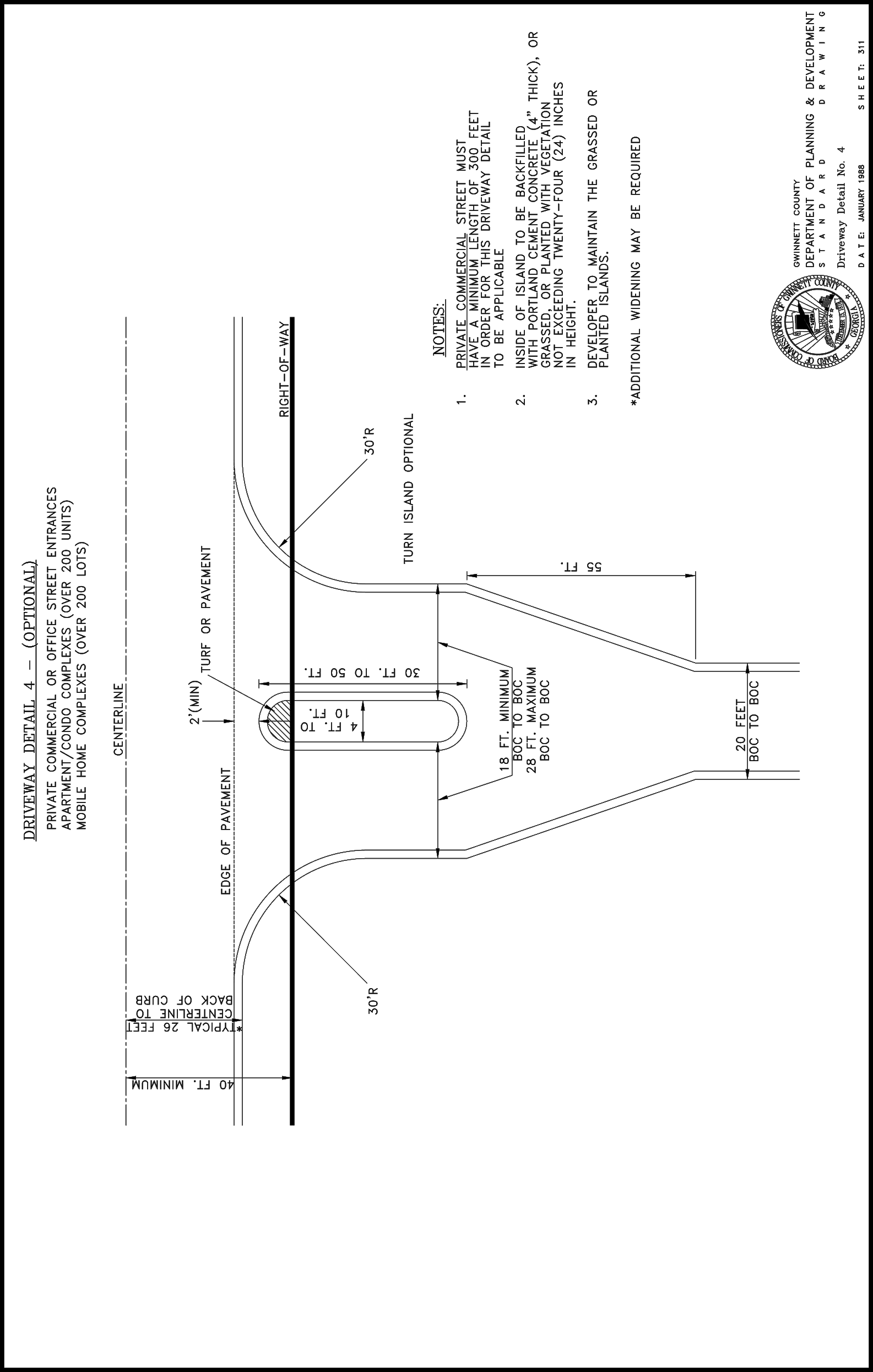

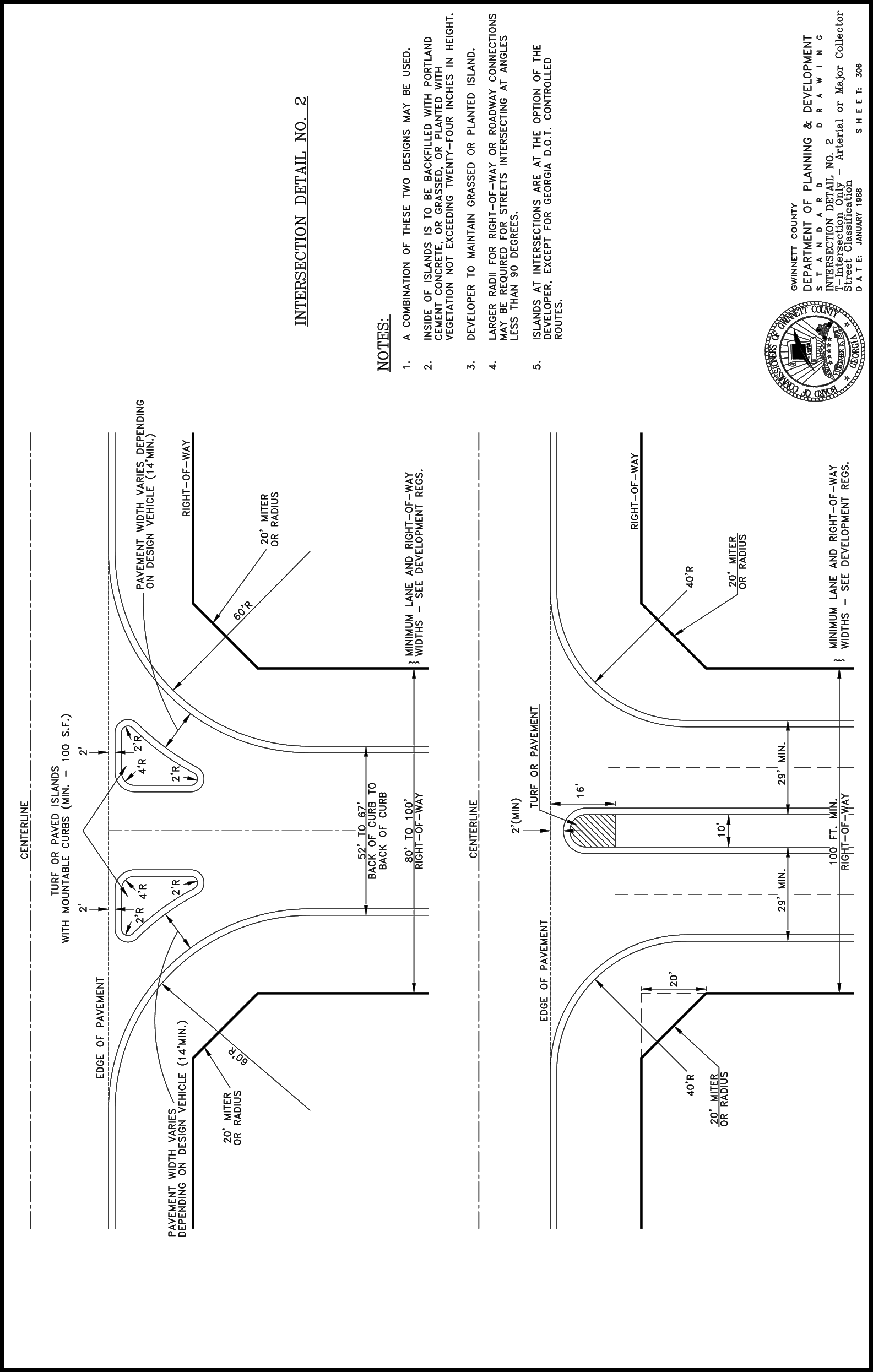

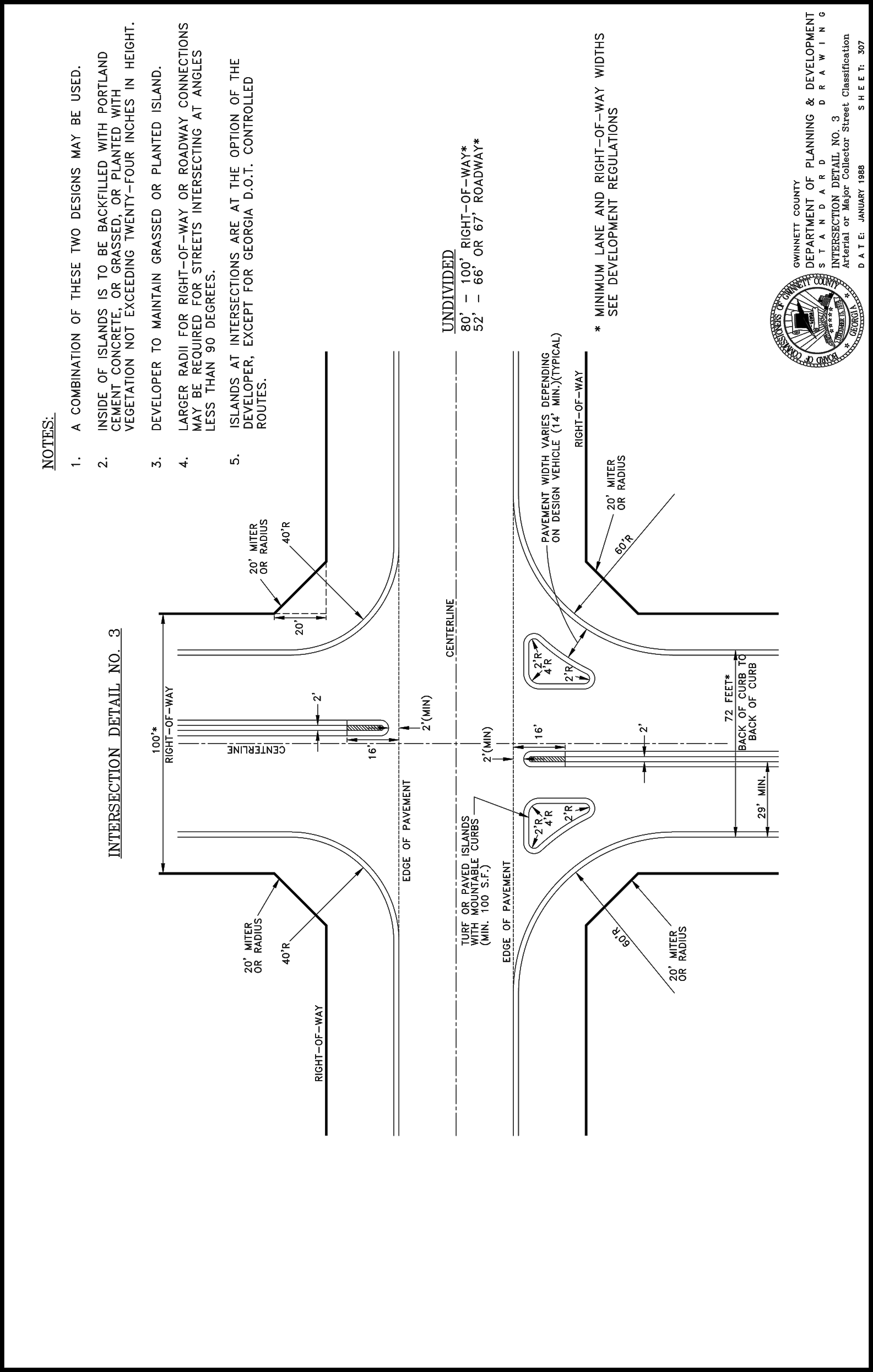

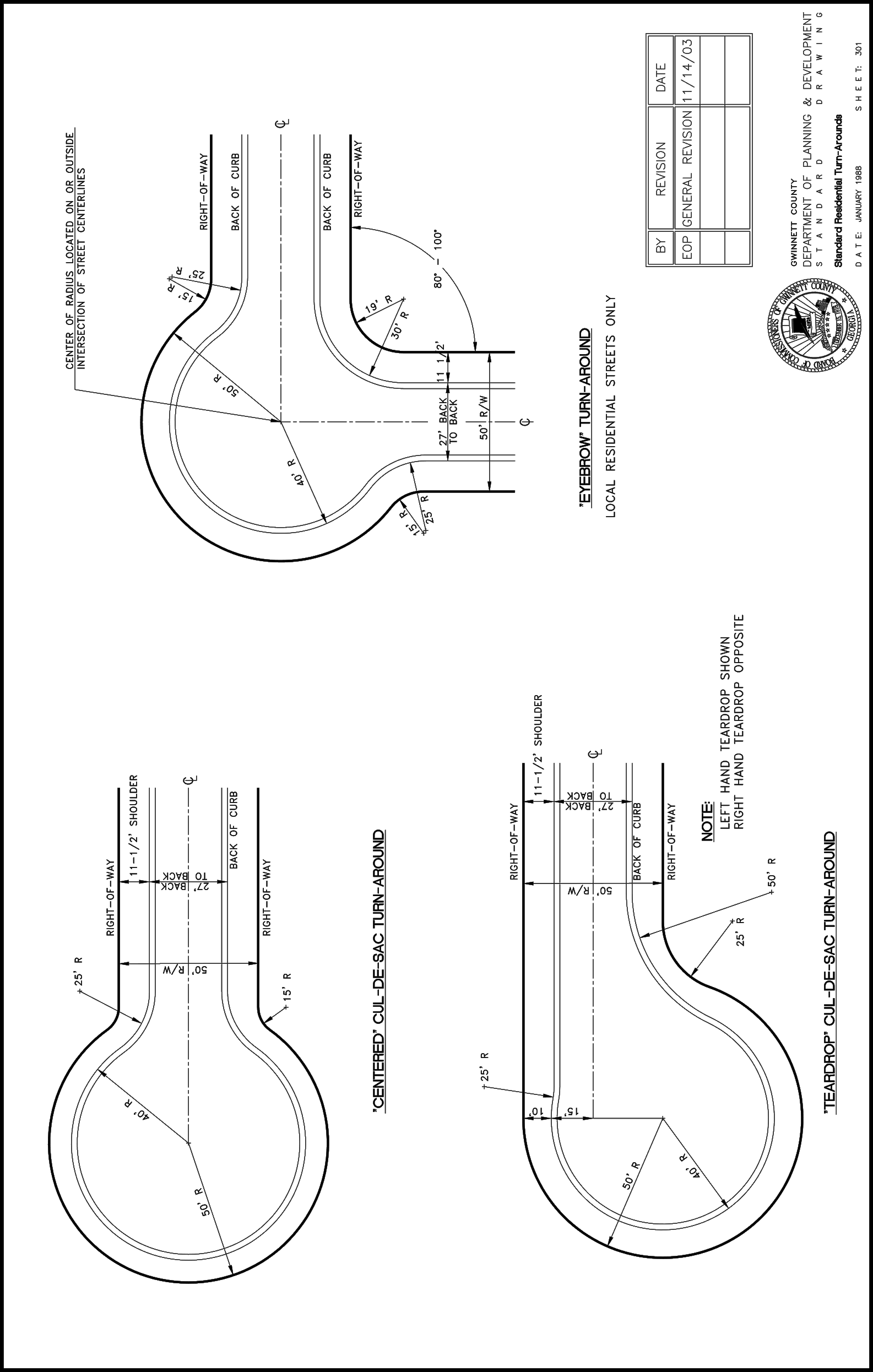

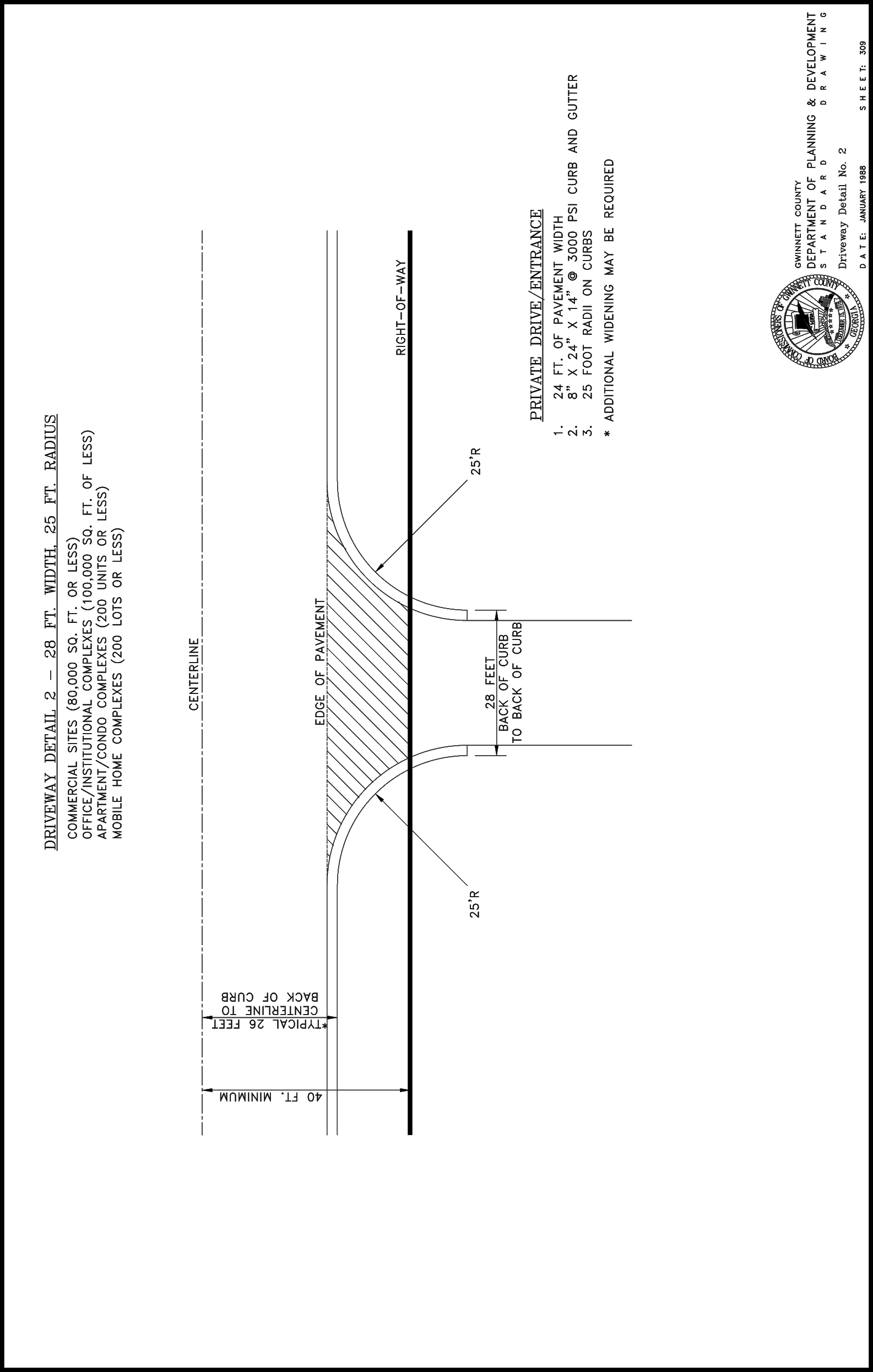

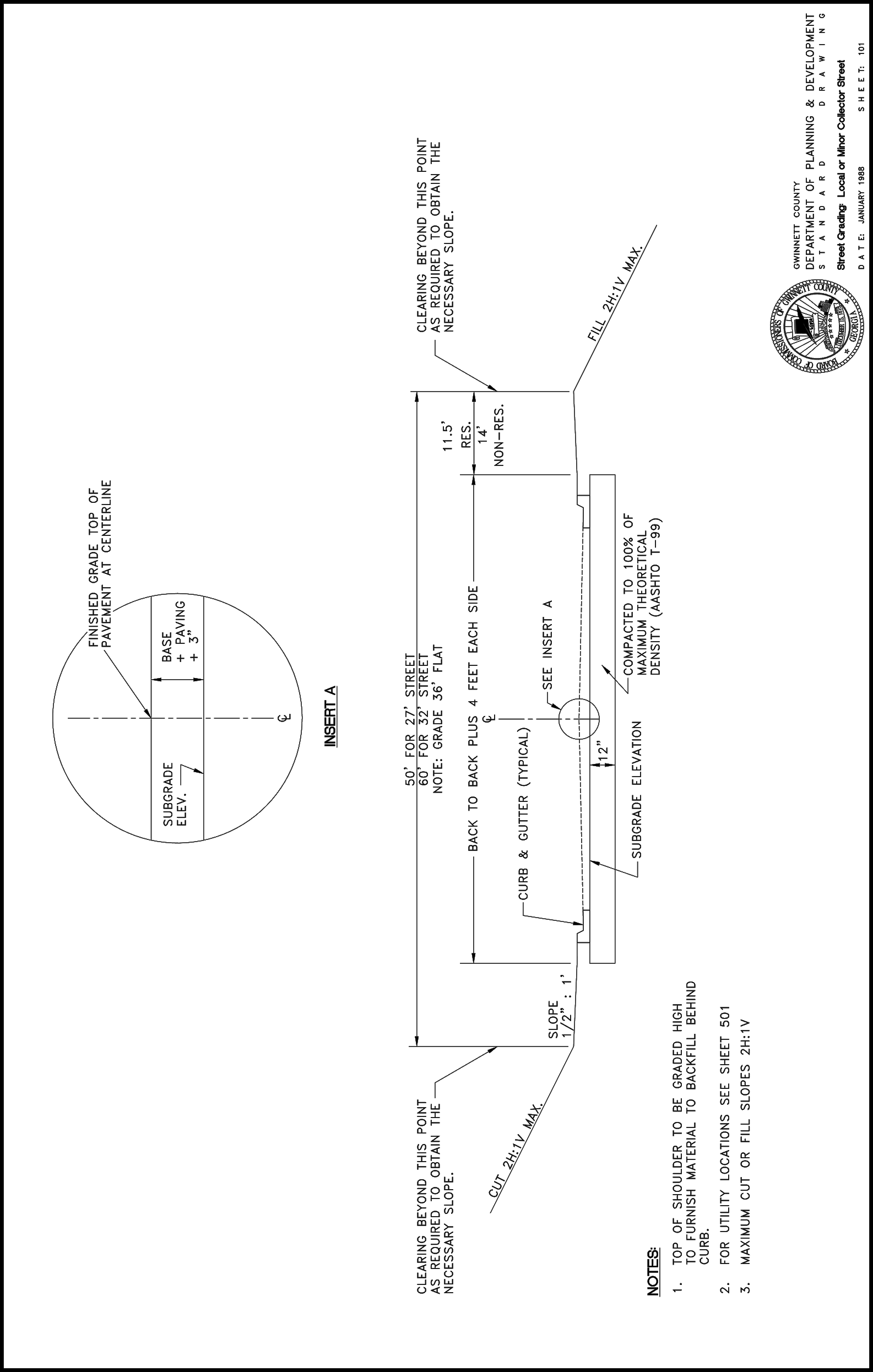

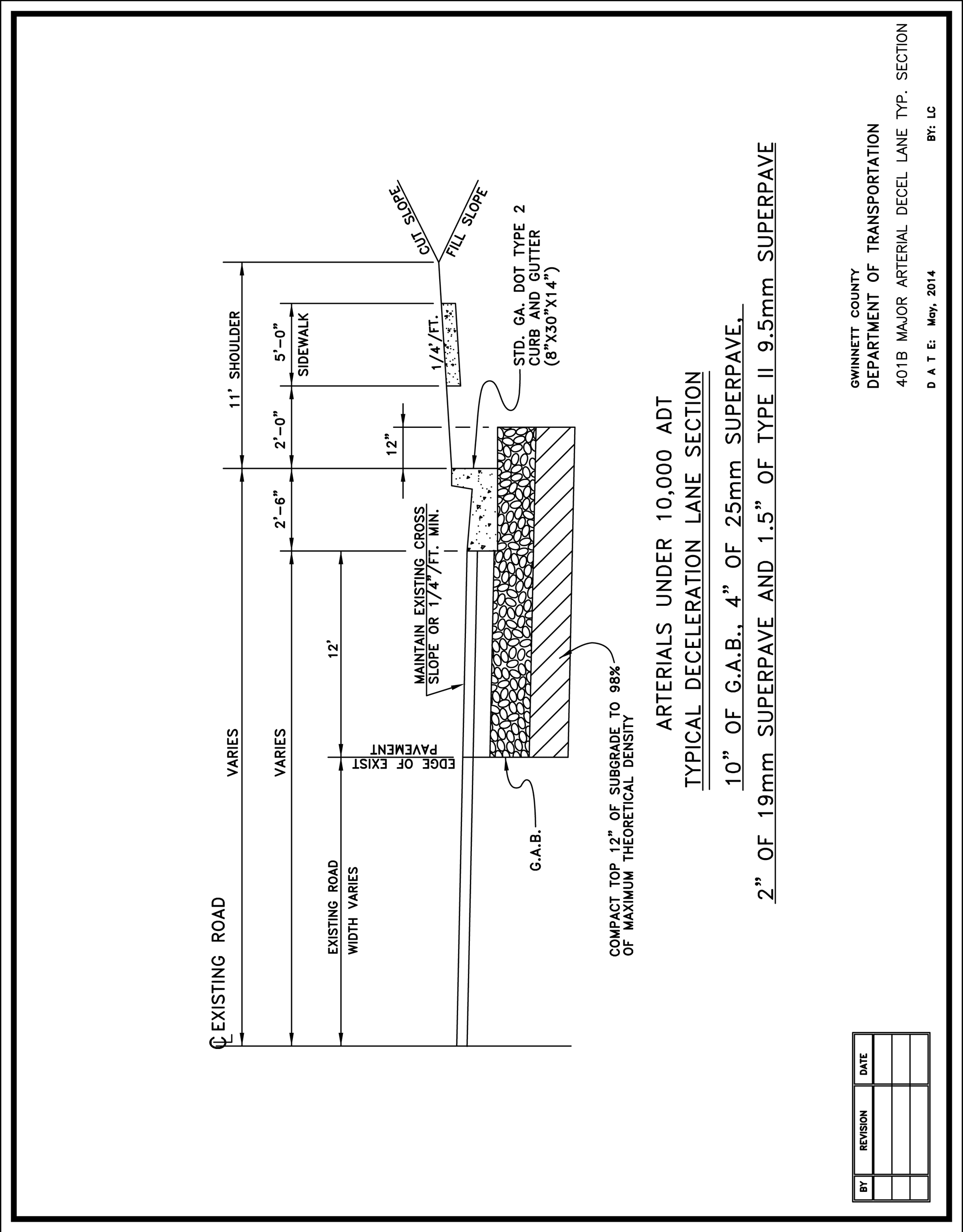

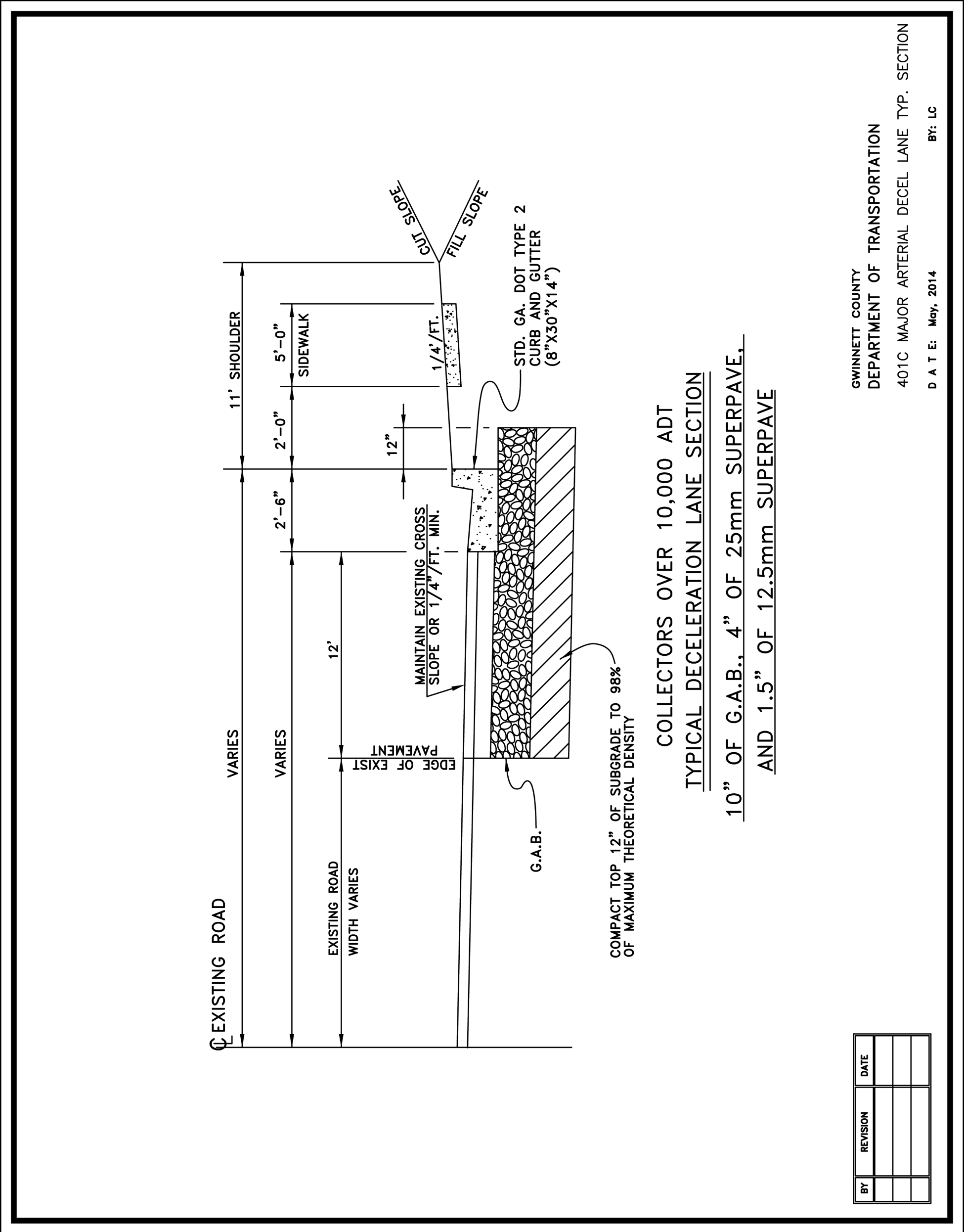

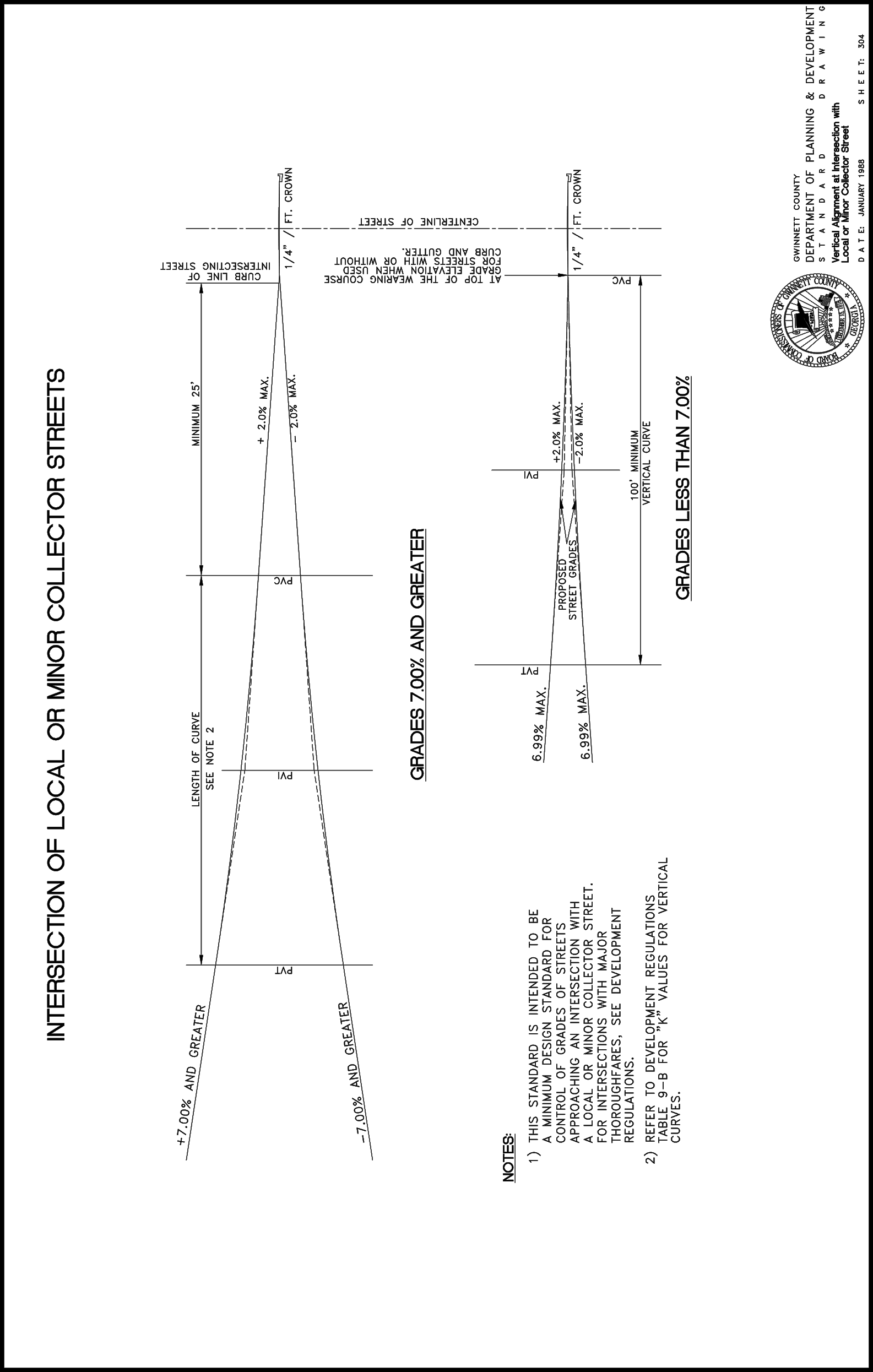

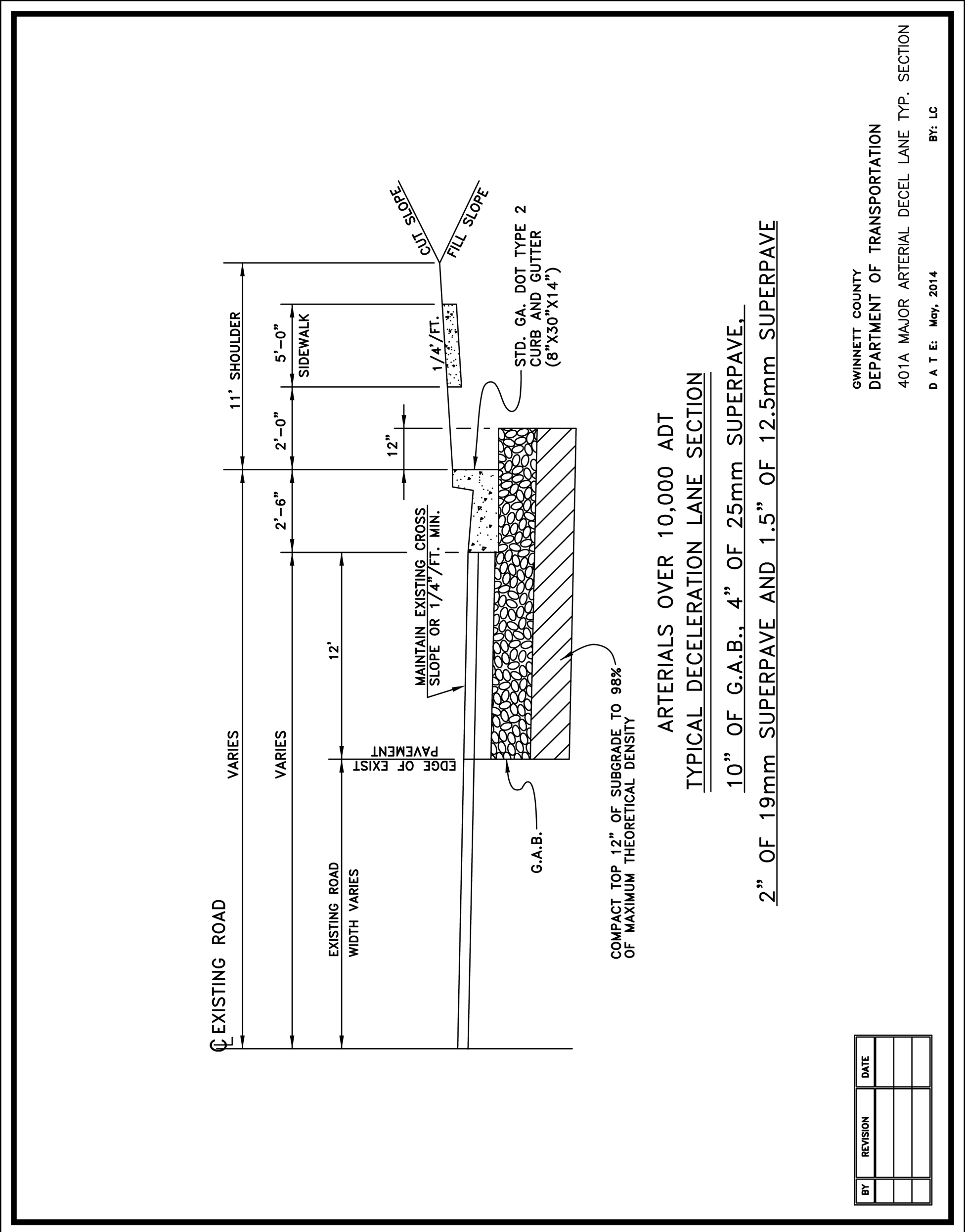

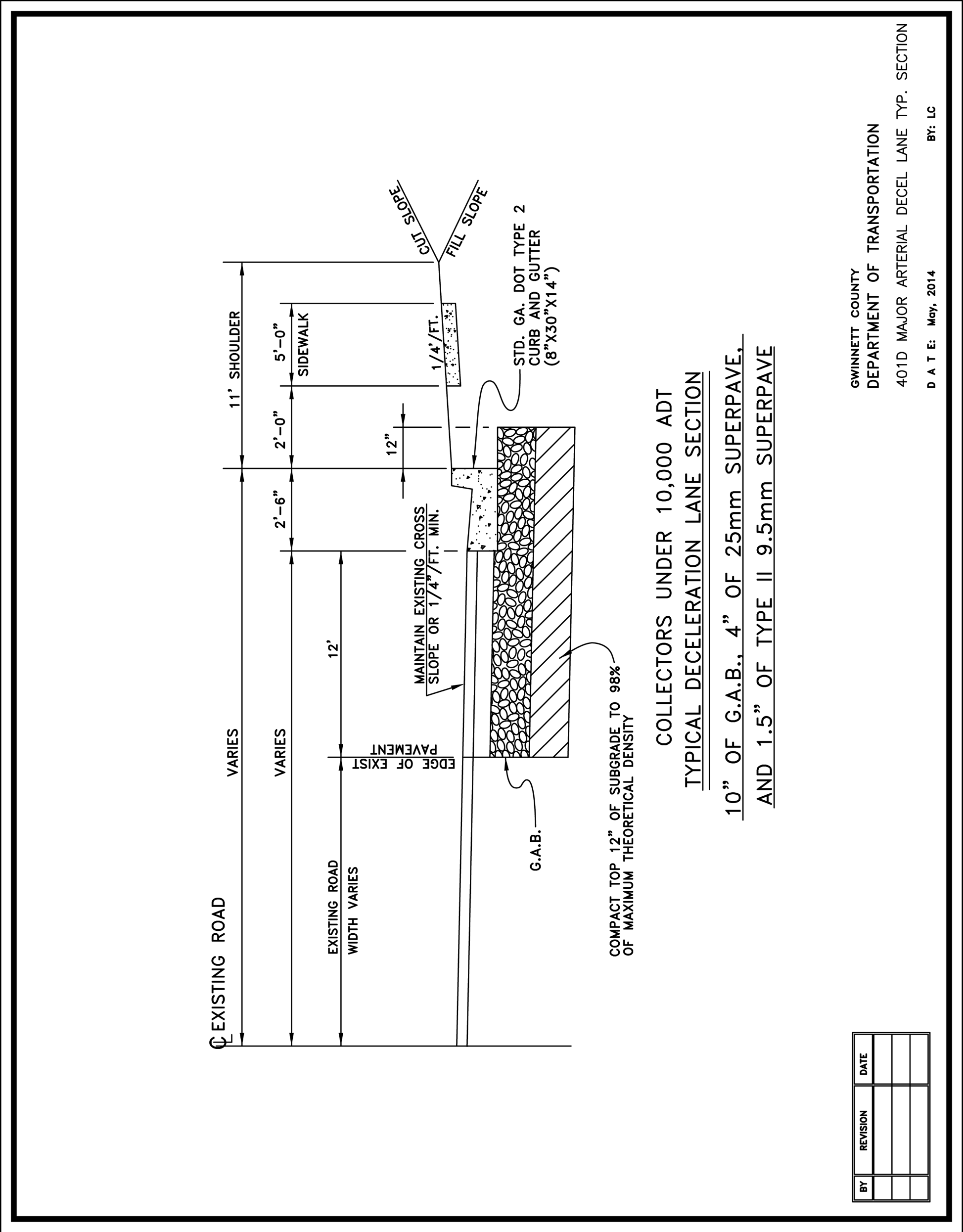

300: Streets — Designs

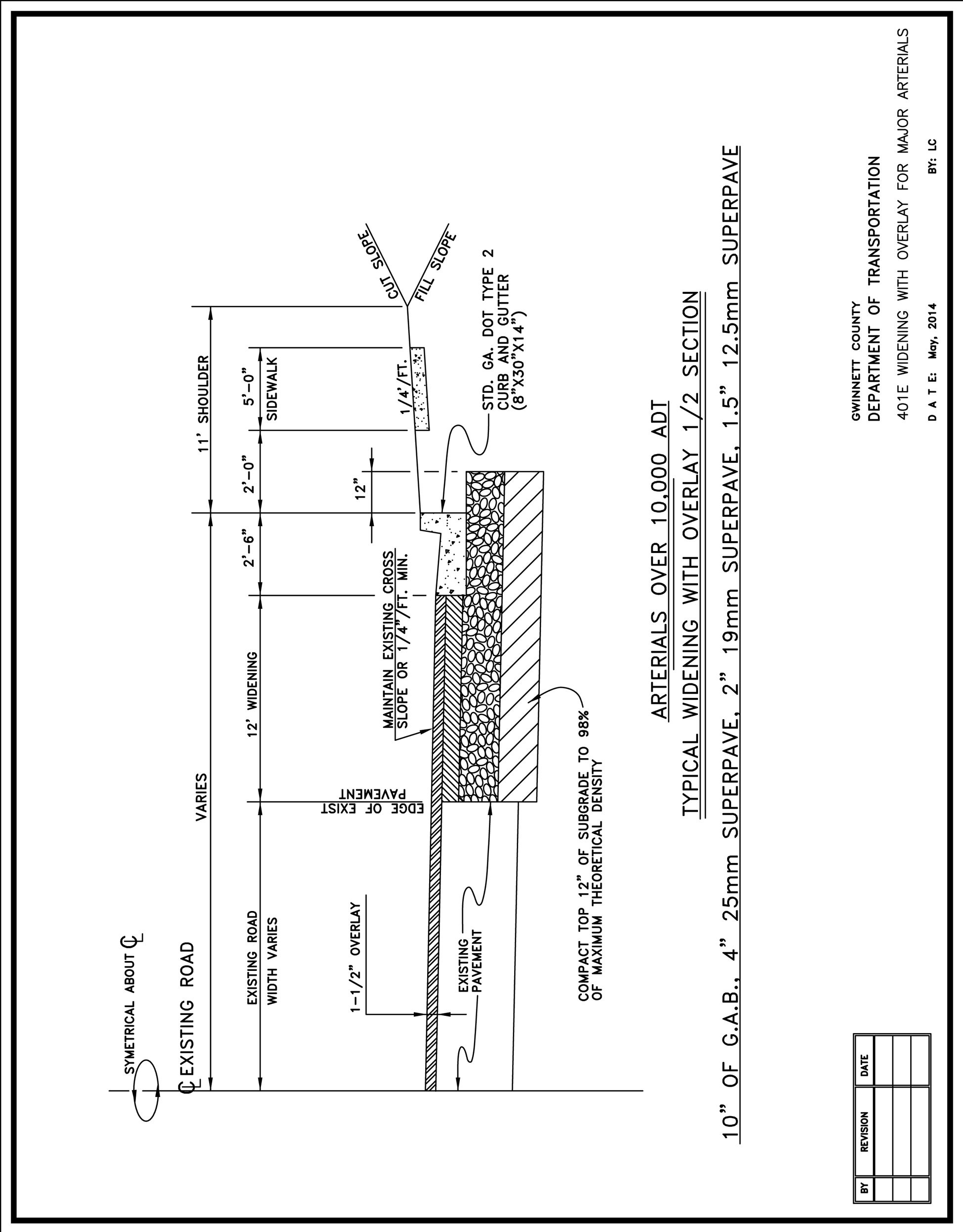

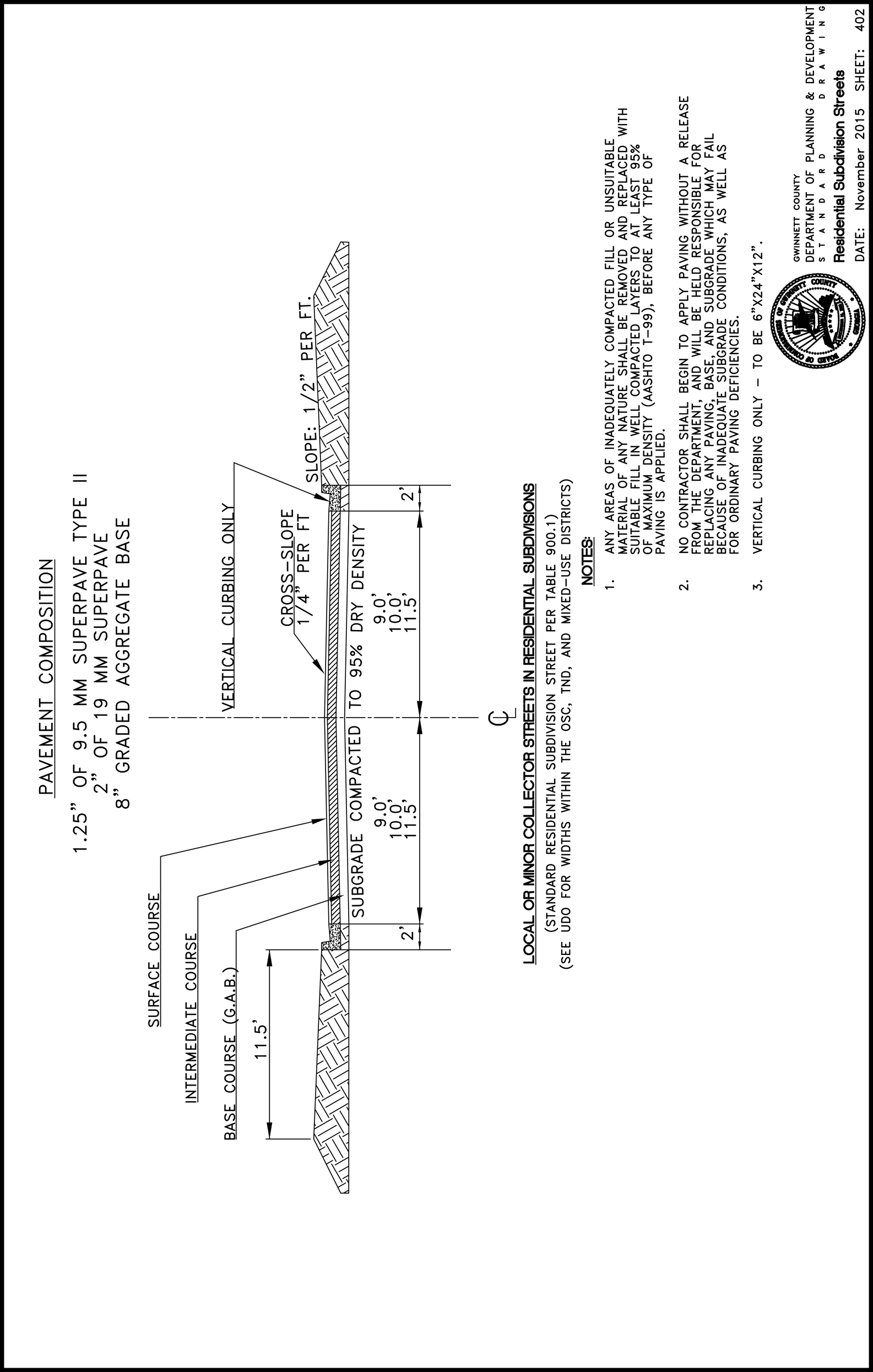

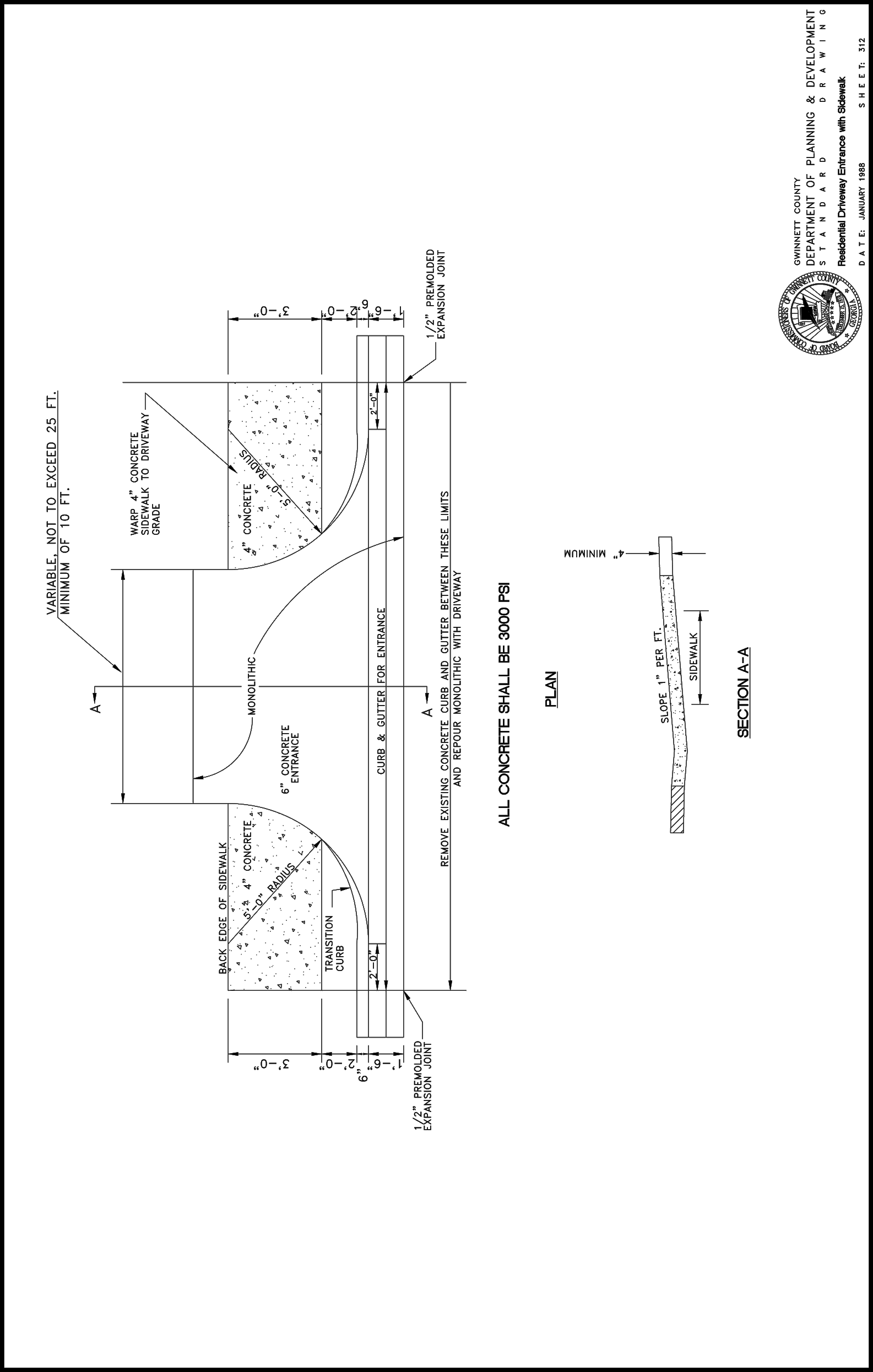

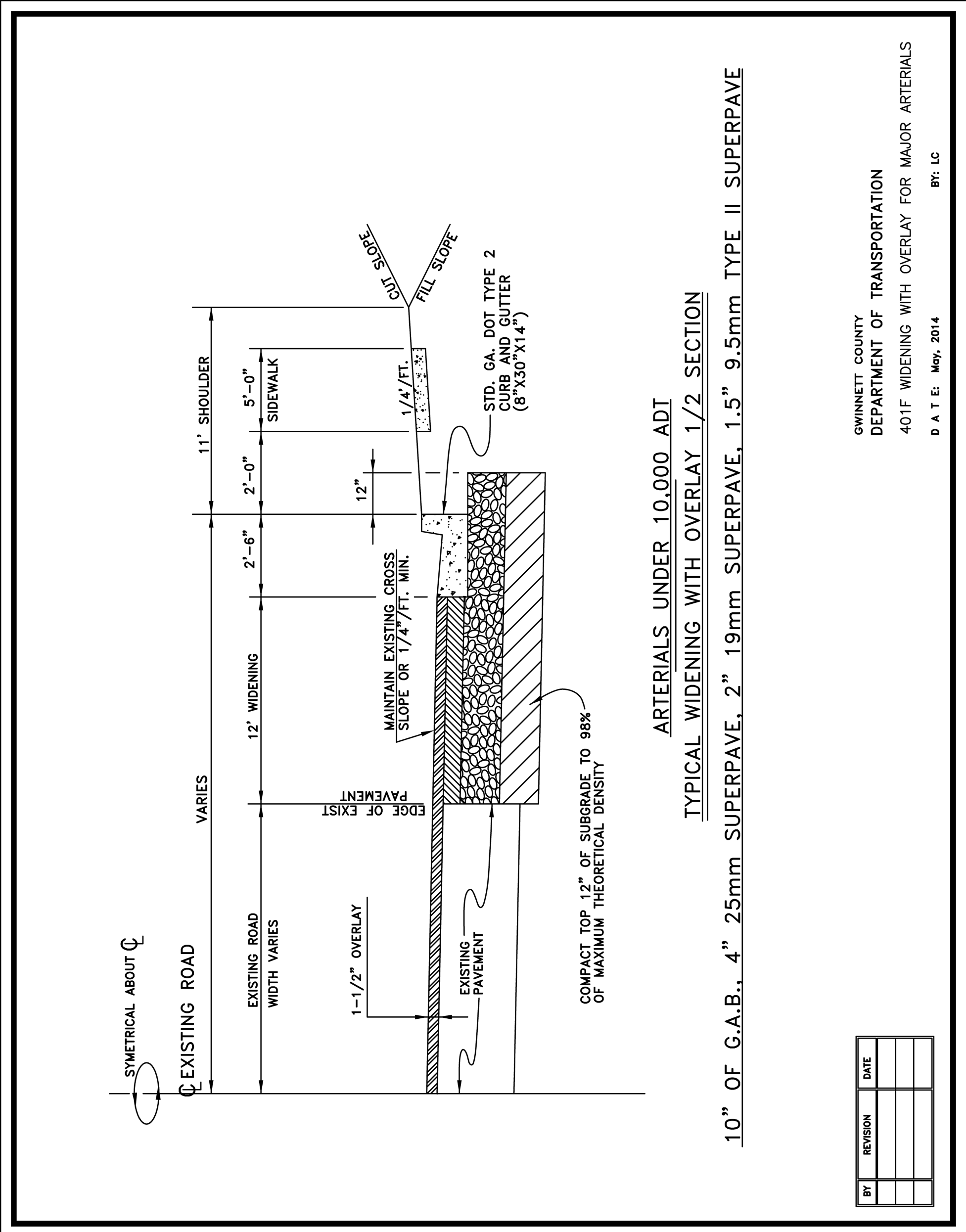

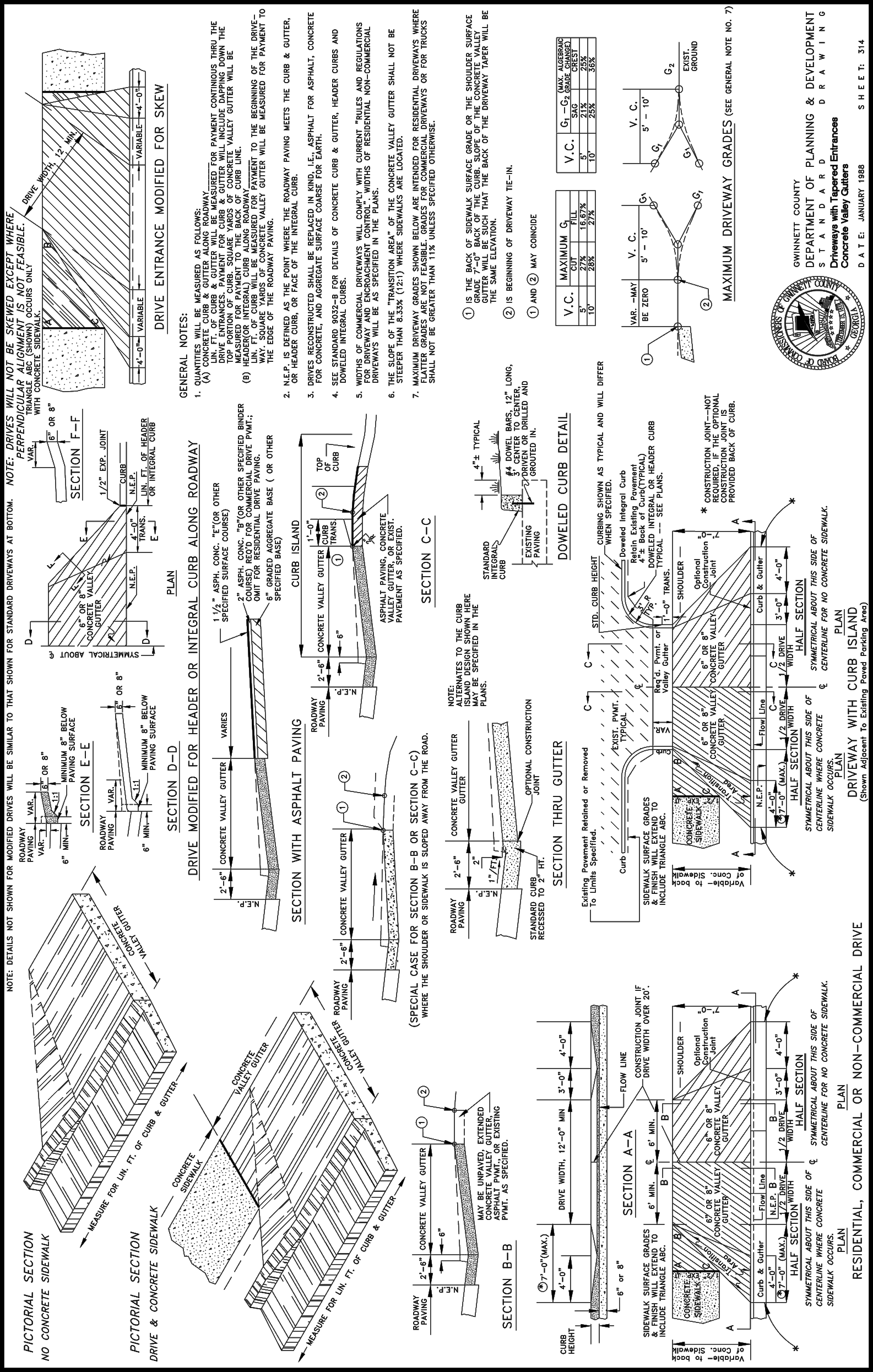

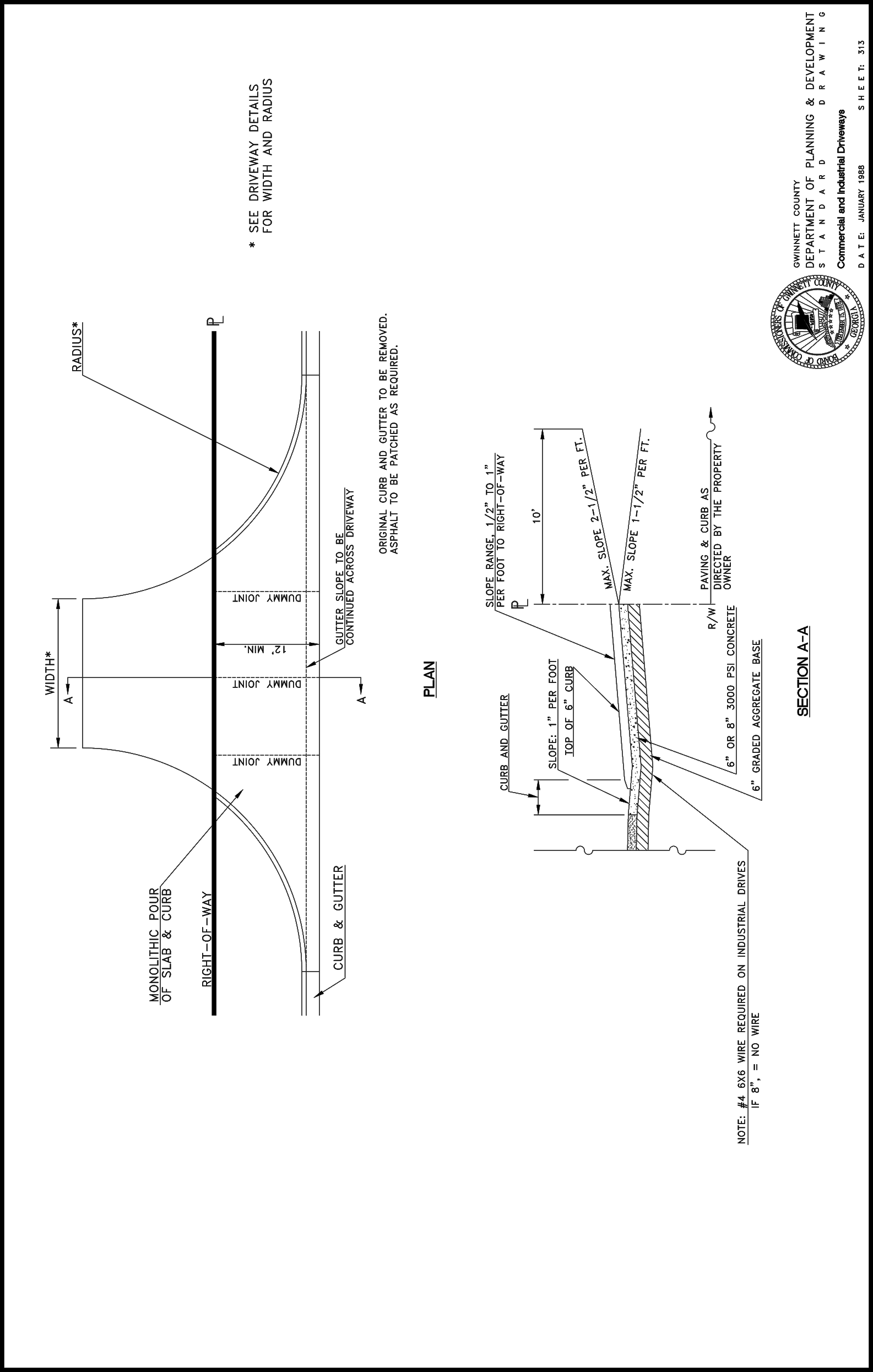

400: Streets — Construction

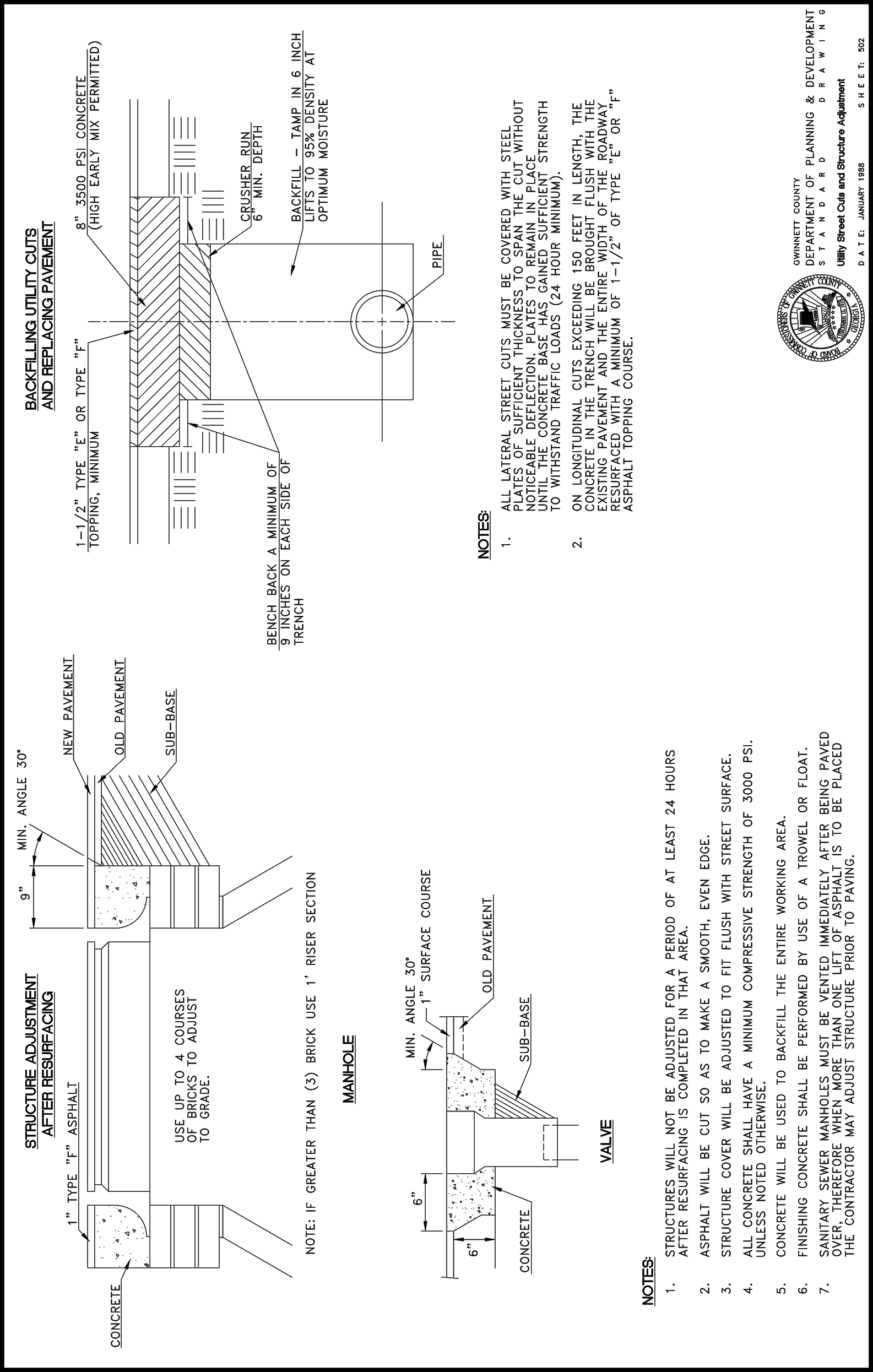

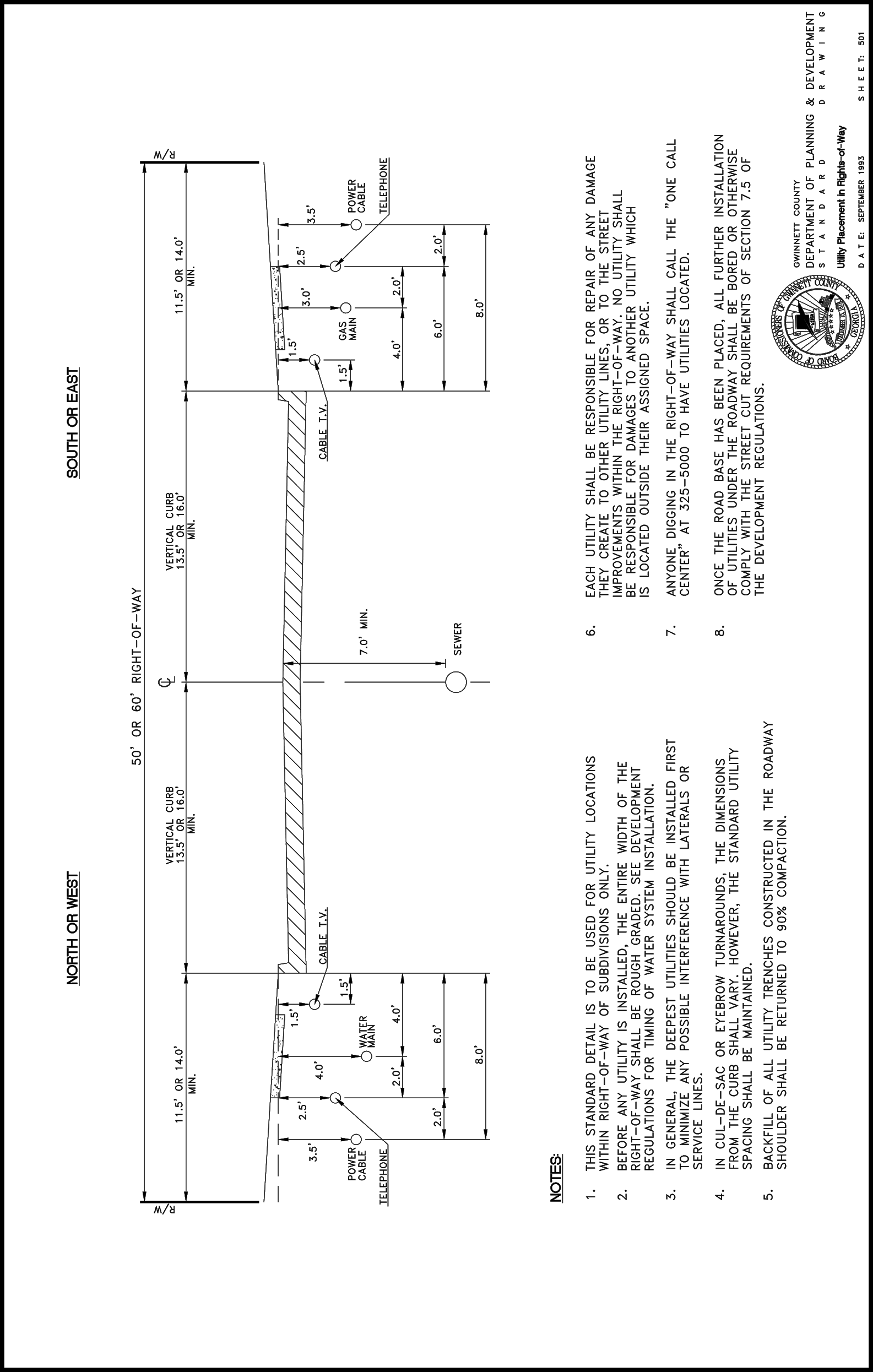

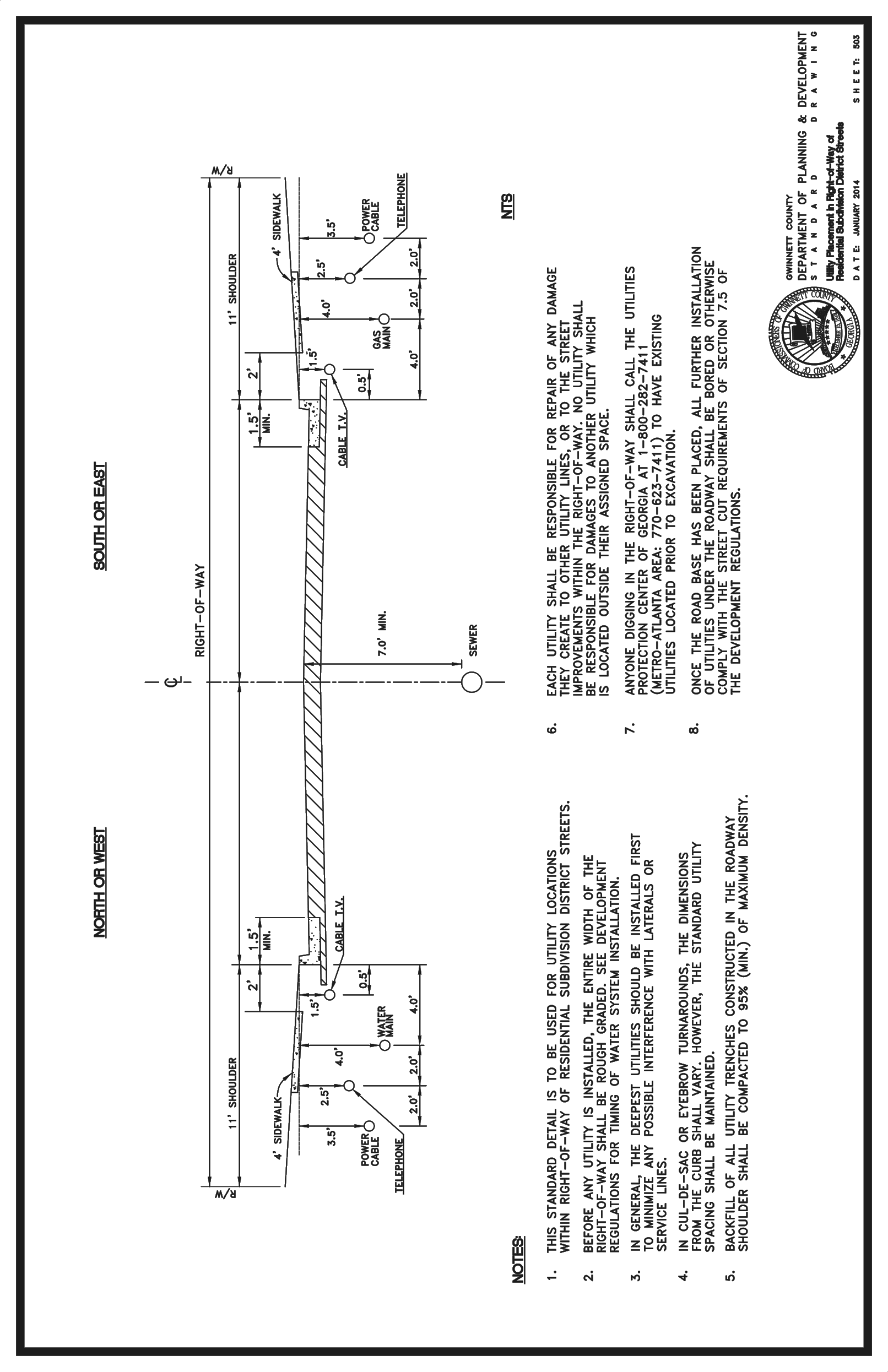

500: Streets — Utilities
600: Reserved
700: Reserved

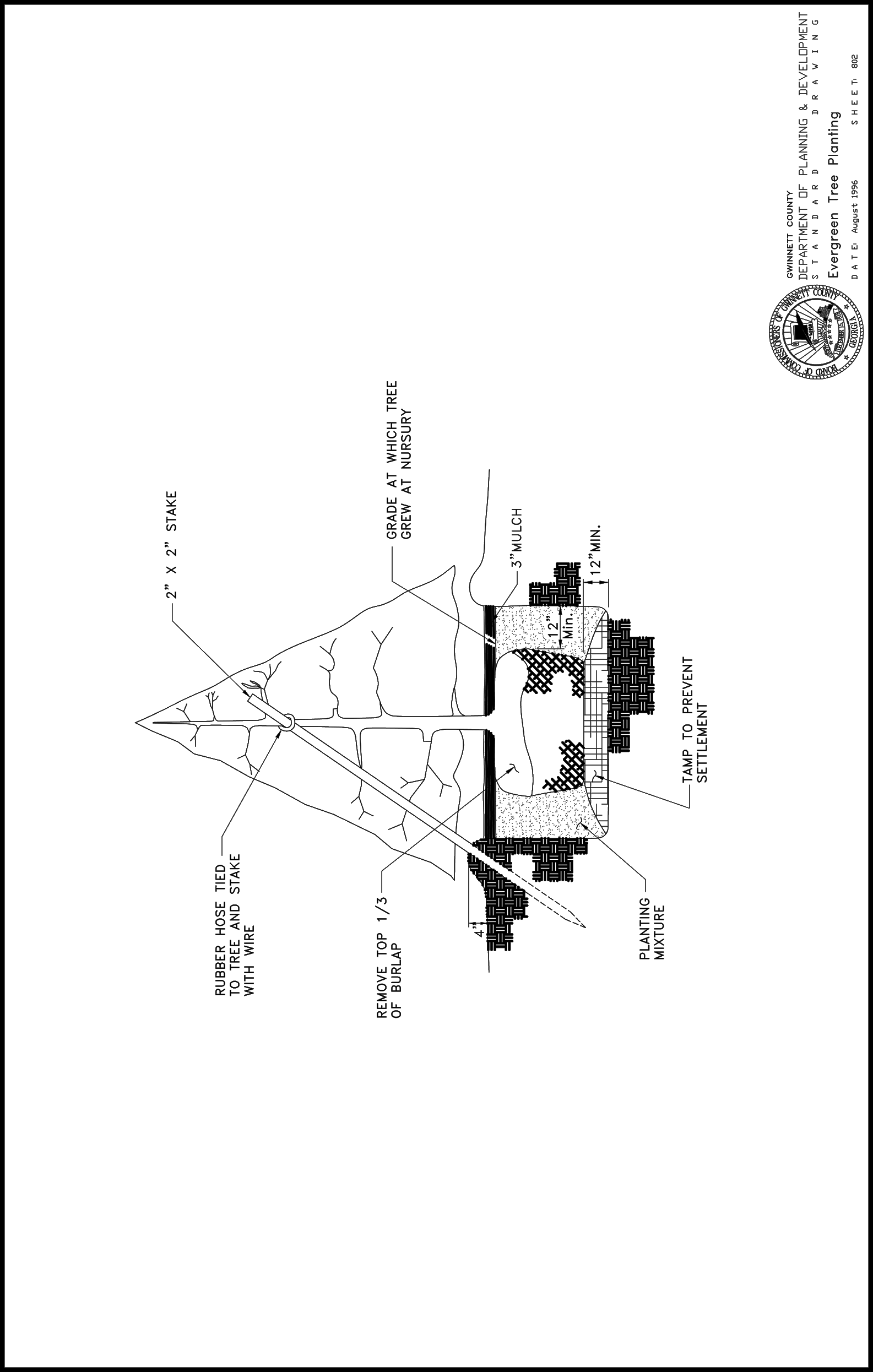

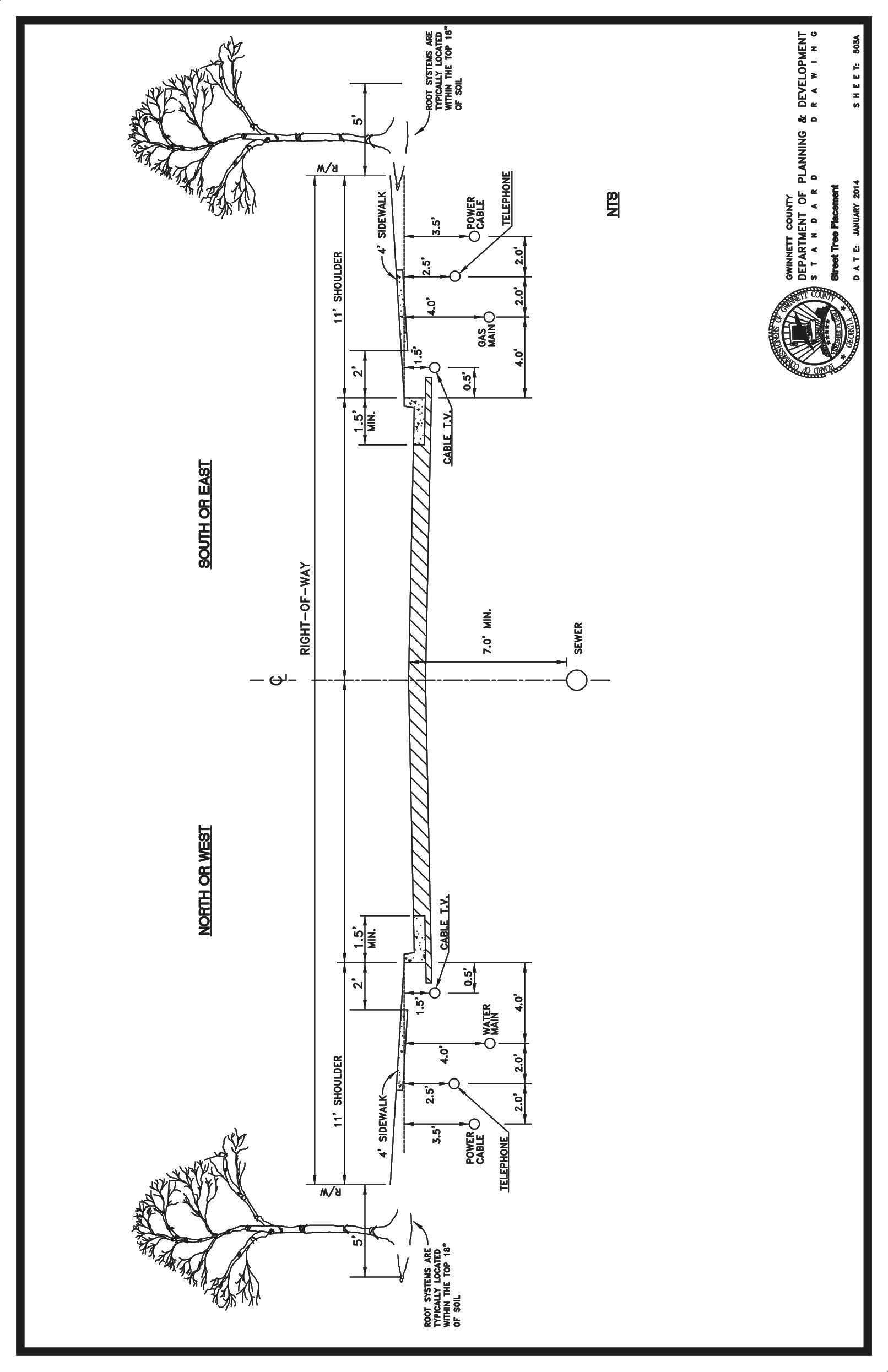

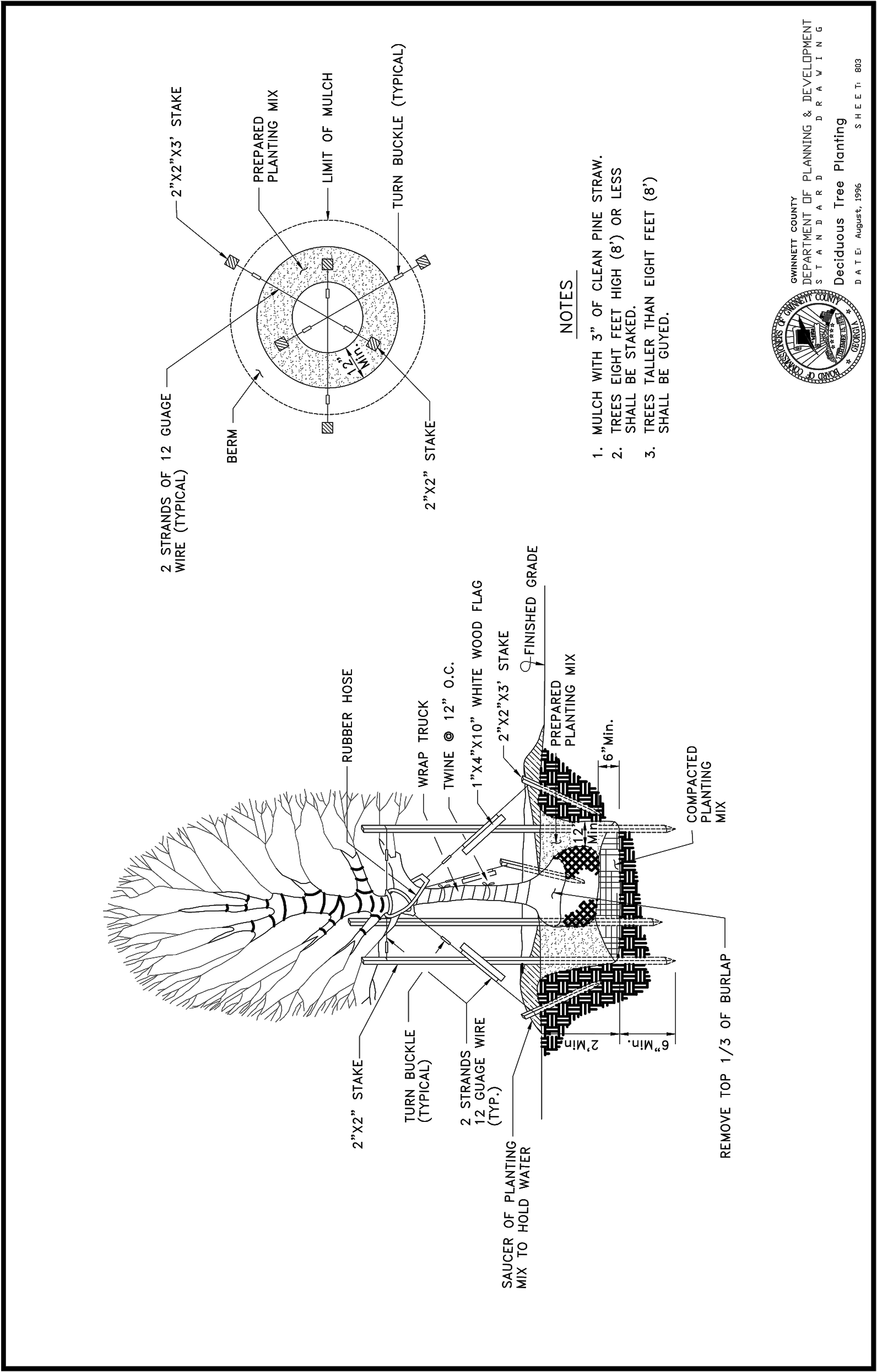

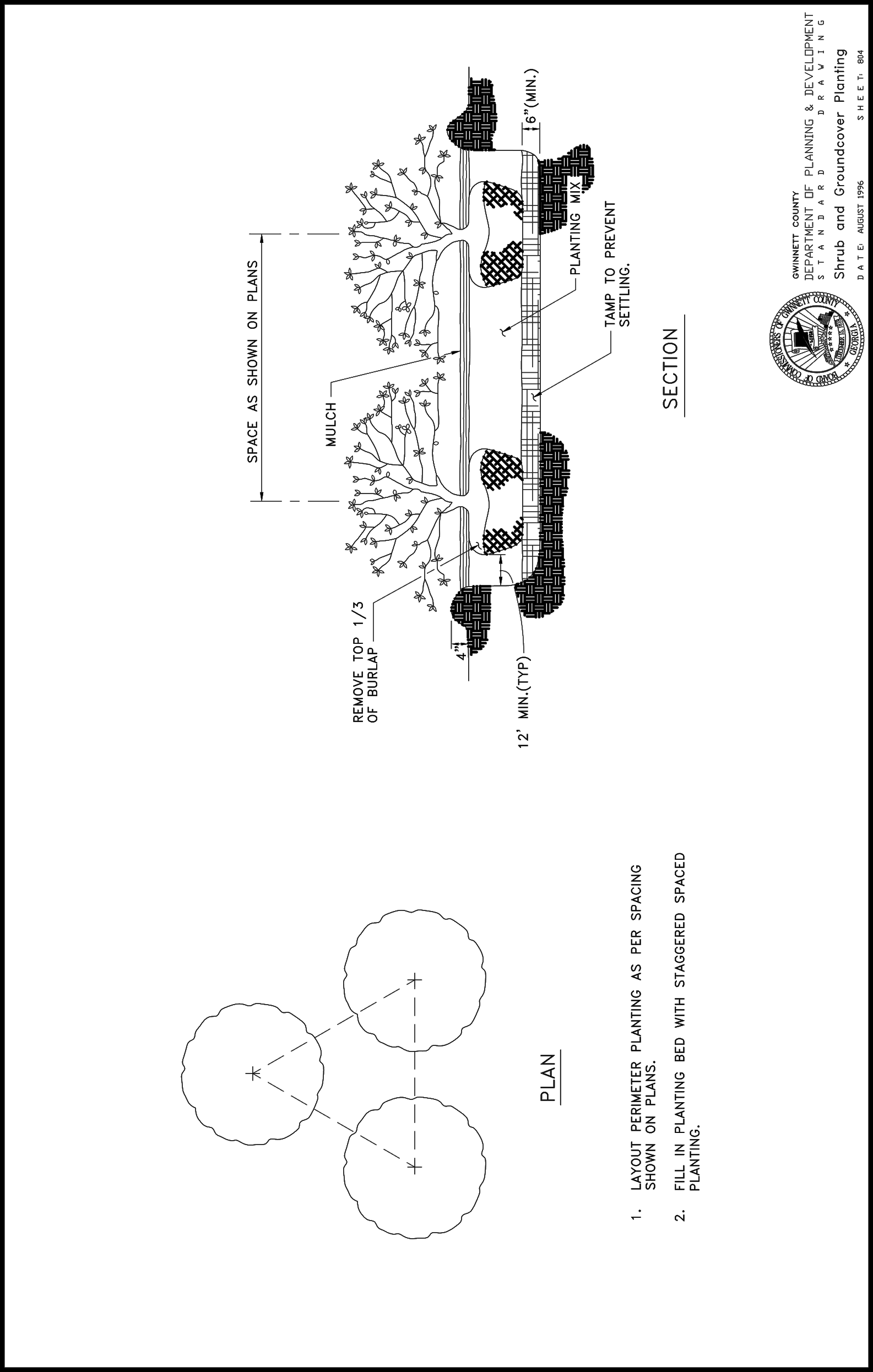

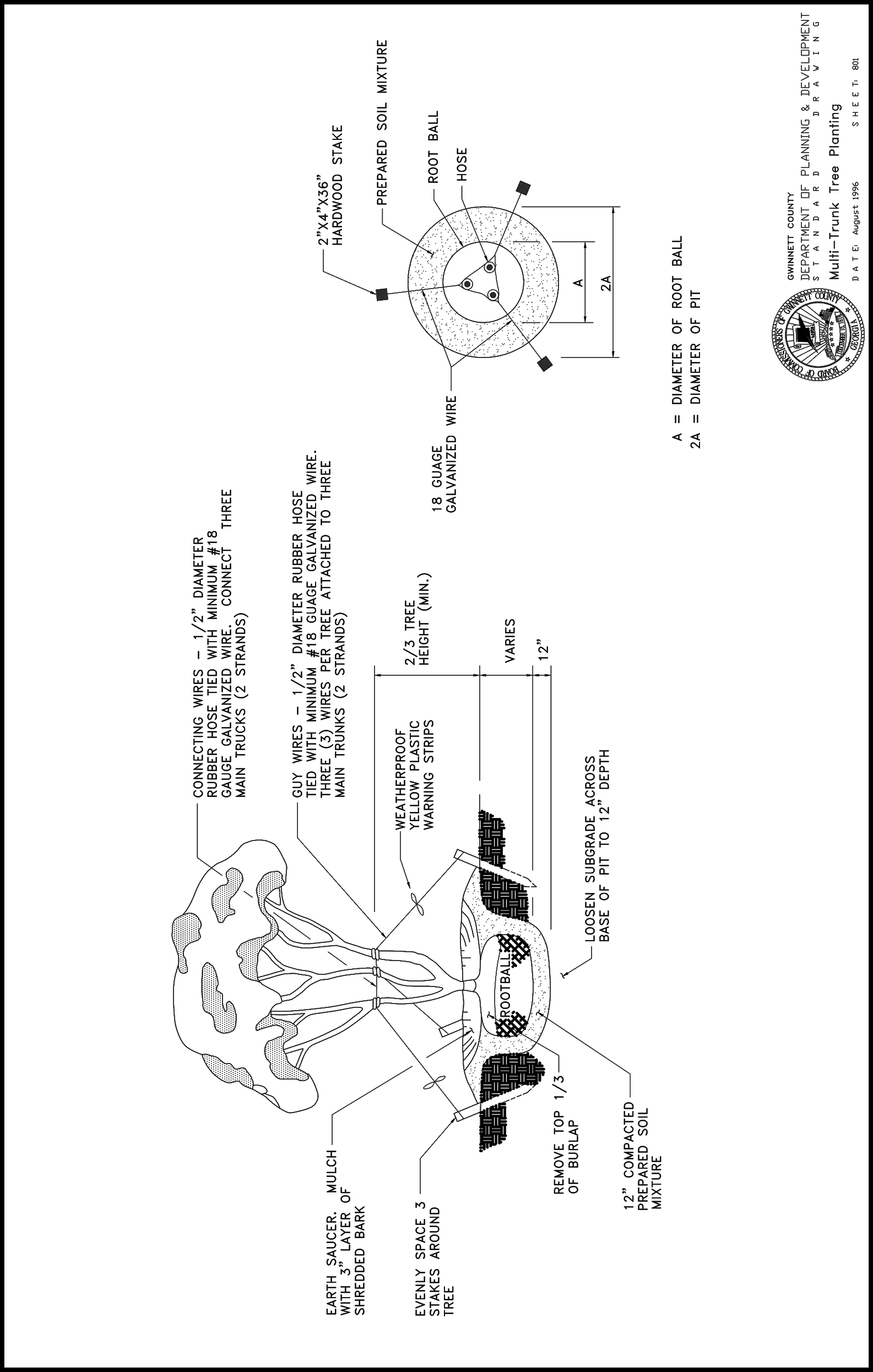

800: Landscaping and Tree Protection

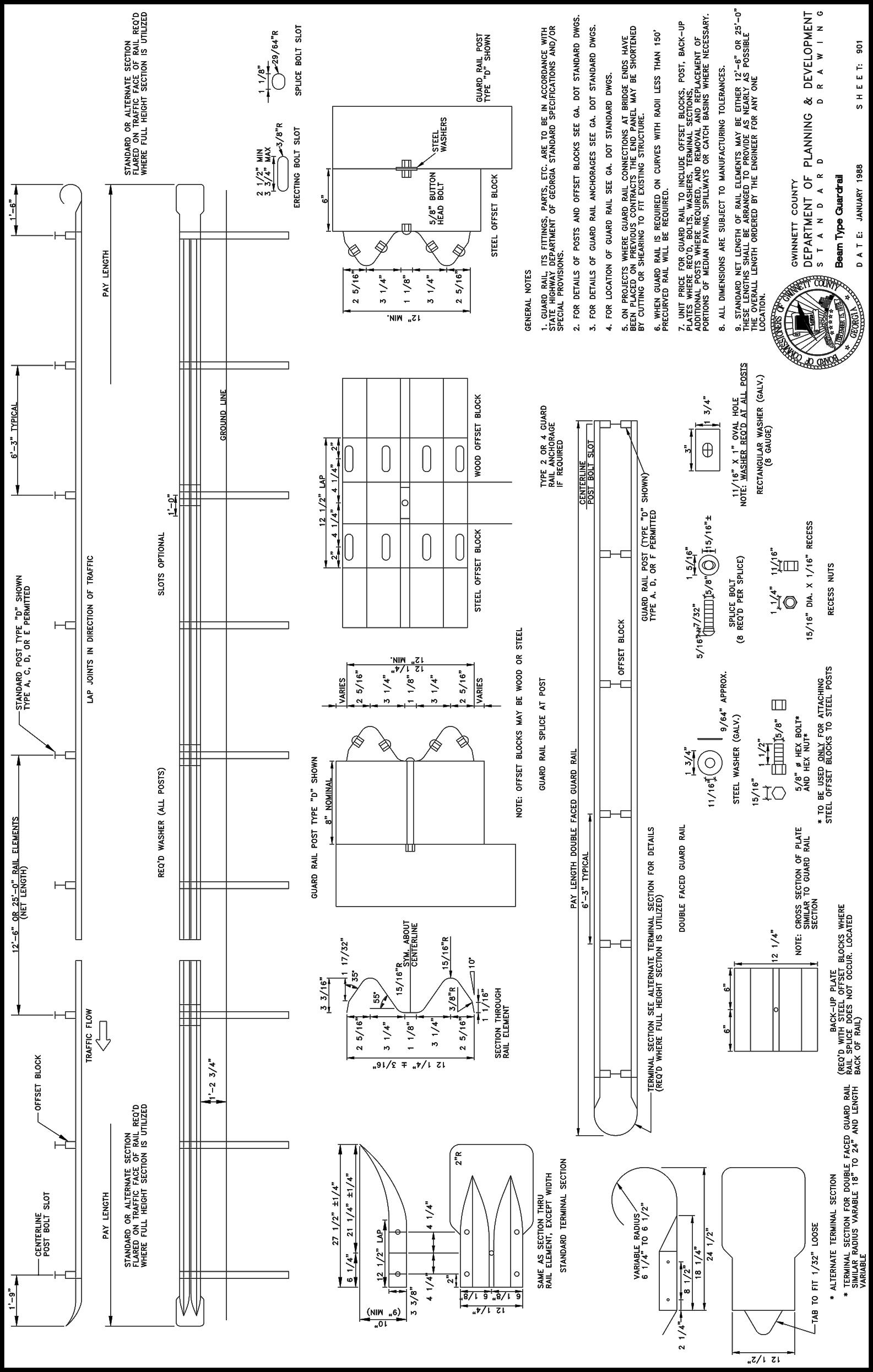

900: Miscellaneous
Effective January 5, 1988
(Ord. No. UDOA2023-00002(GCID 2023-0604), Exh. A(§ 52), 9-26-2023)
Editor's note— Ord. No. UDOA2023-00002(GCID 2023-0604), Exh. A(§ 52), adopted Sept. 26, 2023, repealed the former App. 1.0, and enacted a new App. 1.0 as set out herein. The former App. 1.0 pertained to architectural design standards and derived from Ord. No. UDOA2014-00001(GCID No. 2014-0548), adopted July 22, 2014; Ord. No. UDOA2018-00001(GCID2018-0776), Exh. A, adopted July 24, 2018.
