11.E Public

Works Construction Standard Drawings And Specifications Revised And Adopted November 2014

11.E.1 Construction Standard Drawings And Specifications (Revised And Adopted November 2014)

Town of Mantua, Utah

PUBLIC WORKS CONSTRUCTION STANDARD DRAWINGS AND SPECIFICATIONS

REVISED AND ADOPTED NOVEMBER 2014

This document contains standard drawings depicting the adopted standards for designing and constructing public works facilities in the Town of Mantua, Utah. These standards also apply to the design and construction of privately owned and maintained roads set aside to serve new commercial and residential developments within the community boundaries.

Developments or projects which front along public roads owned and maintained by the State of Utah shall also comply with the applicable standards developed by the Utah Department of Transportation, except that Town of Mantua culinary water and sanitary sewer system facilities shall comply with Town of Mantua Public Works Construction Standards and Specifications.

Town of Mantua Public Works Construction Specifications

Unless otherwise specified herein on the standard drawings and specified by UDOT for roadway improvements along State Highways, construction of public works facilities and infrastructure in Mantua Town shall comply with the latest edition of the American Public Works Association (APWA) Manual of Standard Specifications which have been adopted be reference as a companion document to the standard drawings contained herein. Resolution of any inconsistencies between the included standard drawings and the adopted APWA Manual of Standard Specifications will be made by the Town Engineer. Developers, subdividers, and contractors doing work on public facilities or private development roads in Mantua Town shall be responsible for obtaining a copy of and becoming familiar with the referenced the latest edition of the APWA Manual of Standard Specifications.

Copies of the latest edition of APWA Manual of Standard Specifications can be obtained for $30.00 at the following location:

Utah LTAP Center

Utah State University

8205 Old Main Hill

Logan, Utah 84322-8205

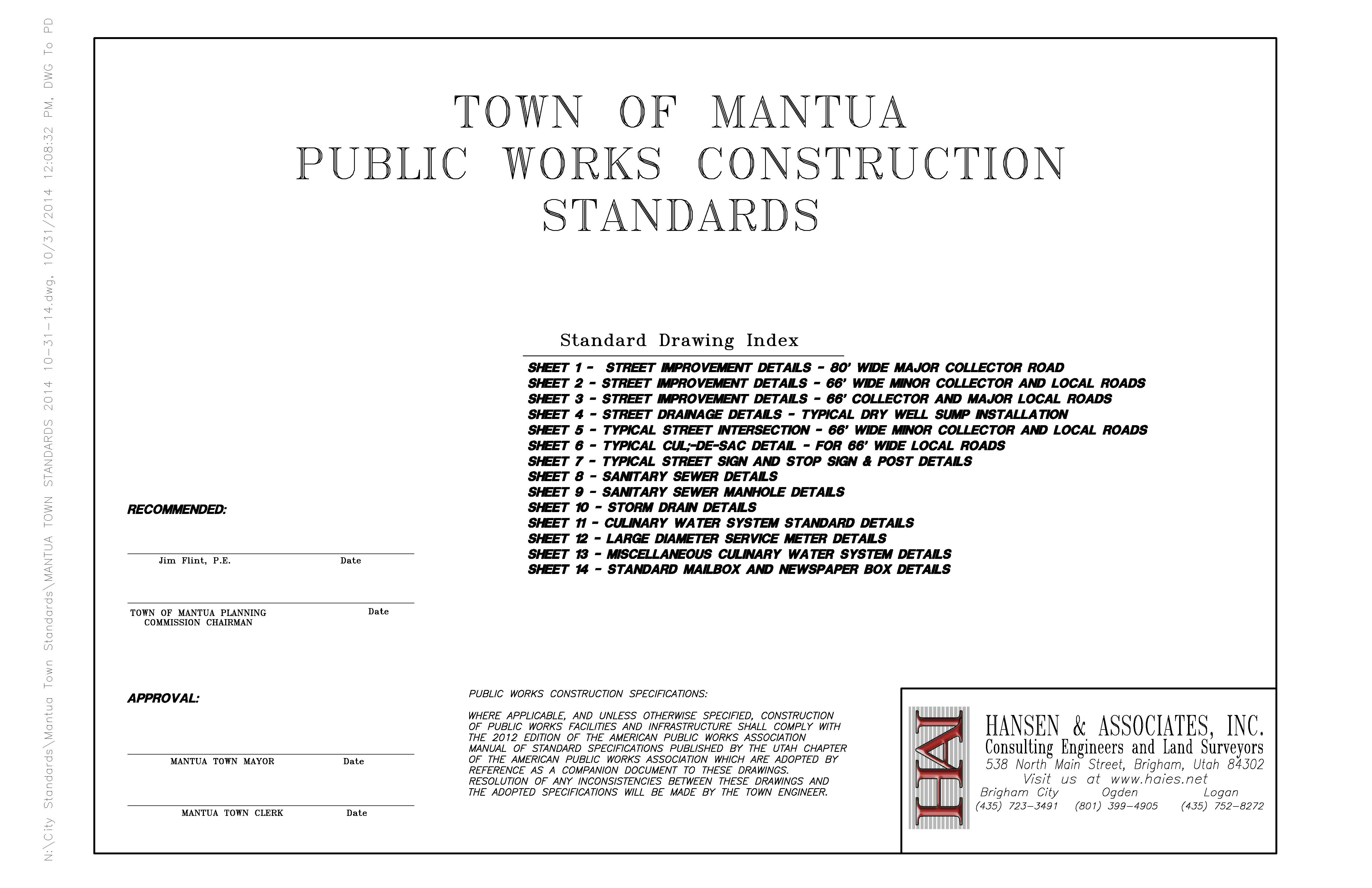

Standard Drawing Index

Sheet No.

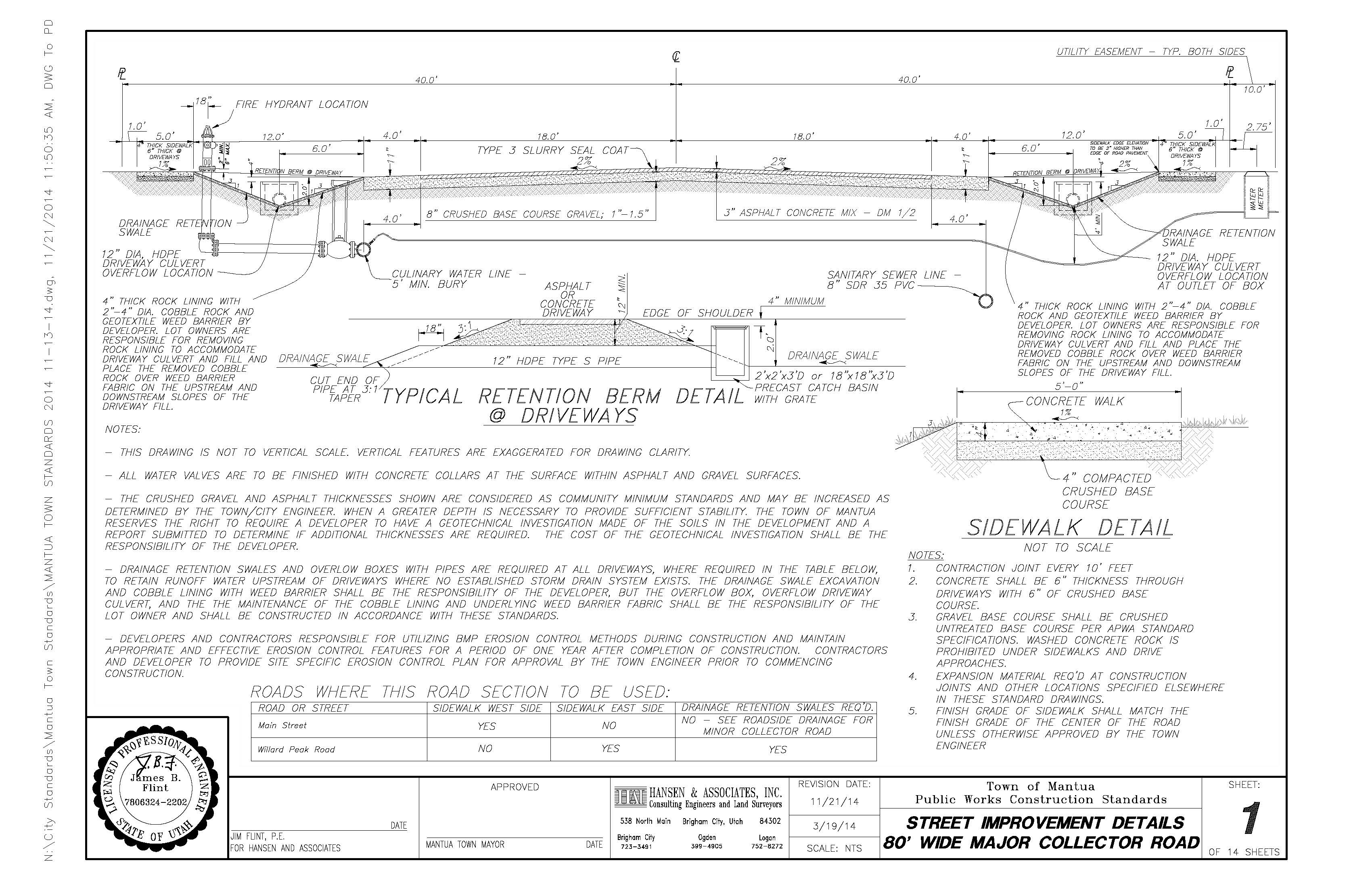

Street Improvement Details - 80' Wide Major Collector Roads

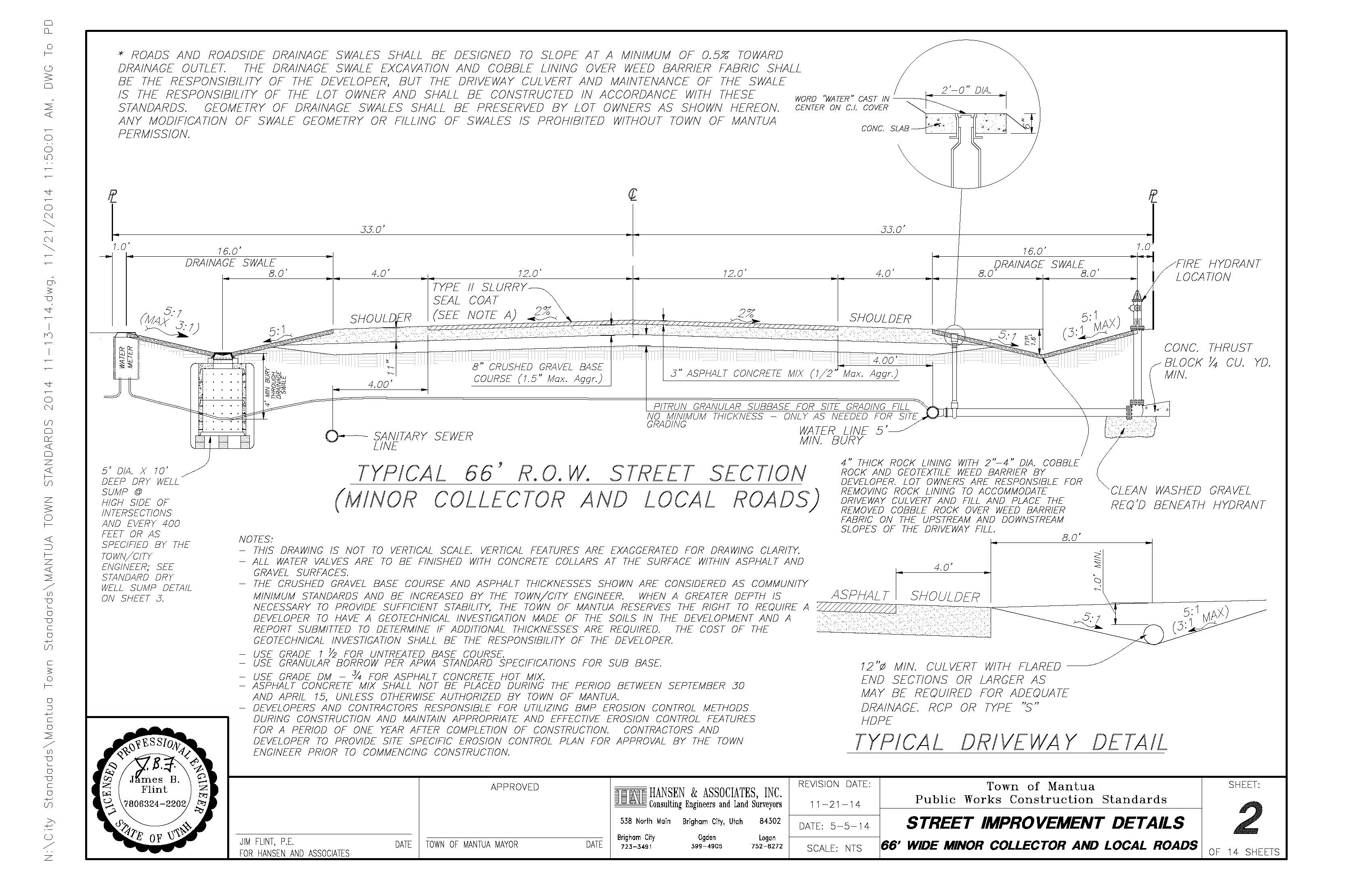

Street Improvement Details - 66' Wide Minor Collector and Local Roads

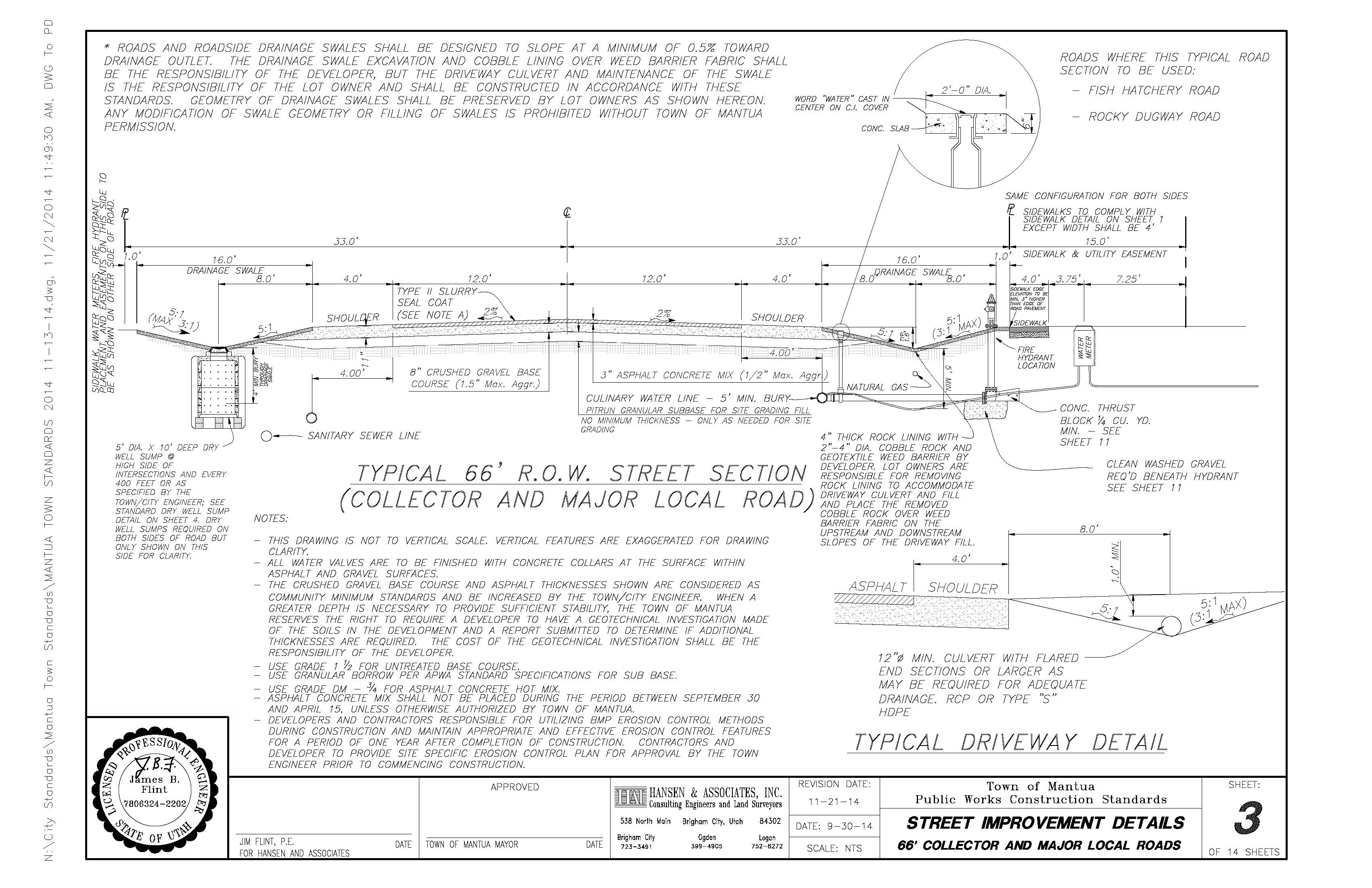

Street Improvement Details - 66' Wide Collector and Major Local Roads

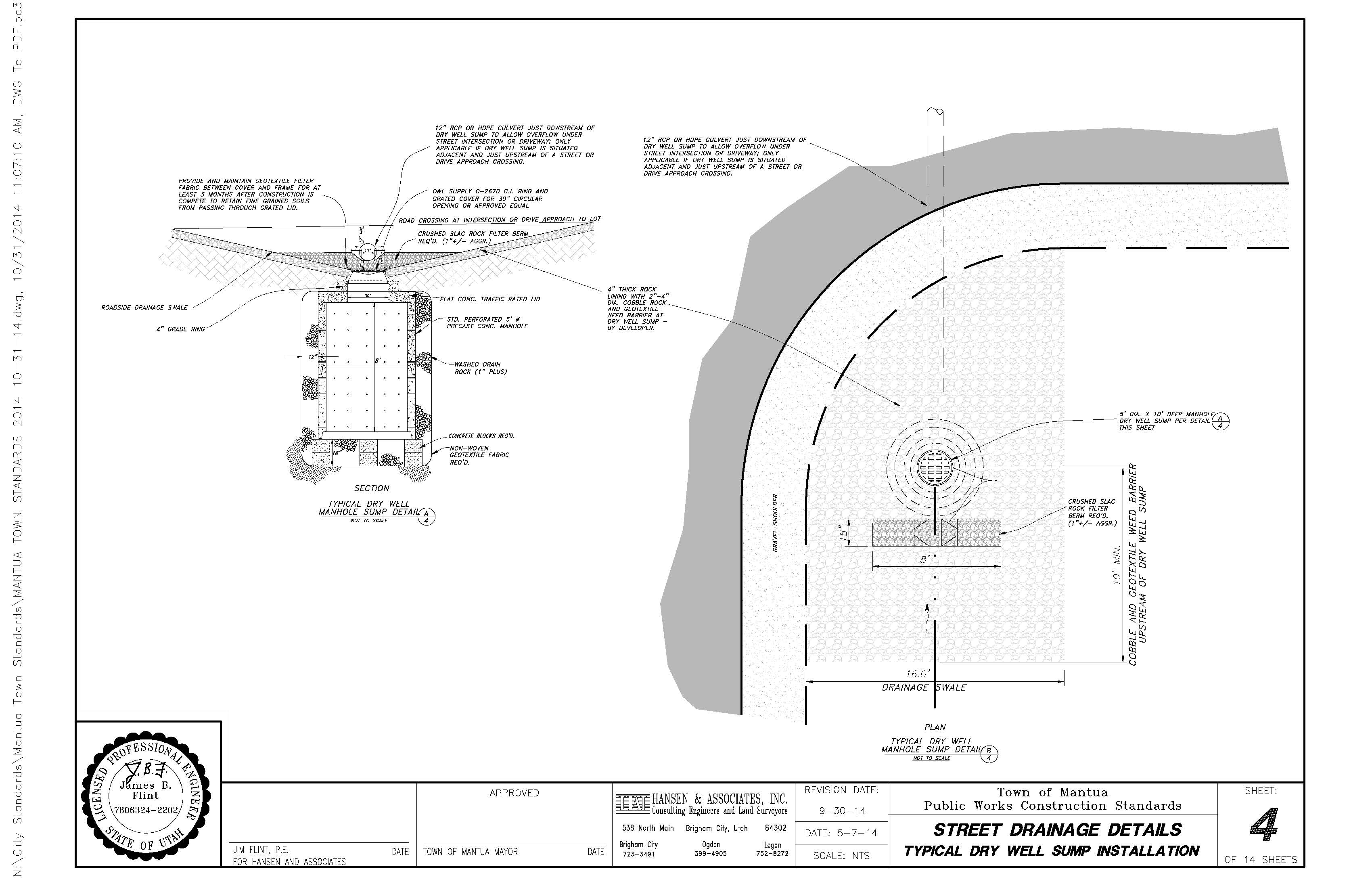

Street Drainage Details - Typical Dry Well Sump Installation

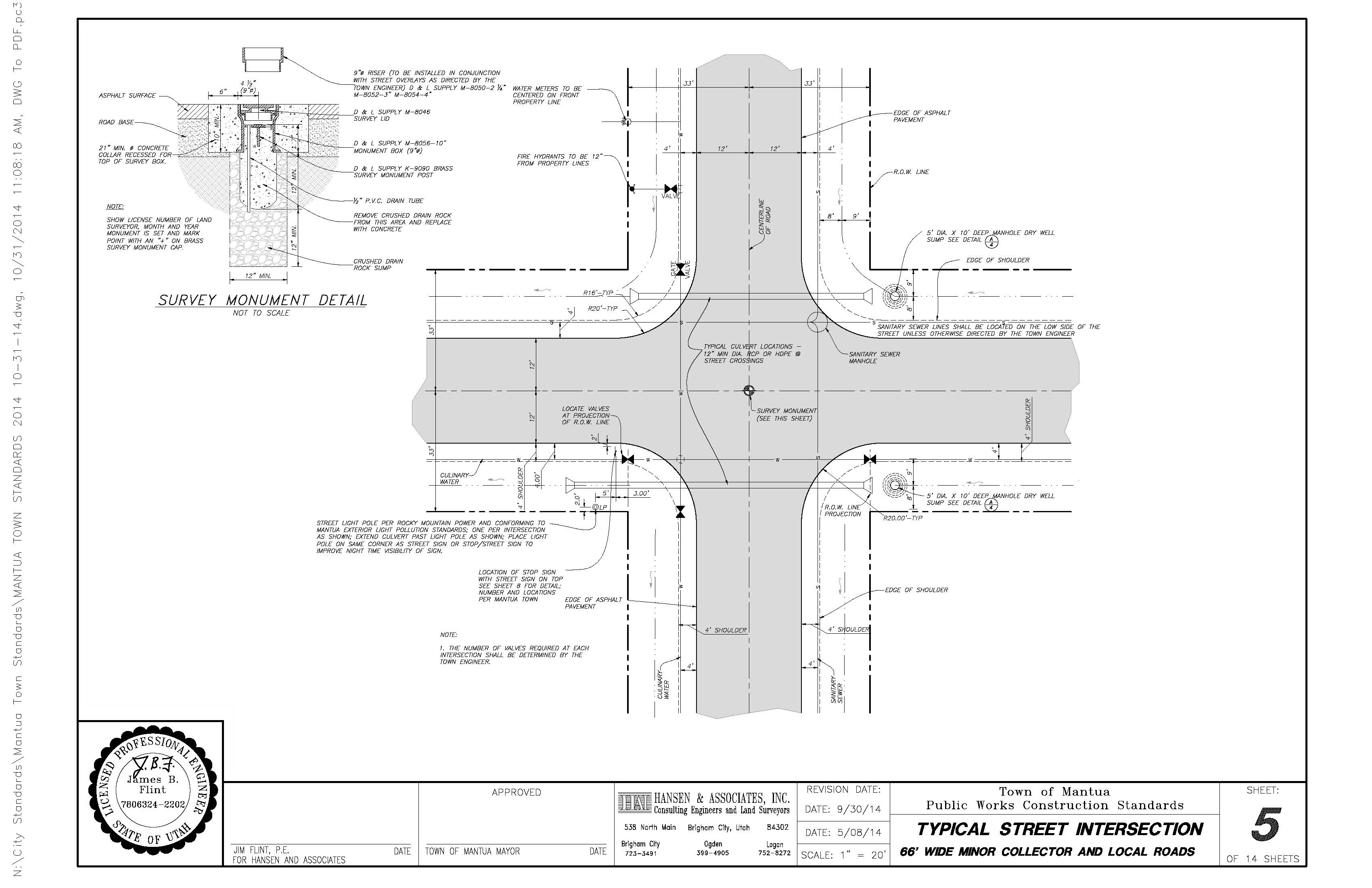

Typical Street Intersection - 66' Wide Minor Collector and Local Roads
