The following diagrams apply to this chapter:

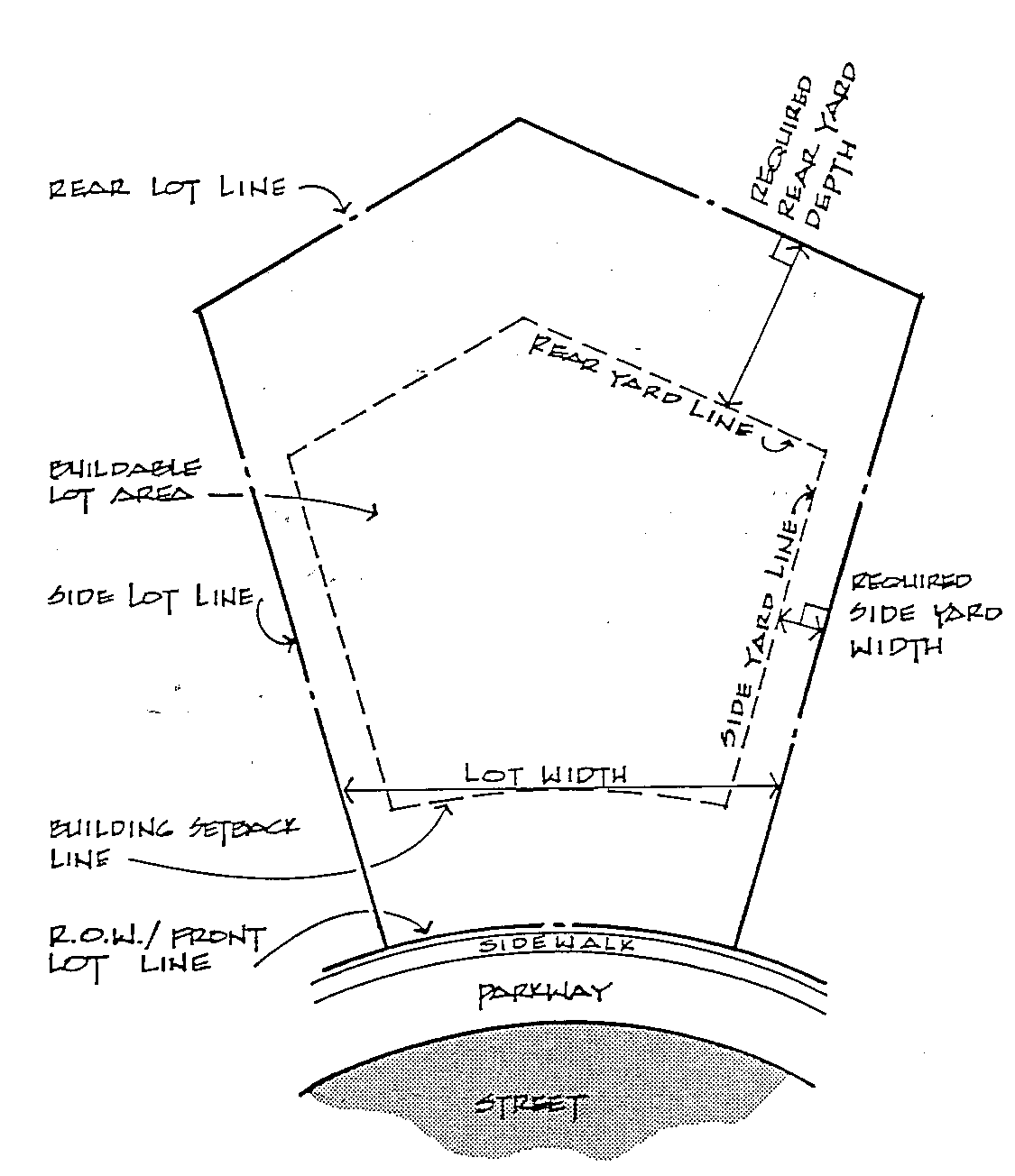

INTERIOR LOT WIDTH, YARD LINES & BUILDABLE AREA

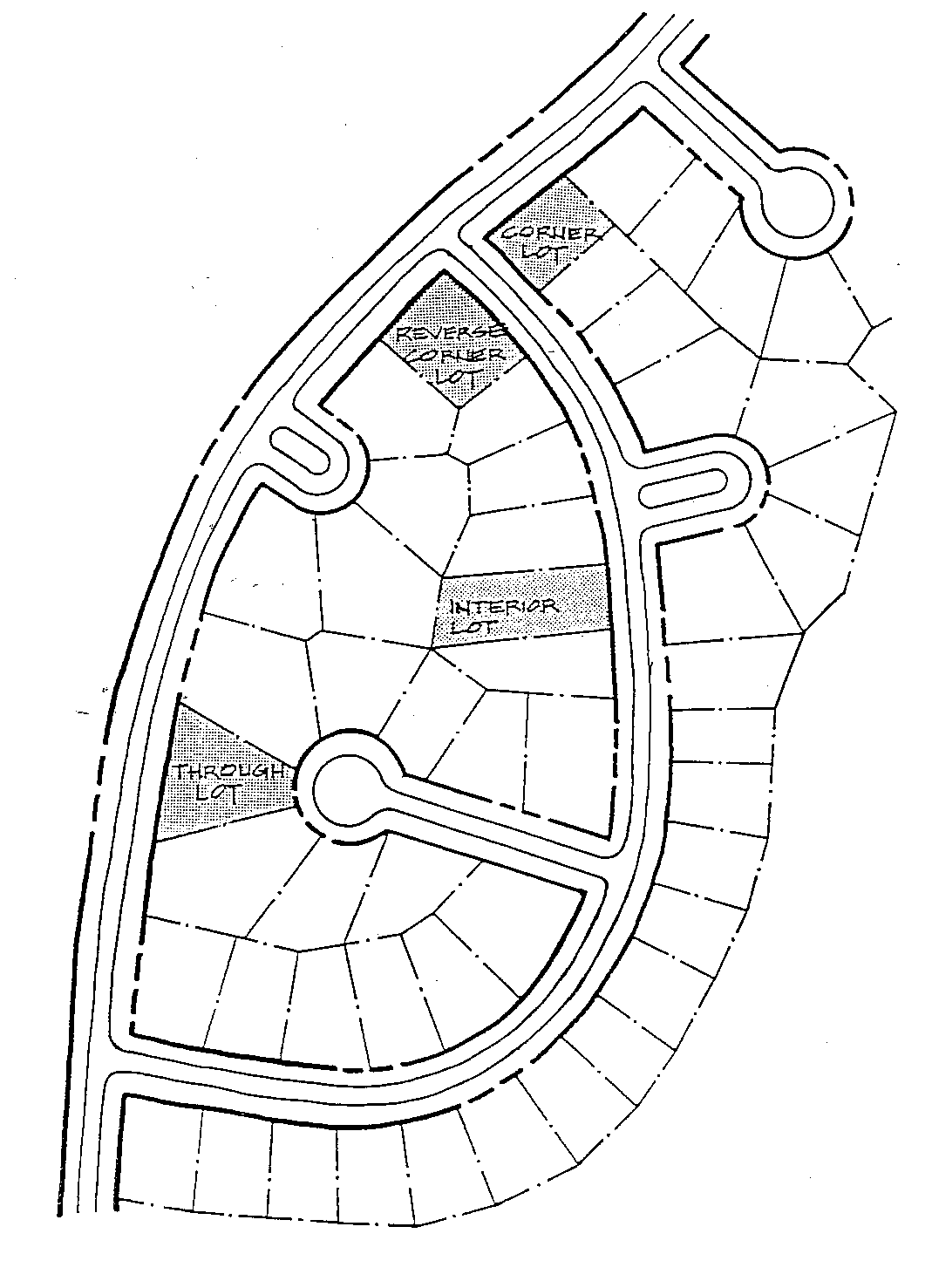

LOT TYPES

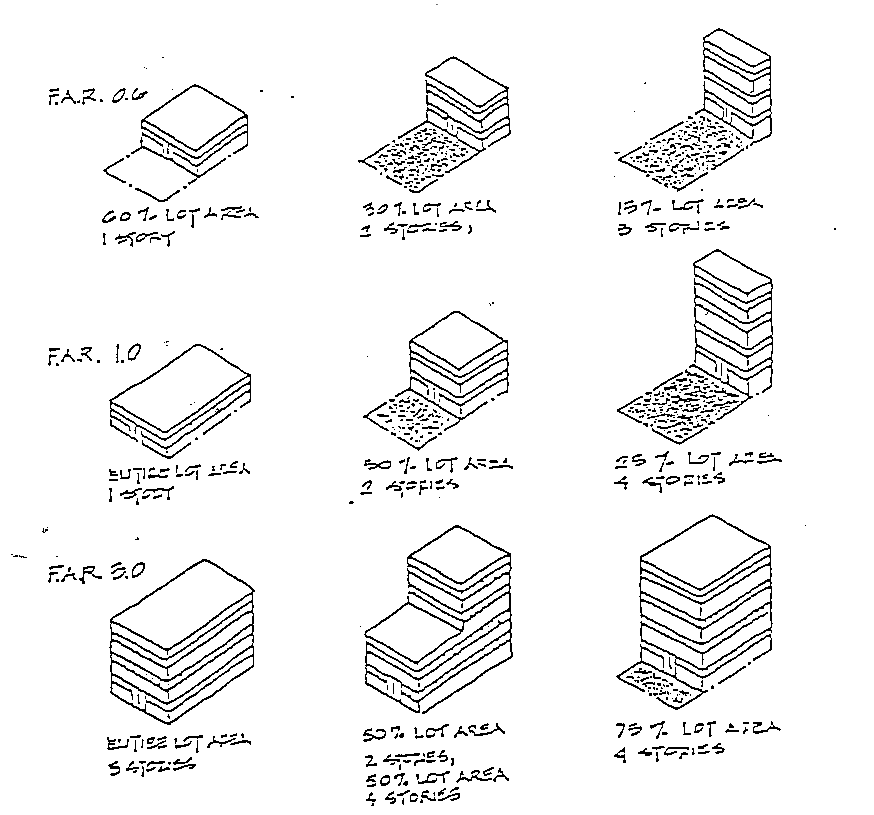

FLOOR AREA RATIO ILLUSTRATED
NOTE: NOT EVERY ALLOWABLE F.A.R. IS SHOWN

Formula to determine maximum allowable total floor area on a lot: F.A.R. × Lot Area = Total Floor Area

Note: These illustrations do not take into account building setback lines, maximum building heights and/or maximum lot coverage. Refer to appropriate sections of ordinance for applicable requirements.

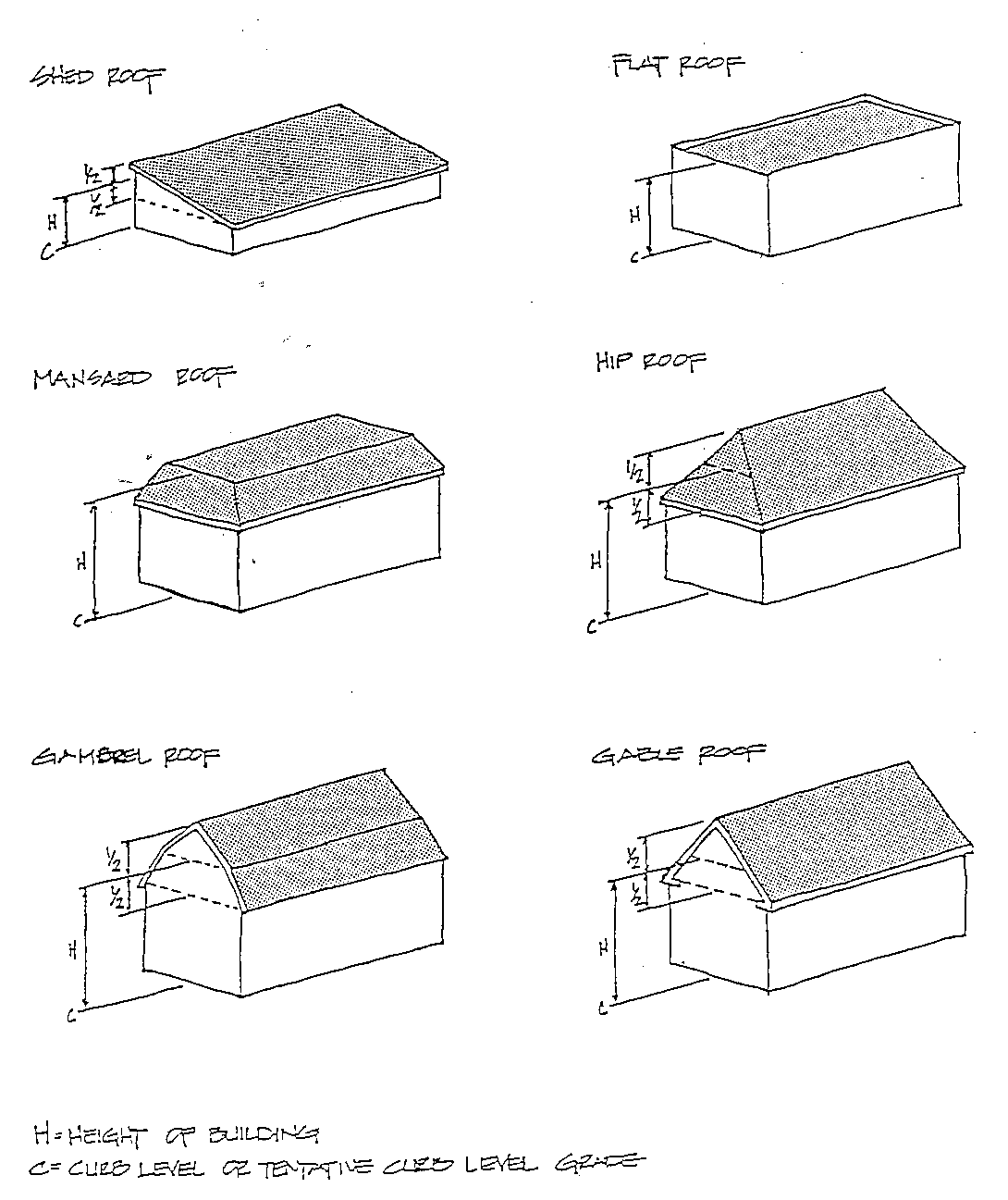

BUILDING HEIGHT MEASUREMENT

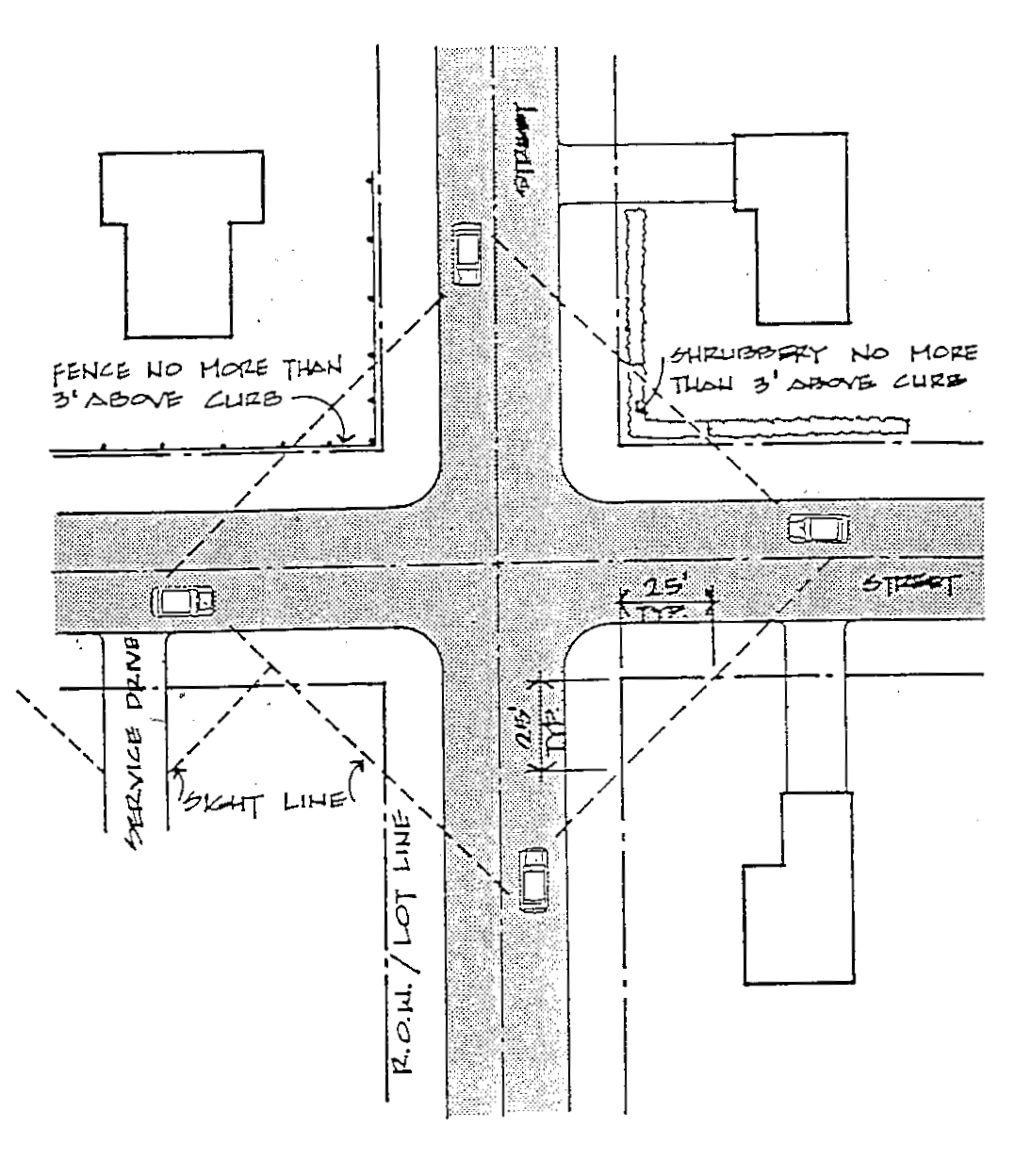

SOCIAL DISTANCE TRIANGLE

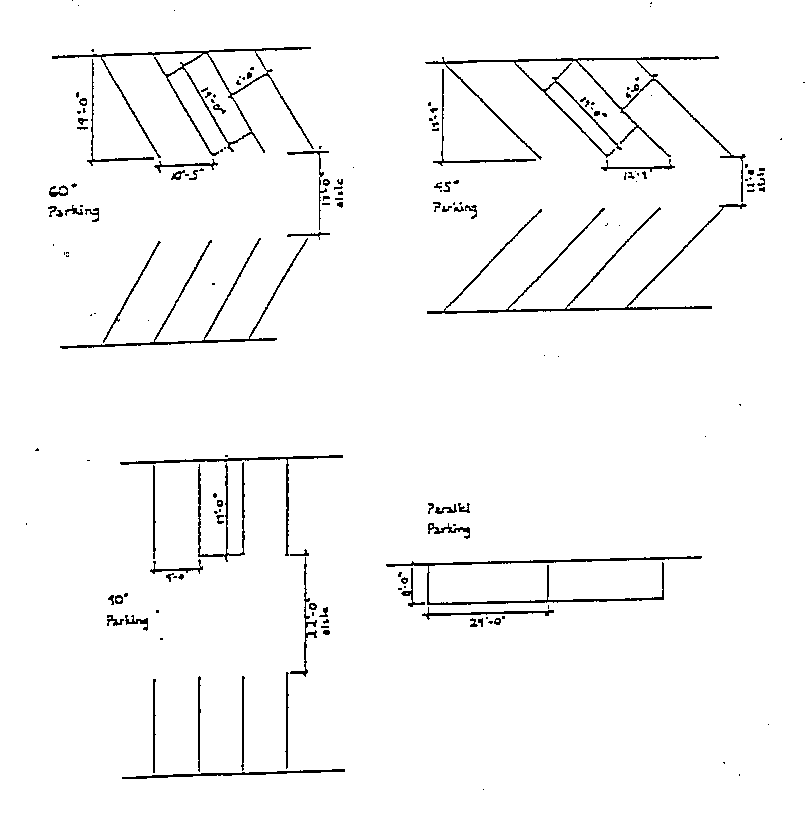

PARKING SPACE STANDARDS

(Code 2009, § 9-17-1; Ord. of 11-25-1996)
