With the initial site plan submittal, a schematic irrigation plan shall be provided which shows the information indicated below:

A.

Plans shall be drawn to scale, and shall show all existing and proposed physical features and boundaries of areas to be watered

B.

All areas of coverage shall be indicated.

C.

Turf, shrub beds and trees shall be zoned separately

D.

Indicate the type of irrigation (i.e. rotor, spray, drip, etc.) used in each zone.

E.

Indicate the point-of-connection

F.

Plan shall be stamped by an IA Certified Irrigation Designer or a registered Landscape Architect

G.

The following note shall be added to the plan: "A detailed irrigation plan complying with all requirements of the Mount Pleasant Zoning Ordinance shall be submitted to the City for approval prior to an application for Building Permit."

Prior to application for a building permit, detailed irrigation plans shall be submitted which show the information indicated above, as well as:

A.

Indicate piping routes, sizes, classes and sleeves.

B.

Piping shall be installed at a minimum depth of 12 inches.

C.

Indicate valve locations, flow and size

D.

Indicate head locations, types and spray patterns. Precipitation rates shall be matched within a zone.

E.

Indicate design pressure.

F.

Ensure 100% head-to-head coverage at all times and don't exceed spacing of a nozzle's range.

G.

System shall be zoned so as to not exceed the pressure and volume available at the water meter.

H.

Zone valves should be located at middle portion on zone and center feed whenever possible.

I.

Overspray of paved areas and structures shall be avoided.

J.

A rain/freeze sensor shall be installed and located where it can receive direct rainfall.

K.

Check valves and pressure regulators shall be employed to control low-head drainage and high pressure.

L.

Controller type and location shall be indicated.

M.

A backflow preventer shall be installed downstream of the meter and shall have an approved cover.

N.

Indicate meter size and location.

O.

Plan shall be stamped by an IA Certified Irrigation Designer or a registered Landscape Architect

As an alternative to submitting a detailed irrigation plan for approval, the developer or contractor may choose to conduct a post-construction field performance audit, using the Irrigation Association's Certified Landscape Irrigation Program. The irrigation system shall meet all performance criteria listed above. The audit shall check the performance of the system for conformance with state and local requirements including meeting standards for the minimum precipitation rate and lower quarter distribution uniformity (DU _LQ ) (and where possible, emission uniformity for drip/micro-irrigation systems). In addition, the audit shall also verify the installation of specified water management devices such as a rain shutoff device. Audits shall be performed by an IA Certified Irrigation Auditor.

(Ord. No. 2018-1028, § 1(Exh. A), 11-20-2018)

The following plants are recommended for use in projects submitted to the City. Plants not on this list will be evaluated on a case-by-case basis by the City's landscape architect.

The use of certain cultivars or varieties within a species may be required where needed to obtain a particular growth characteristic. For instance, Acer rubrum may be inappropriate to use near powerlines, while Acer rubrum 'Armstrong' may fit the available space.

Canopy trees:

Acer rubrum — Red Maple

Acer saccharum — Sugar Maple

Betula nigra — River Birch

Carpinus betulus — European Hornbeam

Carpinus carloliniana — American Hornbeam

Cercidiphyllum japonicum — Katsuratree

Cladrastis kentukea — Yellowwood

Diospyros virginiana — Persimmon

Ginkgo biloba — Ginkgo

Liriodendron tulipfera — Tulip Poplar

Liquidamber styraciflua 'Rotundiloba' — Sweetgum

Metasequoia glyptostroboides — Dawn Redwood

Nyssa sylvatica — Black Gum

Pistacia chinensis — Chinese Pistache

Quercus acutissima — Sawtooth oak

Quercus alba — White Oak

Quercus coccinea — Scarlet Oak

Quercus falcata — Southern Red Oak

Quercus imbricaria — Shingle oak

Quercus lyrata — Overcup oak

Quercus palustris — Pin oak

Quercus phellos — Willow oak

Quercus prinus — Chestnut oak

Quercus rubra — Red oak

Quercus shubardii — Shumard Oak

Tilia Americana — American Linden

Tilia cordata — Littleleaf Linden

Taxidium distichum — baldcypress

Ulmus parvifolia — Lacebark Elm

Zelkova serrata — Zelkova

Ornamental/Understory trees:

Acer buergeranum — Trident Maple

Acer griseum — Paper Bark Maple

Aesculus pavia — Red Buckeye

Amelanchier arborea — Serviceberry

Cercis Canadensis — Redbud

Chionanthus virginicus — Fringe tree

Cornus florida — Flowering Dogwood (anthracnose resistant cultivars)

Cornus kousa — Kousa Dogwood

Cornus mas — Corneliancherry Dogwood

Crataegus viridis 'Winter King' — Winter King Hawthorn

Franklinia alatamaha — Franklin tree

Koelreuteria panuculata — Golden Raintree

Lagerstroemia indica — Crepe Myrtle

Magnolia x soulangiana — Saucer magnolia

Magnolia stellate — Star magnolia

Magnolia virginiana — Sweetbay Magnolia

Malus cultivars, disease restistant only, e.g. 'Adirondack', 'Callaway', 'Centennial', 'Donald Wyman', 'Prairiefire', 'Sugar Tyme'

Ostrya virginiana — American Hophornbeam

Oxydendrum arboretum — Sourwood

Pinus thunbergia — black pine

Prunus campanulata — Okame Cherry

Prunus subhirtella var. autumnalis — Autumn Flowering Cherry

Prunus yedoensis — Yoshino cherry

Styrax japonica — Japanese Snowball

Syringa reticulata — Lilac Tree

Buffer trees:

Cedrus atlantica — Atlas cedar

Cedrus deodara — Deodar Cedar

Cryptomeria japonica — Cryptomeria

Ilex attenuate 'Fosteri' — Foster holly

Ilex x 'Nellie R. Stevens' — Nellie R. Stevens holly

Ilex opaca — American Holly

Juniperus virginiana — Eastern Red Cedar

Magnolia grandiflora — Southern Magnolia

Magnolia virginiana — Sweetbay Magnolia

Picea abies — Norway Spruce

Pinus nigra — Austrian Pine

Pinus sylvestris — Scots Pine

Pinus taeda — Loblolly Pine

Pinus thunbergii — Black Pine

Pinus virginiana — Virginia pine

Prunus caroliniana — Carolina Cherry Laurel

Thuja occidentalis — Arborvitae

Tsuga canadensis — Canadian Hemlock

Tsuga caroliniana — Hemlock

Buffer shrubs:

Eleagnus pungens — Fragrant olive

Ilex aquifolium — English holly

Ilex cornuta 'Burfordii' — Burford holly

Ilex cornuta 'Nellie R. Stevens' — Nellie R Stevens holly

Ilex crenata — Japanese Holly

Prunus caroliniana — cherry laurel

Prunus laurocerasis — English laurel

Viburnum rhytidophyllum — leatherleaf viburnum

Viburnum 'Pragense' — Prague viburnum

Supplemental buffer shrubs (These should be used in conjunction with buffer shrubs above):

Aesculus parviflora — Bottlebrush Buckeye

Aesculus pavia — Red Buckeye

Aronia arbutifolia — Red chokeberry

Forsythia x intermedia — Flowering forsythia

Ilex verticillata — Winterberry

Viburnum dentatum — Arrowwood viburnum

Hamemelis virginiana — Common witchhazel

Hamemelis x intermedia

(Ord. No. 2018-1028, § 1(Exh. A), 11-20-2018)

A.

Plants shall be so trained in development and appearance as to be unquestionable superior in form, compactness and symmetry. They shall be sound, healthy, vigorous, well branched and densely foliated when in leaf, and free of disease and insect adult eggs, pupae or larvae. They shall have healthy, well-developed root systems and shall be free from physical damage or other conditions that would prevent thriving growth.

B.

There shall be no circling or girdling roots. Circling roots should be cut in at least one place.

C.

Trees should be rooted into the root ball so that soil or media remains intact and trunk and root ball move as one when lifted, but not root bound. The trunk should bend when gently pushed and should not be loose so it pivots at or below soil line.

D.

The point where the top-most root in the root ball emerges from the trunk shall be within two inches of the soil surface. It can be exposed and visible at the soil surface. If it is not within the top two inches of soil, gently remove the top layer of soil from the rootball until the first major root flare is visible.

E.

The relationship between caliper, height and root ball size shall meet the ANSI Z60.1 standard, latest edition.

F.

There should be one dominant leader to the top of the tree with the largest branches spaced at least 6 inches apart. There can be two leaders in the top 10% of the tree if it is otherwise of good quality.

G.

The tree canopy should be symmetrical and free of large voids. Clear trunk should be no more than 40% of tree height unless otherwise specified in the planting specifications. Clear trunk shall be of sufficient height to clear surrounding uses that may be impacted by the future growth of the tree.

H.

Open trunk and branch wounds shall be less than 10% of the circumference at the wound and no more than 2 inches tall. Properly made pruning cuts are not considered open trunk wounds. There should be no conks or bleeding, and there should be no signs of insects or disease on more than 5% of the tree.

I.

If any of the above conditions are not met, trees may be rejected.

(Ord. No. 2018-1028, § 1(Exh. A), 11-20-2018)

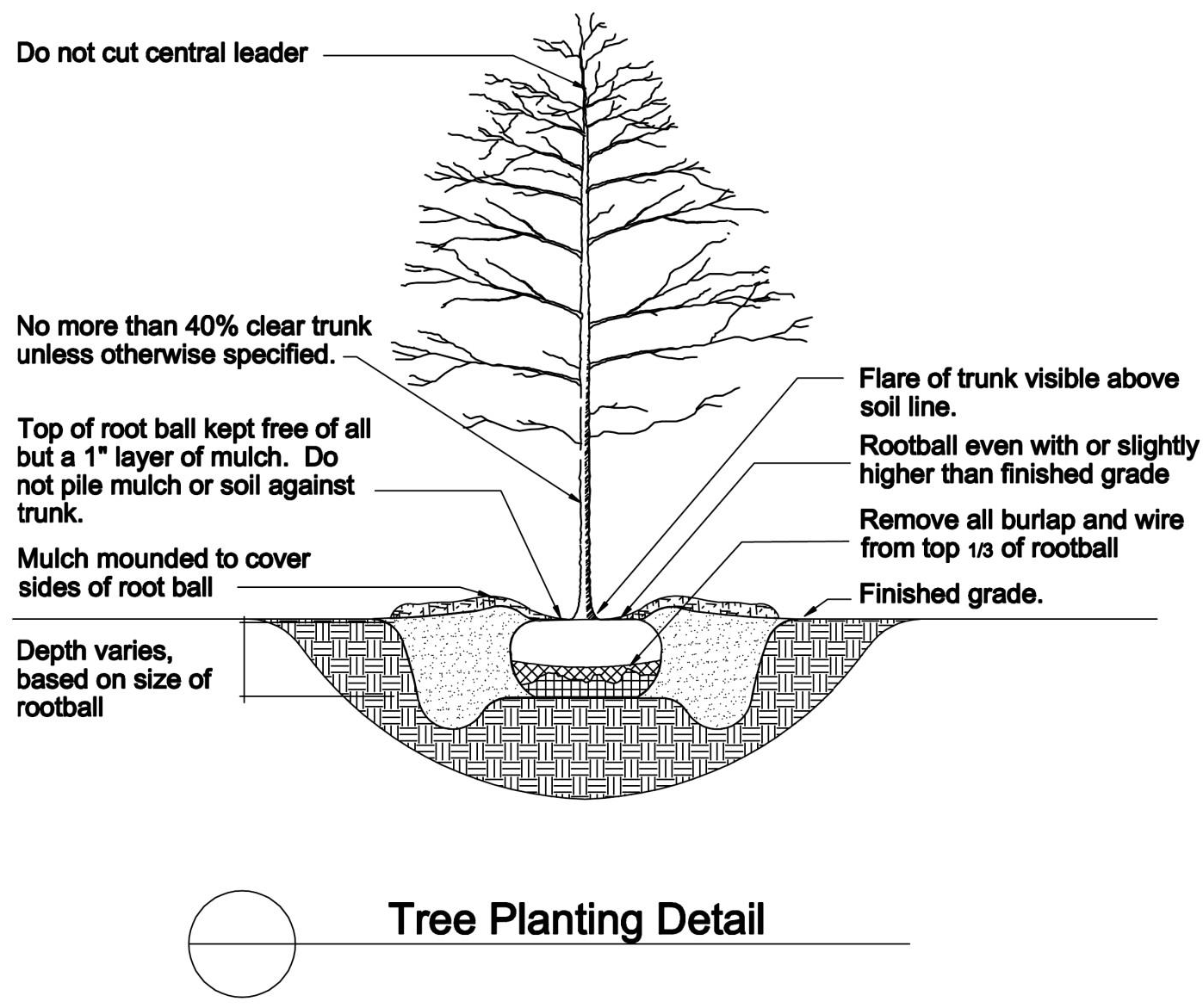

A.

The depth of the hole dug should be about 10% less than the distance from the top-most root (measured where it joins the trunk) to the bottom of the rootball. The width of the hole shall be at least 2 times the width of the rootball.

B.

Cut away burlap and wiring so that at least 1/3 of the rootball is exposed. Synthetic burlap shall be removed entirely. All twine and rope shall be removed from the base of the tree and from any branches.

C.

After planting, the topmost root shall be no more than 2 inches below the soil surface. Additional soil should be removed. The surrounding grade should be even with or slightly lower than the top root. Please note: some trees will arrive from the nursery with too much soil covering the first major root flare. This soil should be removed. The resulting soil line should be even with or above the surrounding grade.

D.

3 inches of mulch shall be applied to cover the sides of the rootball to a point even with the dripline. Do not add any soil to the top of the rootball. Do not add more than 1 inch of mulch to the top of the root ball.

E.

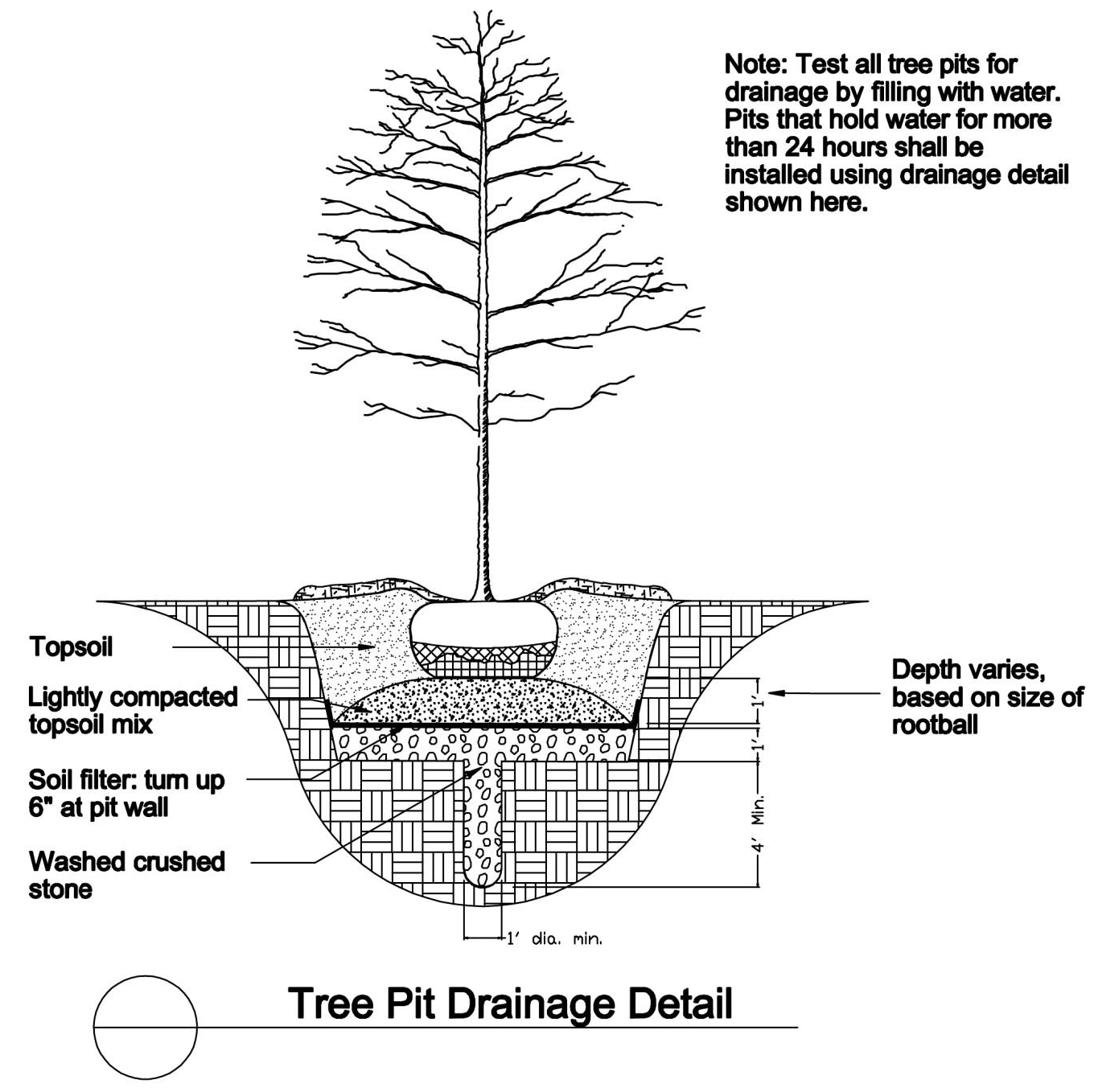

In poorly drained soil, position the top of the rootball 10% or more above the surrounding grade. No more than 20% of the rootball should be above the surrounding grade.

F.

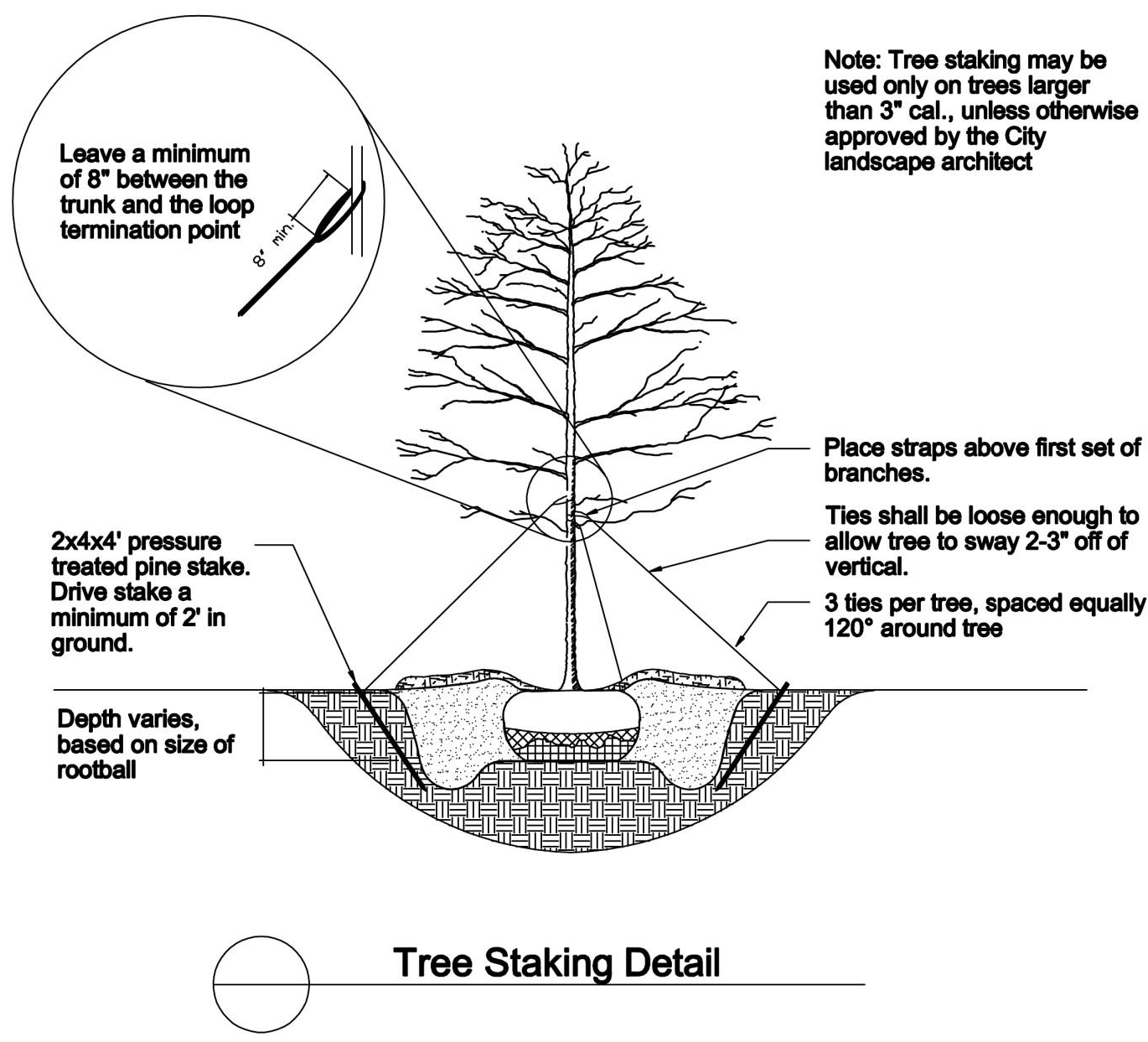

Staking of trees is not allowed unless permission is specifically obtained from the City Planning Department.

(Ord. No. 2018-1028, § 1(Exh. A), 11-20-2018)

(Ord. No. 2018-1028, § 1(Exh. A), 11-20-2018)
