Longboat Key City Zoning Code

ARTICLE XI

Appendix

Section 1. - Lot Illustrations.

(A)

Lot definitions, general.

(B)

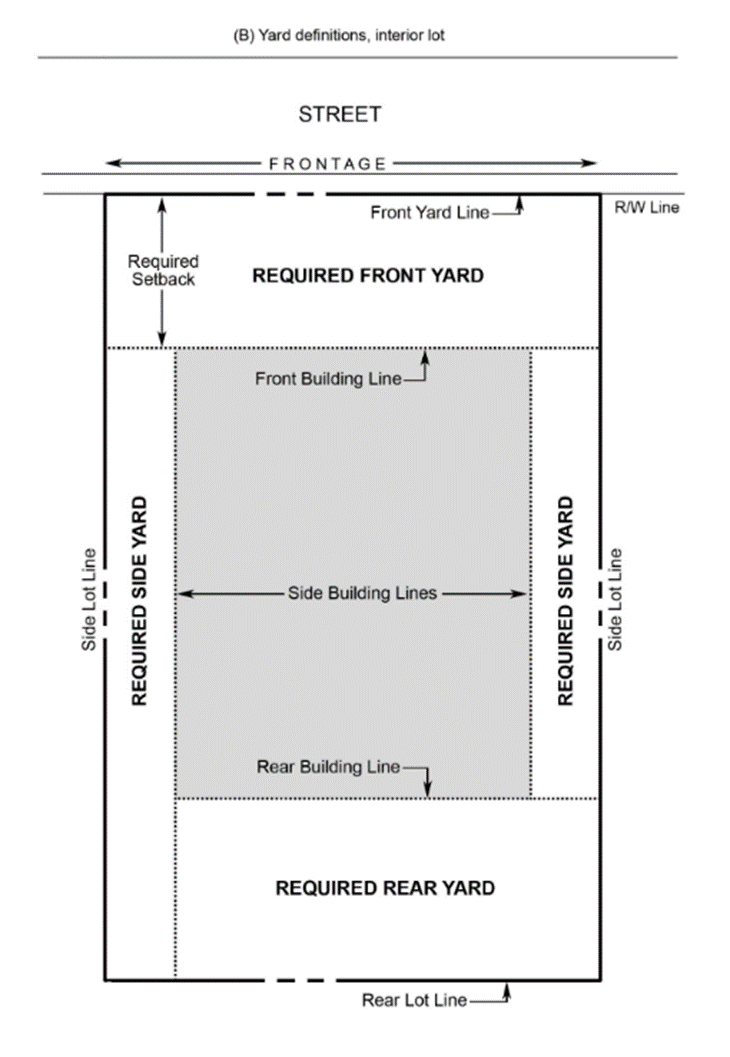

Yard definitions, interior lot.

(C)

Yard definitions, corner lot.

(D)

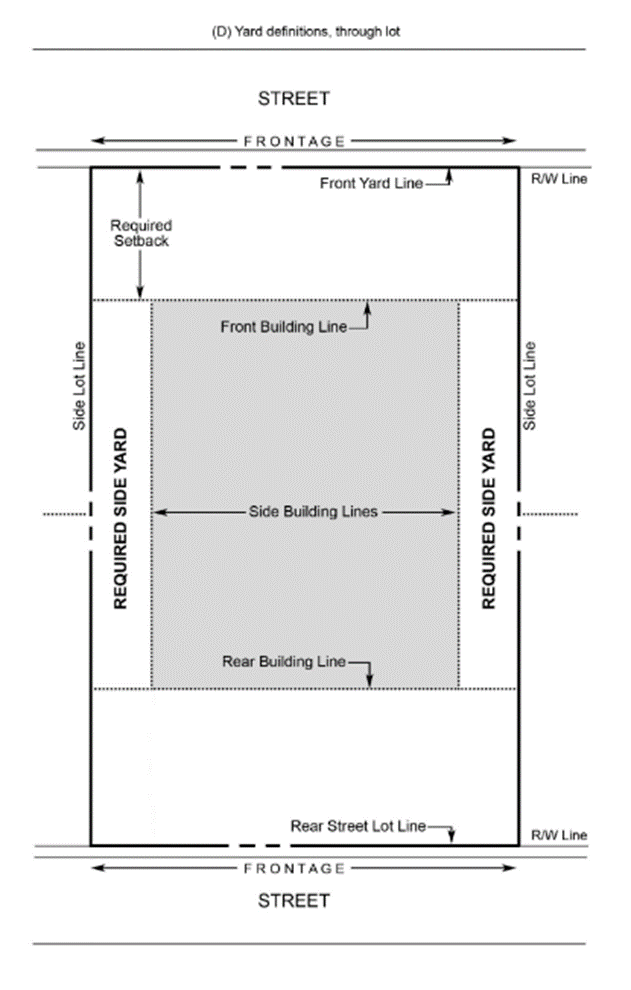

Yard definitions, through lot.

(Ord. 2018-24, passed 4-1-19; Ord. 2020-14, passed 1-5-21)

Section 2. - Parking Area Illustrations.

The following illustrations are designed to illustrate the requirements of Section 158.100.

(A)

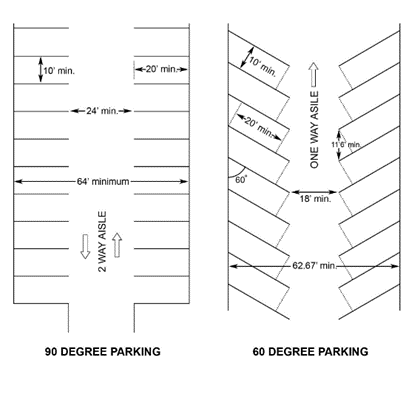

Off-Street Parking Area Standards.

(B)

Schedule of Parking Area Key Dimensions.

Degrees
From
Curb		Stall
Width
(feet)		Curb
Length
per Car
(feet)		Stall
Depth
(feet)		Min-
mum
Drive
(feet)		Lot Width
One Row
Plus Drive
(feet)		Lot Width
Two Rows
Plus Drive
(feet)		Lot Width
Four Rows
Two Drives
Plus
Walkway
(feet)
0 10 24.00 10.00 12 22.00 32.00 73
45 10 14.17 21.25 12 33.25 54.50 114
60 10 11.50 22.33 18 40.35 62.67 130.5
90 10 10.00 20.00 24 44.00 64.00 133



(Ord. 2018-24, passed 4-1-19; Ord. 2020-14, passed 1-5-21)

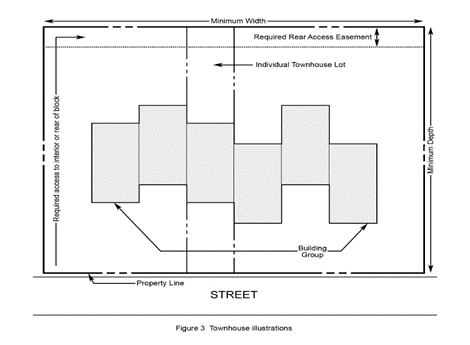

Section 3. - Townhouse Illustrations.

(Ord. 2018-24, passed 4-1-19; Ord. 2020-14, passed 1-5-21)

Section 4. - Site Development Plan Review Procedure Chart.

(Ord. 2018-24, passed 4-1-19)

Section 5. - Planned Unit Development Procedure Chart.

(Ord. 2018-24, passed 4-1-19)

Section 6. - Special Canal Waterfront Yard Area Illustrations.

(A)

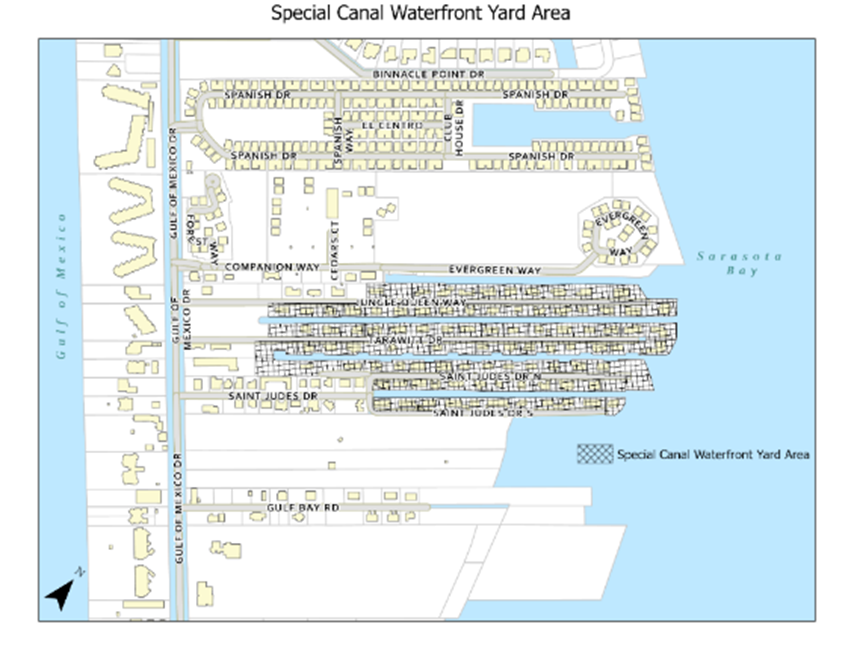

Special Canal Waterfront Yard Area.

(B)

Illustration of Minimum Canal Waterfront Yard Requirements in the Special Canal Waterfront Yard Area.

(Ord. 2018-24, passed 4-1-19; Ord. 2020-14, passed 1-5-21)

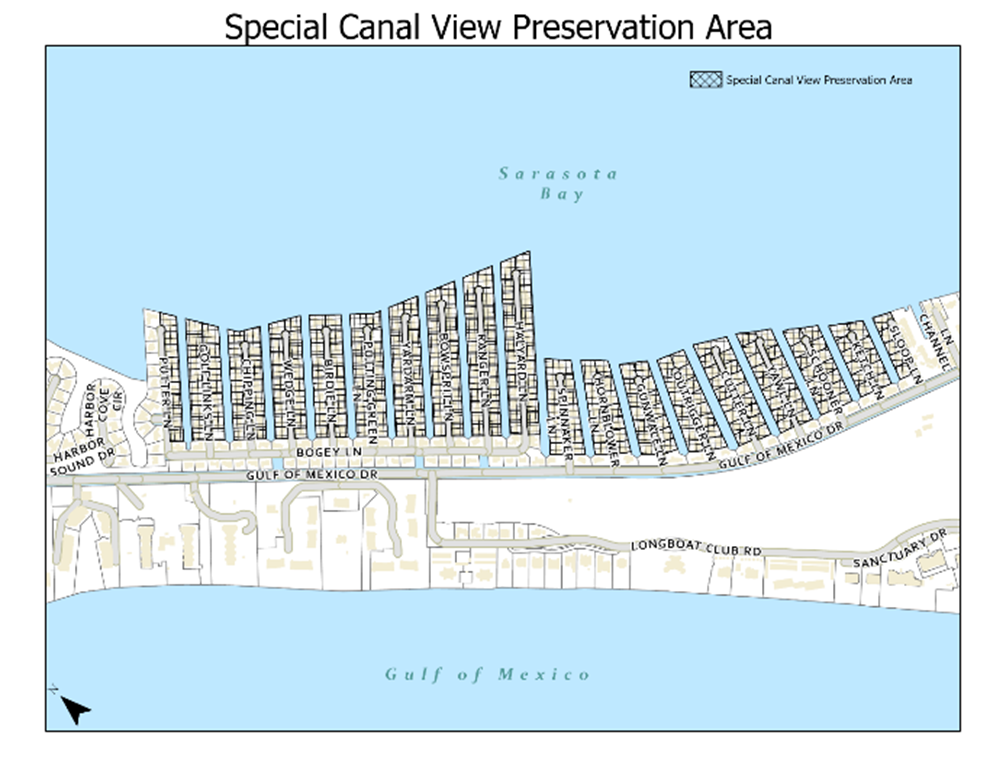

Section 7. - Special Canal View Preservation Area.

(Ord. 2018-24, passed 4-1-19; Ord. 2020-14, passed 1-5-21)

Section 8. - Illustrations for Section 158.099, Structures Over Water.

(A)

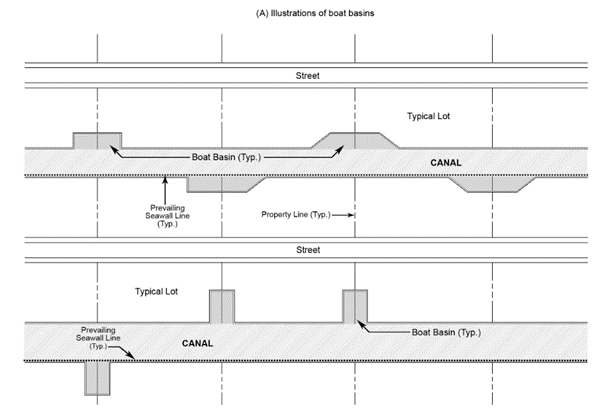

Illustration of Boat Basins.

(B)

Illustration of Minimum Setbacks Pursuant to Section 158.099(A)(3)(b).

(C)

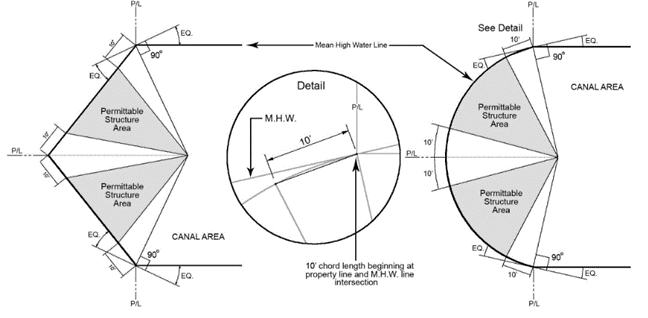

Illustration of Minimum Setbacks Pursuant to Section 158.099(A)(3)(c).

(Ord. 2018-24, passed 4-1-19; Ord. 2020-14, passed 1-5-21)

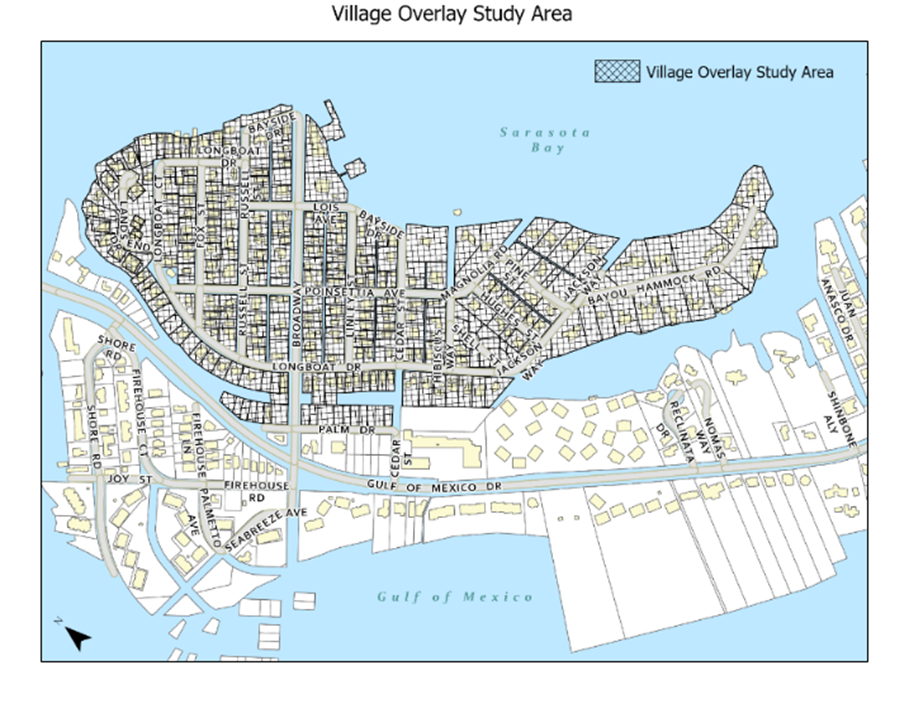

Section 9(A). - Village Study Overlay Area Map.

(Ord. 2020-14, passed 1-5-21)

Editor's note— Section 40 of Ord. No. 2020-14, passed Jan. 5, 2021, deleted § 9(B) of this appendix, which was entitled "The Village Zoning Map," and derived from Ord. 2018-24, passed Apr. 1, 2019.
