Ray Township City Zoning Code

RM RESIDENTIAL

MULTIPLE FAMILY

SECTION 900 - STATEMENT OF INTENT.

The multiple-family residential district is designed to permit a more intense residential use of land with various types of multiple dwellings and related uses. A variety of types and sizes of residential accommodations for ownership or rental are thereby provided to meet the needs of the different age and family groups in the Township.

Design Elements
Site/Lot Dimensions (Entire Site)Requirement
Minimum Lot Area 43,560 sq. ft.
Minimum Lot Width 150'
Maximum Width to Depth Ratio 1:4
Yard Dimensions (Entire Site)RequirementRequirement
Minimum Front Yard Setback Building Parking
Road Designation Regional 152' 132'
Major 110' 90'
Collector 93' 73'
Local 80' 60'
Minimum Side Yard Setback 50'
Minimum Rear Yard Setback 50'
Gross Site Area (Per Unit)Area
1 Bedroom or Efficiency Unit 7,000
2 Bedrooms 8,000
3 Bedrooms 8,500
Note: Units with more than three (3) bedrooms shall provide an additional one thousand (1,000) square feet of site area for each additional bedroom.
Note: Plans presented which include a den, library or extra room shall have such extra room counted as a bedroom for purposes of this Ordinance.



Building DimensionsRequirement
Maximum Building Height Stories 2
Feet 35'
Maximum Building Facade (face) Length 180'
Minimum Floor Area Total
1 Bedroom 700
2 Bedrooms 850
3 Bedrooms + 200 square feet for each bedroom above 2



(Amd. of 1-16-2018)

SECTION 901 - PRINCIPAL USES PERMITTED.

A. Family Child Care and the Like
B. Existing Farm buildings and greenhouses, general and specialized farms, and agricultural activities (except feedlots).
C. Home Occupations (Type I)
D. Municipal buildings
F. Roadside Stands
G. Multiple Family Dwellings
I. Sod Farms
J. State Licensed Residential Facilities and the Like (Under six (6) persons)
K. Temporary Housing



SECTION 902 - SPECIAL APPROVAL LAND USES.

The following uses may be permitted by the Township Planning Commission, subject to the standards for each use hereinafter itemized and subject to the provisions of Site Plan Review:
A. Adult Foster Care
B. Agribusiness Uses
C. Bed & Breakfast Establishments
D. Cemeteries
E. Churches and Other Places of Worship
F. Convalescent, rest or nursing homes
G. Fraternal Organizations, Lodges, Clubs
H. Group Child Care
I. Home occupations (Type II), as defined in this Zoning Ordinance, provided that adequate off-street parking can be provided for such use and it is determined, after a public hearing, that there would be no adverse impacts on surrounding properties. This may include barber shops, beauty parlors, child-care centers or medical offices.
J. Large-scale recreation uses
K. Mining and extraction of oil, sand, gravel, clay or similar materials.
L. Nursery schools and care centers
M. Public Buildings (Other than Ray Township)
N. Public, parochial and private schools, colleges and universities, business schools
O. Public Utilities and the Like (Public and Private)
P. Senior Housing and Assisted Living
Q. Solar Farms
R. Wedding Chapel
S. Wind Farm



(Ord. of 8-20-2024)

SECTION 903 - GROSS SITE AREA PER UNIT.

Minimum gross site area in square feet, per dwelling unit for each Multiple-Family District:

Number of BedroomsGross Site Area per Unit
1 Bedroom 7,000 sq. ft.
2 Bedrooms 8,000 sq. ft.
3 Bedrooms 8,500 sq. ft.



NOTE: Efficiency units shall be regulated the same as one (1) bedroom units.

NOTE: Units with more than three (3) bedrooms shall provide an additional one thousand (1,000) square feet of site area for each additional bedroom.

NOTE: Plans presented which include a den, library or extra room shall have such extra room counted as a bedroom for purposes of this Ordinance.

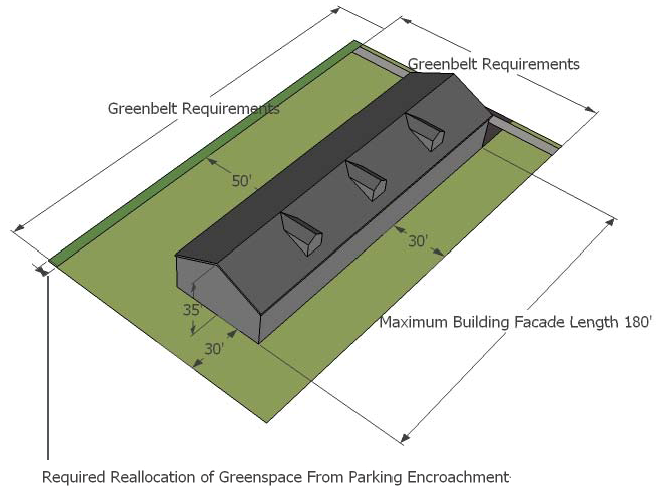

SECTION 904 - BUILDING SETBACKS.

A.

Landscaped setbacks must be provided adjacent to, and surrounding each building on the following basis:

Side of BuildingRequired Setback
Front 30 feet
Rear 50 feet
Sides 30 feet



1.

Setbacks utilized for one building shall not be utilized to fulfill the setback requirement for any other building. Such landscape setback shall be exclusive to the building it surrounds.

2.

Buildings which include attached garages may utilize the required landscape setback to permit a parking apron and paved access to garages. However, pavement shall not surround more than forty (40) percent of the overall perimeter of the building.

3.

Each square foot of pavement which encroaches into a required setback must be replaced on another side of the same building. Site plans must clearly dimension landscaped greenbelts and provide calculations in instances of setback transfer.

4.

In no case shall any building encroach any closer than fifteen (15) feet to a road, drive, access lane or parking area.

5.

Yard areas used to facilitate utilities must maintain a thirty (30) foot greenbelt.

SECTION 905 - RECREATION.

Well-defined and improved recreation areas and facilities, such as parks, playgrounds, swimming pools and community buildings, shall be provided. At a minimum, these parks shall include amenities such as picnic tables, benches and paved walking paths.

A.

The minimum number of square feet of recreation area and/or facilities shall be provided in addition to all required setbacks and greenbelts and shall be provided on a per unit basis according to the following schedule:

1.

Detention ponds and other subaqueous areas such as lakes, rivers, etc. may not be included in the calculations towards required recreation areas.

2.

Natural open space, excluding the types of areas mentioned above, may be included and credited for up to one-half (½) of the recreation area requirement upon Planning Commission approval.

Provisions for separate adult and youth recreation and open space areas are encouraged. Recreation facilities generally shall be provided in a central location and should be convenient to all units within the development. In larger developments, however, recreation facilities may be decentralized or part of an approved open space area plan. In either scenario, open space shall be connected throughout the development.
