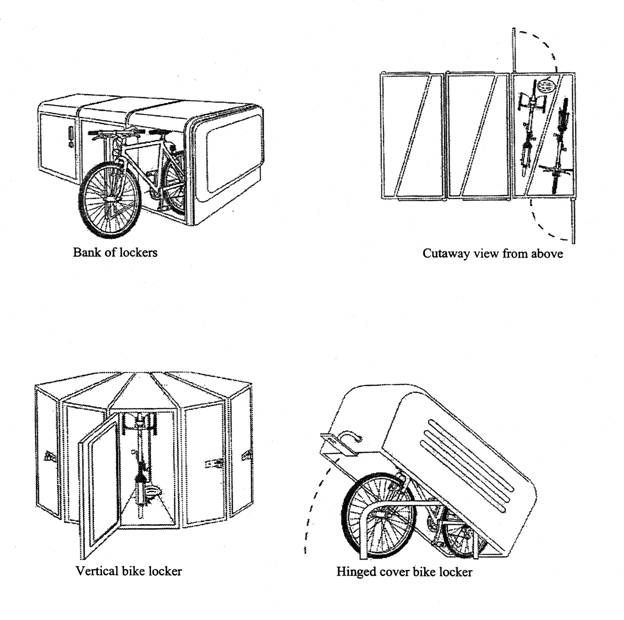

Figure 1: Acceptable Bike Locker Designs

Lockers that properly secure bicycles

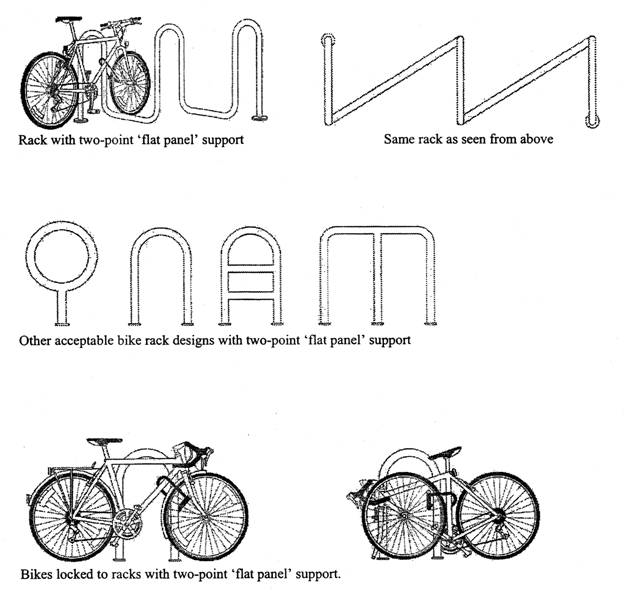

Figure 2: Acceptable Bike Rack Designs with Two-Point Support

Designs with two-point, "flat panel" support allow for easy access and locking of frame and two wheels.

There are no sharp edges presented to pedestrians.

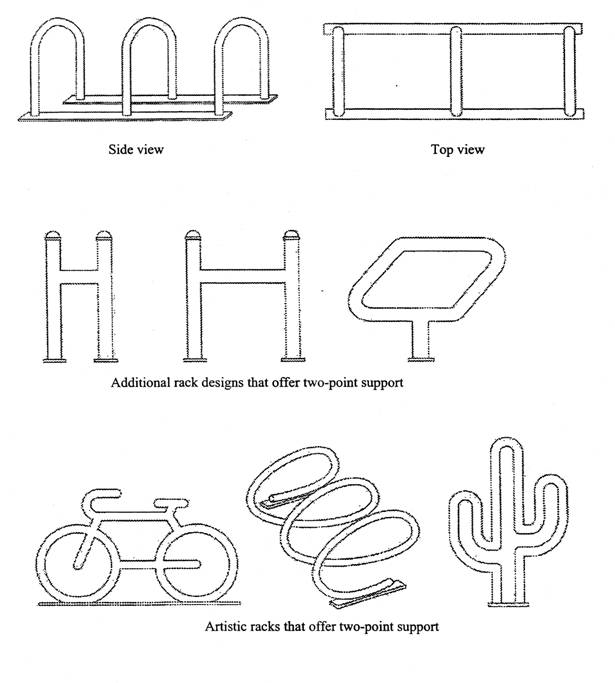

Figure 3: Additional Racks with Two-Point Support

Designs with two-point, "flat panel" support allow for easy access and locking of frame and two wheels.

There are no sharp edges presented to pedestrians.

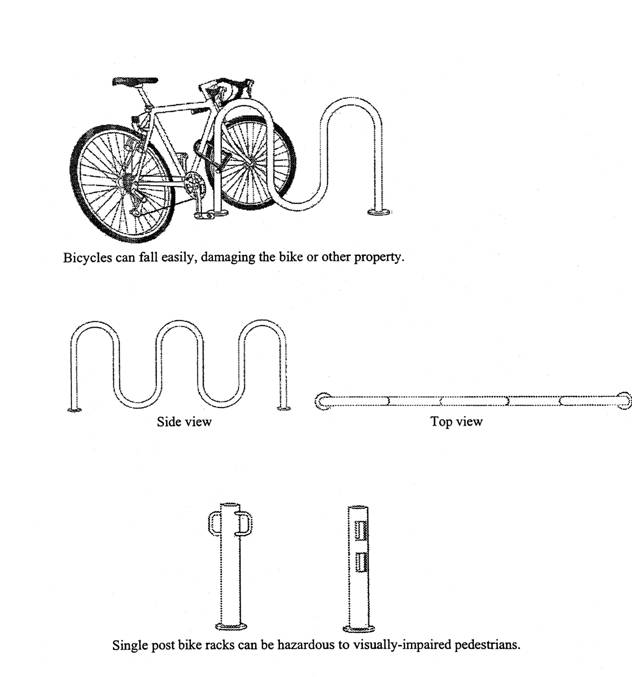

Figure 4: Unacceptable Bike Rack Designs

These designs do not provide two-point support for bicycles.

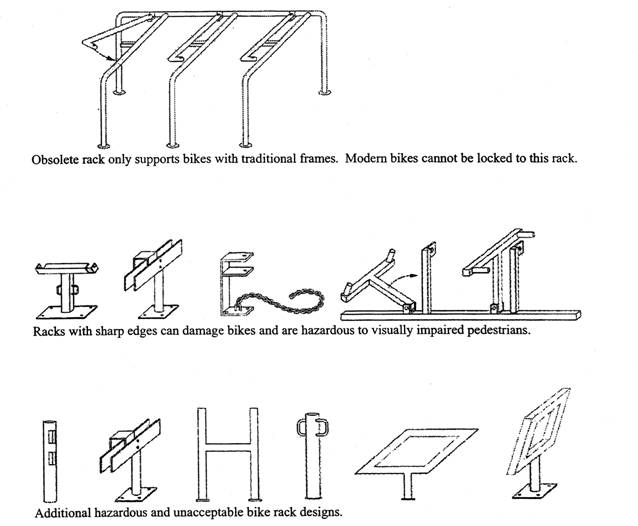

Figure 5: Obsolete and Hazardous Bike Rack Designs

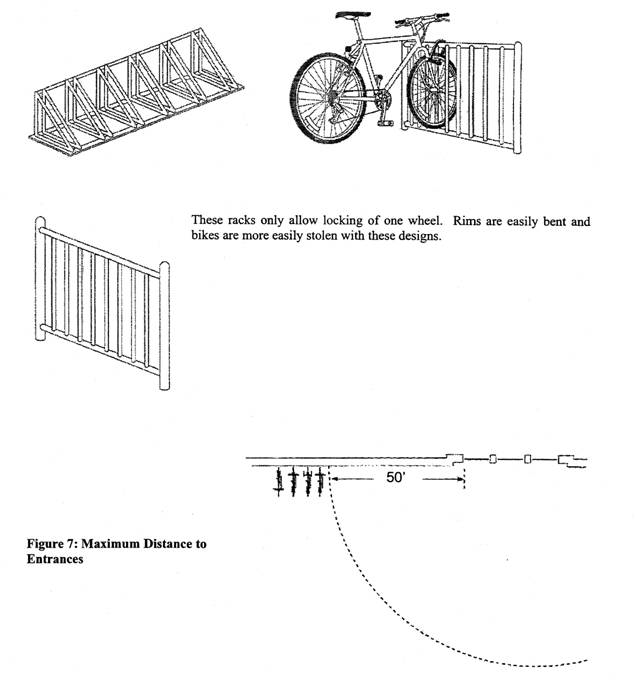

Figure 6: Bike Racks that Damage Bikes and Allow for Theft

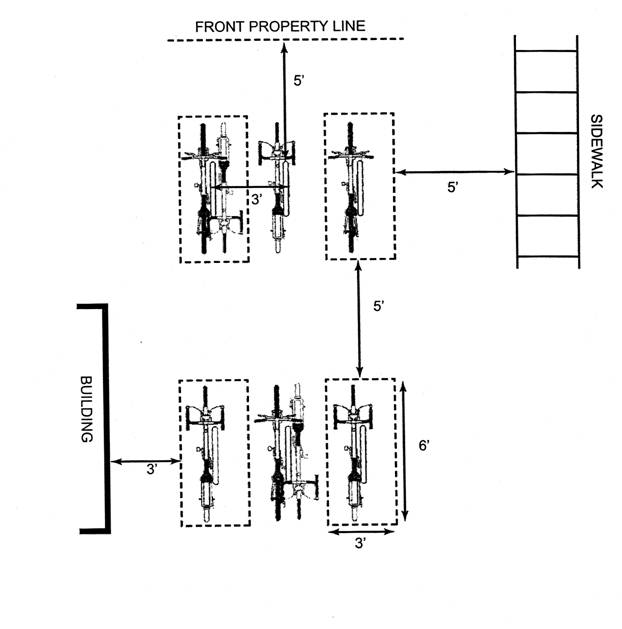

Figure 8: Bike Parking Space Dimensions (Open Bike Parking)

Minimum dimensions and clearance for bike parking spaces.
