Roswell City Zoning Code
ARTICLE 4.
CORRIDOR AND NODES DISTRICTS
4.1.1. - RX-: Residential Mixed Use
RX- is intended for residential living in a townhouse, walk-up flat or stacked flat. RX- implements the Highway 9/Alpharetta Highway Corridor Commercial, GA 400/Holcomb Bridge Road Node, Holcomb Bridge Road/SR 140, and Historic Area Town Center/Downtown designations on the Future Development Map of the Comprehensive Plan.
4.1.2. - NX-: Neighborhood Mixed Use
NX- is intended primarily to provide for neighborhood-serving retail and commercial uses at intensities compatible with abutting or adjacent residential development. To help limit the extent of the district and to maintain the commercial integrity, residential uses are limited to upper stories of mixed use buildings only, and to help ensure that uses are truly neighborhood serving, individual tenant footprints cannot exceed 15,000 square feet. NX- implements the Suburban Residential and Holcomb Bridge Road/SR 140 designations on the Future Development Map of the Comprehensive Plan.

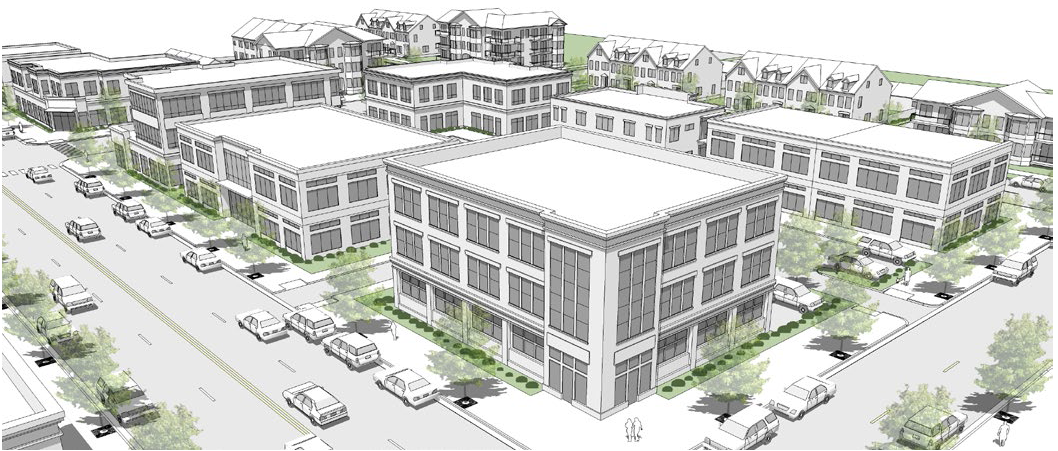

4.1.3. - CX-: Commercial Mixed Use
CX- is intended to provide for a variety of residential, retail, service and commercial uses. While CX- is primarily a commercial/retail district, the inclusion of residential and employment activity is strongly encouraged in order to promote live-work and mixed use opportunities. CX- implements the Highway 9/Alpharetta Highway Corridor Commercial, GA 400/Holcomb Bridge Road Node, Holcomb Bridge Road/SR 140 and Historic Area Town Center/Downtown designations on the Future Development Map of the Comprehensive Plan.

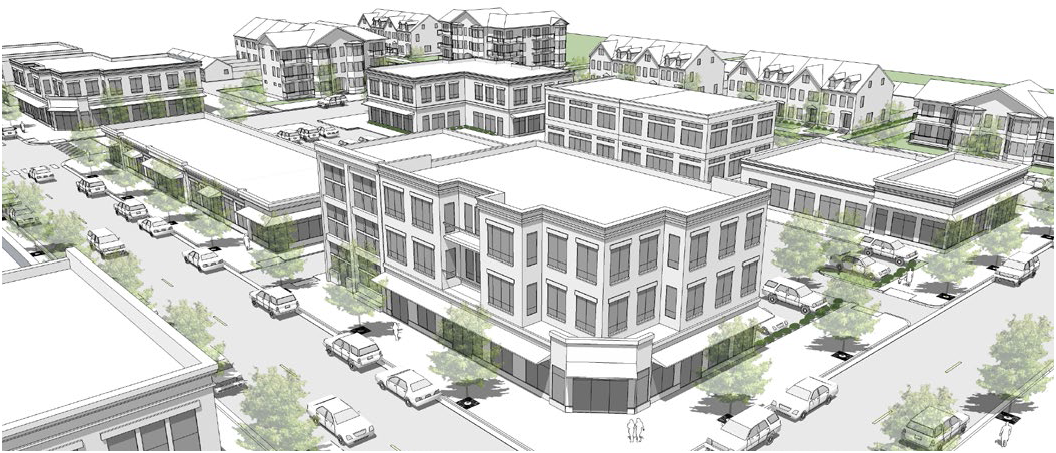

4.1.4. - SH-: Shopfront Mixed Use
SH- should be used sparingly and is intended for areas where a high level of walkability and pedestrian activity is desired. The SH- district is intended to create a "main street" type of environment, therefore, only single-story shopfronts and mixed use buildings are allowed. SH- implements the Highway 9/Alpharetta Highway Corridor Commercial, GA 400/Holcomb Bridge Road Node, Holcomb Bridge Road/SR 140 and Historic Area Town Center/Downtown designations on the Future Development Map of the Comprehensive Plan.

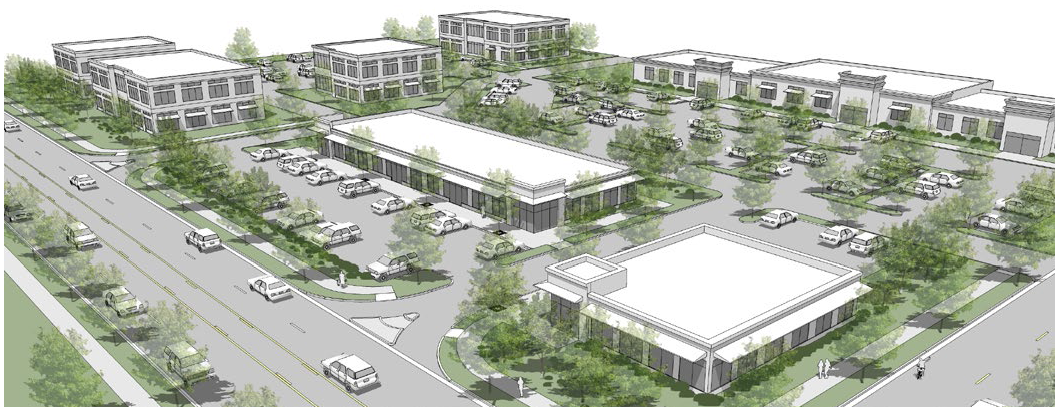

4.1.5. - CC-: Commercial Corridor
CC- is intended for areas along major arterials where a variety of lower intensity commercial, service, retail and multi-family uses are desired. CC- allows a maximum of two bays of on-site parking with a single drive aisle between the building and the street. CC- implements the Highway 9/Alpharetta Highway Corridor Commercial, GA 400/Holcomb Bridge Road Node and Holcomb Bridge Road/SR 140 designations on the Future Development Map of the Comprehensive Plan.

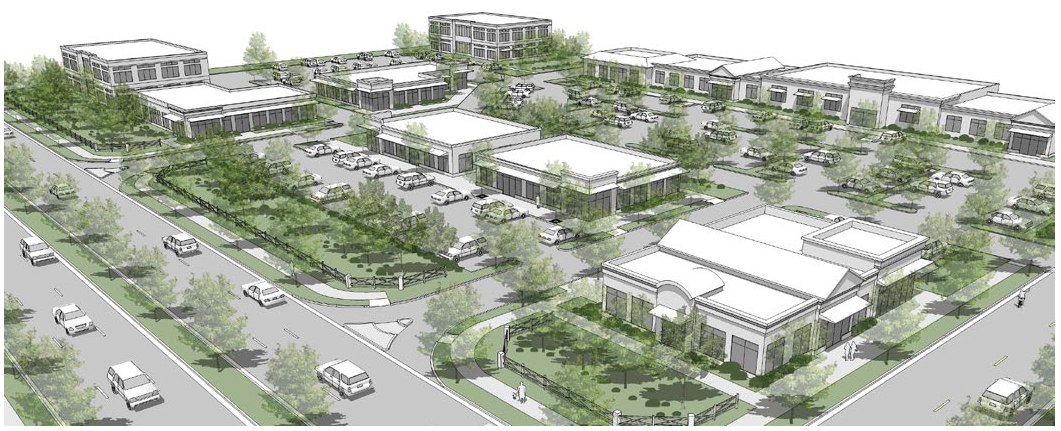

4.1.6. - PV-: Parkway Village
PV- is intended to provide for enhanced development standard along the SR 92 corridor. The district standards provide for uniform landscaping and urban design. PV- implements the Parkway Village Overlay District SR92 - Corridor designation on the Future Development Map of the Comprehensive Plan.

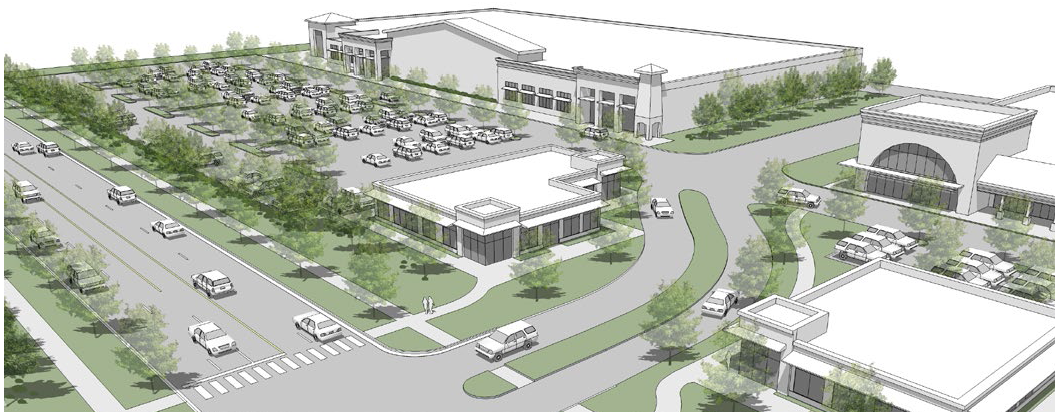

4.1.7. - CH-: Commercial Heavy
CH- is intended for the City's most intense auto-oriented and heavy commercial uses. To help provide additional housing opportunities within close proximity to major employment and retail nodes, CH- also allows multi-family. There are no restrictions on parking location. CH- implements the Highway 9/Alpharetta Highway Corridor Commercial, GA 400/Holcomb Bridge Road Node and Holcomb Bridge Road/SR 140 designations on the Future Development Map of the Comprehensive Plan.
4.2.1. - Applicability
Each Corridor and Node District is comprised of the following components:
A.
Form and use (RX-, NX-, CX-, SH-, CC-, PV-, CH-); and
B.
Height (-3, -4, -6 -8).
C.
The CX (Commercial Mixed-Use) district shall require 51% of the square footage of a development to be commercial/retail.
D.
If the proposed mixed-use development includes multiple parcels, a Subdivision Review in accordance with Sec. 13.5 is required to be completed prior to submission of the conditional use request. If the proposed mixed-use development includes existing buildings, uses, or infrastructure that are required to meet the square footage of non-residential uses then those existing buildings, uses or infrastructure must comply with all other applicable sections of this UDC, and the conditional use request must include all applicable conditional use requests or concurrent variances as required by the current UDC.
(Ord. No. 2020-07-11, § 1, 7-13-2020; Ord. No. 2022-07-10, § 1, 7-25-2022)
4.2.2. - District Height Requirements
A.
The height designation establishes the maximum height in feet and stories for each district. For example, CX-3 has a maximum height of 45 feet or 3½ stories and CX-6 has a maximum height of 79 feet or 6 stories. Each district must include one of the following height designations.
•
3 45 feet / 3½ stories max
•
4 55 feet / 4½ stories max
•
5 67 feet / 5 stories max
•
6 79 feet / 6 stories max
•
7 91 feet / 7 stories max
•
8 103 feet / 8 stories max
B.
Detached houses, carriage houses, attached houses, townhouses, walk-up flats, commercial houses and single-story shopfronts have maximum height limits that may be lower than the district height limits (see Sec. 4.3.).
C.
Stacked flats, mixed use buildings and general buildings may exceed the district height limit by a maximum of 2 stories subject to approval through the conditional use process (see Sec. 13.4.).
D.

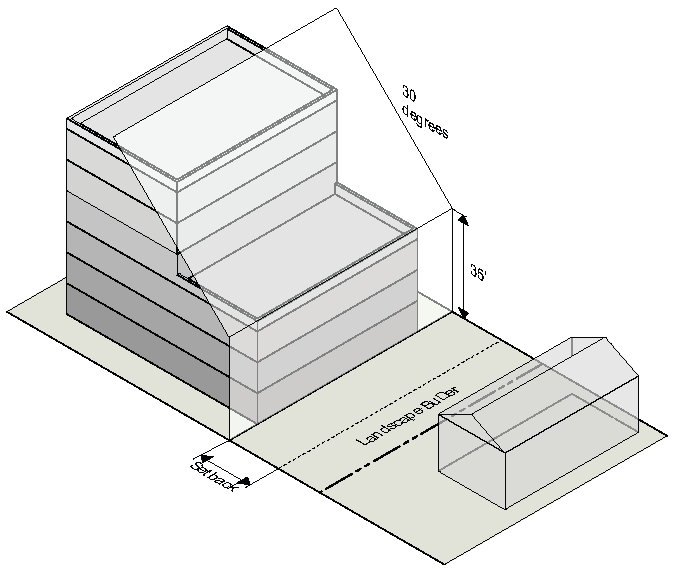

A neighborhood compatibility bulk plane may apply when abutting a protected district (see Sec. 4.4.).
E.
Dimensional Requirements as follows:
1.
For office and hotel uses only, a maximum of 8 stories/ 96 feet shall be allowed in the CC (Commercial Corridor) district located within the GA 400/Holcomb Bridge Road node area.
2.
Eight (8) foot sidewalks along all road frontages shall be installed with the project.
3.
The minimum streetscape area shall total fifteen (15) feet as approved by the Design Review Board.
4.
A height bonus of two (2) additional stories shall be approved by the Mayor and Council if the project includes a public benefit, with sole discretion by the Mayor and City Council regarding the public benefit.
(Ord. No. 2018-07-09, § 1, 7-9-2018)
4.2.3. - Application of Height Designations
During review of an application for rezoning, the following guidelines should be considered:
A.
The height of a rezoning request should be compatible with adjacent or abutting buildings and should be consistent with the Comprehensive Plan;
B.
Height in a RX- district must not exceed 5 stories;
C.
Height in a NX- or PV- district should not exceed 3½ stories; and
D.
Height in a CC- district should not exceed 4½ stories.
4.3.1. - Building Types Allowed by District
Building types (as defined in Sec. 2.1.) are allowed by district as shown below.
(Ord. No. 2019-07-22, §§ 1, 2, 7-8-2019; Ord. No. 2020-07-09, § 1, 7-13-2020; Ord. No. 2021-10-16, § 1, 10-12-2021)
Editor's note— Ord. No. 2021-10-16, § 1, adopted Oct. 12, 2021, amended § 4.3 by removing the restriction of requiring a minimum of two building types within the NX (Neighborhood Mixed Use) and CX (Commercial Mixed Use).
4.3.2. - Detached House
1. Lot and Placement
| Lot Dimensions | |
| Ⓐ Lot area (min) | 6,000 sf |
| Ⓐ Lot area, alley-loaded (min) | 4,000 sf |
| Ⓑ Lot width (min) | 50' |
| Ⓑ Lot width, alley-loaded (min) | 40' |
| Coverage | |
| Ⓒ Building coverage (max) | 60% |
| Principal Building Setbacks (1) | |
| Ⓓ Primary street (min) | 10' |
| Ⓔ Side street (min) | 10' |
| Ⓕ Side interior (min) | 5' |
| Ⓖ Rear (min) | 20' |
| Accessory Structure Setbacks (1) | |
| Ⓗ Primary street (min) | 40' |
| Ⓘ Side street (min) | 15' |
| Ⓙ Side interior (min) | 5' |
| Ⓚ Rear (min) | 10' |
| Ⓚ Alley | 4' or 20' min |
| (1) Additional setbacks apply in the PV- district when abutting Highway 92 (see Sec. 4.3.13). | |
2. Scale and Activation
| Building Height | |
| Ⓐ Principal building (max) | 35' / 2½ stories |
| Ⓑ Accessory structure (max) | 24' |
| Ground Floor Elevation | |
| Ⓒ 20' or less from front property line (min) | 2' |
| Ⓒ More than 20' from front property line (min) | n/a |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| Permitted Building Elements | |
| Ⓔ Front porch, stoop, balcony | Allowed |
| Vehicle Access | |
| Ⓕ Garage door restrictions | see Sec. 2.2.19 |
| Ⓖ Front yard parking restrictions | see Sec. 2.2.20 |
4.3.3. - Carriage House
1. Lot and Placement
| Lot Dimensions | |
| Ⓐ Lot area (min) | same as principal |
| Ⓑ Lot width (min) | same as principal |
| Ⓒ Lot depth (min) | 100' |
| Coverage | |
| Ⓓ Building coverage (max) | same as principal |
| Ⓔ Conditioned space (max) | 500 sf |
| Ⓕ Building separation (min) | 12' |
| Building Setbacks (1) | |
| Ⓖ Primary street (min) | 40' |
| Ⓗ Side street (min) | 15' |
| Ⓘ Side interior (min) | 5' |
| Ⓙ Rear (min) | 10' |
| Ⓙ Alley | 4' or 20' min |
| (1) Additional setbacks apply in the PV- district when abutting Highway 92 (see Sec. 4.3.13). | |

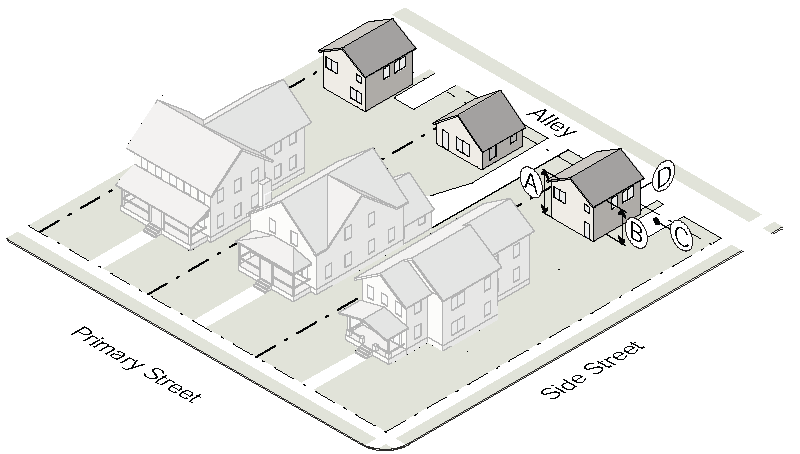

2. Scale and Activation
| Building Height | |
| Ⓐ Height (max) | 24' |
| Ⓑ Wall plate height (max) | 18' |
| Vehicle Access | |
| Ⓒ Additional on-site parking (min) | 1 space |
| Ⓓ Garage door restrictions | see Sec. 2.2.19 |
4.3.4. - Attached House

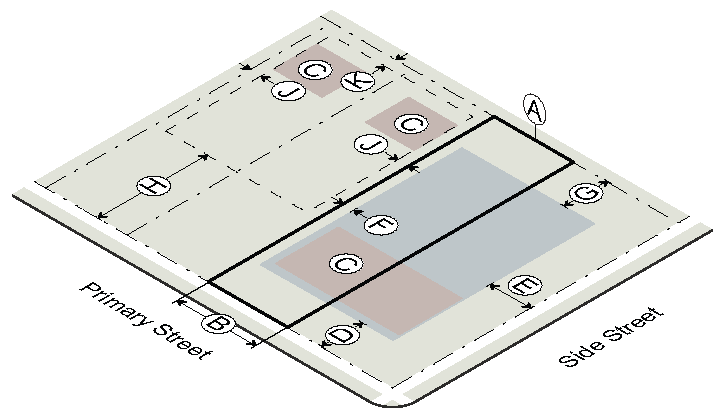

1. Lot and Placement
| Lot Dimensions | |
| Ⓐ Lot area per unit (min) | 5,500 sf |
| Ⓐ Lot area per unit, alley-loaded (min) | 3,000 sf |
| Ⓑ Lot width (min) | 50' |
| Ⓑ Lot width, alley-loaded (min) | 30' |
| Coverage | |
| Ⓒ Building coverage (max) | 70% |
| Principal Building Setbacks (1) | |
| Ⓓ Primary street (min) | 10' |
| Ⓔ Side street (min) | 10' |
| Ⓕ Side interior (min) | 5' |
| Ⓖ Rear (min) | 20' |
| Accessory Structure Setbacks (1) | |
| Ⓗ Primary street (min) | 40' |
| Ⓘ Side street (min) | 15' |
| Ⓙ Side interior (min) | 5' |
| Ⓚ Rear (min) | 10' |
| Ⓚ Alley | 4' or 20' min |
| (1) Additional setbacks apply in the PV- district when abutting Highway 92 (see Sec. 4.3.13). | |
2. Scale and Activation
| Building Height | |
| Ⓐ Principal building (max) | 35' / 2½ stories |
| Ⓑ Accessory structure (max) | 24' |
| Ground Floor Elevation | |
| Ⓒ 20' or less from front property line (min) | 2' |
| Ⓒ More than 20' from front property line (min) | n/a |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| Permitted Building Elements | |
| Ⓔ Front porch, stoop, balcony | Allowed |
| Vehicle Access | |
| Ⓕ Garage door restrictions | see Sec. 2.2.19 |
| Ⓖ Front yard parking restrictions | see Sec. 2.2.20 |
4.3.5. - Townhouse
1. Lot
| Site Dimensions | |
| Ⓐ Site area (min) | 6,000 sf |
| Ⓑ Site width (min) | 70' |
| Lot Dimensions | |
| Ⓒ Lot area (min) | 1,500 sf |
| Ⓓ Building coverage (max) | 75% |
| Ⓔ Unit width (min) | 20' |
| Site Parameters | |
| Ⓕ Landscape open space (min) | 40% |

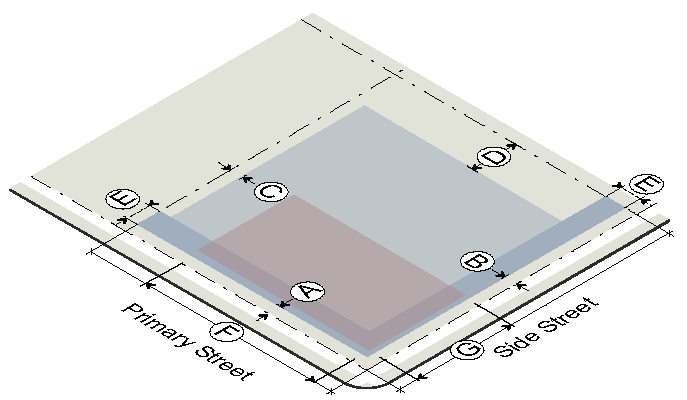

2. Placement
| Building Setbacks (1) | |
| Ⓐ Primary street - principal buildings (min) | 5' |
| Ⓑ Primary street - accessory structures (min) | 40' |
| Ⓒ Side street (min) | 5' |
| Ⓓ Side interior, end unit only (min) | 5' |
| Ⓔ Rear (min) | 20' |
| Ⓔ Alley | 4' or 20' min |
| Build-to Zone (BTZ) (1) | |
| Ⓕ Primary street (min/max) | |
| RX-, CX-, PV- | 5'/20' |
| CC- | 5'/85' |
| CH- | n/a |
| Ⓖ Building in primary street BTZ (min % of lot width) | 75% |
| Building Length | |
| Ⓗ Number of units permitted in any one row (max) |
4 Rear-Loaded
10' min building separation |
| (1) Additional setbacks apply in the PV- district when abutting Highway 92 (see Sec. 4.3.13). | |
3. Scale
| Building Height | |
| Ⓐ Principal building (max) | 45' / 3½ stories |
| Reduced height may be required when abutting a protected district (see Sec. 4.4.) | |
| Ⓑ Accessory structure (max) | 24' |
| Ground Floor Elevation | |
| Ⓒ Ground floor elevation (min) | 2' |
| Story Height | |
| Ⓓ Ground story height, floor to ceiling (min) | 9' |
| Ⓕ Upper story height, floor to ceiling (min) | 9' |
4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 20% |
| Ⓑ Upper story, primary/side street (min) | 20% |
| Ⓒ Blank wall area, primary/side street (max) | 30' |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street (each ground floor unit) | Required |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓔ Front porch, stoop, balcony, forecourt | Allowed |
| Vehicle Access | |
| Ⓕ Parking location options | see Sec. 2.2.19 |
| Ⓖ Front yard parking restrictions | see Sec. 2.2.20 |
(Ord. No. 2019-01-02, § 2, 1-14-2019; Ord. No. 2019-08-27, § 1, 8-26-2019; Ord. No. 2023-03-04, § 6, 3-27-2023; Ord. No. 2023-03-05, § 9, 3-27-23)
4.3.6. - Walk-Up Flat
1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 12,500 sf |
| Ⓑ Lot width (min) | 100' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 45% |
| Ⓓ Dwelling units per building (max) | 8 |

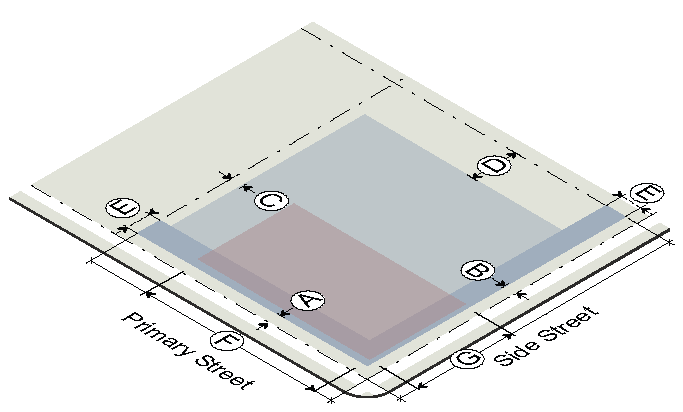

2. Placement
| Building Setbacks | |
| Ⓐ Primary street (min) | 5' |
| Ⓑ Side street (min) | 5' |
| Ⓒ Side interior (min) | 5' |
| Ⓓ Rear (min) | 20' |
| Ⓓ Alley (min) | 5' |
| Build-to Zone (BTZ) | |
| Ⓔ Primary/side street (min/max) | |
| RX-, CX- | 5'/20' |
| CC- | 5'/85' |
| CH- | n/a |
| Ⓕ Building in primary street BTZ (min % of lot width) | 75% |
| Ⓖ Building in side street BTZ (min % of lot width) | 35% |

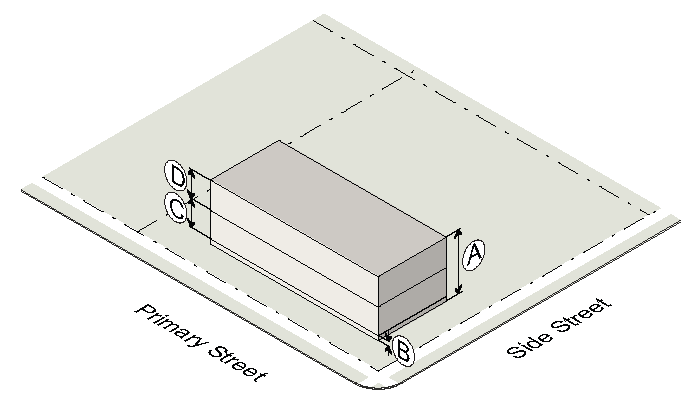

3. Scale
| Building Height | |
| Ⓐ Building height (max) | 35' / 2½ stories |
| Ground Floor Elevation | |
| Ⓑ Ground floor elevation (min) | 2' |
| Story Height | |
| Ⓒ Ground story height, floor to ceiling (min) | 9' |
| Ⓓ Upper story height, floor to ceiling (min) | 9' |

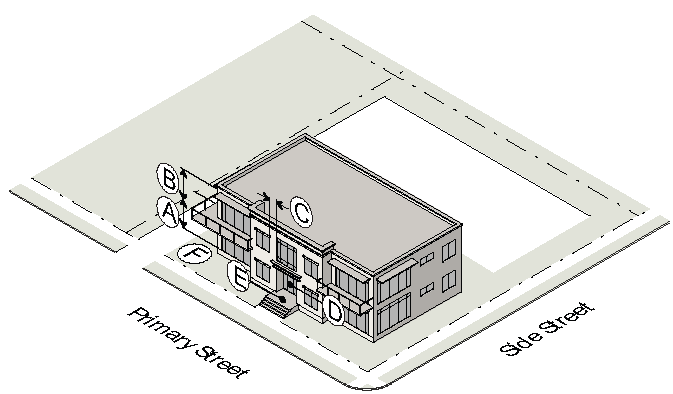

4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 20% |
| Ⓑ Upper story, primary/side street (min) | 20% |
| Ⓒ Blank wall area, primary/side street (max) | 30' |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓔ Front porch, stoop, balcony, awning, forecourt | Allowed |
| Ⓕ On-Site Parking | |
| RX-, CX-: No on-site parking between building and street | |
| CC-: Max 2 bays of on-site parking with single drive aisle between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 7, 3-27-2023)
4.3.7. - Stacked Flat

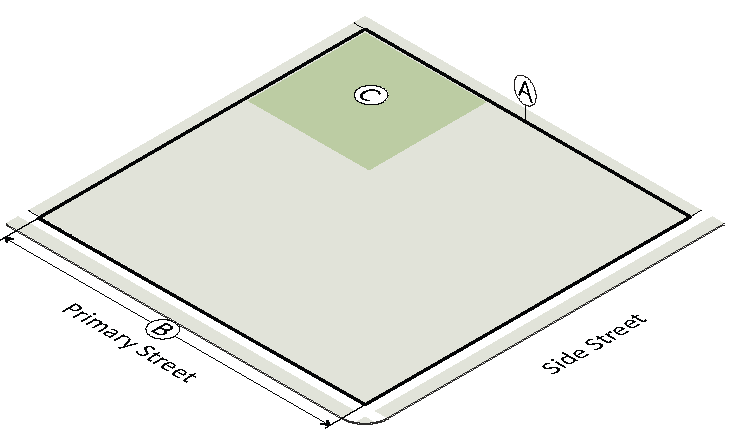

1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 17,500 sf |
| Ⓑ Lot width (min) | 100' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 45% |

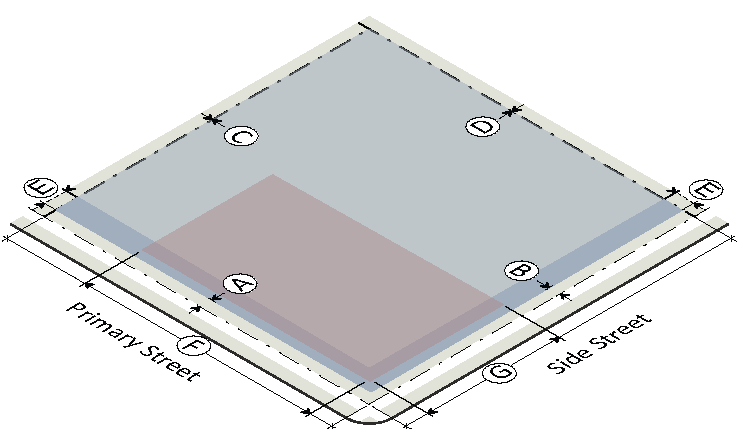

2. Placement
| Building Setbacks | |
| Ⓐ Primary street (min) | 5' |
| Ⓑ Side street (min) | 5' |
| Ⓒ Side interior (min) | 0' or 3' |
| Ⓓ Rear (min) | 0' or 3' |
| Ⓓ Alley (min) | 5' |
| Build-to Zone (BTZ) | |
| Ⓔ Primary/side street (min/max) | |
| RX-, CX- | 5'/20' |
| CC- | 5'/85' |
| CH- | n/a |
| Ⓕ Building in primary street BTZ (min % of lot width) | 75% |
| Ⓖ Building in side street BTZ (min % of lot width) | 35% |

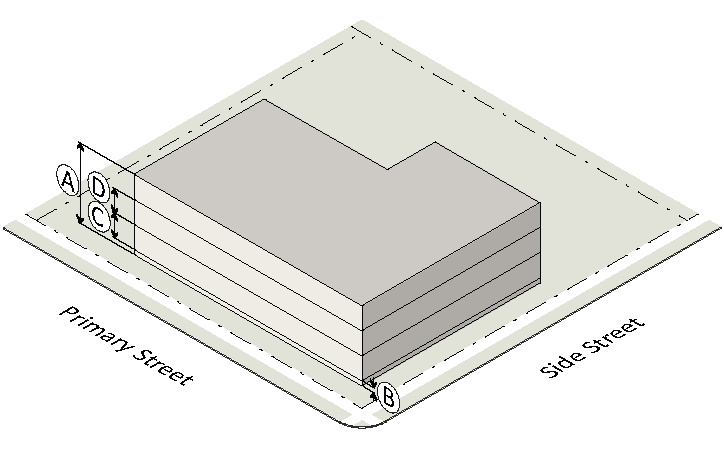

3. Scale
| Building Height | |
| Ⓐ Building height (max) |
Set by district
on Official Zoning Map |
| Ground Floor Elevation | |
| Ⓑ Ground floor elevation (min) | 2' |
| Story Height | |
| Ⓒ Ground story height, floor to ceiling (min) | 9' |
| Ⓓ Upper story height, floor to ceiling (min) | 9' |
4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 20% |
| Ⓑ Upper story, primary/side street (min) | 20% |
| Ⓒ Blank wall area, primary/side street (max) | 30' |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Ⓔ Entrance spacing along primary street (max) | 150' |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓕ Front porch, stoop, balcony, awning, forecourt | Allowed |
| Ⓖ On-Site Parking | |
| RX-, CX-: No on-site parking between building and street | |
| CC-: Max 2 bays of on-site parking with single drive aisle between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 8, 3-27-2023)
4.3.8. - Commercial House

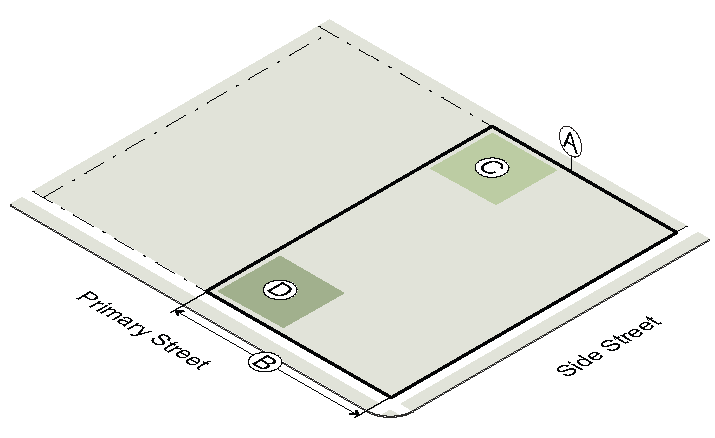

1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 5,000 sf |
| Ⓑ Lot width (min/max) | 50'/100' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 30% |
| Ⓓ Outdoor amenity space (min) | 10% |
2. Placement
| Principal Building Setbacks (1) | |
| Ⓐ Primary street (min) | 15' |
| Ⓑ Side street (min) | 15' |
| Ⓒ Side interior (min) | 5' |
| Ⓓ Rear (min) | 20' |
| Ⓓ Alley (min) | 5' |
| Accessory Structure Setbacks (1) | |
| Ⓔ Primary street (min) | 40' |
| Ⓕ Side street (min) | 15' |
| Ⓖ Side interior (min) | 5' |
| Ⓗ Rear (min) | 10' |
| Ⓗ Rear, alley (min) | 5' |
| (1) Additional setbacks apply in the PV- district when abutting Highway 92 (see Sec. 4.3.13). | |

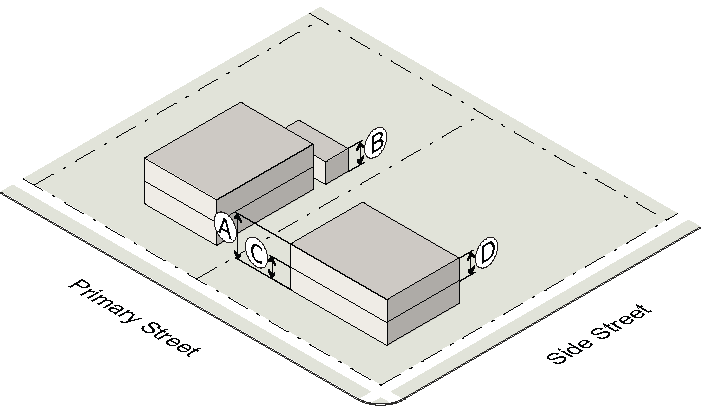

3. Scale
| Building Height | |
| Ⓐ Principal building (max) |
35' / 2½
stories |
| Ⓑ Accessory structure (max) | 24' |
| Story Height | |
| Ⓒ Ground story height, floor to ceiling (min) | 9' |
| Ⓓ Upper story height, floor to ceiling (min) | 9' |
| Building Mass | |
| Ⓔ NX- tenant footprint (max) | 15,000 sf |

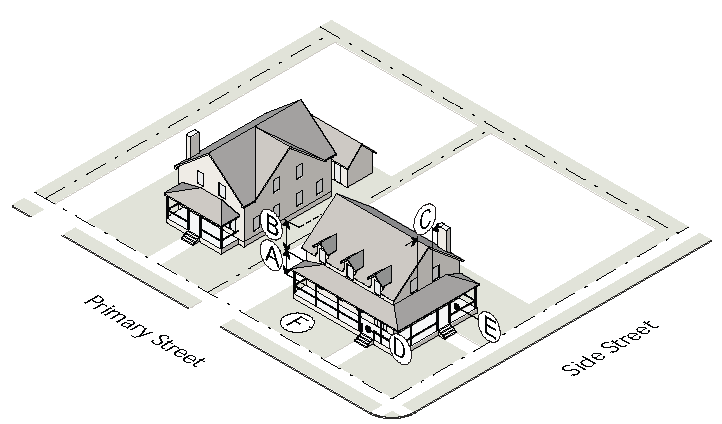

4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 20% |
| Ⓑ Upper story, primary/side street (min) | 20% |
| Ⓒ Blank wall area, primary/side street (max) | 30' |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓔ Front porch, stoop, balcony | Allowed |
| Ⓕ On-Site Parking | |
| CX-: No on-site parking between building and street | |
| NX- CC-: Max 2 bays of on-site parking with single drive aisle between building and street | |
| PV-: When abutting Highway 92, max 2 bays of on-site parking with single drive aisle between the building and required streetscape | |
| PV-: When abutting any other street, no on-site parking between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 9, 3-27-2023)
4.3.9. - Single-Story Shopfront

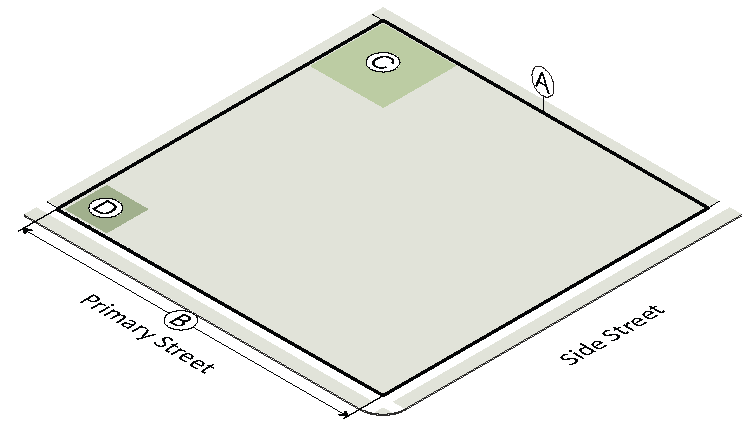

1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 5,000 sf |
| Ⓑ Lot width (min) | 50' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 35% |
| Ⓓ Outdoor amenity space (min) | 5% |

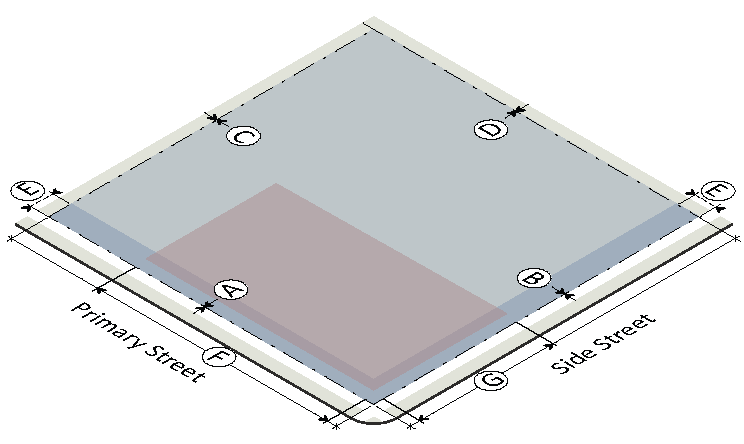

2. Placement
| Building Setbacks (1) | |
| Ⓐ Primary street (min) | 0' |
| Ⓑ Side street (min) | 0' |
| Ⓒ Side interior (min) | 0' or 3' |
| Ⓓ Rear (min) | 0' or 3' |
| Ⓓ Alley (min) | 5' |
| Build-to Zone (BTZ) (1) | |
| Ⓔ Primary/side street (min/max) | |
| SH- | 5'/10' |
| CX-, PV- | 0'/10' |
| NX-, CC- | 0'/85' |
| CH- | n/a |
| Ⓕ Building in primary street BTZ (min % of lot width) | 75% |
| CC- reduction | 60% |
| Ⓖ Building in side street BTZ (min % of lot width) | 35% |
| (1) Additional setbacks apply in a PV- district when abutting Highway 92 (see Sec. 4.3.13). | |

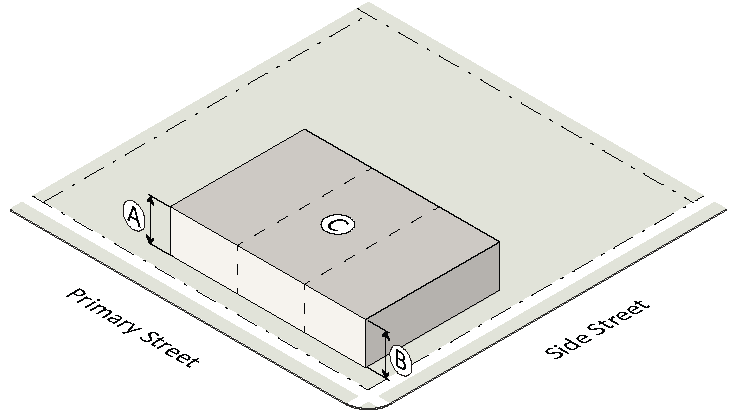

3. Scale
| Building Height | |
| Ⓐ Building height (max) | 24' / 1 story |
| Story Height | |
| Ⓑ Ground story height, floor to ceiling (min) | 13' |
| Building Mass | |
| Ⓒ NX- tenant footprint (max) | 15,000 sf |

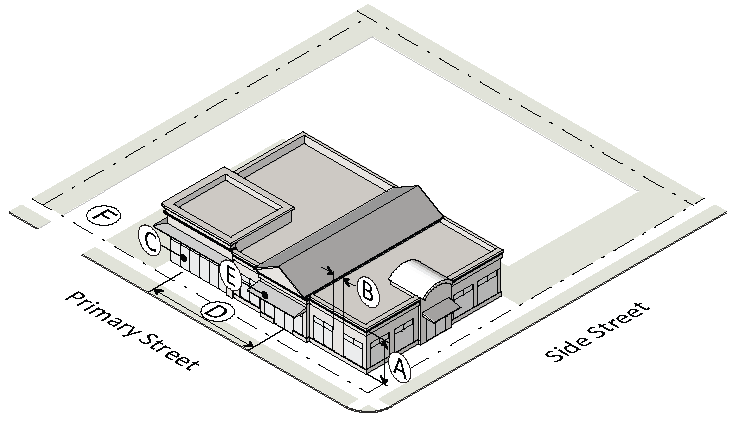

4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 60%/30% |
| Building footprint 20,000 sf or more | 30%/15% |
| Ⓑ Blank wall area, primary/side street (max) | 20'/40' |
| Building footprint 20,000 sf or more | 75' |
| Pedestrian Access | |
| Ⓒ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Ⓓ Entrance spacing along primary street (max) | 75' |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓔ Gallery, awning/canopy, forecourt | Allowed |
| Ⓕ On-Site Parking | |
| CX-, SH-: No on-site parking between building and street | |
| NX- CC-: Max 2 bays of on-site parking with single drive aisle between building and street | |
| PV-: When abutting Highway 92, max 2 bays of on-site parking with single drive aisle between the building and required streetscape | |
| PV-: When abutting any other street, no on-site parking between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 10, 3-27-2023)
4.3.10. - Mixed Use Building

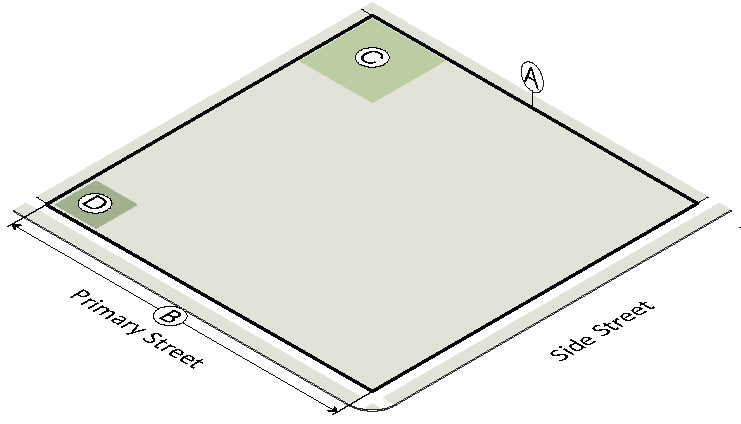

1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 5,000 sf |
| Ⓑ Lot width (min) | 50' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 35% |
| Ⓓ Outdoor amenity space (min) | 5% |

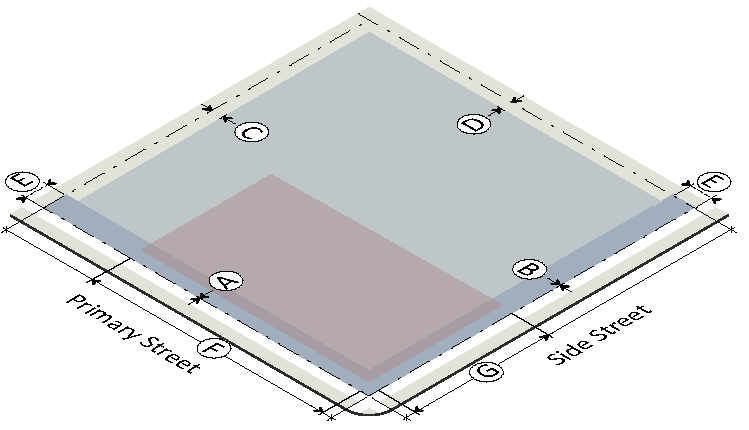

2. Placement
| Building Setbacks (1) | |
| Ⓐ Primary street (min) | 0' |
| Ⓑ Side street (min) | 0' |
| Ⓒ Side interior (min) | 0' or 3' |
| Ⓓ Rear (min) | 0' or 3' |
| Ⓓ Rear, alley (min) | 5' |
| Build-to Zone (BTZ) (1) | |
| Ⓔ Primary/side street (min/max) | |
| SH- | 0'/5' |
| CX-, PV- | 0'/10' |
| NX-, CC- | 0'/85' |
| CH- | n/a |
| Ⓕ Building in primary street BTZ (min % of lot width) | 75% |
| Ⓖ Building in side street BTZ (min % of lot width) | 35% |
| (1) Additional setbacks apply in a PV- district when abutting Highway 92 (see Sec. 4.3.13). | |

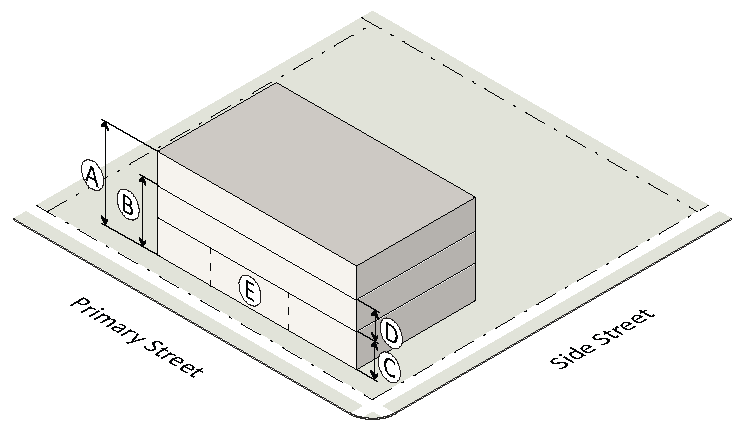

3. Scale
| Building Height | |
| Ⓐ Building height (max) |
Set by district
on Official Zoning Map |
| Ⓑ Building height (min) | 2 stories |
| Story Height | |
| Ⓒ Ground story height, floor to ceiling (min) | 13' |
| Ⓓ Upper story height, floor to ceiling (min) | 9' |
| Building Mass | |
| Ⓔ NX- tenant footprint (max) | 15,000 sf |
4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 60%/30% |
| Ⓑ Upper story, primary/side street (min) | 20% |
| Ⓒ Blank wall area, primary/side street (max) | 20'/40' |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Ⓔ Entrance spacing along primary street (max) | 75' |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓕ Balcony, gallery, awning/canopy, forecourt | Allowed |
| Ⓖ On-Site Parking | |
| CX-, SH-: No on-site parking between building and street | |
| NX- CC-: Max 2 bays of on-site parking with single drive aisle between building and street | |
| PV-: When abutting Highway 92, max 2 bays of on-site parking with single drive aisle between the building and required streetscape | |
| PV-: When abutting any other street, no on-site parking between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 11, 3-27-2023)
4.3.11. - General Building

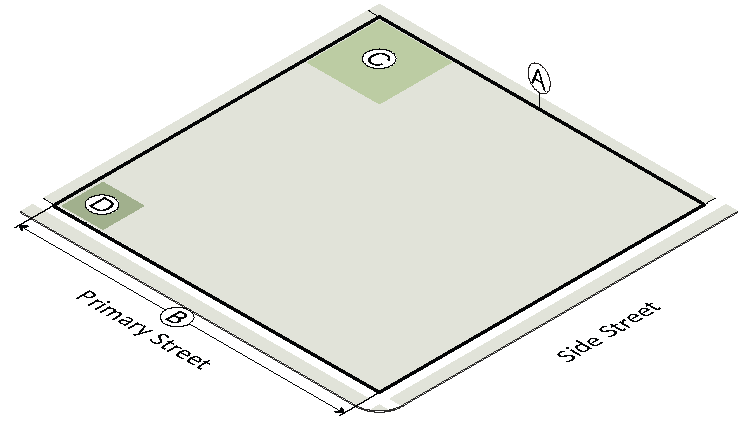

1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 5,000 sf |
| Ⓑ Lot width (min) | 50' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 35% |
| Ⓓ Outdoor amenity space (min) | 5% |

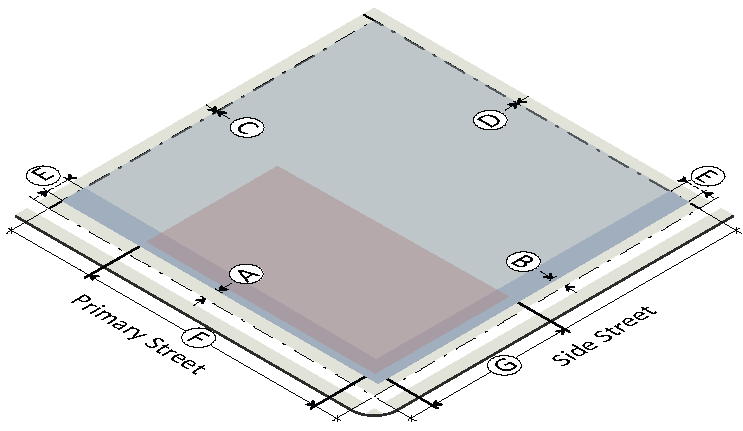

2. Placement
| Building Setbacks (1) | |
| Ⓐ Primary street (min) | 5' |
| Ⓑ Side street (min) | 5' |
| Ⓒ Side interior (min) | 0' or 3' |
| Ⓓ Rear (min) | 0' or 3' |
| Ⓓ Rear, alley (min) | 5' |
| Build-to Zone (BTZ) (1) | |
| Ⓔ Primary/side street (min/max) | |
| CX-, PV- | 5'/20' |
| NX-, CC- | 5'/85' |
| CH- | n/a |
| Ⓕ Building in primary street BTZ (min % of lot width) | 75% |
| CC- reduction | 60% |
| Ⓖ Building in side street BTZ (min % of lot width) | 35% |
| (1) Additional setbacks apply in a PV- district when abutting Highway 92 (see Sec. 4.3.13). | |

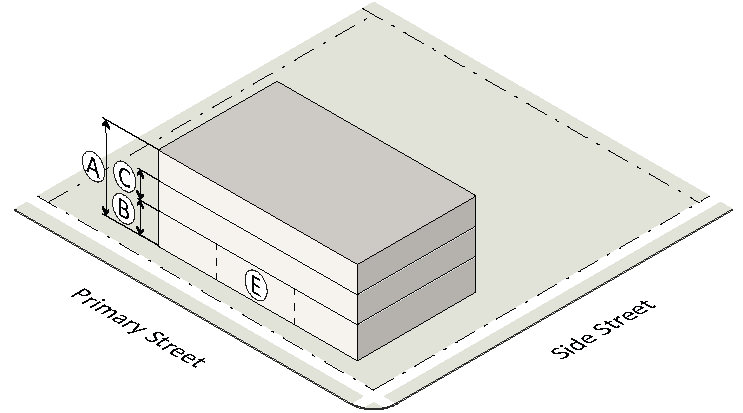

3. Scale
| Building Height | |
| Ⓐ Building height (max) |
Set by district
on Official Zoning Map |
| Story Height | |
| Ⓑ Ground story height, floor to ceiling (min) | 11' |
| Ⓒ Upper story height, floor to ceiling (min) | 9' |
| Building Mass | |
| Ⓓ NX- tenant footprint (max) | 15,000 sf |
4. Activation
| Transparency | |
| Ⓐ Ground story, primary/side street (min) | 40%/20% |
| Ⓑ Upper story, primary/side street (min) | 20% |
| Ⓒ Blank wall area, primary/side street (max) | 40'/50' |
| Pedestrian Access | |
| Ⓓ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Ⓔ Entrance spacing along primary street (max) | 125' |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓕ Balcony, gallery, awning/canopy, forecourt | Allowed |
| Ⓖ On-Site Parking | |
| CX-: No on-site parking between building and street | |
| NX- CC-: Max 2 bays of on-site parking with single drive aisle between building and street | |
| PV-: When abutting Highway 92, max 2 bays of on-site parking with single drive aisle between the building and required streetscape | |
| PV-: When abutting any other street, no on-site parking between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 12, 3-27-2023)
4.3.12. - Civic Building

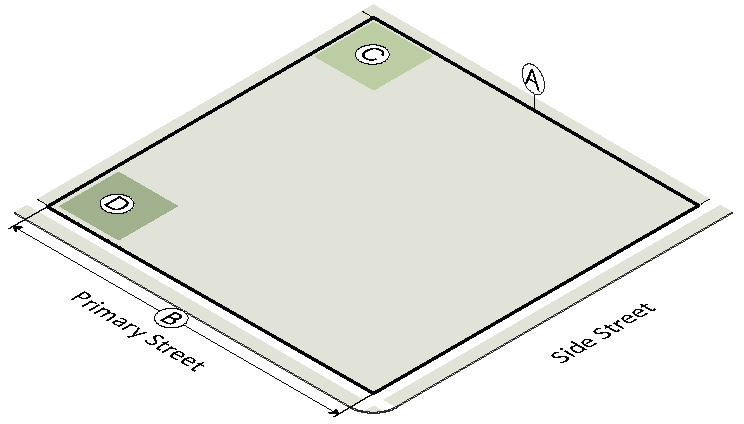

1. Lot
| Lot Dimensions | |
| Ⓐ Lot area (min) | 5,000 sf |
| Ⓑ Lot width (min) | 50' |
| Lot Parameters | |
| Ⓒ Landscape open space (min) | 30% |
| Ⓓ Outdoor amenity space (min) | 10% |

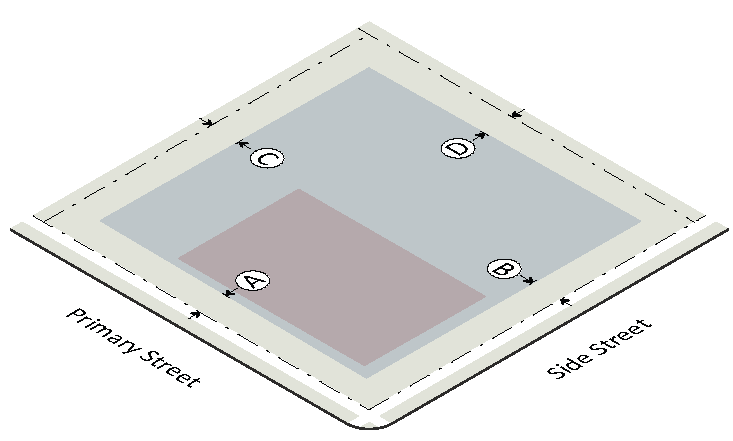

2. Placement
| Building Setbacks (1) | |
| Ⓐ Primary street (min) | 10' |
| Ⓑ Side street (min) | 10' |
| Ⓒ Side interior (min) | 10' |
| Ⓓ Rear (min) | 10' |
| Ⓓ Rear, alley (min) | 5' |
| (1) Additional setbacks apply in a PV- district when abutting Highway 92 (see Sec. 4.3.13). | |

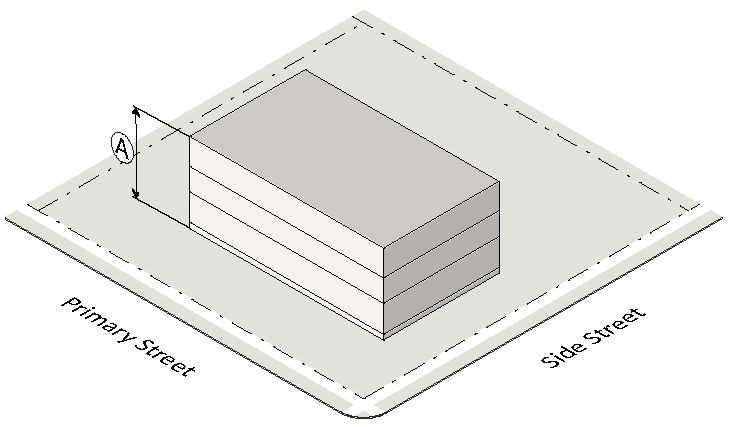

3. Scale
| Building Height | |
| Ⓐ Building height (max) |
Set by district
on Official Zoning Map |

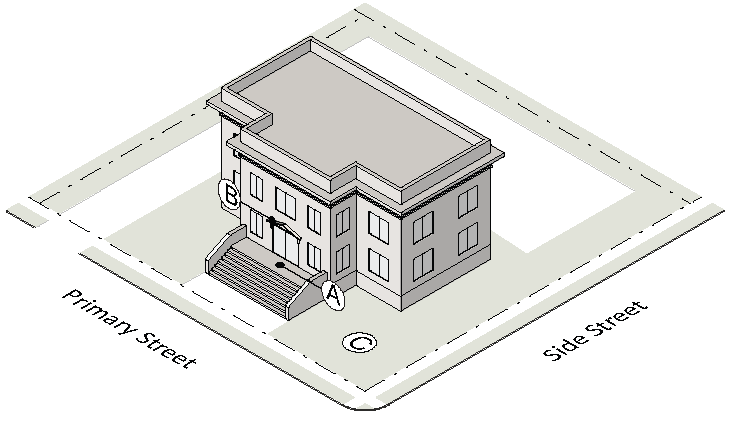

4. Activation
| Pedestrian Access | |
| Ⓐ Entrance facing primary street | Required |
| CH- exemption | n/a |
| Permitted Building Elements | |
| Ⓑ Balcony, gallery, awning/canopy, forecourt | Allowed |
| Ⓒ On-Site Parking | |
| CX-: No on-site parking between building and street | |
| NX- CC-: Max 2 bays of on-site parking with single drive aisle between building and street. | |
| PV-: When abutting Highway 92, max 2 bays of on-site parking with single drive aisle between the building and required streetscape | |
| PV-: When abutting any other street, no on-site parking between building and street | |
| CH-: No on-site parking restriction | |
(Ord. No. 2023-03-04, § 13, 3-27-2023)
4.3.13. - Additional Rules in the PV- District
A.
The following requirements to apply in the PV- district when abutting Highway 92.

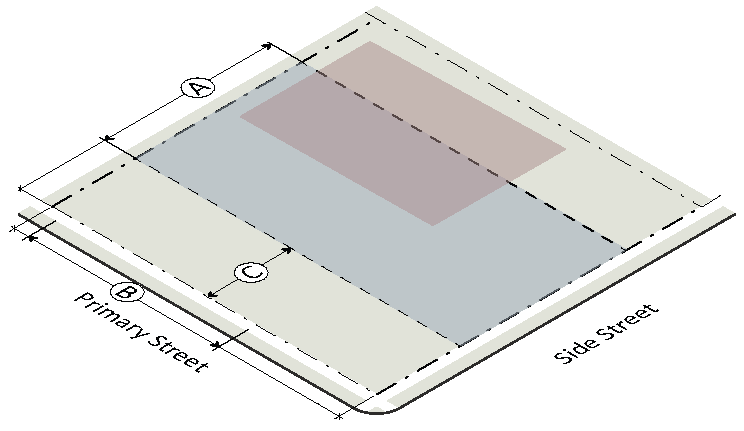

| Additional Setbacks | |
| Ⓐ Building setback from Hwy 92 (min/max) | 50'/150' |
| Ⓑ Building in Hwy 92 street BTZ (min % of lot width) | 60% |
| Ⓒ Parking setback from Hwy 92 (min) | 50' |
| Streetscape | |
| Ⓓ Depth (min) | 40' |
| Ⓔ Fence height | 3.5' |
| Ⓕ Shade trees (min per 100') | 4 |
| Ⓖ Shrubs (min per 100') | 15 |
| Ⓗ Optional Berm (min) | 2.5' |
| On-Site Parking | |
| Ⓘ Parking (max) | 60' |
| Ⓙ Sidewalk (min) | 10' |
| Streetscape Notes | |
| 1. Required streetscaping must be provided along the entire property frontage, excluding breaks for pedestrians, bicycles and driveways, measured from the property line. | |
| 2. Streetscaping must comply with the Parkway Village Design Guidelines. | |
| Berm Notes | |
| 1. An optional earth berm a minimum of 2.5 feet higher than the finished elevation of the parking area, planted with 5 shrubs for every 35 linear feet of street frontage may be installed. | |
| 2. The berm must contain a rounded crown suitable for planting, and a stabilized side slope of no greater than 3:1. | |
| 3. The installation of a berm does not alter the streets-cape width, fence or tree planting requirements. | |
B.
Parkway Village Plan Filing Requirement. A Parkway Village plan must be filed in accordance with the requirements in Sec. 13.4.
C.
Non-Single-Family—Small Tract Requirement. A non-single-family use on a tract less than 7 acres in size or having less than 400 feet of road frontage may be developed in accordance with applicable development standards of this UDC, and the following:
1.
A petition by the proposed owner must be filed with the Zoning Director and presented to the Mayor and City Council for consideration as a small tract development. Specifically, the hearing must follow required notice of public hearing procedures specified in Sec. 13.4. Petitioners must present sufficient evidence to:
a.
Verify that the property is configured in such a manner that it is not physically feasible to combine and develop the small tract of land with abutting property to create a larger tract of land, so that even if a parcel of land 7 acres in size with 400 feet of road frontage cannot be assembled, the resulting assemblage of the tract with abutting property will result in the largest tract which is feasible to combine, or
b.
Present a site plan of the proposed improvements and a tree protection plan together with sufficient information that the development of the tract as proposed will result in a better land use than if the small tract were combined with abutting property;
2.
Upon a finding by the Mayor and City Council that (i) the tract cannot feasibly be combined with abutting property to create a larger tract of land, or (ii) development of the tract as proposed will result in a better land use than if the small tract were combined with abutting property, the petitioner will receive approval to develop in accordance with this section subject to such reasonable conditions as may be imposed by Council, and will be entitled to develop as a small tract development.
3.
Where the small tract abuts an existing or approved village consisting of non-single-family uses, the property to be developed must mimic the architectural features of similar uses of the adjacent villages;
4.
Small tracts shall provide the required streetscape established in this UDC;
5.
An area consisting of a minimum of 15 percent of the tract size shall be dedicated to required buffers (the area required for a streetscape shall not be included);
6.
Rear buffers adjacent to the perimeter of the district shall not be less than 40 feet;
7.
Use of the property shall be limited to those uses specified for the Parkway Village District.
D.
Adaptive Reuse Administrative Approval.
1.
An adaptive reuse of existing structures may be administratively approved by the Zoning Director, provided changes are allowed to occur to the front exterior building elevation which does not increase the volume of the existing structure, the structure is not expanded to the rear beyond an additional 50 percent of floor area, all vehicle parking is confined to the rear yard and one side yard, the project is developed in accordance with the streetscape requirements (berms must be given reasonable consideration but are not required), with a rear buffer of no less than 40 feet.
2.
Adaptive reuse administrative approval is not permitted for service stations, retail establishments, restaurants, grills, and similar eating and/or drinking establishments, including drive-ins, and nursery schools, kindergartens, and day care centers.
4.4.1. - Applicability
Neighborhood compatibility measures are required when indicated in the table in Sec. 10.2.3.
4.4.2. - Landscape Buffers
A landscape buffers is required when indicated in the table in Sec. 10.2.3.
4.4.3. - Building Setbacks
Where a neighborhood compatibility buffer applies, all building and structure setbacks are measured from the interior edge of the landscape buffer. In no case can a building be placed less than 10 feet from the interior edge of the buffer.
4.4.4. - Bulk Plane
A.
A building must not extend into a 30-degree angular plane projecting over the subject property measured from a height of 35 feet at the side interior or rear setback line. Setbacks are measured from the interior edge of the landscape buffer.
B.
The bulk plane ends at any public street (not including an alley) or 150 feet from the protected district property line, whichever is less.
4.5.1. - Use Categories
A.
In order to regulate a variety of similar uses, use categorizes have been established for principal uses. Use definitions and limited use standards for both principal and accessory uses are specified in Article 9. Uses not listed may be interpreted by the Zoning Director under Sec. 9.1.2.
B.
Principal and accessory uses allowed by district are shown in the table below.
4.5.2. - Use Table
A.
Permitted Use (P). Indicates a use is permitted in the respective district. The use is also subject to all other applicable requirements of this UDC.
B.
Limited Use (L). Indicates a use is permitted in the respective district, subject to a use standard found in the right-hand column of the use table. The use is also subject to all other applicable requirements of this UDC.
C.
Conditional Use (C). Indicates a use may be permitted in the respective district only where approved by the City Council in accordance with Sec. 13.4. Conditional uses are subject to all other applicable requirements of this UDC, including any applicable use standards, except where the use standards are expressly modified by the Mayor and City Council as part of the conditional use permit approval.
D.
Use Not Permitted. A "—" in a cell indicates that a use is not permitted in the respective district.
|
Use Category
Specific Use | CORRIDORS & NODES |
Definition/
Standards | ||||||
|---|---|---|---|---|---|---|---|---|
| RX- | NX- | CX- | SH- | CC- | PV- | CH- | ||
| Open Uses | ||||||||
| All agriculture, as listed below: | 9.2.1.A. | |||||||
| Community garden | L | L | L | — | L | L | L | 9.2.1.B. |
| Timber harvesting | — | — | — | — | — | — | — | 9.2.1.C. |
| Urban farm | — | — | L | — | L | L | L | 9.2.1.D. |
| Residential Uses | ||||||||
| All household living, as listed below: | 9.3.1.A. | |||||||
| Single-family | C | C | P | — | — | P | — | 9.3.1.B. |
| Two-family | — | — | C | — | — | P | — | 9.3.1.C. |
| Townhouse | P | C | C | — | C | P | — | 9.3.1.D. |
| Multi-family | C | C | C | C | C | C | C | 9.3.1.E. |
| Manufactured home | — | — | — | — | — | — | — | 9.3.1.F. |
| All group living, as listed below: | 9.3.2.A. | |||||||
| Continuing care retirement community | L | — | L | — | L | L | L | 9.3.2.B. |
| Group home | L | L | L | L | L | L | L | 9.3.2.C. |
| Hospice | P | C | P | P | P | P | P | 9.3.2.D. |
| Institutional residential (up to 18 residents) | P | P | P | P | P | P | P | 9.3.2.E. |
| Institutional residential (more than 18 residents) | C | P | P | P | P | P | P | 9.3.2.E. |
| Monastery, convent | C | — | P | — | P | P | P | 9.3.2.F. |
| Rooming house | — | — | — | — | — | — | — | 9.3.2.G. |
| All social service and educational | — | — | — | — | — | — | — | 9.3.3.A. |
| Public/Institutional Uses | ||||||||
| All civic, as listed below: | 9.4.1.A. | |||||||
| College, university | — | — | P | P | P | P | P | 9.4.1.B. |
| Club or lodge, nonprofit | — | P | P | P | P | P | P | 9.4.1.C. |
| Museum, library | — | P | P | P | P | P | P | 9.4.1.D. |
| Nonprofit service organization | — | P | P | P | P | P | P | 9.4.1.E. |
| Place of worship | — | — | P | — | P | P | P | 9.4.1.F. |
| Public use | P | P | P | P | P | P | P | 9.4.1.G. |
| School, private (K-12) | — | — | P | C | P | P | P | 9.4.1.H. |
| School, public (K-12) | — | — | P | C | P | P | P | 9.4.1.I. |
| School, special | — | — | P | C | P | P | P | 9.4.1.J. |
| All parks and open space, as listed below: | 9.4.2.A. | |||||||
| Cemetery | — | — | L | — | L | L | L | 9.4.2.B. |
| Community recreation | L | L | L | — | L | L | L | 9.4.2.C. |
| Conservation area | P | P | P | P | P | P | P | 9.4.2.D. |
| Golf course | — | — | — | — | — | — | — | 9.4.2.E. |
| Park, recreation field (up to 2 acres) | P | P | P | P | P | P | P | 9.4.2.F. |
| Park, recreation field (more than 2 acres) | — | — | — | — | — | — | — | 9.4.2.F. |
| Reservoir, water supply, water well | P | P | P | P | P | P | P | 9.4.2.G. |
| All major utilities, except as listed below | — | — | — | — | — | — | — | 9.4.3.A. |
| Telecommunication tower | — | — | C | — | L | — | L | 9.4.3.B. |
| All minor utilities | L | L | L | L | L | L | L | 9.4.4.A./B. |
| Commercial Uses | ||||||||
| All day care, as listed below: | 9.5.1.A. | |||||||
| Adult care center (up to 4 aging adults) | L | L | L | L | L | L | L | 9.5.1.B. |
| Adult care center (more than 4 aging adults) | C | P | P | P | P | P | P | 9.5.1.B. |
| Day care center | L | L | L | L | L | L | L | 9.5.1.C. |
| All indoor recreation, except as listed below: | — | — | P | C | P | P | P | 9.5.2.A. |
| Adult business | — | — | — | — | — | — | — | 9.5.2.B. |
| Gym, health spa, yoga studio | — | P | P | P | P | P | P | 9.5.2.C. |
| School of the arts | — | P | P | P | P | P | P | 9.5.2.D. |
| Shooting range | — | — | P | — | P | P | P | 9.5.2.E. |
| Special event facility | — | C | C | — | C | C | P | 9.5.2.F. |
| All medical | — | P | P | P | P | P | P | 9.5.3.A. |
| All office, except as listed below: | — | P | P | P | P | P | P | 9.5.4.A. |
| Bail bonds | — | — | P | — | P | — | P | 9.5.4.B. |
| Call center | — | — | P | — | P | P | P | 9.5.4.C. |
| Radio, TV station, recording studio | — | — | P | — | P | — | P | 9.5.4.D. |
| Trade, vocational, business school | — | — | P | — | P | P | P | 9.5.4.E. |
| All outdoor recreation, except as listed below: | — | — | C | — | C | C | P | 9.5.5.A. |
| Golf driving range | — | — | C | — | C | C | P | 9.5.5.B. |
| Riding stable | — | — | — | — | — | — | — | 9.5.5.C. |
| Rowing club, boat rental | — | — | P | — | P | — | P | 9.5.5.D. |
| All overnight lodging, as listed below: | 9.5.6.A. | |||||||
| Bed and breakfast (up to 6 rooms) | P | P | P | P | P | P | P | 9.5.6.B. |
| Boutique hotel (7 to 30 rooms) | — | C | P | P | P | P | P | 9.5.6.C. |
| Hotel/motel (more than 30 rooms) | — | — | P | P | P | P | P | 9.5.6.E. |
| All parking, as listed below: | 9.5.7.A. | |||||||
| Commercial parking | — | — | C | — | C | — | L | 9.5.7.B. |
| Remote parking | L | L | L | — | L | L | L | 9.5.7.C. |
| All personal service, except as listed below: | — | P | P | P | P | P | P | 9.5.8.A./.D. |
| Animal care (indoor) | — | P | P | P | P | P | P | 9.5.8.B. |
| Animal care (outdoor) | — | — | — | — | — | — | — | 9.5.8.C. |
| Cleaning establishment, laundry drop-off facility, laundromat, washeteria | — | — | — | — | — | — | P | 9.5.8. A |
| Licensed Massage Establishment | — | C | C | C | C | C | C | 9.5.8 A |
| Palmist, psychic, medium, fortune telling | — | — | — | — | — | — | — | 9.5.8. A |
| Tattoo parlor or body piercing | — | — | — | — | — | — | C | 9.5.8. A |
| All restaurants | — | P | P | P | P | P | P | 9.5.9.A./.C. |
| All retail sales, except as listed below: | — | P | P | P | P | L | P | 9.5.10.A./.G. |
| Art gallery | L | P | P | P | P | P | P | 9.5.10.B. |
| Cigar lounge | — | — | P | P | P | P | P | |
| Convenience store w/ gas pumps | — | — | C | — | C | C | C | 9.5.10.C. |
| Convenience store w/o gas pumps | — | P | P | P | P | P | P | 9.5.10.D. |
| CBD shop | — | — | — | — | — | — | C | 9.5.10. A |
| Dispensary | — | — | — | — | — | — | C | 9.5.10.F |
| Pawnshop | — | — | — | — | — | — | — | 9.5.10.. G |
| Title loans, check cashing | — | — | — | — | — | — | — | 9.5.10.. H |
| Vape shop | — | — | — | — | — | — | — | 9.5.10. I |
| All vehicle sales/rental, as listed below: | 9.5.11.A. | |||||||
| Vehicle rental | — | — | L | — | L | — | L | 9.5.11.B. |
| Vehicle sales and leasing, new | — | — | — | — | L | — | L | 9.5.11.C. |
| Vehicle sales and leasing, used | — | — | — | — | — | — | — | 9.5.11.D. |
| Vehicle storage | — | — | — | C | C | — | C | 9.5.11.E. |
| Industrial Uses | ||||||||
| All light industrial, except as listed below: | — | — | — | — | — | — | — | 9.6.1.A. |
| Contractors storage | — | — | — | — | — | — | L | 9.6.1.C. |
| Detention center, jail, prison (private) | — | — | — | — | — | — | — | 9.6.1.D. |
| Distillery | — | C | C | C | C | C | C | 9.6.1.E. |
| Microbrewery | — | L | L | L | L | L | L | 9.6.1.F. |
| Winery | — | L | L | L | L | L | L | 9.6.1.G. |
| All light manufacturing | — | — | C | — | C | — | P | 9.6.2.A. |
| All research and development | — | — | P | C | P | — | P | 9.6.3.A. |
| All self-service storage | — | — | — | — | — | — | — | 9.6.4.A. |
| All vehicle service and repair, as listed below: | 9.6.5.A. | |||||||
| Car wash | — | — | — | — | — | — | — | 9.6.5.B. |
| Vehicle repair, minor | — | — | L | L | L | — | L | 9.6.5.C. |
| Vehicle repair, major | — | — | L | L | L | — | L | 9.6.5.D. |
| Vehicle repair, commercial vehicle | — | — | — | — | — | — | — | 9.6.5.E. |
| All warehouse and distribution | — | — | — | — | — | — | — | 9.6.6.A. |
| Accessory Uses | ||||||||
| Accessory uses not otherwise listed below, as determined by the Zoning Director: | P | P | P | P | P | P | P | Sec. 9.1.3 |
| Accessory apartment, attached | — | — | — | — | — | C | — | Sec. 9.7.1 |
| Carriage house (existing lot) | — | — | — | — | — | C | — | Sec. 9.7.2 |
| Carriage house (lot subdivided after effective date of this code) | — | — | — | — | — | C | — | Sec. 9.7.2 |
| Car wash | — | — | — | — | L | — | L | Sec. 9.7.3 |
| Donation bin | L | L | L | — | L | L | L | Sec. 9.7.4 |
| Drive-thru facility | — | C | L | C | L | L | L | Sec. 9.7.5 |
| Family day care home | L | L | L | L | L | L | L | Sec. 9.7.6 |
| Farmers' Market | — | L | L | — | L | L | — | Sec. 9.7.7 |
| Garden | L | L | L | L | L | L | L | Sec. 9.7.8 |
| Greenhouse, non-commercial | P | P | P | P | P | P | P | Sec. 9.7.9 |
| Helicopter landing area | — | — | C | — | C | — | C | Sec. 9.7.10 |
| Home occupation | L | L | L | L | L | L | L | Sec. 9.7.11 |
| Horse stable, non-commercial | — | — | — | — | — | — | — | Sec. 9.7.12 |
| Kennel, hobby | — | — | — | — | — | — | — | Sec. 9.7.13 |
| Livestock raising | C | C | C | — | C | C | C | Sec. 9.7.14 |
| Outdoor dining | — | L | L | L | L | L | L | Sec. 9.7.15 |
| Outdoor display | — | L | L | L | L | L | L | Sec. 9.7.16 |
| Outdoor kitchen | L | L | L | L | L | L | L | Sec. 9.7.17 |
| Outdoor storage, limited | — | — | L | — | L | L | L | Sec. 9.7.18 |
| Outdoor storage, general | — | — | — | — | — | — | L | Sec. 9.7.19 |
| Outdoor rental of construction and landscaping equipment | — | — | — | — | — | C | — | Sec. 9.7.20 |
| Parking, on-site | P | P | P | P | P | P | P | Sec. 9.7.21 |
| Poultry raising | L | L | L | — | L | L | L | Sec. 9.7.22 |
| Solar panels, wind turbines, rainwater collection systems | P | P | P | P | P | P | P | Sec. 9.7.24 |
| Swimming pool | L | L | L | L | L | L | L | Sec. 9.7.25 |
Key: P = Permitted Use
L = Limited Use
C = Conditional Use
— = Use Not Permitted
(Ord. No. 2018-01-01, § 5, 1-22-2018; Ord. No. 2019-01-02, §§ 3, 4, 1-14-2019; Ord. No. 2019-07-22, §§ 3, 4, 7-8-2019; Ord. No. 2020-03-01, § 4, 3-9-2020; Ord. No. 2020-07-14, § 1, 7-13-2020; Ord. No. 2020-07-15, § 1, 7-13-2020; Ord. No. 2020-07-16, § 1, 7-13-2020; Ord. No. 2021-10-17, § 1, 10-12-2021; Ord. No. 2022-05-03, § 1, 5-9-2022; Ord. No. 2022-07-07, § 2, 7-11-2022; Ord. No. 2023-02-01, § 1, 2-13-2023; Ord. No. 2023-10-16, § 1, 10-10-2023; Ord. No. 2024-02-01, § 1, 2-12-2024)
