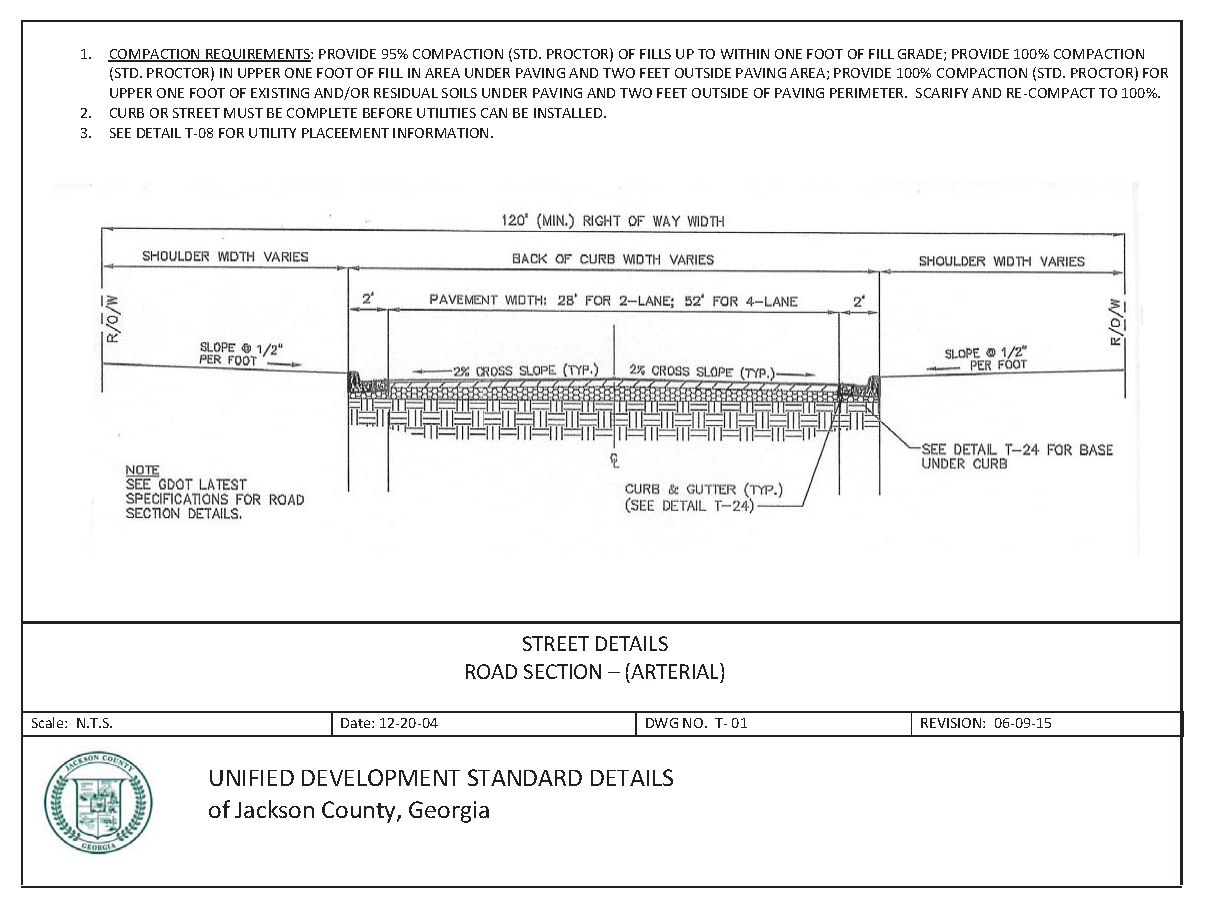

T-01  Street Details: Road Section—Arterial

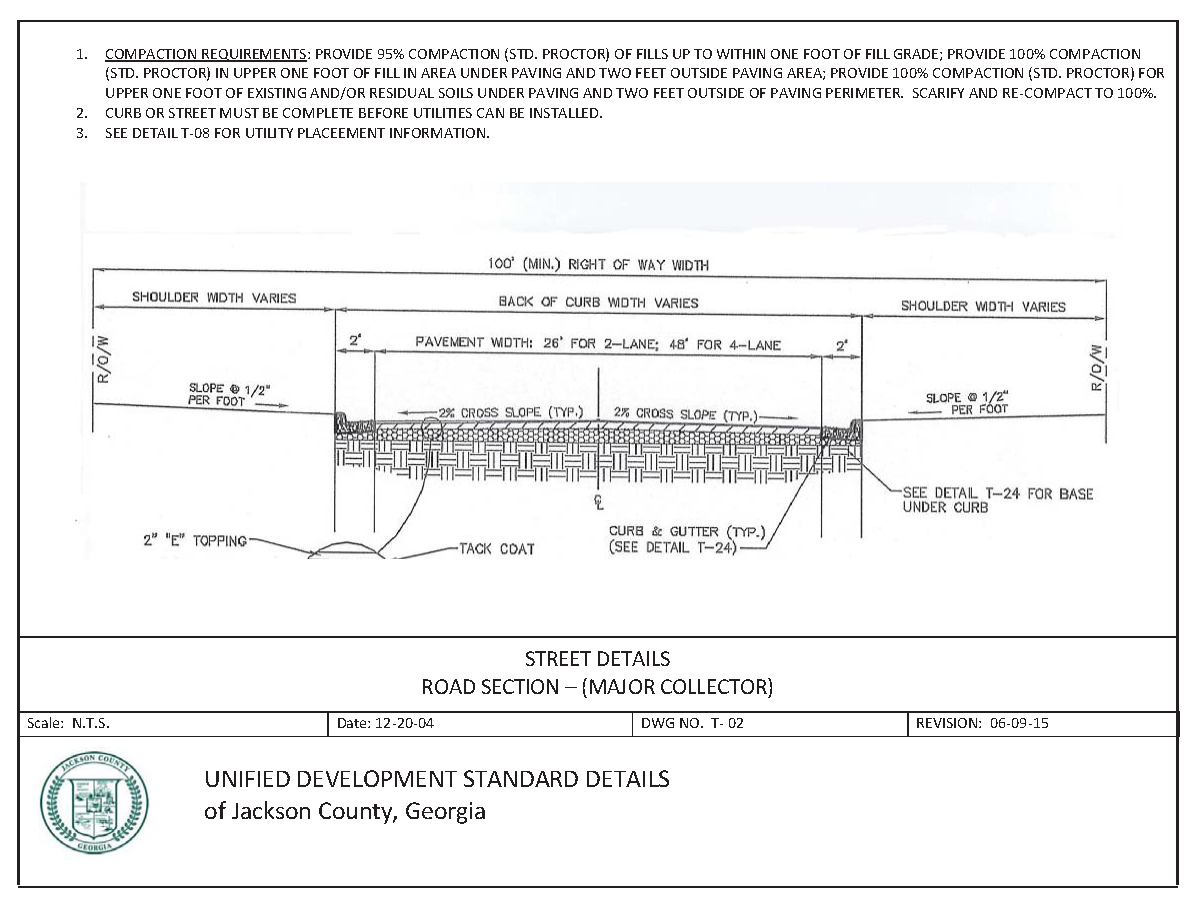

T-02  Street Details: Road Section—Major Collector

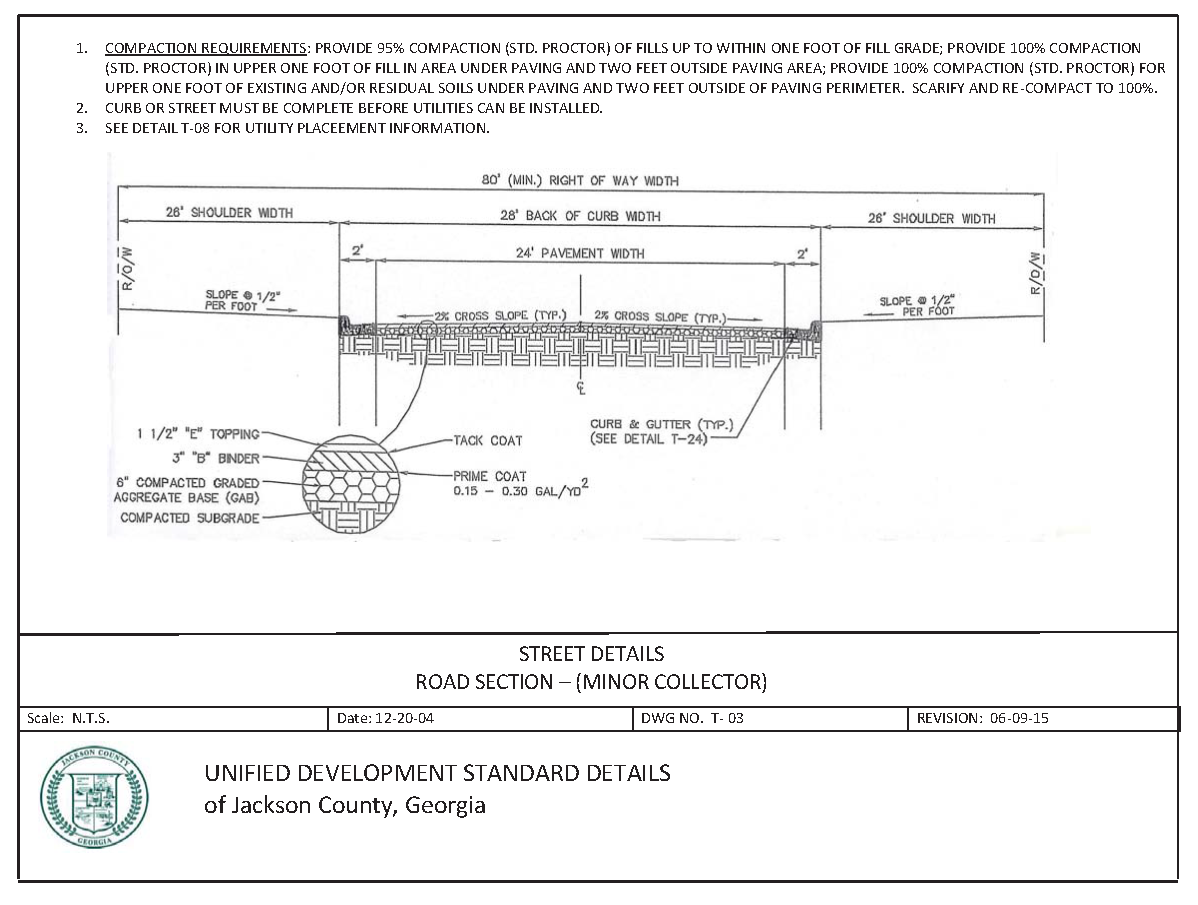

T-03  Street Details: Road Section—Minor Collector

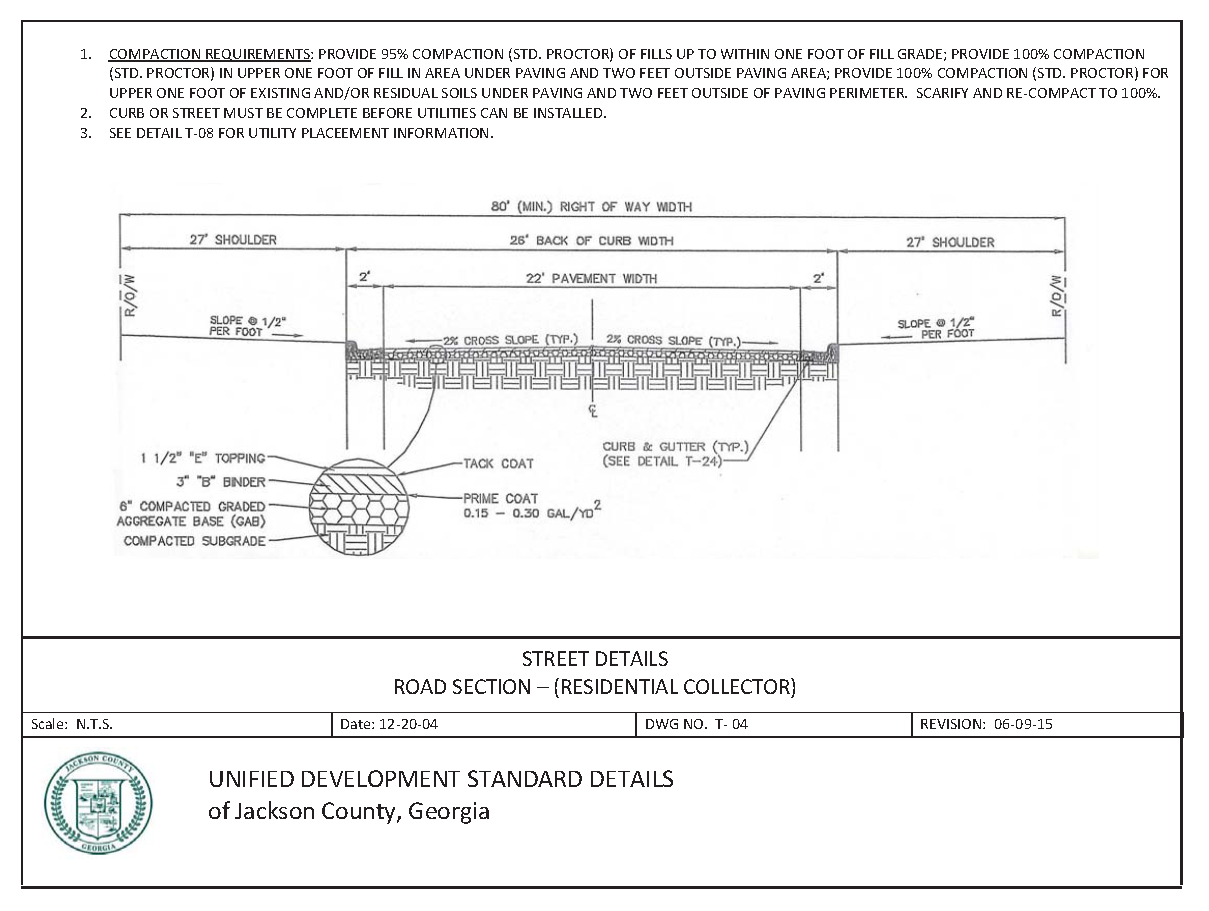

T-04  Street Details: Road Section—Residential Collector

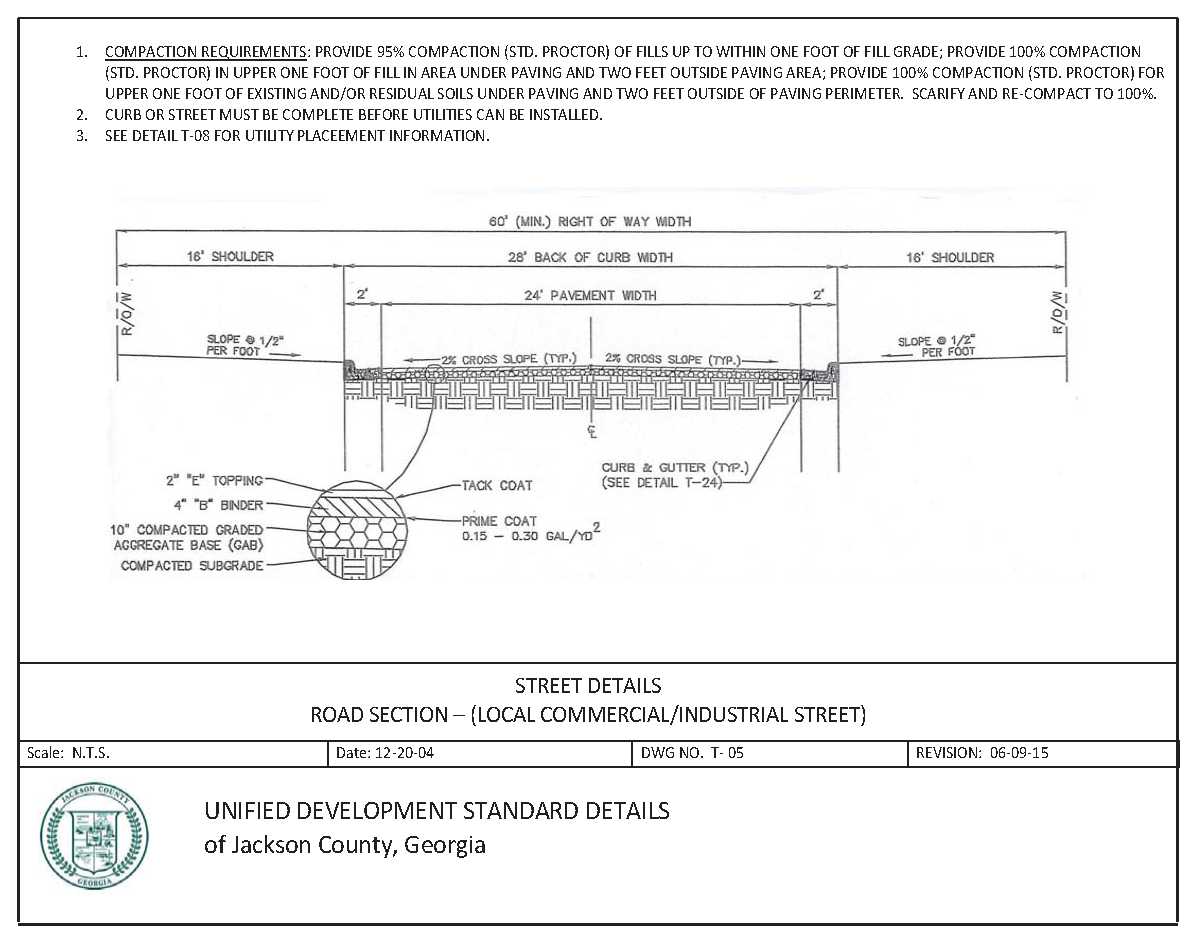

T-05  Street Details: Road Section—Local Commercial/Industrial Street

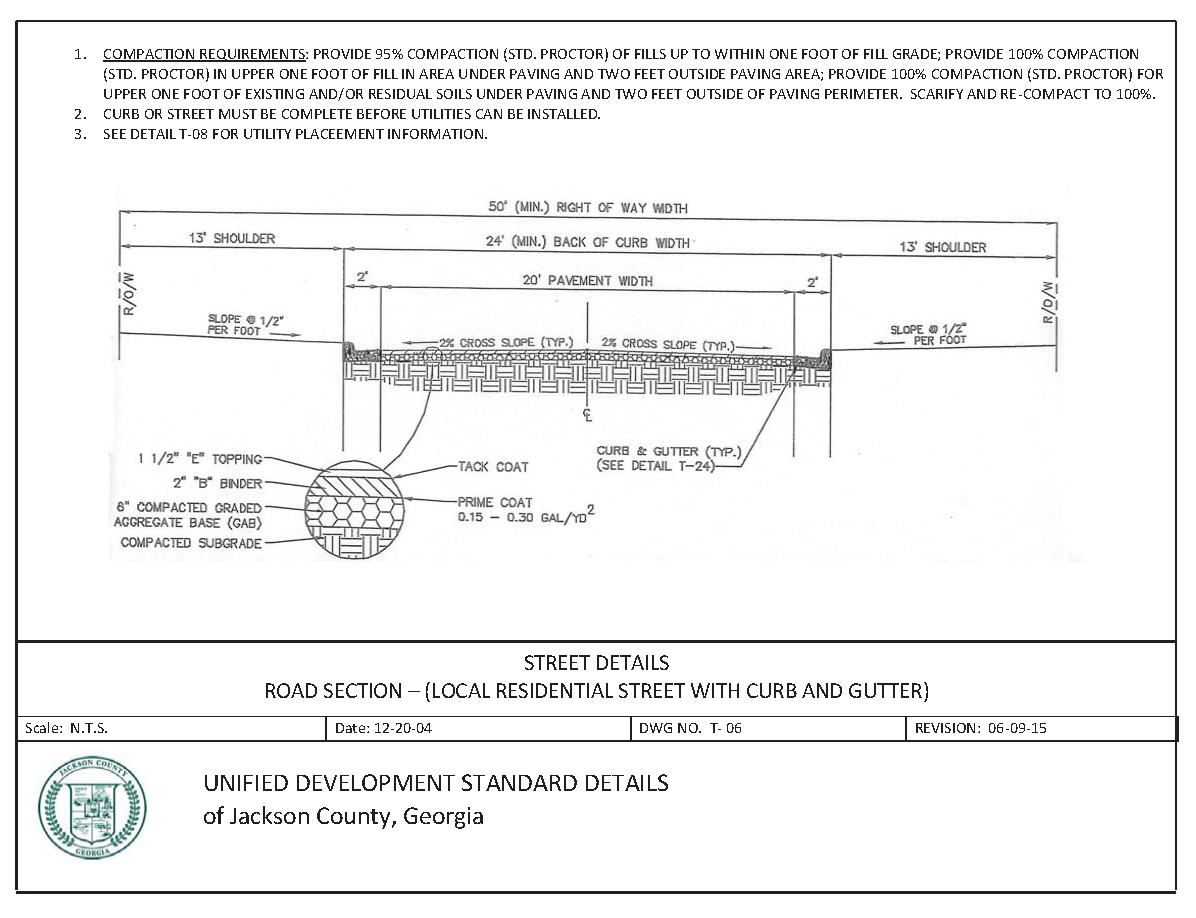

T-06  Street Details: Road Section—Local Residential Street with Curb and Gutter

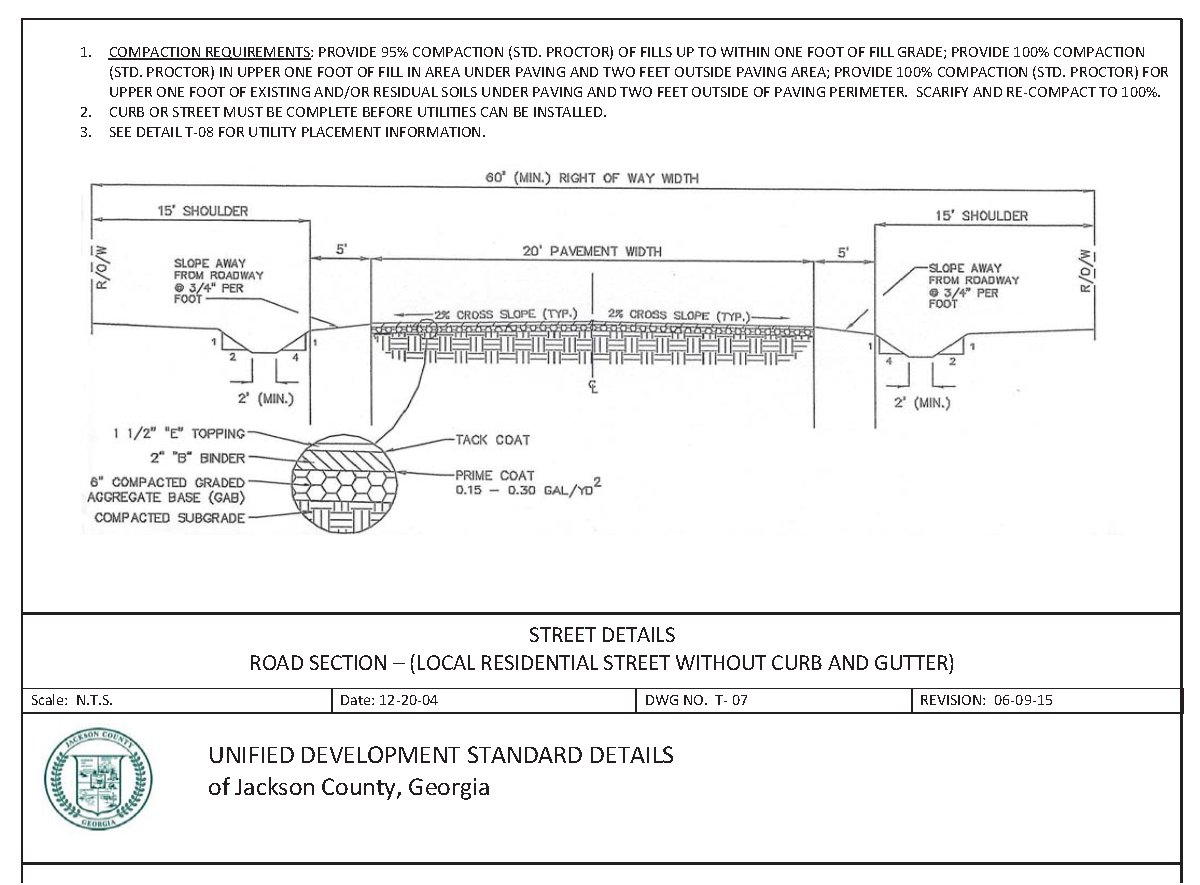

T-07  Street Details: Road Section—Local Residential Street Without Curb and Gutter

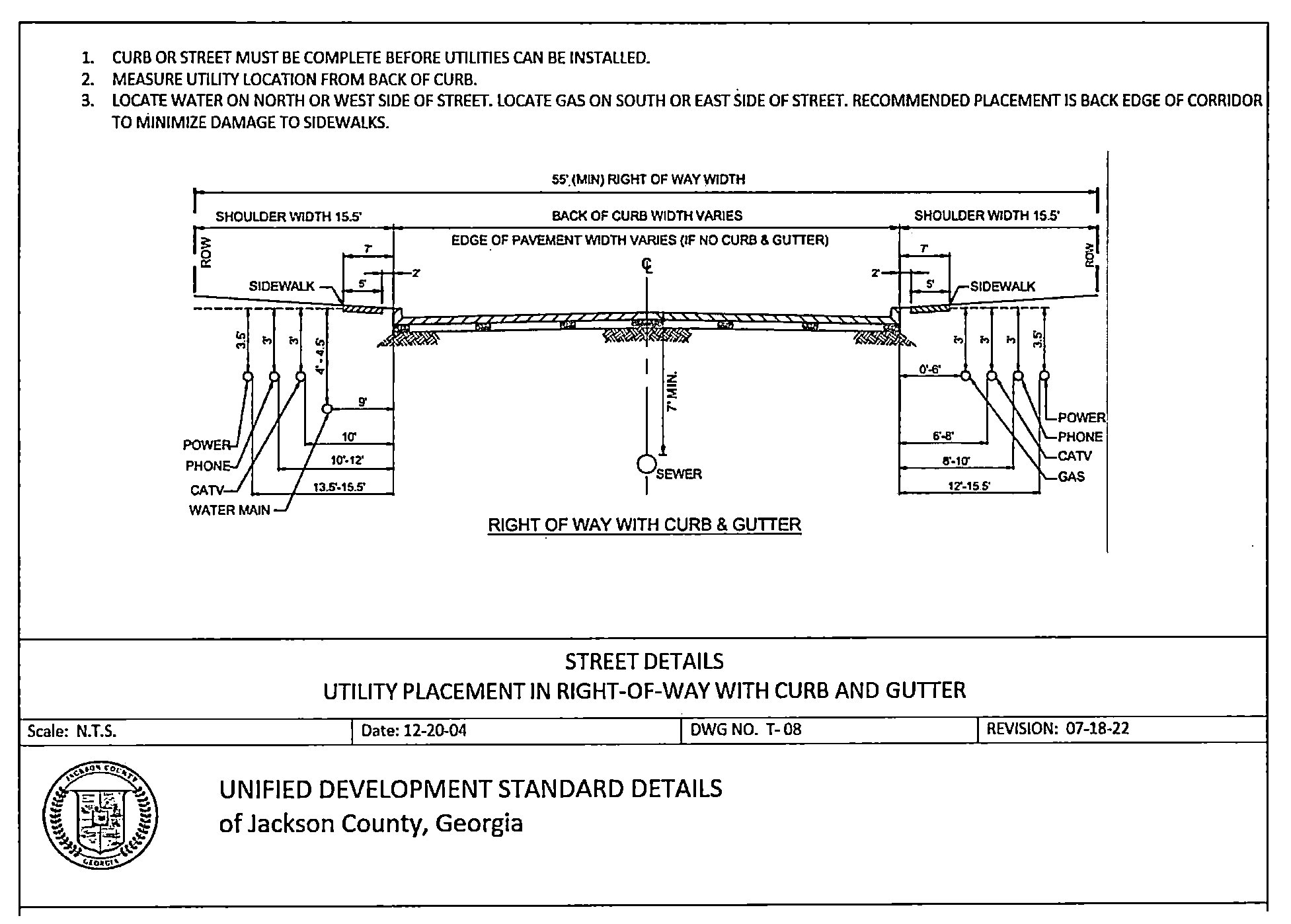

T-08  Street Details: Typical Utility Placement with Curb and Gutter

(Ord. No. 22-008, § 2, 7-18-2022)

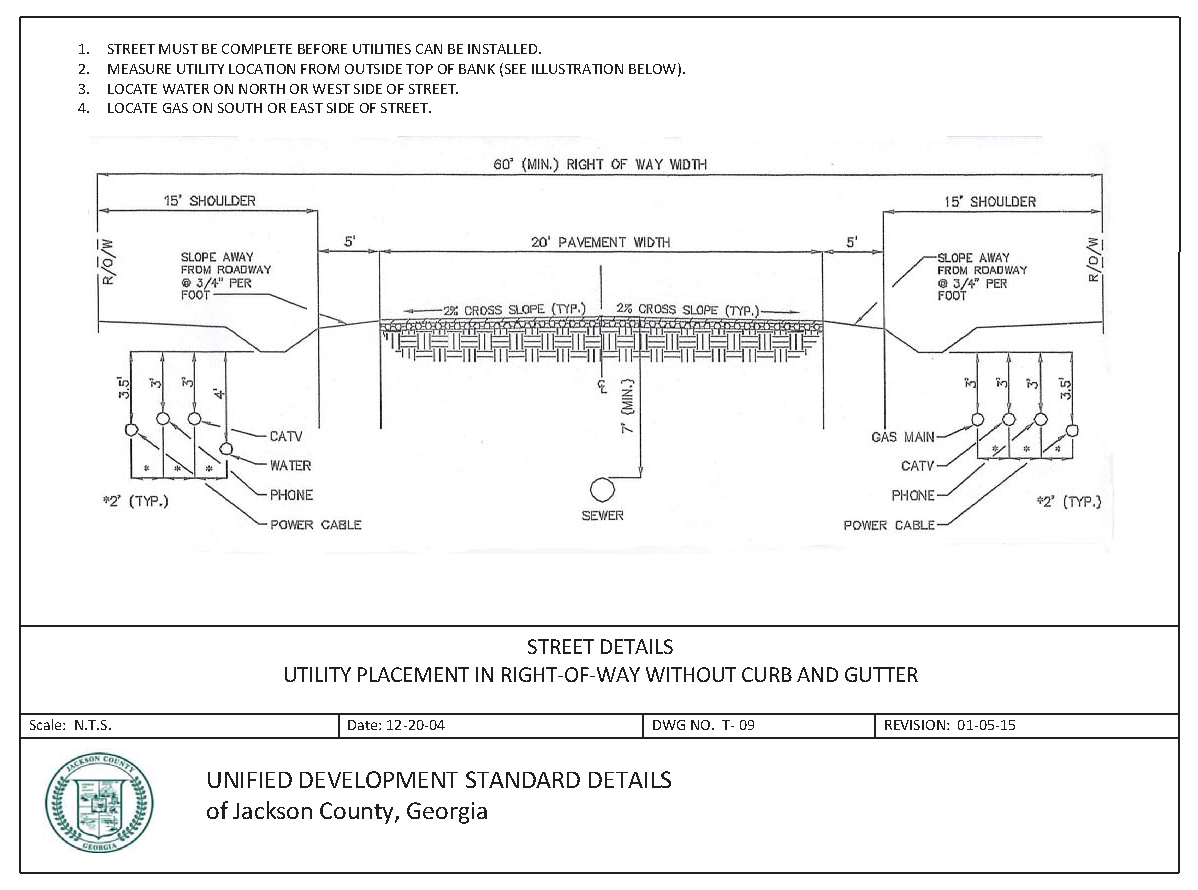

T-09  Street Details: Typical Utility Placement Without Curb and Gutter

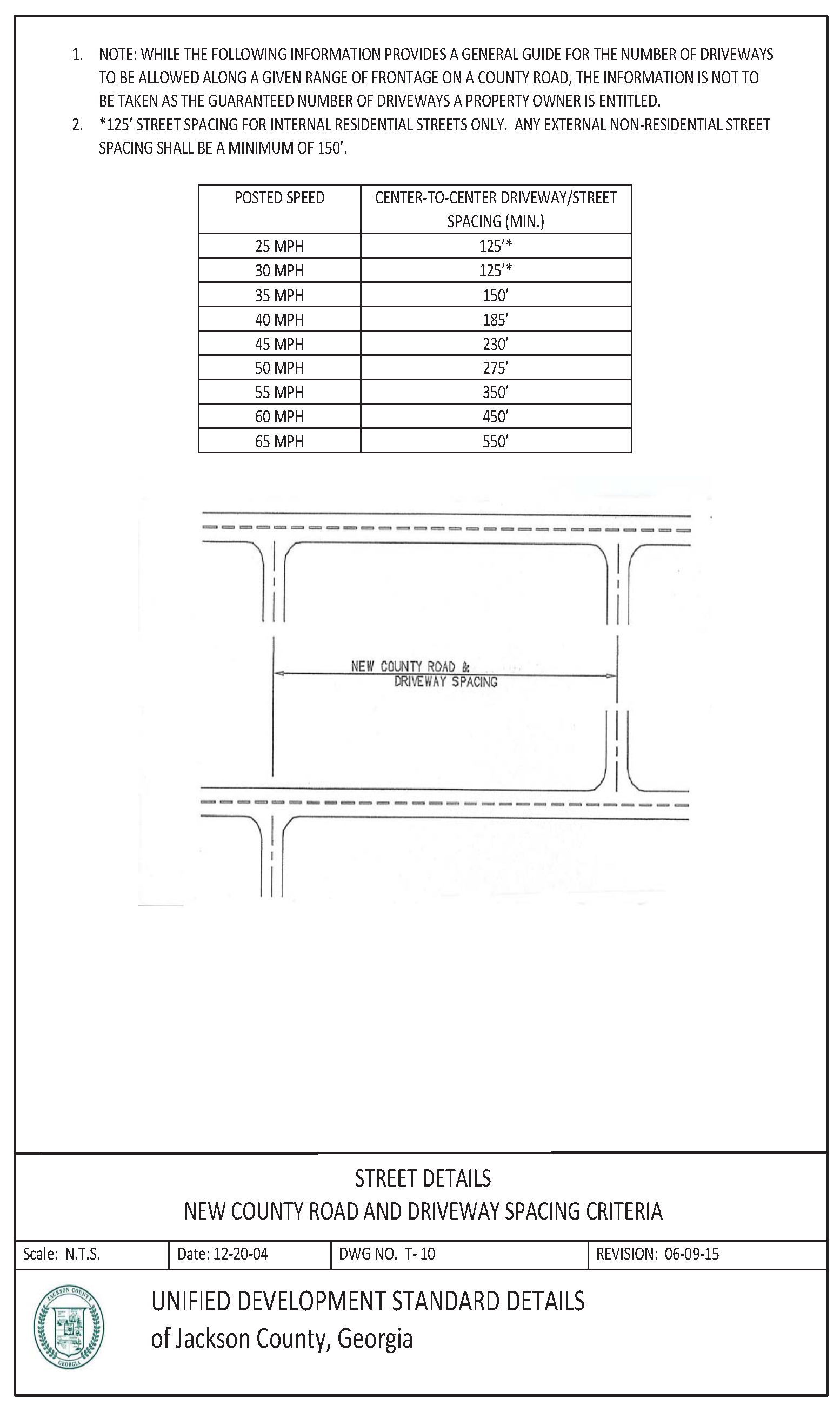

T-10  Street Details: Driveway Spacing Criteria

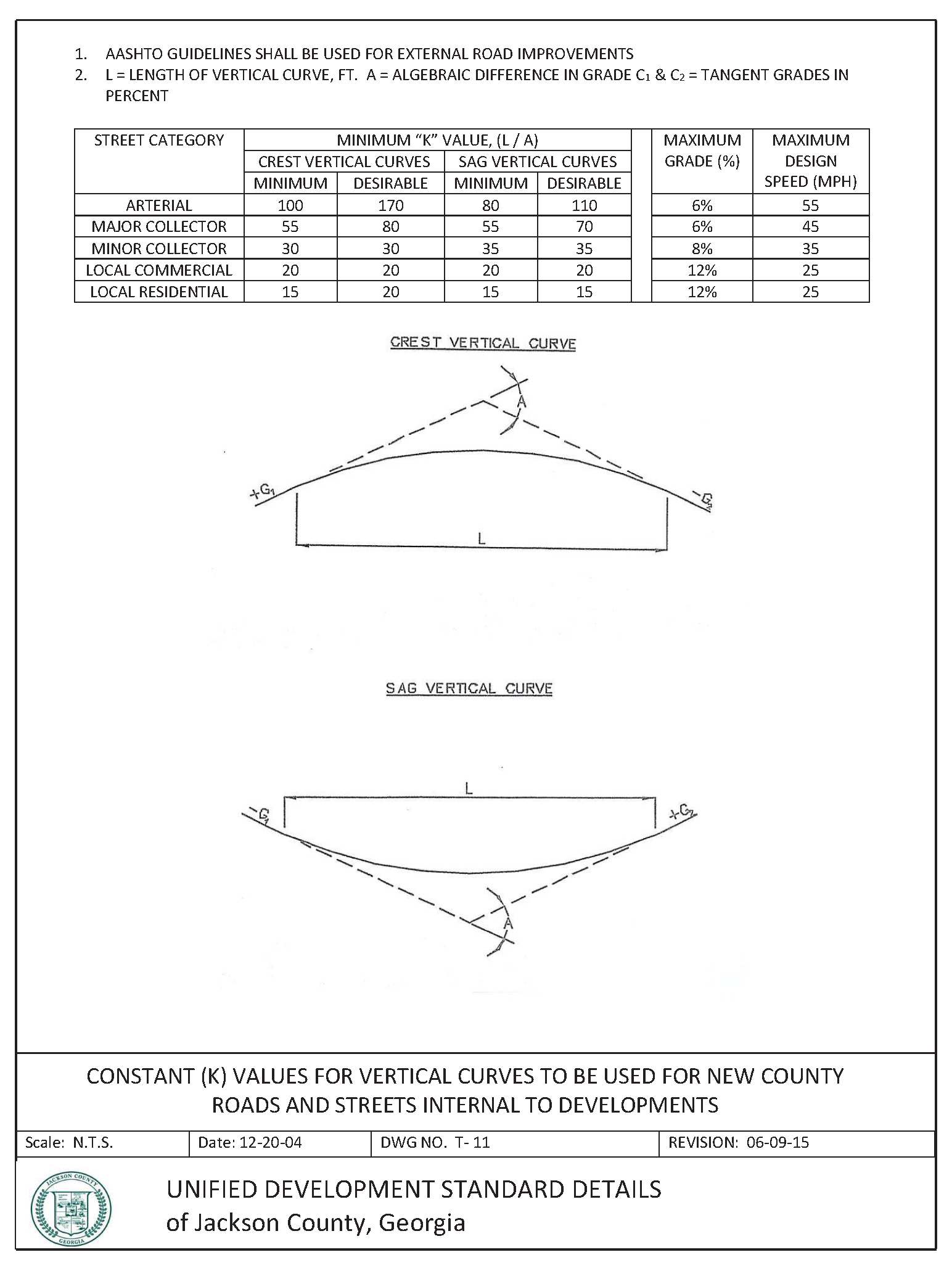

T-11  Minimum "K" Values for Vertical Curves

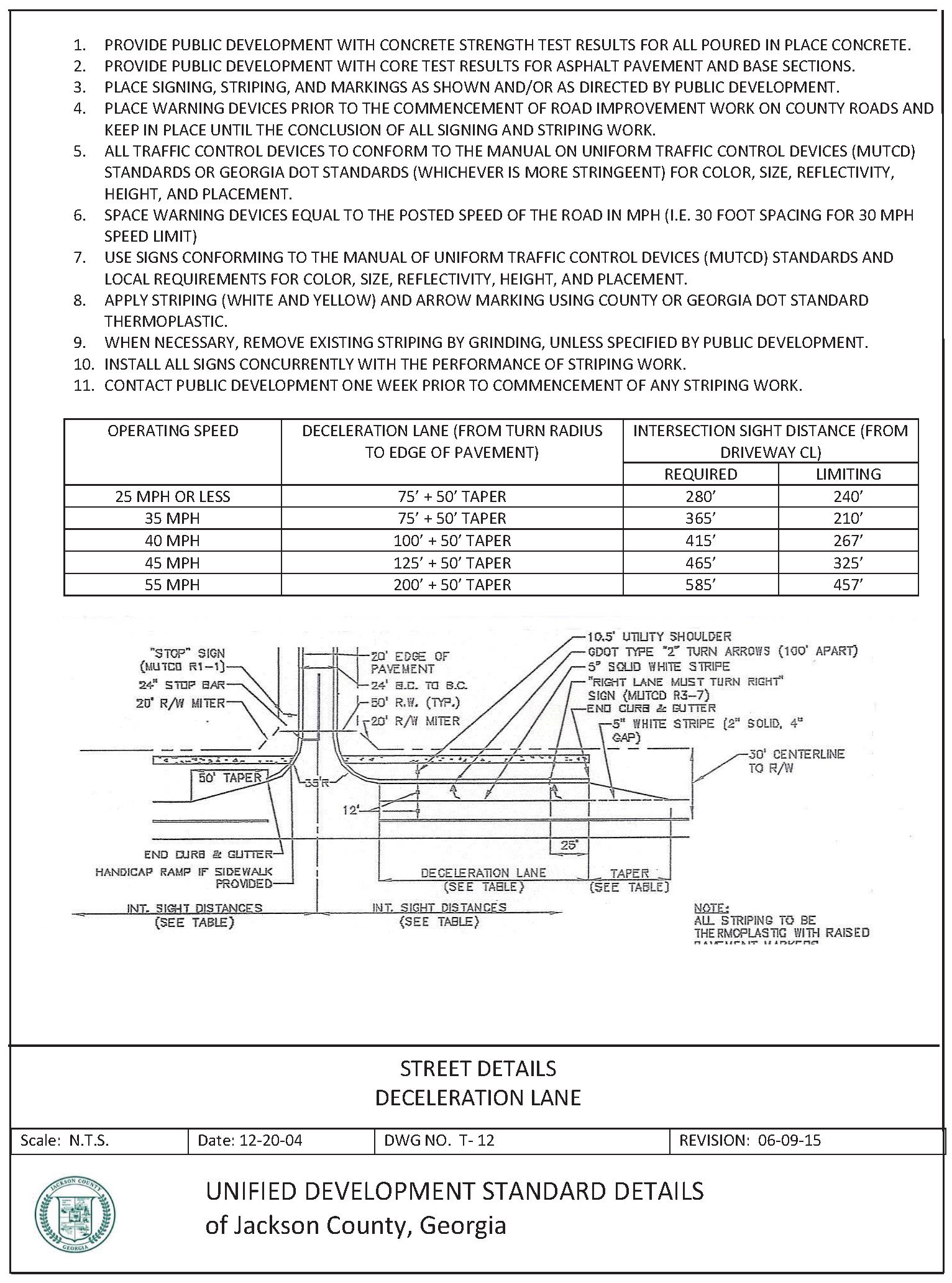

T-12  Street Details: Deceleration Lane

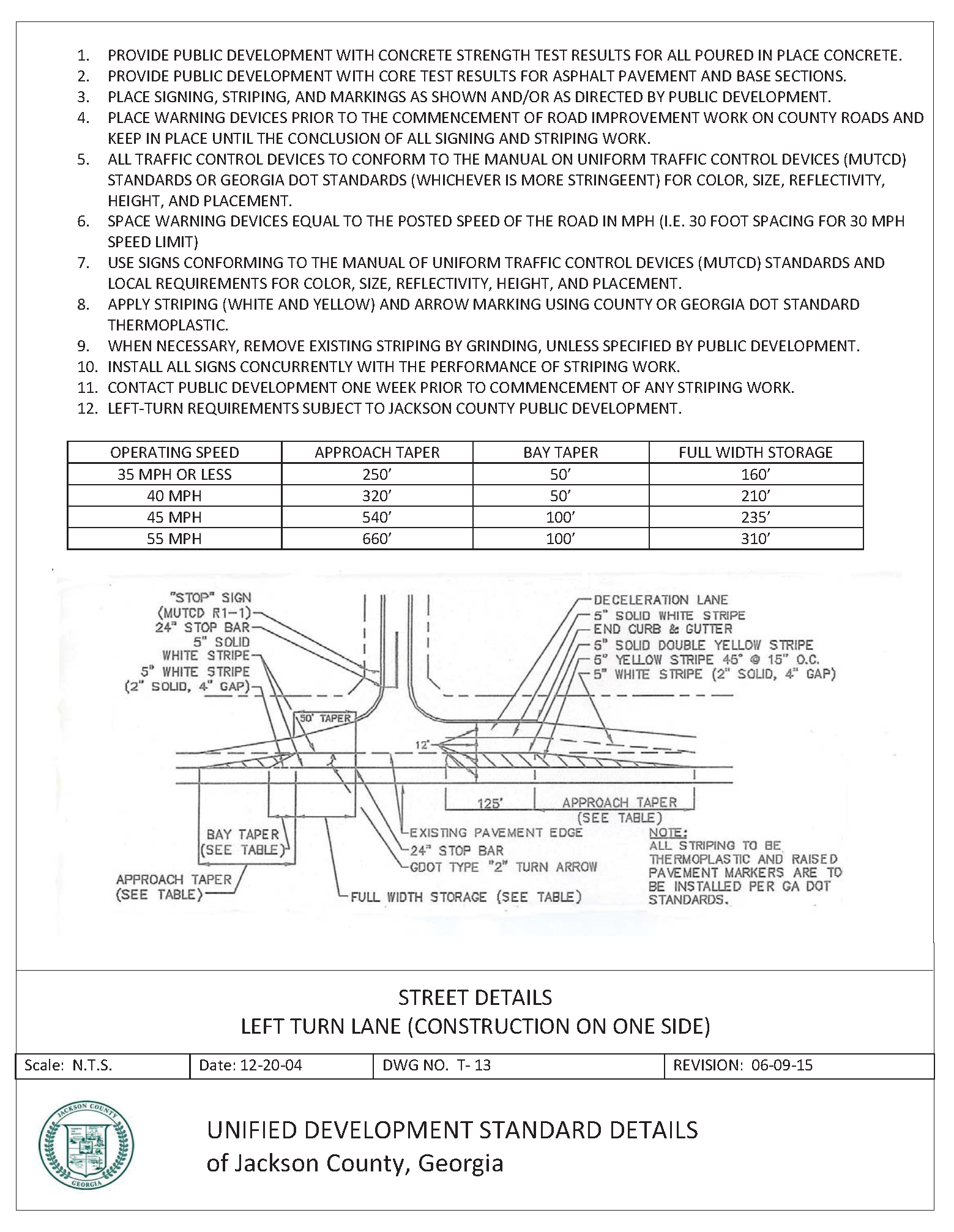

T-13  Street Details: Left Turn Lane (Construction on One Side)

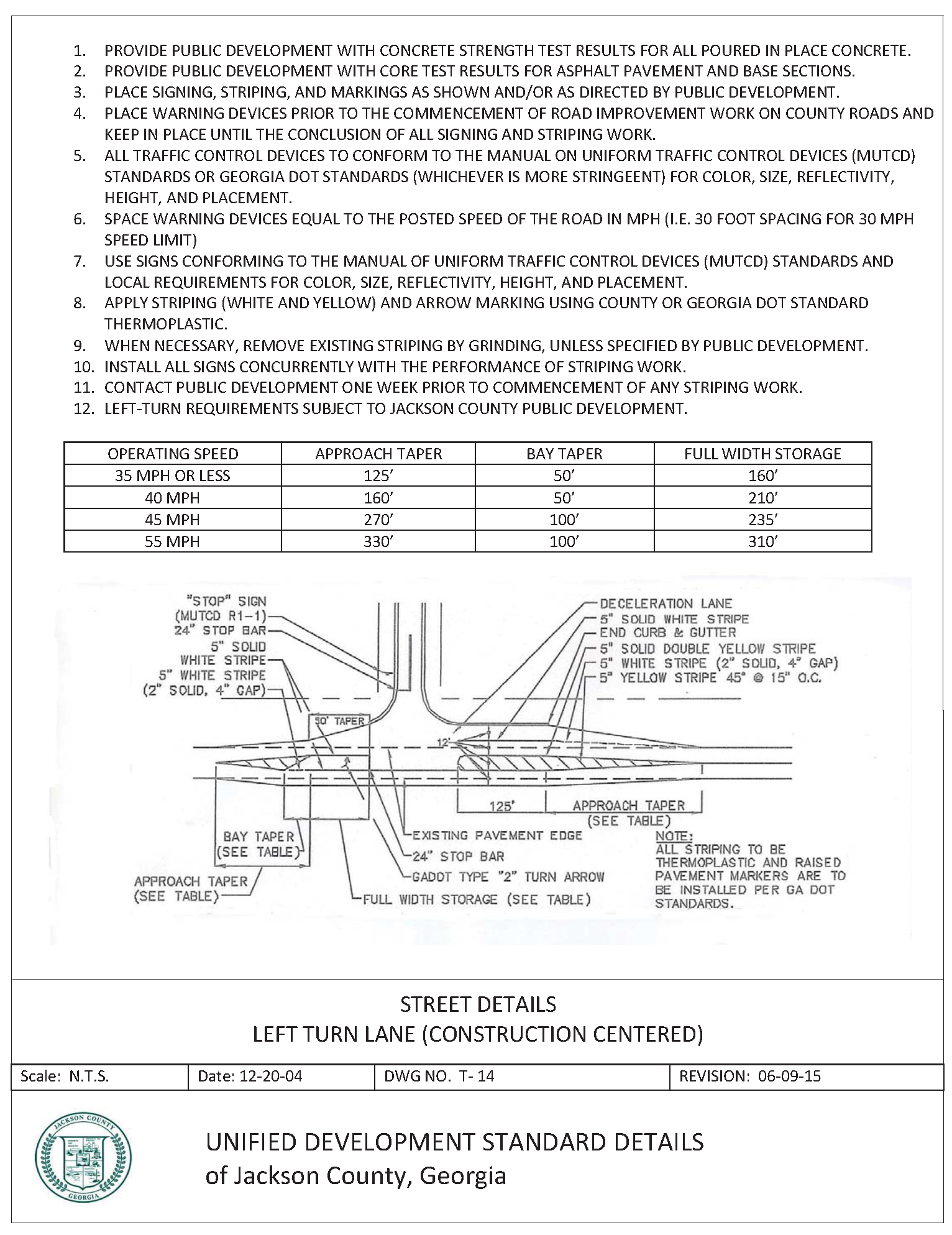

T-14  Street Details: Left Turn Lane (Construction Centered)

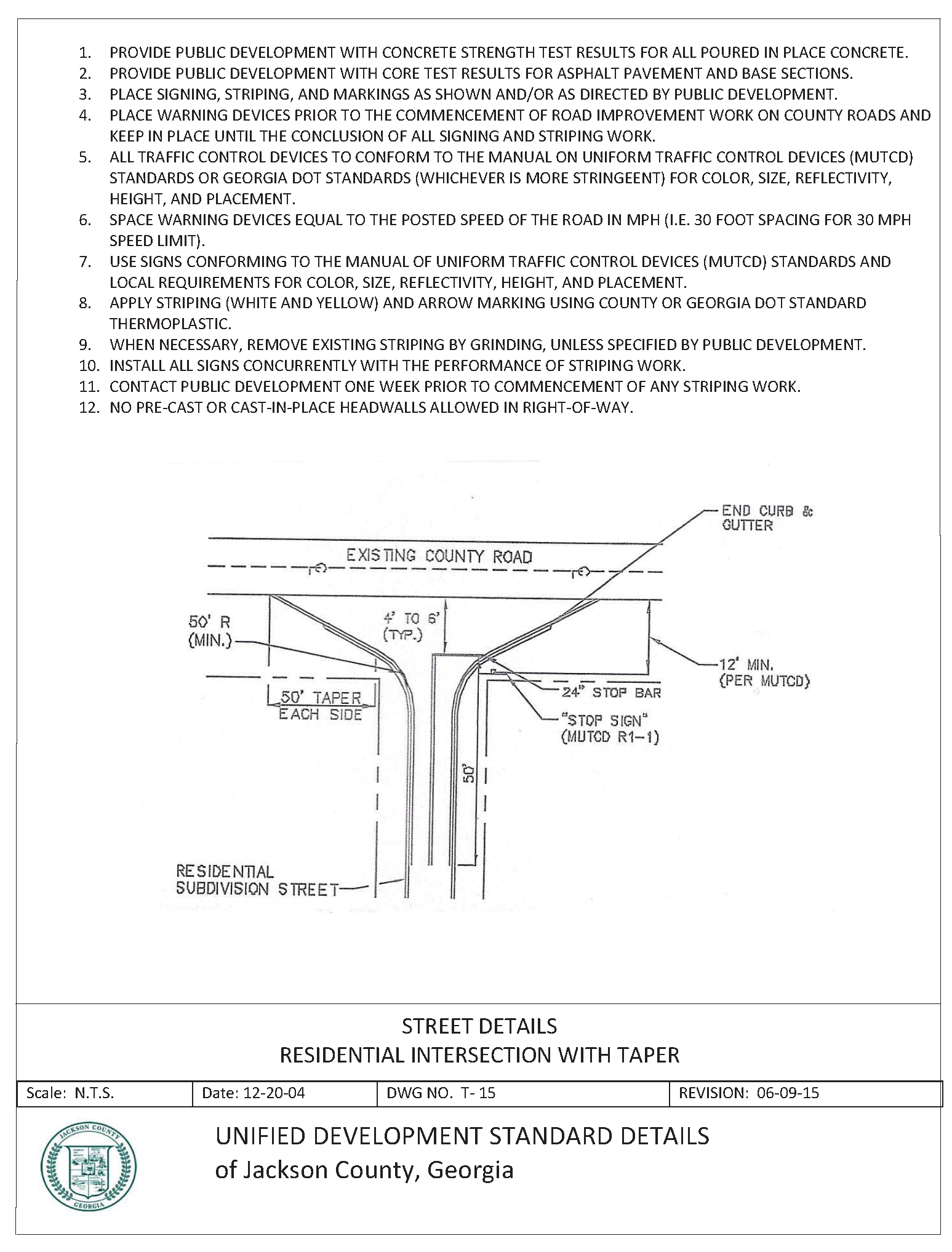

T-15  Street Details: Residential Intersection with Taper

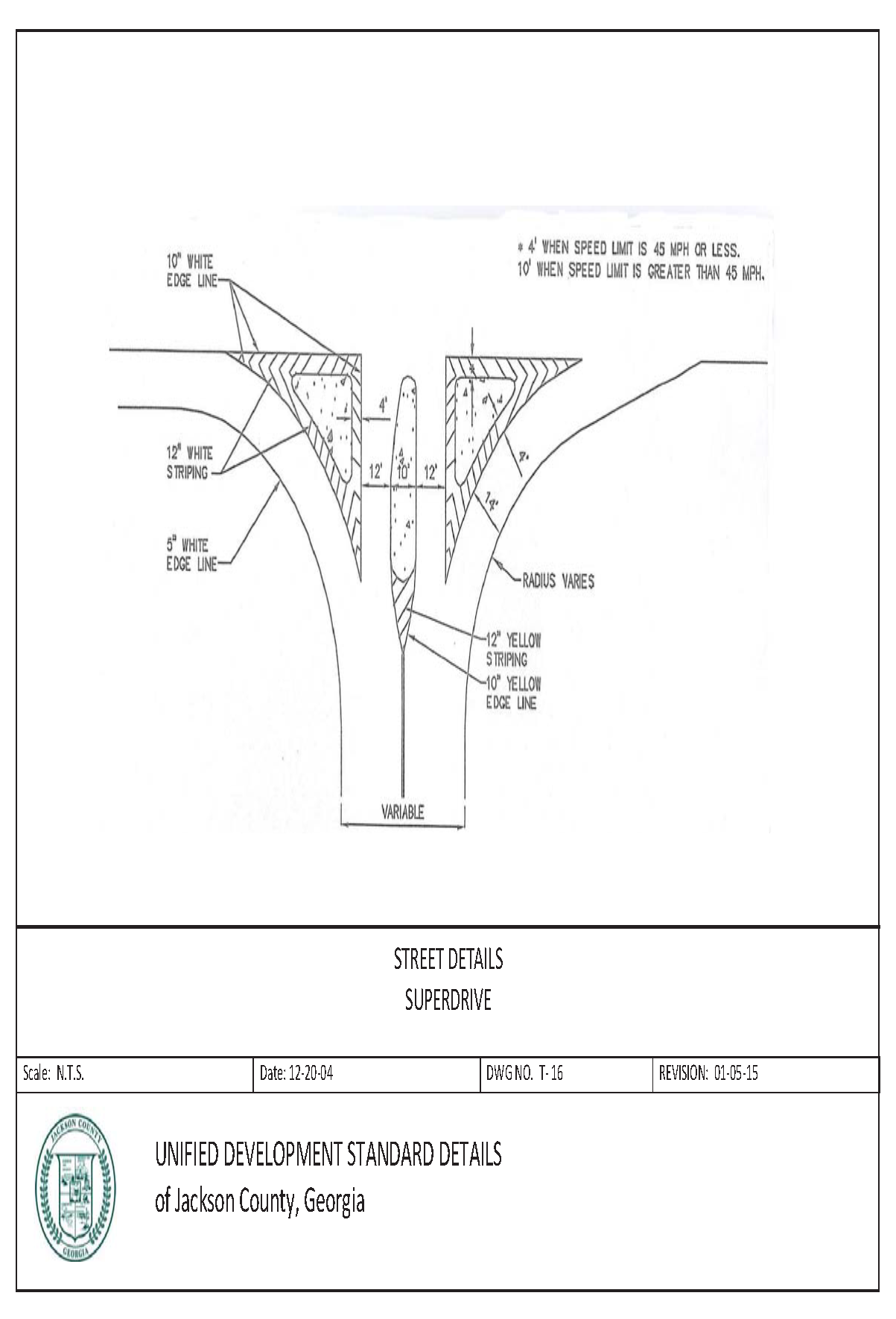

T-16  Street Details: Superdrive

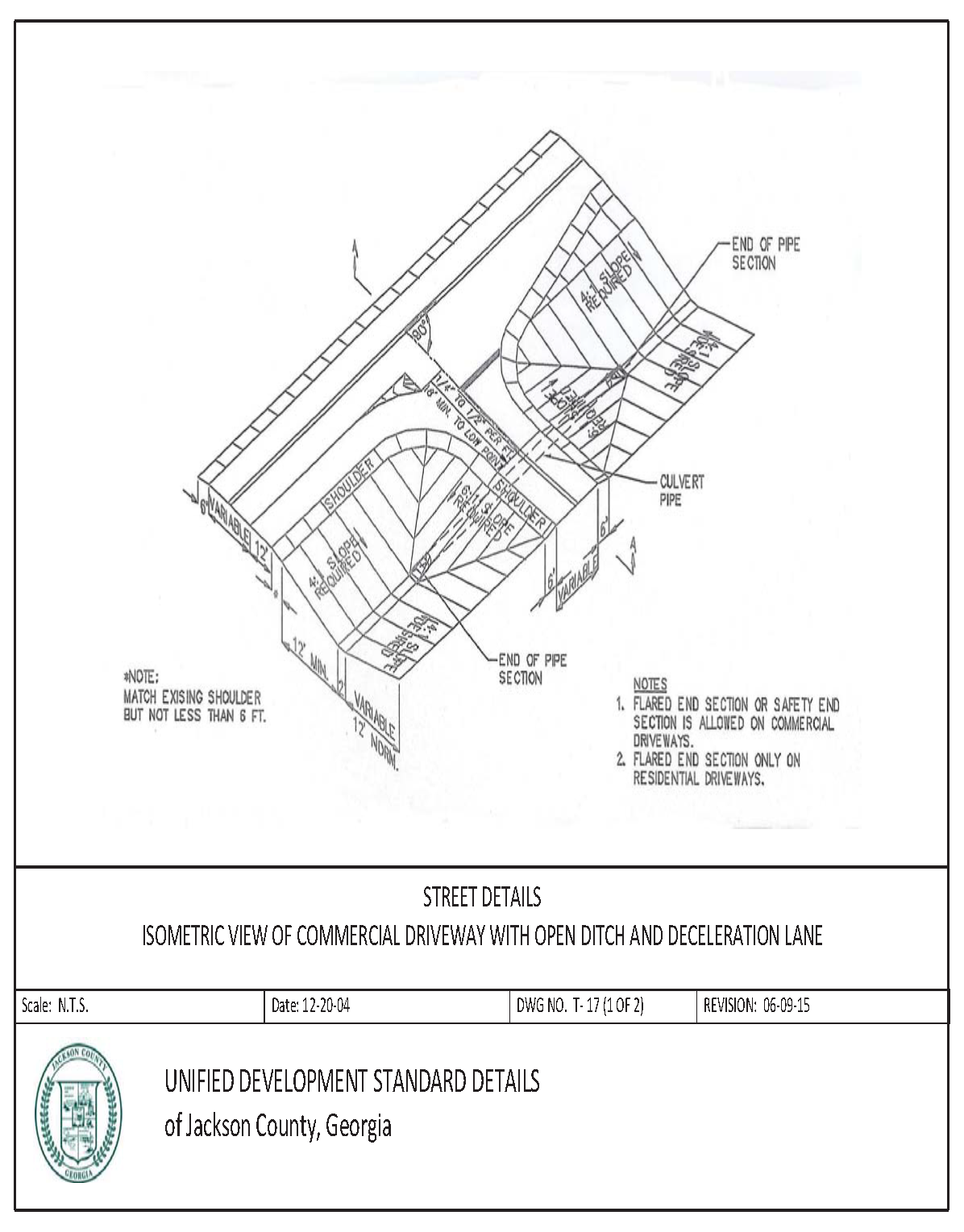

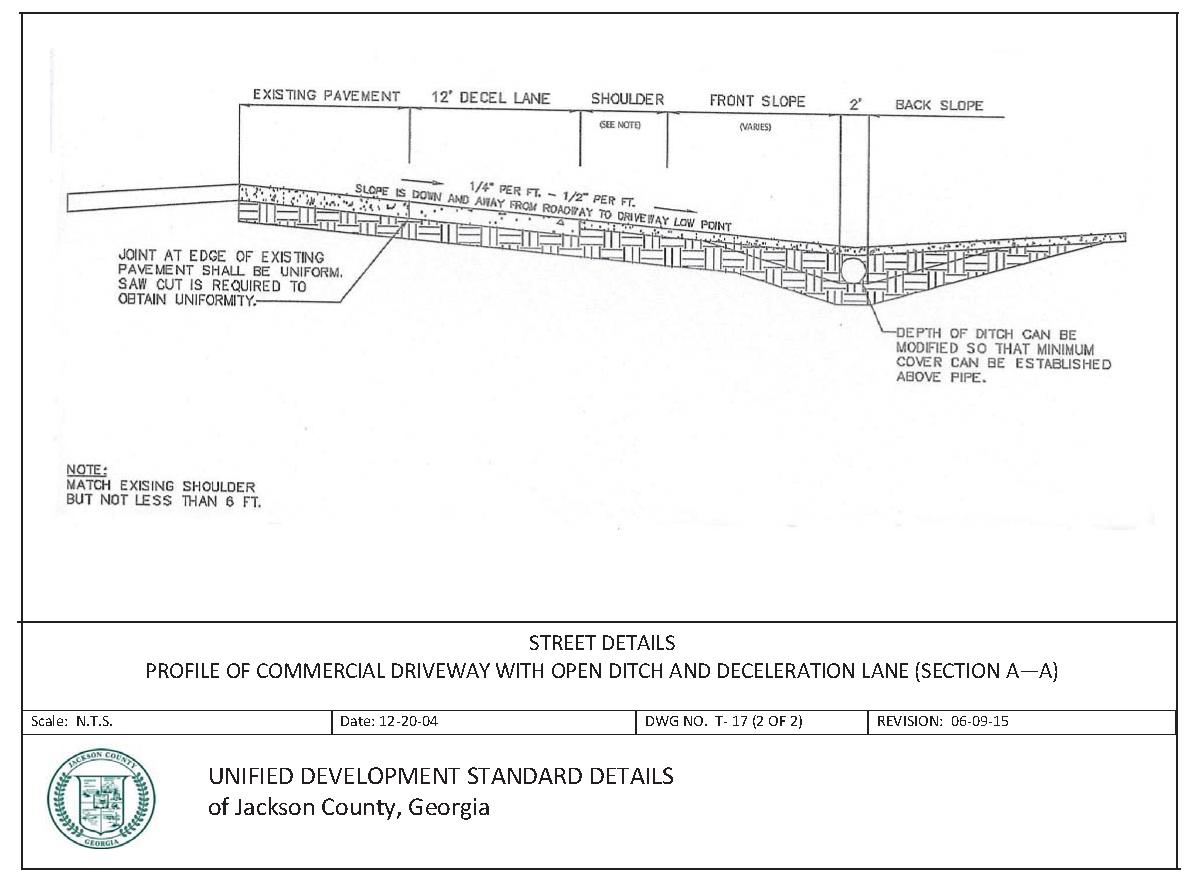

T-17  Street Details: Isometric View/Profile of Commercial Driveway with Open Ditch

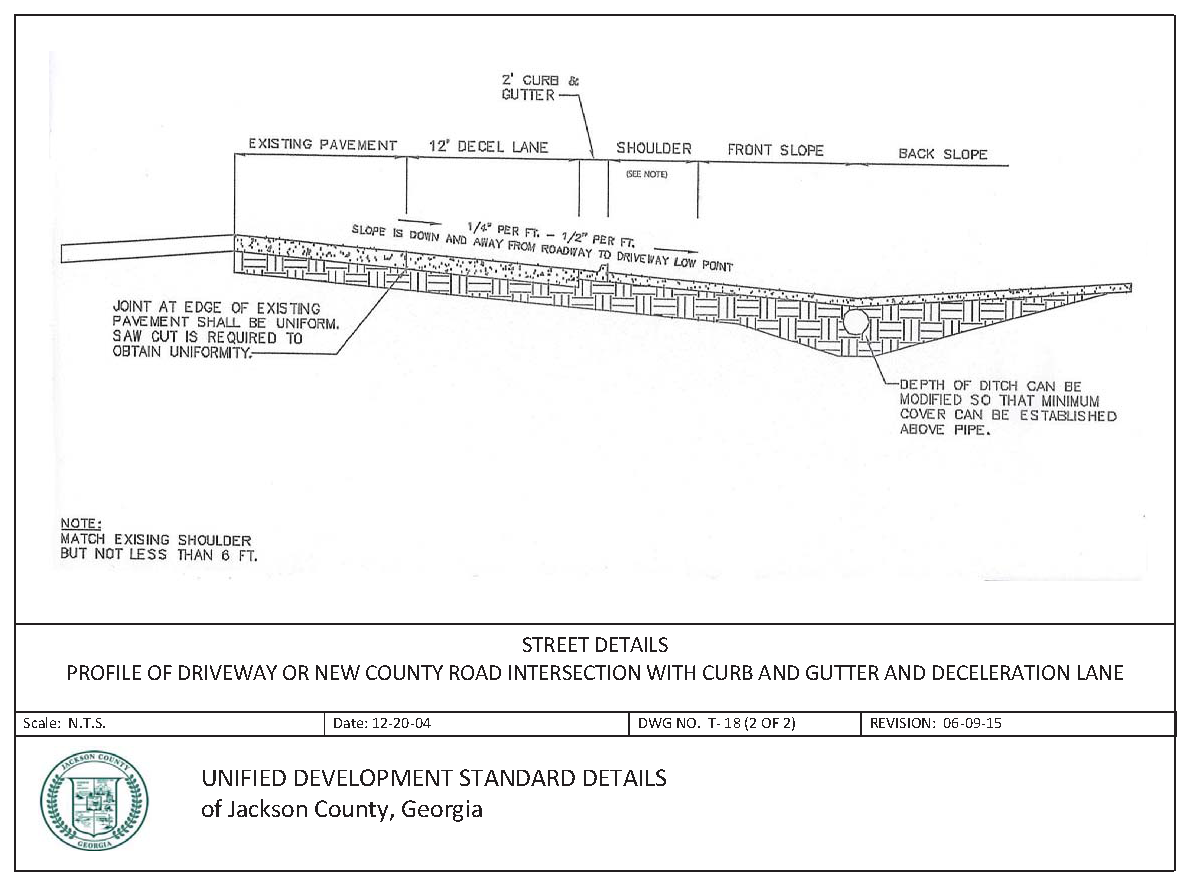

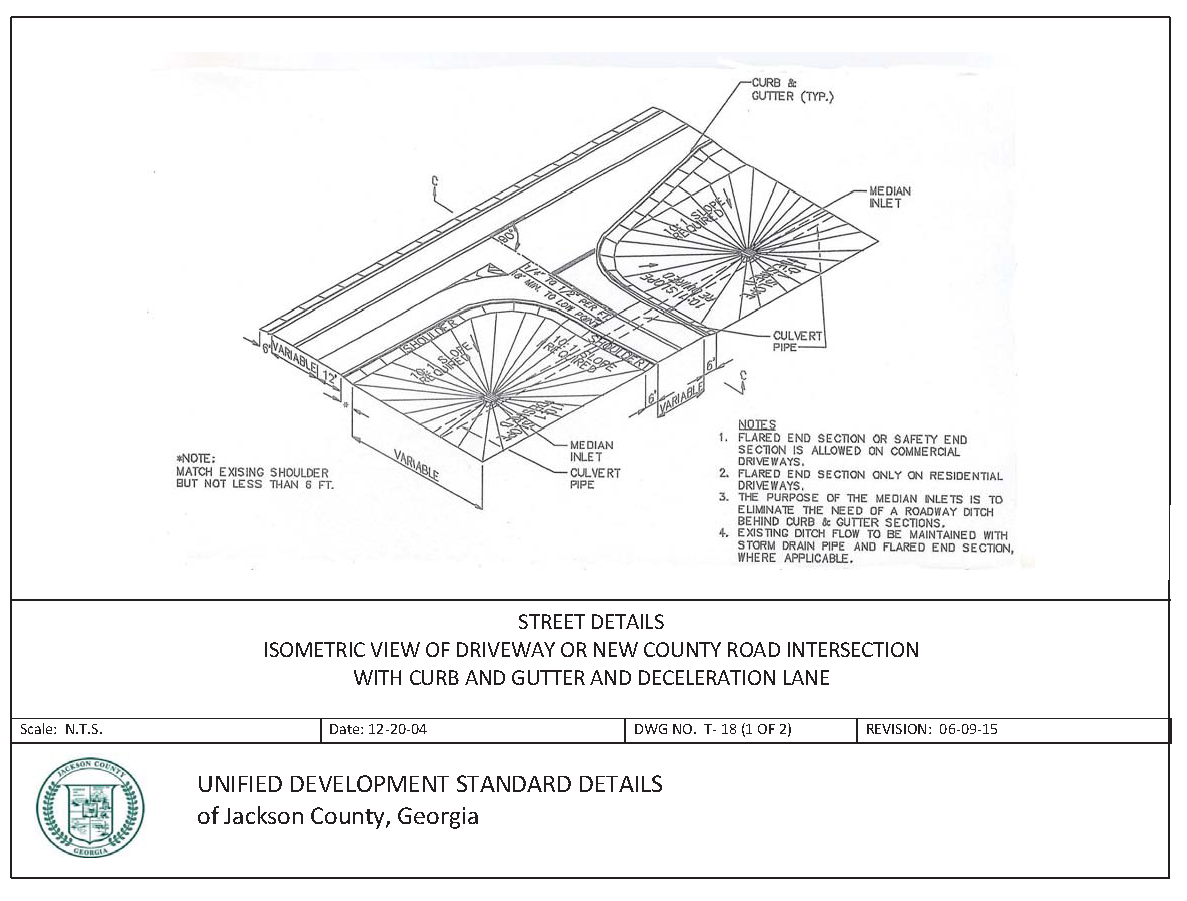

T-18  Street Details: Isometric View/Profile of Driveway with Deceleration Lane and Curb and Gutter

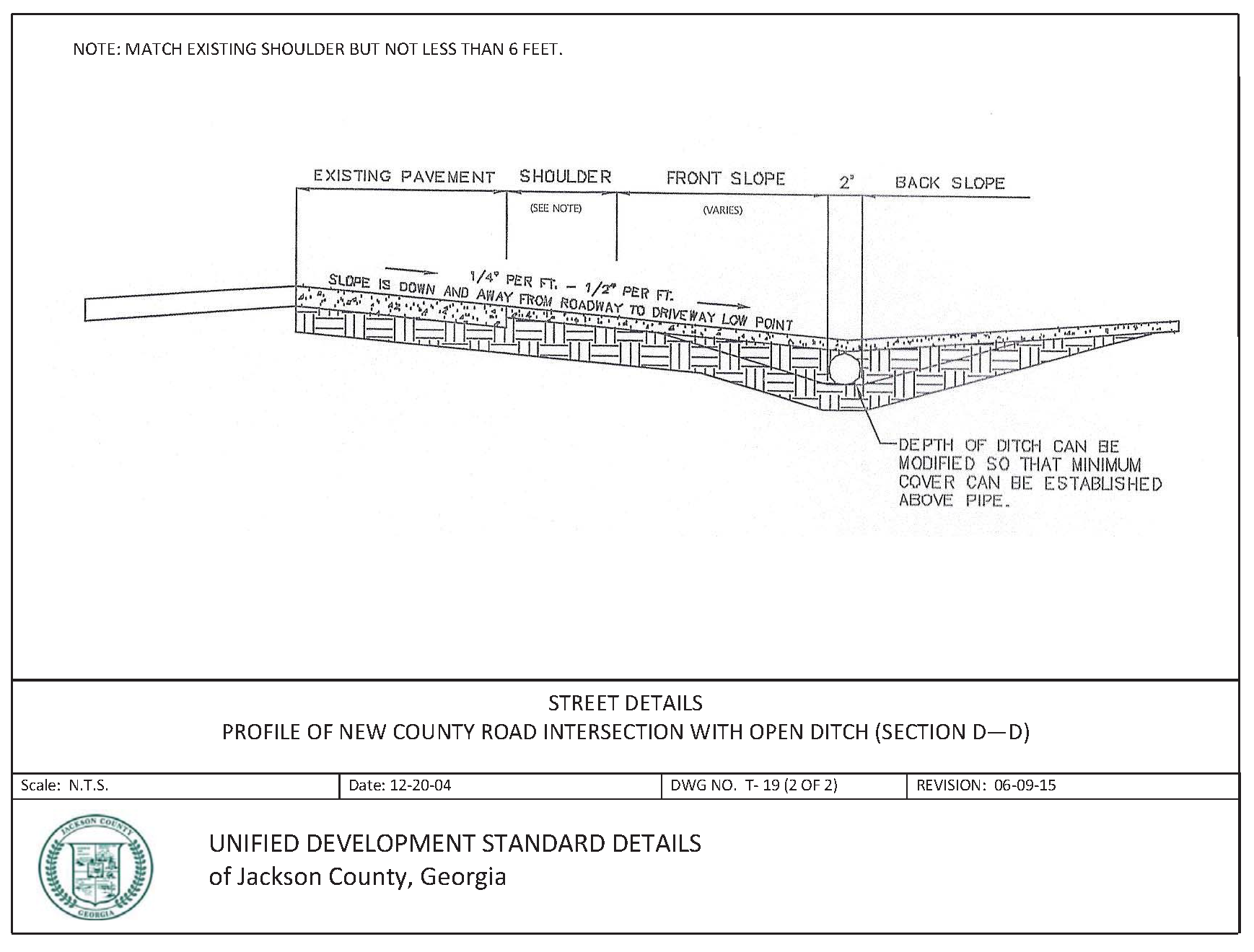

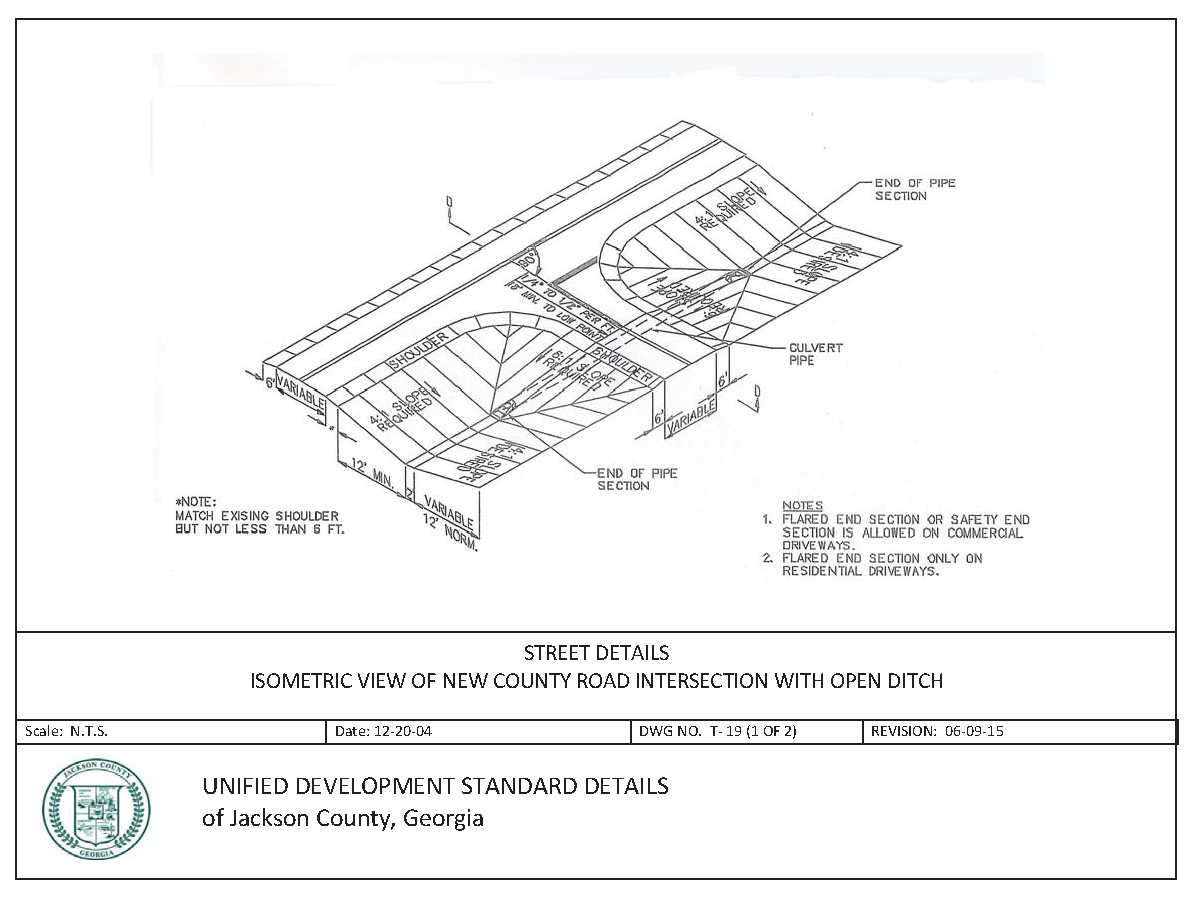

T-19  Street Details: Isometric View/Profile of New County Road Intersection with Open Ditch

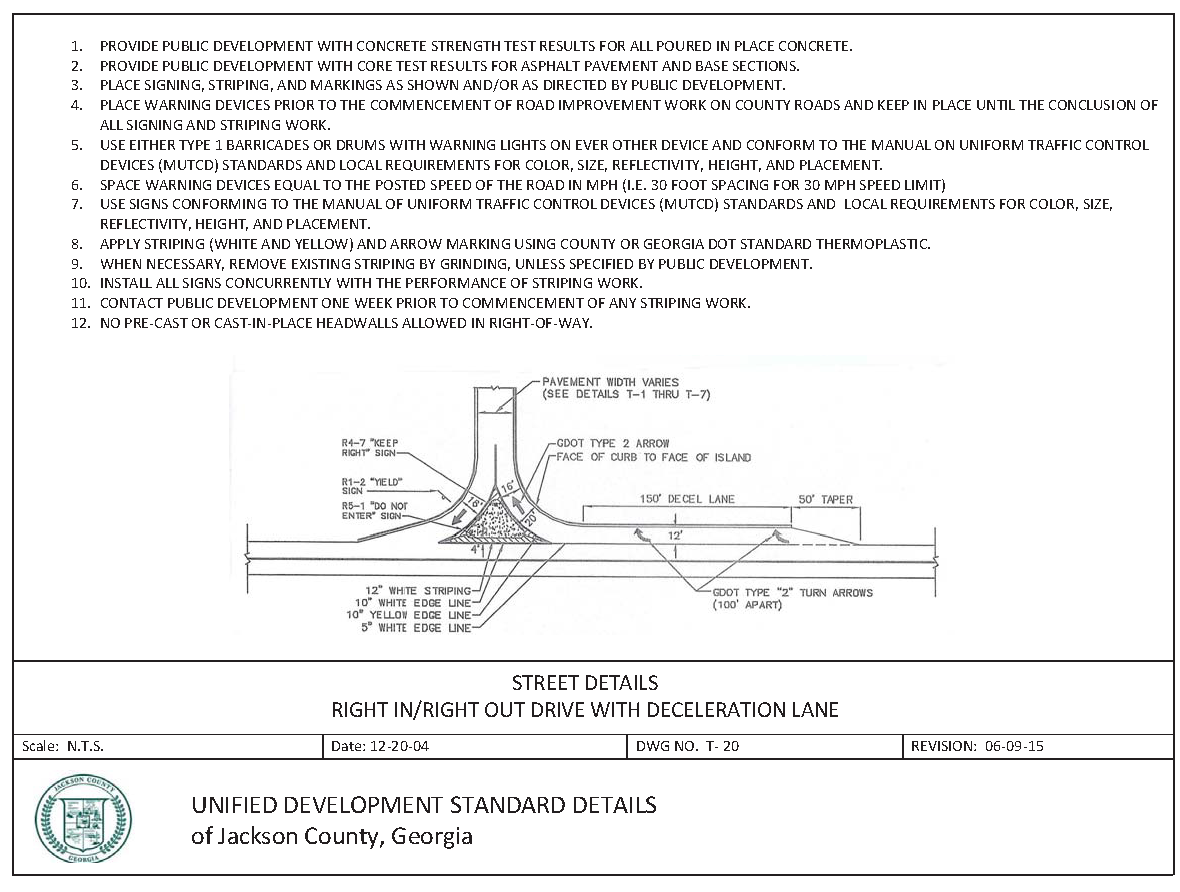

T-20  Street Details: Right in/Right out Drive with Deceleration Lane

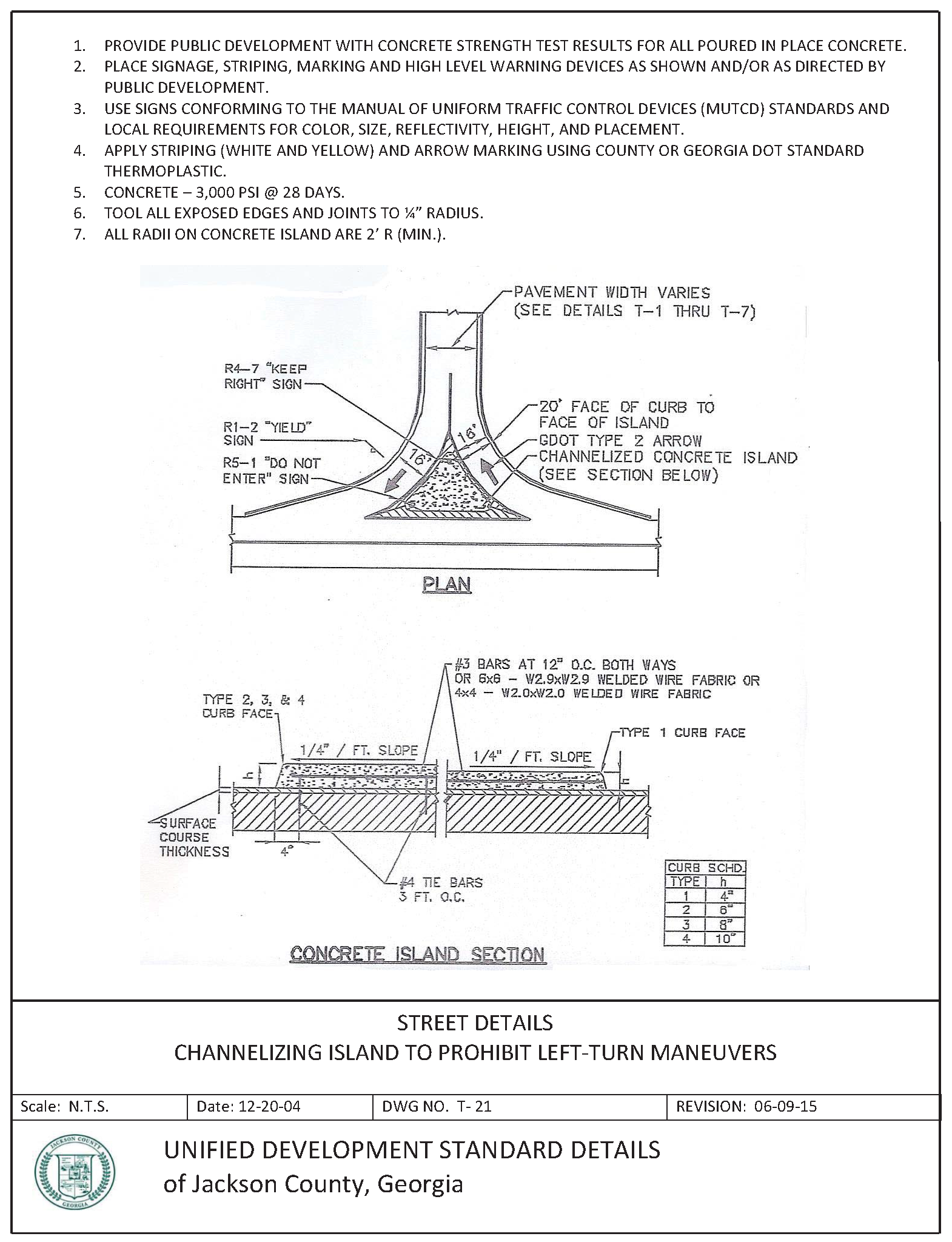

T-21  Street Details: Channelizing Island to Prevent Left-Turn Maneuvers

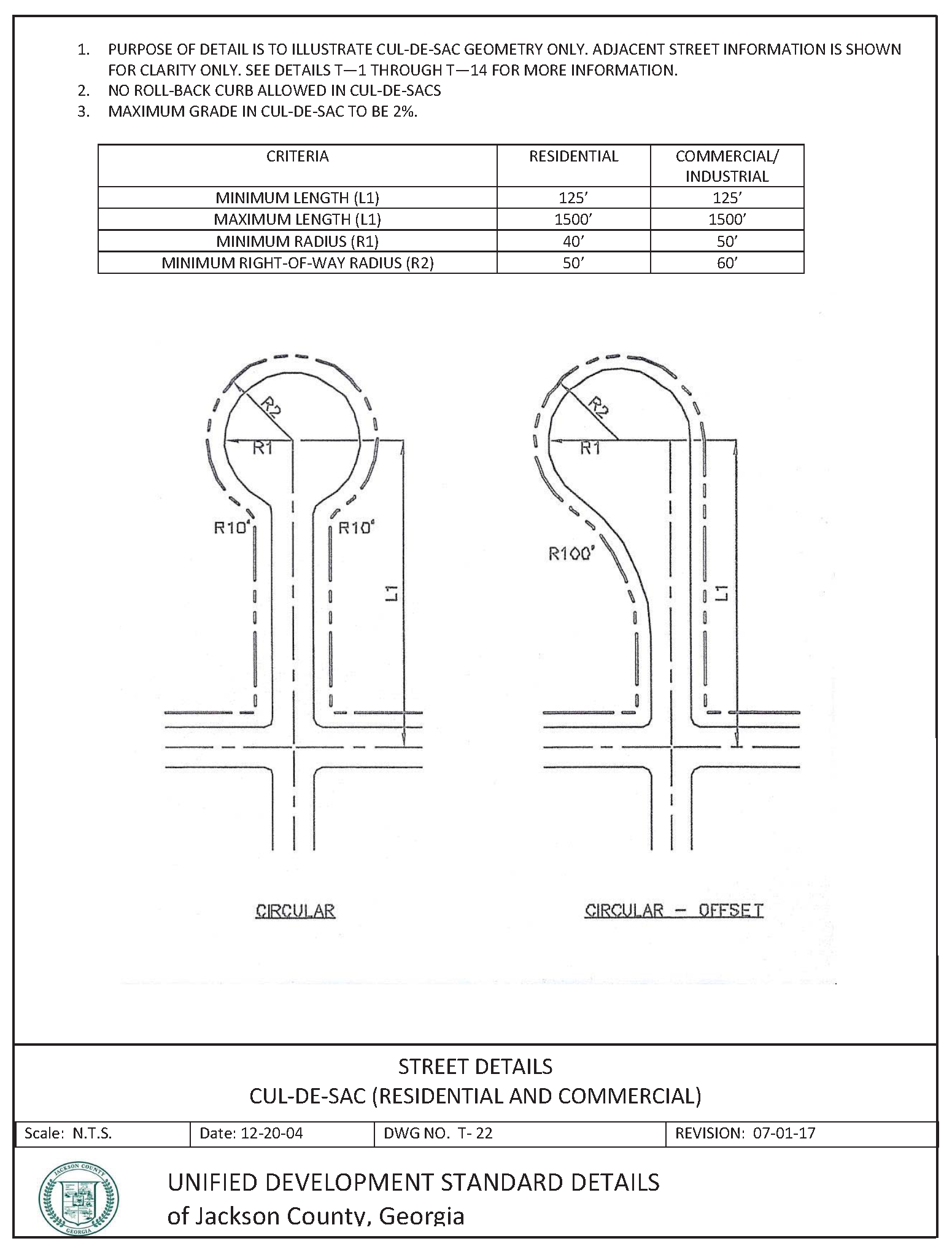

T-22  Street Details: Cul-De-Sac (Residential and Commercial)

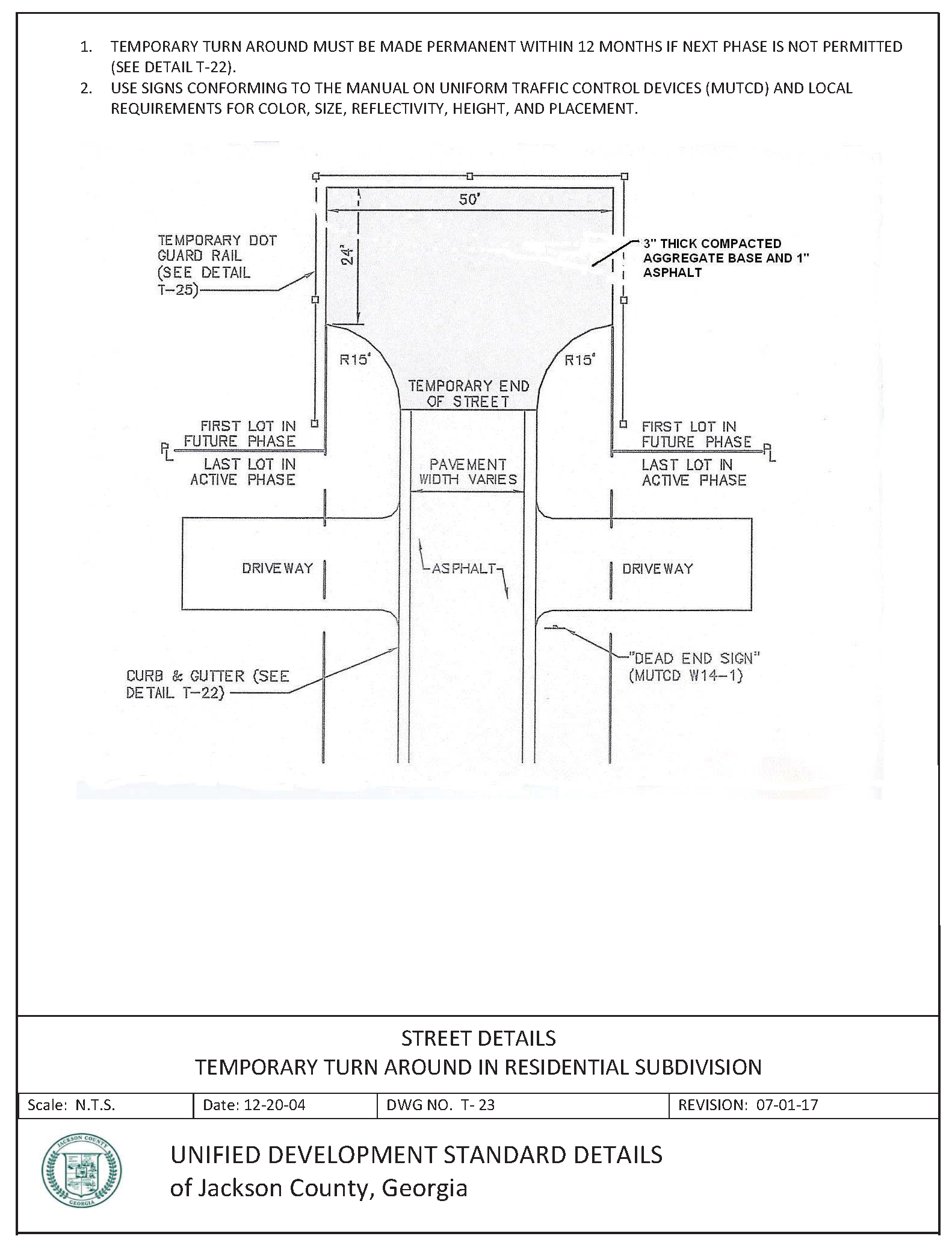

T-23  Street Details: Temporary Turn Around in Residential Subdivision

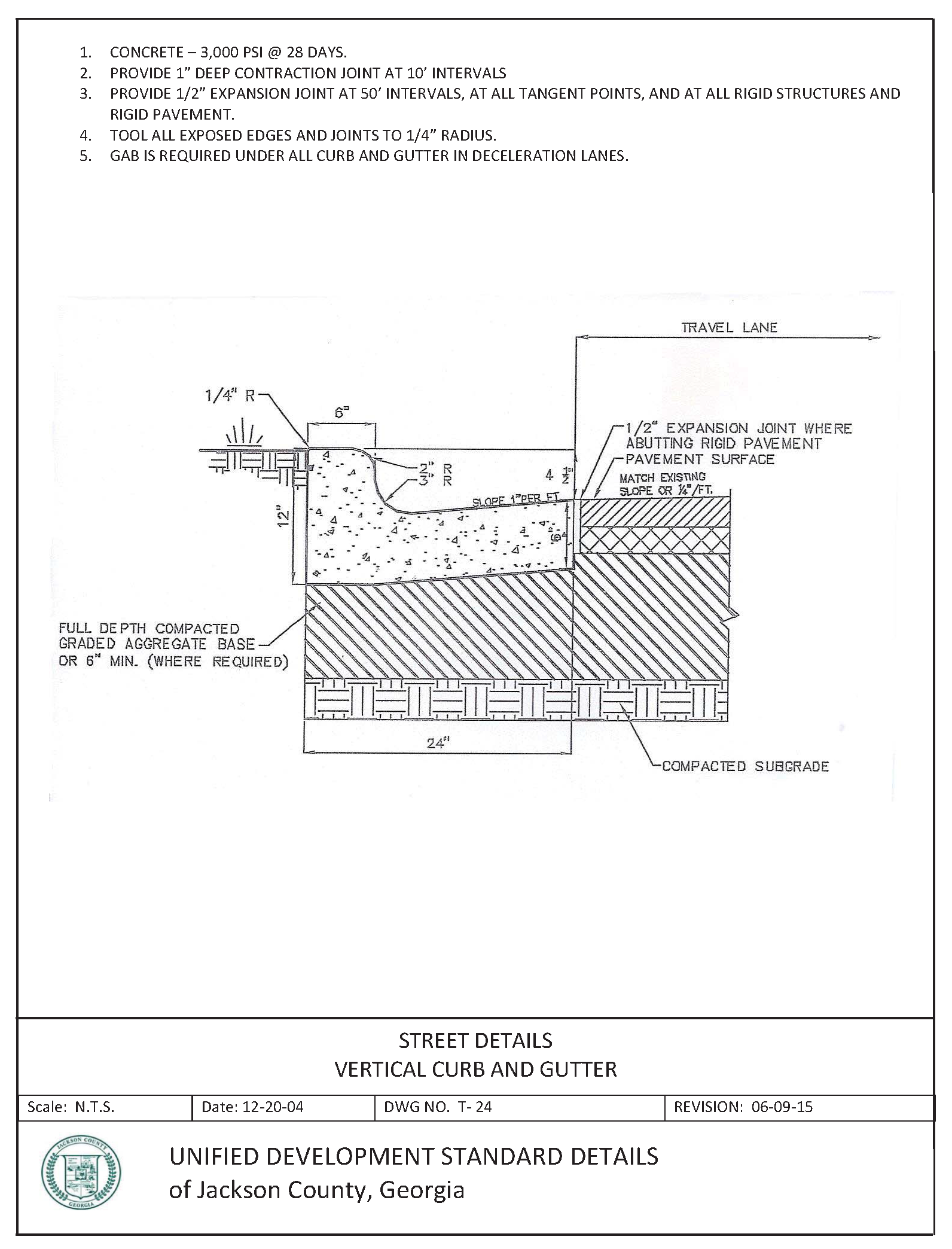

T-24  Street Details: Curb and Gutter

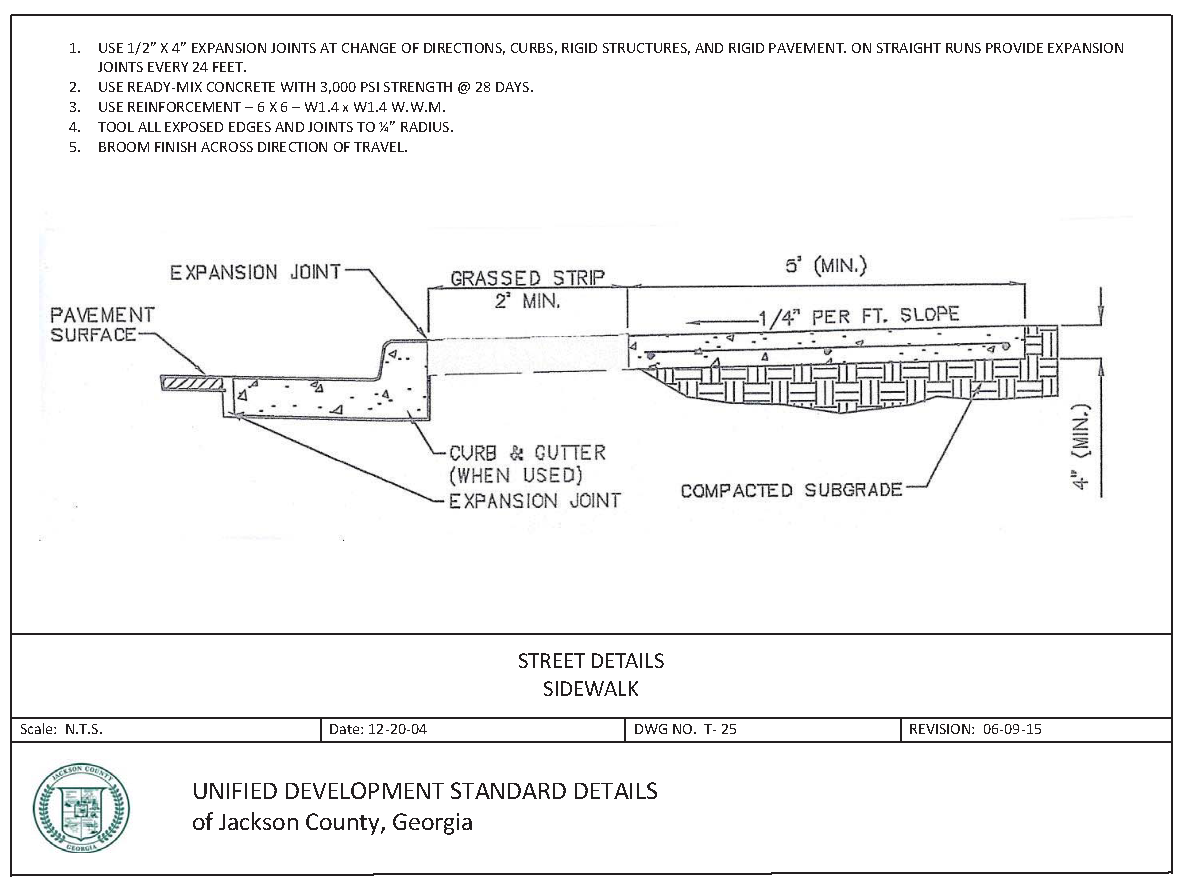

T-25  Street Details: Sidewalk

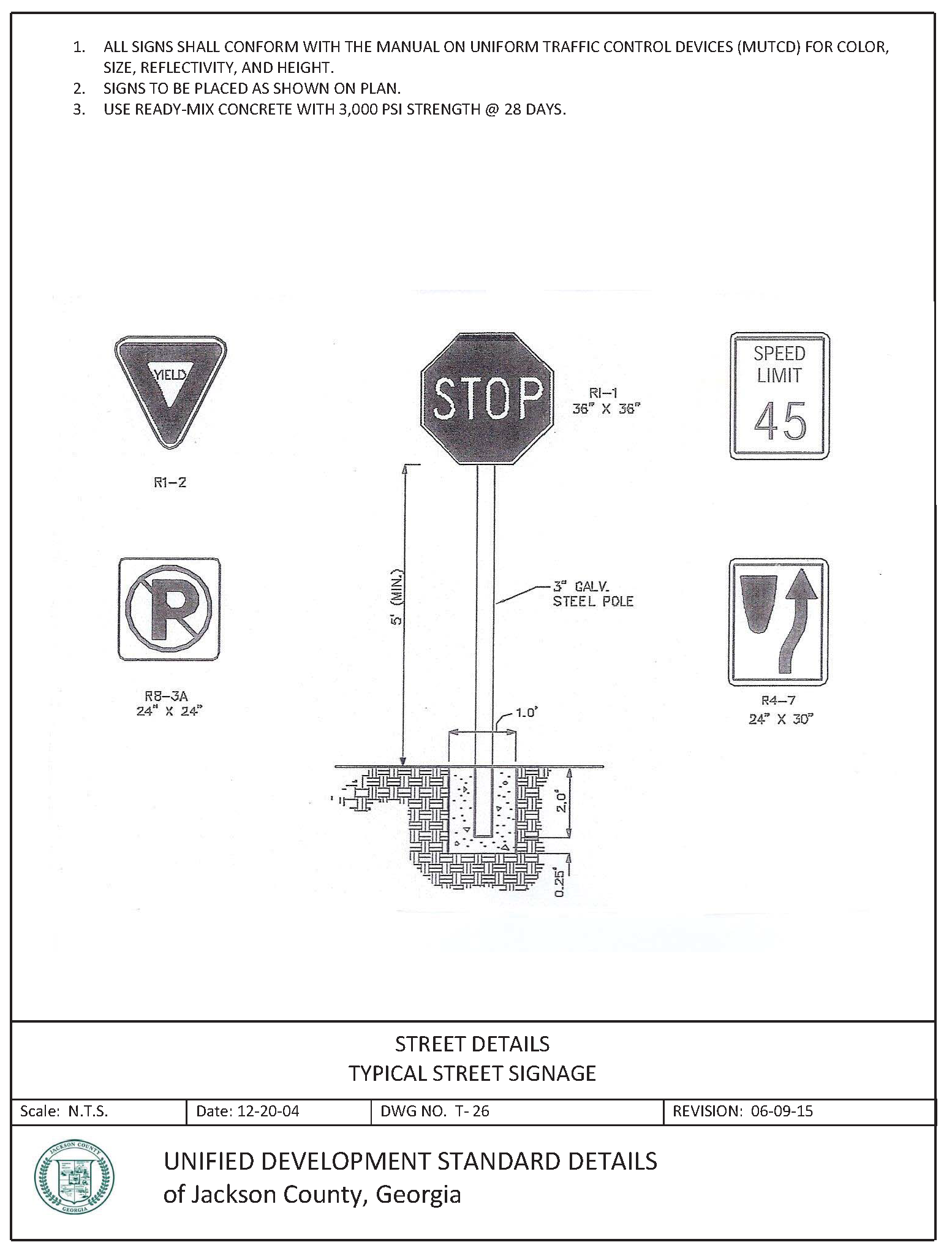

T-26  Street Details: Typical Street Signage

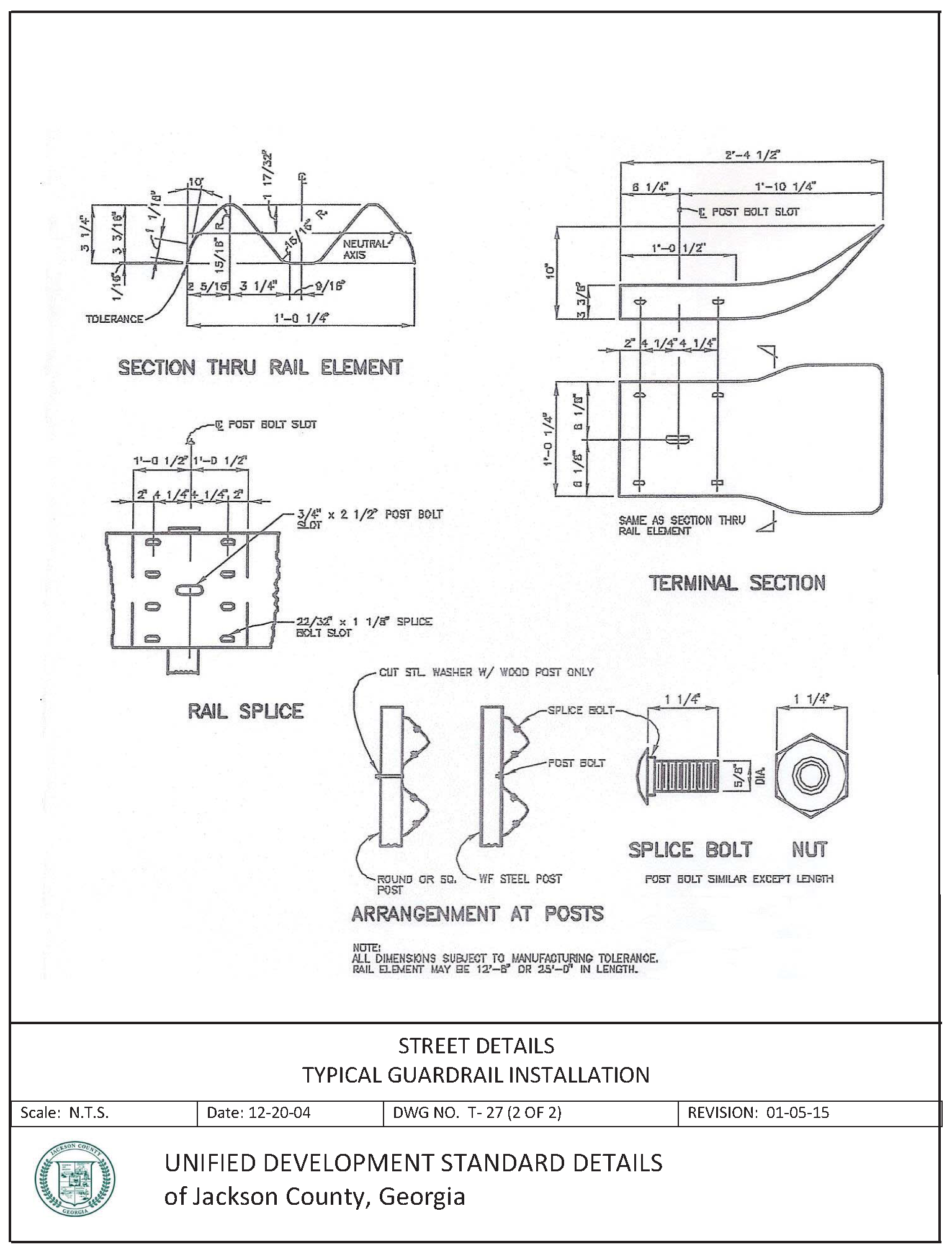

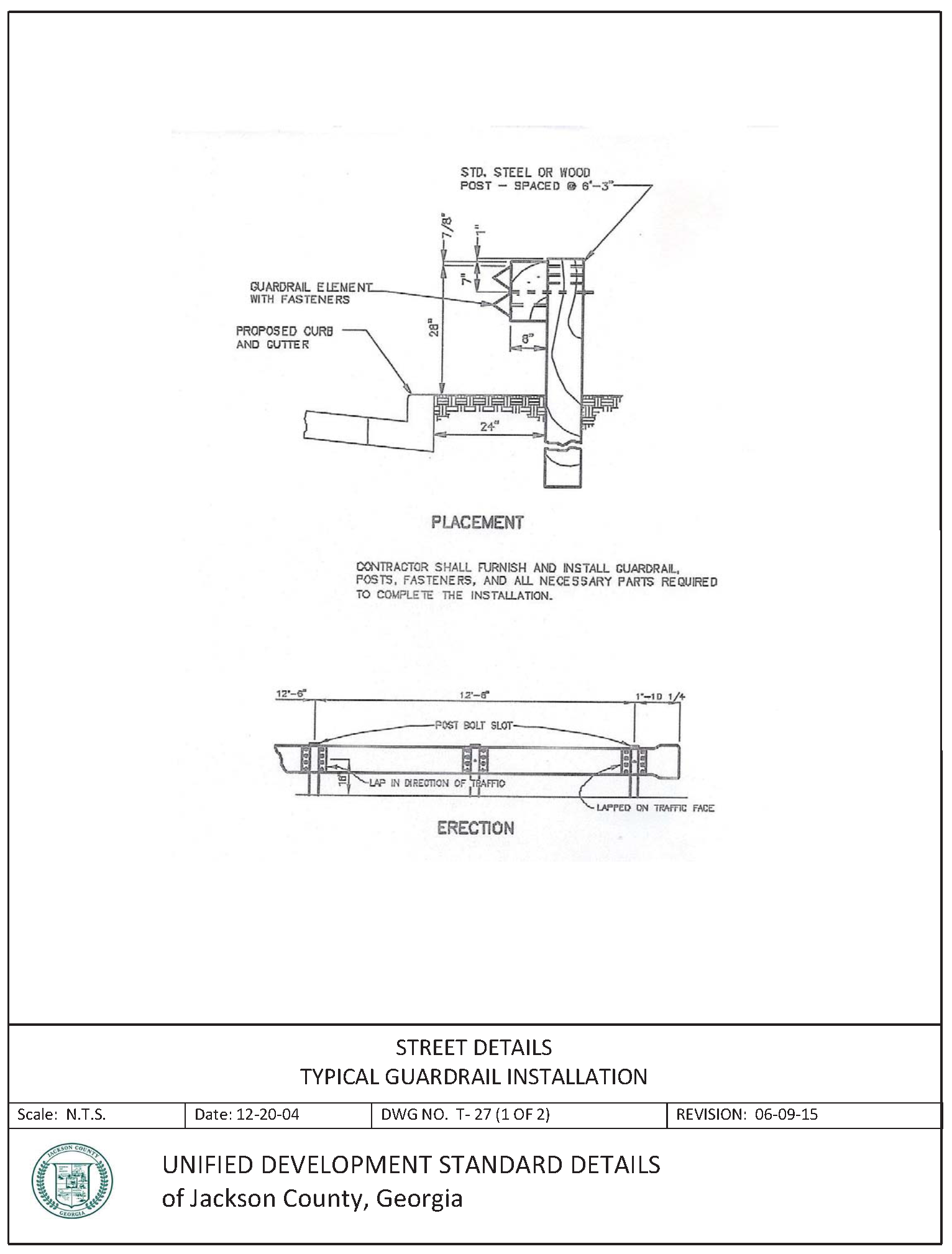

T-27  Street Details: Typical Guardrail Installation

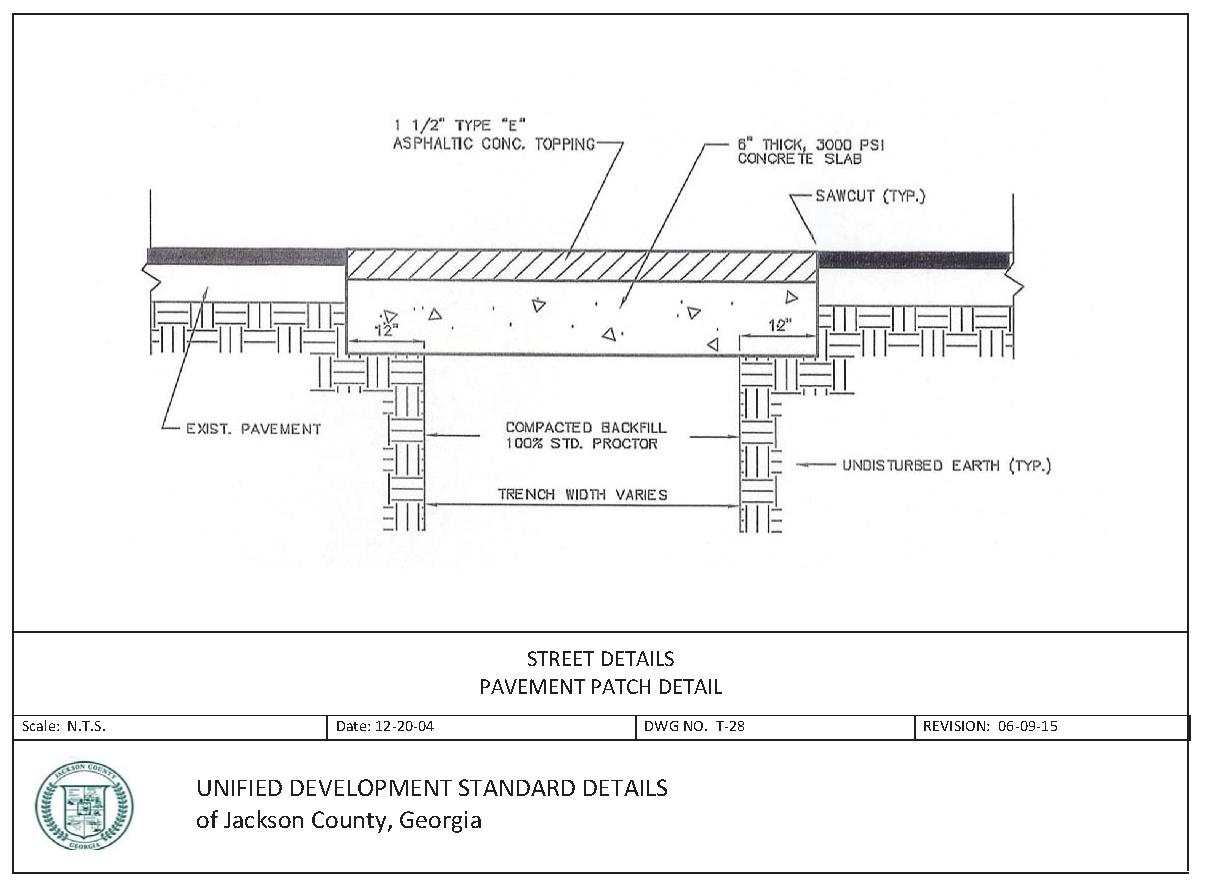

T-28  Street Details: Pavement Patch Details

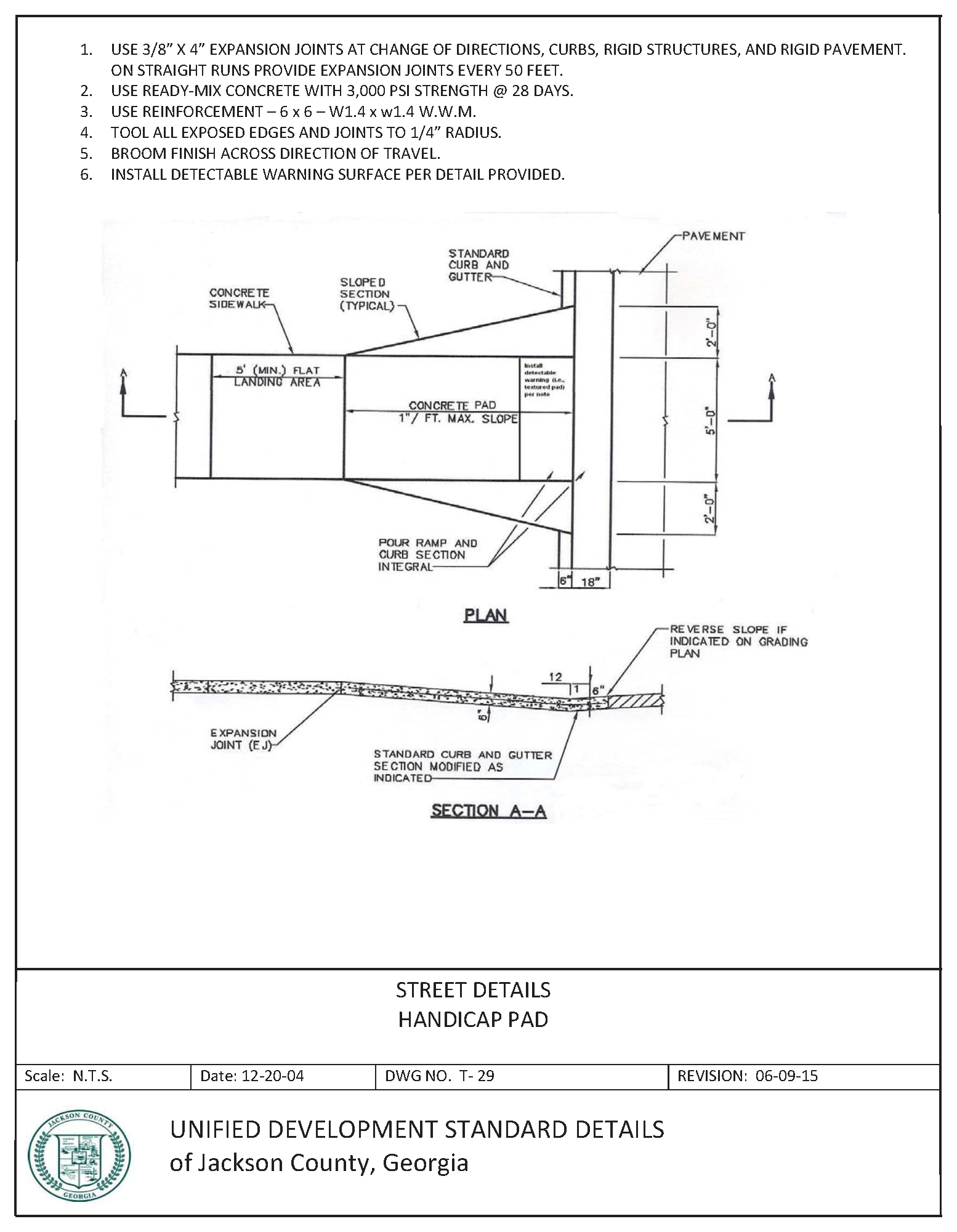

T-29  Street Details: Handicap Ramp

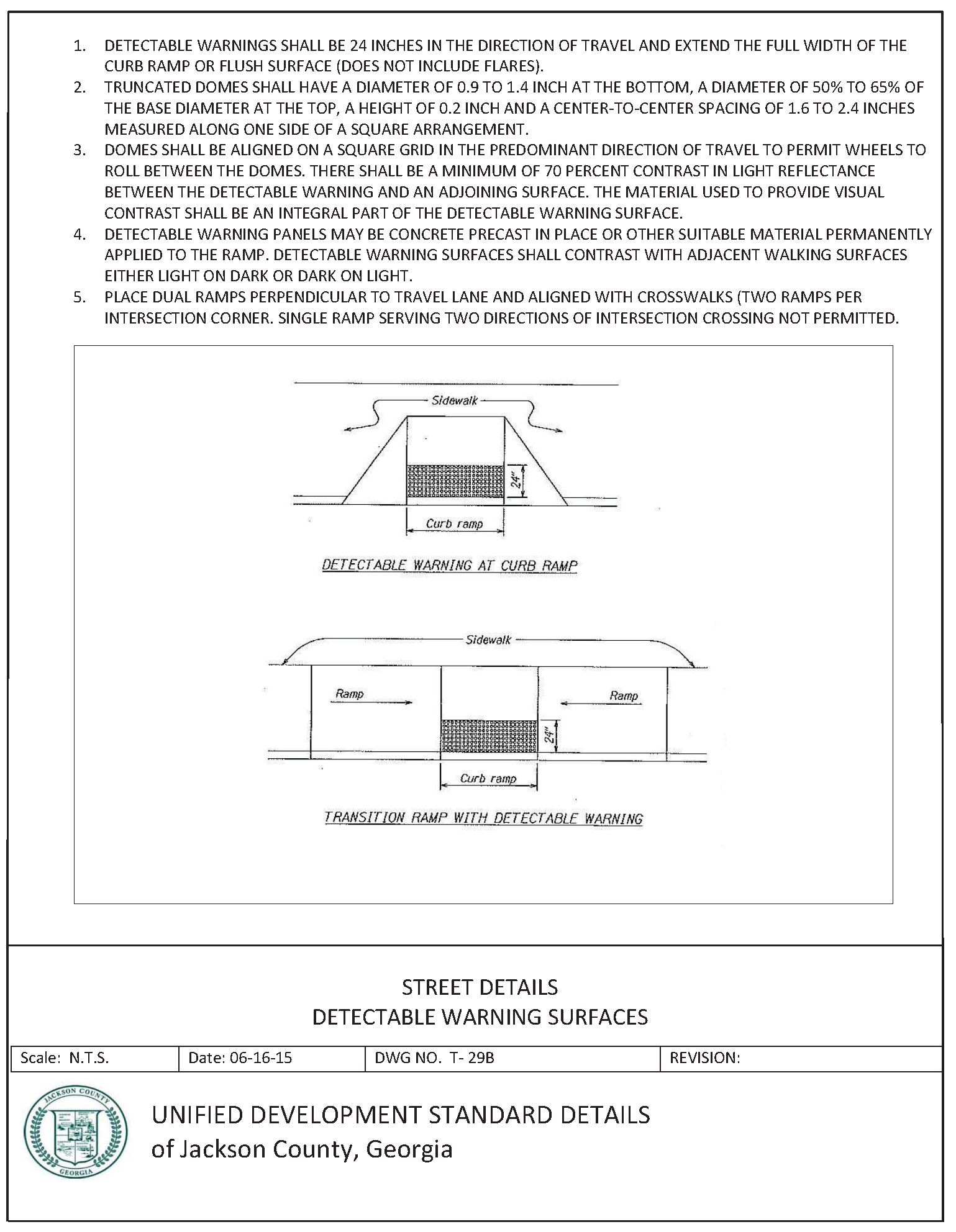

T-29B  Street Details: Detectable Warning

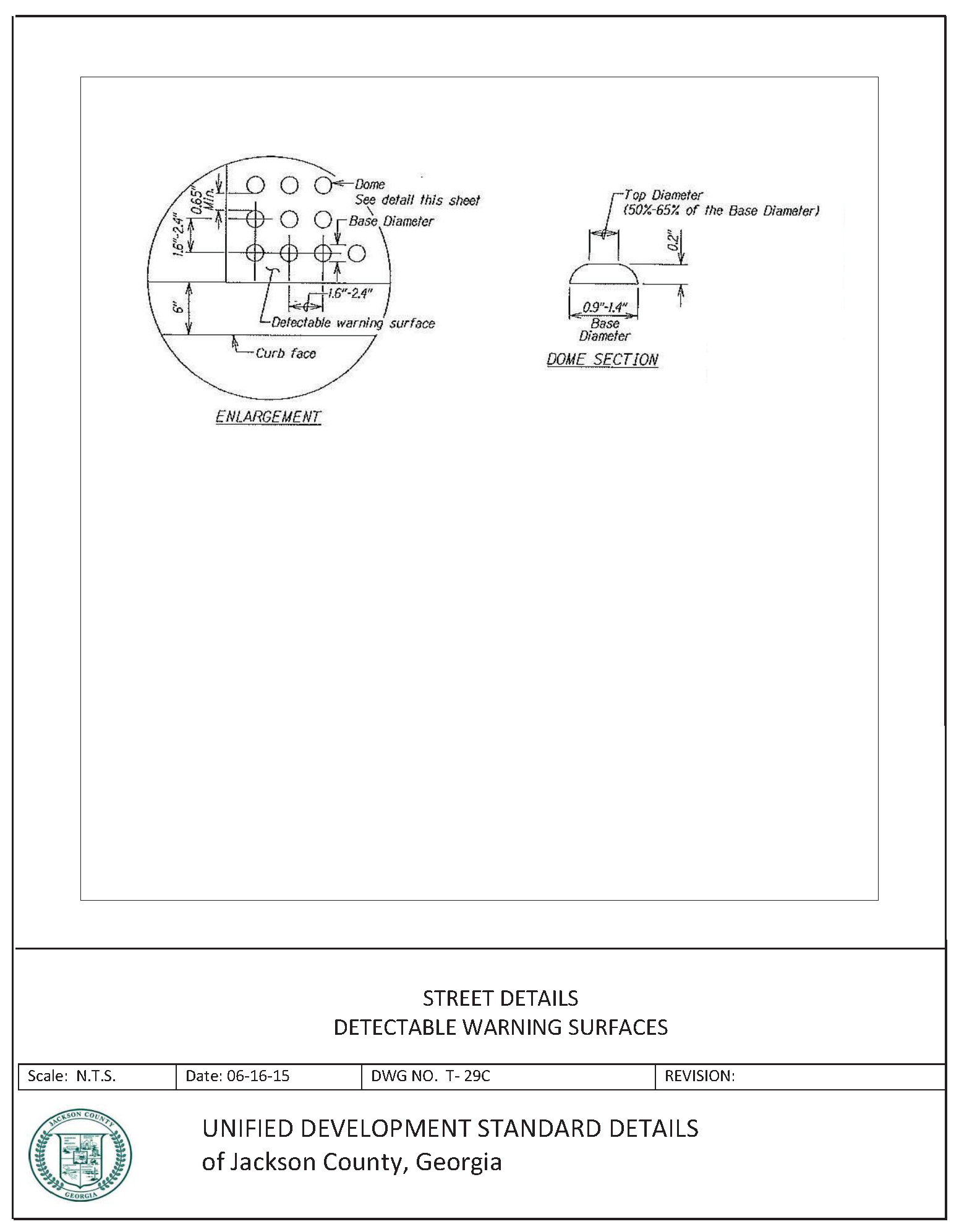

T-29C  Street Details: Detectable Warning

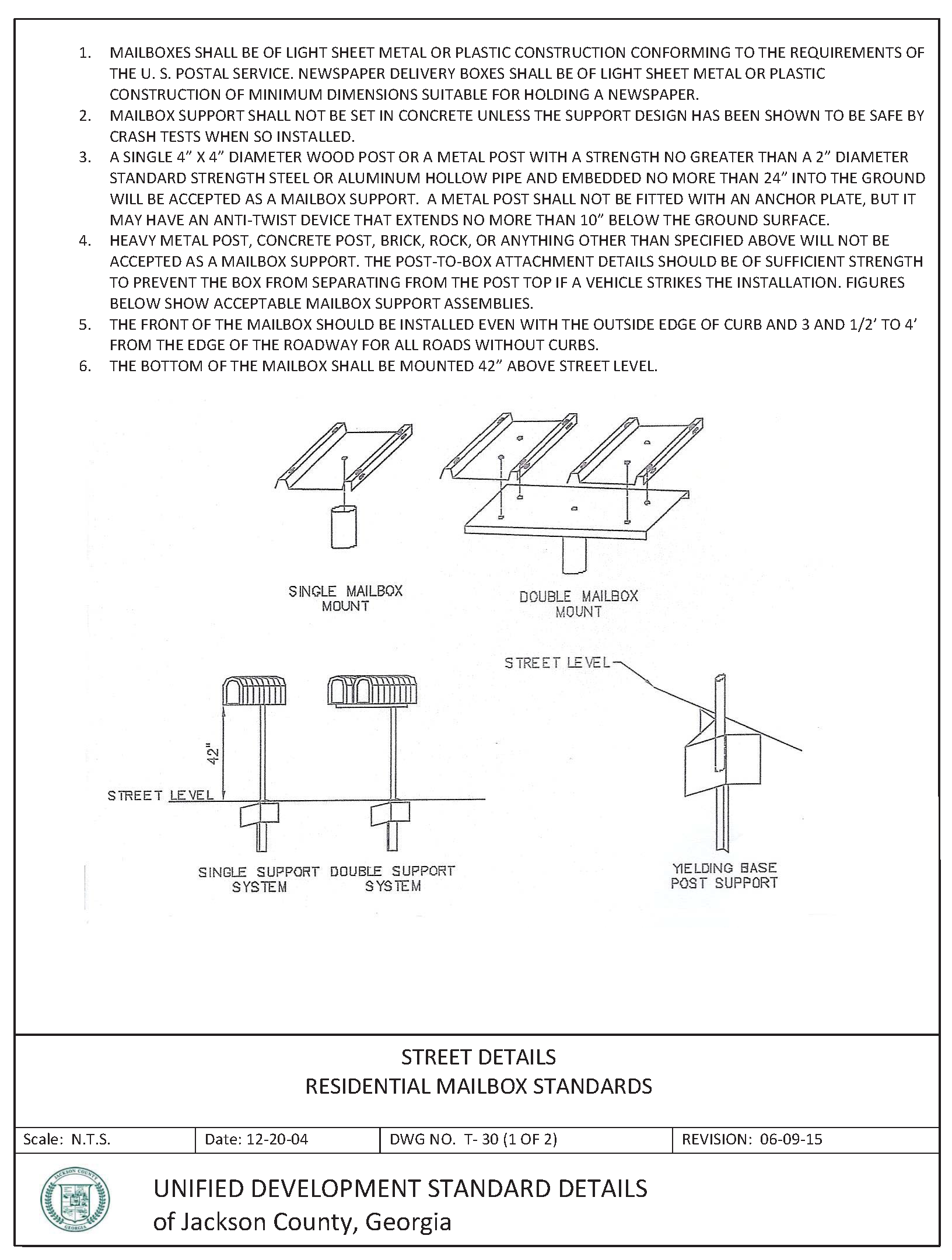

T-30  Street Details: Residential Mailbox Standards (1 of 2)

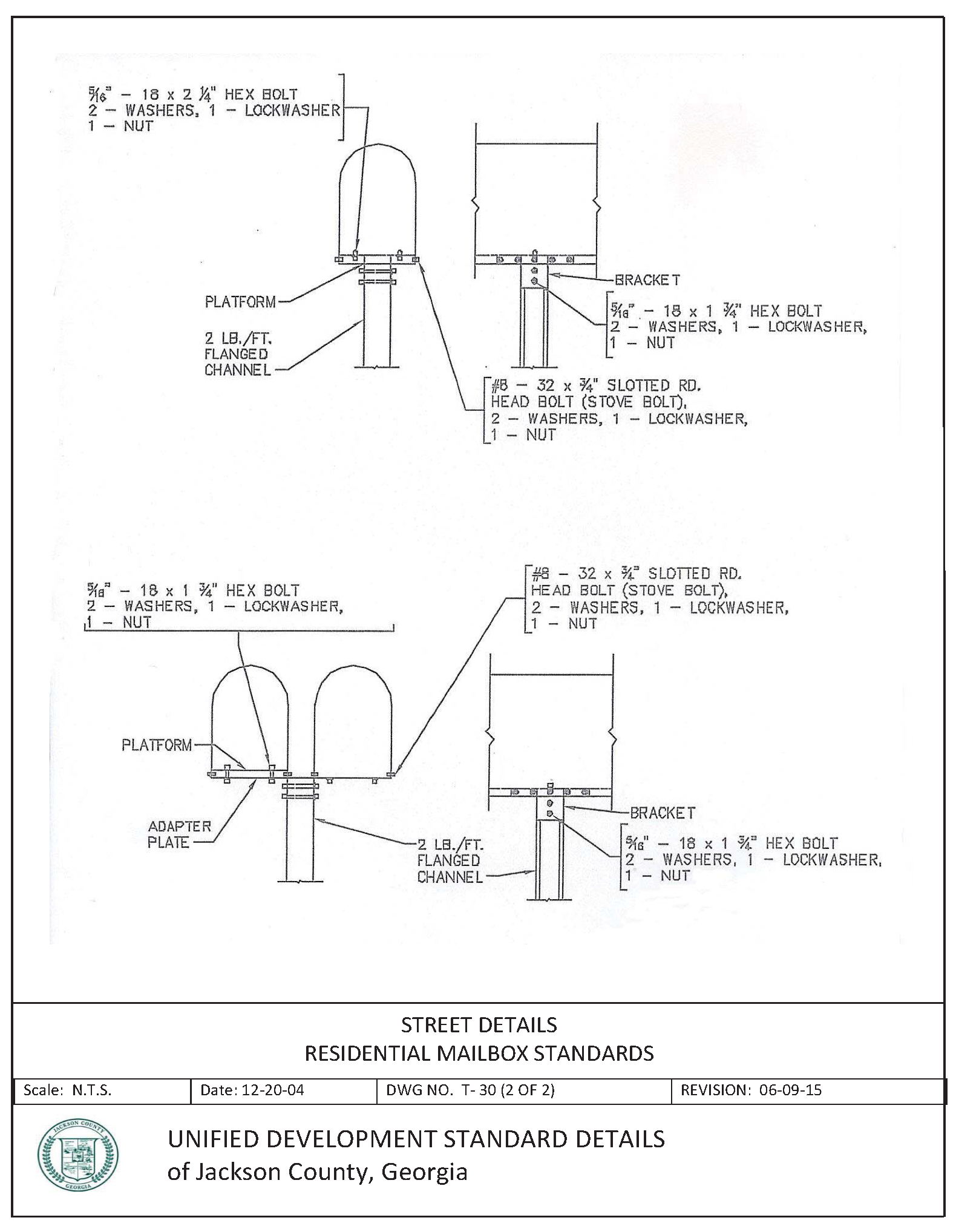

T-30  Street Details: Residential Mailbox Standards (2 of 2)

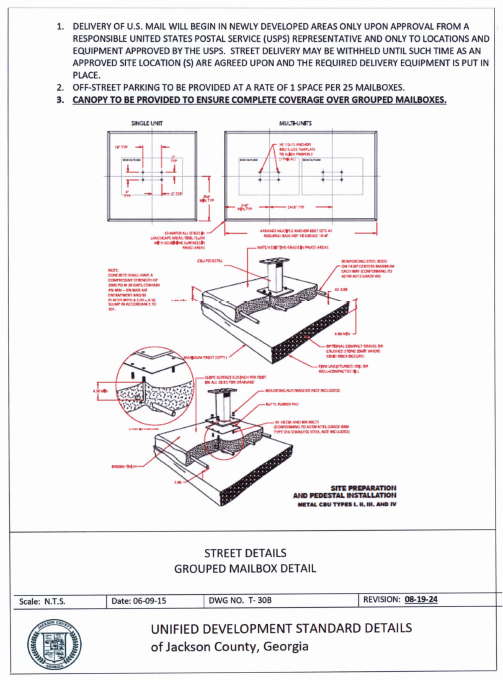

T-30B  Street Details: Grouped Mailbox Requirement

(Ord. No. 24-006, § 1, 8-19-2024)

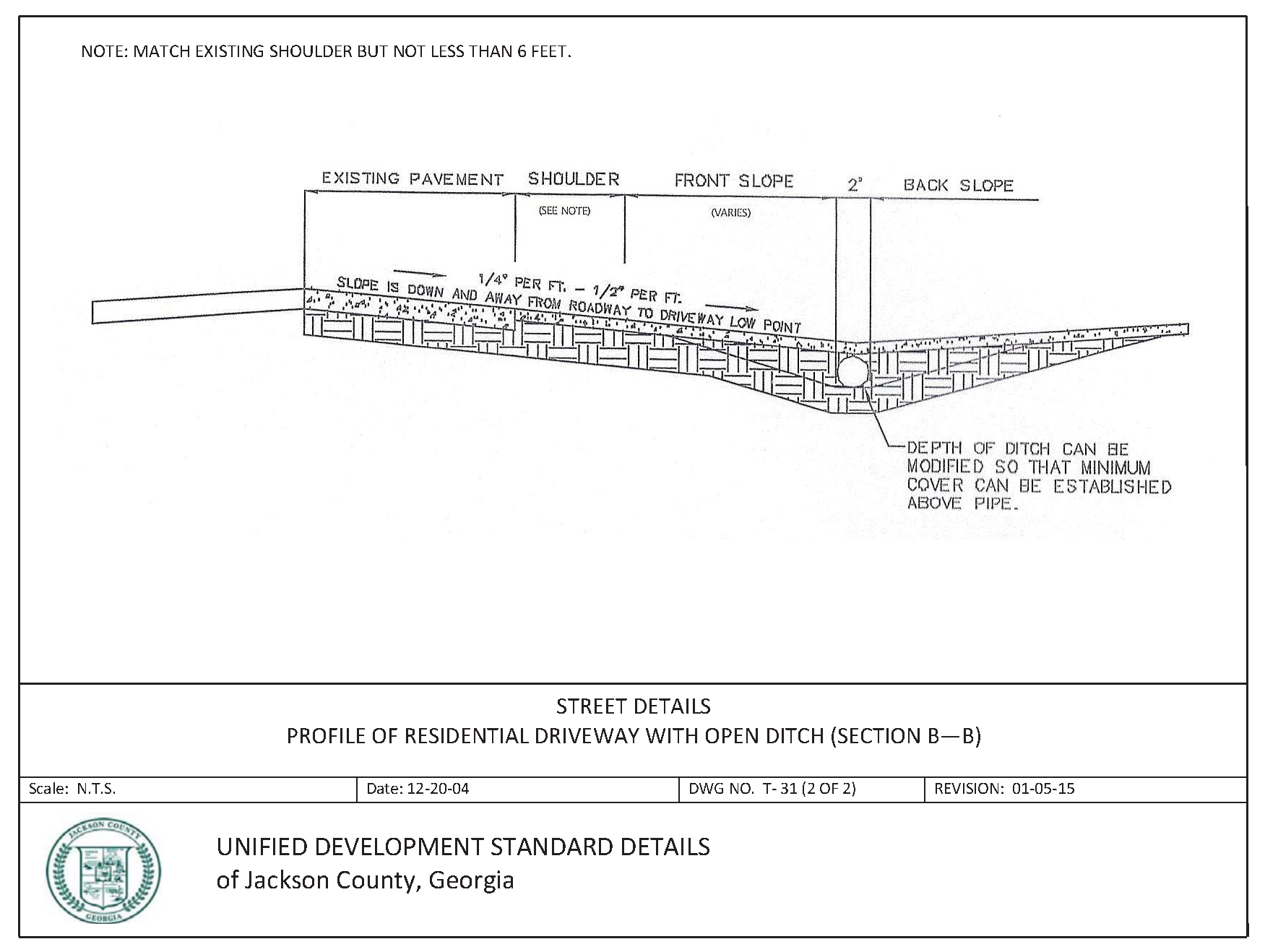

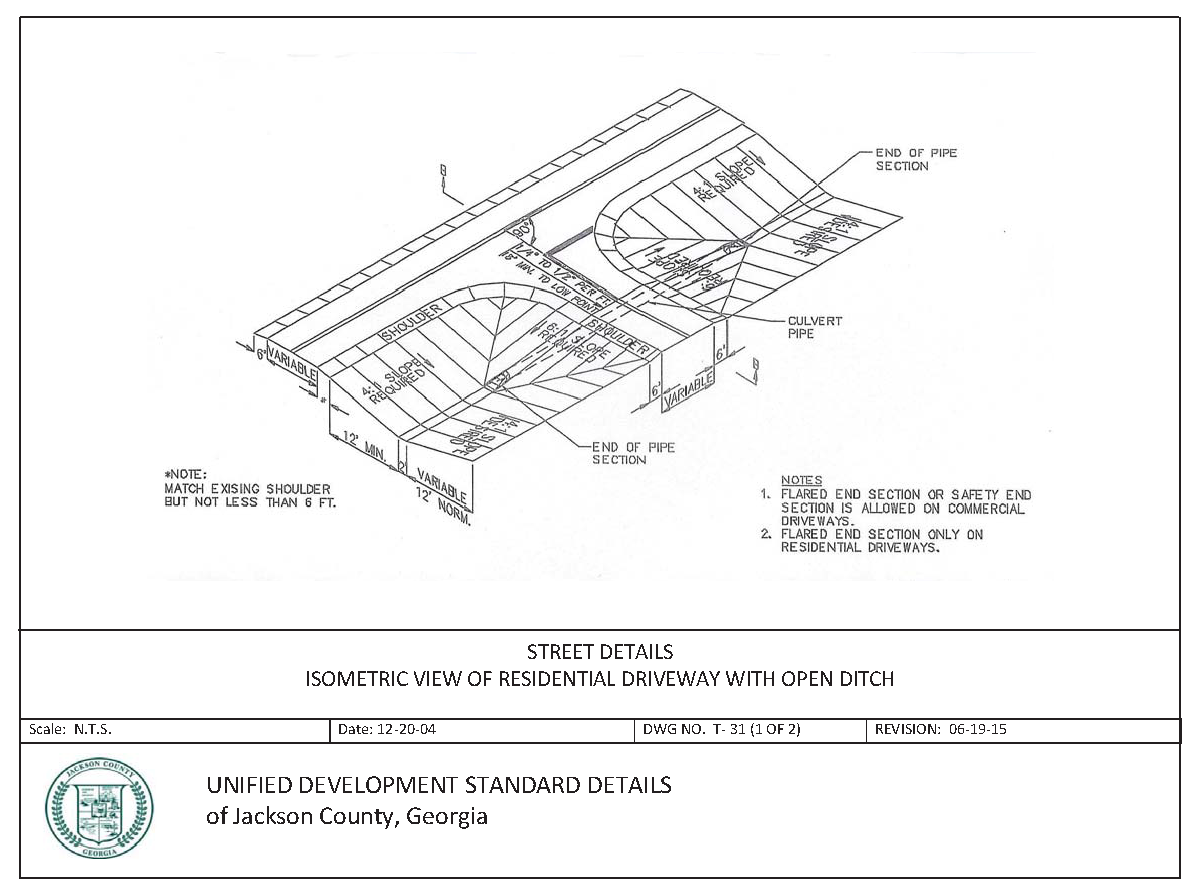

T-31  Street Details: Isometric View/Profile for Residential Driveway

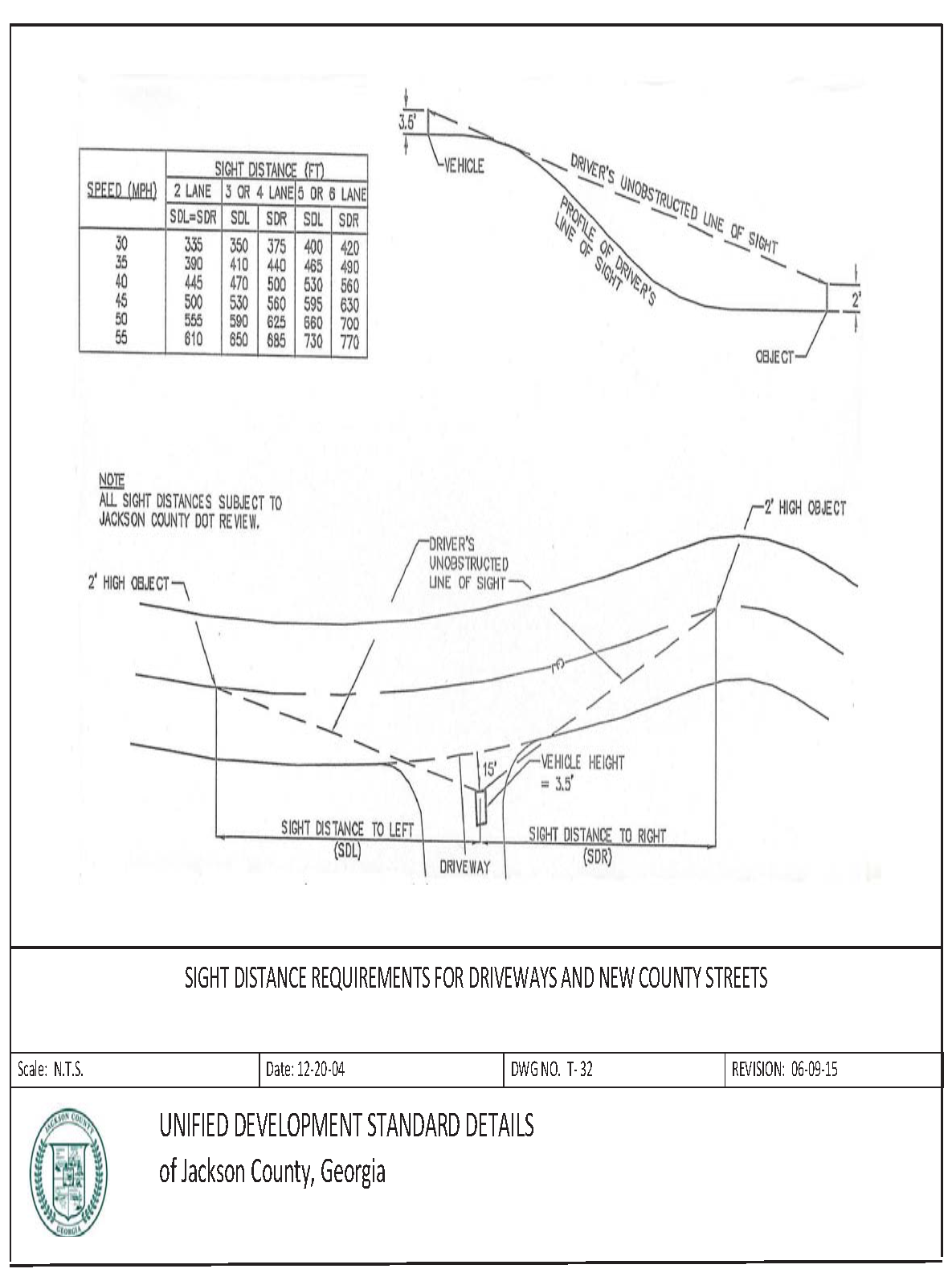

T-32  Street Details: Sight Distance Requirements for Driveways

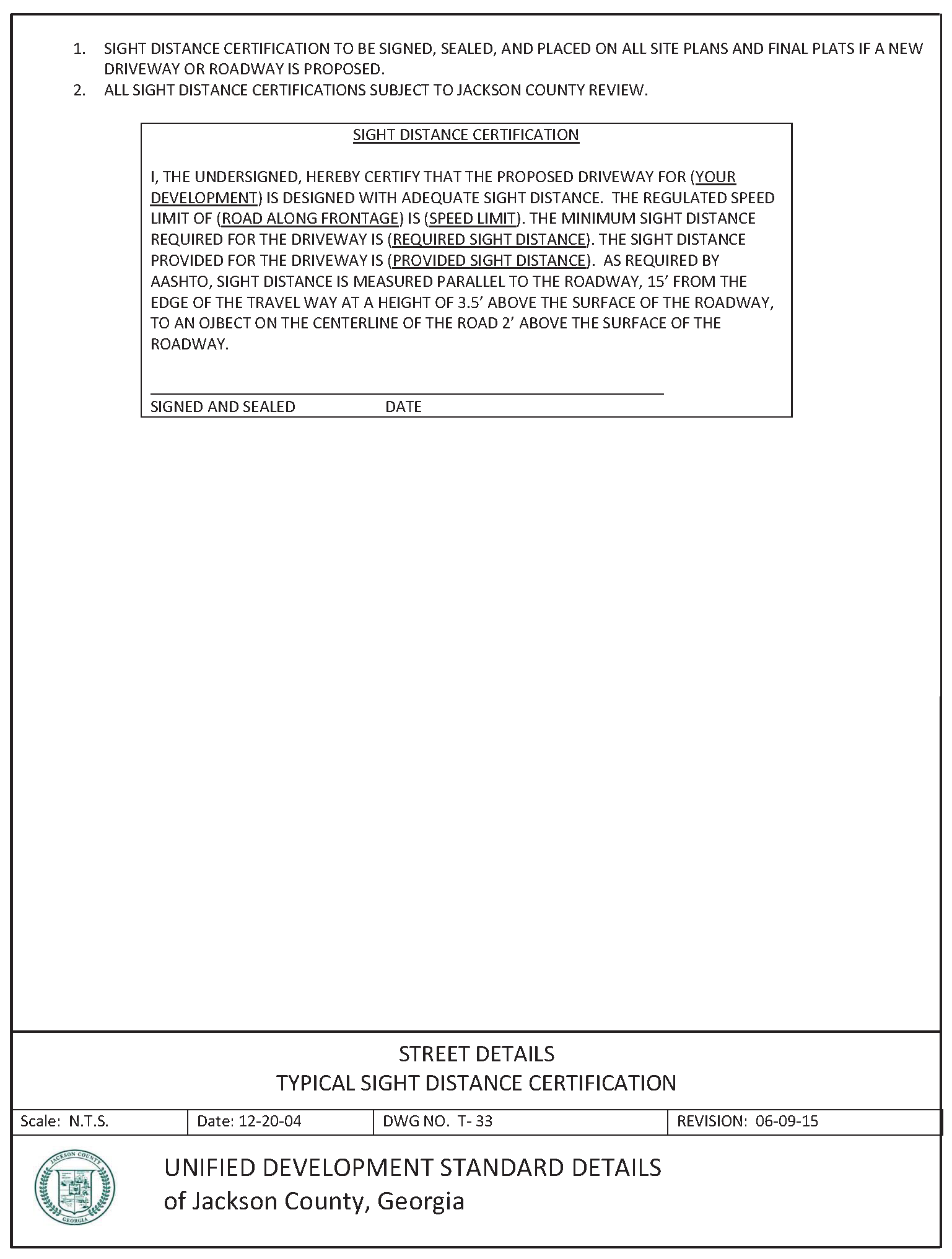

T-33  Street Details: Typical Sight Distance Certification

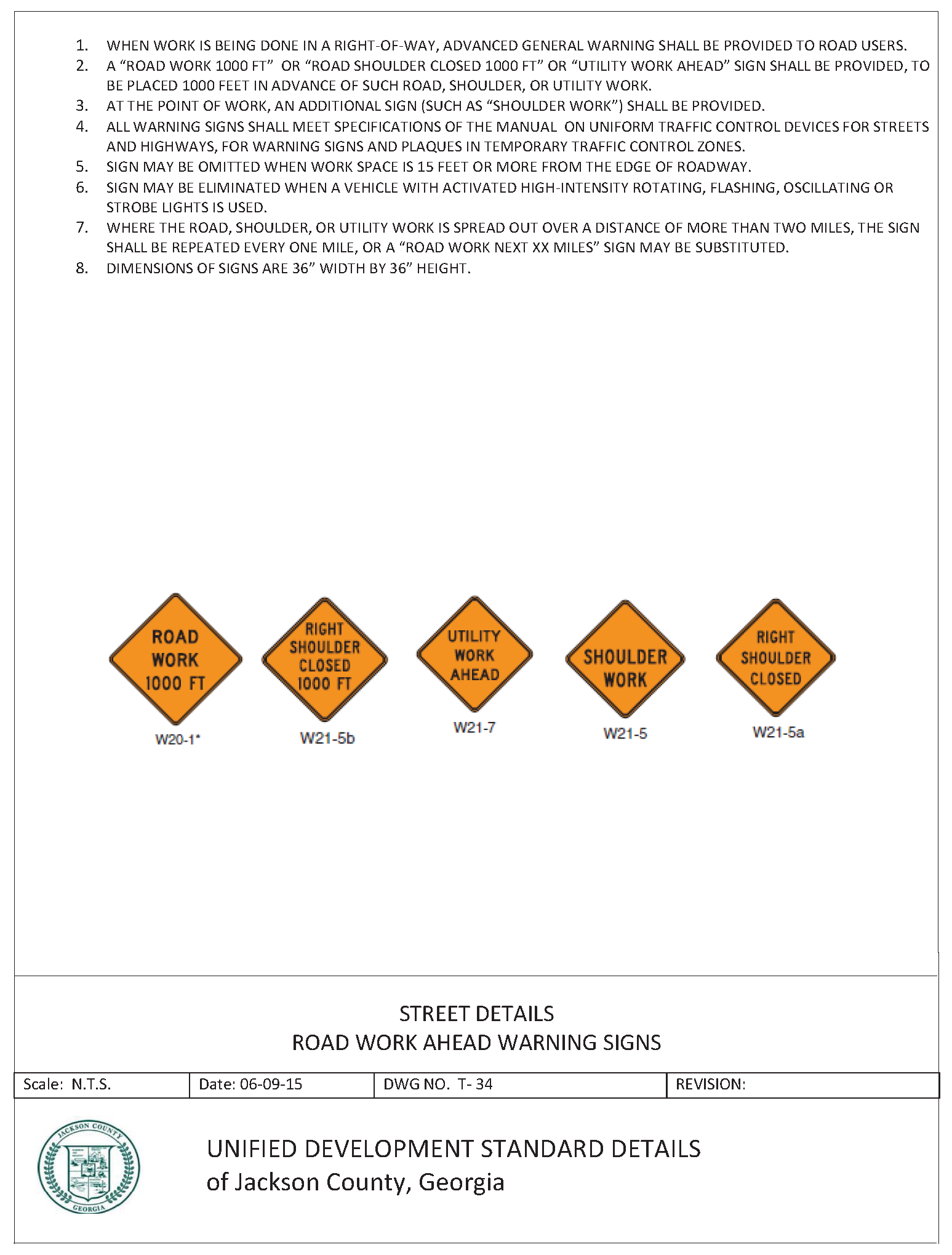

T-34  Street Details: Road Work Ahead Warning Signs

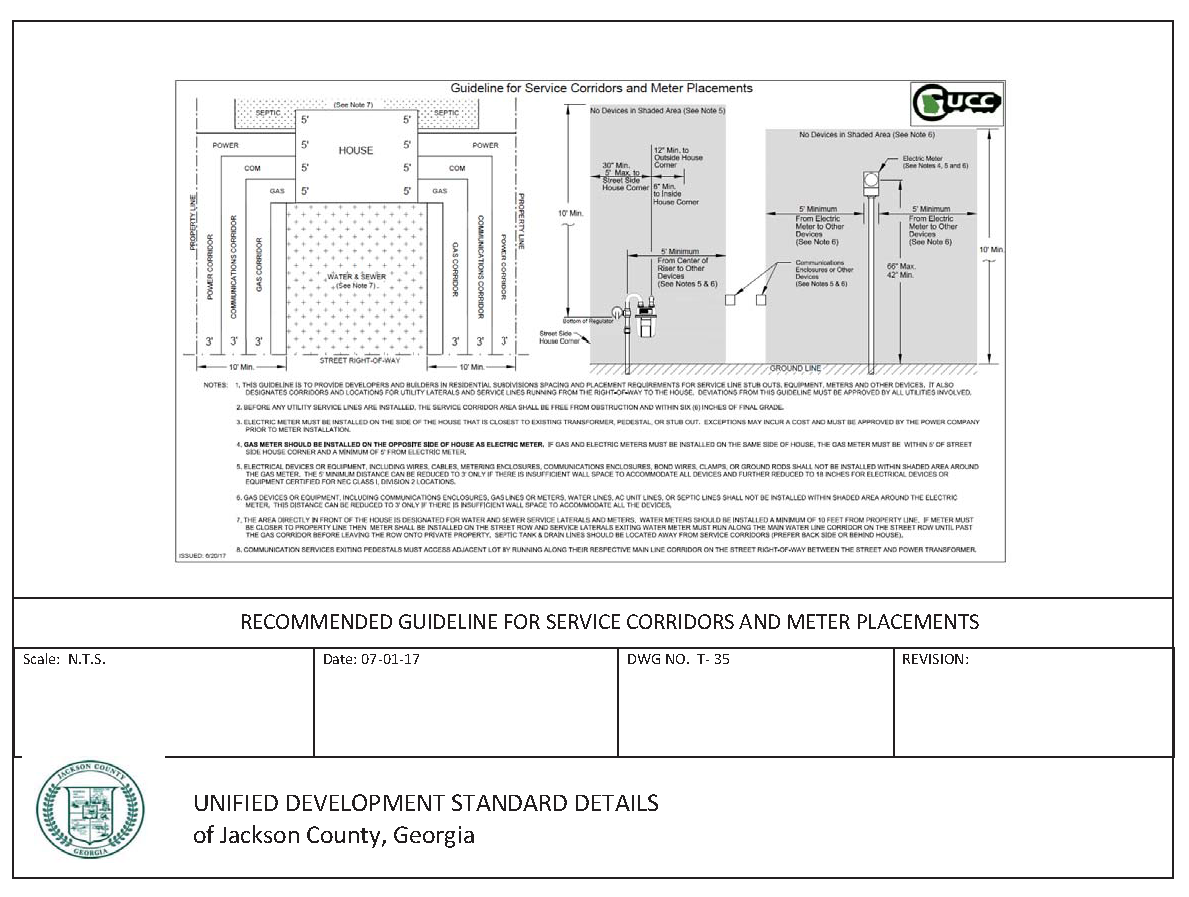

T-35  Recommended Guideline for Service Corridors and Meter Placements
