Pine City City Zoning Code

CHAPTER 13

88 SHORELAND ZONING

State law reference—Municipal shoreland management, Minn. Stats. § 103F.221.

13.88.010 Shorelands

Statutory authorization and policy.
1. Statutory authorization. This shoreland chapter is adopted pursuant to the authorization and policies contained in Minn. Stats. Ch. 103F, Minn. R. Pts. 6120.2500--6120.3900, and the planning and zoning enabling legislation in Minn. Stats. Ch. 462.
2. Policy. The Legislature of Minnesota has delegated responsibility to local governments of the State to regulate the subdivision, use and development of the shorelands of public waters and thus preserve and enhance the quality of surface waters, conserve the economic and natural environmental values of shorelands, and provide for the wise use of waters and related land resources. This responsibility is hereby recognized by the City of Pine City.
General provisions and definitions.
1. Jurisdiction. The provisions of this chapter apply to the shorelands of the public waterbodies as classified in Subsection (d) of this section. Pursuant to Minn. R. Pts. 6120.2500--6120.3900, no lake, pond, or flowage less than ten acres in size in municipalities or 25 acres in size in unincorporated areas need be regulated in a local government’s shoreland regulations. A body of water created by a private user where there was no previous shoreland may, at the discretion of the governing body, be exempt from this chapter.
2. Enforcement. The City of Pine City is responsible for the administration and enforcement of this chapter. Any violation of the provisions of this chapter or failure to comply with any of its requirements, including violations of conditions and safeguards established in connection with grants of variances or conditional uses constitutes a misdemeanor and is punishable as defined by law. Violations of this chapter can occur regardless of whether or not a permit is required for a regulated activity listed in Subsection (d)(2) of this section.
3. Abrogation and greater restrictions. It is not intended by this chapter to repeal, abrogate, or impair any existing easements, covenants, or deed restrictions. However, where this chapter imposes greater restrictions, the provisions of this chapter shall prevail. All other ordinances inconsistent with this chapter are hereby repealed to the extent of the inconsistency only.
Administration.
1. Purpose. The purpose of this section is to identify administrative provisions to ensure this chapter is administered consistent with its purpose.
2. Permits.
  1. A permit is required for the construction of buildings or building additions (including construction of decks and signs), the installation and/or alteration of sewage treatment systems, and those grading and filling activities not exempted by Subsection (h)(3) of this section.
  2. A Certificate of Compliance, consistent with Minn. R. Pt. 7082.0700, Subpt. 3, is required whenever a permit or variance of any type is required for any improvement on or use of the property. A sewage treatment system shall be considered compliant if the only deficiency is the system’s improper setback from the ordinary high-water level.
3. Application materials. Application for permits and other zoning applications such as variances shall be made to the Zoning Administrator on the forms provided. The application shall include the necessary information so that the Zoning Administrator can evaluate how the application complies with the provisions of this chapter.
4. Certificate of Zoning Compliance. The Zoning Administrator shall issue a Certificate of Zoning Compliance for each activity requiring a permit as specified in Subsection (d)(2) of this section. This Certificate will specify that the use of land conforms to the requirements of this chapter. Any use, arrangement, or construction at variance with that authorized by permit shall be deemed a violation of this chapter and shall be punishable as provided in PCC 13.08.100.
5. Variances. Variances may only be granted in accordance with Minn. Stats. § 462.357 and are subject to the following:
  1. A variance may not circumvent the general purposes and intent of this chapter; and
  2. For properties with existing sewage treatment systems, a Certificate of Compliance, consistent with Minn. R. Pt. 7082.0700, Subpt. 3, is required for variance approval. A sewage treatment system shall be considered compliant if the only deficiency is the system’s improper setback from the ordinary high-water level.
6. Conditional uses. All conditional uses in the shoreland area are subject to a thorough evaluation of the waterbody and the topographic, vegetation, and soil conditions to ensure:
  1. The prevention of soil erosion or other possible pollution of public waters, both during and after construction;
  2. The visibility of structures and other facilities as viewed from public waters is limited;
  3. There is adequate water supply and on-site sewage treatment; and
  4. The types, uses, and numbers of watercraft that the project will generate are compatible in relation to the suitability of public waters to safely accommodate these watercraft.
7. Mitigation.
  1. In evaluating all variances, conditional uses, Zoning and Building Permit applications, the zoning authority shall require the property owner to address the following conditions, when related to and proportional to the impact, to meet the purpose of this chapter, to protect adjacent properties, and the public interest:
    1. Advanced stormwater runoff management treatment;
    2. Reducing impervious surfaces;
    3. Increasing setbacks from the ordinary high-water level;
    4. Restoration of wetlands;
    5. Limiting vegetation removal and/or riparian vegetation restoration;
    6. Provisions for the location, design, and use of structures, sewage treatment systems, water supply systems, watercraft launching and docking areas, and parking areas; and
    7. Other conditions the zoning authority deems necessary.
  2. In evaluating plans to construct sewage treatment systems, roads, driveways, structures, or other improvements on steep slopes, conditions to prevent erosion and to preserve existing vegetation screening of structures, vehicles, and other facilities as viewed from the surface of public waters assuming summer, leaf-on vegetation, shall be attached to permits.
8. Nonconformities.
  1. All legally established nonconformities as of the date of this chapter may continue, but will be managed according to Minn. Stats. § 462.357, Subd. 1e and other regulations of this community for alterations and additions; repair after damage; discontinuance of use; and intensification of use.
  2. All additions or expansions to the outside dimensions of an existing nonconforming structure must meet the setback, height, and other requirements of Subsections (e) through (g) of this section. Any deviation from these requirements must be authorized by a variance.
9. Notifications to the Department of Natural Resources.
  1. All amendments to this shoreland chapter must be submitted to the Department of Natural Resources for review and approval for compliance with the statewide shoreland management rules. The City of Pine City will submit the proposed ordinance amendments to the commissioner or the commissioner’s designated representative at least 30 days before any scheduled public hearings.
  2. All notices of public hearings to consider variances, ordinance amendments, or conditional uses under shoreland management controls must be sent to the commissioner or the commissioner’s designated representative at least ten days before the hearings. Notices of hearings to consider proposed subdivisions/plats must include copies of the subdivision/plat.
  3. All approved ordinance amendments and subdivisions/plats, and final decisions approving variances or conditional uses under local shoreland management controls must be sent to the commissioner or the commissioner’s designated representative and postmarked within ten days of final action. When a variance is approved after the Department of Natural Resources has formally recommended denial in the hearing record, the notification of the approved variance shall also include the summary of the public record/testimony and the findings of facts and conclusions which supported the issuance of the variance.
  4. Any request to change the shoreland management classification of public waters within the City of Pine City must be sent to the commissioner or the commissioner’s designated representative for approval, and must include a resolution and supporting data as required by Minn. R. Pt. 6120.3000, Subpt. 4.
  5. Any request to reduce the boundaries of shorelands of public waters within the City of Pine City must be sent to the commissioner or the commissioner’s designated representative for approval and must include a resolution and supporting data. The boundaries of shorelands may be reduced when the shoreland of waterbodies with different classifications overlap. In these cases, the topographic divide between the waterbodies shall be used for adjusting the boundaries.
10. Mandatory EAW. An Environmental Assessment Worksheet consistent with Minn. R. Ch. 4410 must be prepared for projects meeting the thresholds of Minn. R. Pt. 4410.4300, Subpts. 19a, 20a, 25, 27, 28, 29, and 36a.

Shoreland classification system and land uses.

Shoreland classification system.
1. Purpose. To ensure that shoreland development on the public waters of the City of Pine City is regulated consistent with the classifications assigned by the commissioner under Minn. R. Pt. 6120.3300.
2. The shoreland area for the waterbodies listed in Subsection (d)(1)c though e of this section are defined in PCC 13.08.100 and are shown on the Official Zoning Map. For the purposes of this chapter, the boundary between Cross Lake and the Snake River shall be the first set of railroad tracks located just upstream of Cross Lake.
3. Lakes are classified as follows:

  Lake Classification DNR Public Waters I.D. #
  General Development
  Cross Lake 58-119 P
  Natural Environment
  Squaw Lake 58-146 W
  Devil's Lake 58-118 W
  Unnamed 58-120 W
  Kick Lake 58-165 W
4. Rivers and streams are classified as follows:

  River and Stream Classification
  Legal Description
  Urban
  Snake River Starting at the City limits of the City of Pine City in Section 32, flowing SE to the confluence of Cross Lake in Section 33.
5. All public rivers and streams shown on the Public Waters Inventory Map for Pine County, a copy of which is adopted by reference, not given a classification shall be considered a "tributary."

Land uses.

Purpose. To identify land uses that are compatible with the protection and preservation of shoreline resources in order to conserve the economic and environmental values of shoreland and sustain water quality.
Shoreland district land uses listed in Subsections (d)(2)c and d are regulated as:
1. Permitted uses (P). These uses are allowed, provided all standards in this chapter are followed;
2. Conditional uses (C). These uses are allowed through a conditional use permit. The use must be evaluated according to the criteria in Subsection (c)(6) of this section and any additional conditions listed in this chapter; and
3. Not permitted uses (N). These uses are prohibited.

Land uses for lake and river classifications:

Land Uses	General Development	Natural Environment	Urban River
Single residential	P	P	P
Duplex, triplex, quad residential	P	C	P
Residential PUD	C	C	C
Water-dependent commercial--As accessory to a residential Planned Unit Development	C	C	C
Commercial	P	C	P
Commercial PUD--Limited expansion of a commercial Planned Unit Development involving up to six additional dwelling units or sites may be allowed as a permitted use, provided the provisions of Subsection (j) of this section are satisfied.	C	C	C
Parks and historic sites	C	C	C
Public, semipublic	P	C	P
Industrial	C	N	C
Agricultural: cropland and pasture	P	P	P
Agricultural feedlots--New	N	N	N
Agricultural feedlots--Expansion or resumption of existing	C	C	C
Forest management	P	P	P
Forest land conversion	C	C	C
Extractive use	C	C	C
Mining of metallic minerals and peat	P	P	P

Special land use provisions.
1. Commercial, industrial, public, and semipublic use standards.
  1. Water-dependent uses may be located on parcels or lots with frontage on public waters, provided that:
    1. The use complies with provisions of Subsection (g) of this section;
    2. The use is designed to incorporate topographic and vegetative screening of parking areas and structures;
    3. Uses that require short-term watercraft mooring for patrons must centralize these facilities and design them to avoid obstructions of navigation and to be the minimum size necessary to meet the need; and
    4. Uses that depend on patrons arriving by watercraft may use signs and lighting, provided that:
      1. Signs placed in or on public waters must only convey directional information or safety messages and may only be placed by a public authority or under a permit issued by the county sheriff; and
      2. Signs placed within the shore impact zone are:
        No higher than ten feet above the ground, and no greater than 32 square feet in size; and
        If illuminated by artificial lights, the lights must be shielded or directed to prevent illumination across public waters; and
      3. Other lighting may be located within the shore impact zone or over public waters if it is used to illuminate potential safety hazards and is shielded or otherwise directed to prevent direct illumination across public waters. This does not preclude use of navigational lights.
  2. Commercial, industrial, public, and semi-public uses that are not water-dependent must be located on lots or parcels without public waters frontage or, if located on lots or parcels with public waters frontage, must either be set back double the ordinary high-water level setback or be substantially screened from view from the water by vegetation or topography, assuming summer, leaf-on conditions.
2. Agriculture use standards.
  1. Buffers.
    1. The shore impact zone for parcels with permitted agricultural land uses is equal to a line parallel to and 50 feet from the ordinary high-water level.
    2. General cultivation farming, grazing, nurseries, horticulture, truck farming, sod farming, and wild crop harvesting are permitted uses if steep slopes and shore and bluff impact zones are maintained in perennial vegetation or operated under an approved conservation plan consistent with the field office technical guides of the local soil and water conservation district or the Natural Resource Conservation Service, and as approved by the local soil and water conservation district.
  2. New animal feedlots are not allowed in shoreland. Modifications or expansions to existing feedlots or resumption of old feedlots are conditional uses and must meet the following standards:
    1. Feedlots must be designed consistent with Minn. R. Ch. 7020;
    2. Feedlots must not further encroach into the existing ordinary high-water level setback or the bluff impact zone and must not expand to a capacity of 1,000 animal units or more; and
    3. Old feedlots not currently in operation may resume operation consistent with Minn. Stats. § 116.0711.
3. Forest management standards.
  1. The harvesting of timber and associated reforestation must be conducted consistent with the applicable provisions of the Sustaining Minnesota Forest Resources: Voluntary Site-Level Forest Management Guidelines for Landowners, Loggers and Resource Managers.
  2. Intensive vegetation clearing for forest land conversion to another use is a conditional use subject to an erosion control and sedimentation plan developed and approved by the soil and water conservation district.
4. Extractive use standards. Extractive uses are conditional uses and must meet the following standards:
  1. Site development and restoration plan. A site development and restoration plan must be developed, approved, and followed over the course of operation. The plan must:
    1. Address dust, noise, possible pollutant discharges, hours and duration of operation, and anticipated vegetation and topographic alterations;
    2. Identify actions to be taken during operation to mitigate adverse environmental impacts, particularly erosion; and
    3. Clearly explain how the site will be rehabilitated after extractive activities end.
  2. Setbacks for processing machinery. Processing machinery must meet structure setback standards from ordinary high-water levels and from bluffs.
5. Metallic mining standards. Mining of metallic minerals and peat is a permitted use, provided the provisions of Minn. Stats. §§ 93.44--93.51, are satisfied.

Dimensional and general performance standards.

Purpose. To establish dimensional and performance standards that protect shoreland resources from impacts of development.

Lot area and width standards. After the effective date of the ordinance from which this chapter is derived, all new lots must meet the minimum lot area and lot width requirements in Subsections (f)(2)e and f of this section subject to the following standards:

Only lands above the ordinary high-water level can be used to meet lot area and width standards;
Lot width standards must be met at both the ordinary high-water level and at the building line;
The sewer lot area dimensions can only be used if publicly owned sewer system service is available to the property;
Residential subdivisions with dwelling unit densities exceeding those in Subsections (f)(2)e and f of this section are allowed only if designed and approved as residential PUDs under Subsection (j) of this section; and

Lake minimum lot area and width standards:

General Development--No Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	20,000	100	40,000	150
Duplex	40,000	180	80,000	265
Triplex	60,000	260	120,000	375
Quad	80,000	340	160,000	490
General Development--Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	15,000	75	10,000	75
Duplex	26,000	135	17,500	135
Triplex	38,000	195	25,000	190
Quad	49,000	255	32,500	245
Natural Environment--No Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	80,000	200	80,000	200
Duplex	120,000	300	160,000	400
Triplex	160,000	400	240,000	600
Quad	200,000	500	320,000	800
Natural Environment--Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	40,000	125	20,000	125
Duplex	70,000	225	35,000	220
Triplex	100,000	325	52,000	315
Quad	130,000	425	65,000	410

River/stream minimum lot width standards. There are no minimum lot area requirements for rivers and streams. The lot width standards in feet are:

Urban and Tributary
No Sewer Sewer
Single 100 75
Duplex 150 115
Triplex 200 150
Quad 250 190

Special residential lot provisions.
1. Subdivisions of duplexes, triplexes, and quads are conditional uses on Natural Environment Lakes and must also meet the following standards:
  1. Each building must be set back at least 200 feet from the ordinary high-water level;
  2. Each building must have common sewage treatment and water systems in one location and serve all dwelling units in the building;
  3. Watercraft docking facilities for each lot must be centralized in one location and serve all dwelling units in the building; and
  4. No more than 25 percent of a lake’s shoreline can be in duplex, triplex, or quad developments.
2. One guest cottage may be allowed on lots meeting or exceeding the duplex lot area and width dimensions presented in Subsections (f)(2)e and f of this section, provided the following standards are met:
  1. For lots exceeding the minimum lot dimensions of duplex lots, the guest cottage must be located within an area equal to the smallest duplex-sized lot that could be created including the principal dwelling unit;
  2. A guest cottage must not cover more than 700 square feet of land surface and must not exceed 15 feet in height; and
  3. A guest cottage must be located or designed to reduce its visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks or color, assuming summer leaf-on conditions.
3. Controlled access lots are permissible if created as part of a subdivision and in compliance with the following standards:
  1. The lot must meet the area and width requirements for residential lots, and be suitable for the intended uses of controlled access lots as provided in Subsection (d) of this section;
  2. If docking, mooring, or over-water storage of more than six watercraft is to be allowed at a controlled access lot, then the width of the lot (keeping the same lot depth) must be increased by a percentage of the requirements for riparian residential lots for each watercraft beyond six, consistent with the following table:

    Controlled Access Lot Frontage Requirements
    Ratio of Lake Size to Shore Length (Acres/Mile)
    Required Percent Increase in Frontage
    Less than 100 25%
    100--200 20%
    201--300 15%
    301--400 10%
    Greater than 400 5%
  3. The lot must be jointly owned by all purchasers of lots in the subdivision or by all purchasers of nonriparian lots in the subdivision who are provided riparian access rights on the access lot; and
  4. Covenants or other equally effective legal instruments must be developed that:
    1. Specify which lot owners have authority to use the access lot;
    2. Identify what activities are allowed. The activities may include watercraft launching, loading, storage, beaching, mooring, docking, swimming, sunbathing, or picnicking;
    3. Limit the total number of vehicles allowed to be parked and the total number of watercrafts allowed to be continuously moored, docked, or stored over water;
    4. Require centralization of all common facilities and activities in the most suitable locations on the lot to minimize topographic and vegetation alterations; and
    5. Require all parking areas, storage buildings, and other facilities to be screened by vegetation or topography as much as practical from view from the public water, assuming summer, leaf-on conditions.
Placement, height, and design of structures.
1. Placement of structures and sewage treatment systems on lots. When more than one setback applies to a site, structures and facilities must be located to meet all setbacks, and comply with the following OHWL setback provisions. The structure setback standards for sewered properties can only be used if publicly owned sewer system service is available.

  Classification Structures Sewage Treatment System
  No Sewer Sewer
  Lakes
  Natural Environment 150 150 150
  General Development 75 50 50
  Rivers and Streams
  Urban and Tributary 100 50 75
  1. OHWL setbacks. Structures, impervious surfaces, and sewage treatment systems must meet setbacks from the ordinary high-water level (OHWL), except that one water-oriented accessory structure or facility, designed in accordance with Subsection (g)(3) of this section, may be set back a minimum distance of ten feet from the OHWL;

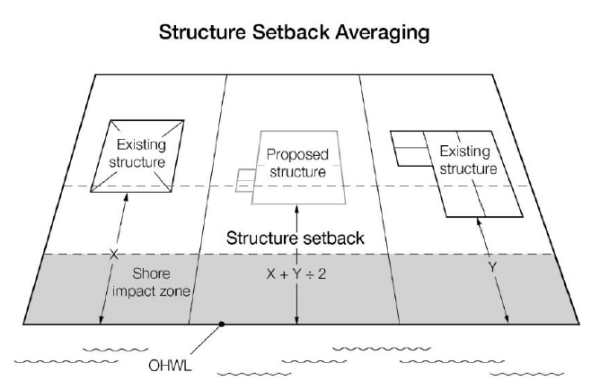

  2. Setback averaging. Where structures exist on the adjoining lots on both sides of a proposed building site, structure setbacks may be altered without a variance to conform to the adjoining setbacks from the OHWL, provided the proposed structure is not located in a shore impact zone or in a bluff impact zone;

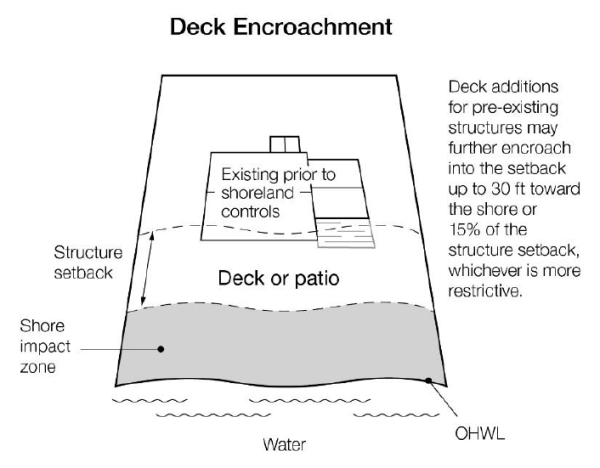

  3. Setbacks of decks. Deck additions may be allowed without a variance to a structure not meeting the required setback from the ordinary high-water level if all of the following criteria are met:
    1. The structure existed on the date the structure setbacks were established;
    2. A thorough evaluation of the property and structure reveals no reasonable location for a deck meeting or exceeding the existing ordinary high-water level setback of the structure;
    3. The deck encroachment toward the ordinary high-water level does not exceed 15 percent of the existing setback of the structure from the ordinary high-water level or is no closer than 30 feet from the OHWL, whichever is more restrictive; and
    4. The deck is constructed primarily of wood, and is not roofed or screened.
  4. Additional structure setbacks. Structures must also meet the following setbacks, regardless of the waterbody classification:

    Setback from: Setback (feet)
    Top of bluff 30
    Unplatted cemetery
    50
    Right-of-way line of Federal, State, or County highway
    50
    Right-of-way line of town road, public street, or other roads not classified
    20
  5. Bluff impact zones. Structures, impervious surfaces, and accessory facilities, except stairways and landings, must not be placed within bluff impact zones.
2. Height of structures. All structures in residential districts in cities, except churches and nonresidential agricultural structures, must not exceed 25 feet in height.

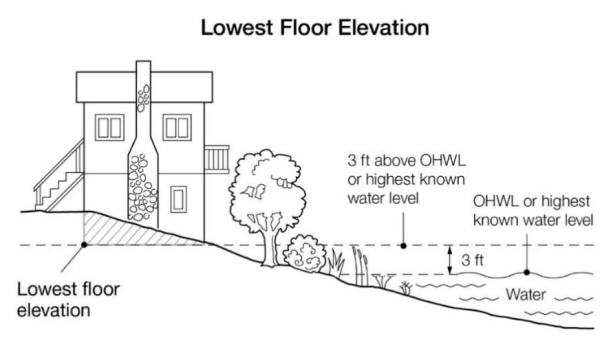

3. Lowest floor elevation. Structures must be placed in accordance with any floodplain regulations applicable to the site. Where these controls do not exist, the elevation to which the lowest floor, including basement, is placed or floodproofed must be determined as follows:
  1. For lakes, by placing the lowest floor at a level at least three feet above the highest known water level, or three feet above the ordinary high-water level, whichever is higher;
  2. For rivers and streams, by placing the lowest floor at least three feet above the highest known flood elevation. If data are not available, by placing the lowest floor at least three feet above the ordinary high-water level, or by conducting a technical evaluation to determine effects of proposed construction upon flood stages and flood flows and to establish a flood protection elevation. Under all three approaches, technical evaluations must be done by a qualified engineer or hydrologist consistent with Minn. R. Pts. 6120.5000--6120.6200 governing the management of floodplain areas. If more than one approach is used, the highest flood protection elevation determined must be used for placing structures and other facilities; and
  3. If the structure is floodproofed instead of elevated under this subsection, then it must be floodproofed in accordance with Minn. R. Pt. 6120.5900, Subpt. 3(D).
4. Significant historic sites. No structure may be placed on a significant historic site in a manner that affects the values of the site unless adequate information about the site has been removed and documented in a public repository.
Water supply and sewage treatment.
1. Water supply. Any public or private supply of water for domestic purposes must meet or exceed standards for water quality of the Minnesota Department of Health and the Minnesota Pollution Control Agency.
2. Sewage treatment. Any premises used for human occupancy must be connected to a publicly-owned sewer system, where available or comply with Minn. R. Chs. 7080--7081.

Performance standards for public and private facilities.
1. Placement and design of roads, driveways, and parking areas. Public and private roads and parking areas must be designed to take advantage of natural vegetation and topography to achieve maximum screening as viewed from public waters and comply with the following standards:
  1. Roads, driveways, and parking areas must meet structure setbacks and must not be placed within bluff and shore impact zones, when other reasonable and feasible placement alternatives exist. If no alternatives exist, they may be placed within these areas, and must be designed to minimize adverse impacts;
  2. Watercraft access ramps, approach roads, and access-related parking areas may be placed within shore impact zones, provided the vegetative screening and erosion control conditions of this subsection are met;
  3. Private facilities must comply with the grading and filling provisions of Subsection (h)(3) of this section; and
  4. For public roads, driveways and parking areas, documentation must be provided by a qualified individual that they are designed and constructed to minimize and control erosion to public waters consistent with the field office technical guides of the local soil and water conservation district, or other applicable technical materials.
2. Stairways, lifts, and landings. Stairways and lifts are the preferred alternative to major topographic alterations for achieving access up and down bluffs and steep slopes to shore areas. Stairways, lifts, and landings must meet the following design requirements:
  1. Stairways and lifts must not exceed four feet in width on residential lots. Wider stairways may be used for commercial properties, public recreational uses, and Planned Unit Developments;
  2. Landings for stairways and lifts on residential lots must not exceed 32 square feet in area. Landings larger than 32 square feet may be used for commercial properties, public-space recreational uses, and Planned Unit Developments;
  3. Canopies or roofs are not allowed on stairways, lifts, or landings;
  4. Stairways, lifts, and landings may be either constructed above the ground on posts or pilings, or placed into the ground, provided they are designed and built in a manner that ensures control of soil erosion;
  5. Stairways, lifts, and landings must be located in the most visually inconspicuous portions of lots, as viewed from the surface of the public water, assuming summer, leaf-on conditions, whenever practical; and
  6. Facilities such as ramps, lifts, or mobility paths for physically disabled persons are also allowed for achieving access to shore areas, if they are consistent with the dimensional and performance standards of Subsections (g)(2)a through e of this section and the requirements of Minn. R. Ch. 1341.
3. Water-oriented accessory structures or facilities. Each residential lot may have one water-oriented accessory structure or facility if it complies with the following provisions:
  1. he structure or facility must not exceed ten feet in height, exclusive of safety rails, and cannot occupy an area greater than 250 square feet. The structure or facility may include detached decks not exceeding eight feet above grade at any point or at-grade patios;
  2. The structure or facility is not in the bluff impact zone;
  3. The setback of the structure or facility from the ordinary high-water level must be at least ten feet;
  4. The structure is not a boathouse or boat storage structure as defined under Minn. Stats. § 103G.245;
  5. The structure or facility must be treated to reduce visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks or color, assuming summer, leaf-on conditions;
  6. The roof may be used as an open-air deck with safety rails, but must not be enclosed with a roof or sidewalls or used as a storage area;
  7. The structure or facility must not be designed or used for human habitation and must not contain water supply or sewage treatment facilities;
  8. As an alternative for general development and recreational development waterbodies, water-oriented accessory structures used solely for storage of watercraft and boating-related equipment may occupy an area up to 400 square feet, provided the maximum width of the structure is 20 feet as measured parallel to the shoreline; and
  9. Water-oriented accessory structures may have the lowest floor placed lower than the elevation specified in Subsection (f)(4)c of this section if the structure is constructed of flood-resistant materials to the elevation, electrical and mechanical equipment is placed above the elevation and, if long duration flooding is anticipated, the structure is built to withstand ice action and wind-driven waves and debris.
Vegetation and land alterations.
1. Purpose. Alterations of vegetation and topography are regulated to prevent erosion into public waters, fix nutrients, preserve shoreland aesthetics, preserve historic values, prevent bank slumping, sustain water quality, and protect fish and wildlife habitat.
2. Vegetation management.
  1. Removal or alteration of vegetation must comply with the provisions of this section except for:
    1. Vegetation alteration necessary for the construction of structures and sewage treatment systems under validly issued permits for these facilities;
    2. The construction of public roads and parking areas if consistent with Subsection (g)(1) of this section;
    3. Forest management uses consistent with Subsection (e)(3) of this section; and
    4. Agricultural uses consistent with Subsection (e)(2) of this section.
  2. Intensive vegetation clearing in the shore and bluff impact zones and on steep slopes is prohibited. Intensive clearing outside of these areas is allowed if consistent with the forest management standards in Subsection (e)(3) of this section.
  3. Limited clearing and trimming of trees and shrubs in the shore and bluff impact zones and on steep slopes, is allowed to provide a view to the water from the principal dwelling and to accommodate the placement of stairways and landings, picnic areas, access paths, livestock watering areas, beach and watercraft access areas, and permitted water-oriented accessory structures or facilities, provided that:
    1. The screening of structures, vehicles, or other facilities as viewed from the water, assuming summer, leaf-on conditions, is not substantially reduced;
    2. Existing shading of water surfaces along rivers is preserved;
    3. Cutting debris or slash shall be scattered and not mounded on the ground;
    4. Perennial ground cover is retained; and
    5. Picnic areas, access paths, livestock watering areas, beaches and watercraft access areas are prohibited in bluff impact zones.
  4. Removal of trees, limbs, or branches that are dead, diseased, dying, or pose safety hazards is allowed without a permit.
  5. Fertilizer and pesticide runoff into surface waters must be minimized through use of vegetation, topography or both.
3. Grading and filling.
  1. Grading and filling activities must comply with the provisions of this section except for the construction of public roads and parking areas if consistent with Subsection (g)(1) of this section;
  2. Permit requirements.
    1. Grading, filling and excavations necessary for the construction of structures, sewage treatment systems, and driveways, if part of an approved permit, do not require a separate grading and filling permit. However, the standards in Subsection (h)(3)c of this section must be incorporated into the permit.
    2. For all other work, including driveways not part of another permit, a Grading and Filling Permit is required for:
      1. The movement of more than ten cubic yards of material on steep slopes or within shore or bluff impact zones; and
      2. The movement of more than 50 cubic yards of material outside of steep slopes and shore and bluff impact zones.
  3. Grading, filling and excavation activities must meet the following standards:
    1. Grading or filling of any wetland must meet or exceed the wetland protection standards under Minn. R. Ch. 8420 and any other permits, reviews, or approvals by other local, State, or Federal agencies such as watershed districts, the DNR or U.S. Army Corps of Engineers;
    2. Land alterations must be designed and implemented to minimize the amount of erosion and sediment from entering surface waters during and after construction consistently by:
      1. Limiting the amount and time of bare ground exposure;
      2. Using temporary ground covers such as mulches or similar materials;
      3. Establishing permanent vegetation cover as soon as possible;
      4. Using sediment traps, vegetated buffer strips or other appropriate techniques;
      5. Stabilizing altered areas to acceptable erosion control standards consistent with the field office technical guides of the soil and water conservation district;
      6. Not placing fill or excavated material in a manner that creates unstable slopes. Plans to place fill or excavated material on steep slopes must be reviewed by qualified professionals for continued slope stability and must not create finished slopes of 30 percent or greater;
      7. Fill or excavated material must not be placed in bluff impact zones;
      8. Any alterations below the ordinary high-water level of public waters must first be authorized by the commissioner under Minn. Stats. Ch. 103G;
      9. Alterations of topography are only allowed if they are accessory to permitted or conditional uses and do not adversely affect adjacent or nearby properties; and

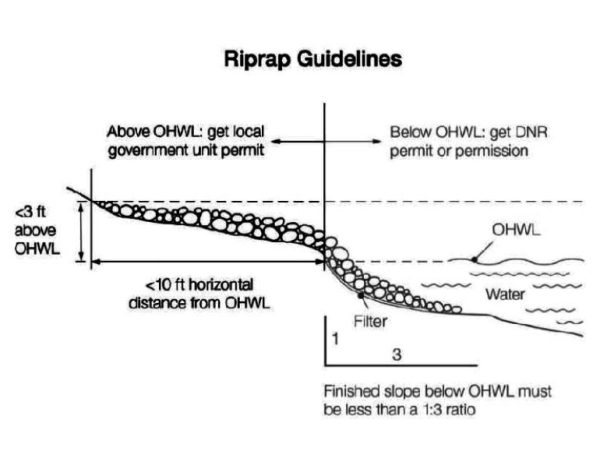

      10. Placement of natural rock riprap, including associated grading of the shoreline and placement of a filter blanket, is permitted if:
        The finished slope does not exceed three feet horizontal to one foot vertical;
        The landward extent of the riprap is within ten feet of the ordinary high-water level; and
        The height of the riprap above the ordinary high-water level does not exceed three feet.
  4. Connections to public waters. Excavations to connect boat slips, canals, lagoons, and harbors to public waters require a Public Waters Permit and must comply with Minn. R. Ch. 6115.
4. Stormwater management.
  1. General standards.
    1. When possible, existing natural drainageways, and vegetated soil surfaces must be used to convey, store, filter, and retain stormwater runoff before discharge to public waters.
    2. Development must be planned and conducted in a manner that will minimize the extent of disturbed areas, runoff velocities, erosion potential, and reduce and delay runoff volumes. Disturbed areas must be stabilized as soon as possible and appropriate facilities or methods used to retain sediment on the site.
    3. When development density, topography, soils, and vegetation are not sufficient to adequately handle stormwater runoff, constructed facilities such as settling basins, skimming devices, dikes, waterways, ponds and infiltration may be used. Preference must be given to surface drainage, vegetation, and infiltration rather than buried pipes and manmade materials and facilities.
  2. Specific standards.
    1. Impervious surfaces of lots must not exceed 25 percent of the lot area.
    2. When constructed facilities are used for stormwater management, documentation must be provided by a qualified individual that they are designed and installed consistent with the field office technical guide of the local soil and water conservation district or the Minnesota Stormwater Manual, as applicable.
    3. New constructed stormwater outfalls to public waters must be consistent with Minn. R. Pt. 6115.0231.
Subdivision/platting provision.
1. Purpose. To ensure that new development minimizes impacts to shoreland resources and is safe and functional.
2. Land suitability. Each lot created through subdivision, including Planned Unit Developments authorized under Subsection (j) of this section, must be suitable in its natural state for the proposed use with minimal alteration A suitability analysis must be conducted for each proposed subdivision, including Planned Unit Developments, to determine if the subdivision is suitable in its natural state for the proposed use with minimal alteration and whether any feature of the land is likely to be harmful to the health, safety, or welfare of future residents of the proposed subdivision or of the community.
3. Consistency with other controls. Subdivisions and each lot in a subdivision shall meet all official controls so that a variance is not needed later to use the lots for their intended purpose.
4. Water and sewer design standards.
  1. A potable water supply and a sewage treatment system consistent with Minn. R. Chs. 7080--7081 must be provided for every lot.
  2. Each lot must include at least two soil treatment and dispersal areas that support systems described in Minn. R. Pts. 7080.2200--7080.223 or site conditions described in Minn. R. Pt. 7081.0270, Subpts. 3--7, as applicable.
  3. Lots that would require use of holding tanks are prohibited.
5. Information requirements.
  1. Topographic contours at ten-foot intervals or less from United States Geological Survey maps or more current sources, showing limiting site characteristics;
  2. The surface water features required in Minn. Stats. § 505.021, Subd. 1, to be shown on plats, obtained from United States Geological Survey quadrangle topographic maps or more current sources;
  3. Adequate soils information to determine suitability for building and sewage treatment capabilities for every lot from the most current existing sources or from field investigations such as soil borings, percolation tests, or other methods;
  4. Information regarding adequacy of domestic water supply; extent of anticipated vegetation and topographic alterations; near-shore aquatic conditions, including depths, types of bottom sediments, and aquatic vegetation; and proposed methods for controlling stormwater runoff and erosion, both during and after construction activities;
  5. Location of 100-year floodplain areas and floodway districts from existing adopted maps or data; and
  6. A line or contour representing the ordinary high-water level, the "toe" and the "top" of bluffs, and the minimum building setback distances from the top of the bluff and the lake or stream.
6. Dedications. When a land or easement dedication is a condition of subdivision approval, the approval must provide easements over natural drainage or ponding areas for management of stormwater and significant wetlands.
7. Platting. All subdivisions that cumulatively create five or more lots or parcels that are 2½ acres or less in size shall be processed as a plat in accordance with Minn. Stats. § 462.358, Subd. 3a, and Minn. Stats. Ch. 505. No permit for construction of buildings or sewage treatment systems shall be issued for lots created after the adoption of the ordinance from which this chapter is derived unless the lot was previously approved as part of a formal subdivision.
8. Controlled access lots. Controlled access lots within a subdivision must meet or exceed the lot size criteria in Subsection (f)(3)c of this section.

Planned Unit Developments (PUDs).

Purpose. To protect and enhance the natural and scenic qualities of shoreland areas during and after development and redevelopment of high density residential and commercial uses.
Types of PUDs permissible. Planned Unit Developments (PUDs) are allowed for new projects on undeveloped land, redevelopment of previously built sites, or conversions of existing buildings and land. Deviation from the minimum lot size standards of Subsection (f)(2) of this section is allowed if the standards in this section are met.
Processing of PUDs. Planned Unit Developments must be processed as a conditional use. An expansion to an existing commercial PUD involving six or less new dwelling units or sites since the date the ordinance from which this chapter is derived was adopted is permissible as a permitted use, provided the total project density does not exceed the allowable densities calculated in the project density evaluation procedures in Subsection (j)(5) of this section. Approval cannot occur until all applicable environmental reviews are complete.
Application for a PUD. The applicant for a PUD must submit the following documents prior to final action on the application request:
1. Site Plan and/or plat showing:
  1. Locations of property boundaries;
  2. Surface water features;
  3. Existing and proposed structures and other facilities;
  4. Land alterations;
  5. Sewage treatment and water supply systems (where public systems will not be provided);
  6. Topographic contours at ten-foot intervals or less; and
  7. Identification of buildings and portions of the project that are residential, commercial, or a combination of the two (if project combines commercial and residential elements).
2. A property owners association agreement (for residential PUDs) with mandatory membership, and consistent with Subsection (j)(6) of this section.
3. Deed restrictions, covenants, permanent easements or other instruments that:
  1. Address future vegetative and topographic alterations, construction of additional buildings, beaching of watercraft, and construction of commercial buildings in residential PUDs; and
  2. Ensure the long-term preservation and maintenance of open space in accordance with the criteria and analysis specified in Subsection (j)(6) of this section.
4. A Master Plan/Site Plan describing the project and showing floor plans for all commercial structures.
5. Additional documents necessary to explain how the PUD will be designed and will function.

Density determination. Proposed new or expansions to existing Planned Unit Developments must be evaluated using the following procedures.

Step 1. Identify density analysis tiers. Divide the project parcel into tiers by drawing one or more lines parallel to the ordinary high-water level at the following intervals, proceeding landward:

Classification Tier Depth
No Sewer (feet) Sewer (feet)
General Development Lakes--1st tier
200 200
General Development Lakes--all other tiers
267 200
Natural Environment Lakes
400 320
All Rivers 300 300
Step 2. Calculate suitable area for development. Calculate the suitable area within each tier by excluding all wetlands, bluffs, or land below the ordinary high-water level of public waters.

Step 3. Determine base density.

For residential PUDs, divide the suitable area within each tier by the minimum single residential lot area for lakes to determine the allowable number of dwelling units, or base density, for each tier. For rivers, if a minimum lot area is not specified, divide the tier width by the minimum single residential lot width.

For commercial PUDs:

Determine the average area for each dwelling unit or dwelling site within each tier. Include both existing and proposed dwelling units and sites in the calculation.
1. For dwelling units, determine the average inside living floor area of dwelling units in each tier. Do not include decks, patios, garages, or porches and basements, unless they are habitable space.
2. For dwelling sites (campgrounds), determine the area of each dwelling site as follows:
  1. For manufactured homes, use the area of the manufactured home, if known, otherwise use 1,000 square feet.
  2. For recreational vehicles, campers or tents, use 400 square feet.

Select the appropriate floor area/dwelling site area ratio from the following table for the floor area or dwelling site area determined in Subsection (j)(5)c.2.i of this section.

Inside Living Floor Area or Dwelling Site Area (square feet)	Floor Area/Dwelling Site Area Ratio
	General Development Lakes w/Sewer--All Tiers	General Development Lakes w/No Sewer--1st Tier	Urban Rivers	General Development Lakes w/No Sewer--All Other Tiers	Natural Environment Lakes
<200	0.040			0.020	0.010
300	0.048			0.024	0.012
400	0.056			0.028	0.014
500	0.065			0.032	0.016
600	0.072			0.038	0.019
700	0.082			0.042	0.021
800	0.091			0.046	0.023
900	0.099			0.050	0.025
1,000	0.108			0.054	0.027
1,100	0.116			0.058	0.029
1,200	0.125			0.064	0.032
1,300	0.133			0.068	0.034
1,400	0.142			0.072	0.036
>1,500	0.150			0.075	0.038

Multiply the suitable area within each tier determined in Subsection (j)(5)b of this section by the floor area or dwelling site area ratio to yield the total floor area or dwelling site area for each tier to be used for dwelling units or dwelling sites.
Divide the total floor area or dwelling site area for each tier calculated in Subsection (j)(5)c.2.iii of this section by the average inside living floor area for dwelling units or dwelling site area determined in Subsection (j)(5)c.2.i of this section. This yields the allowable number of dwelling units or dwelling sites, or base density, for each tier.

Allowable densities may be transferred from any tier to any other tier further from the waterbody, but must not be transferred to any tier closer to the waterbody.
All PUDs with densities at or below the base density must meet the design standards in Subsection (j)(6) of this section.

Step 4. Determine if the site can accommodate increased density.
1. The following increases to the dwelling unit or dwelling site base densities determined in Subsection (j)(5)c.2.iii of this section are allowed if the design criteria in Subsection (j)(6) of this section are satisfied as well as the standards in Subsection (j)(5)d.2 of this section:

  Shoreland Tier Maximum Density Increases Within Each Tier (percent)
  1st 500
  2nd 100
  3rd 200
  4th 200
  5th 200
2. Structure setbacks from the ordinary high-water level:
  1. Are increased to at least 50 percent greater than the minimum setback; or
  2. The impact on the waterbody is reduced an equivalent amount through vegetative management, topography, or additional acceptable means and the setback is at least 25 percent greater than the minimum setback.

Design criteria. All PUDs must meet the following design criteria.
1. General design standards.
  1. All residential Planned Unit Developments must contain at least five dwelling units or sites.
  2. On-site water supply and sewage treatment systems must be centralized and meet the standards in Subsection (f)(5) of this section. Sewage treatment systems must meet the setback standards of Subsection (f)(4)a.1 of this section.
  3. Dwelling units or dwelling sites must be clustered into one or more groups and located on suitable areas of the development.
  4. Dwelling units or dwelling sites must be designed and located to meet the dimensional standards in Subsections (f)(3) and (4) of this section.
  5. Shore recreation facilities:
    1. Must be centralized and located in areas suitable for them based on a suitability analysis.
    2. The number of spaces provided for continuous beaching, mooring, or docking of watercraft must not exceed one for each allowable dwelling unit or site in the first tier (notwithstanding existing mooring sites in an existing commercially used harbor).
    3. Launching ramp facilities, including a small dock for loading and unloading equipment, may be provided for use by occupants of dwelling units or sites located in other tiers.
  6. Structures, parking areas, and other facilities must be treated to reduce visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks, color, or other means acceptable to the local unit of government, assuming summer, leaf-on conditions. Vegetative and topographic screening must be preserved, if existing, or may be required to be provided.
  7. Accessory structures and facilities, except water oriented accessory structures, must meet the required structure setback and must be centralized.
  8. Water-oriented accessory structures and facilities may be allowed if they meet or exceed design standards contained in Subsection (g)(3) of this section and are centralized.
2. Open space requirements.
  1. Open space must constitute at least 50 percent of the total project area and must include:
    1. Areas with physical characteristics unsuitable for development in their natural state;
    2. Areas containing significant historic sites or unplatted cemeteries;
    3. Portions of the shore impact zone preserved in its natural or existing state as follows:
      1. For existing residential PUDs, at least 50 percent of the shore impact zone.
      2. For new residential PUDs, at least 70 percent of the shore impact zone.
      3. For all commercial PUDs, at least 50 percent of the shore impact zone.
  2. Open space may include:
    1. Outdoor recreational facilities for use by owners of dwelling units or sites, by guests staying in commercial dwelling units or sites, and by the general public;
    2. Subsurface sewage treatment systems if the use of the space is restricted to avoid adverse impacts on the systems; and
    3. Non-public water wetlands.
  3. Open space shall not include:
    1. Dwelling sites or lots, unless owned in common by an owner’s association;
    2. Dwelling units or structures, except water-oriented accessory structures or facilities;
    3. Road rights-of-way or land covered by road surfaces and parking areas;
    4. Land below the OHWL of public waters; and
    5. Commercial facilities or uses.
3. Open space maintenance and administration requirements.
  1. Open space preservation. The appearance of open space areas, including topography, vegetation, and allowable uses, must be preserved and maintained by use of deed restrictions, covenants, permanent easements, public dedication, or other equally effective and permanent means. The instruments must prohibit:
    1. Commercial uses (for residential PUDs);
    2. Vegetation and topographic alterations other than routine maintenance;
    3. Construction of additional buildings or storage of vehicles and other materials; and
    4. Uncontrolled beaching of watercraft.
  2. Development organization and functioning. Unless an equally effective alternative community framework is established, all residential Planned Unit Developments must use an owner’s association with the following features:
    1. Membership must be mandatory for each dwelling unit or dwelling site owner and any successive owner;
    2. Each member must pay a pro rata share of the association’s expenses, and unpaid assessments can become liens on units or dwelling sites;
    3. Assessments must be adjustable to accommodate changing conditions; and
    4. The association must be responsible for insurance, taxes, and maintenance of all commonly-owned property and facilities.
4. Erosion control and stormwater management.
  1. Erosion control plans must be developed and must be consistent with the provisions of Subsection (j)(6)c of this section. Erosion control plans approved by a soil and water conservation district may be required if project size and site physical characteristics warrant.
  2. Stormwater management facilities must be designed and constructed to manage expected quantities and qualities of stormwater runoff. For commercial PUDs, impervious surfaces within any tier must not exceed 25 percent of the tier area, except that 35 percent impervious surface coverage may be allowed in the first tier of general development lakes with an approved stormwater management plan and consistency with Subsection (j)(6) of this section.
Conversions. Local governments may allow existing resorts or other land uses and facilities to be converted to residential PUDs if all of the following standards are met:
1. Proposed conversions must be evaluated using the same procedures for residential PUDs involving new construction. Inconsistencies between existing features of the development and these standards must be identified;
2. Deficiencies involving water supply and sewage treatment, structure color, impervious coverage, open space, and shore recreation facilities must be corrected as part of the conversion or as specified in the conditional use permit;
3. Shore and bluff impact zone deficiencies must be evaluated and reasonable improvements made as part of the conversion. These improvements must include, where applicable, the following:
  1. Removal of extraneous buildings, docks, or other facilities that no longer need to be located in shore or bluff impact zones;
  2. Remedial measures to correct erosion, improve vegetative cover and improve screening of buildings and other facilities as viewed from the water; and
  3. Conditions attached to existing dwelling units located in shore or bluff impact zones that preclude exterior expansions in any dimension or substantial alterations. The conditions must also provide for future relocation of dwelling units, where feasible, to other locations, meeting all setback and elevation requirements when they are rebuilt or replaced.
4. Existing dwelling unit or dwelling site densities that exceed standards in Subsection (j)(5) of this section may be allowed to continue but must not be allowed to be increased, either at the time of conversion or in the future. Efforts must be made during the conversion to limit impacts of high densities by requiring seasonal use, improving vegetative screening, centralizing shore recreation facilities, installing new sewage treatment systems, or other means.

(Prior Code, § 10.700.0100; Ord. No.19-14, 11-6-2019)

HISTORY
Adopted by Ord. 21-10 on 10/6/2021

21-10

Pine City City Zoning Code

CHAPTER 13

88 SHORELAND ZONING

State law reference—Municipal shoreland management, Minn. Stats. § 103F.221.

13.88.010 Shorelands

Statutory authorization and policy.
1. Statutory authorization. This shoreland chapter is adopted pursuant to the authorization and policies contained in Minn. Stats. Ch. 103F, Minn. R. Pts. 6120.2500--6120.3900, and the planning and zoning enabling legislation in Minn. Stats. Ch. 462.
2. Policy. The Legislature of Minnesota has delegated responsibility to local governments of the State to regulate the subdivision, use and development of the shorelands of public waters and thus preserve and enhance the quality of surface waters, conserve the economic and natural environmental values of shorelands, and provide for the wise use of waters and related land resources. This responsibility is hereby recognized by the City of Pine City.
General provisions and definitions.
1. Jurisdiction. The provisions of this chapter apply to the shorelands of the public waterbodies as classified in Subsection (d) of this section. Pursuant to Minn. R. Pts. 6120.2500--6120.3900, no lake, pond, or flowage less than ten acres in size in municipalities or 25 acres in size in unincorporated areas need be regulated in a local government’s shoreland regulations. A body of water created by a private user where there was no previous shoreland may, at the discretion of the governing body, be exempt from this chapter.
2. Enforcement. The City of Pine City is responsible for the administration and enforcement of this chapter. Any violation of the provisions of this chapter or failure to comply with any of its requirements, including violations of conditions and safeguards established in connection with grants of variances or conditional uses constitutes a misdemeanor and is punishable as defined by law. Violations of this chapter can occur regardless of whether or not a permit is required for a regulated activity listed in Subsection (d)(2) of this section.
3. Abrogation and greater restrictions. It is not intended by this chapter to repeal, abrogate, or impair any existing easements, covenants, or deed restrictions. However, where this chapter imposes greater restrictions, the provisions of this chapter shall prevail. All other ordinances inconsistent with this chapter are hereby repealed to the extent of the inconsistency only.
Administration.
1. Purpose. The purpose of this section is to identify administrative provisions to ensure this chapter is administered consistent with its purpose.
2. Permits.
  1. A permit is required for the construction of buildings or building additions (including construction of decks and signs), the installation and/or alteration of sewage treatment systems, and those grading and filling activities not exempted by Subsection (h)(3) of this section.
  2. A Certificate of Compliance, consistent with Minn. R. Pt. 7082.0700, Subpt. 3, is required whenever a permit or variance of any type is required for any improvement on or use of the property. A sewage treatment system shall be considered compliant if the only deficiency is the system’s improper setback from the ordinary high-water level.
3. Application materials. Application for permits and other zoning applications such as variances shall be made to the Zoning Administrator on the forms provided. The application shall include the necessary information so that the Zoning Administrator can evaluate how the application complies with the provisions of this chapter.
4. Certificate of Zoning Compliance. The Zoning Administrator shall issue a Certificate of Zoning Compliance for each activity requiring a permit as specified in Subsection (d)(2) of this section. This Certificate will specify that the use of land conforms to the requirements of this chapter. Any use, arrangement, or construction at variance with that authorized by permit shall be deemed a violation of this chapter and shall be punishable as provided in PCC 13.08.100.
5. Variances. Variances may only be granted in accordance with Minn. Stats. § 462.357 and are subject to the following:
  1. A variance may not circumvent the general purposes and intent of this chapter; and
  2. For properties with existing sewage treatment systems, a Certificate of Compliance, consistent with Minn. R. Pt. 7082.0700, Subpt. 3, is required for variance approval. A sewage treatment system shall be considered compliant if the only deficiency is the system’s improper setback from the ordinary high-water level.
6. Conditional uses. All conditional uses in the shoreland area are subject to a thorough evaluation of the waterbody and the topographic, vegetation, and soil conditions to ensure:
  1. The prevention of soil erosion or other possible pollution of public waters, both during and after construction;
  2. The visibility of structures and other facilities as viewed from public waters is limited;
  3. There is adequate water supply and on-site sewage treatment; and
  4. The types, uses, and numbers of watercraft that the project will generate are compatible in relation to the suitability of public waters to safely accommodate these watercraft.
7. Mitigation.
  1. In evaluating all variances, conditional uses, Zoning and Building Permit applications, the zoning authority shall require the property owner to address the following conditions, when related to and proportional to the impact, to meet the purpose of this chapter, to protect adjacent properties, and the public interest:
    1. Advanced stormwater runoff management treatment;
    2. Reducing impervious surfaces;
    3. Increasing setbacks from the ordinary high-water level;
    4. Restoration of wetlands;
    5. Limiting vegetation removal and/or riparian vegetation restoration;
    6. Provisions for the location, design, and use of structures, sewage treatment systems, water supply systems, watercraft launching and docking areas, and parking areas; and
    7. Other conditions the zoning authority deems necessary.
  2. In evaluating plans to construct sewage treatment systems, roads, driveways, structures, or other improvements on steep slopes, conditions to prevent erosion and to preserve existing vegetation screening of structures, vehicles, and other facilities as viewed from the surface of public waters assuming summer, leaf-on vegetation, shall be attached to permits.
8. Nonconformities.
  1. All legally established nonconformities as of the date of this chapter may continue, but will be managed according to Minn. Stats. § 462.357, Subd. 1e and other regulations of this community for alterations and additions; repair after damage; discontinuance of use; and intensification of use.
  2. All additions or expansions to the outside dimensions of an existing nonconforming structure must meet the setback, height, and other requirements of Subsections (e) through (g) of this section. Any deviation from these requirements must be authorized by a variance.
9. Notifications to the Department of Natural Resources.
  1. All amendments to this shoreland chapter must be submitted to the Department of Natural Resources for review and approval for compliance with the statewide shoreland management rules. The City of Pine City will submit the proposed ordinance amendments to the commissioner or the commissioner’s designated representative at least 30 days before any scheduled public hearings.
  2. All notices of public hearings to consider variances, ordinance amendments, or conditional uses under shoreland management controls must be sent to the commissioner or the commissioner’s designated representative at least ten days before the hearings. Notices of hearings to consider proposed subdivisions/plats must include copies of the subdivision/plat.
  3. All approved ordinance amendments and subdivisions/plats, and final decisions approving variances or conditional uses under local shoreland management controls must be sent to the commissioner or the commissioner’s designated representative and postmarked within ten days of final action. When a variance is approved after the Department of Natural Resources has formally recommended denial in the hearing record, the notification of the approved variance shall also include the summary of the public record/testimony and the findings of facts and conclusions which supported the issuance of the variance.
  4. Any request to change the shoreland management classification of public waters within the City of Pine City must be sent to the commissioner or the commissioner’s designated representative for approval, and must include a resolution and supporting data as required by Minn. R. Pt. 6120.3000, Subpt. 4.
  5. Any request to reduce the boundaries of shorelands of public waters within the City of Pine City must be sent to the commissioner or the commissioner’s designated representative for approval and must include a resolution and supporting data. The boundaries of shorelands may be reduced when the shoreland of waterbodies with different classifications overlap. In these cases, the topographic divide between the waterbodies shall be used for adjusting the boundaries.
10. Mandatory EAW. An Environmental Assessment Worksheet consistent with Minn. R. Ch. 4410 must be prepared for projects meeting the thresholds of Minn. R. Pt. 4410.4300, Subpts. 19a, 20a, 25, 27, 28, 29, and 36a.

Shoreland classification system and land uses.

Shoreland classification system.
1. Purpose. To ensure that shoreland development on the public waters of the City of Pine City is regulated consistent with the classifications assigned by the commissioner under Minn. R. Pt. 6120.3300.
2. The shoreland area for the waterbodies listed in Subsection (d)(1)c though e of this section are defined in PCC 13.08.100 and are shown on the Official Zoning Map. For the purposes of this chapter, the boundary between Cross Lake and the Snake River shall be the first set of railroad tracks located just upstream of Cross Lake.
3. Lakes are classified as follows:

  Lake Classification DNR Public Waters I.D. #
  General Development
  Cross Lake 58-119 P
  Natural Environment
  Squaw Lake 58-146 W
  Devil's Lake 58-118 W
  Unnamed 58-120 W
  Kick Lake 58-165 W
4. Rivers and streams are classified as follows:

  River and Stream Classification
  Legal Description
  Urban
  Snake River Starting at the City limits of the City of Pine City in Section 32, flowing SE to the confluence of Cross Lake in Section 33.
5. All public rivers and streams shown on the Public Waters Inventory Map for Pine County, a copy of which is adopted by reference, not given a classification shall be considered a "tributary."

Land uses.

Purpose. To identify land uses that are compatible with the protection and preservation of shoreline resources in order to conserve the economic and environmental values of shoreland and sustain water quality.
Shoreland district land uses listed in Subsections (d)(2)c and d are regulated as:
1. Permitted uses (P). These uses are allowed, provided all standards in this chapter are followed;
2. Conditional uses (C). These uses are allowed through a conditional use permit. The use must be evaluated according to the criteria in Subsection (c)(6) of this section and any additional conditions listed in this chapter; and
3. Not permitted uses (N). These uses are prohibited.

Land uses for lake and river classifications:

Land Uses	General Development	Natural Environment	Urban River
Single residential	P	P	P
Duplex, triplex, quad residential	P	C	P
Residential PUD	C	C	C
Water-dependent commercial--As accessory to a residential Planned Unit Development	C	C	C
Commercial	P	C	P
Commercial PUD--Limited expansion of a commercial Planned Unit Development involving up to six additional dwelling units or sites may be allowed as a permitted use, provided the provisions of Subsection (j) of this section are satisfied.	C	C	C
Parks and historic sites	C	C	C
Public, semipublic	P	C	P
Industrial	C	N	C
Agricultural: cropland and pasture	P	P	P
Agricultural feedlots--New	N	N	N
Agricultural feedlots--Expansion or resumption of existing	C	C	C
Forest management	P	P	P
Forest land conversion	C	C	C
Extractive use	C	C	C
Mining of metallic minerals and peat	P	P	P

Special land use provisions.
1. Commercial, industrial, public, and semipublic use standards.
  1. Water-dependent uses may be located on parcels or lots with frontage on public waters, provided that:
    1. The use complies with provisions of Subsection (g) of this section;
    2. The use is designed to incorporate topographic and vegetative screening of parking areas and structures;
    3. Uses that require short-term watercraft mooring for patrons must centralize these facilities and design them to avoid obstructions of navigation and to be the minimum size necessary to meet the need; and
    4. Uses that depend on patrons arriving by watercraft may use signs and lighting, provided that:
      1. Signs placed in or on public waters must only convey directional information or safety messages and may only be placed by a public authority or under a permit issued by the county sheriff; and
      2. Signs placed within the shore impact zone are:
        No higher than ten feet above the ground, and no greater than 32 square feet in size; and
        If illuminated by artificial lights, the lights must be shielded or directed to prevent illumination across public waters; and
      3. Other lighting may be located within the shore impact zone or over public waters if it is used to illuminate potential safety hazards and is shielded or otherwise directed to prevent direct illumination across public waters. This does not preclude use of navigational lights.
  2. Commercial, industrial, public, and semi-public uses that are not water-dependent must be located on lots or parcels without public waters frontage or, if located on lots or parcels with public waters frontage, must either be set back double the ordinary high-water level setback or be substantially screened from view from the water by vegetation or topography, assuming summer, leaf-on conditions.
2. Agriculture use standards.
  1. Buffers.
    1. The shore impact zone for parcels with permitted agricultural land uses is equal to a line parallel to and 50 feet from the ordinary high-water level.
    2. General cultivation farming, grazing, nurseries, horticulture, truck farming, sod farming, and wild crop harvesting are permitted uses if steep slopes and shore and bluff impact zones are maintained in perennial vegetation or operated under an approved conservation plan consistent with the field office technical guides of the local soil and water conservation district or the Natural Resource Conservation Service, and as approved by the local soil and water conservation district.
  2. New animal feedlots are not allowed in shoreland. Modifications or expansions to existing feedlots or resumption of old feedlots are conditional uses and must meet the following standards:
    1. Feedlots must be designed consistent with Minn. R. Ch. 7020;
    2. Feedlots must not further encroach into the existing ordinary high-water level setback or the bluff impact zone and must not expand to a capacity of 1,000 animal units or more; and
    3. Old feedlots not currently in operation may resume operation consistent with Minn. Stats. § 116.0711.
3. Forest management standards.
  1. The harvesting of timber and associated reforestation must be conducted consistent with the applicable provisions of the Sustaining Minnesota Forest Resources: Voluntary Site-Level Forest Management Guidelines for Landowners, Loggers and Resource Managers.
  2. Intensive vegetation clearing for forest land conversion to another use is a conditional use subject to an erosion control and sedimentation plan developed and approved by the soil and water conservation district.
4. Extractive use standards. Extractive uses are conditional uses and must meet the following standards:
  1. Site development and restoration plan. A site development and restoration plan must be developed, approved, and followed over the course of operation. The plan must:
    1. Address dust, noise, possible pollutant discharges, hours and duration of operation, and anticipated vegetation and topographic alterations;
    2. Identify actions to be taken during operation to mitigate adverse environmental impacts, particularly erosion; and
    3. Clearly explain how the site will be rehabilitated after extractive activities end.
  2. Setbacks for processing machinery. Processing machinery must meet structure setback standards from ordinary high-water levels and from bluffs.
5. Metallic mining standards. Mining of metallic minerals and peat is a permitted use, provided the provisions of Minn. Stats. §§ 93.44--93.51, are satisfied.

Dimensional and general performance standards.

Purpose. To establish dimensional and performance standards that protect shoreland resources from impacts of development.

Only lands above the ordinary high-water level can be used to meet lot area and width standards;
Lot width standards must be met at both the ordinary high-water level and at the building line;
The sewer lot area dimensions can only be used if publicly owned sewer system service is available to the property;
Residential subdivisions with dwelling unit densities exceeding those in Subsections (f)(2)e and f of this section are allowed only if designed and approved as residential PUDs under Subsection (j) of this section; and

Lake minimum lot area and width standards:

General Development--No Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	20,000	100	40,000	150
Duplex	40,000	180	80,000	265
Triplex	60,000	260	120,000	375
Quad	80,000	340	160,000	490
General Development--Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	15,000	75	10,000	75
Duplex	26,000	135	17,500	135
Triplex	38,000	195	25,000	190
Quad	49,000	255	32,500	245
Natural Environment--No Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	80,000	200	80,000	200
Duplex	120,000	300	160,000	400
Triplex	160,000	400	240,000	600
Quad	200,000	500	320,000	800
Natural Environment--Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	40,000	125	20,000	125
Duplex	70,000	225	35,000	220
Triplex	100,000	325	52,000	315
Quad	130,000	425	65,000	410

River/stream minimum lot width standards. There are no minimum lot area requirements for rivers and streams. The lot width standards in feet are:

Urban and Tributary
No Sewer Sewer
Single 100 75
Duplex 150 115
Triplex 200 150
Quad 250 190

Special residential lot provisions.
1. Subdivisions of duplexes, triplexes, and quads are conditional uses on Natural Environment Lakes and must also meet the following standards:
  1. Each building must be set back at least 200 feet from the ordinary high-water level;
  2. Each building must have common sewage treatment and water systems in one location and serve all dwelling units in the building;
  3. Watercraft docking facilities for each lot must be centralized in one location and serve all dwelling units in the building; and
  4. No more than 25 percent of a lake’s shoreline can be in duplex, triplex, or quad developments.
2. One guest cottage may be allowed on lots meeting or exceeding the duplex lot area and width dimensions presented in Subsections (f)(2)e and f of this section, provided the following standards are met:
  1. For lots exceeding the minimum lot dimensions of duplex lots, the guest cottage must be located within an area equal to the smallest duplex-sized lot that could be created including the principal dwelling unit;
  2. A guest cottage must not cover more than 700 square feet of land surface and must not exceed 15 feet in height; and
  3. A guest cottage must be located or designed to reduce its visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks or color, assuming summer leaf-on conditions.
3. Controlled access lots are permissible if created as part of a subdivision and in compliance with the following standards:
  1. The lot must meet the area and width requirements for residential lots, and be suitable for the intended uses of controlled access lots as provided in Subsection (d) of this section;
  2. If docking, mooring, or over-water storage of more than six watercraft is to be allowed at a controlled access lot, then the width of the lot (keeping the same lot depth) must be increased by a percentage of the requirements for riparian residential lots for each watercraft beyond six, consistent with the following table:

    Controlled Access Lot Frontage Requirements
    Ratio of Lake Size to Shore Length (Acres/Mile)
    Required Percent Increase in Frontage
    Less than 100 25%
    100--200 20%
    201--300 15%
    301--400 10%
    Greater than 400 5%
  3. The lot must be jointly owned by all purchasers of lots in the subdivision or by all purchasers of nonriparian lots in the subdivision who are provided riparian access rights on the access lot; and
  4. Covenants or other equally effective legal instruments must be developed that:
    1. Specify which lot owners have authority to use the access lot;
    2. Identify what activities are allowed. The activities may include watercraft launching, loading, storage, beaching, mooring, docking, swimming, sunbathing, or picnicking;
    3. Limit the total number of vehicles allowed to be parked and the total number of watercrafts allowed to be continuously moored, docked, or stored over water;
    4. Require centralization of all common facilities and activities in the most suitable locations on the lot to minimize topographic and vegetation alterations; and
    5. Require all parking areas, storage buildings, and other facilities to be screened by vegetation or topography as much as practical from view from the public water, assuming summer, leaf-on conditions.
Placement, height, and design of structures.
1. Placement of structures and sewage treatment systems on lots. When more than one setback applies to a site, structures and facilities must be located to meet all setbacks, and comply with the following OHWL setback provisions. The structure setback standards for sewered properties can only be used if publicly owned sewer system service is available.

  Classification Structures Sewage Treatment System
  No Sewer Sewer
  Lakes
  Natural Environment 150 150 150
  General Development 75 50 50
  Rivers and Streams
  Urban and Tributary 100 50 75
  1. OHWL setbacks. Structures, impervious surfaces, and sewage treatment systems must meet setbacks from the ordinary high-water level (OHWL), except that one water-oriented accessory structure or facility, designed in accordance with Subsection (g)(3) of this section, may be set back a minimum distance of ten feet from the OHWL;
  2. Setback averaging. Where structures exist on the adjoining lots on both sides of a proposed building site, structure setbacks may be altered without a variance to conform to the adjoining setbacks from the OHWL, provided the proposed structure is not located in a shore impact zone or in a bluff impact zone;
  3. Setbacks of decks. Deck additions may be allowed without a variance to a structure not meeting the required setback from the ordinary high-water level if all of the following criteria are met:
    1. The structure existed on the date the structure setbacks were established;
    2. A thorough evaluation of the property and structure reveals no reasonable location for a deck meeting or exceeding the existing ordinary high-water level setback of the structure;
    3. The deck encroachment toward the ordinary high-water level does not exceed 15 percent of the existing setback of the structure from the ordinary high-water level or is no closer than 30 feet from the OHWL, whichever is more restrictive; and
    4. The deck is constructed primarily of wood, and is not roofed or screened.
  4. Additional structure setbacks. Structures must also meet the following setbacks, regardless of the waterbody classification:

    Setback from: Setback (feet)
    Top of bluff 30
    Unplatted cemetery
    50
    Right-of-way line of Federal, State, or County highway
    50
    Right-of-way line of town road, public street, or other roads not classified
    20
  5. Bluff impact zones. Structures, impervious surfaces, and accessory facilities, except stairways and landings, must not be placed within bluff impact zones.
2. Height of structures. All structures in residential districts in cities, except churches and nonresidential agricultural structures, must not exceed 25 feet in height.
3. Lowest floor elevation. Structures must be placed in accordance with any floodplain regulations applicable to the site. Where these controls do not exist, the elevation to which the lowest floor, including basement, is placed or floodproofed must be determined as follows:
  1. For lakes, by placing the lowest floor at a level at least three feet above the highest known water level, or three feet above the ordinary high-water level, whichever is higher;
  2. For rivers and streams, by placing the lowest floor at least three feet above the highest known flood elevation. If data are not available, by placing the lowest floor at least three feet above the ordinary high-water level, or by conducting a technical evaluation to determine effects of proposed construction upon flood stages and flood flows and to establish a flood protection elevation. Under all three approaches, technical evaluations must be done by a qualified engineer or hydrologist consistent with Minn. R. Pts. 6120.5000--6120.6200 governing the management of floodplain areas. If more than one approach is used, the highest flood protection elevation determined must be used for placing structures and other facilities; and
  3. If the structure is floodproofed instead of elevated under this subsection, then it must be floodproofed in accordance with Minn. R. Pt. 6120.5900, Subpt. 3(D).
4. Significant historic sites. No structure may be placed on a significant historic site in a manner that affects the values of the site unless adequate information about the site has been removed and documented in a public repository.
Water supply and sewage treatment.
1. Water supply. Any public or private supply of water for domestic purposes must meet or exceed standards for water quality of the Minnesota Department of Health and the Minnesota Pollution Control Agency.
2. Sewage treatment. Any premises used for human occupancy must be connected to a publicly-owned sewer system, where available or comply with Minn. R. Chs. 7080--7081.

Performance standards for public and private facilities.
1. Placement and design of roads, driveways, and parking areas. Public and private roads and parking areas must be designed to take advantage of natural vegetation and topography to achieve maximum screening as viewed from public waters and comply with the following standards:
  1. Roads, driveways, and parking areas must meet structure setbacks and must not be placed within bluff and shore impact zones, when other reasonable and feasible placement alternatives exist. If no alternatives exist, they may be placed within these areas, and must be designed to minimize adverse impacts;
  2. Watercraft access ramps, approach roads, and access-related parking areas may be placed within shore impact zones, provided the vegetative screening and erosion control conditions of this subsection are met;
  3. Private facilities must comply with the grading and filling provisions of Subsection (h)(3) of this section; and
  4. For public roads, driveways and parking areas, documentation must be provided by a qualified individual that they are designed and constructed to minimize and control erosion to public waters consistent with the field office technical guides of the local soil and water conservation district, or other applicable technical materials.
2. Stairways, lifts, and landings. Stairways and lifts are the preferred alternative to major topographic alterations for achieving access up and down bluffs and steep slopes to shore areas. Stairways, lifts, and landings must meet the following design requirements:
  1. Stairways and lifts must not exceed four feet in width on residential lots. Wider stairways may be used for commercial properties, public recreational uses, and Planned Unit Developments;
  2. Landings for stairways and lifts on residential lots must not exceed 32 square feet in area. Landings larger than 32 square feet may be used for commercial properties, public-space recreational uses, and Planned Unit Developments;
  3. Canopies or roofs are not allowed on stairways, lifts, or landings;
  4. Stairways, lifts, and landings may be either constructed above the ground on posts or pilings, or placed into the ground, provided they are designed and built in a manner that ensures control of soil erosion;
  5. Stairways, lifts, and landings must be located in the most visually inconspicuous portions of lots, as viewed from the surface of the public water, assuming summer, leaf-on conditions, whenever practical; and
  6. Facilities such as ramps, lifts, or mobility paths for physically disabled persons are also allowed for achieving access to shore areas, if they are consistent with the dimensional and performance standards of Subsections (g)(2)a through e of this section and the requirements of Minn. R. Ch. 1341.
3. Water-oriented accessory structures or facilities. Each residential lot may have one water-oriented accessory structure or facility if it complies with the following provisions:
  1. he structure or facility must not exceed ten feet in height, exclusive of safety rails, and cannot occupy an area greater than 250 square feet. The structure or facility may include detached decks not exceeding eight feet above grade at any point or at-grade patios;
  2. The structure or facility is not in the bluff impact zone;
  3. The setback of the structure or facility from the ordinary high-water level must be at least ten feet;
  4. The structure is not a boathouse or boat storage structure as defined under Minn. Stats. § 103G.245;
  5. The structure or facility must be treated to reduce visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks or color, assuming summer, leaf-on conditions;
  6. The roof may be used as an open-air deck with safety rails, but must not be enclosed with a roof or sidewalls or used as a storage area;
  7. The structure or facility must not be designed or used for human habitation and must not contain water supply or sewage treatment facilities;
  8. As an alternative for general development and recreational development waterbodies, water-oriented accessory structures used solely for storage of watercraft and boating-related equipment may occupy an area up to 400 square feet, provided the maximum width of the structure is 20 feet as measured parallel to the shoreline; and
  9. Water-oriented accessory structures may have the lowest floor placed lower than the elevation specified in Subsection (f)(4)c of this section if the structure is constructed of flood-resistant materials to the elevation, electrical and mechanical equipment is placed above the elevation and, if long duration flooding is anticipated, the structure is built to withstand ice action and wind-driven waves and debris.
Vegetation and land alterations.
1. Purpose. Alterations of vegetation and topography are regulated to prevent erosion into public waters, fix nutrients, preserve shoreland aesthetics, preserve historic values, prevent bank slumping, sustain water quality, and protect fish and wildlife habitat.
2. Vegetation management.
  1. Removal or alteration of vegetation must comply with the provisions of this section except for:
    1. Vegetation alteration necessary for the construction of structures and sewage treatment systems under validly issued permits for these facilities;
    2. The construction of public roads and parking areas if consistent with Subsection (g)(1) of this section;
    3. Forest management uses consistent with Subsection (e)(3) of this section; and
    4. Agricultural uses consistent with Subsection (e)(2) of this section.
  2. Intensive vegetation clearing in the shore and bluff impact zones and on steep slopes is prohibited. Intensive clearing outside of these areas is allowed if consistent with the forest management standards in Subsection (e)(3) of this section.
  3. Limited clearing and trimming of trees and shrubs in the shore and bluff impact zones and on steep slopes, is allowed to provide a view to the water from the principal dwelling and to accommodate the placement of stairways and landings, picnic areas, access paths, livestock watering areas, beach and watercraft access areas, and permitted water-oriented accessory structures or facilities, provided that:
    1. The screening of structures, vehicles, or other facilities as viewed from the water, assuming summer, leaf-on conditions, is not substantially reduced;
    2. Existing shading of water surfaces along rivers is preserved;
    3. Cutting debris or slash shall be scattered and not mounded on the ground;
    4. Perennial ground cover is retained; and
    5. Picnic areas, access paths, livestock watering areas, beaches and watercraft access areas are prohibited in bluff impact zones.
  4. Removal of trees, limbs, or branches that are dead, diseased, dying, or pose safety hazards is allowed without a permit.
  5. Fertilizer and pesticide runoff into surface waters must be minimized through use of vegetation, topography or both.
3. Grading and filling.
  1. Grading and filling activities must comply with the provisions of this section except for the construction of public roads and parking areas if consistent with Subsection (g)(1) of this section;
  2. Permit requirements.
    1. Grading, filling and excavations necessary for the construction of structures, sewage treatment systems, and driveways, if part of an approved permit, do not require a separate grading and filling permit. However, the standards in Subsection (h)(3)c of this section must be incorporated into the permit.
    2. For all other work, including driveways not part of another permit, a Grading and Filling Permit is required for:
      1. The movement of more than ten cubic yards of material on steep slopes or within shore or bluff impact zones; and
      2. The movement of more than 50 cubic yards of material outside of steep slopes and shore and bluff impact zones.
  3. Grading, filling and excavation activities must meet the following standards:
    1. Grading or filling of any wetland must meet or exceed the wetland protection standards under Minn. R. Ch. 8420 and any other permits, reviews, or approvals by other local, State, or Federal agencies such as watershed districts, the DNR or U.S. Army Corps of Engineers;
    2. Land alterations must be designed and implemented to minimize the amount of erosion and sediment from entering surface waters during and after construction consistently by:
      1. Limiting the amount and time of bare ground exposure;
      2. Using temporary ground covers such as mulches or similar materials;
      3. Establishing permanent vegetation cover as soon as possible;
      4. Using sediment traps, vegetated buffer strips or other appropriate techniques;
      5. Stabilizing altered areas to acceptable erosion control standards consistent with the field office technical guides of the soil and water conservation district;
      6. Not placing fill or excavated material in a manner that creates unstable slopes. Plans to place fill or excavated material on steep slopes must be reviewed by qualified professionals for continued slope stability and must not create finished slopes of 30 percent or greater;
      7. Fill or excavated material must not be placed in bluff impact zones;
      8. Any alterations below the ordinary high-water level of public waters must first be authorized by the commissioner under Minn. Stats. Ch. 103G;
      9. Alterations of topography are only allowed if they are accessory to permitted or conditional uses and do not adversely affect adjacent or nearby properties; and
      10. Placement of natural rock riprap, including associated grading of the shoreline and placement of a filter blanket, is permitted if:
        The finished slope does not exceed three feet horizontal to one foot vertical;
        The landward extent of the riprap is within ten feet of the ordinary high-water level; and
        The height of the riprap above the ordinary high-water level does not exceed three feet.
  4. Connections to public waters. Excavations to connect boat slips, canals, lagoons, and harbors to public waters require a Public Waters Permit and must comply with Minn. R. Ch. 6115.
4. Stormwater management.
  1. General standards.
    1. When possible, existing natural drainageways, and vegetated soil surfaces must be used to convey, store, filter, and retain stormwater runoff before discharge to public waters.
    2. Development must be planned and conducted in a manner that will minimize the extent of disturbed areas, runoff velocities, erosion potential, and reduce and delay runoff volumes. Disturbed areas must be stabilized as soon as possible and appropriate facilities or methods used to retain sediment on the site.
    3. When development density, topography, soils, and vegetation are not sufficient to adequately handle stormwater runoff, constructed facilities such as settling basins, skimming devices, dikes, waterways, ponds and infiltration may be used. Preference must be given to surface drainage, vegetation, and infiltration rather than buried pipes and manmade materials and facilities.
  2. Specific standards.
    1. Impervious surfaces of lots must not exceed 25 percent of the lot area.
    2. When constructed facilities are used for stormwater management, documentation must be provided by a qualified individual that they are designed and installed consistent with the field office technical guide of the local soil and water conservation district or the Minnesota Stormwater Manual, as applicable.
    3. New constructed stormwater outfalls to public waters must be consistent with Minn. R. Pt. 6115.0231.
Subdivision/platting provision.
1. Purpose. To ensure that new development minimizes impacts to shoreland resources and is safe and functional.
2. Land suitability. Each lot created through subdivision, including Planned Unit Developments authorized under Subsection (j) of this section, must be suitable in its natural state for the proposed use with minimal alteration A suitability analysis must be conducted for each proposed subdivision, including Planned Unit Developments, to determine if the subdivision is suitable in its natural state for the proposed use with minimal alteration and whether any feature of the land is likely to be harmful to the health, safety, or welfare of future residents of the proposed subdivision or of the community.
3. Consistency with other controls. Subdivisions and each lot in a subdivision shall meet all official controls so that a variance is not needed later to use the lots for their intended purpose.
4. Water and sewer design standards.
  1. A potable water supply and a sewage treatment system consistent with Minn. R. Chs. 7080--7081 must be provided for every lot.
  2. Each lot must include at least two soil treatment and dispersal areas that support systems described in Minn. R. Pts. 7080.2200--7080.223 or site conditions described in Minn. R. Pt. 7081.0270, Subpts. 3--7, as applicable.
  3. Lots that would require use of holding tanks are prohibited.
5. Information requirements.
  1. Topographic contours at ten-foot intervals or less from United States Geological Survey maps or more current sources, showing limiting site characteristics;
  2. The surface water features required in Minn. Stats. § 505.021, Subd. 1, to be shown on plats, obtained from United States Geological Survey quadrangle topographic maps or more current sources;
  3. Adequate soils information to determine suitability for building and sewage treatment capabilities for every lot from the most current existing sources or from field investigations such as soil borings, percolation tests, or other methods;
  4. Information regarding adequacy of domestic water supply; extent of anticipated vegetation and topographic alterations; near-shore aquatic conditions, including depths, types of bottom sediments, and aquatic vegetation; and proposed methods for controlling stormwater runoff and erosion, both during and after construction activities;
  5. Location of 100-year floodplain areas and floodway districts from existing adopted maps or data; and
  6. A line or contour representing the ordinary high-water level, the "toe" and the "top" of bluffs, and the minimum building setback distances from the top of the bluff and the lake or stream.
6. Dedications. When a land or easement dedication is a condition of subdivision approval, the approval must provide easements over natural drainage or ponding areas for management of stormwater and significant wetlands.
7. Platting. All subdivisions that cumulatively create five or more lots or parcels that are 2½ acres or less in size shall be processed as a plat in accordance with Minn. Stats. § 462.358, Subd. 3a, and Minn. Stats. Ch. 505. No permit for construction of buildings or sewage treatment systems shall be issued for lots created after the adoption of the ordinance from which this chapter is derived unless the lot was previously approved as part of a formal subdivision.
8. Controlled access lots. Controlled access lots within a subdivision must meet or exceed the lot size criteria in Subsection (f)(3)c of this section.

Planned Unit Developments (PUDs).

Purpose. To protect and enhance the natural and scenic qualities of shoreland areas during and after development and redevelopment of high density residential and commercial uses.
Types of PUDs permissible. Planned Unit Developments (PUDs) are allowed for new projects on undeveloped land, redevelopment of previously built sites, or conversions of existing buildings and land. Deviation from the minimum lot size standards of Subsection (f)(2) of this section is allowed if the standards in this section are met.
Processing of PUDs. Planned Unit Developments must be processed as a conditional use. An expansion to an existing commercial PUD involving six or less new dwelling units or sites since the date the ordinance from which this chapter is derived was adopted is permissible as a permitted use, provided the total project density does not exceed the allowable densities calculated in the project density evaluation procedures in Subsection (j)(5) of this section. Approval cannot occur until all applicable environmental reviews are complete.
Application for a PUD. The applicant for a PUD must submit the following documents prior to final action on the application request:
1. Site Plan and/or plat showing:
  1. Locations of property boundaries;
  2. Surface water features;
  3. Existing and proposed structures and other facilities;
  4. Land alterations;
  5. Sewage treatment and water supply systems (where public systems will not be provided);
  6. Topographic contours at ten-foot intervals or less; and
  7. Identification of buildings and portions of the project that are residential, commercial, or a combination of the two (if project combines commercial and residential elements).
2. A property owners association agreement (for residential PUDs) with mandatory membership, and consistent with Subsection (j)(6) of this section.
3. Deed restrictions, covenants, permanent easements or other instruments that:
  1. Address future vegetative and topographic alterations, construction of additional buildings, beaching of watercraft, and construction of commercial buildings in residential PUDs; and
  2. Ensure the long-term preservation and maintenance of open space in accordance with the criteria and analysis specified in Subsection (j)(6) of this section.
4. A Master Plan/Site Plan describing the project and showing floor plans for all commercial structures.
5. Additional documents necessary to explain how the PUD will be designed and will function.

Density determination. Proposed new or expansions to existing Planned Unit Developments must be evaluated using the following procedures.

Step 1. Identify density analysis tiers. Divide the project parcel into tiers by drawing one or more lines parallel to the ordinary high-water level at the following intervals, proceeding landward:

Classification Tier Depth
No Sewer (feet) Sewer (feet)
General Development Lakes--1st tier
200 200
General Development Lakes--all other tiers
267 200
Natural Environment Lakes
400 320
All Rivers 300 300
Step 2. Calculate suitable area for development. Calculate the suitable area within each tier by excluding all wetlands, bluffs, or land below the ordinary high-water level of public waters.

Step 3. Determine base density.

For residential PUDs, divide the suitable area within each tier by the minimum single residential lot area for lakes to determine the allowable number of dwelling units, or base density, for each tier. For rivers, if a minimum lot area is not specified, divide the tier width by the minimum single residential lot width.

For commercial PUDs:

Determine the average area for each dwelling unit or dwelling site within each tier. Include both existing and proposed dwelling units and sites in the calculation.
1. For dwelling units, determine the average inside living floor area of dwelling units in each tier. Do not include decks, patios, garages, or porches and basements, unless they are habitable space.
2. For dwelling sites (campgrounds), determine the area of each dwelling site as follows:
  1. For manufactured homes, use the area of the manufactured home, if known, otherwise use 1,000 square feet.
  2. For recreational vehicles, campers or tents, use 400 square feet.

Select the appropriate floor area/dwelling site area ratio from the following table for the floor area or dwelling site area determined in Subsection (j)(5)c.2.i of this section.

Inside Living Floor Area or Dwelling Site Area (square feet)	Floor Area/Dwelling Site Area Ratio
	General Development Lakes w/Sewer--All Tiers	General Development Lakes w/No Sewer--1st Tier	Urban Rivers	General Development Lakes w/No Sewer--All Other Tiers	Natural Environment Lakes
<200	0.040			0.020	0.010
300	0.048			0.024	0.012
400	0.056			0.028	0.014
500	0.065			0.032	0.016
600	0.072			0.038	0.019
700	0.082			0.042	0.021
800	0.091			0.046	0.023
900	0.099			0.050	0.025
1,000	0.108			0.054	0.027
1,100	0.116			0.058	0.029
1,200	0.125			0.064	0.032
1,300	0.133			0.068	0.034
1,400	0.142			0.072	0.036
>1,500	0.150			0.075	0.038

Multiply the suitable area within each tier determined in Subsection (j)(5)b of this section by the floor area or dwelling site area ratio to yield the total floor area or dwelling site area for each tier to be used for dwelling units or dwelling sites.
Divide the total floor area or dwelling site area for each tier calculated in Subsection (j)(5)c.2.iii of this section by the average inside living floor area for dwelling units or dwelling site area determined in Subsection (j)(5)c.2.i of this section. This yields the allowable number of dwelling units or dwelling sites, or base density, for each tier.

Allowable densities may be transferred from any tier to any other tier further from the waterbody, but must not be transferred to any tier closer to the waterbody.
All PUDs with densities at or below the base density must meet the design standards in Subsection (j)(6) of this section.

Step 4. Determine if the site can accommodate increased density.
1. The following increases to the dwelling unit or dwelling site base densities determined in Subsection (j)(5)c.2.iii of this section are allowed if the design criteria in Subsection (j)(6) of this section are satisfied as well as the standards in Subsection (j)(5)d.2 of this section:

  Shoreland Tier Maximum Density Increases Within Each Tier (percent)
  1st 500
  2nd 100
  3rd 200
  4th 200
  5th 200
2. Structure setbacks from the ordinary high-water level:
  1. Are increased to at least 50 percent greater than the minimum setback; or
  2. The impact on the waterbody is reduced an equivalent amount through vegetative management, topography, or additional acceptable means and the setback is at least 25 percent greater than the minimum setback.

Design criteria. All PUDs must meet the following design criteria.
1. General design standards.
  1. All residential Planned Unit Developments must contain at least five dwelling units or sites.
  2. On-site water supply and sewage treatment systems must be centralized and meet the standards in Subsection (f)(5) of this section. Sewage treatment systems must meet the setback standards of Subsection (f)(4)a.1 of this section.
  3. Dwelling units or dwelling sites must be clustered into one or more groups and located on suitable areas of the development.
  4. Dwelling units or dwelling sites must be designed and located to meet the dimensional standards in Subsections (f)(3) and (4) of this section.
  5. Shore recreation facilities:
    1. Must be centralized and located in areas suitable for them based on a suitability analysis.
    2. The number of spaces provided for continuous beaching, mooring, or docking of watercraft must not exceed one for each allowable dwelling unit or site in the first tier (notwithstanding existing mooring sites in an existing commercially used harbor).
    3. Launching ramp facilities, including a small dock for loading and unloading equipment, may be provided for use by occupants of dwelling units or sites located in other tiers.
  6. Structures, parking areas, and other facilities must be treated to reduce visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks, color, or other means acceptable to the local unit of government, assuming summer, leaf-on conditions. Vegetative and topographic screening must be preserved, if existing, or may be required to be provided.
  7. Accessory structures and facilities, except water oriented accessory structures, must meet the required structure setback and must be centralized.
  8. Water-oriented accessory structures and facilities may be allowed if they meet or exceed design standards contained in Subsection (g)(3) of this section and are centralized.
2. Open space requirements.
  1. Open space must constitute at least 50 percent of the total project area and must include:
    1. Areas with physical characteristics unsuitable for development in their natural state;
    2. Areas containing significant historic sites or unplatted cemeteries;
    3. Portions of the shore impact zone preserved in its natural or existing state as follows:
      1. For existing residential PUDs, at least 50 percent of the shore impact zone.
      2. For new residential PUDs, at least 70 percent of the shore impact zone.
      3. For all commercial PUDs, at least 50 percent of the shore impact zone.
  2. Open space may include:
    1. Outdoor recreational facilities for use by owners of dwelling units or sites, by guests staying in commercial dwelling units or sites, and by the general public;
    2. Subsurface sewage treatment systems if the use of the space is restricted to avoid adverse impacts on the systems; and
    3. Non-public water wetlands.
  3. Open space shall not include:
    1. Dwelling sites or lots, unless owned in common by an owner’s association;
    2. Dwelling units or structures, except water-oriented accessory structures or facilities;
    3. Road rights-of-way or land covered by road surfaces and parking areas;
    4. Land below the OHWL of public waters; and
    5. Commercial facilities or uses.
3. Open space maintenance and administration requirements.
  1. Open space preservation. The appearance of open space areas, including topography, vegetation, and allowable uses, must be preserved and maintained by use of deed restrictions, covenants, permanent easements, public dedication, or other equally effective and permanent means. The instruments must prohibit:
    1. Commercial uses (for residential PUDs);
    2. Vegetation and topographic alterations other than routine maintenance;
    3. Construction of additional buildings or storage of vehicles and other materials; and
    4. Uncontrolled beaching of watercraft.
  2. Development organization and functioning. Unless an equally effective alternative community framework is established, all residential Planned Unit Developments must use an owner’s association with the following features:
    1. Membership must be mandatory for each dwelling unit or dwelling site owner and any successive owner;
    2. Each member must pay a pro rata share of the association’s expenses, and unpaid assessments can become liens on units or dwelling sites;
    3. Assessments must be adjustable to accommodate changing conditions; and
    4. The association must be responsible for insurance, taxes, and maintenance of all commonly-owned property and facilities.
4. Erosion control and stormwater management.
  1. Erosion control plans must be developed and must be consistent with the provisions of Subsection (j)(6)c of this section. Erosion control plans approved by a soil and water conservation district may be required if project size and site physical characteristics warrant.
  2. Stormwater management facilities must be designed and constructed to manage expected quantities and qualities of stormwater runoff. For commercial PUDs, impervious surfaces within any tier must not exceed 25 percent of the tier area, except that 35 percent impervious surface coverage may be allowed in the first tier of general development lakes with an approved stormwater management plan and consistency with Subsection (j)(6) of this section.
Conversions. Local governments may allow existing resorts or other land uses and facilities to be converted to residential PUDs if all of the following standards are met:
1. Proposed conversions must be evaluated using the same procedures for residential PUDs involving new construction. Inconsistencies between existing features of the development and these standards must be identified;
2. Deficiencies involving water supply and sewage treatment, structure color, impervious coverage, open space, and shore recreation facilities must be corrected as part of the conversion or as specified in the conditional use permit;
3. Shore and bluff impact zone deficiencies must be evaluated and reasonable improvements made as part of the conversion. These improvements must include, where applicable, the following:
  1. Removal of extraneous buildings, docks, or other facilities that no longer need to be located in shore or bluff impact zones;
  2. Remedial measures to correct erosion, improve vegetative cover and improve screening of buildings and other facilities as viewed from the water; and
  3. Conditions attached to existing dwelling units located in shore or bluff impact zones that preclude exterior expansions in any dimension or substantial alterations. The conditions must also provide for future relocation of dwelling units, where feasible, to other locations, meeting all setback and elevation requirements when they are rebuilt or replaced.
4. Existing dwelling unit or dwelling site densities that exceed standards in Subsection (j)(5) of this section may be allowed to continue but must not be allowed to be increased, either at the time of conversion or in the future. Efforts must be made during the conversion to limit impacts of high densities by requiring seasonal use, improving vegetative screening, centralizing shore recreation facilities, installing new sewage treatment systems, or other means.

(Prior Code, § 10.700.0100; Ord. No.19-14, 11-6-2019)

HISTORY
Adopted by Ord. 21-10 on 10/6/2021

21-10

Pine City City Zoning Code

CHAPTER 13

88 SHORELAND ZONING

State law reference—Municipal shoreland management, Minn. Stats. § 103F.221.

13.88.010 Shorelands

Statutory authorization and policy.
1. Statutory authorization. This shoreland chapter is adopted pursuant to the authorization and policies contained in Minn. Stats. Ch. 103F, Minn. R. Pts. 6120.2500--6120.3900, and the planning and zoning enabling legislation in Minn. Stats. Ch. 462.
2. Policy. The Legislature of Minnesota has delegated responsibility to local governments of the State to regulate the subdivision, use and development of the shorelands of public waters and thus preserve and enhance the quality of surface waters, conserve the economic and natural environmental values of shorelands, and provide for the wise use of waters and related land resources. This responsibility is hereby recognized by the City of Pine City.
General provisions and definitions.
1. Jurisdiction. The provisions of this chapter apply to the shorelands of the public waterbodies as classified in Subsection (d) of this section. Pursuant to Minn. R. Pts. 6120.2500--6120.3900, no lake, pond, or flowage less than ten acres in size in municipalities or 25 acres in size in unincorporated areas need be regulated in a local government’s shoreland regulations. A body of water created by a private user where there was no previous shoreland may, at the discretion of the governing body, be exempt from this chapter.
2. Enforcement. The City of Pine City is responsible for the administration and enforcement of this chapter. Any violation of the provisions of this chapter or failure to comply with any of its requirements, including violations of conditions and safeguards established in connection with grants of variances or conditional uses constitutes a misdemeanor and is punishable as defined by law. Violations of this chapter can occur regardless of whether or not a permit is required for a regulated activity listed in Subsection (d)(2) of this section.
3. Abrogation and greater restrictions. It is not intended by this chapter to repeal, abrogate, or impair any existing easements, covenants, or deed restrictions. However, where this chapter imposes greater restrictions, the provisions of this chapter shall prevail. All other ordinances inconsistent with this chapter are hereby repealed to the extent of the inconsistency only.
Administration.
1. Purpose. The purpose of this section is to identify administrative provisions to ensure this chapter is administered consistent with its purpose.
2. Permits.
  1. A permit is required for the construction of buildings or building additions (including construction of decks and signs), the installation and/or alteration of sewage treatment systems, and those grading and filling activities not exempted by Subsection (h)(3) of this section.
  2. A Certificate of Compliance, consistent with Minn. R. Pt. 7082.0700, Subpt. 3, is required whenever a permit or variance of any type is required for any improvement on or use of the property. A sewage treatment system shall be considered compliant if the only deficiency is the system’s improper setback from the ordinary high-water level.
3. Application materials. Application for permits and other zoning applications such as variances shall be made to the Zoning Administrator on the forms provided. The application shall include the necessary information so that the Zoning Administrator can evaluate how the application complies with the provisions of this chapter.
4. Certificate of Zoning Compliance. The Zoning Administrator shall issue a Certificate of Zoning Compliance for each activity requiring a permit as specified in Subsection (d)(2) of this section. This Certificate will specify that the use of land conforms to the requirements of this chapter. Any use, arrangement, or construction at variance with that authorized by permit shall be deemed a violation of this chapter and shall be punishable as provided in PCC 13.08.100.
5. Variances. Variances may only be granted in accordance with Minn. Stats. § 462.357 and are subject to the following:
  1. A variance may not circumvent the general purposes and intent of this chapter; and
  2. For properties with existing sewage treatment systems, a Certificate of Compliance, consistent with Minn. R. Pt. 7082.0700, Subpt. 3, is required for variance approval. A sewage treatment system shall be considered compliant if the only deficiency is the system’s improper setback from the ordinary high-water level.
6. Conditional uses. All conditional uses in the shoreland area are subject to a thorough evaluation of the waterbody and the topographic, vegetation, and soil conditions to ensure:
  1. The prevention of soil erosion or other possible pollution of public waters, both during and after construction;
  2. The visibility of structures and other facilities as viewed from public waters is limited;
  3. There is adequate water supply and on-site sewage treatment; and
  4. The types, uses, and numbers of watercraft that the project will generate are compatible in relation to the suitability of public waters to safely accommodate these watercraft.
7. Mitigation.
  1. In evaluating all variances, conditional uses, Zoning and Building Permit applications, the zoning authority shall require the property owner to address the following conditions, when related to and proportional to the impact, to meet the purpose of this chapter, to protect adjacent properties, and the public interest:
    1. Advanced stormwater runoff management treatment;
    2. Reducing impervious surfaces;
    3. Increasing setbacks from the ordinary high-water level;
    4. Restoration of wetlands;
    5. Limiting vegetation removal and/or riparian vegetation restoration;
    6. Provisions for the location, design, and use of structures, sewage treatment systems, water supply systems, watercraft launching and docking areas, and parking areas; and
    7. Other conditions the zoning authority deems necessary.
  2. In evaluating plans to construct sewage treatment systems, roads, driveways, structures, or other improvements on steep slopes, conditions to prevent erosion and to preserve existing vegetation screening of structures, vehicles, and other facilities as viewed from the surface of public waters assuming summer, leaf-on vegetation, shall be attached to permits.
8. Nonconformities.
  1. All legally established nonconformities as of the date of this chapter may continue, but will be managed according to Minn. Stats. § 462.357, Subd. 1e and other regulations of this community for alterations and additions; repair after damage; discontinuance of use; and intensification of use.
  2. All additions or expansions to the outside dimensions of an existing nonconforming structure must meet the setback, height, and other requirements of Subsections (e) through (g) of this section. Any deviation from these requirements must be authorized by a variance.
9. Notifications to the Department of Natural Resources.
  1. All amendments to this shoreland chapter must be submitted to the Department of Natural Resources for review and approval for compliance with the statewide shoreland management rules. The City of Pine City will submit the proposed ordinance amendments to the commissioner or the commissioner’s designated representative at least 30 days before any scheduled public hearings.
  2. All notices of public hearings to consider variances, ordinance amendments, or conditional uses under shoreland management controls must be sent to the commissioner or the commissioner’s designated representative at least ten days before the hearings. Notices of hearings to consider proposed subdivisions/plats must include copies of the subdivision/plat.
  3. All approved ordinance amendments and subdivisions/plats, and final decisions approving variances or conditional uses under local shoreland management controls must be sent to the commissioner or the commissioner’s designated representative and postmarked within ten days of final action. When a variance is approved after the Department of Natural Resources has formally recommended denial in the hearing record, the notification of the approved variance shall also include the summary of the public record/testimony and the findings of facts and conclusions which supported the issuance of the variance.
  4. Any request to change the shoreland management classification of public waters within the City of Pine City must be sent to the commissioner or the commissioner’s designated representative for approval, and must include a resolution and supporting data as required by Minn. R. Pt. 6120.3000, Subpt. 4.
  5. Any request to reduce the boundaries of shorelands of public waters within the City of Pine City must be sent to the commissioner or the commissioner’s designated representative for approval and must include a resolution and supporting data. The boundaries of shorelands may be reduced when the shoreland of waterbodies with different classifications overlap. In these cases, the topographic divide between the waterbodies shall be used for adjusting the boundaries.
10. Mandatory EAW. An Environmental Assessment Worksheet consistent with Minn. R. Ch. 4410 must be prepared for projects meeting the thresholds of Minn. R. Pt. 4410.4300, Subpts. 19a, 20a, 25, 27, 28, 29, and 36a.

Shoreland classification system and land uses.

Shoreland classification system.
1. Purpose. To ensure that shoreland development on the public waters of the City of Pine City is regulated consistent with the classifications assigned by the commissioner under Minn. R. Pt. 6120.3300.
2. The shoreland area for the waterbodies listed in Subsection (d)(1)c though e of this section are defined in PCC 13.08.100 and are shown on the Official Zoning Map. For the purposes of this chapter, the boundary between Cross Lake and the Snake River shall be the first set of railroad tracks located just upstream of Cross Lake.
3. Lakes are classified as follows:

  Lake Classification DNR Public Waters I.D. #
  General Development
  Cross Lake 58-119 P
  Natural Environment
  Squaw Lake 58-146 W
  Devil's Lake 58-118 W
  Unnamed 58-120 W
  Kick Lake 58-165 W
4. Rivers and streams are classified as follows:

  River and Stream Classification
  Legal Description
  Urban
  Snake River Starting at the City limits of the City of Pine City in Section 32, flowing SE to the confluence of Cross Lake in Section 33.
5. All public rivers and streams shown on the Public Waters Inventory Map for Pine County, a copy of which is adopted by reference, not given a classification shall be considered a "tributary."

Land uses.

Purpose. To identify land uses that are compatible with the protection and preservation of shoreline resources in order to conserve the economic and environmental values of shoreland and sustain water quality.
Shoreland district land uses listed in Subsections (d)(2)c and d are regulated as:
1. Permitted uses (P). These uses are allowed, provided all standards in this chapter are followed;
2. Conditional uses (C). These uses are allowed through a conditional use permit. The use must be evaluated according to the criteria in Subsection (c)(6) of this section and any additional conditions listed in this chapter; and
3. Not permitted uses (N). These uses are prohibited.

Land uses for lake and river classifications:

Land Uses	General Development	Natural Environment	Urban River
Single residential	P	P	P
Duplex, triplex, quad residential	P	C	P
Residential PUD	C	C	C
Water-dependent commercial--As accessory to a residential Planned Unit Development	C	C	C
Commercial	P	C	P
Commercial PUD--Limited expansion of a commercial Planned Unit Development involving up to six additional dwelling units or sites may be allowed as a permitted use, provided the provisions of Subsection (j) of this section are satisfied.	C	C	C
Parks and historic sites	C	C	C
Public, semipublic	P	C	P
Industrial	C	N	C
Agricultural: cropland and pasture	P	P	P
Agricultural feedlots--New	N	N	N
Agricultural feedlots--Expansion or resumption of existing	C	C	C
Forest management	P	P	P
Forest land conversion	C	C	C
Extractive use	C	C	C
Mining of metallic minerals and peat	P	P	P

Special land use provisions.
1. Commercial, industrial, public, and semipublic use standards.
  1. Water-dependent uses may be located on parcels or lots with frontage on public waters, provided that:
    1. The use complies with provisions of Subsection (g) of this section;
    2. The use is designed to incorporate topographic and vegetative screening of parking areas and structures;
    3. Uses that require short-term watercraft mooring for patrons must centralize these facilities and design them to avoid obstructions of navigation and to be the minimum size necessary to meet the need; and
    4. Uses that depend on patrons arriving by watercraft may use signs and lighting, provided that:
      1. Signs placed in or on public waters must only convey directional information or safety messages and may only be placed by a public authority or under a permit issued by the county sheriff; and
      2. Signs placed within the shore impact zone are:
        No higher than ten feet above the ground, and no greater than 32 square feet in size; and
        If illuminated by artificial lights, the lights must be shielded or directed to prevent illumination across public waters; and
      3. Other lighting may be located within the shore impact zone or over public waters if it is used to illuminate potential safety hazards and is shielded or otherwise directed to prevent direct illumination across public waters. This does not preclude use of navigational lights.
  2. Commercial, industrial, public, and semi-public uses that are not water-dependent must be located on lots or parcels without public waters frontage or, if located on lots or parcels with public waters frontage, must either be set back double the ordinary high-water level setback or be substantially screened from view from the water by vegetation or topography, assuming summer, leaf-on conditions.
2. Agriculture use standards.
  1. Buffers.
    1. The shore impact zone for parcels with permitted agricultural land uses is equal to a line parallel to and 50 feet from the ordinary high-water level.
    2. General cultivation farming, grazing, nurseries, horticulture, truck farming, sod farming, and wild crop harvesting are permitted uses if steep slopes and shore and bluff impact zones are maintained in perennial vegetation or operated under an approved conservation plan consistent with the field office technical guides of the local soil and water conservation district or the Natural Resource Conservation Service, and as approved by the local soil and water conservation district.
  2. New animal feedlots are not allowed in shoreland. Modifications or expansions to existing feedlots or resumption of old feedlots are conditional uses and must meet the following standards:
    1. Feedlots must be designed consistent with Minn. R. Ch. 7020;
    2. Feedlots must not further encroach into the existing ordinary high-water level setback or the bluff impact zone and must not expand to a capacity of 1,000 animal units or more; and
    3. Old feedlots not currently in operation may resume operation consistent with Minn. Stats. § 116.0711.
3. Forest management standards.
  1. The harvesting of timber and associated reforestation must be conducted consistent with the applicable provisions of the Sustaining Minnesota Forest Resources: Voluntary Site-Level Forest Management Guidelines for Landowners, Loggers and Resource Managers.
  2. Intensive vegetation clearing for forest land conversion to another use is a conditional use subject to an erosion control and sedimentation plan developed and approved by the soil and water conservation district.
4. Extractive use standards. Extractive uses are conditional uses and must meet the following standards:
  1. Site development and restoration plan. A site development and restoration plan must be developed, approved, and followed over the course of operation. The plan must:
    1. Address dust, noise, possible pollutant discharges, hours and duration of operation, and anticipated vegetation and topographic alterations;
    2. Identify actions to be taken during operation to mitigate adverse environmental impacts, particularly erosion; and
    3. Clearly explain how the site will be rehabilitated after extractive activities end.
  2. Setbacks for processing machinery. Processing machinery must meet structure setback standards from ordinary high-water levels and from bluffs.
5. Metallic mining standards. Mining of metallic minerals and peat is a permitted use, provided the provisions of Minn. Stats. §§ 93.44--93.51, are satisfied.

Dimensional and general performance standards.

Purpose. To establish dimensional and performance standards that protect shoreland resources from impacts of development.

Only lands above the ordinary high-water level can be used to meet lot area and width standards;
Lot width standards must be met at both the ordinary high-water level and at the building line;
The sewer lot area dimensions can only be used if publicly owned sewer system service is available to the property;
Residential subdivisions with dwelling unit densities exceeding those in Subsections (f)(2)e and f of this section are allowed only if designed and approved as residential PUDs under Subsection (j) of this section; and

Lake minimum lot area and width standards:

General Development--No Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	20,000	100	40,000	150
Duplex	40,000	180	80,000	265
Triplex	60,000	260	120,000	375
Quad	80,000	340	160,000	490
General Development--Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	15,000	75	10,000	75
Duplex	26,000	135	17,500	135
Triplex	38,000	195	25,000	190
Quad	49,000	255	32,500	245
Natural Environment--No Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	80,000	200	80,000	200
Duplex	120,000	300	160,000	400
Triplex	160,000	400	240,000	600
Quad	200,000	500	320,000	800
Natural Environment--Sewer
	Riparian		Nonriparian
	Lot Area (square feet)	Lot Width (feet)	Lot Area (square feet)	Lot Width (feet)
Single	40,000	125	20,000	125
Duplex	70,000	225	35,000	220
Triplex	100,000	325	52,000	315
Quad	130,000	425	65,000	410

River/stream minimum lot width standards. There are no minimum lot area requirements for rivers and streams. The lot width standards in feet are:

Urban and Tributary
No Sewer Sewer
Single 100 75
Duplex 150 115
Triplex 200 150
Quad 250 190

Special residential lot provisions.
1. Subdivisions of duplexes, triplexes, and quads are conditional uses on Natural Environment Lakes and must also meet the following standards:
  1. Each building must be set back at least 200 feet from the ordinary high-water level;
  2. Each building must have common sewage treatment and water systems in one location and serve all dwelling units in the building;
  3. Watercraft docking facilities for each lot must be centralized in one location and serve all dwelling units in the building; and
  4. No more than 25 percent of a lake’s shoreline can be in duplex, triplex, or quad developments.
2. One guest cottage may be allowed on lots meeting or exceeding the duplex lot area and width dimensions presented in Subsections (f)(2)e and f of this section, provided the following standards are met:
  1. For lots exceeding the minimum lot dimensions of duplex lots, the guest cottage must be located within an area equal to the smallest duplex-sized lot that could be created including the principal dwelling unit;
  2. A guest cottage must not cover more than 700 square feet of land surface and must not exceed 15 feet in height; and
  3. A guest cottage must be located or designed to reduce its visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks or color, assuming summer leaf-on conditions.
3. Controlled access lots are permissible if created as part of a subdivision and in compliance with the following standards:
  1. The lot must meet the area and width requirements for residential lots, and be suitable for the intended uses of controlled access lots as provided in Subsection (d) of this section;
  2. If docking, mooring, or over-water storage of more than six watercraft is to be allowed at a controlled access lot, then the width of the lot (keeping the same lot depth) must be increased by a percentage of the requirements for riparian residential lots for each watercraft beyond six, consistent with the following table:

    Controlled Access Lot Frontage Requirements
    Ratio of Lake Size to Shore Length (Acres/Mile)
    Required Percent Increase in Frontage
    Less than 100 25%
    100--200 20%
    201--300 15%
    301--400 10%
    Greater than 400 5%
  3. The lot must be jointly owned by all purchasers of lots in the subdivision or by all purchasers of nonriparian lots in the subdivision who are provided riparian access rights on the access lot; and
  4. Covenants or other equally effective legal instruments must be developed that:
    1. Specify which lot owners have authority to use the access lot;
    2. Identify what activities are allowed. The activities may include watercraft launching, loading, storage, beaching, mooring, docking, swimming, sunbathing, or picnicking;
    3. Limit the total number of vehicles allowed to be parked and the total number of watercrafts allowed to be continuously moored, docked, or stored over water;
    4. Require centralization of all common facilities and activities in the most suitable locations on the lot to minimize topographic and vegetation alterations; and
    5. Require all parking areas, storage buildings, and other facilities to be screened by vegetation or topography as much as practical from view from the public water, assuming summer, leaf-on conditions.
Placement, height, and design of structures.
1. Placement of structures and sewage treatment systems on lots. When more than one setback applies to a site, structures and facilities must be located to meet all setbacks, and comply with the following OHWL setback provisions. The structure setback standards for sewered properties can only be used if publicly owned sewer system service is available.

  Classification Structures Sewage Treatment System
  No Sewer Sewer
  Lakes
  Natural Environment 150 150 150
  General Development 75 50 50
  Rivers and Streams
  Urban and Tributary 100 50 75
  1. OHWL setbacks. Structures, impervious surfaces, and sewage treatment systems must meet setbacks from the ordinary high-water level (OHWL), except that one water-oriented accessory structure or facility, designed in accordance with Subsection (g)(3) of this section, may be set back a minimum distance of ten feet from the OHWL;
  2. Setback averaging. Where structures exist on the adjoining lots on both sides of a proposed building site, structure setbacks may be altered without a variance to conform to the adjoining setbacks from the OHWL, provided the proposed structure is not located in a shore impact zone or in a bluff impact zone;
  3. Setbacks of decks. Deck additions may be allowed without a variance to a structure not meeting the required setback from the ordinary high-water level if all of the following criteria are met:
    1. The structure existed on the date the structure setbacks were established;
    2. A thorough evaluation of the property and structure reveals no reasonable location for a deck meeting or exceeding the existing ordinary high-water level setback of the structure;
    3. The deck encroachment toward the ordinary high-water level does not exceed 15 percent of the existing setback of the structure from the ordinary high-water level or is no closer than 30 feet from the OHWL, whichever is more restrictive; and
    4. The deck is constructed primarily of wood, and is not roofed or screened.
  4. Additional structure setbacks. Structures must also meet the following setbacks, regardless of the waterbody classification:

    Setback from: Setback (feet)
    Top of bluff 30
    Unplatted cemetery
    50
    Right-of-way line of Federal, State, or County highway
    50
    Right-of-way line of town road, public street, or other roads not classified
    20
  5. Bluff impact zones. Structures, impervious surfaces, and accessory facilities, except stairways and landings, must not be placed within bluff impact zones.
2. Height of structures. All structures in residential districts in cities, except churches and nonresidential agricultural structures, must not exceed 25 feet in height.
3. Lowest floor elevation. Structures must be placed in accordance with any floodplain regulations applicable to the site. Where these controls do not exist, the elevation to which the lowest floor, including basement, is placed or floodproofed must be determined as follows:
  1. For lakes, by placing the lowest floor at a level at least three feet above the highest known water level, or three feet above the ordinary high-water level, whichever is higher;
  2. For rivers and streams, by placing the lowest floor at least three feet above the highest known flood elevation. If data are not available, by placing the lowest floor at least three feet above the ordinary high-water level, or by conducting a technical evaluation to determine effects of proposed construction upon flood stages and flood flows and to establish a flood protection elevation. Under all three approaches, technical evaluations must be done by a qualified engineer or hydrologist consistent with Minn. R. Pts. 6120.5000--6120.6200 governing the management of floodplain areas. If more than one approach is used, the highest flood protection elevation determined must be used for placing structures and other facilities; and
  3. If the structure is floodproofed instead of elevated under this subsection, then it must be floodproofed in accordance with Minn. R. Pt. 6120.5900, Subpt. 3(D).
4. Significant historic sites. No structure may be placed on a significant historic site in a manner that affects the values of the site unless adequate information about the site has been removed and documented in a public repository.
Water supply and sewage treatment.
1. Water supply. Any public or private supply of water for domestic purposes must meet or exceed standards for water quality of the Minnesota Department of Health and the Minnesota Pollution Control Agency.
2. Sewage treatment. Any premises used for human occupancy must be connected to a publicly-owned sewer system, where available or comply with Minn. R. Chs. 7080--7081.

Performance standards for public and private facilities.
1. Placement and design of roads, driveways, and parking areas. Public and private roads and parking areas must be designed to take advantage of natural vegetation and topography to achieve maximum screening as viewed from public waters and comply with the following standards:
  1. Roads, driveways, and parking areas must meet structure setbacks and must not be placed within bluff and shore impact zones, when other reasonable and feasible placement alternatives exist. If no alternatives exist, they may be placed within these areas, and must be designed to minimize adverse impacts;
  2. Watercraft access ramps, approach roads, and access-related parking areas may be placed within shore impact zones, provided the vegetative screening and erosion control conditions of this subsection are met;
  3. Private facilities must comply with the grading and filling provisions of Subsection (h)(3) of this section; and
  4. For public roads, driveways and parking areas, documentation must be provided by a qualified individual that they are designed and constructed to minimize and control erosion to public waters consistent with the field office technical guides of the local soil and water conservation district, or other applicable technical materials.
2. Stairways, lifts, and landings. Stairways and lifts are the preferred alternative to major topographic alterations for achieving access up and down bluffs and steep slopes to shore areas. Stairways, lifts, and landings must meet the following design requirements:
  1. Stairways and lifts must not exceed four feet in width on residential lots. Wider stairways may be used for commercial properties, public recreational uses, and Planned Unit Developments;
  2. Landings for stairways and lifts on residential lots must not exceed 32 square feet in area. Landings larger than 32 square feet may be used for commercial properties, public-space recreational uses, and Planned Unit Developments;
  3. Canopies or roofs are not allowed on stairways, lifts, or landings;
  4. Stairways, lifts, and landings may be either constructed above the ground on posts or pilings, or placed into the ground, provided they are designed and built in a manner that ensures control of soil erosion;
  5. Stairways, lifts, and landings must be located in the most visually inconspicuous portions of lots, as viewed from the surface of the public water, assuming summer, leaf-on conditions, whenever practical; and
  6. Facilities such as ramps, lifts, or mobility paths for physically disabled persons are also allowed for achieving access to shore areas, if they are consistent with the dimensional and performance standards of Subsections (g)(2)a through e of this section and the requirements of Minn. R. Ch. 1341.
3. Water-oriented accessory structures or facilities. Each residential lot may have one water-oriented accessory structure or facility if it complies with the following provisions:
  1. he structure or facility must not exceed ten feet in height, exclusive of safety rails, and cannot occupy an area greater than 250 square feet. The structure or facility may include detached decks not exceeding eight feet above grade at any point or at-grade patios;
  2. The structure or facility is not in the bluff impact zone;
  3. The setback of the structure or facility from the ordinary high-water level must be at least ten feet;
  4. The structure is not a boathouse or boat storage structure as defined under Minn. Stats. § 103G.245;
  5. The structure or facility must be treated to reduce visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks or color, assuming summer, leaf-on conditions;
  6. The roof may be used as an open-air deck with safety rails, but must not be enclosed with a roof or sidewalls or used as a storage area;
  7. The structure or facility must not be designed or used for human habitation and must not contain water supply or sewage treatment facilities;
  8. As an alternative for general development and recreational development waterbodies, water-oriented accessory structures used solely for storage of watercraft and boating-related equipment may occupy an area up to 400 square feet, provided the maximum width of the structure is 20 feet as measured parallel to the shoreline; and
  9. Water-oriented accessory structures may have the lowest floor placed lower than the elevation specified in Subsection (f)(4)c of this section if the structure is constructed of flood-resistant materials to the elevation, electrical and mechanical equipment is placed above the elevation and, if long duration flooding is anticipated, the structure is built to withstand ice action and wind-driven waves and debris.
Vegetation and land alterations.
1. Purpose. Alterations of vegetation and topography are regulated to prevent erosion into public waters, fix nutrients, preserve shoreland aesthetics, preserve historic values, prevent bank slumping, sustain water quality, and protect fish and wildlife habitat.
2. Vegetation management.
  1. Removal or alteration of vegetation must comply with the provisions of this section except for:
    1. Vegetation alteration necessary for the construction of structures and sewage treatment systems under validly issued permits for these facilities;
    2. The construction of public roads and parking areas if consistent with Subsection (g)(1) of this section;
    3. Forest management uses consistent with Subsection (e)(3) of this section; and
    4. Agricultural uses consistent with Subsection (e)(2) of this section.
  2. Intensive vegetation clearing in the shore and bluff impact zones and on steep slopes is prohibited. Intensive clearing outside of these areas is allowed if consistent with the forest management standards in Subsection (e)(3) of this section.
  3. Limited clearing and trimming of trees and shrubs in the shore and bluff impact zones and on steep slopes, is allowed to provide a view to the water from the principal dwelling and to accommodate the placement of stairways and landings, picnic areas, access paths, livestock watering areas, beach and watercraft access areas, and permitted water-oriented accessory structures or facilities, provided that:
    1. The screening of structures, vehicles, or other facilities as viewed from the water, assuming summer, leaf-on conditions, is not substantially reduced;
    2. Existing shading of water surfaces along rivers is preserved;
    3. Cutting debris or slash shall be scattered and not mounded on the ground;
    4. Perennial ground cover is retained; and
    5. Picnic areas, access paths, livestock watering areas, beaches and watercraft access areas are prohibited in bluff impact zones.
  4. Removal of trees, limbs, or branches that are dead, diseased, dying, or pose safety hazards is allowed without a permit.
  5. Fertilizer and pesticide runoff into surface waters must be minimized through use of vegetation, topography or both.
3. Grading and filling.
  1. Grading and filling activities must comply with the provisions of this section except for the construction of public roads and parking areas if consistent with Subsection (g)(1) of this section;
  2. Permit requirements.
    1. Grading, filling and excavations necessary for the construction of structures, sewage treatment systems, and driveways, if part of an approved permit, do not require a separate grading and filling permit. However, the standards in Subsection (h)(3)c of this section must be incorporated into the permit.
    2. For all other work, including driveways not part of another permit, a Grading and Filling Permit is required for:
      1. The movement of more than ten cubic yards of material on steep slopes or within shore or bluff impact zones; and
      2. The movement of more than 50 cubic yards of material outside of steep slopes and shore and bluff impact zones.
  3. Grading, filling and excavation activities must meet the following standards:
    1. Grading or filling of any wetland must meet or exceed the wetland protection standards under Minn. R. Ch. 8420 and any other permits, reviews, or approvals by other local, State, or Federal agencies such as watershed districts, the DNR or U.S. Army Corps of Engineers;
    2. Land alterations must be designed and implemented to minimize the amount of erosion and sediment from entering surface waters during and after construction consistently by:
      1. Limiting the amount and time of bare ground exposure;
      2. Using temporary ground covers such as mulches or similar materials;
      3. Establishing permanent vegetation cover as soon as possible;
      4. Using sediment traps, vegetated buffer strips or other appropriate techniques;
      5. Stabilizing altered areas to acceptable erosion control standards consistent with the field office technical guides of the soil and water conservation district;
      6. Not placing fill or excavated material in a manner that creates unstable slopes. Plans to place fill or excavated material on steep slopes must be reviewed by qualified professionals for continued slope stability and must not create finished slopes of 30 percent or greater;
      7. Fill or excavated material must not be placed in bluff impact zones;
      8. Any alterations below the ordinary high-water level of public waters must first be authorized by the commissioner under Minn. Stats. Ch. 103G;
      9. Alterations of topography are only allowed if they are accessory to permitted or conditional uses and do not adversely affect adjacent or nearby properties; and
      10. Placement of natural rock riprap, including associated grading of the shoreline and placement of a filter blanket, is permitted if:
        The finished slope does not exceed three feet horizontal to one foot vertical;
        The landward extent of the riprap is within ten feet of the ordinary high-water level; and
        The height of the riprap above the ordinary high-water level does not exceed three feet.
  4. Connections to public waters. Excavations to connect boat slips, canals, lagoons, and harbors to public waters require a Public Waters Permit and must comply with Minn. R. Ch. 6115.
4. Stormwater management.
  1. General standards.
    1. When possible, existing natural drainageways, and vegetated soil surfaces must be used to convey, store, filter, and retain stormwater runoff before discharge to public waters.
    2. Development must be planned and conducted in a manner that will minimize the extent of disturbed areas, runoff velocities, erosion potential, and reduce and delay runoff volumes. Disturbed areas must be stabilized as soon as possible and appropriate facilities or methods used to retain sediment on the site.
    3. When development density, topography, soils, and vegetation are not sufficient to adequately handle stormwater runoff, constructed facilities such as settling basins, skimming devices, dikes, waterways, ponds and infiltration may be used. Preference must be given to surface drainage, vegetation, and infiltration rather than buried pipes and manmade materials and facilities.
  2. Specific standards.
    1. Impervious surfaces of lots must not exceed 25 percent of the lot area.
    2. When constructed facilities are used for stormwater management, documentation must be provided by a qualified individual that they are designed and installed consistent with the field office technical guide of the local soil and water conservation district or the Minnesota Stormwater Manual, as applicable.
    3. New constructed stormwater outfalls to public waters must be consistent with Minn. R. Pt. 6115.0231.
Subdivision/platting provision.
1. Purpose. To ensure that new development minimizes impacts to shoreland resources and is safe and functional.
2. Land suitability. Each lot created through subdivision, including Planned Unit Developments authorized under Subsection (j) of this section, must be suitable in its natural state for the proposed use with minimal alteration A suitability analysis must be conducted for each proposed subdivision, including Planned Unit Developments, to determine if the subdivision is suitable in its natural state for the proposed use with minimal alteration and whether any feature of the land is likely to be harmful to the health, safety, or welfare of future residents of the proposed subdivision or of the community.
3. Consistency with other controls. Subdivisions and each lot in a subdivision shall meet all official controls so that a variance is not needed later to use the lots for their intended purpose.
4. Water and sewer design standards.
  1. A potable water supply and a sewage treatment system consistent with Minn. R. Chs. 7080--7081 must be provided for every lot.
  2. Each lot must include at least two soil treatment and dispersal areas that support systems described in Minn. R. Pts. 7080.2200--7080.223 or site conditions described in Minn. R. Pt. 7081.0270, Subpts. 3--7, as applicable.
  3. Lots that would require use of holding tanks are prohibited.
5. Information requirements.
  1. Topographic contours at ten-foot intervals or less from United States Geological Survey maps or more current sources, showing limiting site characteristics;
  2. The surface water features required in Minn. Stats. § 505.021, Subd. 1, to be shown on plats, obtained from United States Geological Survey quadrangle topographic maps or more current sources;
  3. Adequate soils information to determine suitability for building and sewage treatment capabilities for every lot from the most current existing sources or from field investigations such as soil borings, percolation tests, or other methods;
  4. Information regarding adequacy of domestic water supply; extent of anticipated vegetation and topographic alterations; near-shore aquatic conditions, including depths, types of bottom sediments, and aquatic vegetation; and proposed methods for controlling stormwater runoff and erosion, both during and after construction activities;
  5. Location of 100-year floodplain areas and floodway districts from existing adopted maps or data; and
  6. A line or contour representing the ordinary high-water level, the "toe" and the "top" of bluffs, and the minimum building setback distances from the top of the bluff and the lake or stream.
6. Dedications. When a land or easement dedication is a condition of subdivision approval, the approval must provide easements over natural drainage or ponding areas for management of stormwater and significant wetlands.
7. Platting. All subdivisions that cumulatively create five or more lots or parcels that are 2½ acres or less in size shall be processed as a plat in accordance with Minn. Stats. § 462.358, Subd. 3a, and Minn. Stats. Ch. 505. No permit for construction of buildings or sewage treatment systems shall be issued for lots created after the adoption of the ordinance from which this chapter is derived unless the lot was previously approved as part of a formal subdivision.
8. Controlled access lots. Controlled access lots within a subdivision must meet or exceed the lot size criteria in Subsection (f)(3)c of this section.

Planned Unit Developments (PUDs).

Purpose. To protect and enhance the natural and scenic qualities of shoreland areas during and after development and redevelopment of high density residential and commercial uses.
Types of PUDs permissible. Planned Unit Developments (PUDs) are allowed for new projects on undeveloped land, redevelopment of previously built sites, or conversions of existing buildings and land. Deviation from the minimum lot size standards of Subsection (f)(2) of this section is allowed if the standards in this section are met.
Processing of PUDs. Planned Unit Developments must be processed as a conditional use. An expansion to an existing commercial PUD involving six or less new dwelling units or sites since the date the ordinance from which this chapter is derived was adopted is permissible as a permitted use, provided the total project density does not exceed the allowable densities calculated in the project density evaluation procedures in Subsection (j)(5) of this section. Approval cannot occur until all applicable environmental reviews are complete.
Application for a PUD. The applicant for a PUD must submit the following documents prior to final action on the application request:
1. Site Plan and/or plat showing:
  1. Locations of property boundaries;
  2. Surface water features;
  3. Existing and proposed structures and other facilities;
  4. Land alterations;
  5. Sewage treatment and water supply systems (where public systems will not be provided);
  6. Topographic contours at ten-foot intervals or less; and
  7. Identification of buildings and portions of the project that are residential, commercial, or a combination of the two (if project combines commercial and residential elements).
2. A property owners association agreement (for residential PUDs) with mandatory membership, and consistent with Subsection (j)(6) of this section.
3. Deed restrictions, covenants, permanent easements or other instruments that:
  1. Address future vegetative and topographic alterations, construction of additional buildings, beaching of watercraft, and construction of commercial buildings in residential PUDs; and
  2. Ensure the long-term preservation and maintenance of open space in accordance with the criteria and analysis specified in Subsection (j)(6) of this section.
4. A Master Plan/Site Plan describing the project and showing floor plans for all commercial structures.
5. Additional documents necessary to explain how the PUD will be designed and will function.

Density determination. Proposed new or expansions to existing Planned Unit Developments must be evaluated using the following procedures.

Step 1. Identify density analysis tiers. Divide the project parcel into tiers by drawing one or more lines parallel to the ordinary high-water level at the following intervals, proceeding landward:

Classification Tier Depth
No Sewer (feet) Sewer (feet)
General Development Lakes--1st tier
200 200
General Development Lakes--all other tiers
267 200
Natural Environment Lakes
400 320
All Rivers 300 300
Step 2. Calculate suitable area for development. Calculate the suitable area within each tier by excluding all wetlands, bluffs, or land below the ordinary high-water level of public waters.

Step 3. Determine base density.

For residential PUDs, divide the suitable area within each tier by the minimum single residential lot area for lakes to determine the allowable number of dwelling units, or base density, for each tier. For rivers, if a minimum lot area is not specified, divide the tier width by the minimum single residential lot width.

For commercial PUDs:

Determine the average area for each dwelling unit or dwelling site within each tier. Include both existing and proposed dwelling units and sites in the calculation.
1. For dwelling units, determine the average inside living floor area of dwelling units in each tier. Do not include decks, patios, garages, or porches and basements, unless they are habitable space.
2. For dwelling sites (campgrounds), determine the area of each dwelling site as follows:
  1. For manufactured homes, use the area of the manufactured home, if known, otherwise use 1,000 square feet.
  2. For recreational vehicles, campers or tents, use 400 square feet.

Select the appropriate floor area/dwelling site area ratio from the following table for the floor area or dwelling site area determined in Subsection (j)(5)c.2.i of this section.

Inside Living Floor Area or Dwelling Site Area (square feet)	Floor Area/Dwelling Site Area Ratio
	General Development Lakes w/Sewer--All Tiers	General Development Lakes w/No Sewer--1st Tier	Urban Rivers	General Development Lakes w/No Sewer--All Other Tiers	Natural Environment Lakes
<200	0.040			0.020	0.010
300	0.048			0.024	0.012
400	0.056			0.028	0.014
500	0.065			0.032	0.016
600	0.072			0.038	0.019
700	0.082			0.042	0.021
800	0.091			0.046	0.023
900	0.099			0.050	0.025
1,000	0.108			0.054	0.027
1,100	0.116			0.058	0.029
1,200	0.125			0.064	0.032
1,300	0.133			0.068	0.034
1,400	0.142			0.072	0.036
>1,500	0.150			0.075	0.038

Multiply the suitable area within each tier determined in Subsection (j)(5)b of this section by the floor area or dwelling site area ratio to yield the total floor area or dwelling site area for each tier to be used for dwelling units or dwelling sites.
Divide the total floor area or dwelling site area for each tier calculated in Subsection (j)(5)c.2.iii of this section by the average inside living floor area for dwelling units or dwelling site area determined in Subsection (j)(5)c.2.i of this section. This yields the allowable number of dwelling units or dwelling sites, or base density, for each tier.

Allowable densities may be transferred from any tier to any other tier further from the waterbody, but must not be transferred to any tier closer to the waterbody.
All PUDs with densities at or below the base density must meet the design standards in Subsection (j)(6) of this section.

Step 4. Determine if the site can accommodate increased density.
1. The following increases to the dwelling unit or dwelling site base densities determined in Subsection (j)(5)c.2.iii of this section are allowed if the design criteria in Subsection (j)(6) of this section are satisfied as well as the standards in Subsection (j)(5)d.2 of this section:

  Shoreland Tier Maximum Density Increases Within Each Tier (percent)
  1st 500
  2nd 100
  3rd 200
  4th 200
  5th 200
2. Structure setbacks from the ordinary high-water level:
  1. Are increased to at least 50 percent greater than the minimum setback; or
  2. The impact on the waterbody is reduced an equivalent amount through vegetative management, topography, or additional acceptable means and the setback is at least 25 percent greater than the minimum setback.

Design criteria. All PUDs must meet the following design criteria.
1. General design standards.
  1. All residential Planned Unit Developments must contain at least five dwelling units or sites.
  2. On-site water supply and sewage treatment systems must be centralized and meet the standards in Subsection (f)(5) of this section. Sewage treatment systems must meet the setback standards of Subsection (f)(4)a.1 of this section.
  3. Dwelling units or dwelling sites must be clustered into one or more groups and located on suitable areas of the development.
  4. Dwelling units or dwelling sites must be designed and located to meet the dimensional standards in Subsections (f)(3) and (4) of this section.
  5. Shore recreation facilities:
    1. Must be centralized and located in areas suitable for them based on a suitability analysis.
    2. The number of spaces provided for continuous beaching, mooring, or docking of watercraft must not exceed one for each allowable dwelling unit or site in the first tier (notwithstanding existing mooring sites in an existing commercially used harbor).
    3. Launching ramp facilities, including a small dock for loading and unloading equipment, may be provided for use by occupants of dwelling units or sites located in other tiers.
  6. Structures, parking areas, and other facilities must be treated to reduce visibility as viewed from public waters and adjacent shorelands by vegetation, topography, increased setbacks, color, or other means acceptable to the local unit of government, assuming summer, leaf-on conditions. Vegetative and topographic screening must be preserved, if existing, or may be required to be provided.
  7. Accessory structures and facilities, except water oriented accessory structures, must meet the required structure setback and must be centralized.
  8. Water-oriented accessory structures and facilities may be allowed if they meet or exceed design standards contained in Subsection (g)(3) of this section and are centralized.
2. Open space requirements.
  1. Open space must constitute at least 50 percent of the total project area and must include:
    1. Areas with physical characteristics unsuitable for development in their natural state;
    2. Areas containing significant historic sites or unplatted cemeteries;
    3. Portions of the shore impact zone preserved in its natural or existing state as follows:
      1. For existing residential PUDs, at least 50 percent of the shore impact zone.
      2. For new residential PUDs, at least 70 percent of the shore impact zone.
      3. For all commercial PUDs, at least 50 percent of the shore impact zone.
  2. Open space may include:
    1. Outdoor recreational facilities for use by owners of dwelling units or sites, by guests staying in commercial dwelling units or sites, and by the general public;
    2. Subsurface sewage treatment systems if the use of the space is restricted to avoid adverse impacts on the systems; and
    3. Non-public water wetlands.
  3. Open space shall not include:
    1. Dwelling sites or lots, unless owned in common by an owner’s association;
    2. Dwelling units or structures, except water-oriented accessory structures or facilities;
    3. Road rights-of-way or land covered by road surfaces and parking areas;
    4. Land below the OHWL of public waters; and
    5. Commercial facilities or uses.
3. Open space maintenance and administration requirements.
  1. Open space preservation. The appearance of open space areas, including topography, vegetation, and allowable uses, must be preserved and maintained by use of deed restrictions, covenants, permanent easements, public dedication, or other equally effective and permanent means. The instruments must prohibit:
    1. Commercial uses (for residential PUDs);
    2. Vegetation and topographic alterations other than routine maintenance;
    3. Construction of additional buildings or storage of vehicles and other materials; and
    4. Uncontrolled beaching of watercraft.
  2. Development organization and functioning. Unless an equally effective alternative community framework is established, all residential Planned Unit Developments must use an owner’s association with the following features:
    1. Membership must be mandatory for each dwelling unit or dwelling site owner and any successive owner;
    2. Each member must pay a pro rata share of the association’s expenses, and unpaid assessments can become liens on units or dwelling sites;
    3. Assessments must be adjustable to accommodate changing conditions; and
    4. The association must be responsible for insurance, taxes, and maintenance of all commonly-owned property and facilities.
4. Erosion control and stormwater management.
  1. Erosion control plans must be developed and must be consistent with the provisions of Subsection (j)(6)c of this section. Erosion control plans approved by a soil and water conservation district may be required if project size and site physical characteristics warrant.
  2. Stormwater management facilities must be designed and constructed to manage expected quantities and qualities of stormwater runoff. For commercial PUDs, impervious surfaces within any tier must not exceed 25 percent of the tier area, except that 35 percent impervious surface coverage may be allowed in the first tier of general development lakes with an approved stormwater management plan and consistency with Subsection (j)(6) of this section.
Conversions. Local governments may allow existing resorts or other land uses and facilities to be converted to residential PUDs if all of the following standards are met:
1. Proposed conversions must be evaluated using the same procedures for residential PUDs involving new construction. Inconsistencies between existing features of the development and these standards must be identified;
2. Deficiencies involving water supply and sewage treatment, structure color, impervious coverage, open space, and shore recreation facilities must be corrected as part of the conversion or as specified in the conditional use permit;
3. Shore and bluff impact zone deficiencies must be evaluated and reasonable improvements made as part of the conversion. These improvements must include, where applicable, the following:
  1. Removal of extraneous buildings, docks, or other facilities that no longer need to be located in shore or bluff impact zones;
  2. Remedial measures to correct erosion, improve vegetative cover and improve screening of buildings and other facilities as viewed from the water; and
  3. Conditions attached to existing dwelling units located in shore or bluff impact zones that preclude exterior expansions in any dimension or substantial alterations. The conditions must also provide for future relocation of dwelling units, where feasible, to other locations, meeting all setback and elevation requirements when they are rebuilt or replaced.
4. Existing dwelling unit or dwelling site densities that exceed standards in Subsection (j)(5) of this section may be allowed to continue but must not be allowed to be increased, either at the time of conversion or in the future. Efforts must be made during the conversion to limit impacts of high densities by requiring seasonal use, improving vegetative screening, centralizing shore recreation facilities, installing new sewage treatment systems, or other means.

(Prior Code, § 10.700.0100; Ord. No.19-14, 11-6-2019)

HISTORY
Adopted by Ord. 21-10 on 10/6/2021

Lake Classification	DNR Public Waters I.D. #
General Development
Cross Lake	58-119 P
Natural Environment
Squaw Lake	58-146 W
Devil's Lake	58-118 W
Unnamed	58-120 W
Kick Lake	58-165 W

River and Stream Classification	Legal Description
Urban
Snake River	Starting at the City limits of the City of Pine City in Section 32, flowing SE to the confluence of Cross Lake in Section 33.

	Urban and Tributary
	No Sewer	Sewer
Single	100	75
Duplex	150	115
Triplex	200	150
Quad	250	190

Controlled Access Lot Frontage Requirements
Ratio of Lake Size to Shore Length (Acres/Mile)	Required Percent Increase in Frontage
Less than 100	25%
100--200	20%
201--300	15%
301--400	10%
Greater than 400	5%

Classification	Structures		Sewage Treatment System
Classification	No Sewer	Sewer	Sewage Treatment System
Lakes
Natural Environment	150	150	150
General Development	75	50	50
Rivers and Streams
Urban and Tributary	100	50	75

Setback from:	Setback (feet)
Top of bluff	30
Unplatted cemetery	50
Right-of-way line of Federal, State, or County highway	50
Right-of-way line of town road, public street, or other roads not classified	20

Classification	Tier Depth
Classification	No Sewer (feet)	Sewer (feet)
General Development Lakes--1st tier	200	200
General Development Lakes--all other tiers	267	200
Natural Environment Lakes	400	320
All Rivers	300	300

Shoreland Tier	Maximum Density Increases Within Each Tier (percent)
1st	500
2nd	100
3rd	200
4th	200
5th	200
