The following graphic diagram depicts the requirements of this Section. The diagram is designed as a guide and shall not replace the other provisions of this Section. Where there is a discrepancy or conflict between the diagram and the other provisions of this Section, the other provisions of this Ordinance shall prevail.

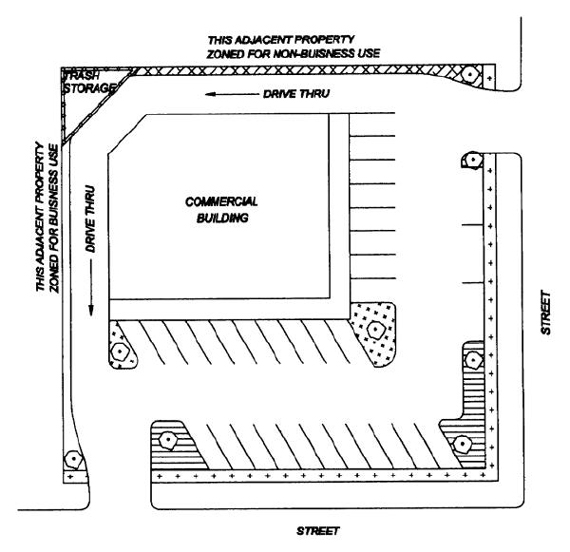

GRAPHIC APPLICATION OF LANDSCAPING REQUIREMENTS

Requirements of Section 7.920 Keyed To Diagram:

Landscaping Adjacent to Public Right-of Way.

Minimum of 5 ft. wide strip adjacent to Right-of-Way boundary with a hedge wall or other durable landscape barrier of at least 2 ft. height, plus one (1) tree per each 50 ft. of street frontage.

All other areas between Right-of-Way and off-street vehicular use area shall be grass or ground cover.

Perimeter Landscaping Related to Abutting Properties.

A hedge or fence per specifications is required when abutting property is zoned for non-business use, and one (1) tree per 75 LF required.

A hedge or fence is not required when abutting property is zoned for business use, but one (1) tree per 125 LF required.

Parking Area Interior Landscaping.

10 sq. ft. per each interior parking space: 10 x 18 = 180 SF.

Other vehicular use area (20,000 total paved area) - (32 spaces x 400) = 8,000 less exclusion (5,000SF) = 3,000 SF ;div; 100 = 30 SF >> 180 SF + 30 SF = 210 SF Total.

Minimum landscaped area of 50 sq. ft. with one (1) tree.

Minimum number of trees = 1 per 100 sq. ft. of interior area (210 ;div; 100 = 2 Trees).
